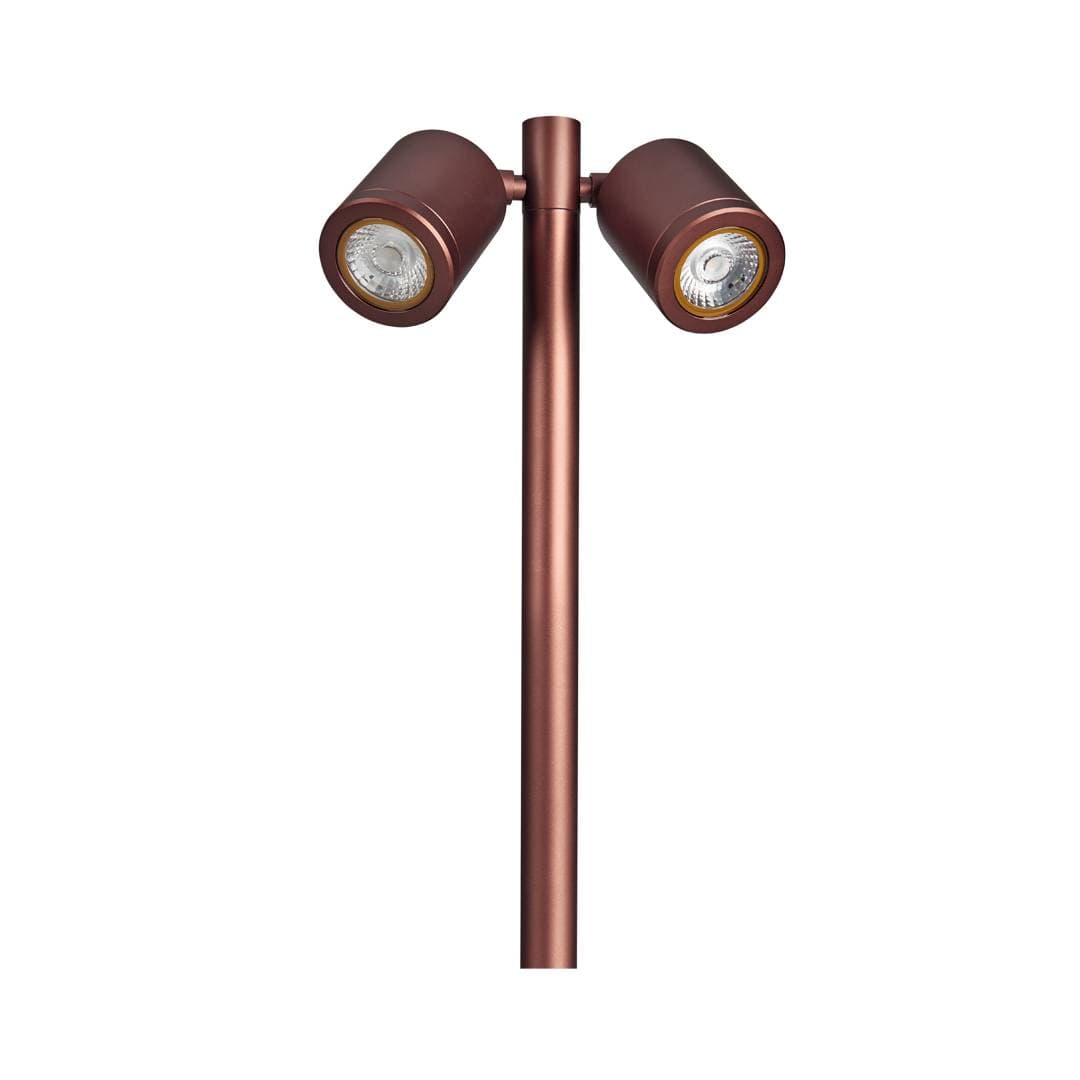

SL230

Sleek and contemporary, these twin pole spike lights offer a great new and practical way to illuminate your landscape with interesting and discreet lighting angles.Featuring two SL220 spike light luminaires with one leader cable, you can direct light up or down via rotatable heads, for perfect illumination of pathways, features and trees.Features include IP65 rating for outdoor use, efficacy of 144lm/W, tiltable up to 90 degree and rotatable up to 330 degree. There are also straight to mains and low voltage options, three colour temperatures to choose from and a bronze finish version. A seven-year warranty is also available.Upgrade the look and feel of your spike light with a simple low glare hood or snoot, for optimum light distribution, or calming moonlight effect.

  • 4.4W at 350mA or 9.2W at 700mA
  • Coastal Protected
  • IP65 ideal for outdoor areas
  • Adjustable pole-mounted twin heads are perfect for illuminating paths, steps and trees
  • Easily ground mounted with spiked pole and single cable for quick installation
  • Elegant and discreet black and bronze finishes
  • Highly efficiency of 114lm/W
  • Discreet cabling
  • Additional accessories also available such as hoods and snoots
CEGuarantee 7yrIndoor and OutdoorMSA Floor surface mounting onlyCRI 80Beam Angle 40 DownIP65Class IIINon Replaceable Light Source
SL230
SL230 image 1

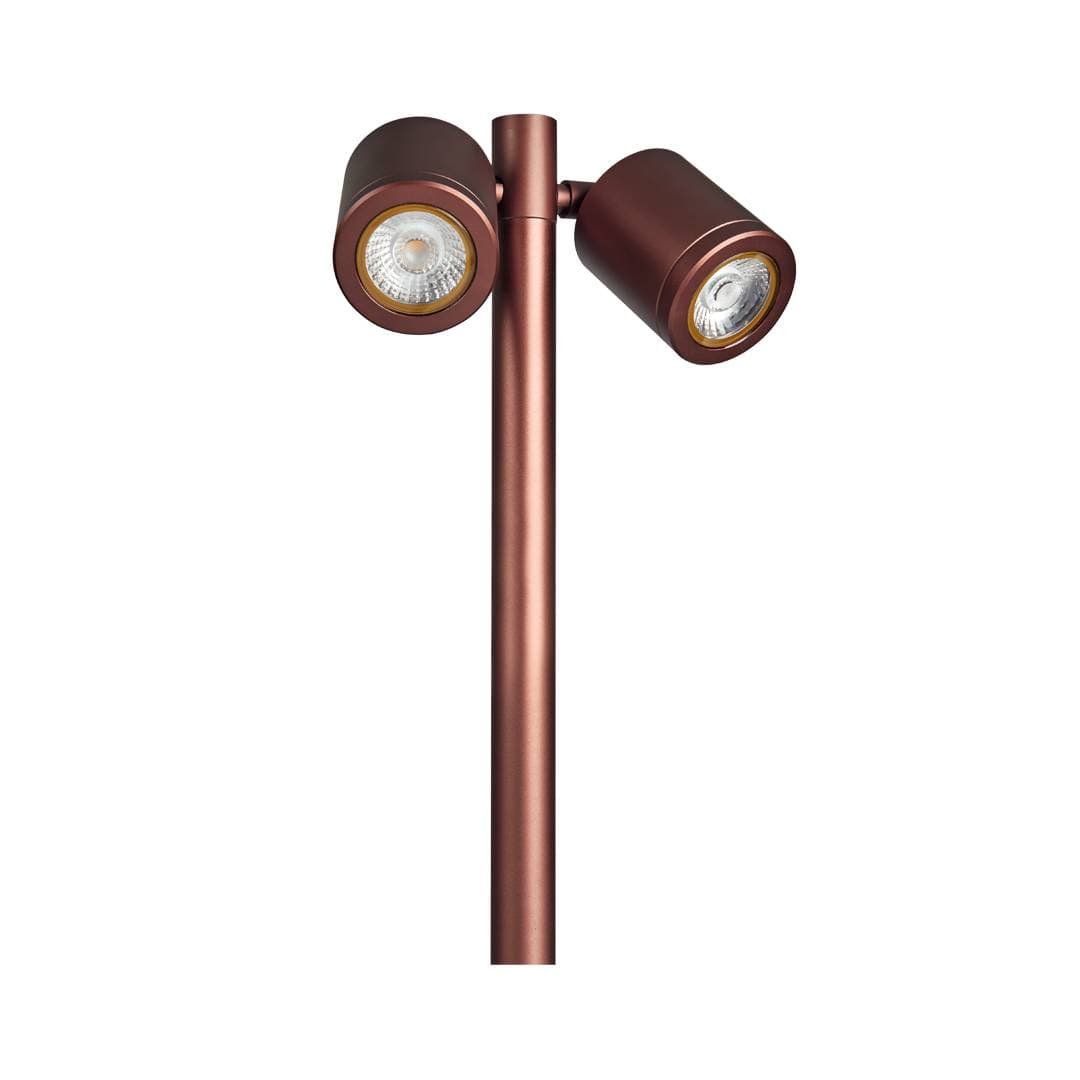

SL230 image 2
SL230 image 3

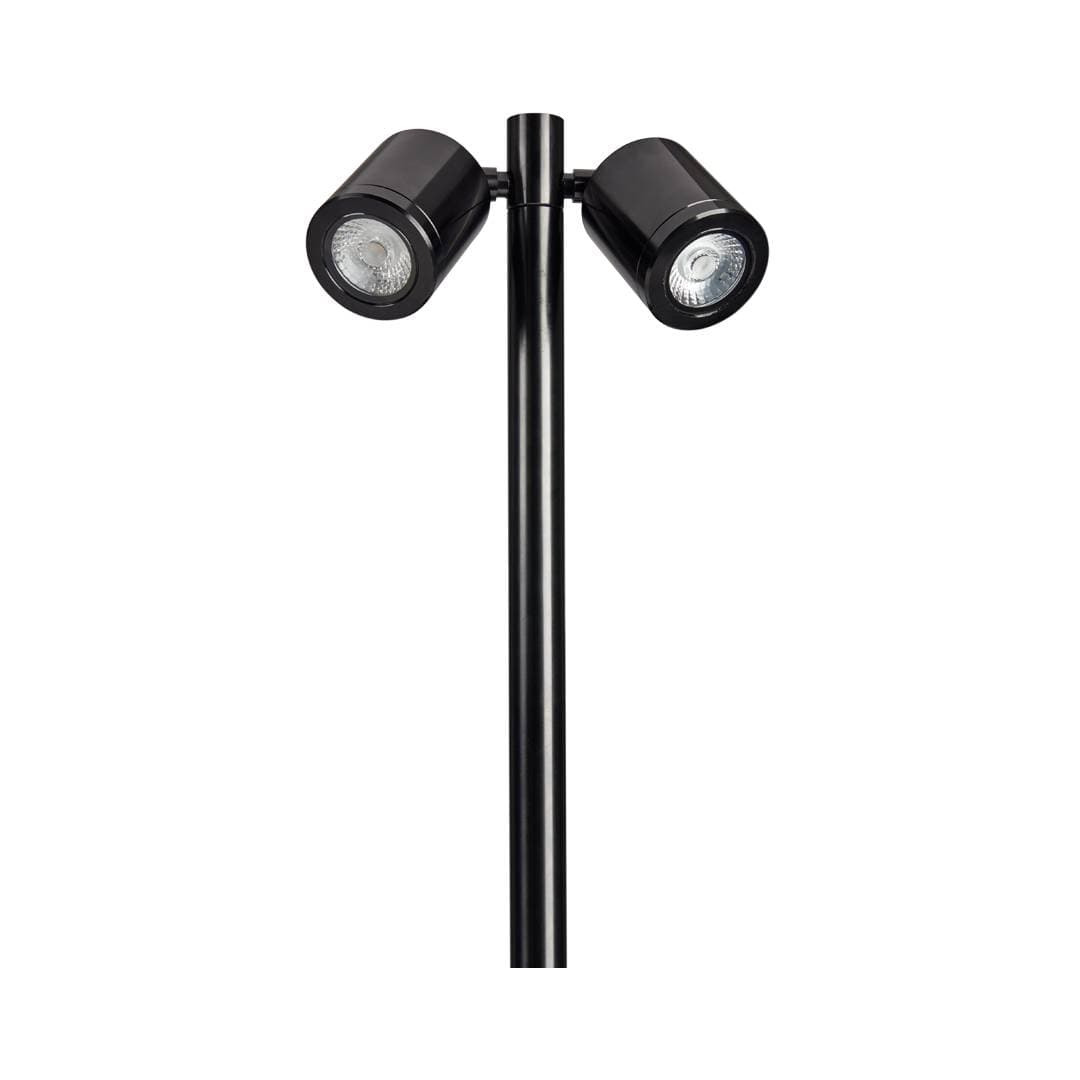

SL230 image 4

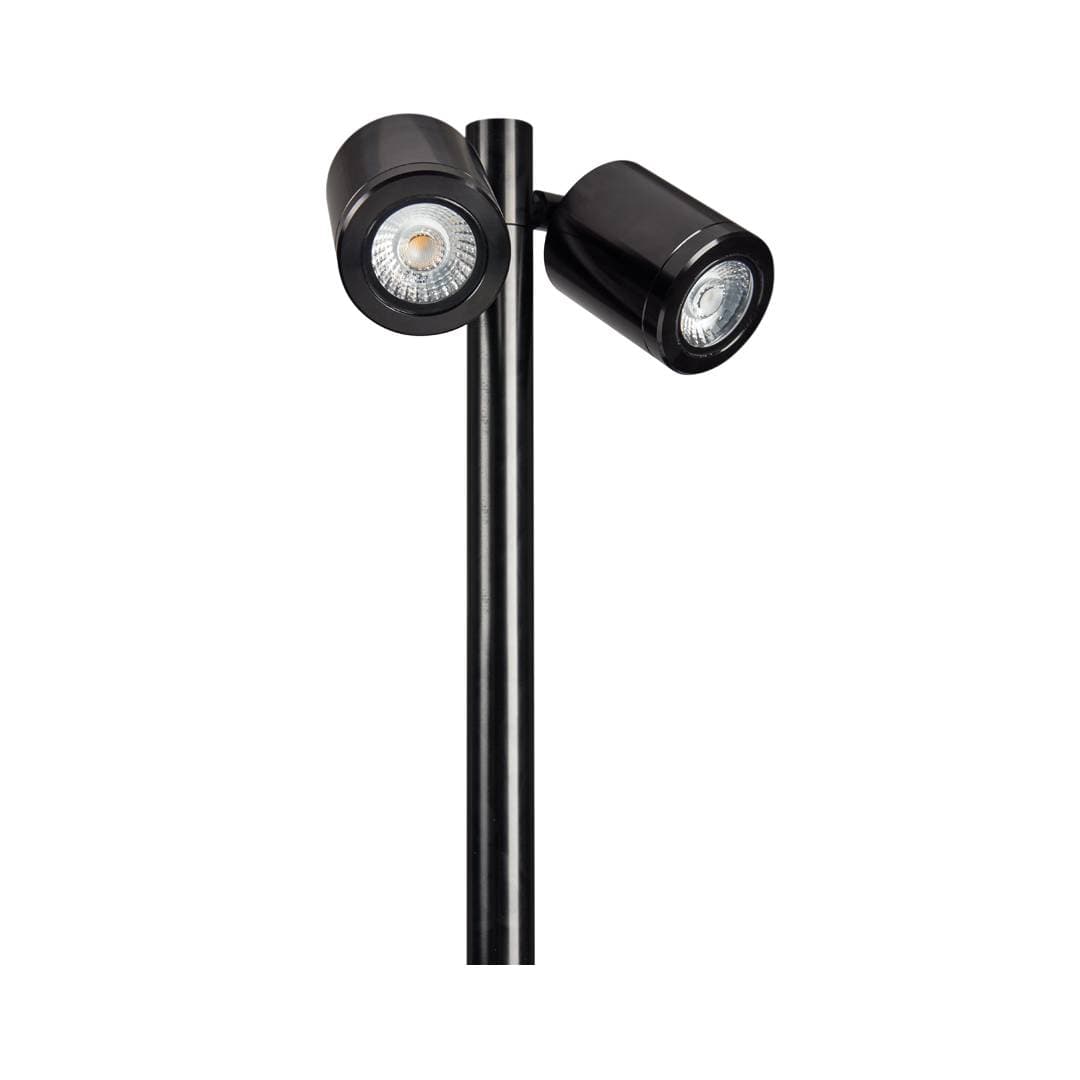

SL230 image 5
SL230 image 6

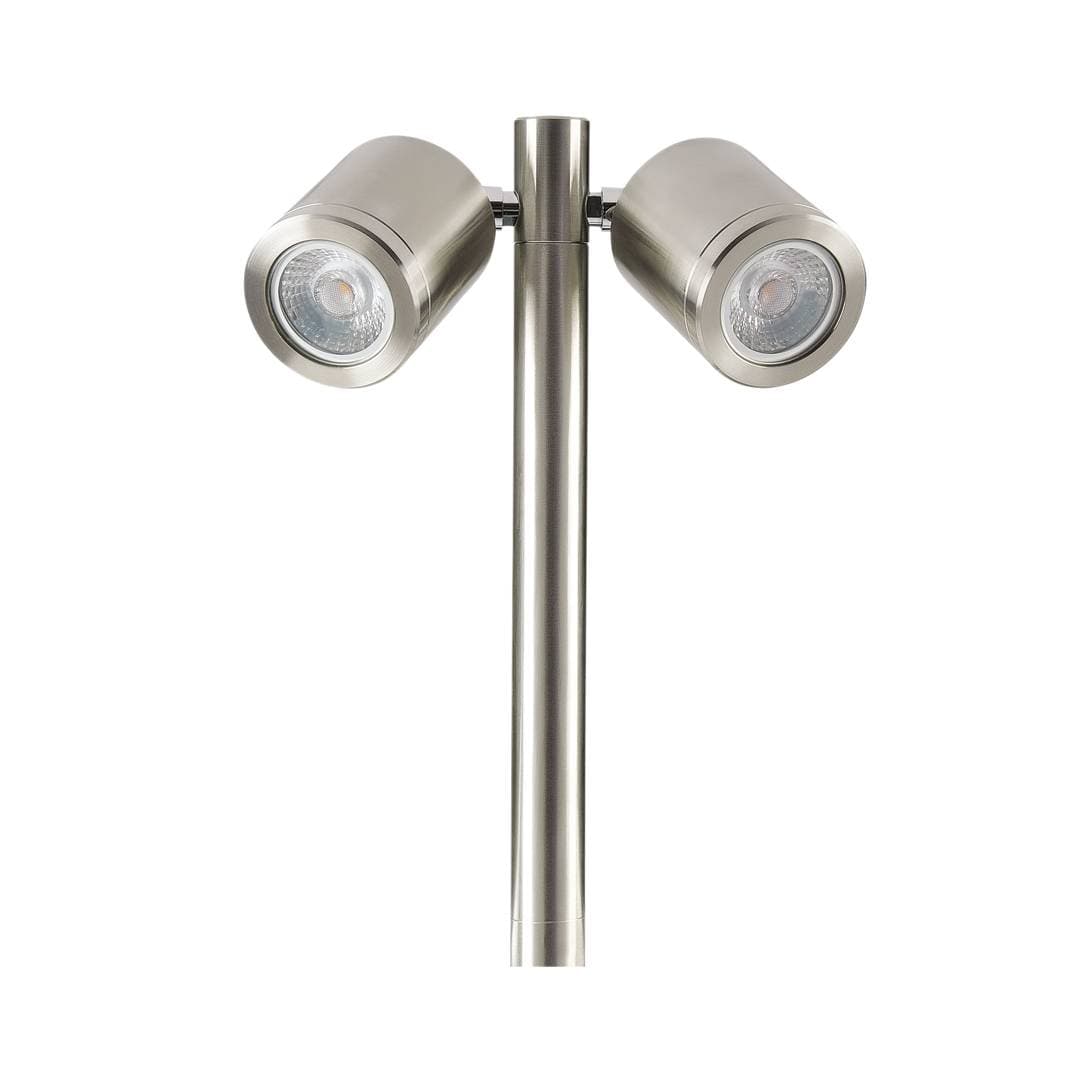

SL230 image 7

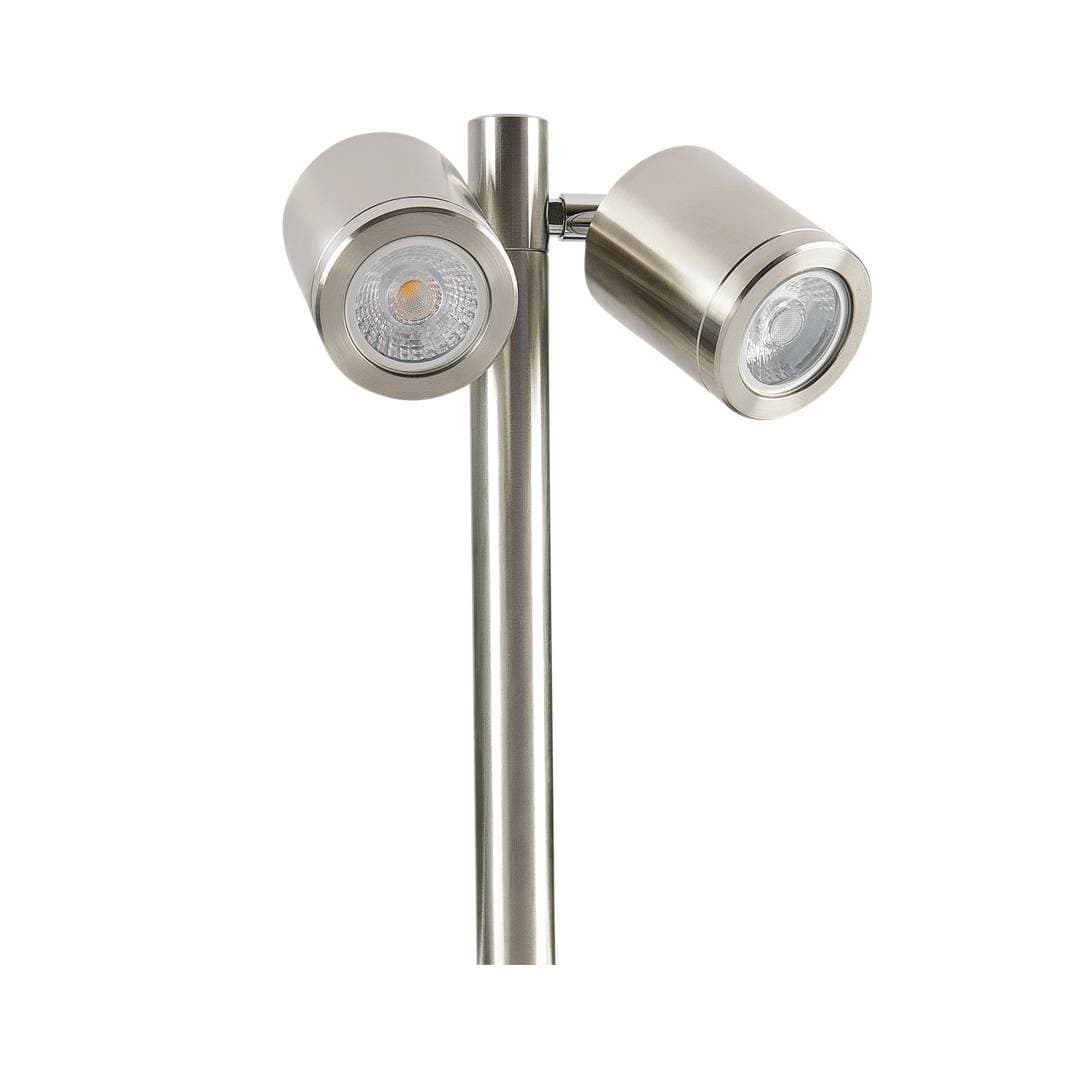

SL230 image 8
SL230 image 9
SL230 image 10
SL230 image 11
SL230 image 12
SL230 - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRIDimmable OptionIP RatingLengthLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads
SL230ZWBX27Rotating and swivellingRound40Anodised Aluminium2700KBronze80NoneIP65268 mm580-1030FloorNone4.4W (350mA) / 9.2W (700mA)63 mm
SL230BWBX27Rotating and swivellingRound40Anodised Aluminium2700KBlack80NoneIP65268 mm580-1030FloorNone4.4W (350mA) / 9.2W (700mA)63 mm
SL230ZWBX30Rotating and swivellingRound40Anodised Aluminium3000KBronze80NoneIP65268 mm600-1040FloorNone4.4W (350mA) / 9.2W (700mA)63 mm
SL230BWBX30Rotating and swivellingRound40Anodised Aluminium3000KBlack80NoneIP65268 mm580-1030FloorNone4.4W (350mA) / 9.2W (700mA)63 mm
SL230DWBX30Rotating and swivellingRound40Stainless Steel3000KStainless Steel80NoneIP65268 mm580-1030FloorNone4.4W (350mA) / 9.2W (700mA)63 mm
