PSDAL350M

Constant current LED driver, dimmable with 'push to make' or 1-10V. Sync up to 10 units for dimming (sync cable included)

  • 30W max input
  • 70V, 350mA output
  • 1-10V and DALI dimmable
Guarantee 5yrIndoorIP20Class II

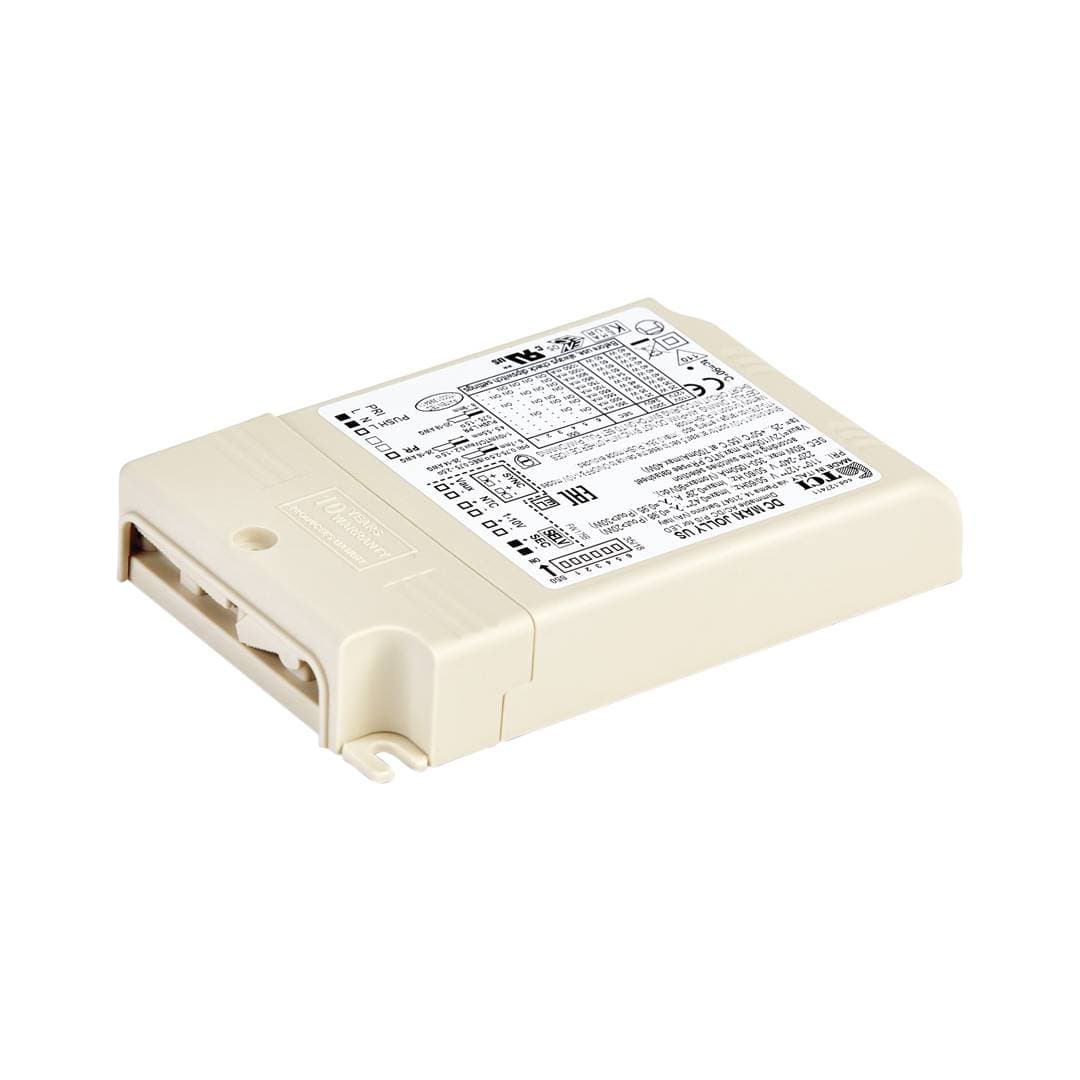

PSDAL350M

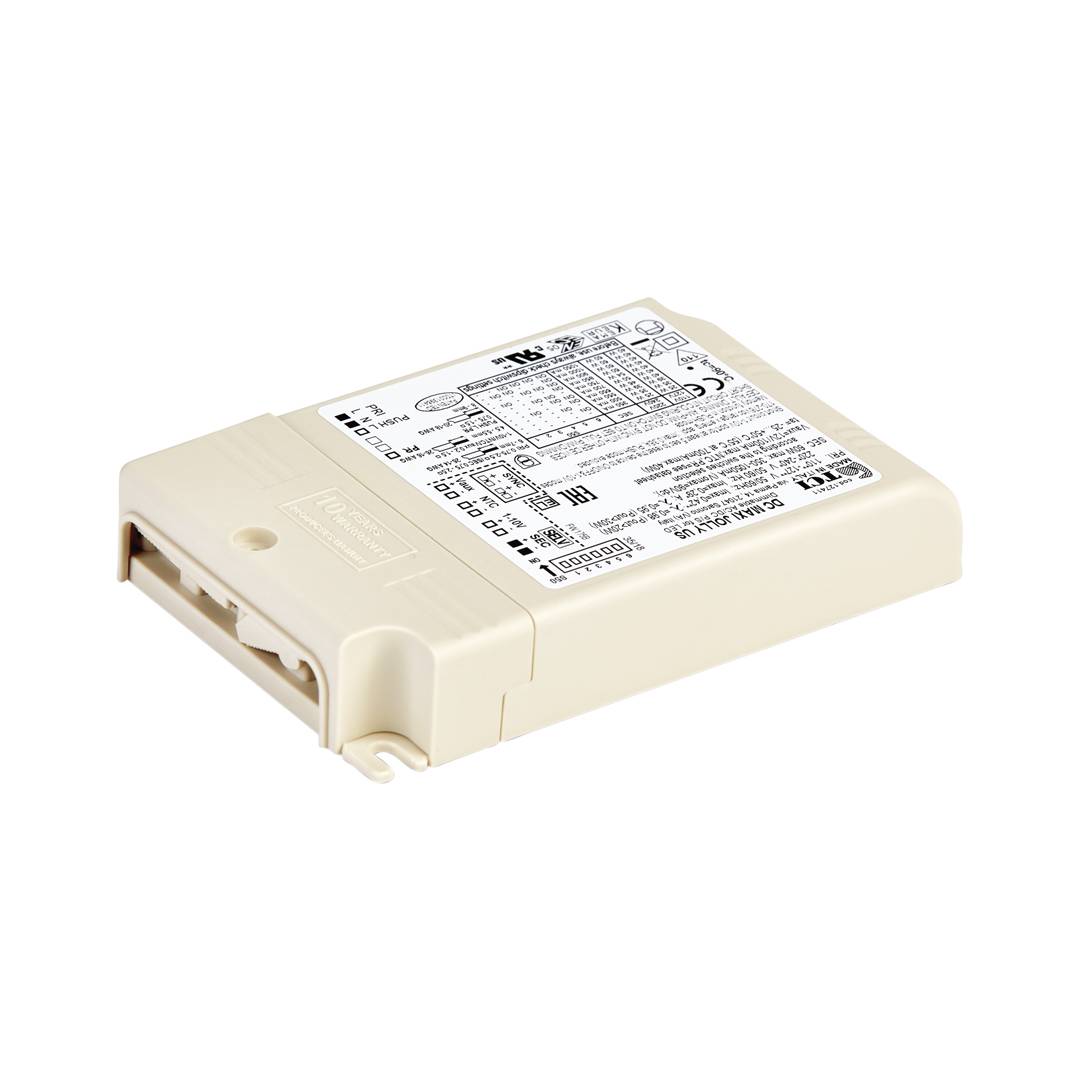

PSDAL350M image 1
PSDAL350M image 2
PSDAL350M image 3
PSDAL350M - Size diagram

Product Data

CodeAmbient TemperatureDescriptionEfficiencyDriver Output VoltageHeightInputInstall Connector TypeIP RatingLengthConnection OutputPower FactorProtectionWarrantyWidthDownloads
PSDAL350M-25 – 50 °CDRIVER 1-18W 350mA CC DIM 1-10V DALI PUSH902 – 74 V22 mm110-240V ACPush-fit terminals 0,5 - 1,5mm²IP2079 mm0.5-1.5mm² max0.95Short circuit, overload & overheating5 years123 mm
