PSIP70018W

The PSIP driver range has been designed specifically for Collingwood's product range. They are suitable for use outdoors with the Landscape lighting range. Both 350mA and 700mA options are available, with a high wattage and low wattage range. For more information, review our driver matrix website page.

  • IP65 rated, making it ideal for landscape products
  • 700mA Output
  • Non Dimmable
  • 2W Min Input Wattage
  • 18W Max Input Wattage
  • 220-240VAC Input Voltage
  • Double Insulation
  • Slim and discreet design
  • Easy to install with improved round cabling
Guarantee 5yrIndoorIP65Class II
PSIP70018W

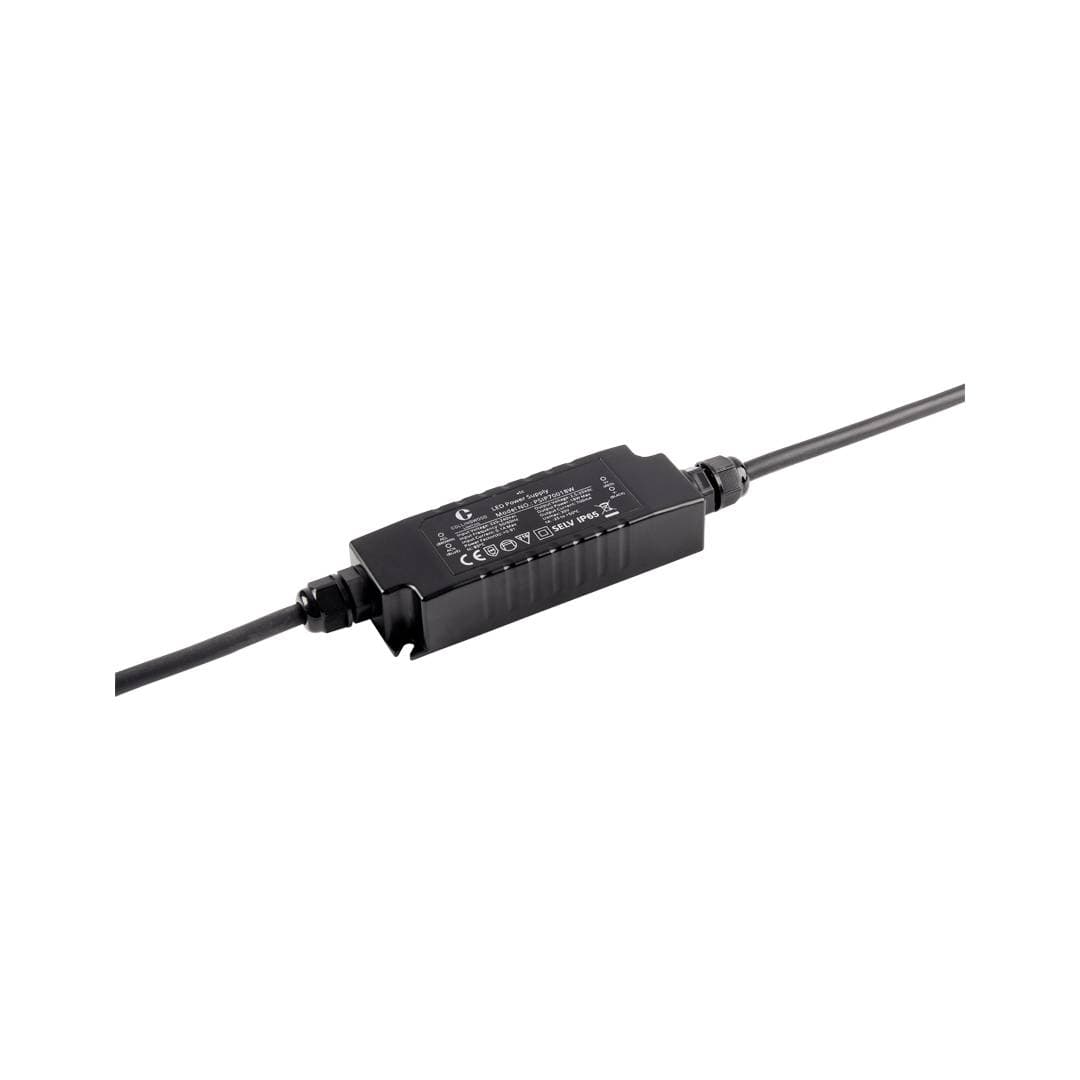

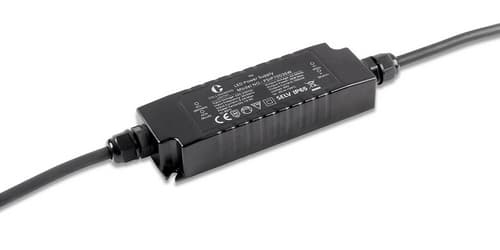

PSIP70018W image 1
PSIP70018W image 2
PSIP70018W image 3

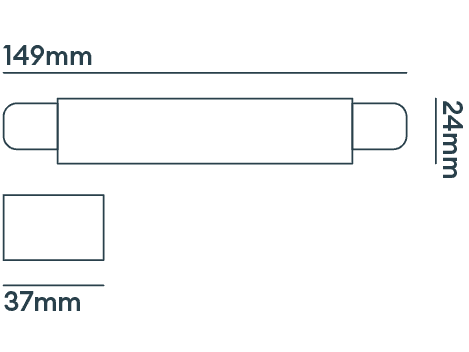

PSIP70018W - Size diagram

Product Data

CodeAmbient TemperatureDescriptionEfficiencyDriver Output VoltageHeightInputInstall Connector TypeIP RatingLengthConnection OutputPower FactorProtectionWarrantyWidthDownloads
PSIP70018W50 °CIP65 700mA 18W Driver, Non Dimmable, 5 year warranty832.5 – 25 V24 mm220-240V ACFlying leadIP65160 mm0.2m, 1mm² 2-core cable Ø: 7mm0.9Short circuit, overload & overheating5 years38 mm
