PSIP70036W

The PSIP driver range has been designed specifically for Collingwood's product range. They are suitable for use outdoors with the Landscape lighting range. Both 350mA and 700mA options are available, with a high wattage and low wattage range. For more information, review our driver matrix website page.

  • IP65 rated, making it ideal for landscape products
  • 700mA Output
  • Non Dimmable
  • 18W Min Input Wattage
  • 36W Max Input Wattage
  • 220-240VAC Input Voltage
  • Double Insulation
  • Slim and discreet design
  • Easy to install with improved round cabling

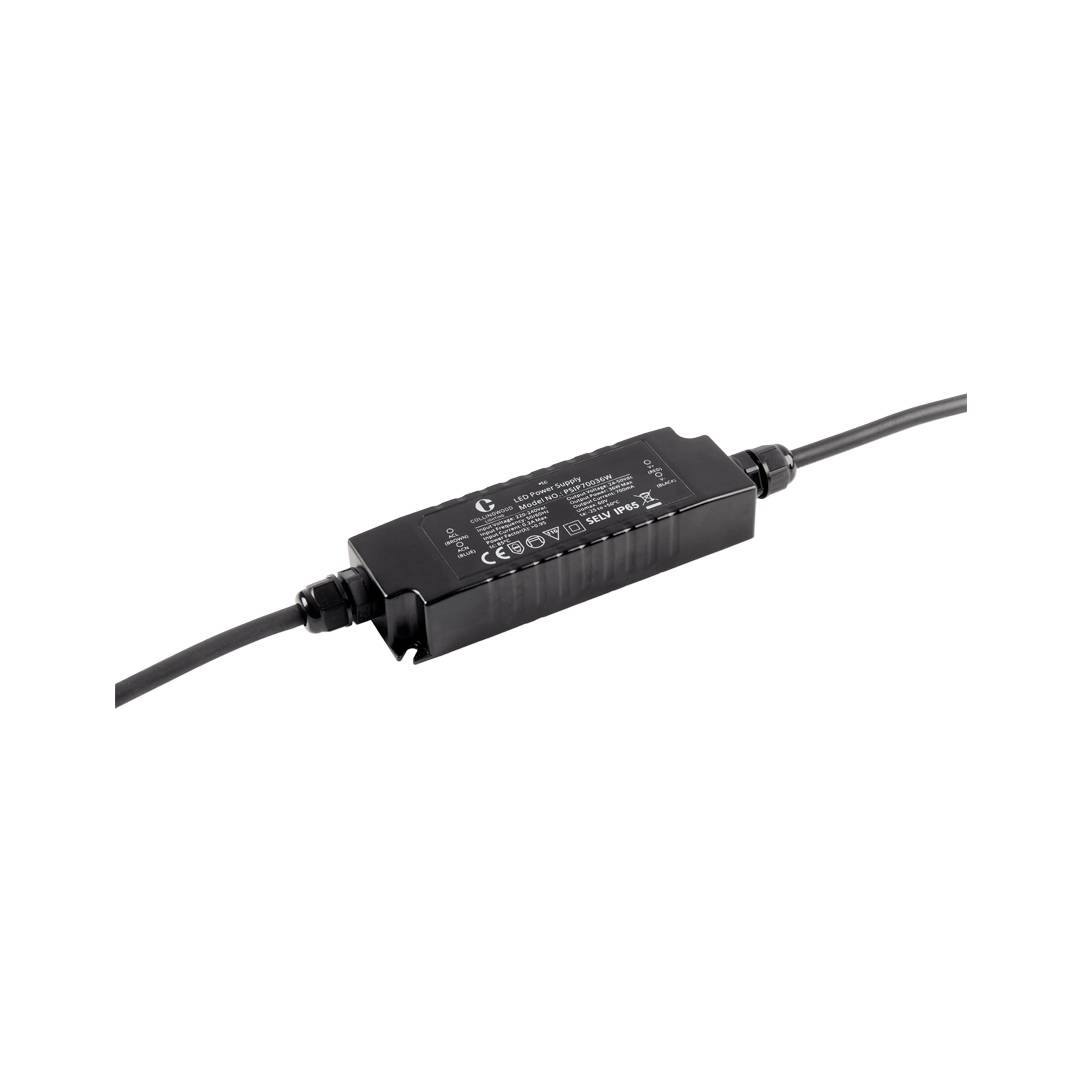

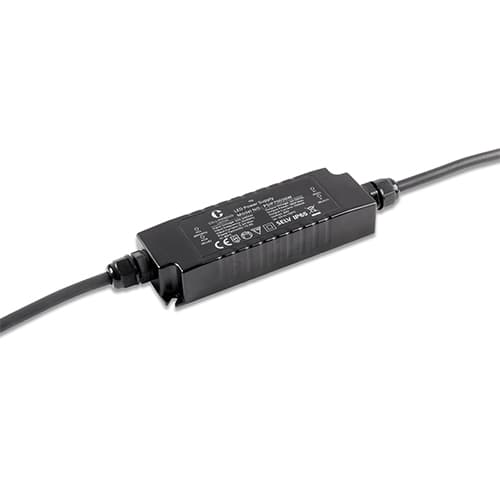

PSIP70036W
PSIP70036W image 1

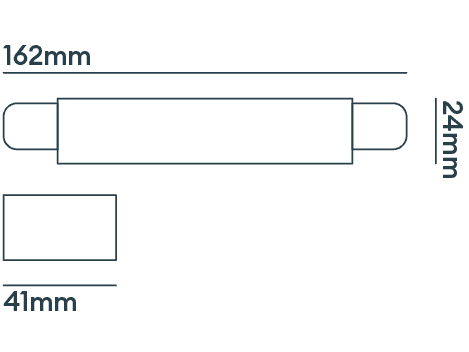

PSIP70036W - Size diagram

Product Data

CodeWarrantyAmbient TemperatureEfficiencyConnection InputConnection OutputDriver Output VoltageDriver Output CurrentProtectionPower FactorProduct Input CurrentDownloads
PSIP70036W5 years50°C850.2m, 1mm² 2-core cable Ø: 7mm0.2m, 1mm² 2-core cable Ø: 7mm25-50700mAShort circuit, overload & overheating0.90.18
