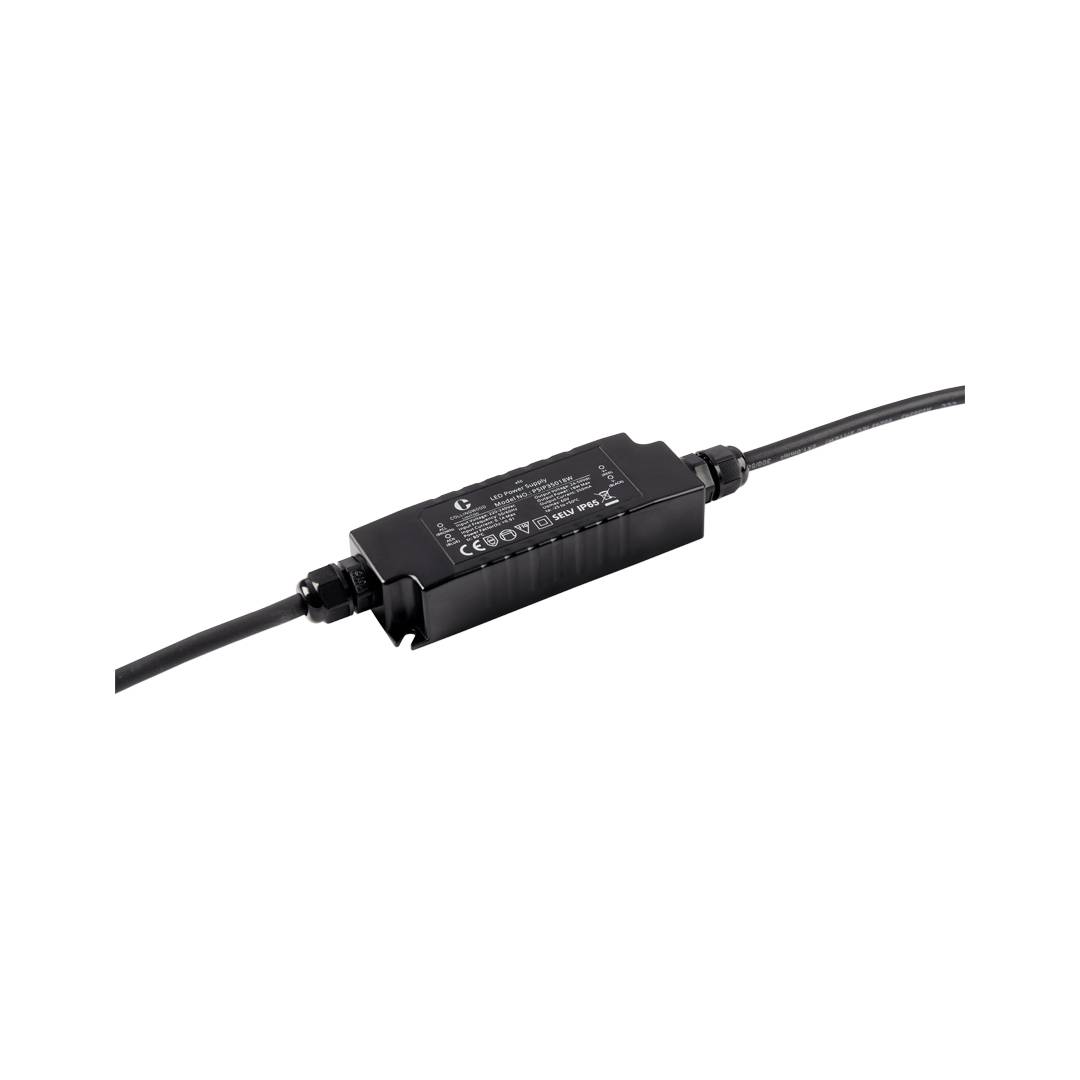

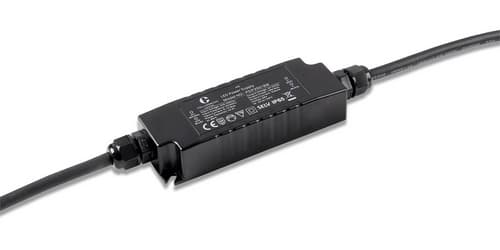

The PSIP driver range has been designed specifically for Collingwood's product range. They are suitable for use outdoors with the Landscape lighting range. Both 350mA and 700mA options are available, with a high wattage and low wattage range. For more information, review our driver matrix website page.
| Code | Warranty | Ambient Temperature | Efficiency | Connection Input | Connection Output | Driver Output Voltage | Driver Output Current | Protection | Power Factor | Product Input Current | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PSIP3509W | 5 years | 50°C | 82 | 0.2m, 1mm² 2-core cable Ø: 7mm | 0.2m, 1mm² 2-core cable Ø: 7mm | 2.5-25 | 350mA | Short circuit, overload & overheating | 0.9 | 0.05 |
