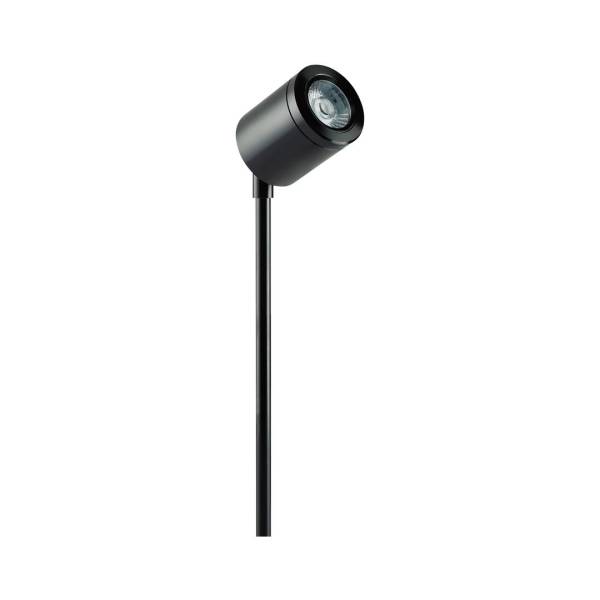

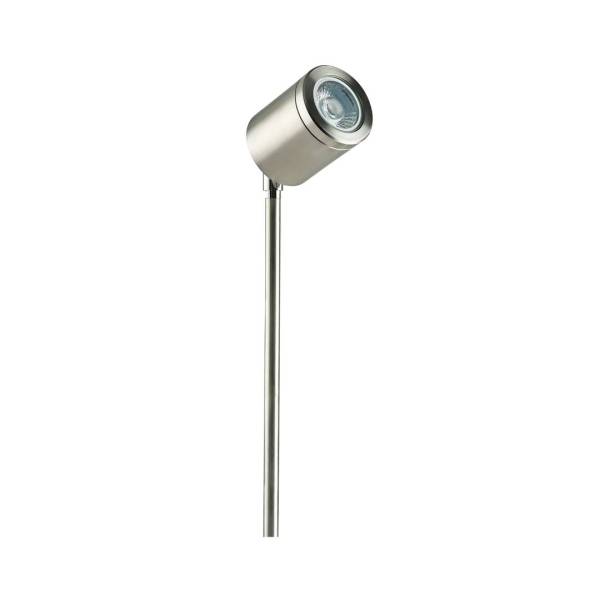

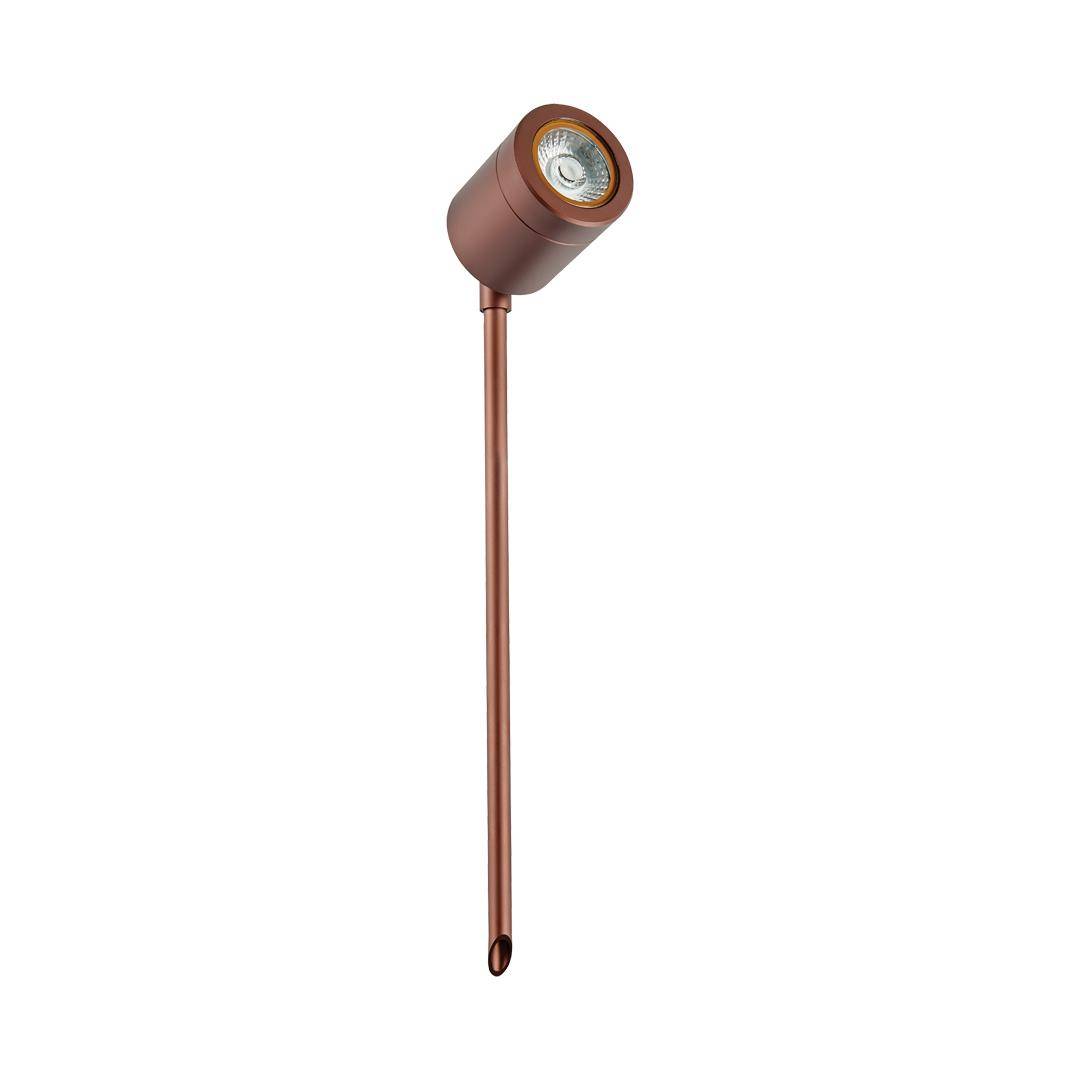

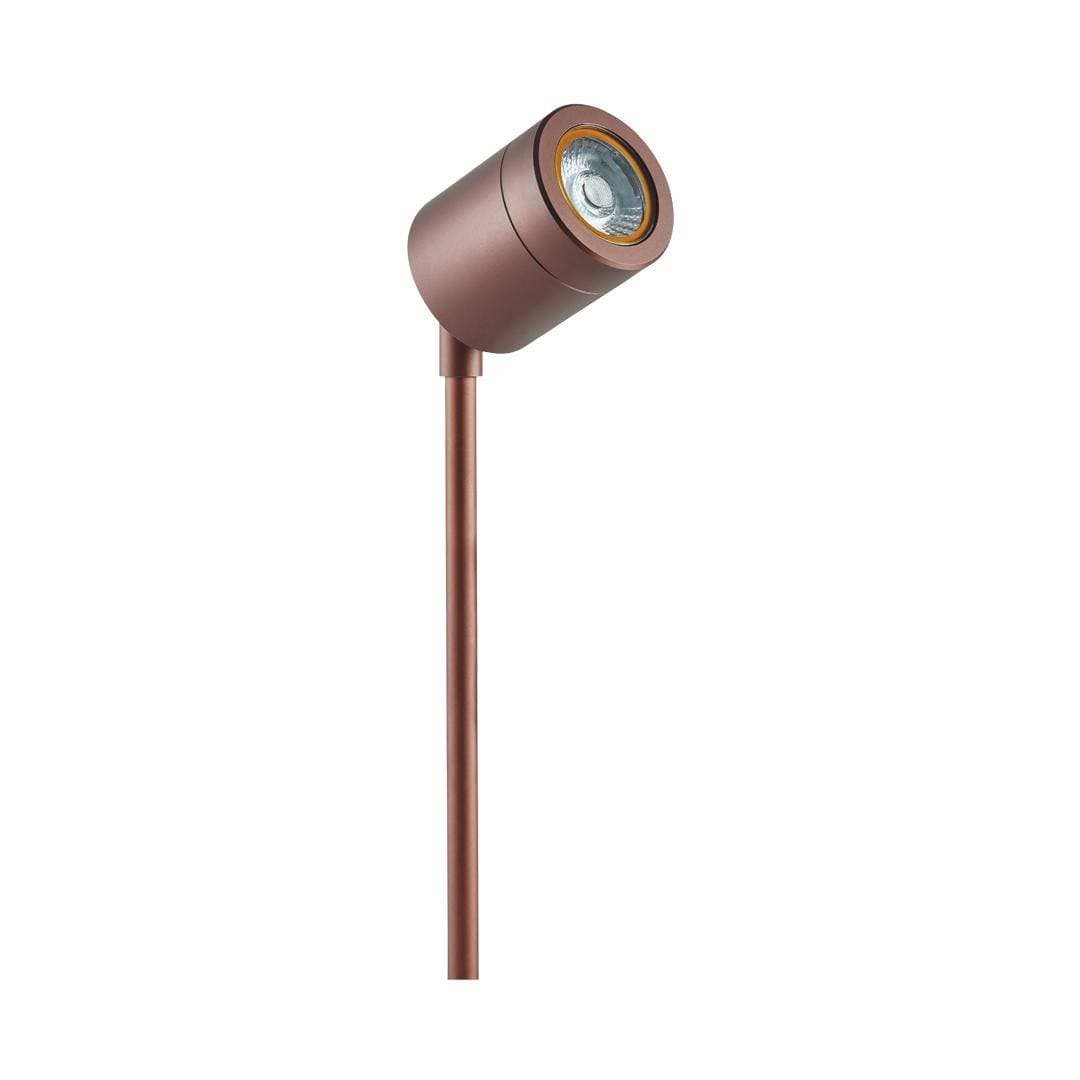

SL220 Low Voltage

SL220 Modular is available in both main and low voltage options to suit an array of installations. Perfect for creating accent effects such as highlighting a tree trunk as a vertical linear feature. This spike light comes with a robust outdoor cable, coastal protection, and an IP65 rating. The head tilts through 90° from vertical to horizontal for ultimate versatility.

Switchable driver option for quick and easy installion
Coastal Protected
IP65 ideal for outdoor areas
Tiltable for flexible lighting direction to help suit any installation
SDCM3 ensuring uniform light appearance and consistency
Single LED and lens combination for maximum efficiency and optimal light distribution
Choice of material finish to suit different styles

Colour / Finish

CCT range

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
SL220BK27XF	Swivelling	Round	40	Anodised Aluminium	2700K	Black	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK27XS	Swivelling	Round	12	Anodised Aluminium	2700K	Black	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK30XF	Swivelling	Round	40	Anodised Aluminium	3000K	Black	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK30XS	Swivelling	Round	12	Anodised Aluminium	3000K	Black	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK40XF	Swivelling	Round	40	Anodised Aluminium	4000K	Black	80	None	IP65	42 mm	134-538	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK40XS	Swivelling	Round	12	Anodised Aluminium	4000K	Black	80	None	IP65	42 mm	134-538	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ27XF	Swivelling	Round	40	Aluminium	2700K	Bronze	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ27XS	Swivelling	Round	12	Aluminium	2700K	Bronze	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ30XF	Swivelling	Round	40	Aluminium	3000K	Bronze	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ30XS	Swivelling	Round	12	Aluminium	3000K	Bronze	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm

Accessories

Find the perfect product you are looking for.

PSIP70036W

Driver 36W IP65 700mA Non Dimmable 5 year warranty

PSIP70018W

Driver 18W IP65 700mA Non Dimmable 5 year warranty

PSIP3509W

Driver 9W IP65 350mA Non Dimmable 5 year warranty

PSIP35018W

Driver 18W IP65 350mA Non Dimmable 5 year warranty

PSDIM700

Driver 56W 700mA

PSDIM350

Driver 30W 350mA

PSDAL700M

Driver 56W 700mA

PSDAL350M

Driver 30W 350mA

PLD UNI-DRIVE 700MA

Driver 30W 700mA

PLD UNI-DRIVE 350MA

Driver 18W 350mA

JB6

Inline IP68 gel filled cable connector

JB4

Gel filled waterproof junction box

JB2

Waterproof junction box

GS220

Low-glare, cylindrical snoot

GH220

Low-glare, tapered hood

DRV350700TD

CC Driver 20W Triac Mains Dimmable 350-700mA

DRV150700

CC Driver 30W IP20 150-700mA Class II SELV

Colour / Finish

CCT range

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
SL220BK27XF	Swivelling	Round	40	Anodised Aluminium	2700K	Black	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK27XS	Swivelling	Round	12	Anodised Aluminium	2700K	Black	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK30XF	Swivelling	Round	40	Anodised Aluminium	3000K	Black	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK30XS	Swivelling	Round	12	Anodised Aluminium	3000K	Black	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK40XF	Swivelling	Round	40	Anodised Aluminium	4000K	Black	80	None	IP65	42 mm	134-538	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BK40XS	Swivelling	Round	12	Anodised Aluminium	4000K	Black	80	None	IP65	42 mm	134-538	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ27XF	Swivelling	Round	40	Aluminium	2700K	Bronze	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ27XS	Swivelling	Round	12	Aluminium	2700K	Bronze	80	None	IP65	42 mm	129-515	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ30XF	Swivelling	Round	40	Aluminium	3000K	Bronze	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
SL220BZ30XS	Swivelling	Round	12	Aluminium	3000K	Bronze	80	None	IP65	42 mm	130-520	Floor	None	0.8W / 1.4W / 2W / 3W / 4.6W	42 mm
