TRI BAY

Wattage Switchable
Colour Switchable between 3000K or 4000K
Beam Angle Switchable between 100° or 90x30°

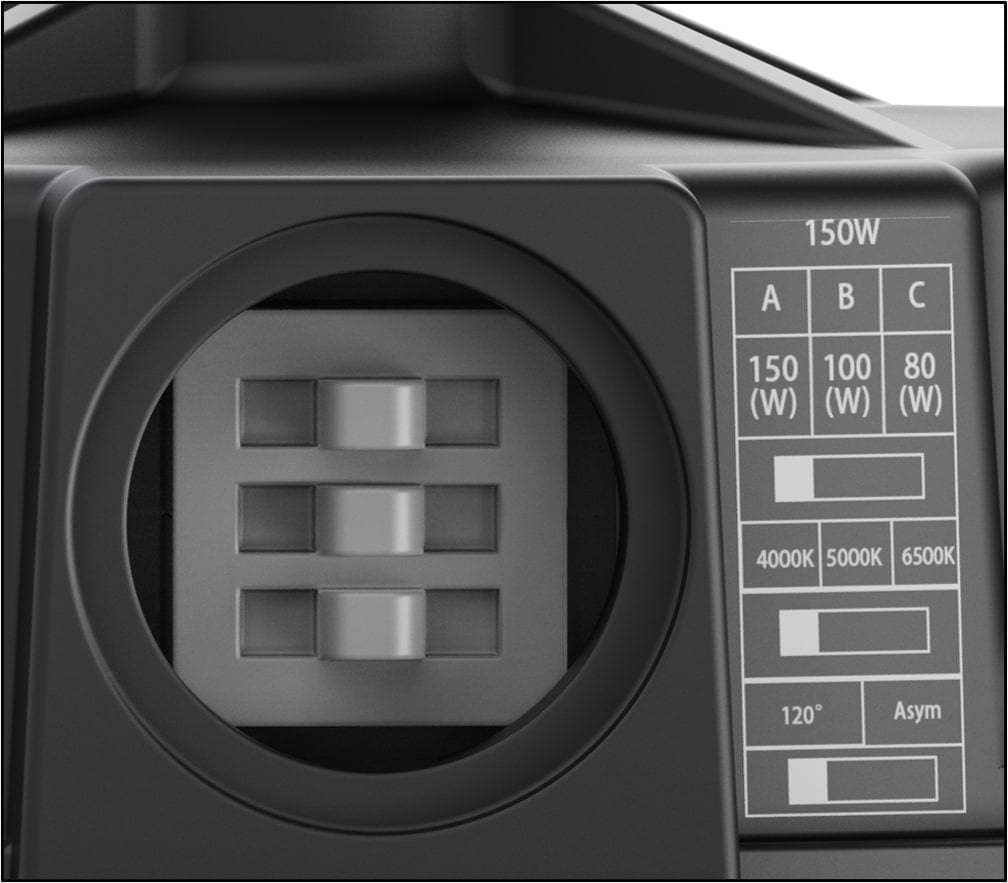

Reconfigure your lighting scheme by simply sliding the beam angle switch to adapt an open area to be racking or vice versa
30x90 beam angle switchable to 4000K only
Choice of PIR, microwave, daylight and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay
Compact and lightweight, our product can be held in one hand and installed by a single person. Removeable driver for easy maintenance.
Impact and corrosion resistant aluminium housing which is 100% recyclable
Anti-glare honeycomb mesh accessory available to reduce glare to UGR25
Steel wireguard accessory to protect the luminiare from impact

CCT range

Operating method

Emergency option

Code	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
HBTB1V	Round	100	ADC12 Aluminium Alloy	3000K / 4000K / 6500K	Black	80	0-10V	Optional	IP65	260 mm	13000-20000	Suspended	None	80-120W	260 mm
HBTB2V	Round	100	ADC12 Aluminium Alloy	3000K / 4000K / 6500K	Black	80	0-10V	Optional	IP65	310 mm	16000-32000	Suspended	None	100-200W	310 mm
HBTB1EM4K100D	Round	100	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB2EM4K100D	Round	100	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-
HBTB1EM4K90X30D	Round	30	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB1EM65K100D	Round	100	ADC12 Aluminium Alloy	6500K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB2EM4K90X30D	Round	30	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-
HBTB2EM65K100D	Round	100	ADC12 Aluminium Alloy	6500K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-

Accessories

Find the perfect product you are looking for.

Universal Remote control for Microwave sensor

Passive infra-red motion sensor with daylight harvesting photocell

Motion sensor with daylight threshold switch (8-15m)

Tri Bay, 100-200w, Wireguard

Tri Bay, 100-200w, Honeycomb Mesh

Tri Bay, 80-120w, Wireguard

Tri Bay, 80-120w, Honeycomb Mesh

Highbay Manual + Self Test Emergency Converter

Highbay DALI-2 Emergency Converter

Daylight harvesting sensor with photocell

PIR+Daylight Sensor White up to 12m

PIR+Daylight Sensor Black up to 12m

CCT range

Operating method

Emergency option

Code	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
HBTB1V	Round	100	ADC12 Aluminium Alloy	3000K / 4000K / 6500K	Black	80	0-10V	Optional	IP65	260 mm	13000-20000	Suspended	None	80-120W	260 mm
HBTB2V	Round	100	ADC12 Aluminium Alloy	3000K / 4000K / 6500K	Black	80	0-10V	Optional	IP65	310 mm	16000-32000	Suspended	None	100-200W	310 mm
HBTB1EM4K100D	Round	100	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB2EM4K100D	Round	100	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-
HBTB1EM4K90X30D	Round	30	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB1EM65K100D	Round	100	ADC12 Aluminium Alloy	6500K	Black	80	Casambi	Optional	IP65	-	13000-20000	Suspended	None	80-120W	-
HBTB2EM4K90X30D	Round	30	ADC12 Aluminium Alloy	4000K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-
HBTB2EM65K100D	Round	100	ADC12 Aluminium Alloy	6500K	Black	80	Casambi	Self-Test	IP65	-	16000-32000	Suspended	None	100-200W	-
