PIR & Daylight Sensor

Passive infra-red (PIR) motion sensor with daylight threshold switch and daylight harvesting to dim the luminaire in response to changes in natural daylight levels. For use with the Area Bay, Flex bay, Tri Bay and Rack Bay. IP65 Rated. Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga Book 18 socket for a typical installation height 8-12m.

  • Plugs into the centre of the Area Bay luminaire using the Zhaga socket
  • Only have the light turn on when a specific lux level is reached
  • Light dims to a low level when there is inactivity

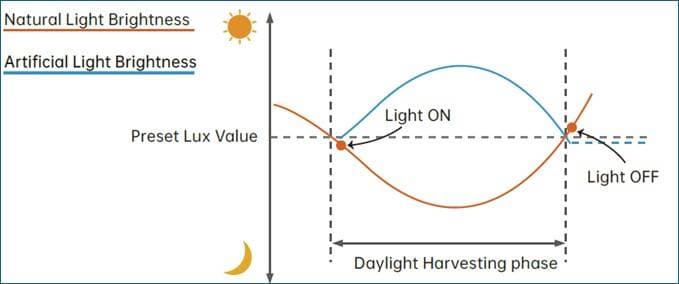

  • The light can adjust its brightness in response to changing natural daylight. Increased natural daylight = reduce light brightness and vice versa
  • Typical installation height 8-12m
  • Hold time Default is 5 seconds - Options: 30s/1min/3min/5min/10min/20min/30min
  • Stand-by dimming level: Default is 10% Options: 20%/30%/50%
  • Stand-by period: Default is 0 seconds - Options: 10s/30s/1min/5min/10min/30min/60min/∞
  • Daylight threshold: Default is 'disable' - Options: 2Lux/10Lux/30Lux/50lux120Lux/200Lux/250Lux300Lux/350Lux/400Lux
  • Daylight harvesting activated when Daylight threshold is set to a lux level, standby set to ∞ and standby set to 10%/30%
  • Use remote controller UNREMOTEMWS to commission
Guarantee 5yrIndoorIP65
PIR & Daylight Sensor
PIR & Daylight Sensor image 1
PIR & Daylight Sensor image 2
PIR & Daylight Sensor image 3

Product Data

CodeColour / FinishDescriptionInputInstall Connector TypeIP RatingWarrantyDownloads
HBPIRDLDMatt BlackArea Bay PIR + Daylight Harvest Sensor (12m)10.5-15V DCZhaga Book 18IP655 years
