Solis 600 x 600

Used in office, classroom, and meeting room applications, the Solis panel range is designed with visual comfort in mind to be suitable for reading, writing and computer-based tasks. Supplied with a quick-fit connector for fast installation, the back-lit design provides efficient performance and improved robustness during transit. The range provides many options so that you can convert to be an emergency luminaire quickly with our LEDEP10 module and select from non-dimmable, 0-10V, and DALI2 dimming options to suit your project.

  • Low UGR with UGR16 available
  • DALI-2, Push-Dim, & 0-10V options are available
  • Emergency option is available with LEDEP10
  • Suitable for reading, writing and computer-based tasks and meets Blue Light Hazard Regulation RG0
  • 30W (P2A16S30WA) for 500lux at 2.4m x 2.4m distance spacings
  • 40W (P2A19S40WA) for 500lux at 3.0m x 2.4m distance spacings
  • Supplied with a quick-fit connector for fast installation
  • Back-lit design for efficient performance and improved robustness during transit
  • TP(a) rated diffuser and 850-deg glow wire test approval, makes the product to be suitable for use in fire escape routes
  • Supplied with 1m long safety steel cable
CEGuarantee 5yrIndoorCRI 80Beam Angle 90 DownIP40Insulation Rolled BlownClass IIReplaceable Driver By ElectricianReplaceable Light Source By Electrician

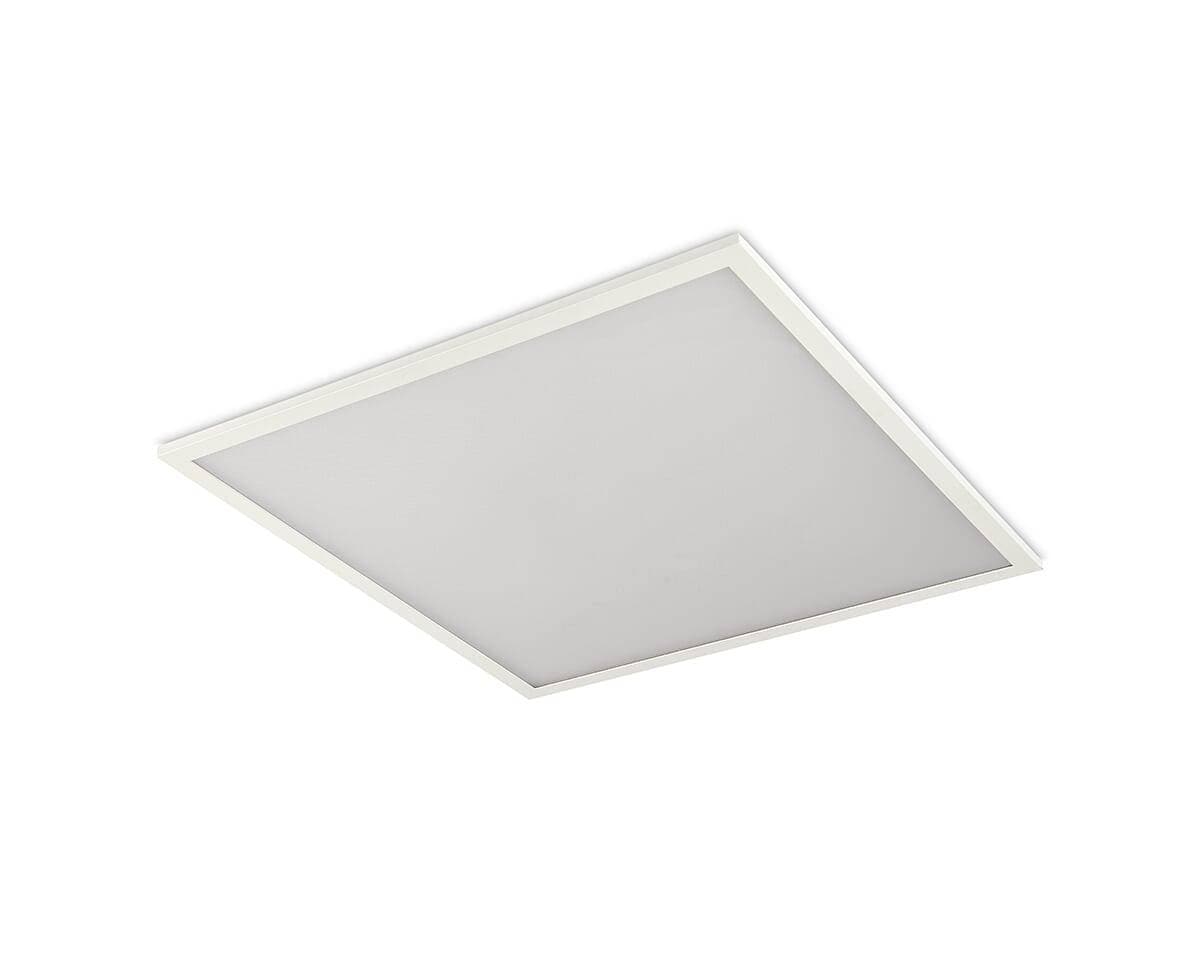

Solis 600 x 600
Solis 600 x 600 image 1
Solis 600 x 600 image 2
Solis 600 x 600 image 3

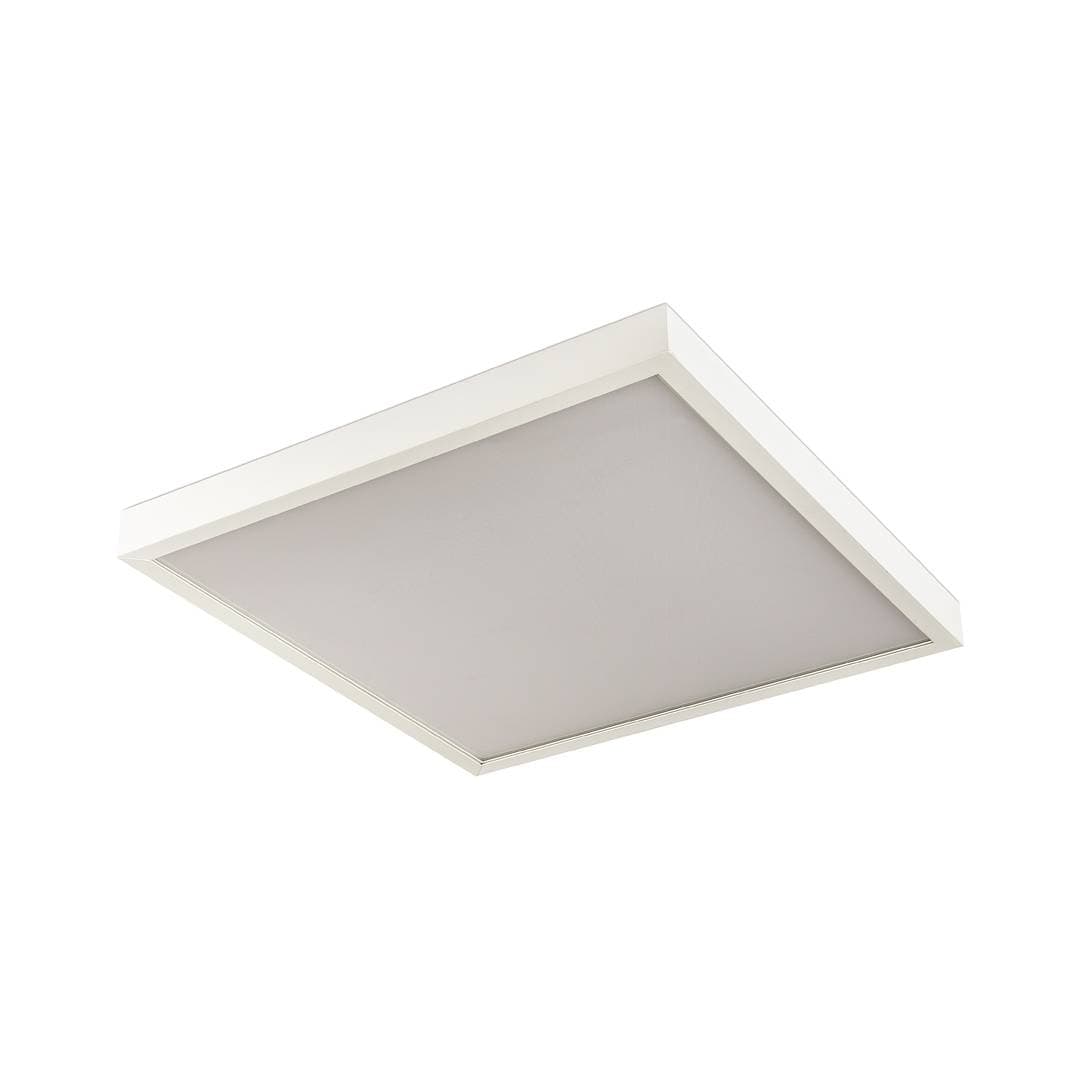

Solis 600 x 600 image 4

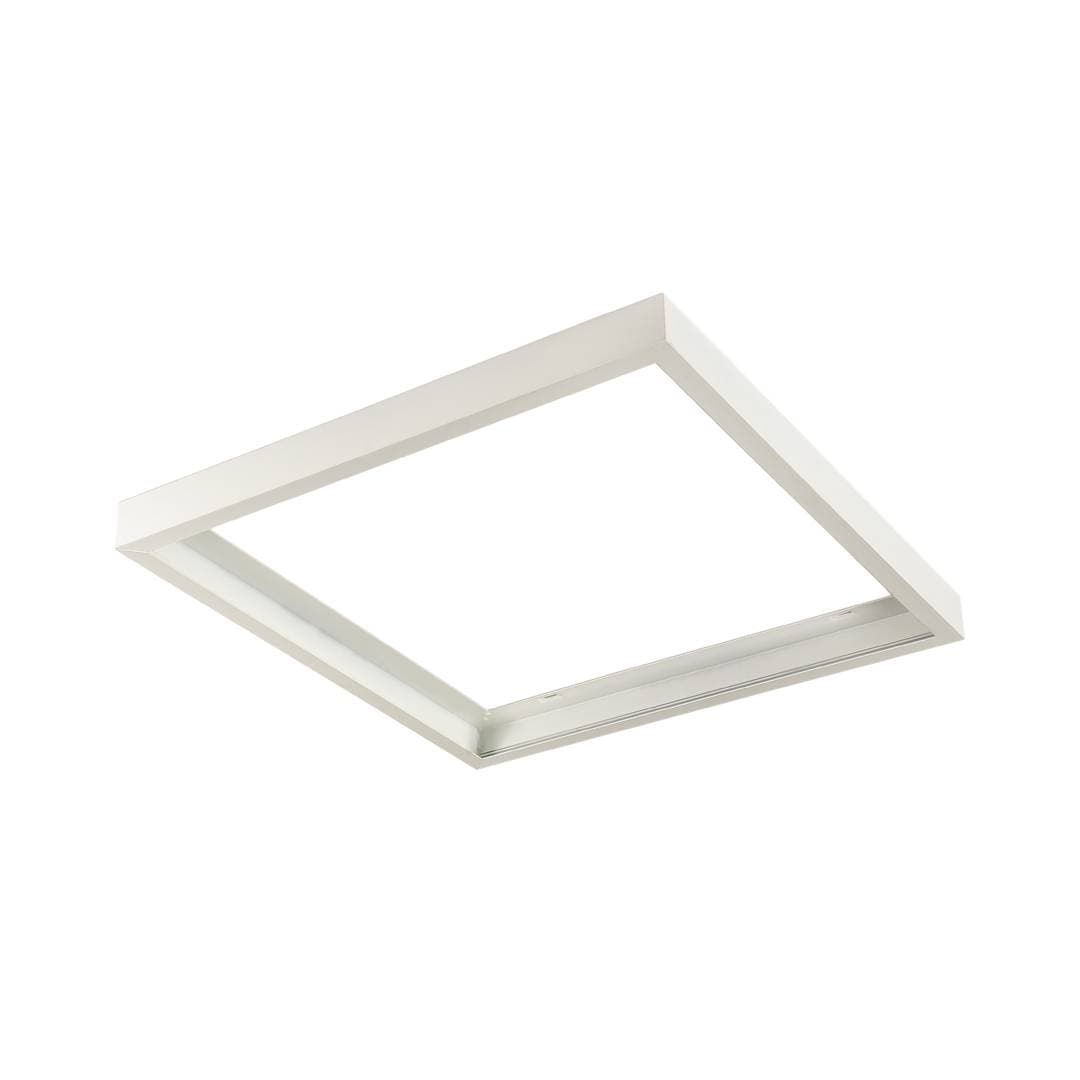

Solis 600 x 600 image 5
Solis 600 x 600 image 6
Solis 600 x 600 image 7
Solis 600 x 600 image 8
Solis 600 x 600 image 9
Solis 600 x 600 - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com

CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
P5A19S30WANot adjustableSquare90Aluminium5000KWhiteDALI-2OptionalIP40600 mm3450RecessedNone1930W600 mm
P2A16X30WANot adjustableSquare90Aluminium4000KWhiteDALI-2OptionalIP40600 mm3450RecessedNone1630W600 mm
P5A19X30WANot adjustableSquare90Aluminium5000KWhiteDALI-2OptionalIP40600 mm3450RecessedNone1930W600 mm
P2A19S40WANot adjustableSquare90Aluminium4000KWhiteDALI-2OptionalIP40600 mm4600RecessedNone1940W600 mm
P2A19X40WANot adjustableSquare90Aluminium4000KWhiteDALI-2OptionalIP40600 mm4600RecessedNone1940W600 mm

Accessories

Find the perfect product you are looking for.

Salvus Route

Salvus Route

High Performance Emergency Spot

PS6501100MA

PS6501100MA

Panel power supply 40W IP20 750mA DALI 1-10V Push-Dim

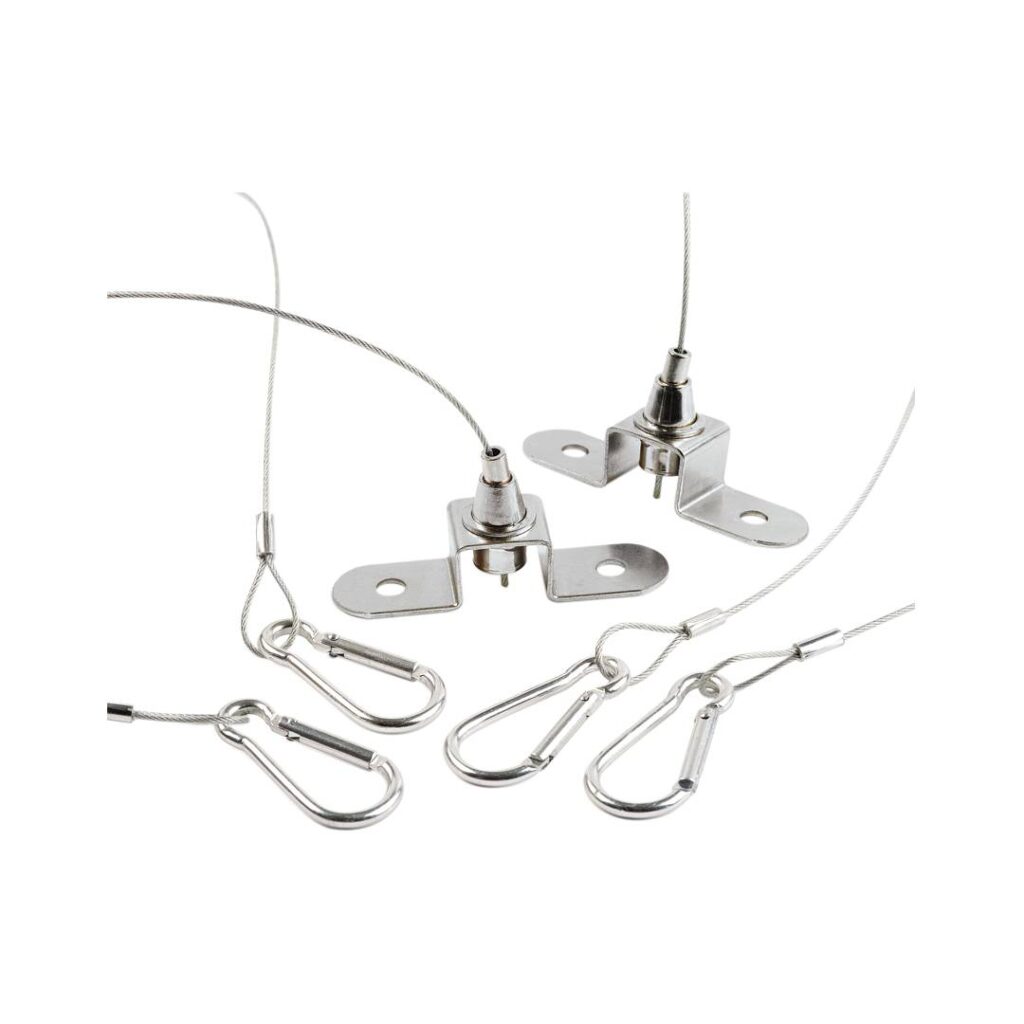

Panel Suspension Kit

P1SK

Suspension Kit for 600 x 600 & 1200 x 300 panels

P2SMA

P2SMA

Surface mount kit for 600 x 600 LED panel

LEDEP10

LEDEP10

Emergency converter, Self-test & Manual-test switchable, maintained

DRV3001050

DRV3001050

CC Driver 42W IP20 300-1050mA Class II SELV Forward voltage range from 9 to 52Vdc
