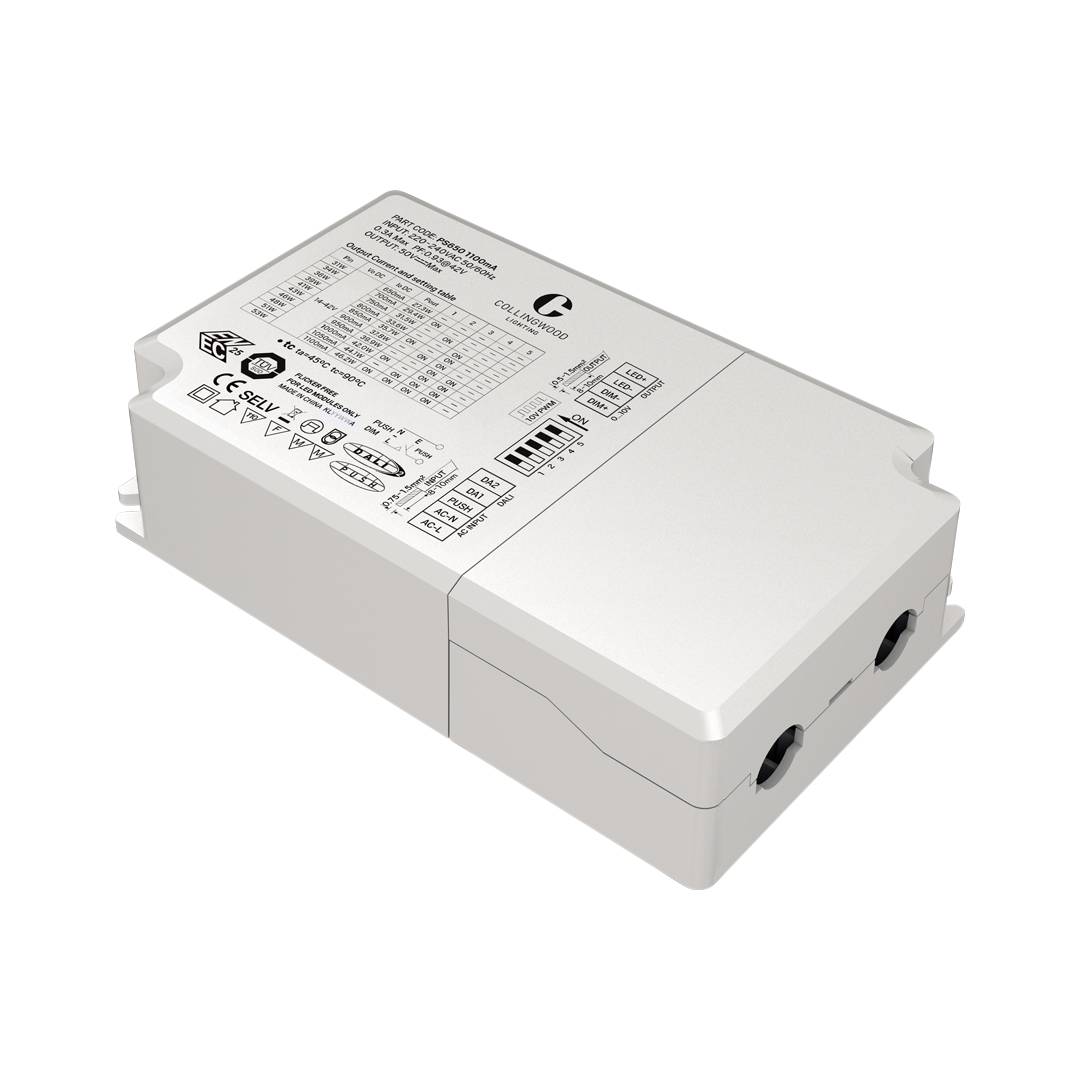

PS6501100MA

This one4 all design DALI-2 driver is compatible with Solis Pro Panel. 650-1100mA

DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014, IEC 62386-207: 2009, DALI-2
ENEC, CE, CB approved by TUV SUD, SAA, Ctick qualified
Adjustable constant current outputs range from 250-1100mA(selectable every 50mA)
Independent ECG and with strain-relief
Built-in with permanent memory for DALI and Push-DIM, 100,000 times memory
Grow wire tested 650° for 30S and 850° for 5S
DALI 1%-100%, Push-DIM, from 100% to 1.5% dimming range

Product Data

Code	Ambient Temperature	Colour / Finish	Description	Efficiency	Driver Output Voltage	Height	Input	Install Connector Type	IP Rating	Length	Connection Output	Power Factor	Protection	Warranty	Width	Downloads
PS6501100MA	-20 – 45 °C	White	Panel power supply, IP20, 40W, 750mA, DALI, 1-10V, Push-Dim	87	14 – 42 V	30 mm	220-240V AC	Mains: Push-fit terminals 0.75 - 1.5mm² DC: Plug & Play connectors	IP20	76 mm	0.5-1.5mm²	0.95	Over Voltage, Short Circuit, Thermal	5 years	125 mm
