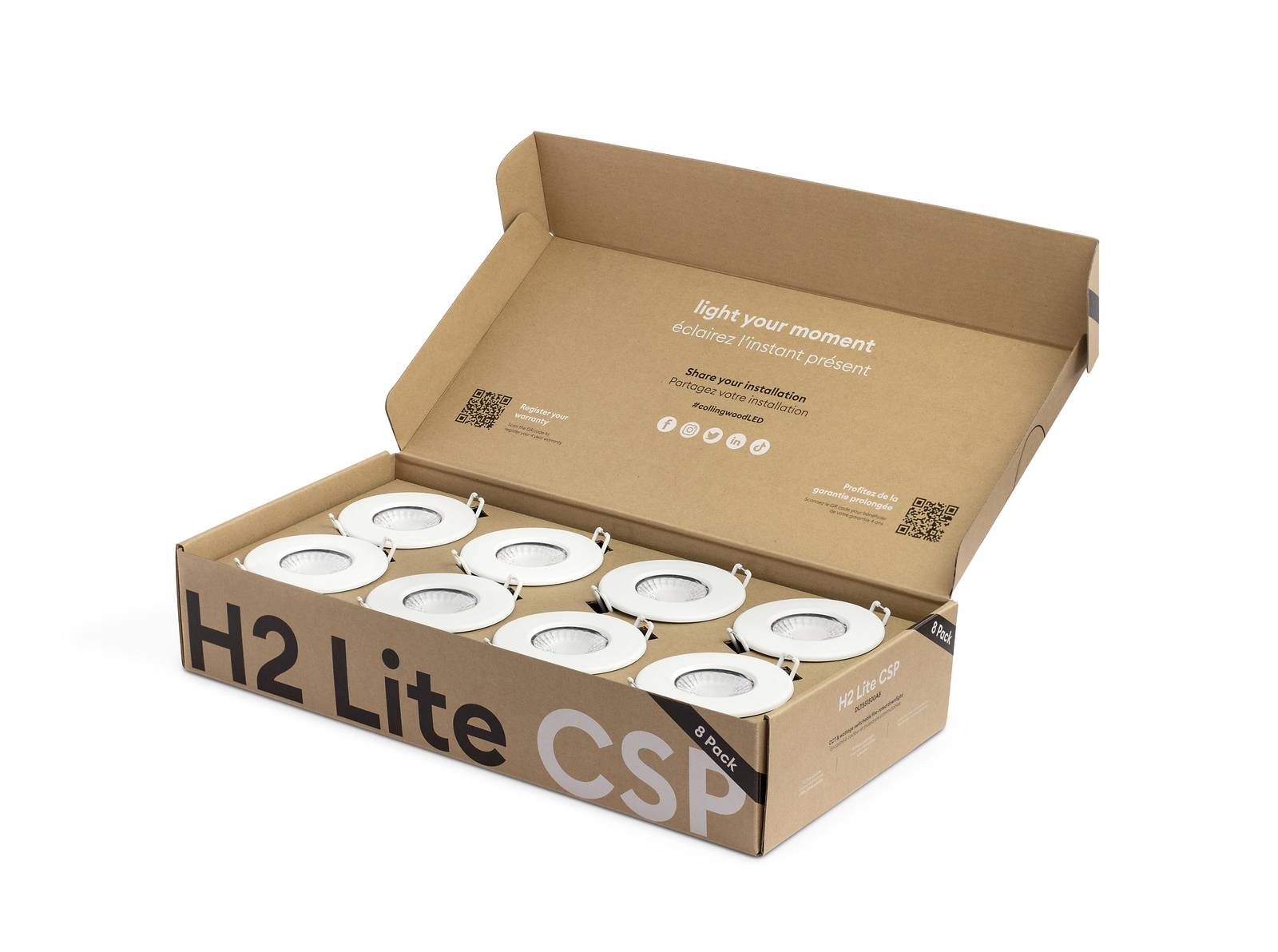

H2 Lite CSP 8 Pack

Product code: DLT551500A8

About the H2 Lite CSP 8 Pack

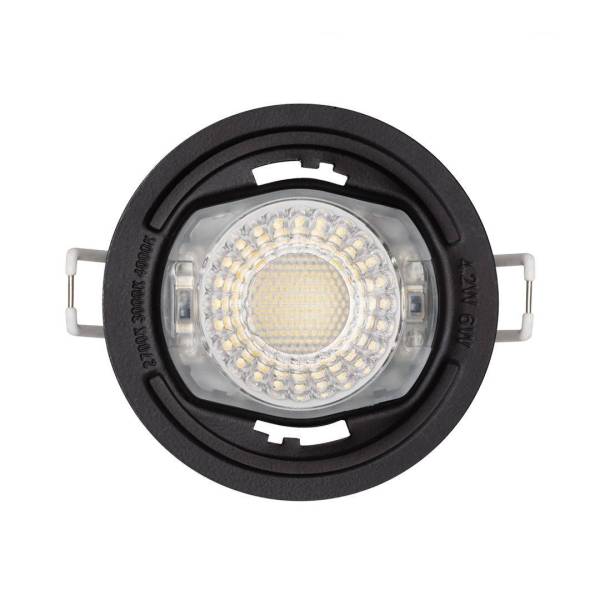

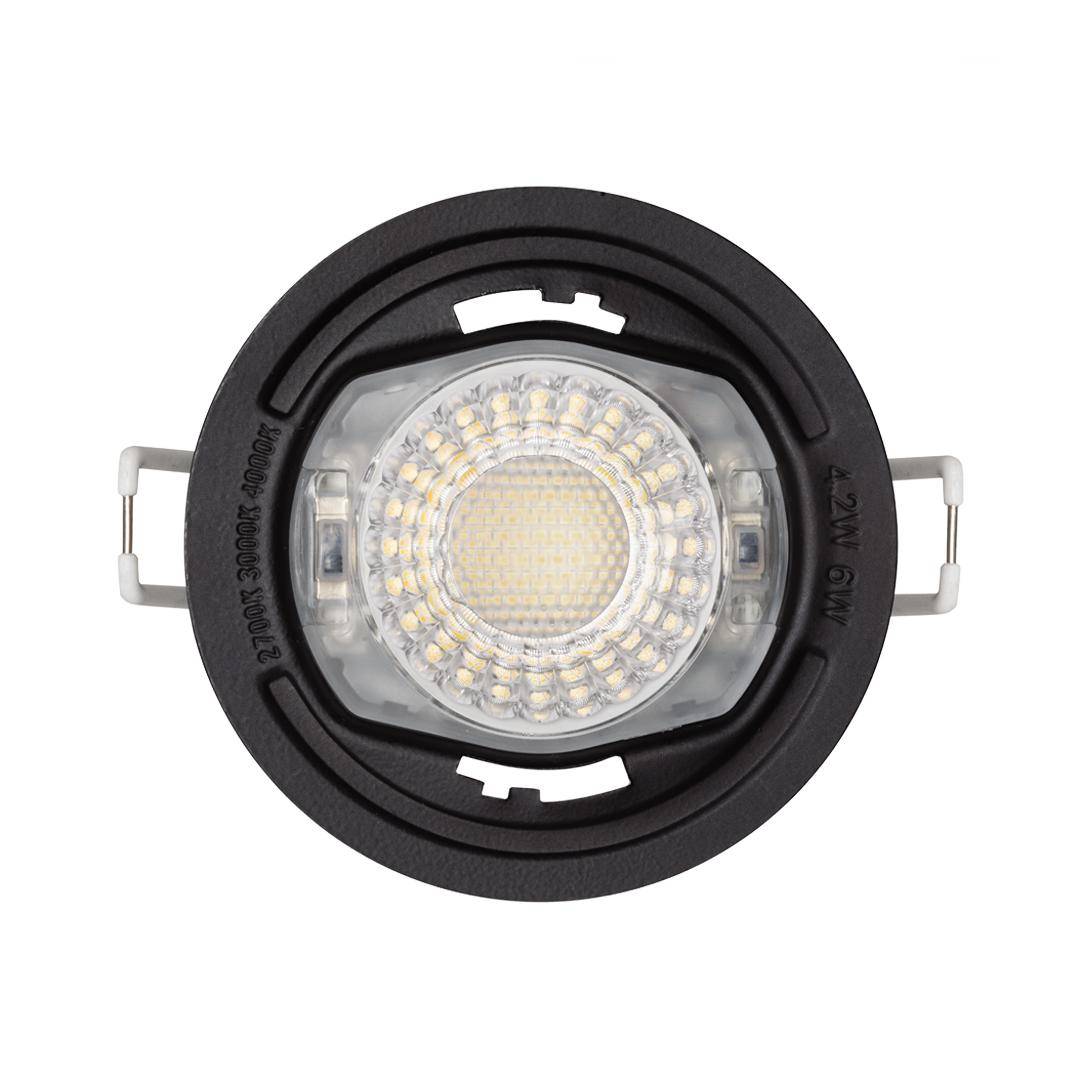

H2 Lite CSP Downlight, Fixed, 4.2W-6W, 520lm-720lm, Bezel excluded

Features & Benefits

Colour switchable between 2700K, 3000K and 4000K

Wattage switchable between 4.2W & 6W

Switches allow you to choose options at installation

High efficacy of 124lm/W

2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required

Compatible with Click Flow CT100 series

TRIAC Mains dimmable

Fixed with 55 degree beam angle

Compatible with H2 Twist and lock bezels

Control wirelessly from your phone or tablet using Collingwood Smart

Product code
Warranty 7 years
IP Rating IP65 (from below) IP20 (from above)
Dimmable Option Mains (Leading Edge/Trailing Edge)
Adjustability Not adjustable
Input 220-240V AC
Insulation Coverable Rolled and blown insulation
Cut Out 68-72
Bathroom Zone 1
Building Regulations Part B, C, E, P & L
Ceiling Joist Approvals Solid timber, I-Joist and Metal Web
Colour / Finish White
Wattage Range 4.2W/6W
CCT Range 2700K / 3000K / 4000K
Lumens Range 450 - 520 (4.2W) or 625 - 720 (6W)
lm/W Range 107lm/W - 124lm/W (4.2W) or 104lm/W - 120lm/W (6W)
Energy Class D
Sensor Option None
Emergency Option None

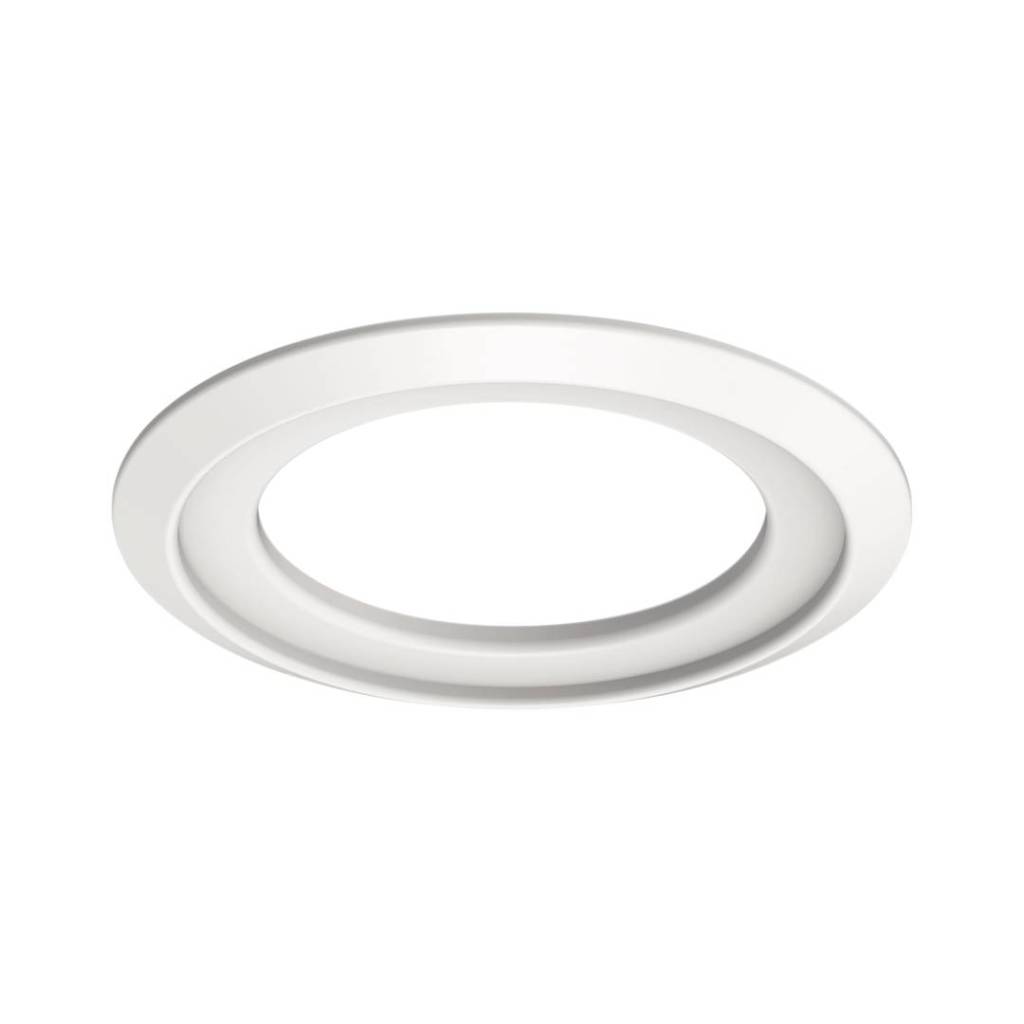

H2 Bezels

Twist & lock system makes changing bezels quick, clean and easy
