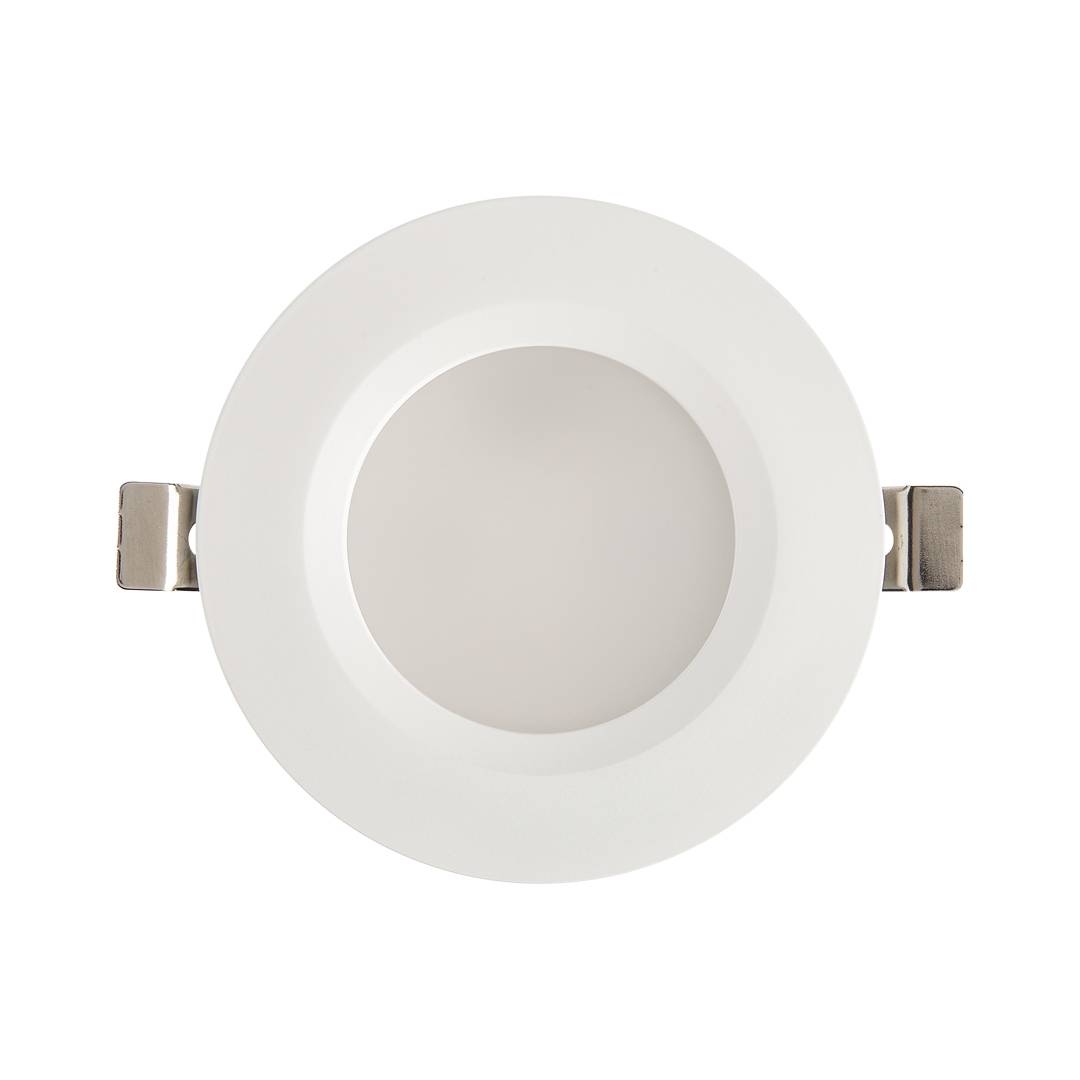

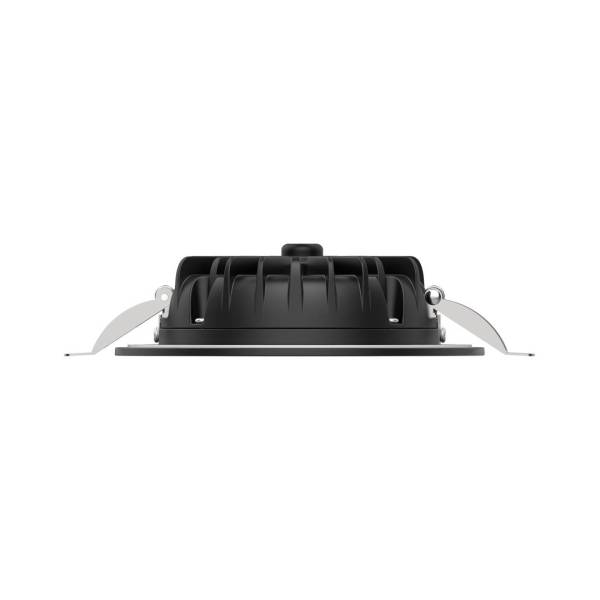

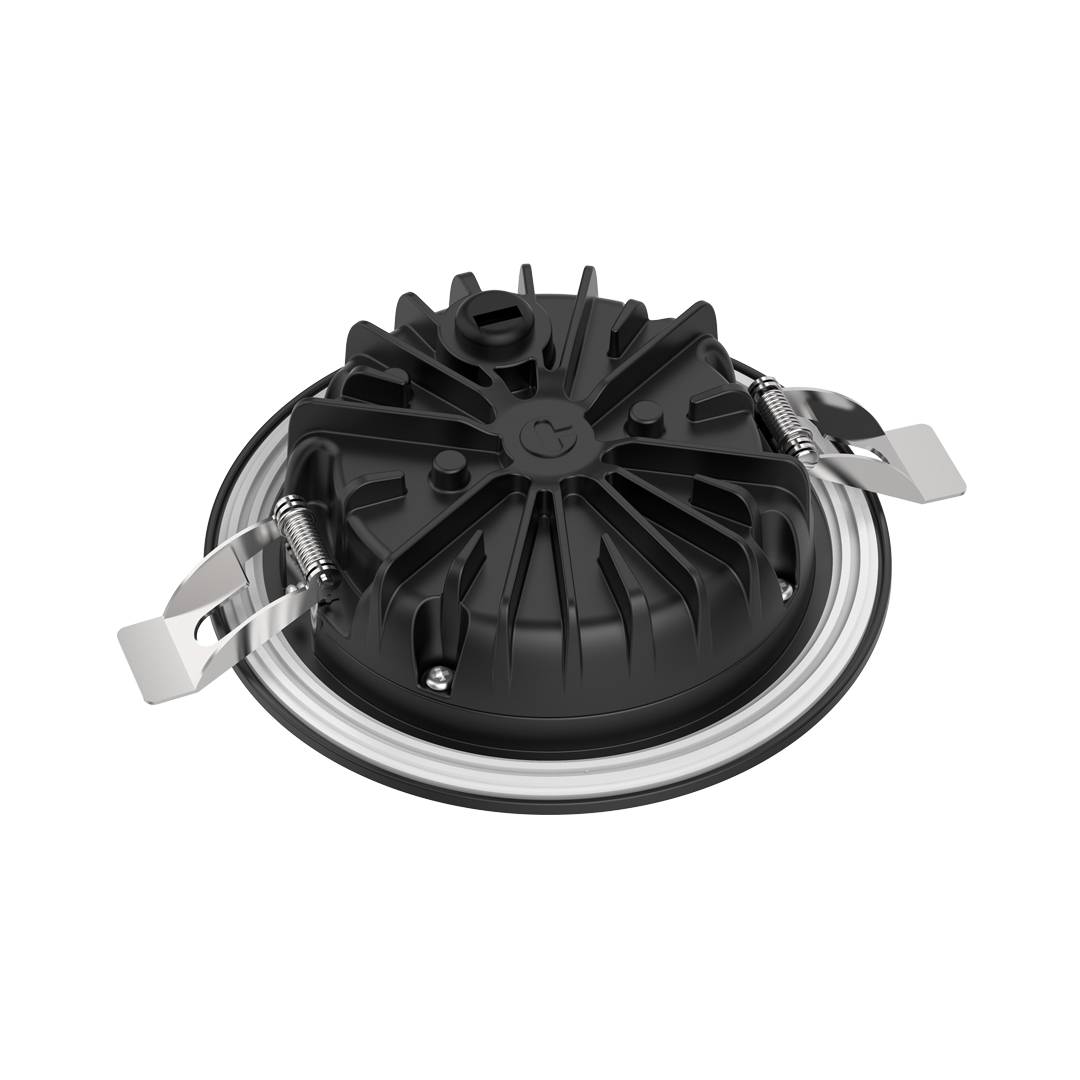

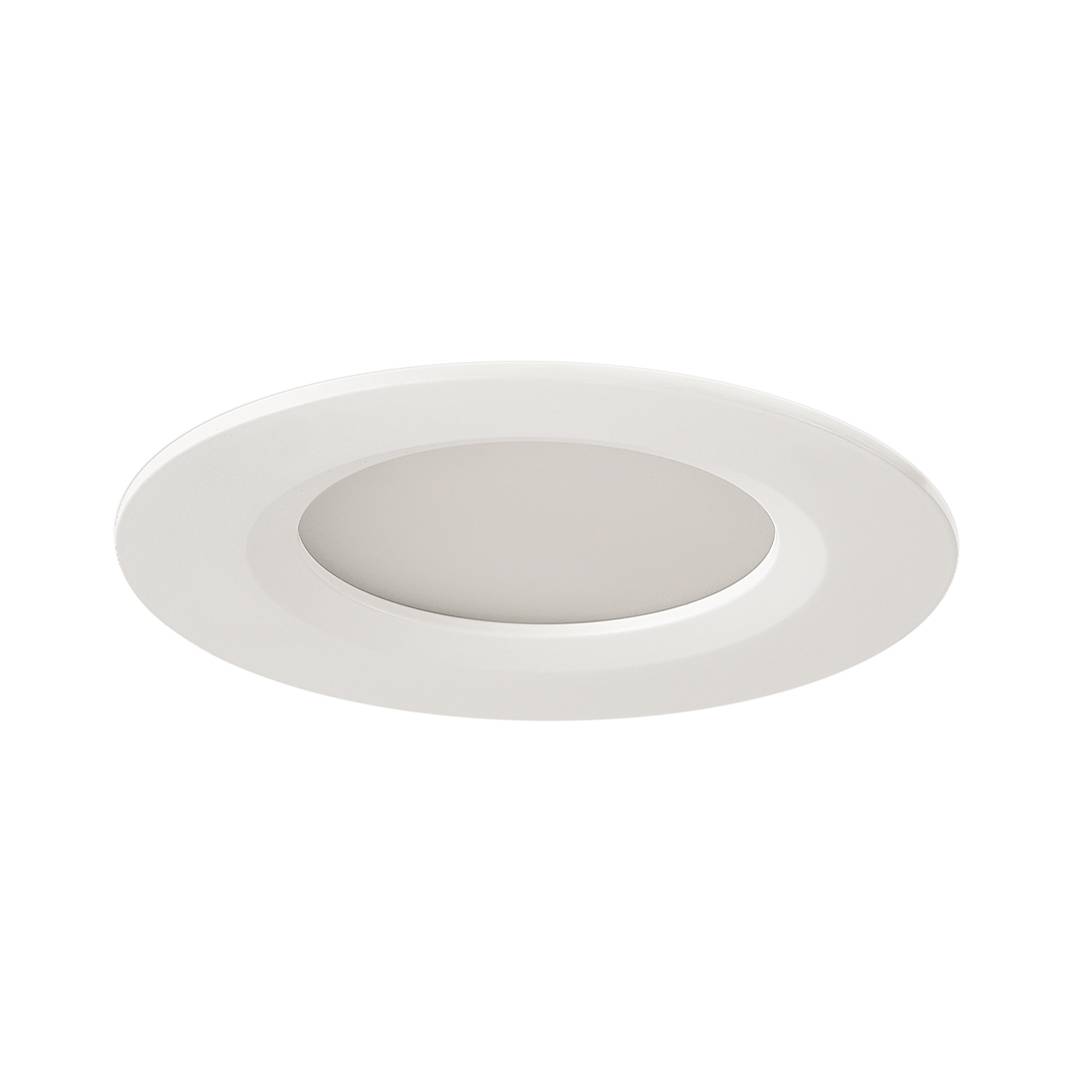

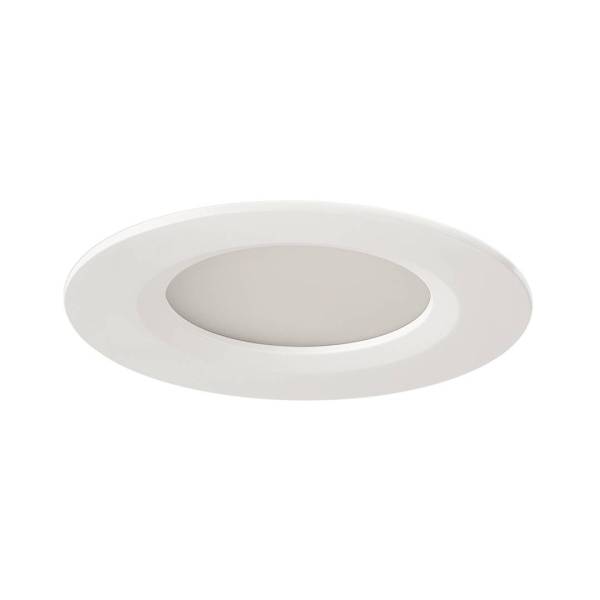

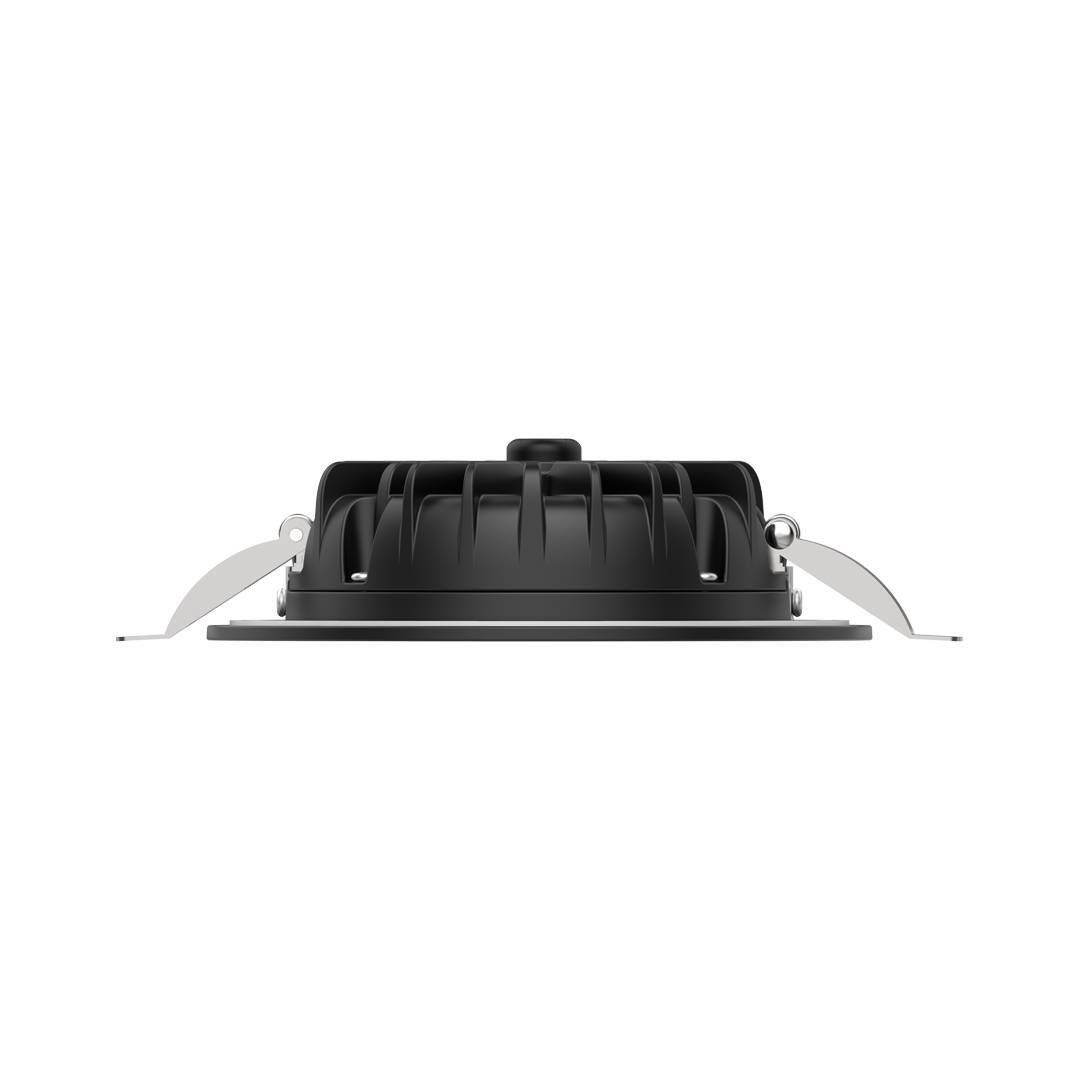

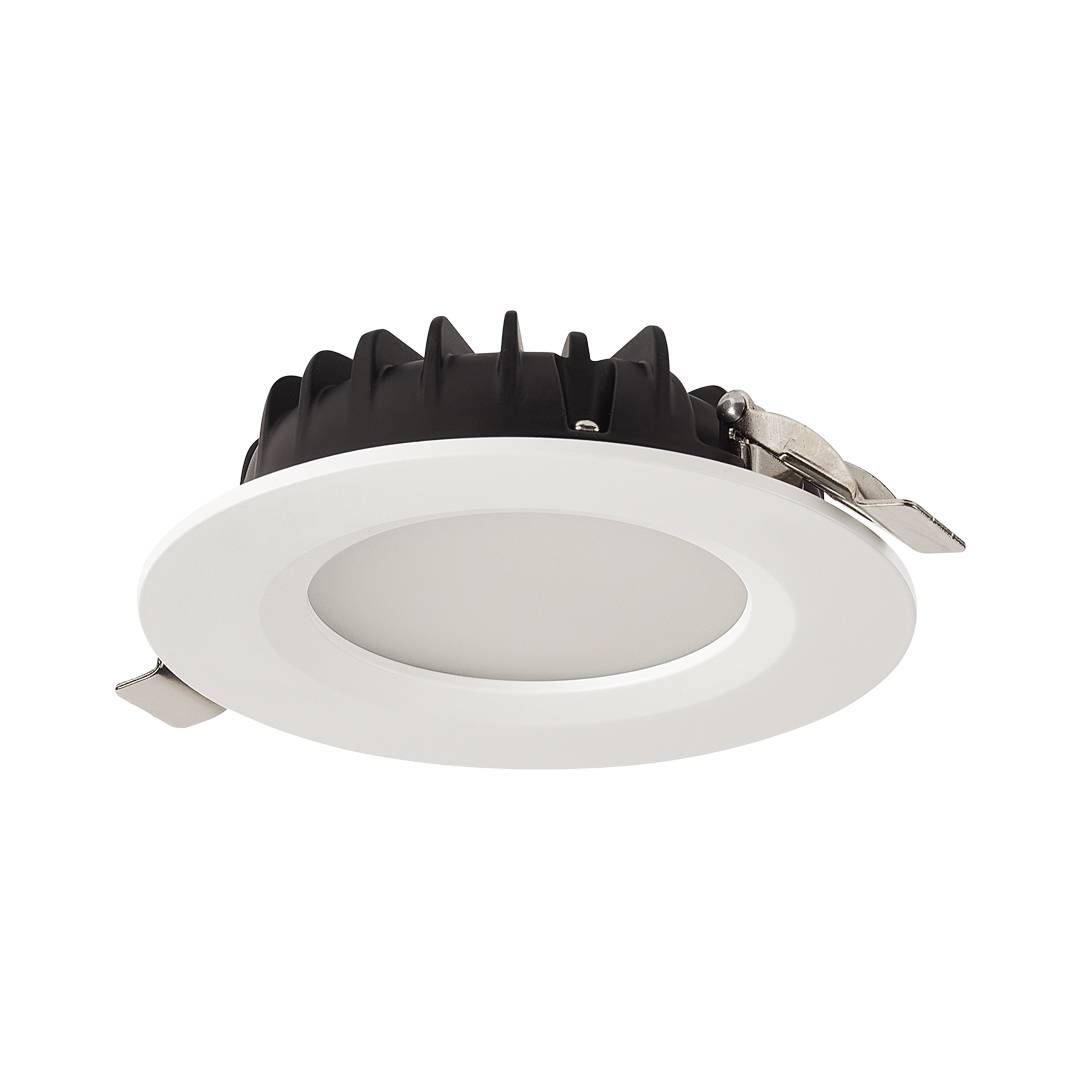

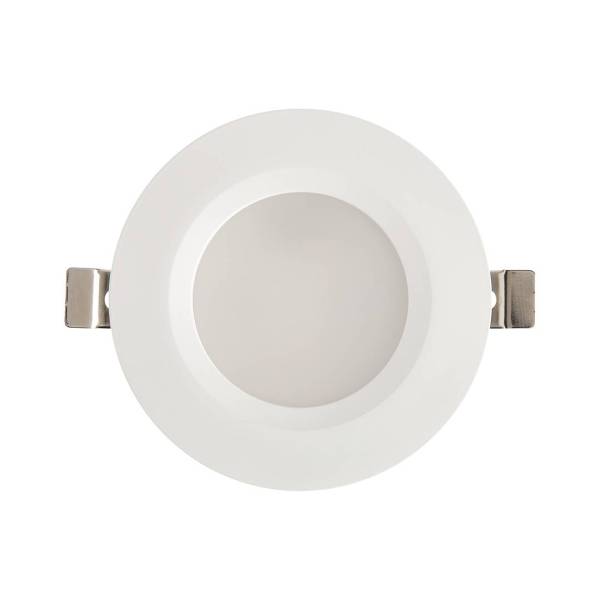

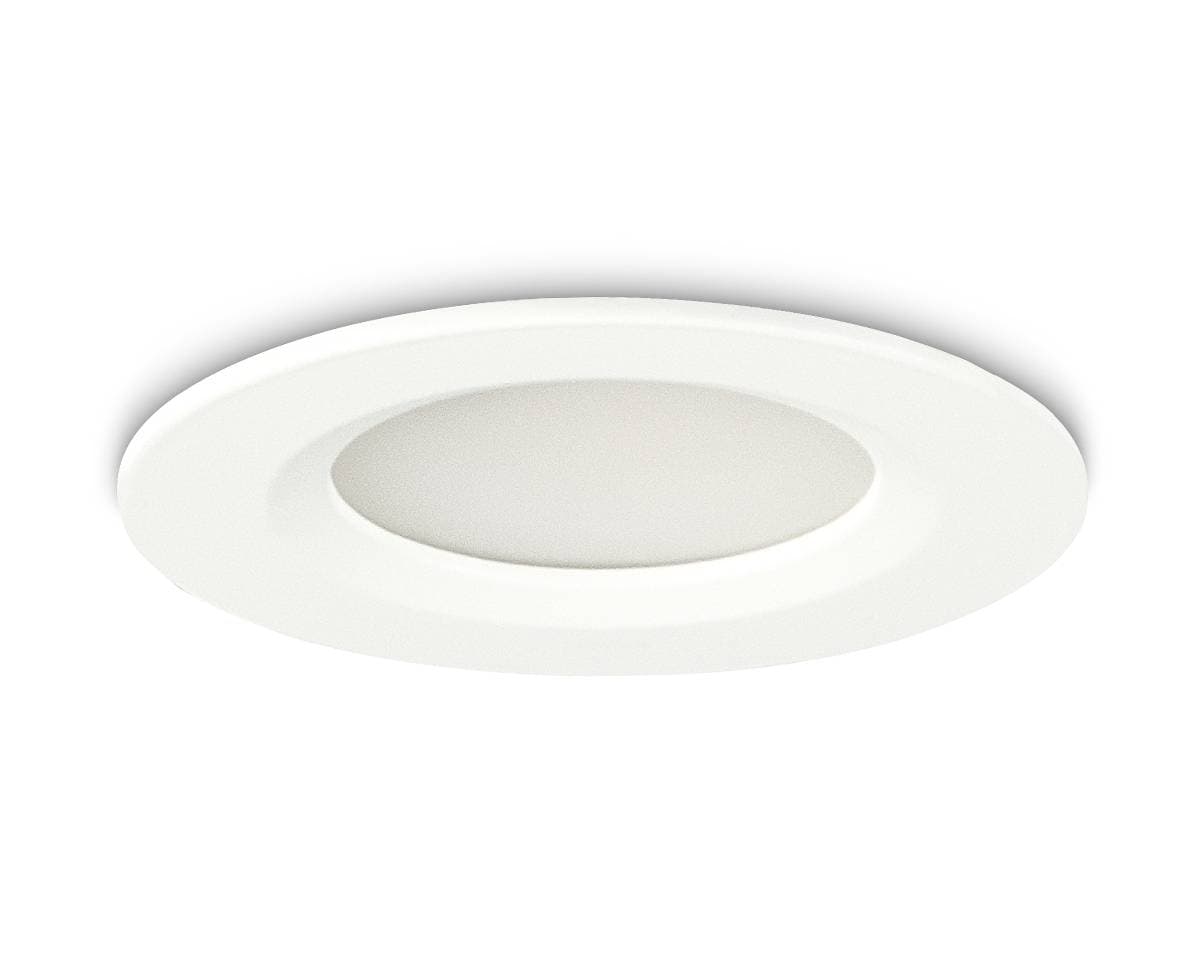

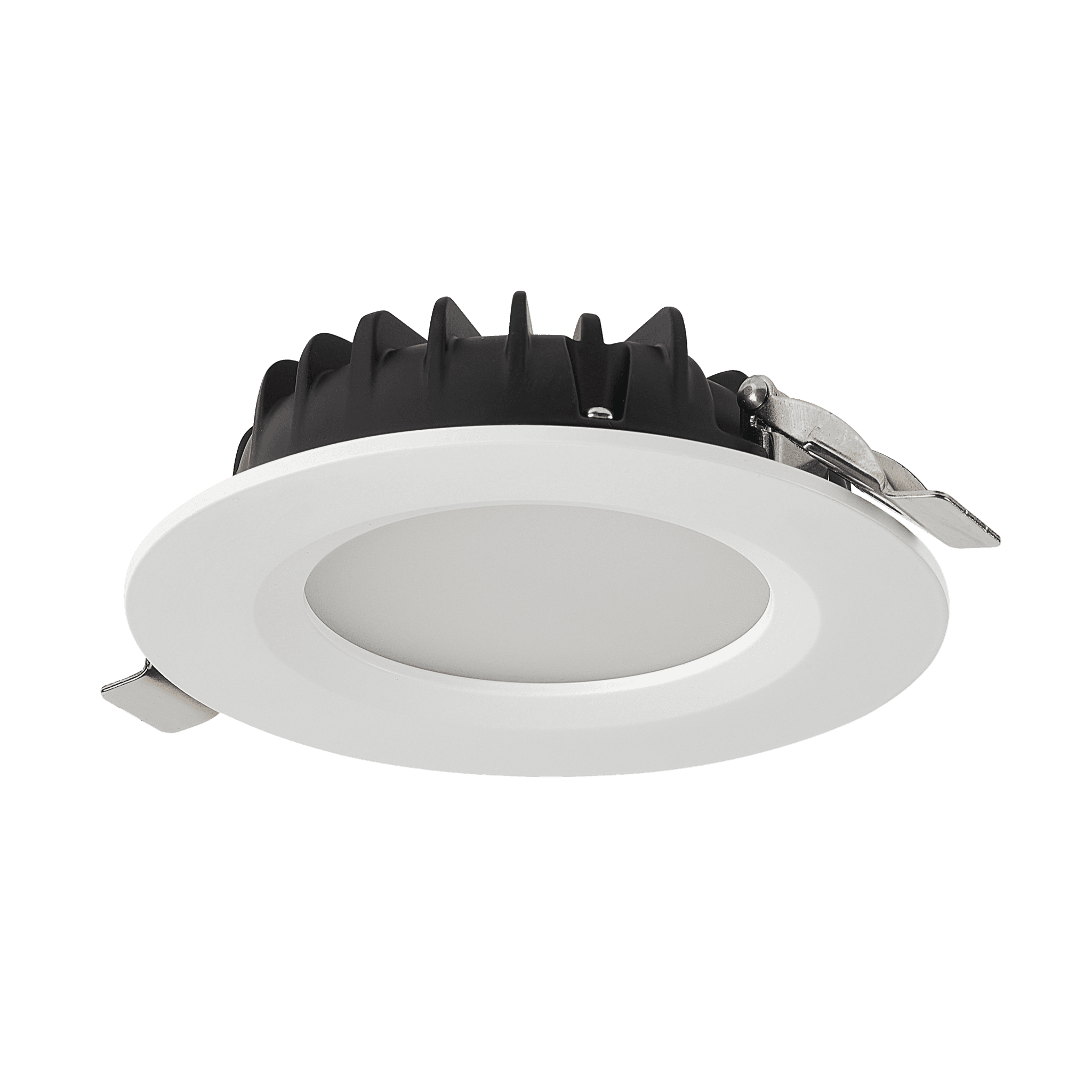

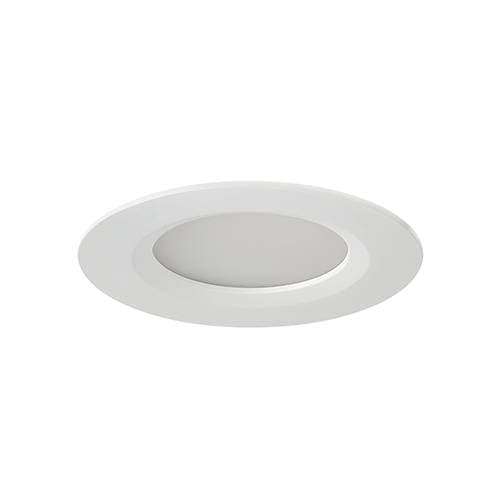

Thea Lite CSP 100mm

Colour temperature switchable, 3000K-4000K-6000K
Highly efficient up to 120 Llm/W ensures low running costs
Quick and easy installation with plug & play connectors
UGR27 compliant for comfortable lighting of washrooms, bathrooms, cloakrooms as well as general circulation and stairs
IP54 protection against water splash from any direction

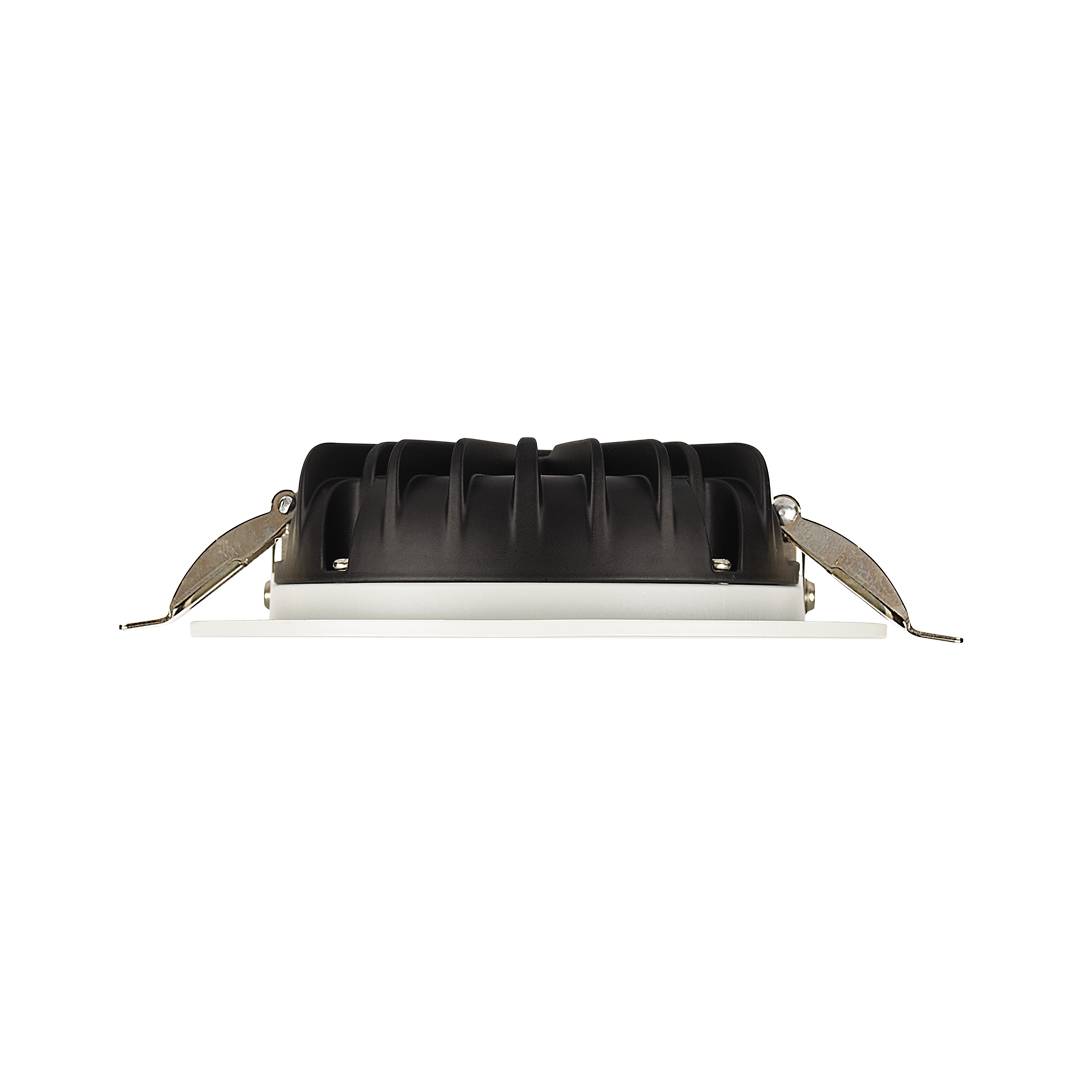

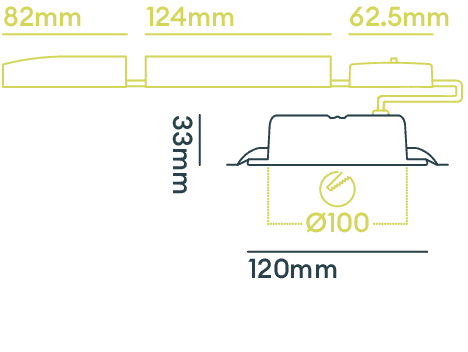

Low 33mm product depth enables product to be used with small ceiling voids
TP(a) Thermoplastic
850° Glow Wire Test

Accessories

Find the perfect product you are looking for.

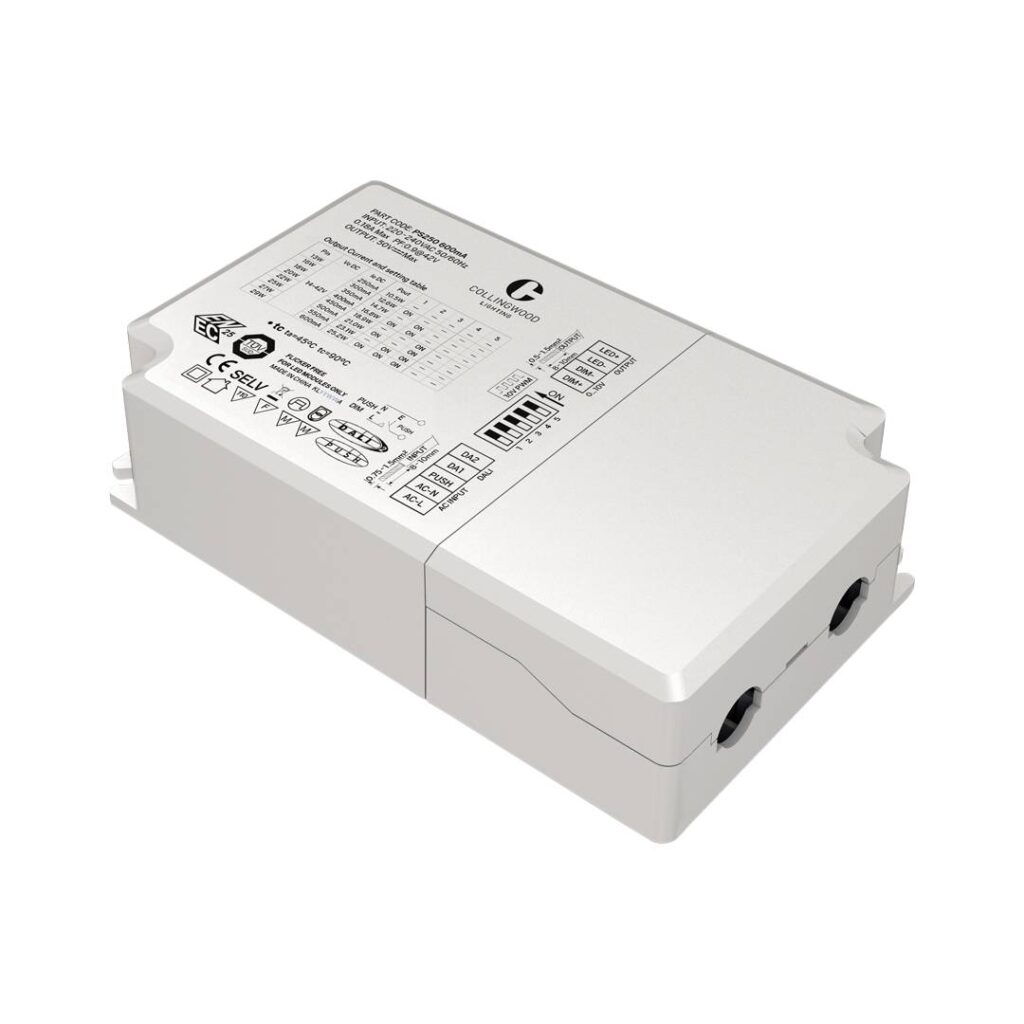

one4all design DALI-2, Push-dim, 0-10V

Emergency converter, Self-test & Manual-test switchable, maintained

Dimmable Option

Colour / Finish

Wattage / Lumens

Driver Included

Code	CRI	UGR	IP Rating	Dimmable Option	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Sensor Option	Emergency Option	Base Shape	Adjustability
THL1X	CRI>80	27	IP54 (from below) IP20 (from above)	Driver dependent	100	ADC12 Aluminium Alloy\|PC\|PET	80°	White	10W	3000K / 4000K / 6000K	1100-1200	121	121	None	None	Round	Not adjustable
THL1T	CRI>80	27	IP54 (from below) IP20 (from above)	Mains (Leading Edge/Trailing Edge)	100	ADC12 Aluminium Alloy\|PC\|PET	80°	White	10W	3000K / 4000K / 6000K	1100-1200	121	121	None	None	Round	Not adjustable

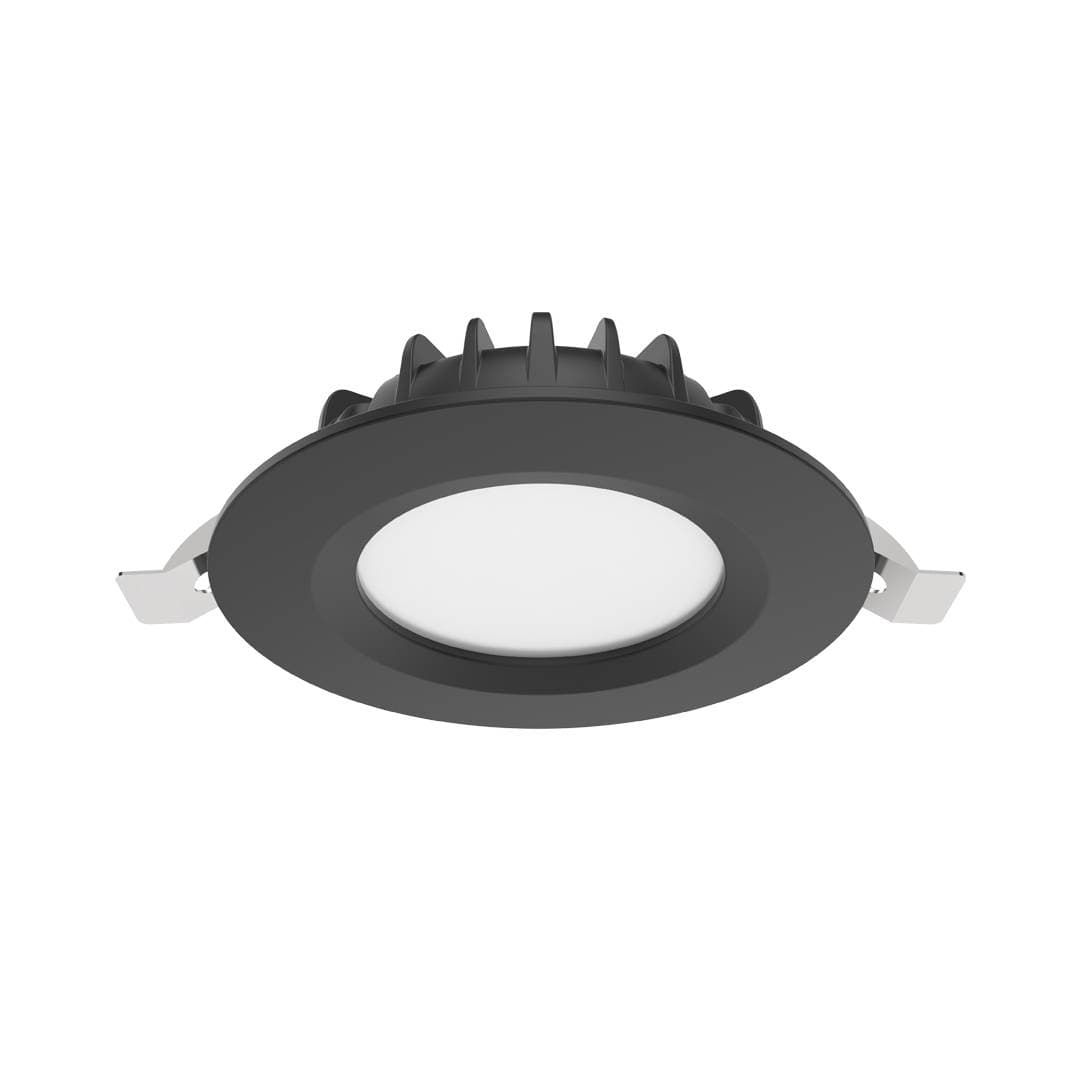

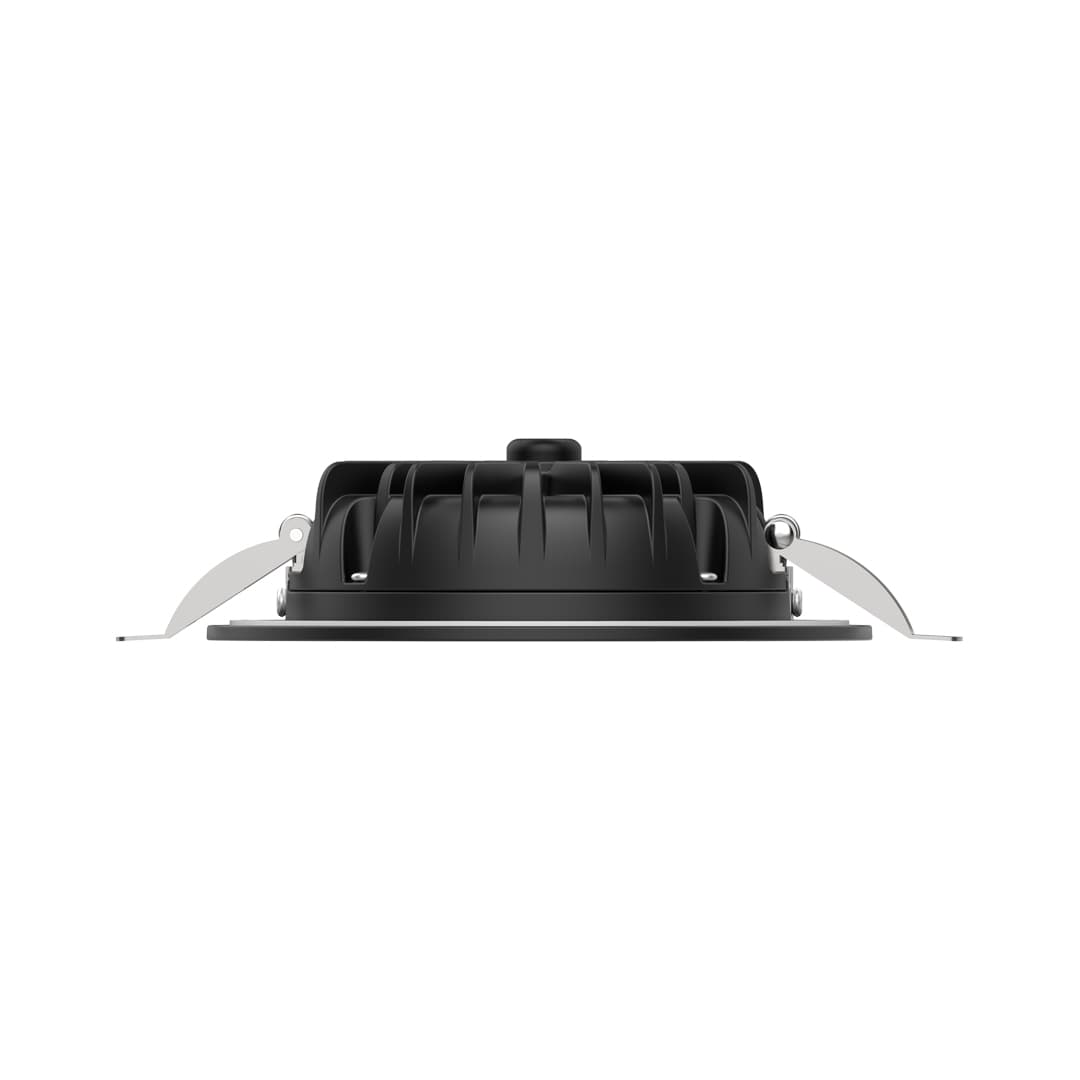

THLB1T	CRI>80	27	IP54 (from below) IP20 (from above)	Mains (Leading Edge/Trailing Edge)	100	ADC12 Aluminium Alloy\|PC\|PET	80°	Black	10W	3000K / 4000K / 6000K	1000-1100	121	121	None	None	Round	Not adjustable

Dimmable Option

Colour / Finish

Wattage / Lumens

Driver Included

Code	CRI	UGR	IP Rating	Dimmable Option	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Sensor Option	Emergency Option	Base Shape	Adjustability
THL1X	CRI>80	27	IP54 (from below) IP20 (from above)	Driver dependent	100	ADC12 Aluminium Alloy\|PC\|PET	80°	White	10W	3000K / 4000K / 6000K	1100-1200	121	121	None	None	Round	Not adjustable
THL1T	CRI>80	27	IP54 (from below) IP20 (from above)	Mains (Leading Edge/Trailing Edge)	100	ADC12 Aluminium Alloy\|PC\|PET	80°	White	10W	3000K / 4000K / 6000K	1100-1200	121	121	None	None	Round	Not adjustable
THLB1T	CRI>80	27	IP54 (from below) IP20 (from above)	Mains (Leading Edge/Trailing Edge)	100	ADC12 Aluminium Alloy\|PC\|PET	80°	Black	10W	3000K / 4000K / 6000K	1000-1100	121	121	None	None	Round	Not adjustable
