Flex Bay

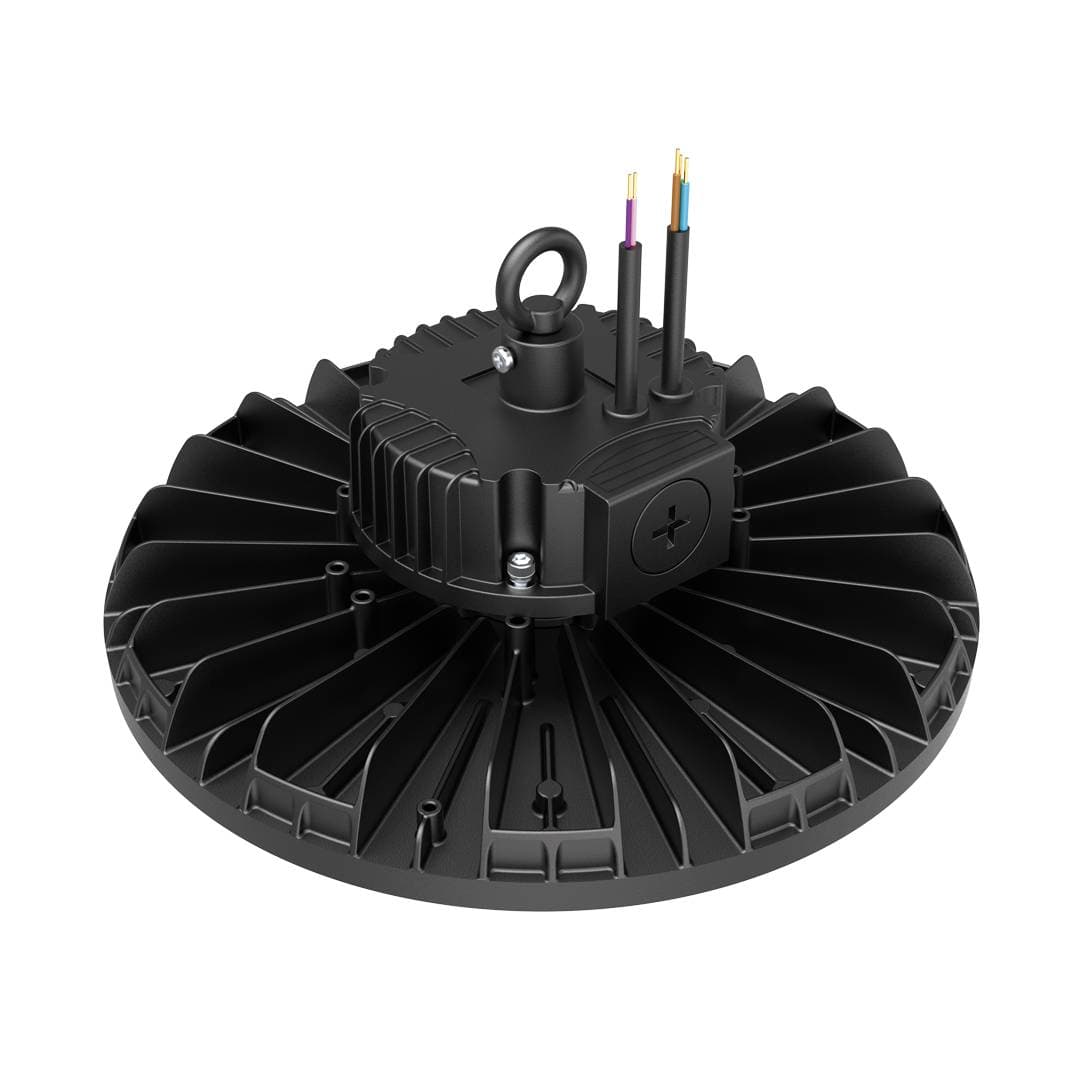

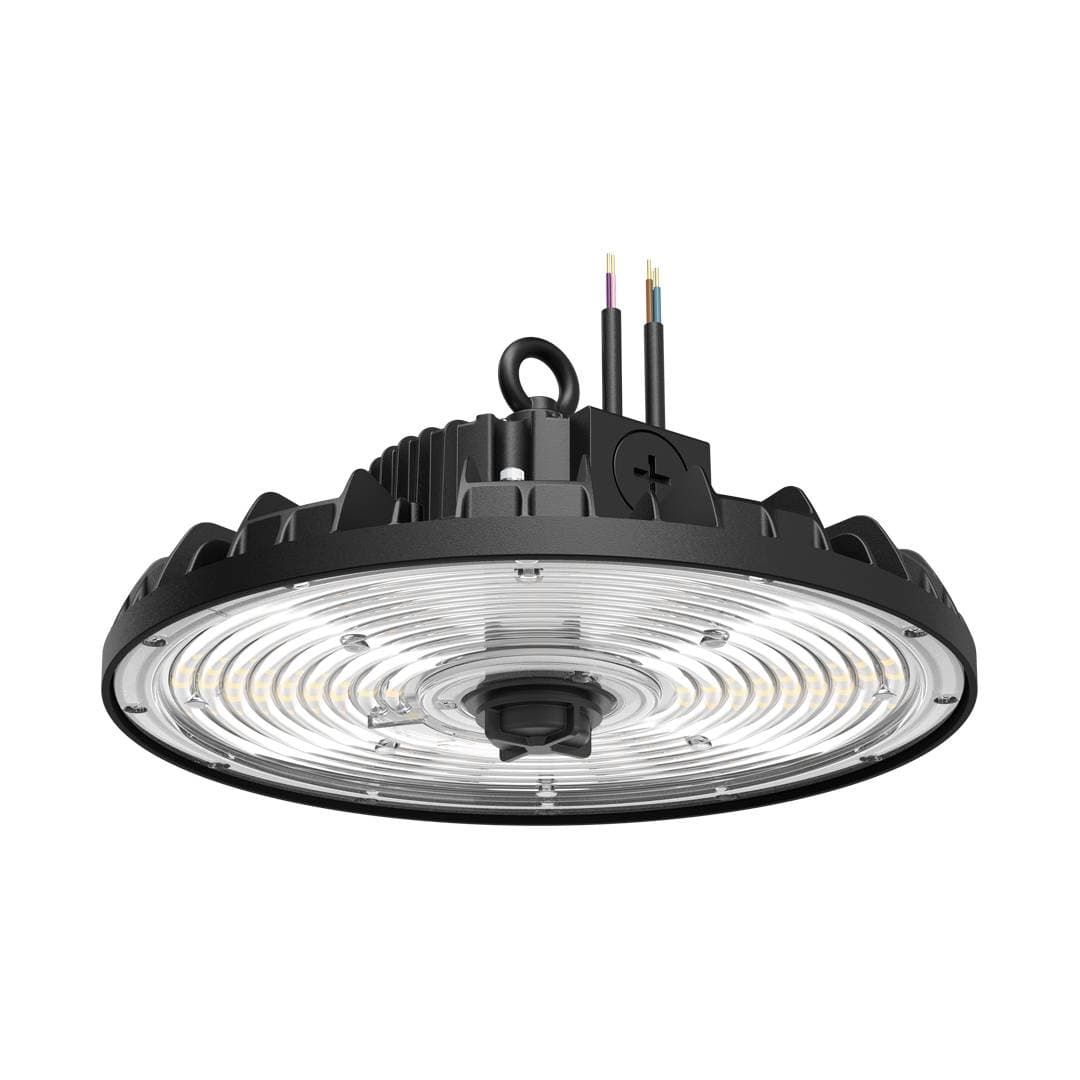

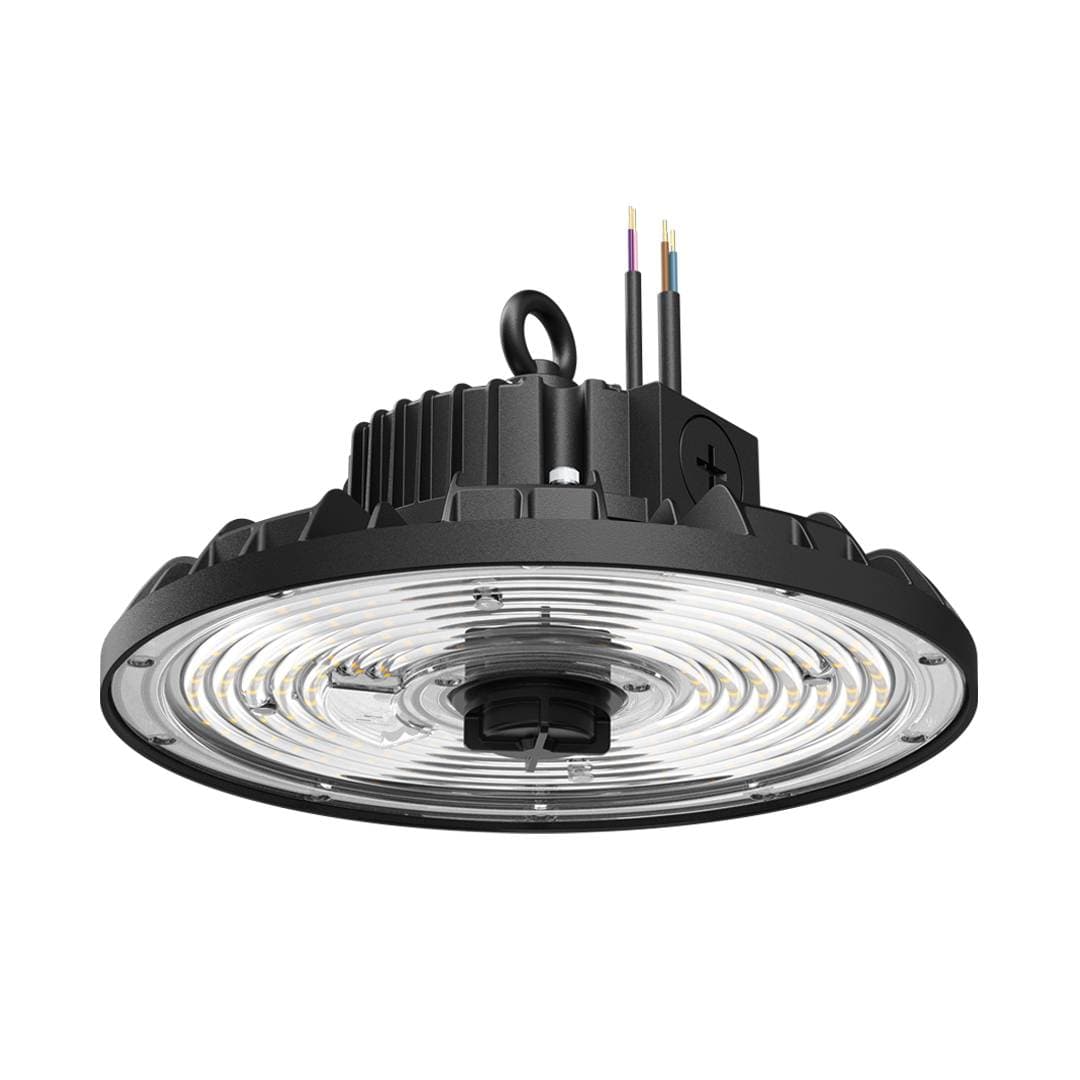

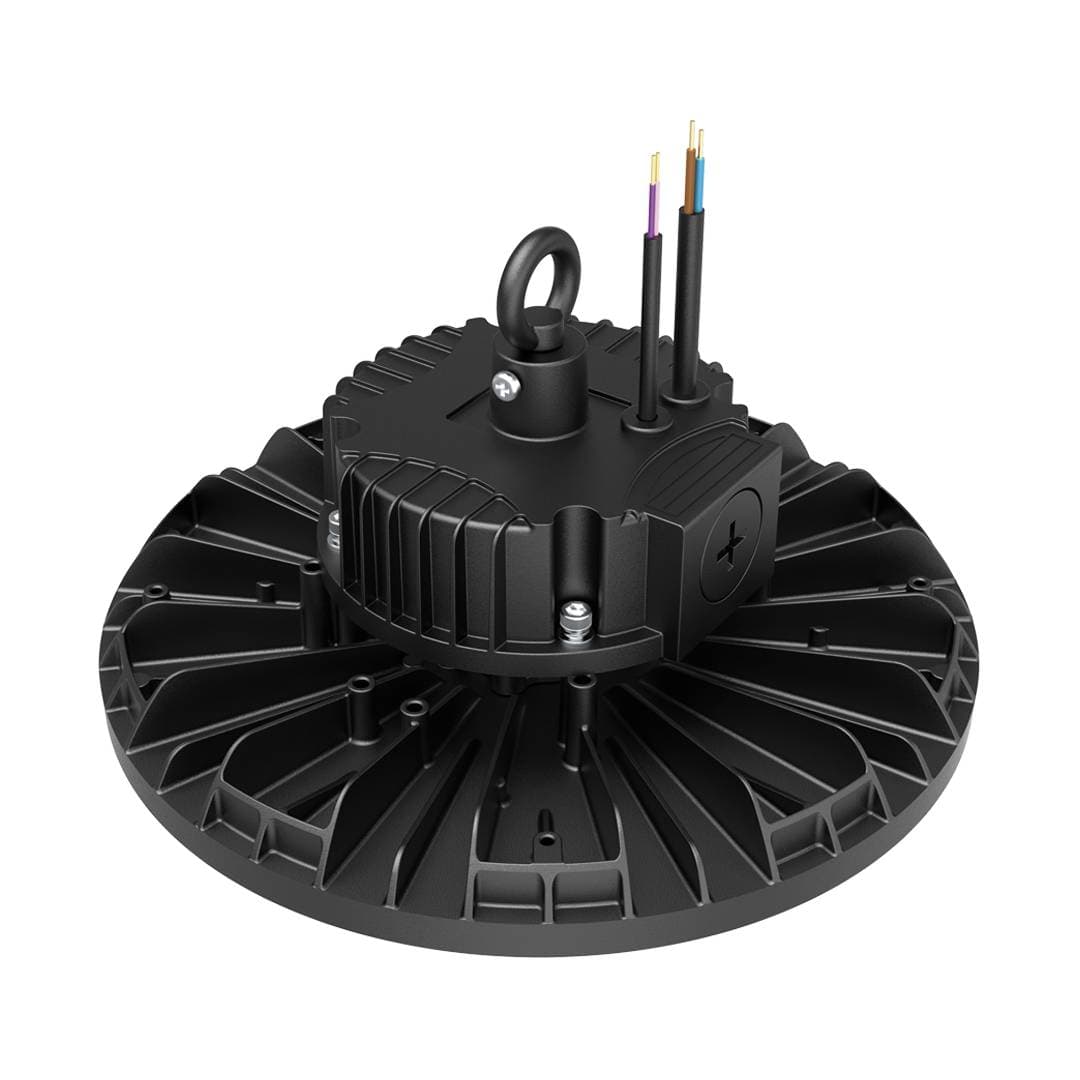

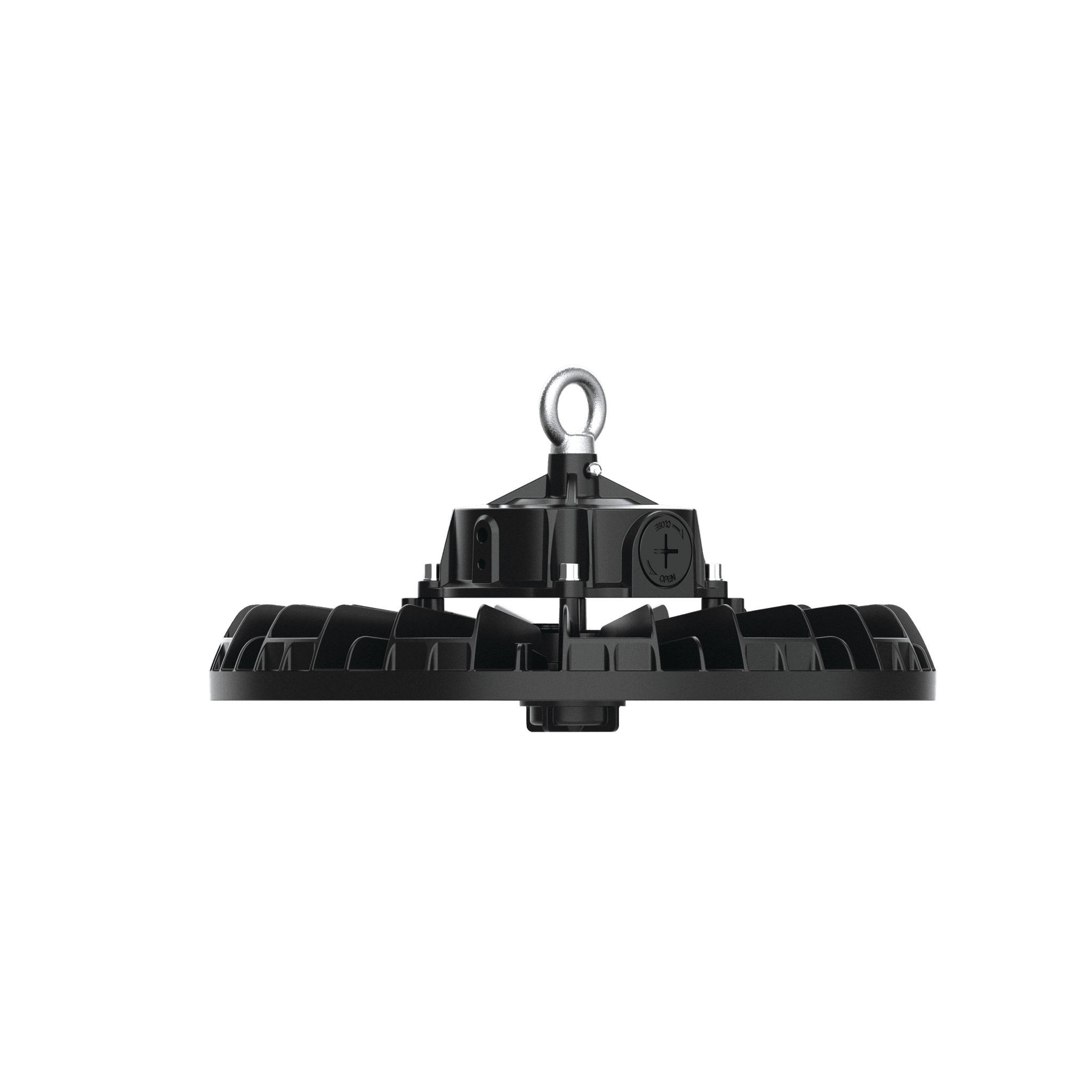

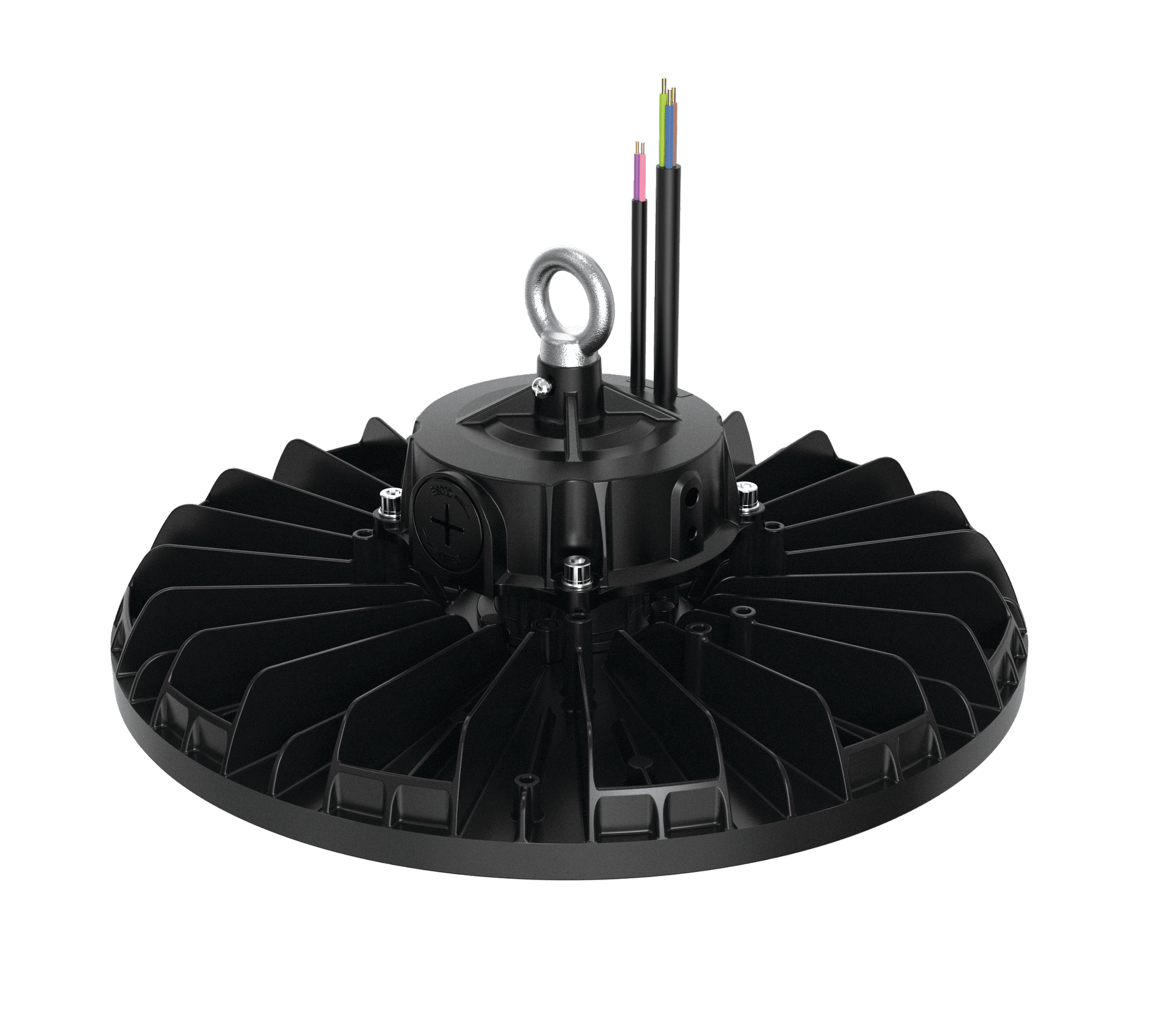

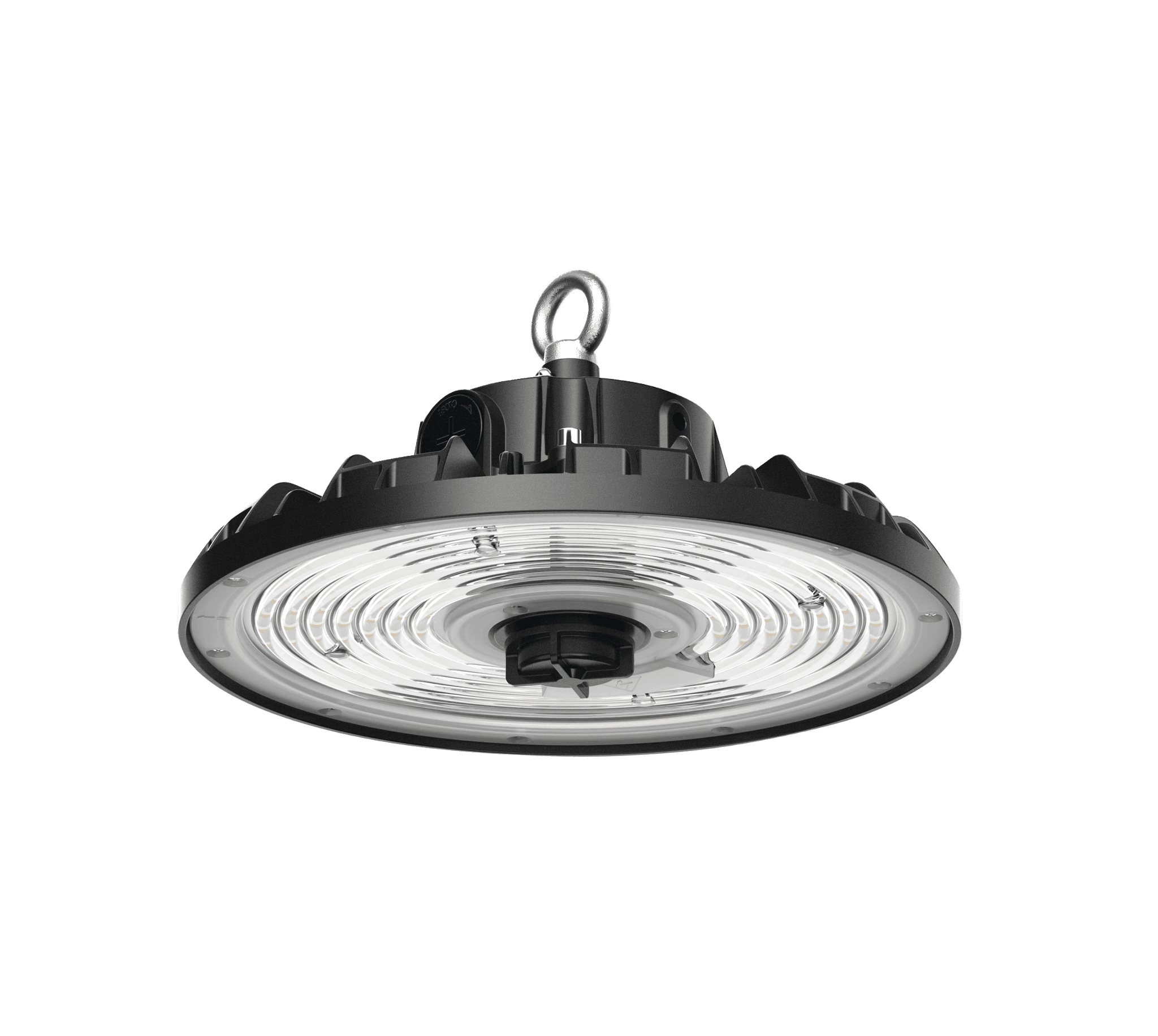

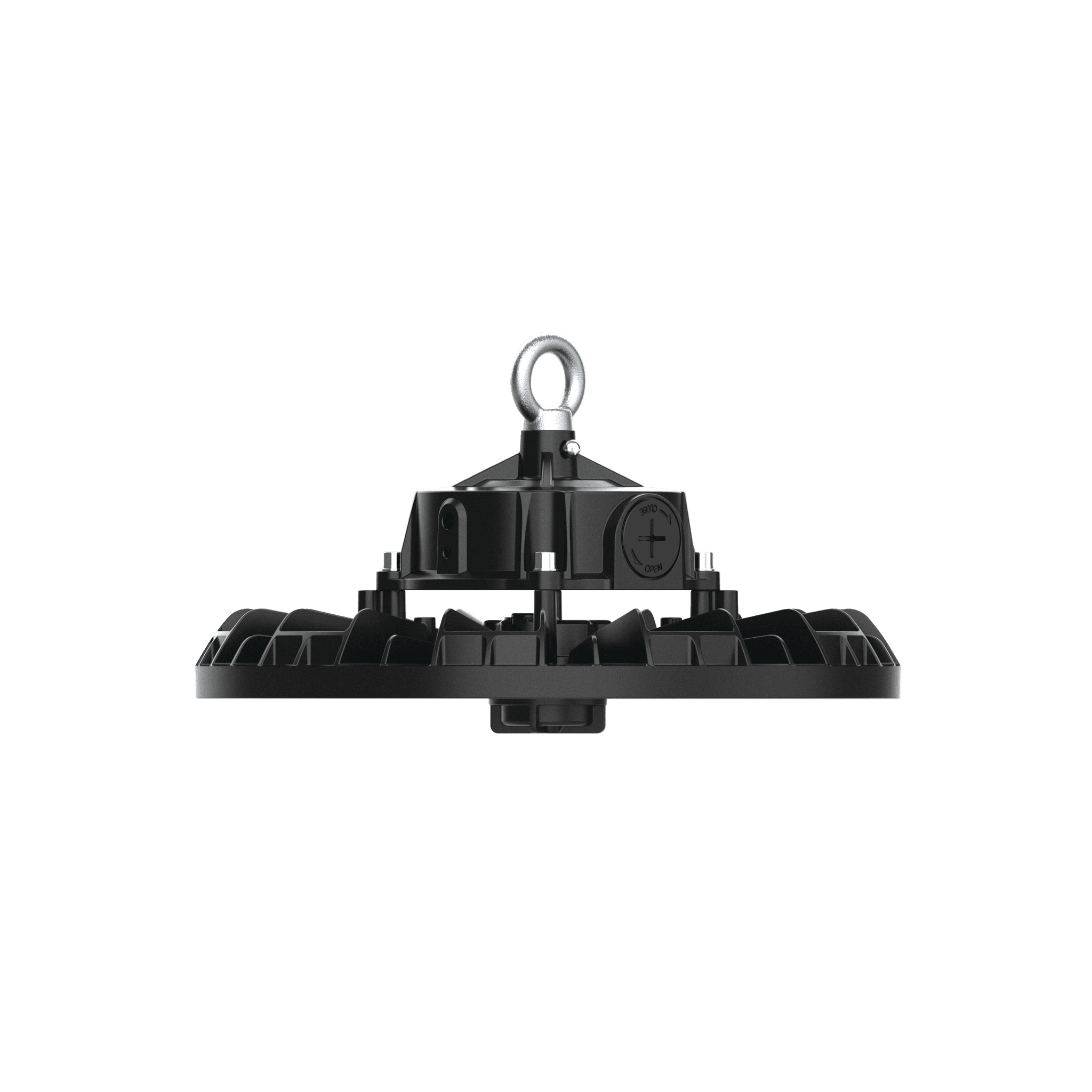

Our Flex Bay High Bay LED is a high-efficiency lighting solution delivering up to 150 lm/W at 4000K, designed for industrial and commercial environments. Featuring switchable wattage from 100W to 150W, 0–10V dimming, and optional emergency versions with manual or self-test, it offers excellent flexibility for modern lighting schemes. The twist-and-lock Zhaga sensor interface allows lighting controls to be installed in seconds, with optional PIR, microwave, daylight, and wireless control modules helping to reduce energy consumption. Compact and lightweight for single-person installation, the fitting includes a removable driver for easy maintenance, a fully recyclable impact- and corrosion-resistant aluminium housing, and comes pre-wired with a 1.0m H05RN-F cable. Suitable for jack chain, M10 drop rod, or catenary wire suspension, it provides a robust and adaptable solution for high-bay applications.

High efficiency up to 150lm/W

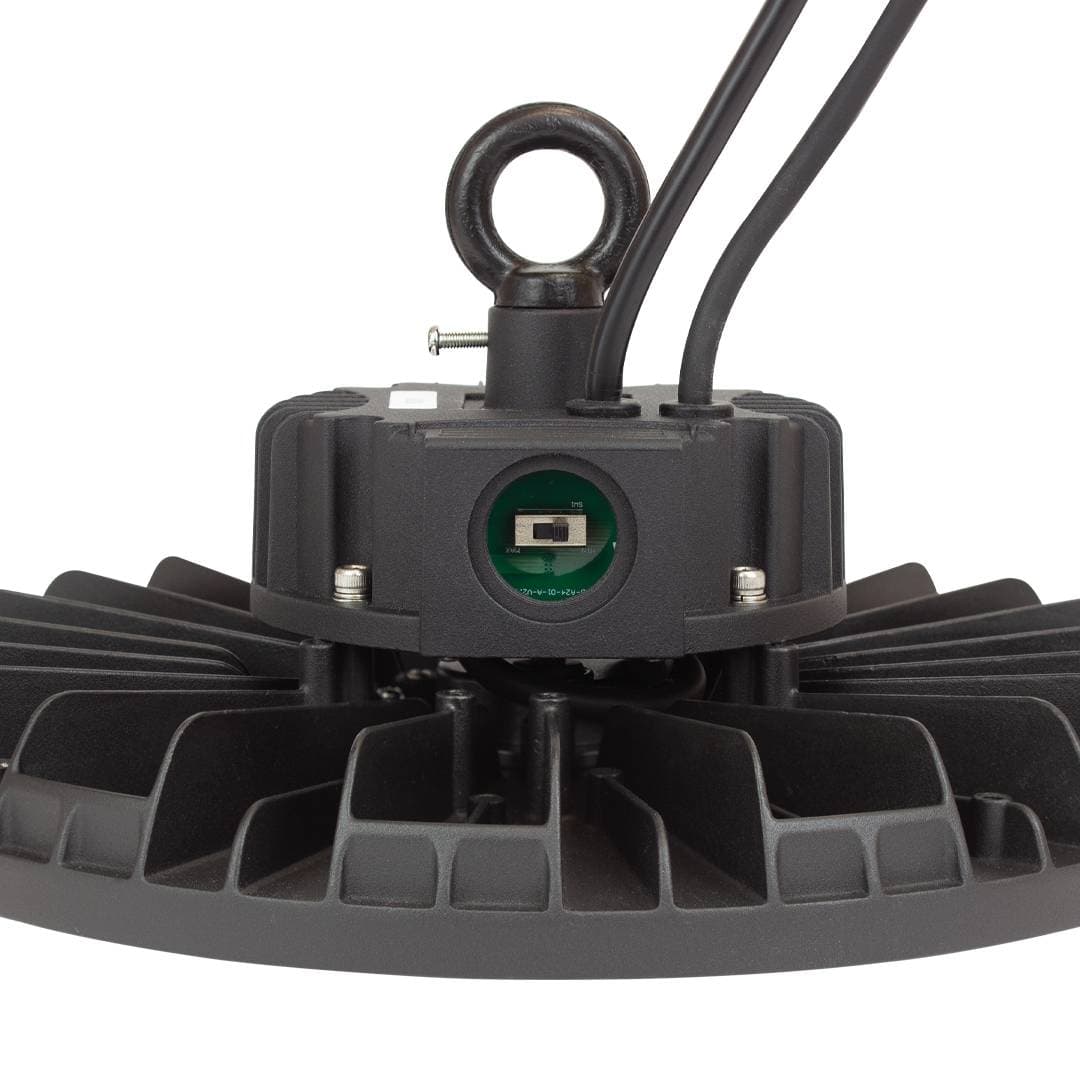

Wattage switchable from 100W to 200W
Emergency options for Manual-test or Self-test
Twist and lock Zhaga sensor range enables the installer to wire lighting controls in seconds
Choice of PIR, microwave, daylight and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay
Compact and lightweight, our product can be held in one hand and installed by a single person
Removeable driver for easy maintenance
Impact and corrosion resistant aluminium housing which is 100% recyclable

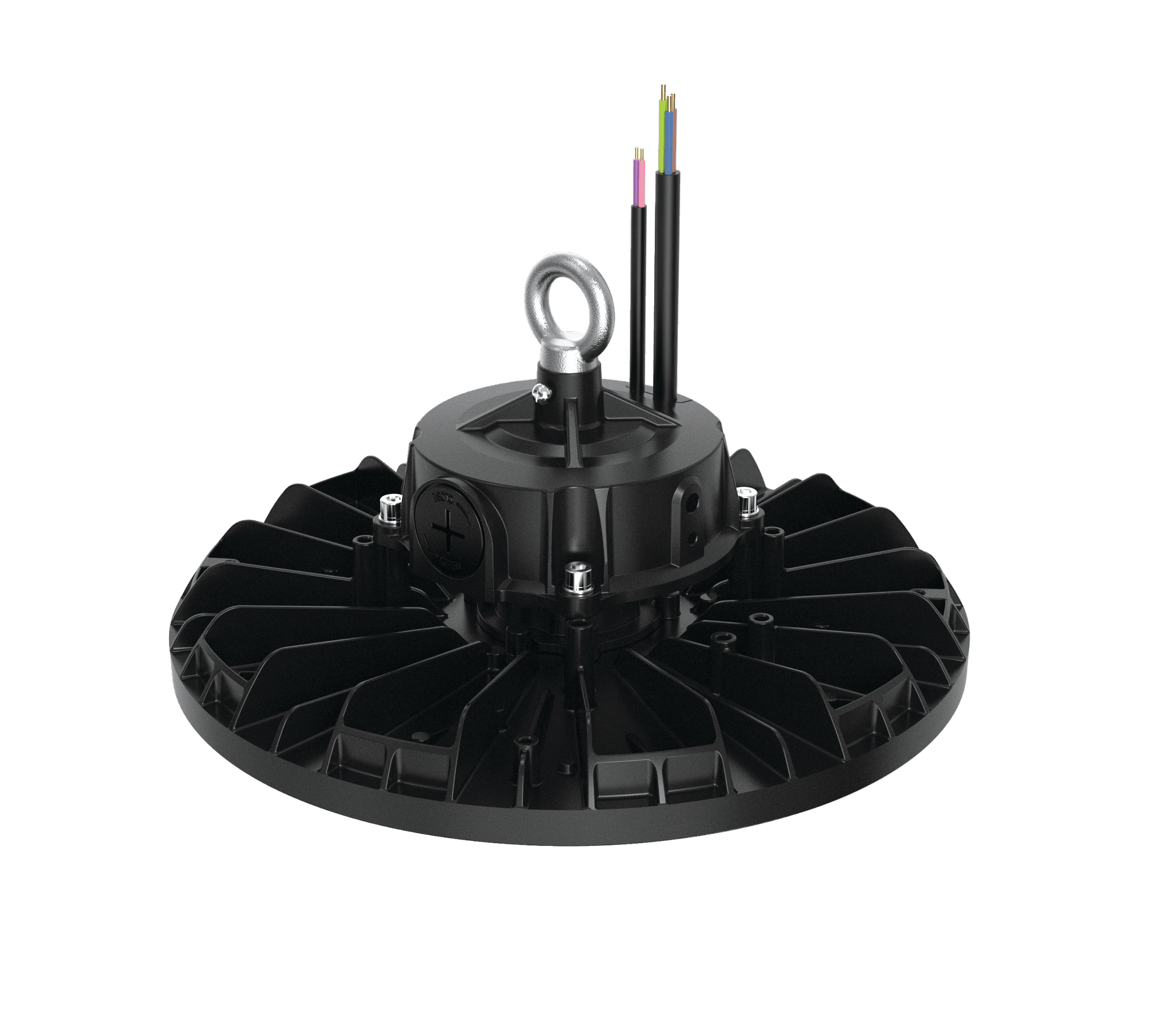

Pre-wired with 1.0m H05RN-F 3x1.0mm² Ø7mm
Suitable for jack chain, M10 drop rod or catenary wire suspension

Accessories

Find the perfect product you are looking for.

UNREMOTEMWS

Universal Remote control for Microwave sensor

HBPIR

Passive infra-red motion sensor with daylight threshold switch

HBPIRDLD

Passive infra-red motion sensor with daylight harvesting photocell

HBMWS

Motion sensor with daylight threshold switch (8-15m)

HBROD

Reduces mounting height by 1.5 metres

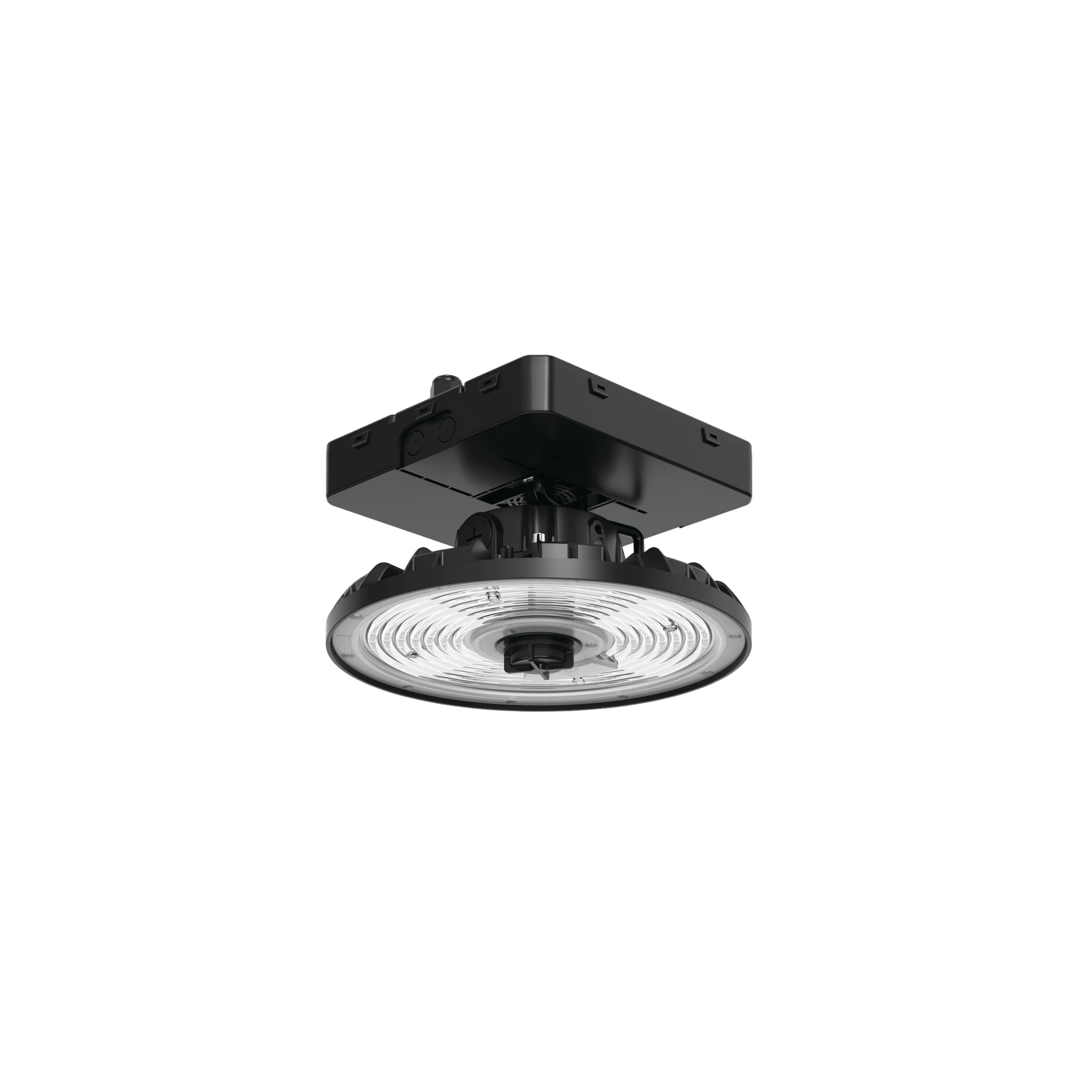

HBLEMGREM

Emergency conversion pack for Springbok Lite and Area Bay

HBLEMC3MS

Highbay Manual + Self Test Emergency Converter

HBLEMC3D

Highbay DALI-2 Emergency Converter

HBDLS

Daylight harvesting sensor with photocell

CASZHAGAMB

PIR+Daylight Sensor Black up to 12m

CASZHAGASB

Wireless Node Black up to 12m

Emergency option

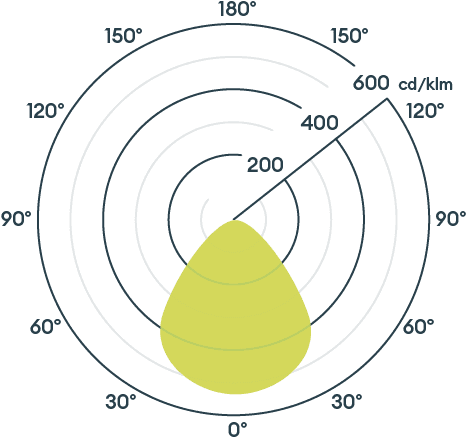

Code	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Lumens Range	Mounting Type	Sensor Option	UGR	Wattage Range
HBAS1V40	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	None	IP65	15000-22500	Ceiling,Suspended	Optional	29	100-150W

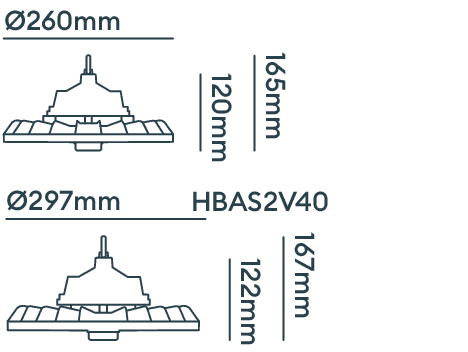

HBAS2V40	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	None	IP65	22500-30000	Ceiling,Suspended	Optional	29	150-200W
HBAS2V40EMS	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	Manual-Test,Self-Test,DALI-2	IP65	22500-30000	Ceiling,Suspended	Optional	29	150-200W
HBAS1V40EMS	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	Manual-Test,Self-Test,DALI-2	IP65	15000-22500	Ceiling,Suspended	Optional	29	100-150W

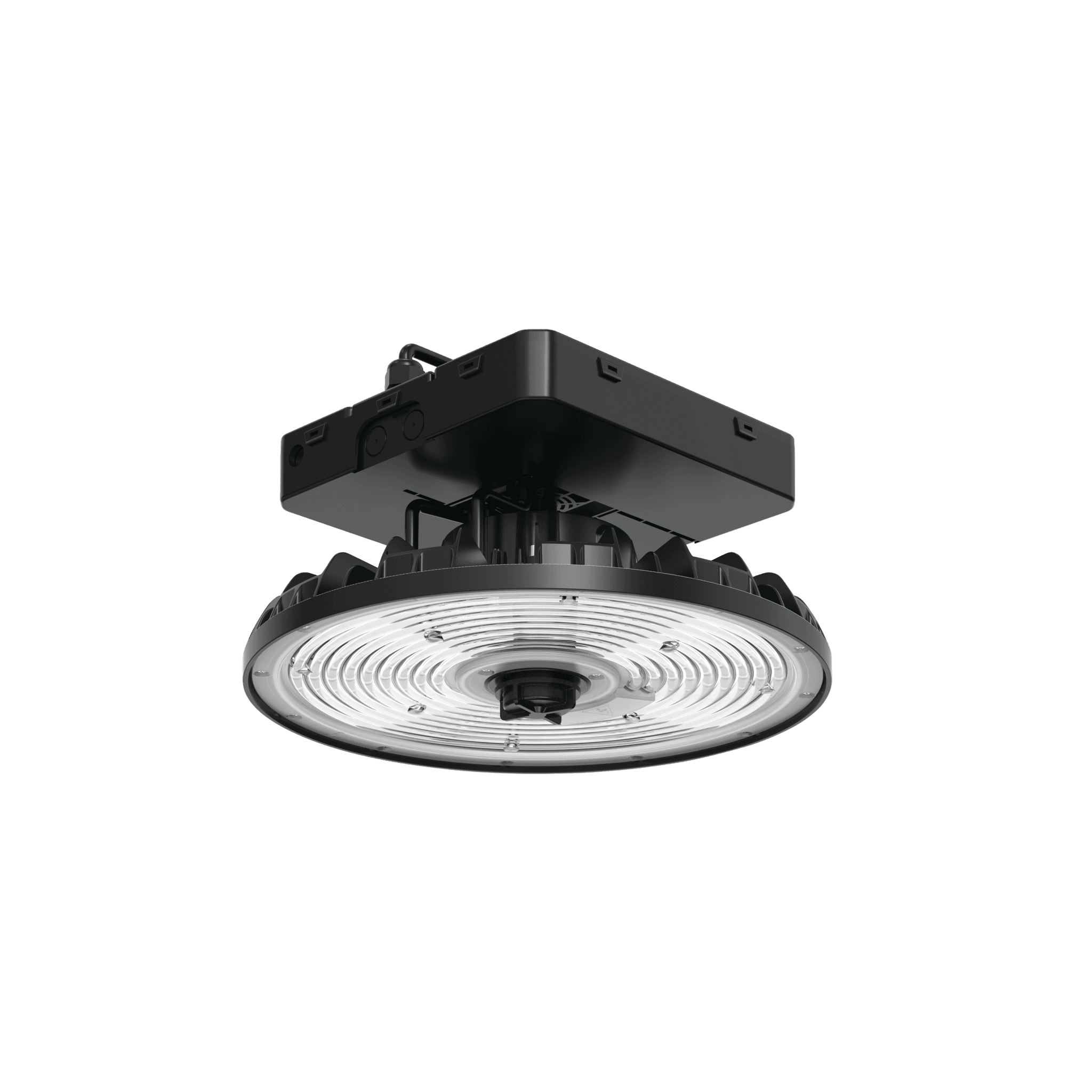

Emergency option

Code	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Lumens Range	Mounting Type	Sensor Option	UGR	Wattage Range
HBAS1V40	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	None	IP65	15000-22500	Ceiling,Suspended	Optional	29	100-150W
HBAS2V40	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	None	IP65	22500-30000	Ceiling,Suspended	Optional	29	150-200W
HBAS2V40EMS	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	Manual-Test,Self-Test,DALI-2	IP65	22500-30000	Ceiling,Suspended	Optional	29	150-200W
HBAS1V40EMS	Round	90	ADC12 Aluminium Alloy	4000K	Black	80	0-10V	Manual-Test,Self-Test,DALI-2	IP65	15000-22500	Ceiling,Suspended	Optional	29	100-150W
