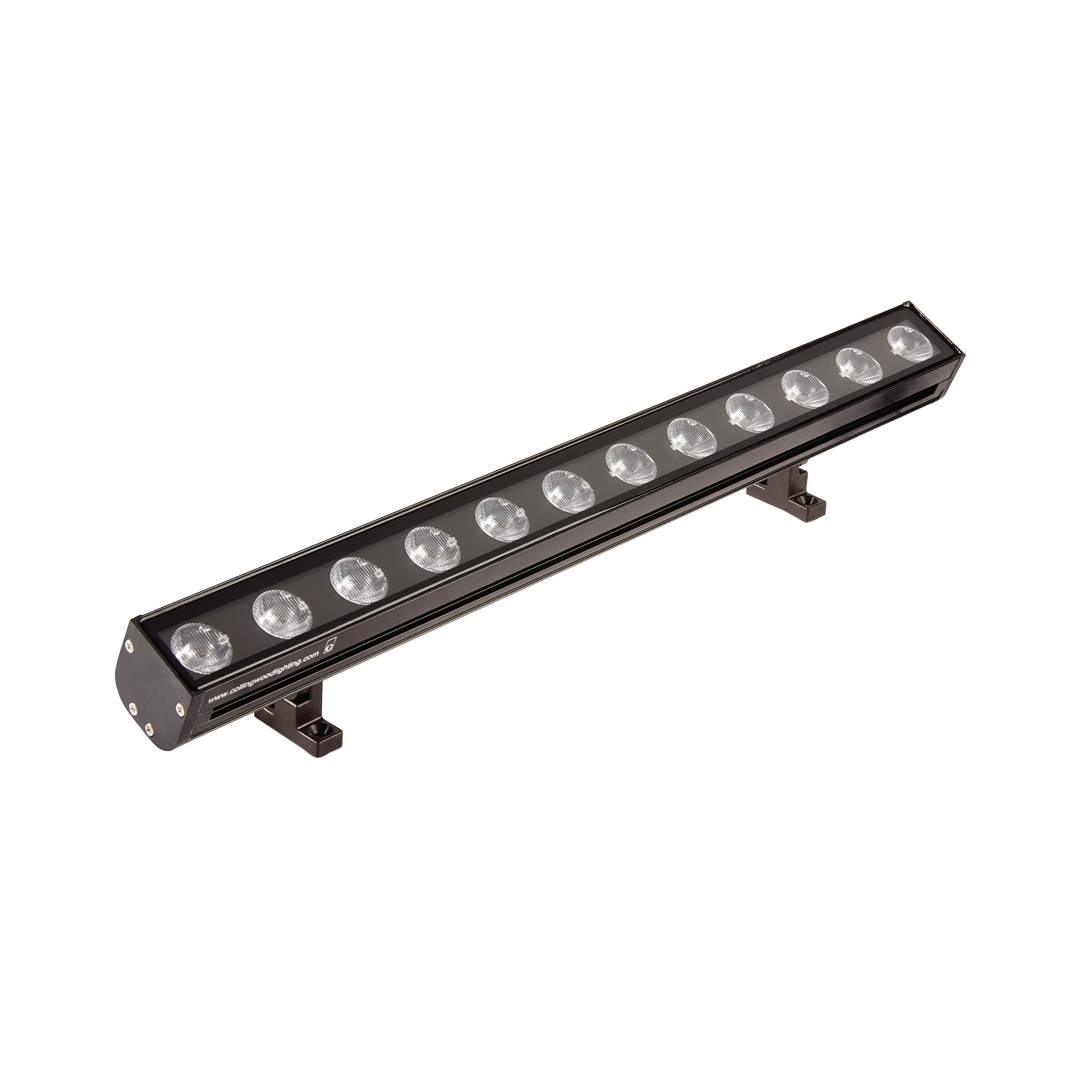

UL346CARGB

For the greatest throw of colour on the most stunning of architectural features, a wall-washing bar with asymmetric 25x6° lenses will work perfectly. The narrow beam bathes distant details in constantly changing colours and the unit features high-power Luxeon LEDs, 180° tilt and removable feet which can be attached anywhere along the underside.Although the LEDs in RGB colour-change fittings can be run together to produce white light, the units are not designed to work this way, so using them as white lights shortens the product life and voids the warranty. Use RGBW products if you wish to use white light.

  • RGB
  • Coastal Protected
  • IP65 ideal for outdoor environments
  • Surface mount in multiple applications
  • Compatible with a large range of controllers
  • Anodised aluminium for use in outdoor and indoor environments
  • Removable feet can be used anywhere along the base or sides. Allen key included
CEGuarantee 5yrIndoor and OutdoorMMP Wall and ceiling mounting onlyBeam Angle 25 DownIP65IK02Class IIIReplaceable Driver By ElectricianNon Replaceable Light Source
UL346CARGB
UL346CARGB image 1
UL346CARGB image 2
UL346CARGB image 3
UL346CARGB - Size diagram

Product Data

CodeCCT RangeColour / FinishElectric ClassEnergy ClassInputIP RatingLED Lifetimelm/W RangeLumens RangeSuitable for coastal areasTiltableWarrantyWattage RangeDownloads
UL346CARGBRGBBlackIIINot required350mA DCIP65L50 50,000h05-3323 - 136Yes1805 years4-4.3W
