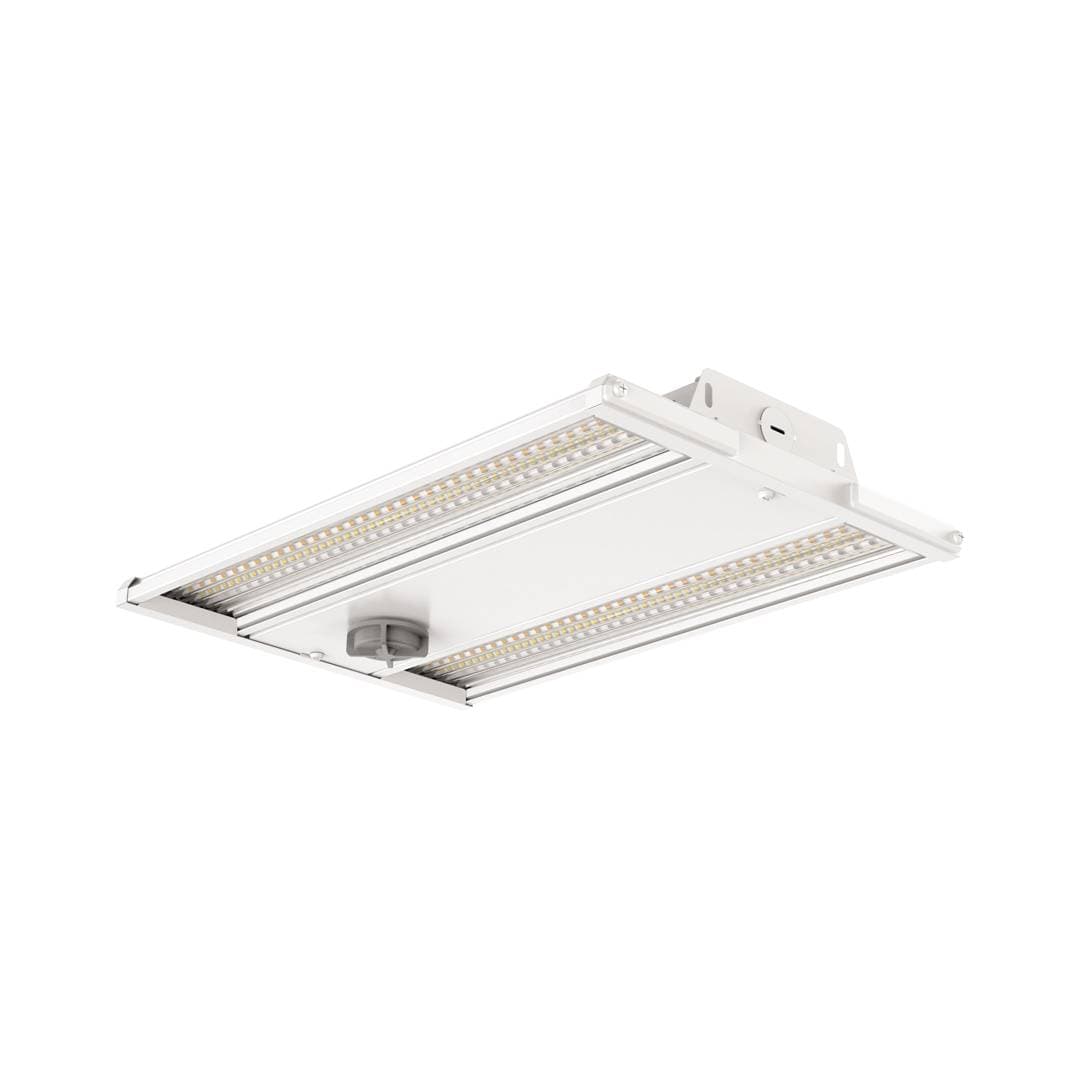

RackBay CSP

Rackbay Low Bay is the ideal lighting solution for warehouse aisles, with a 110x55° beam angle for precise illumination, IK07 impact resistance for durability, and energy-saving options such as PIR, microwave, and daylight control. It has a variety of mounting options, is compact and lightweight for single-person installation, and provides easy access to the LiFePO4 battery and removable driver for simple maintenance.

  • Colour Switchable between 3000K and 4000K
  • Wattage Switchable from 60W to 240W
  • High efficacy of 150lm/W
  • 110x55° beam angle optimised to light racking aisles
  • Choice of PIR, microwave and daylight control options saves energy and takes just seconds to fit
  • Choice of PIR, microwave and daylight control options saves energy and takes just seconds to fit
  • Mounting options for jack chain suspension, M10 or M20 fixing to busbar and surface mount
  • Compact and lightweight, our product can be held in one hand and installed by a single person
  • Quick access to LiFePO4 battery compartment for simple replacement
  • Removeable driver for easy maintenance
  • For emergency version use Bolt-on converter's
CEGuarantee 5yrIndoorMP Ceiling mounting onlyCRI 80Beam Angle 110 DownIP20IK07Class IReplaceable Driver By ElectricianReplaceable Light Source By Electrician

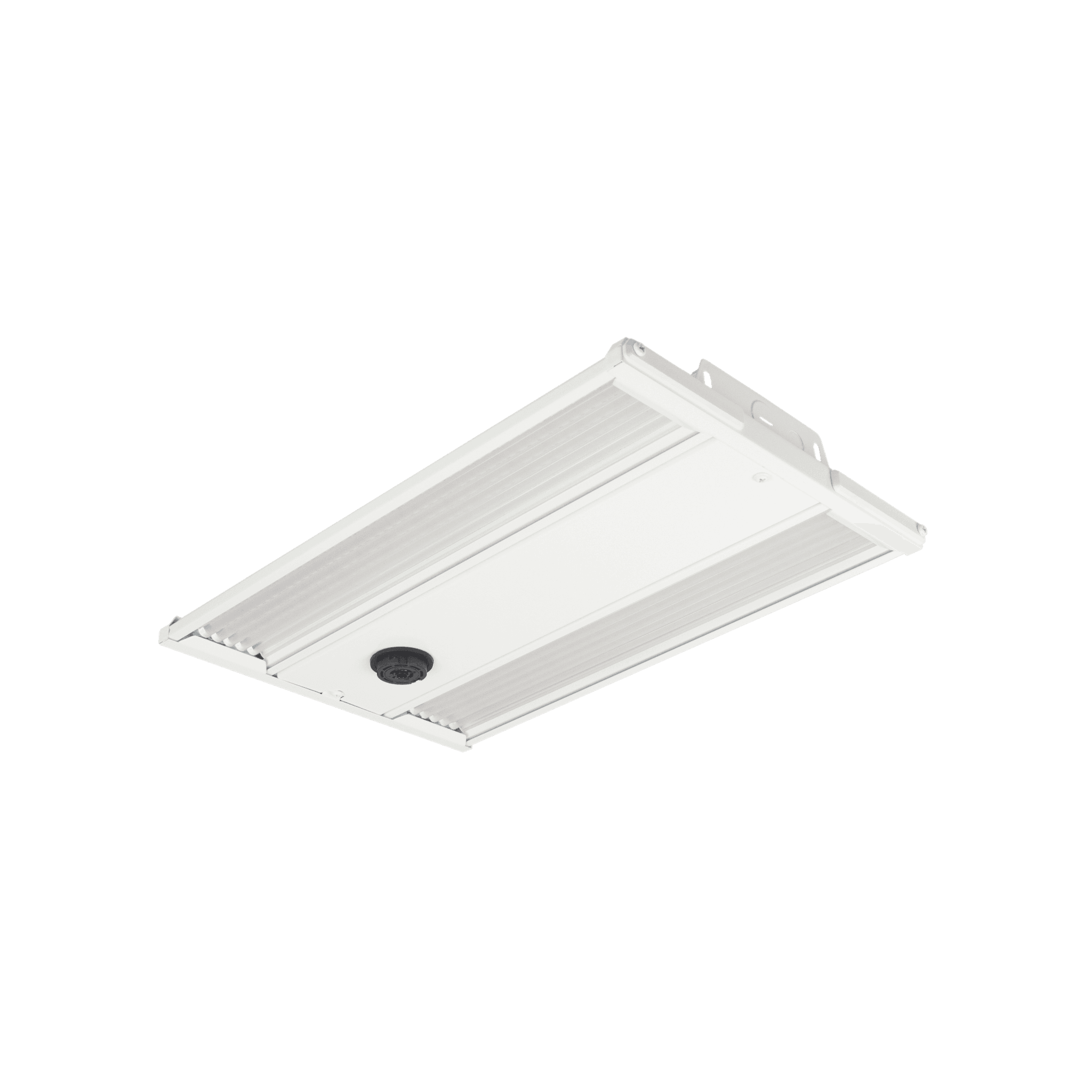

RackBay CSP
RackBay CSP image 1

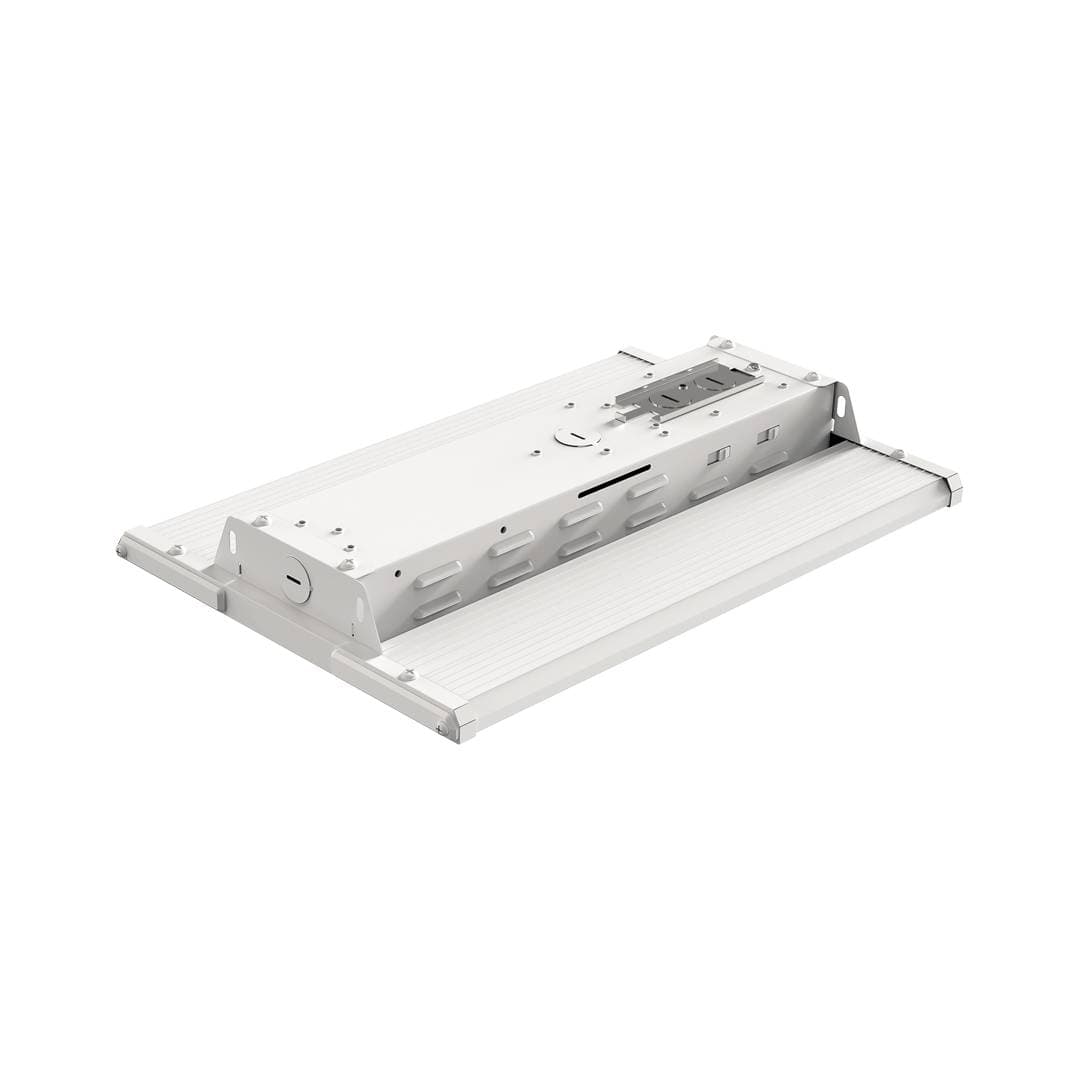

RackBay CSP image 2

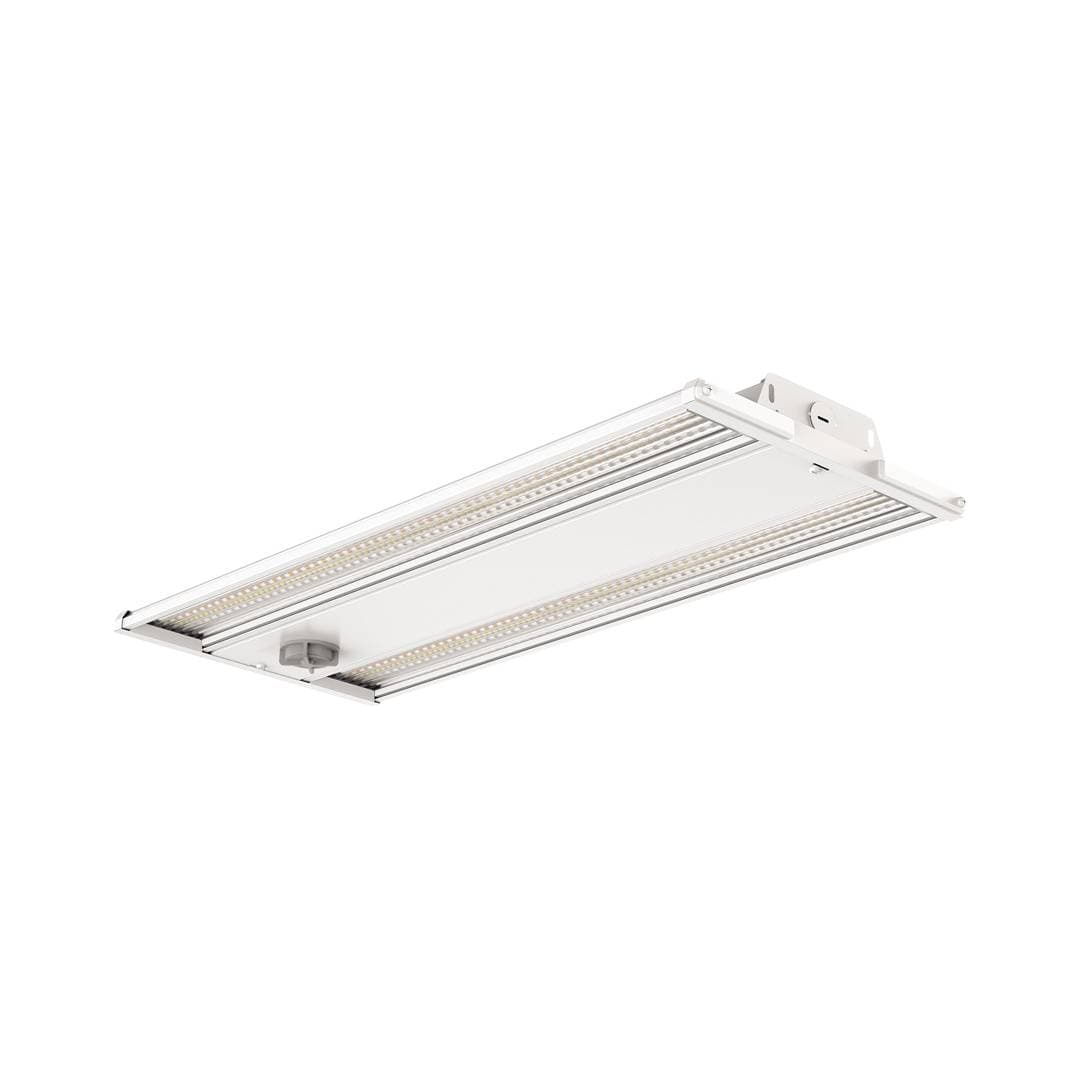

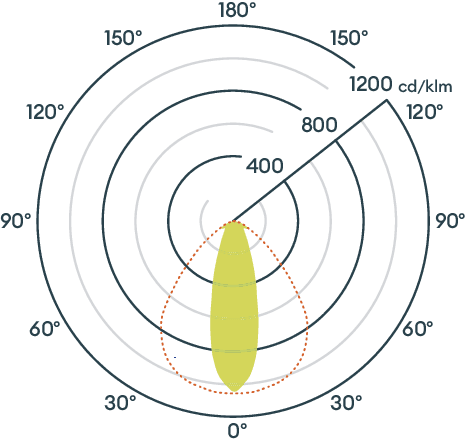

RackBay CSP image 3

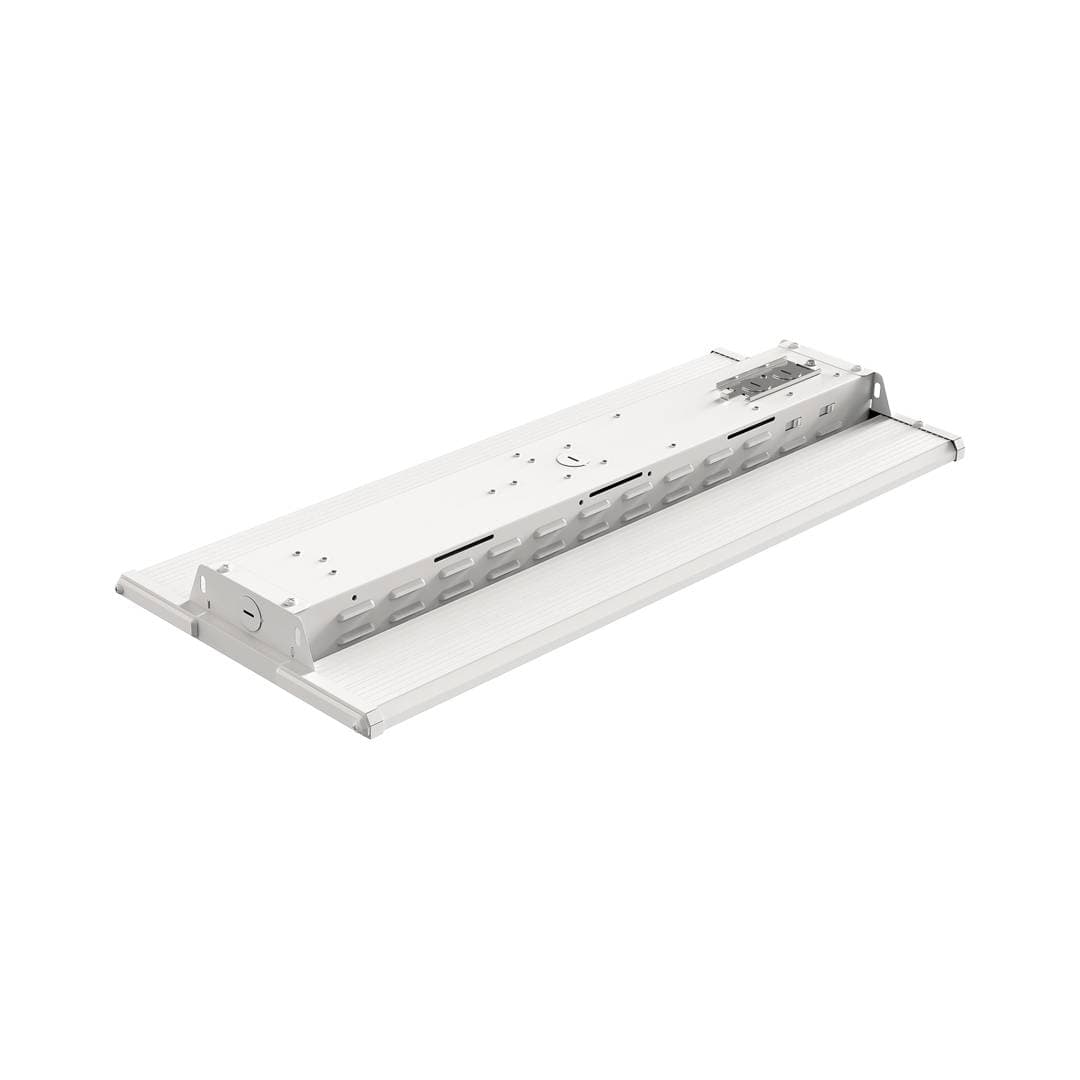

RackBay CSP image 4

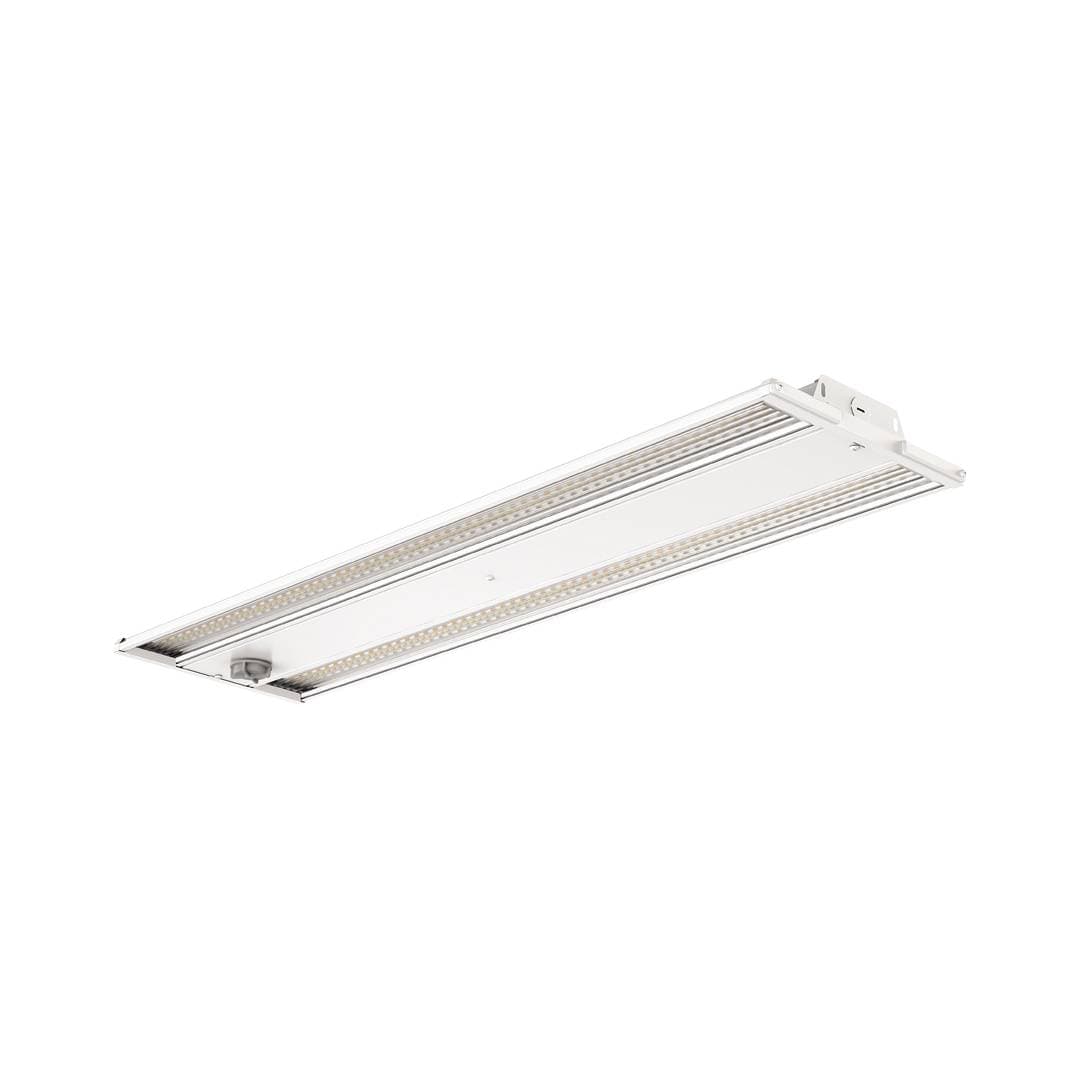

RackBay CSP image 5

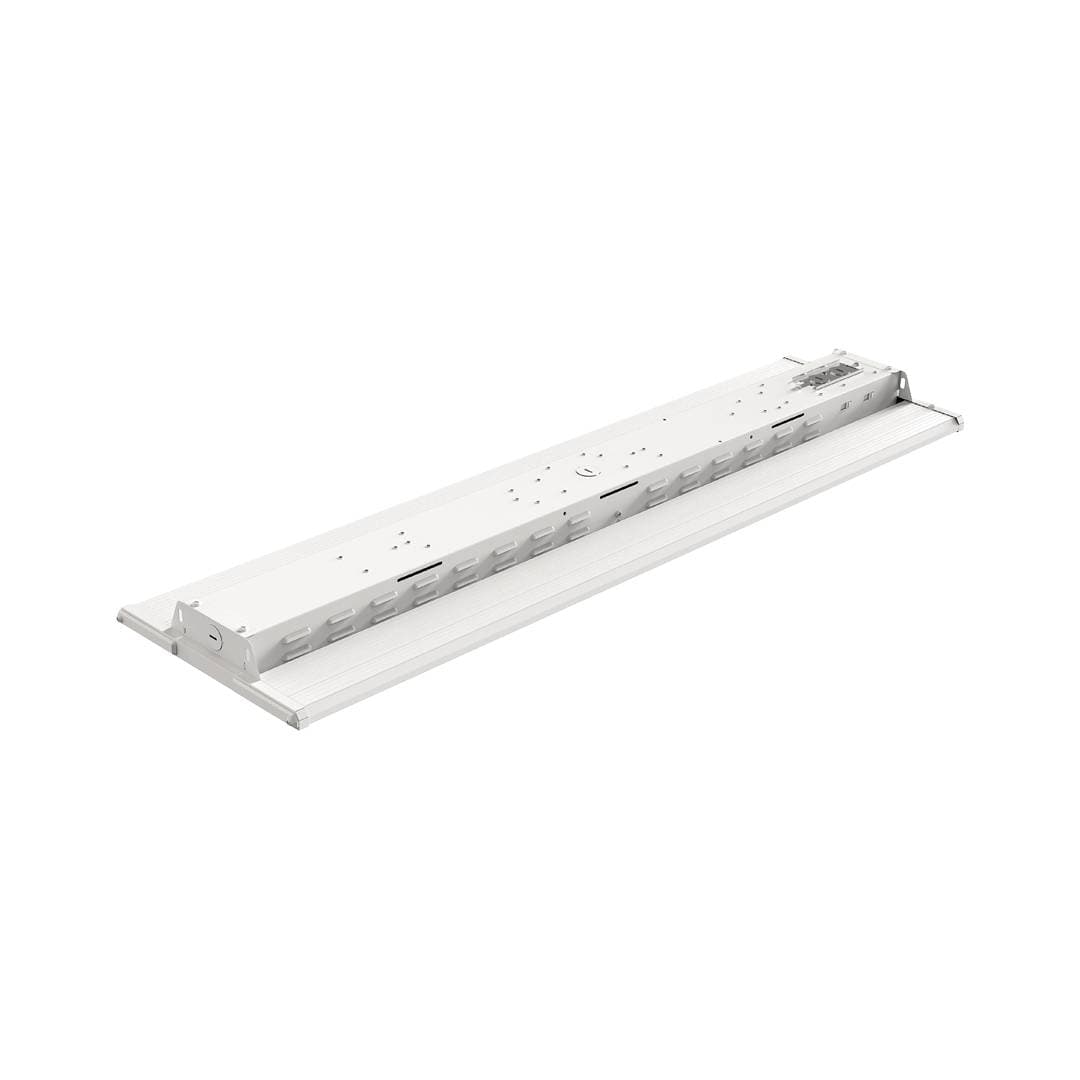

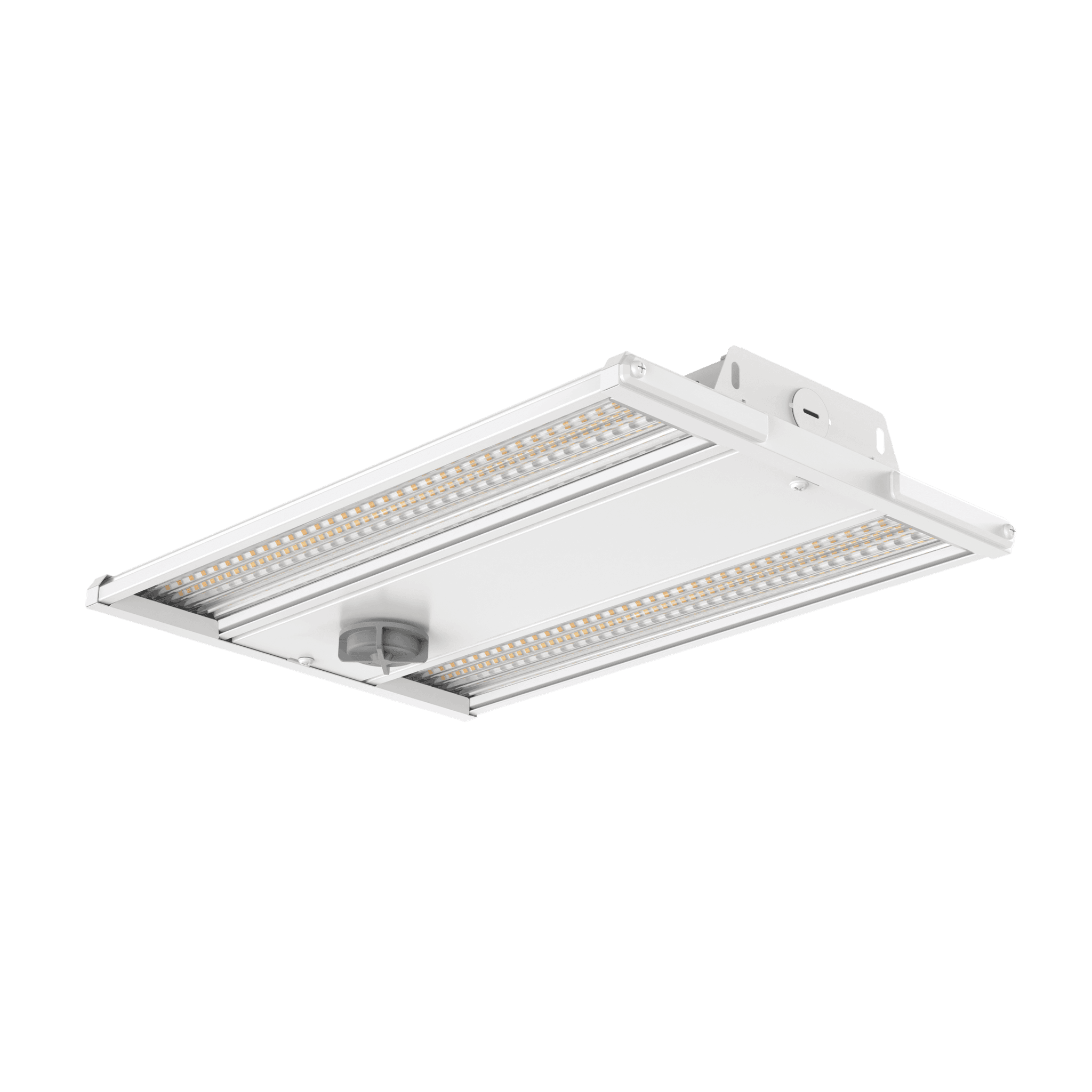

RackBay CSP image 6
RackBay CSP image 7
RackBay CSP image 8

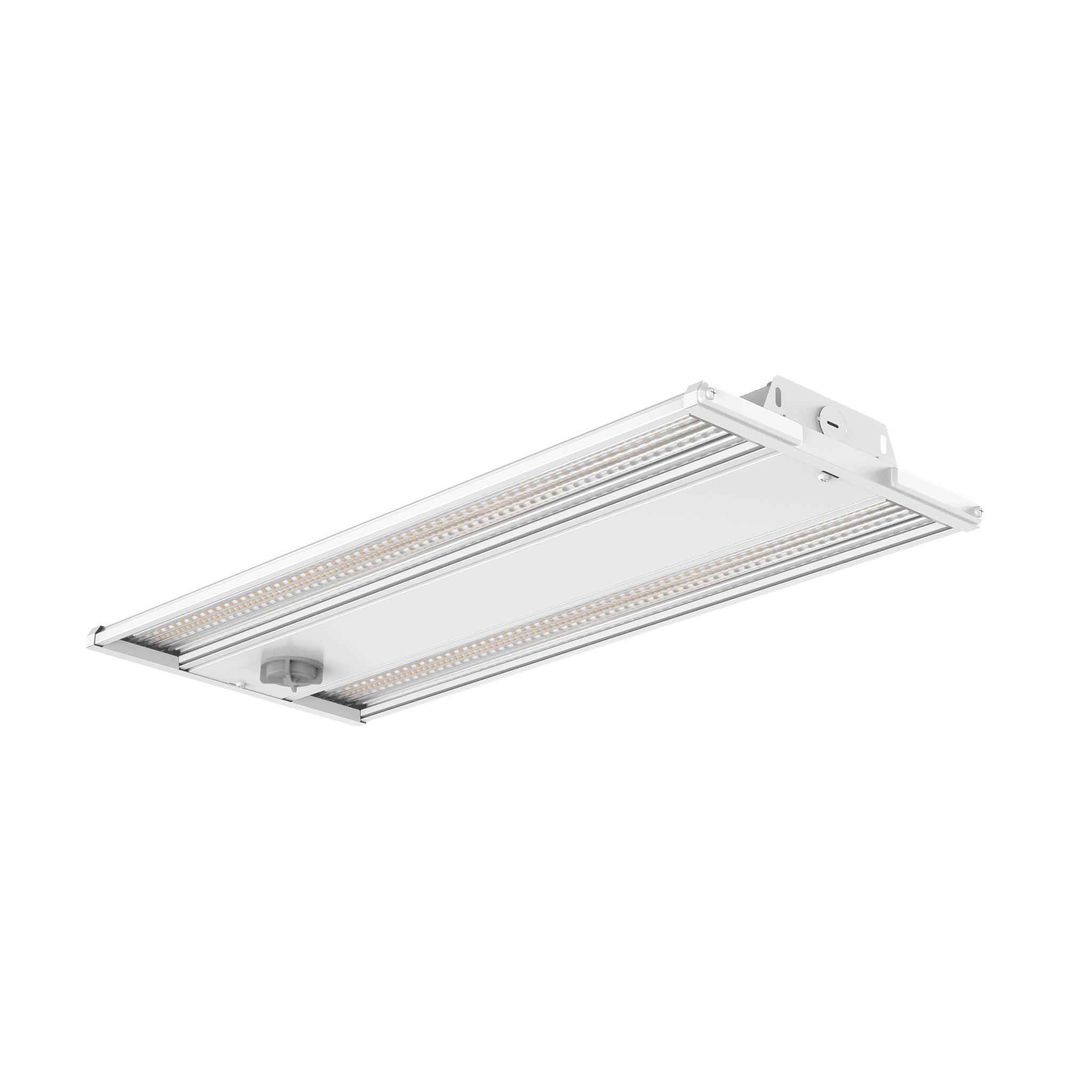

RackBay CSP image 9
RackBay CSP image 10
RackBay CSP image 11

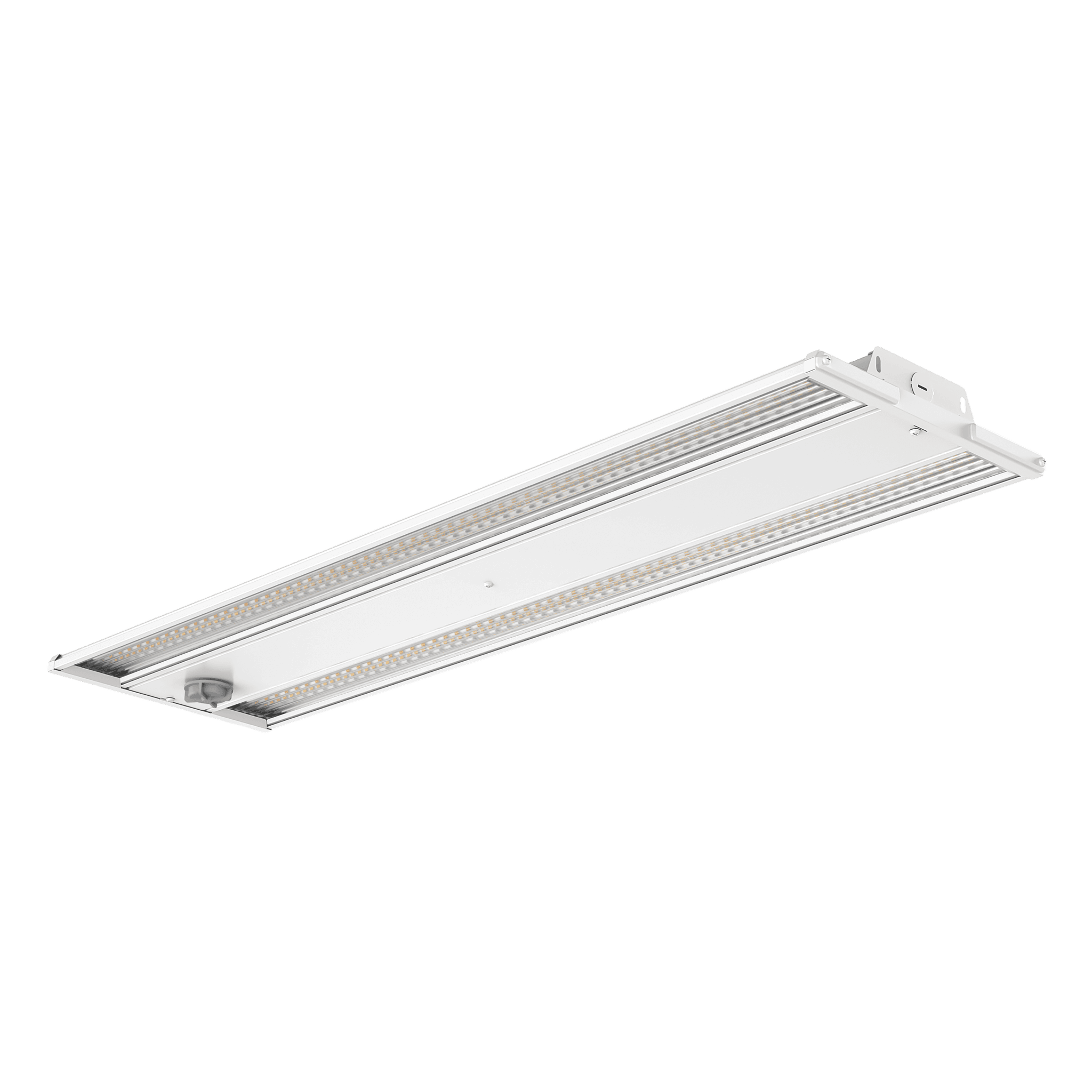

RackBay CSP image 12

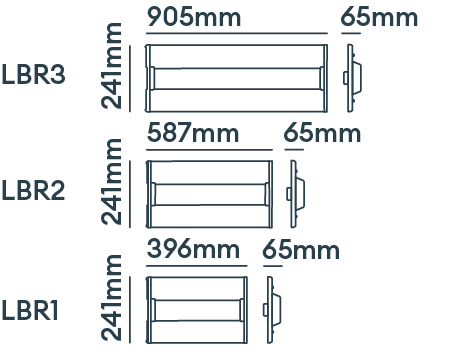

RackBay CSP - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRIDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
LBR1DRound110x55Aluminium3000K / 4000KWhite80DALI-2OptionalIP20366 mm8700-15000Ceiling,SuspendedOptional28100W65 mm
LBR2VRound110x55Aluminium3000K / 4000KWhite800-10VOptionalIP20584 mm22400-30000Ceiling,SuspendedOptional28160-200W65 mm
LBR1V-110x55Aluminium3000K / 4000K-800-10VOptionalIP20366 mm8700-15000Ceiling,SuspendedOptional2860-100W65 mm
LBR3DRound110x55Aluminium3000K / 4000KWhite80DALI-2OptionalIP20902 mm28000-36000Ceiling,SuspendedOptional28240W65 mm
LBR2DRound110x55Aluminium3000K / 4000KWhite80DALI-2OptionalIP20584 mm22400-30000Ceiling,SuspendedOptional28200W65 mm
LBR3VRound110x55Aluminium3000K / 4000KWhite800-10VOptionalIP20902 mm28000-36000Ceiling,SuspendedOptional28200-240W65 mm

Accessories

Find the perfect product you are looking for.

PIR Sensor

HBPIR


Passive infra-red motion sensor with daylight threshold switch

PIR & Daylight Sensor

HBPIRDLD


Passive infra-red motion sensor with daylight harvesting photocell

Microwave Sensor

HBMWS


Motion sensor with daylight threshold switch (8-15m)

Low Bay Mounting Bracket

LB2XBRKT

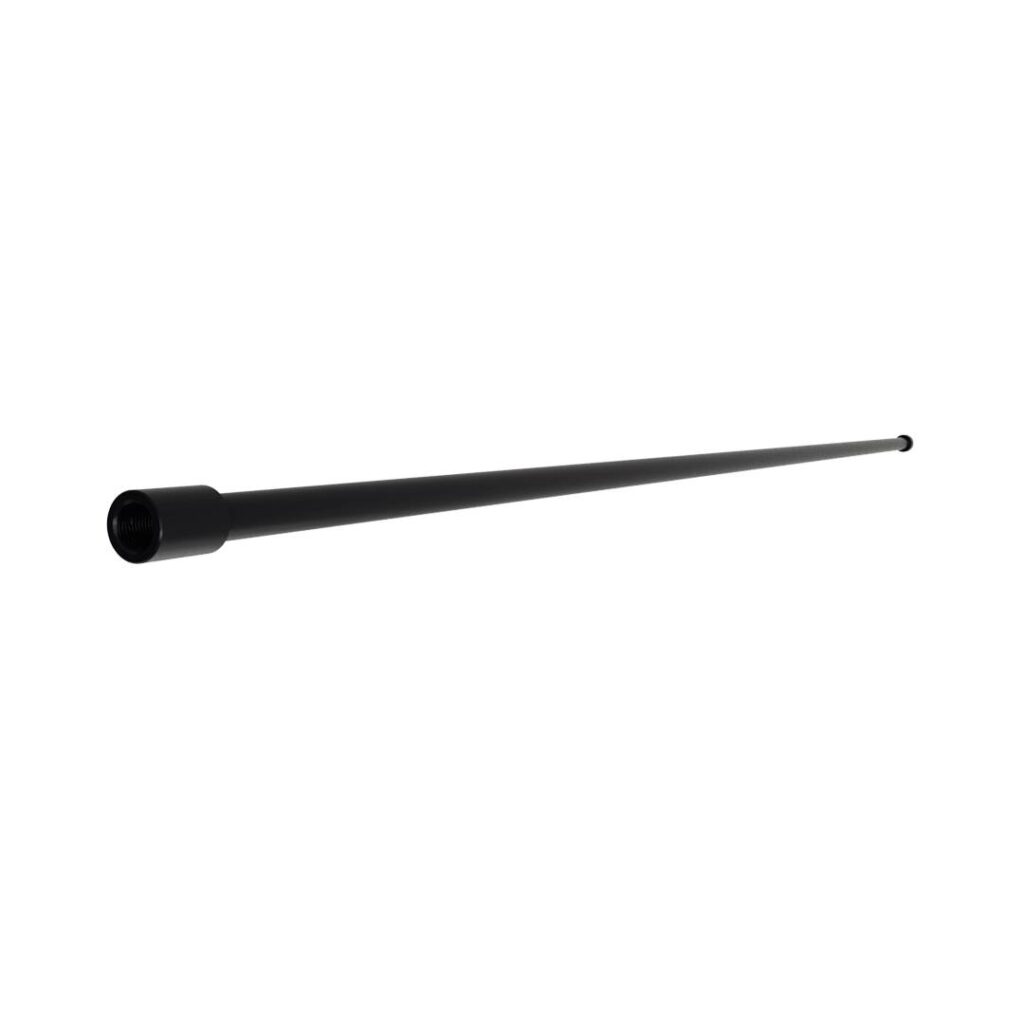

High Bay Rod M20 Mount Kit

HBROD


Reduces mounting height by 1.5 metres

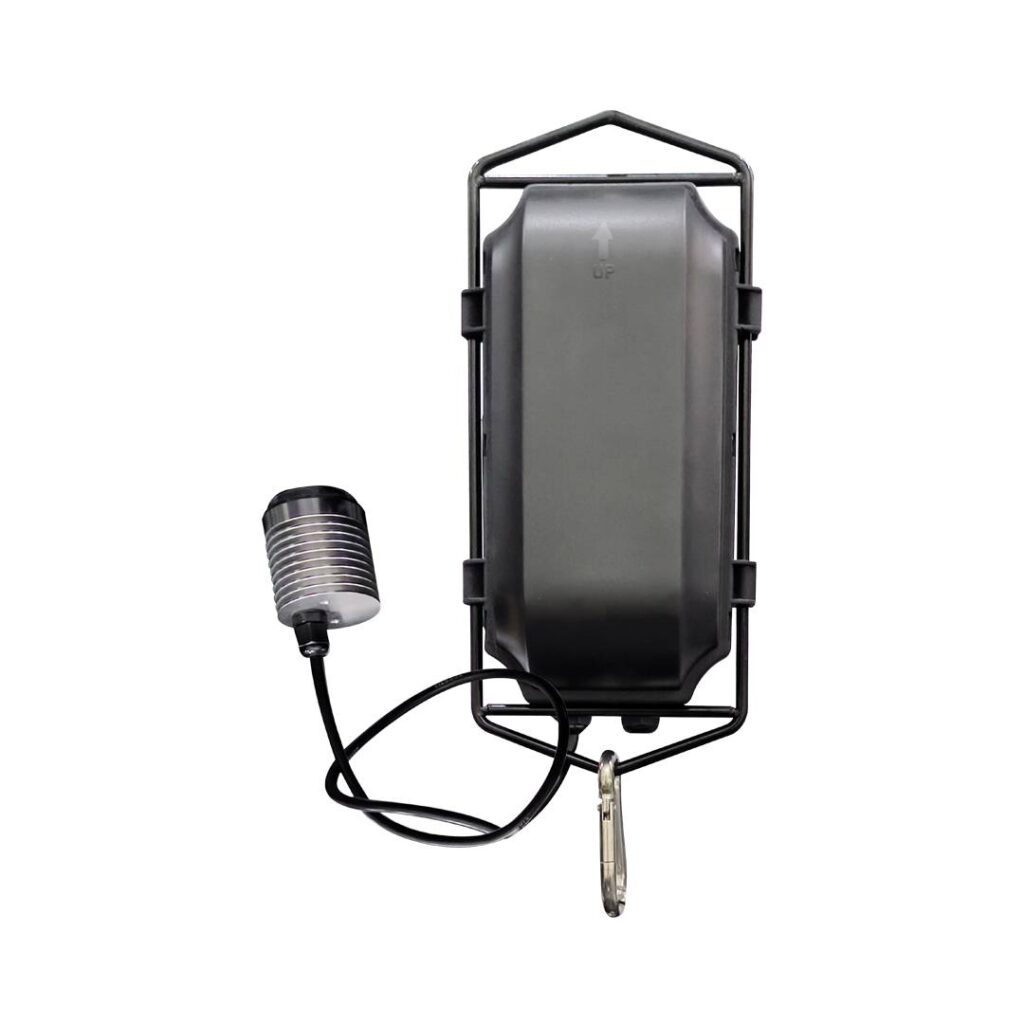

Emergency Salvus Bolt-On

Emergency Salvus Bolt-On


3 hour emergency conversion pack

Casambi Wireless Zhaga Sensor

CASZHAGAMW


PIR+Daylight Sensor White up to 12m

Casambi Wireless Zhaga Sensor

CASZHAGAMB


PIR+Daylight Sensor Black up to 12m

Casambi Wireless Zhaga Node

CASZHAGASW


Wireless Node White up to 12m

Casambi Wireless Zhaga Node

CASZHAGASB


Wireless Node Black up to 12m

Bolt-On Emergency

Emergency Salvus Bolt-On RackBay


3 hour emergency conversion pack, rack optic, self or manual test
