Ground Lights
  • GL016 Frosted

    • GL016 Frosted

    The newly upgraded GL016 modular offers a variety of options, including square, low glare, circle, ultra low glare, and frosted, making it ideal for any installation. This mid-sized ground light is ideal for marking pathways, lobbies, and circulation areas in both interior and exterior environments, for both domestic and public applications. In addition, it includes IK09 impact and coastal protection.

    • IP68 perfect for internal or external applications
    • Coastal Protected
    • IK07 impact protection - walk over (Stainless Steel only)

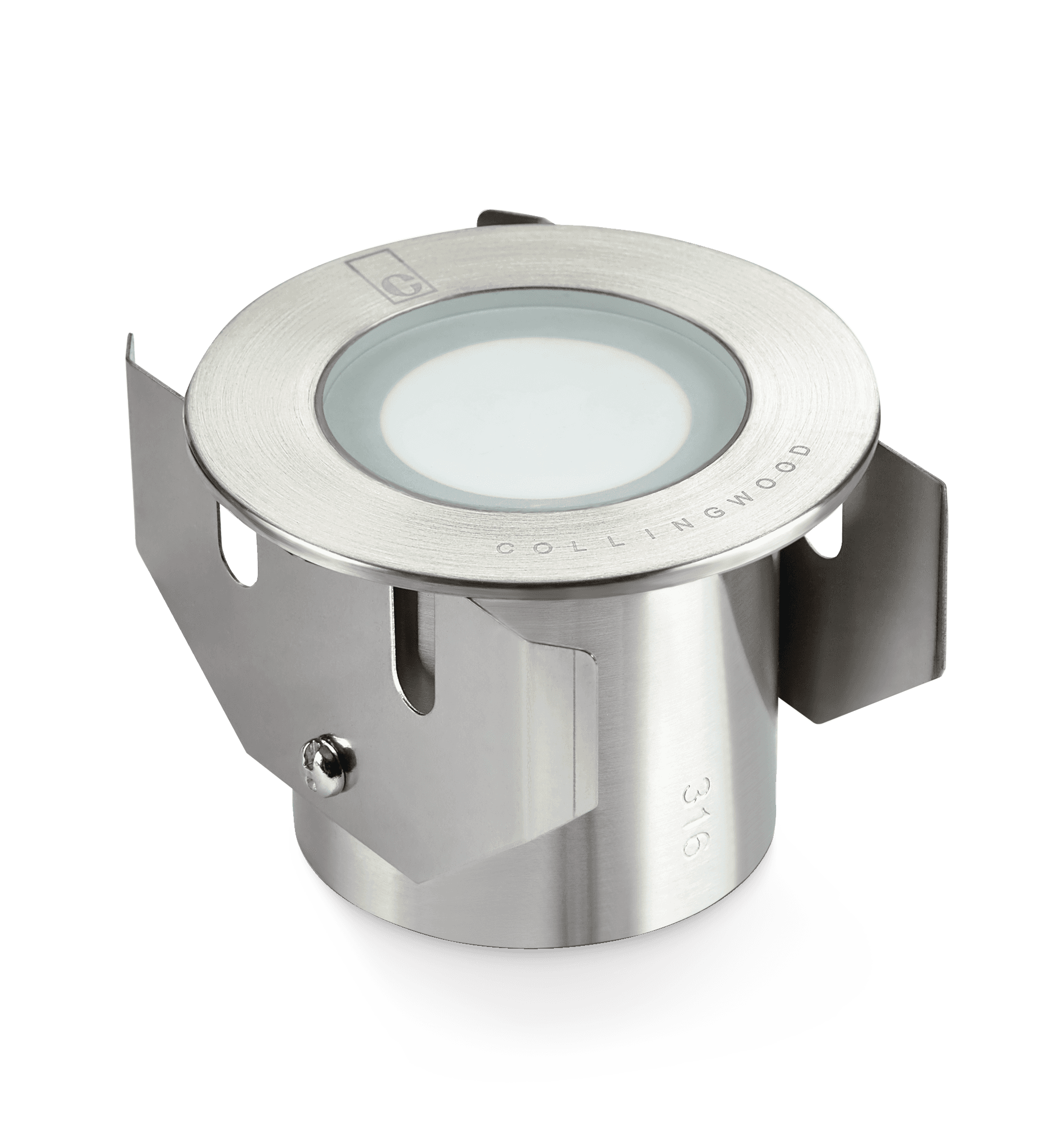

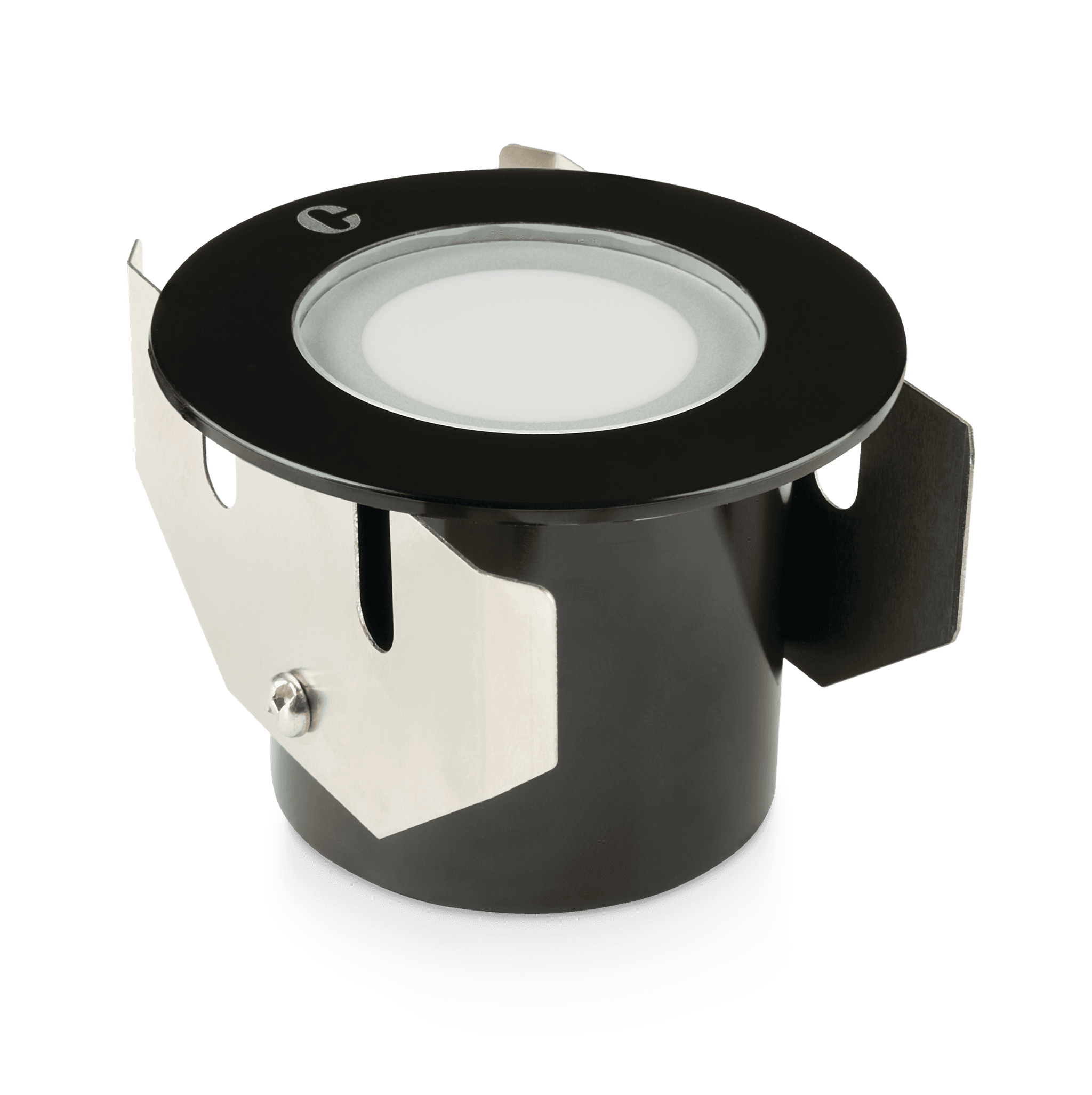

    • Supplied complete with installation tube
    • SDCM3 ensuring uniform light appearance and consistency
    • CRI 80 providing true colour appearance
    • Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
    • Robust cable for outdoor use
    • Shallow depth for easy installation
    • Available in an array of colours
    CEGuarantee 7yrIndoor and OutdoorMSA Floor surface mounting onlyCRI 80Beam Angle 100 DownCut Out ø50IP68IK07Class IIIReplaceable Light Source By Electrician
    GL016 Frosted
    GL016 Frosted image 1
    GL016 Frosted image 2
    GL016 Frosted image 3
    GL016 Frosted image 4
    GL016 Frosted image 5
    GL016 Frosted image 6
    GL016 Frosted image 7
    GL016 Frosted image 8
    GL016 Frosted image 9

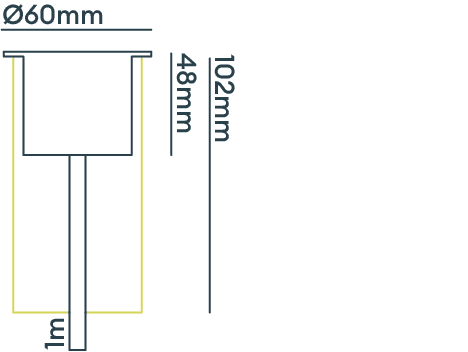

    GL016 Frosted - Size diagram
    Collingwood Lighting

    +44 (0) 1604 495 151

    +44 (0) 1604 495 095

    sales@collingwoodgroup.com

    CUSTOMER SERVICE

    Contact usFind a stockistPolicies

    ABOUT US

    Our historyOur newsInspired by Collingwood

    PRODUCTS

    IndoorOutdoorEmergencyAccessoriesFire-rated downlights

    ADDITIONAL

    CookiesPrivacy PolicyTerms and conditionsWarrantySitemap

    Accessories

    Find the perfect product you are looking for.

    PSIP3509W

    PSIP3509W

    Driver 9W IP65 350mA Non Dimmable 5 year warranty

    PSIP35018W

    PSIP35018W

    Driver 18W IP65 350mA Non Dimmable 5 year warranty

    PSDIM350

    PSDIM350

    Driver 30W 350mA

    PLD UNI-DRIVE 350MA

    PLD UNI-DRIVE 350MA

    Driver 18W 350mA

    JB6

    JB6

    Inline IP68 gel filled cable connector

    JB4 (Series)

    JB4

    Gel filled waterproof junction box

    JB2 (Series)

    JB2

    Waterproof junction box

    DRV350700TD

    DRV350700TD

    CC Driver 20W Triac Mains Dimmable 350-700mA

    DRV150700

    DRV150700

    CC Driver 30W IP20 150-700mA Class II SELV

    CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRICut OutDimmable OptionIP RatingLengthLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads
    GL016SSFD27Not adjustableRound100Stainless Steel2700KStainless Steel 3168050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
    GL016SSFD30Not adjustableRound100Stainless Steel3000KStainless Steel 3168050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
    GL016BKFD27Not adjustableRound100Anodised Aluminium2700KBlack8050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
    GL016BKFD30Not adjustableRound100Anodised Aluminium3000KBlack8050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
    GL016BKFD40Not adjustableRound100Anodised Aluminium4000KBlack8050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
    GL016SSFD40Not adjustableRound100Stainless Steel4000KStainless Steel 3168050 mmNoneIP6868 mm14-30FloorNone0.4W / 0.7W / 1W60 mm
