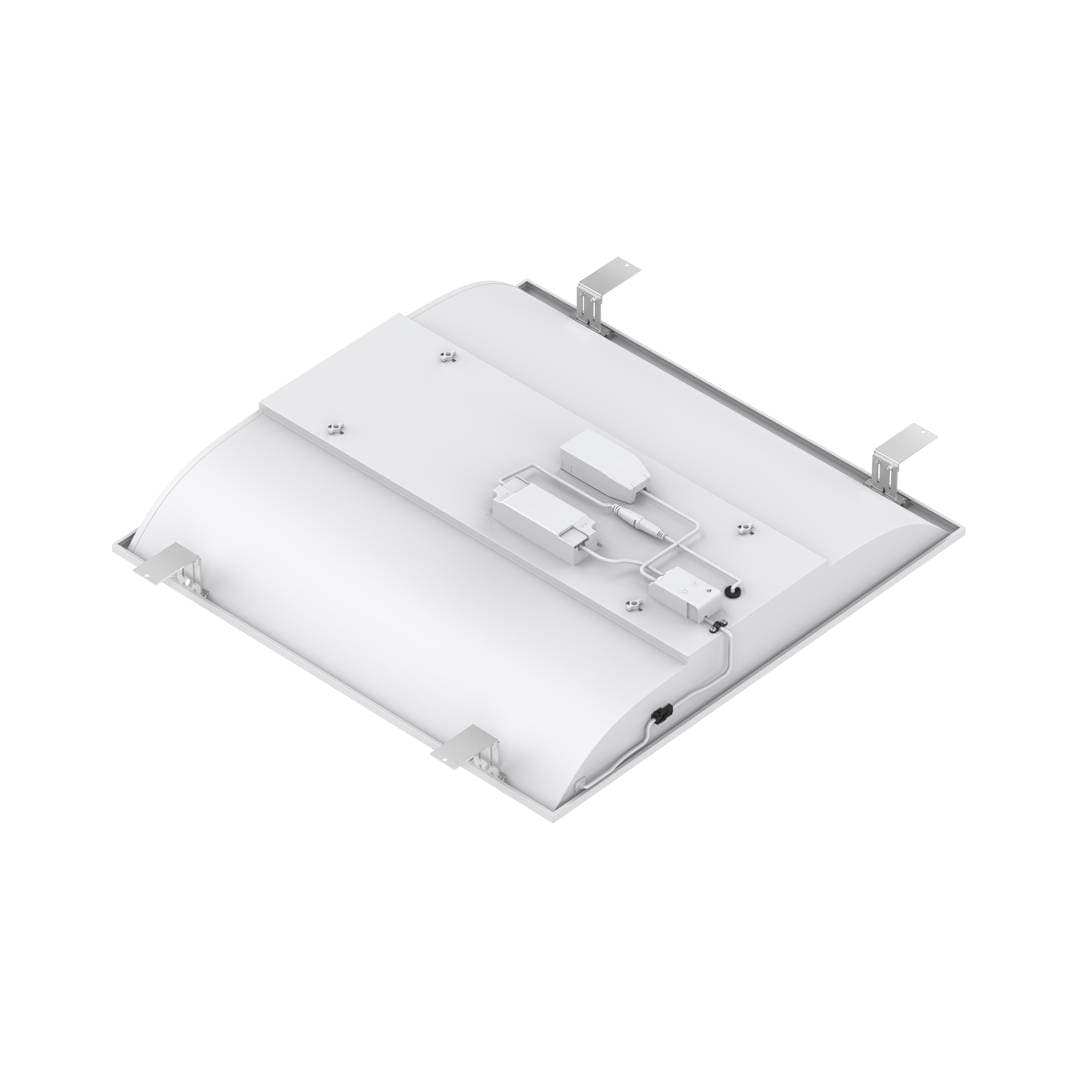

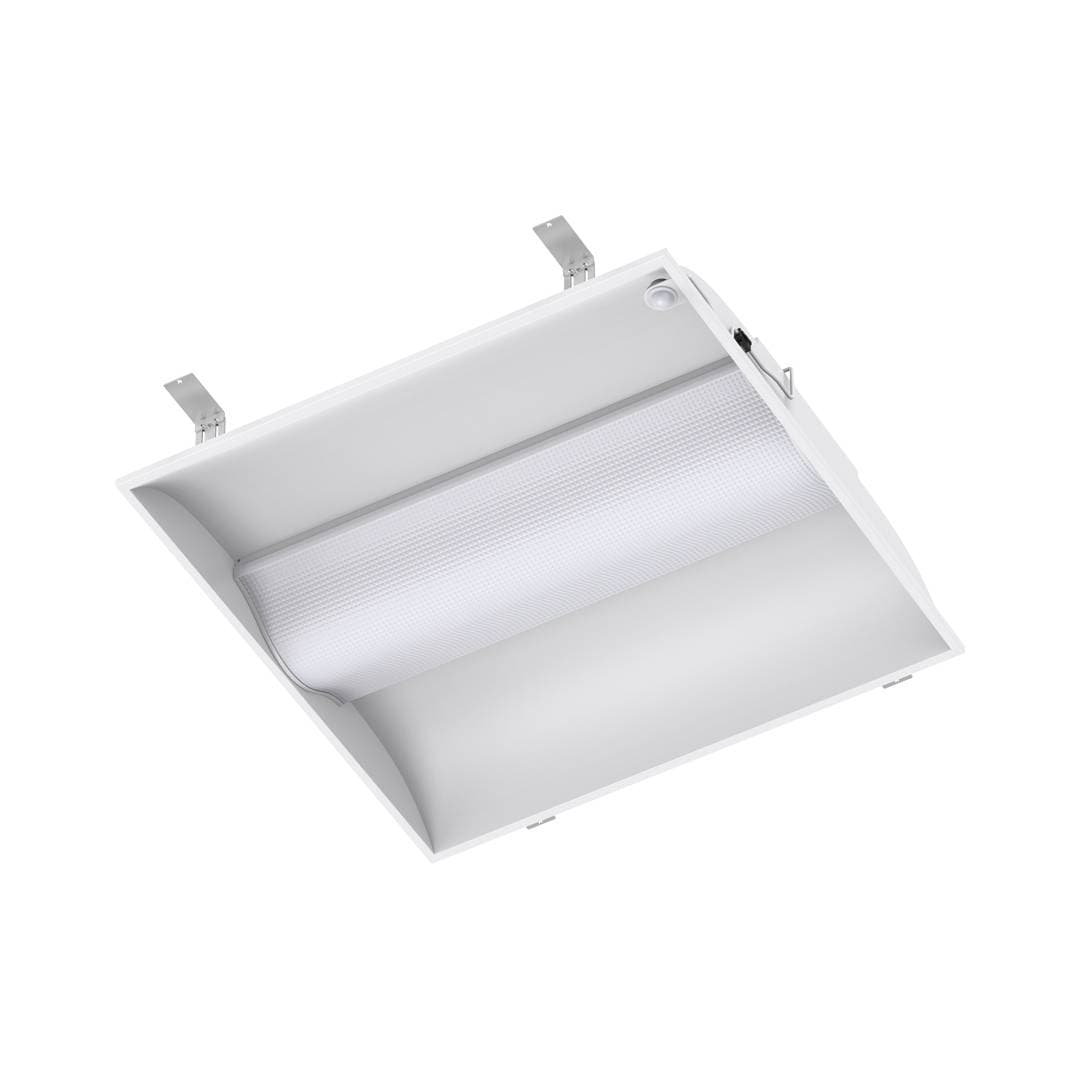

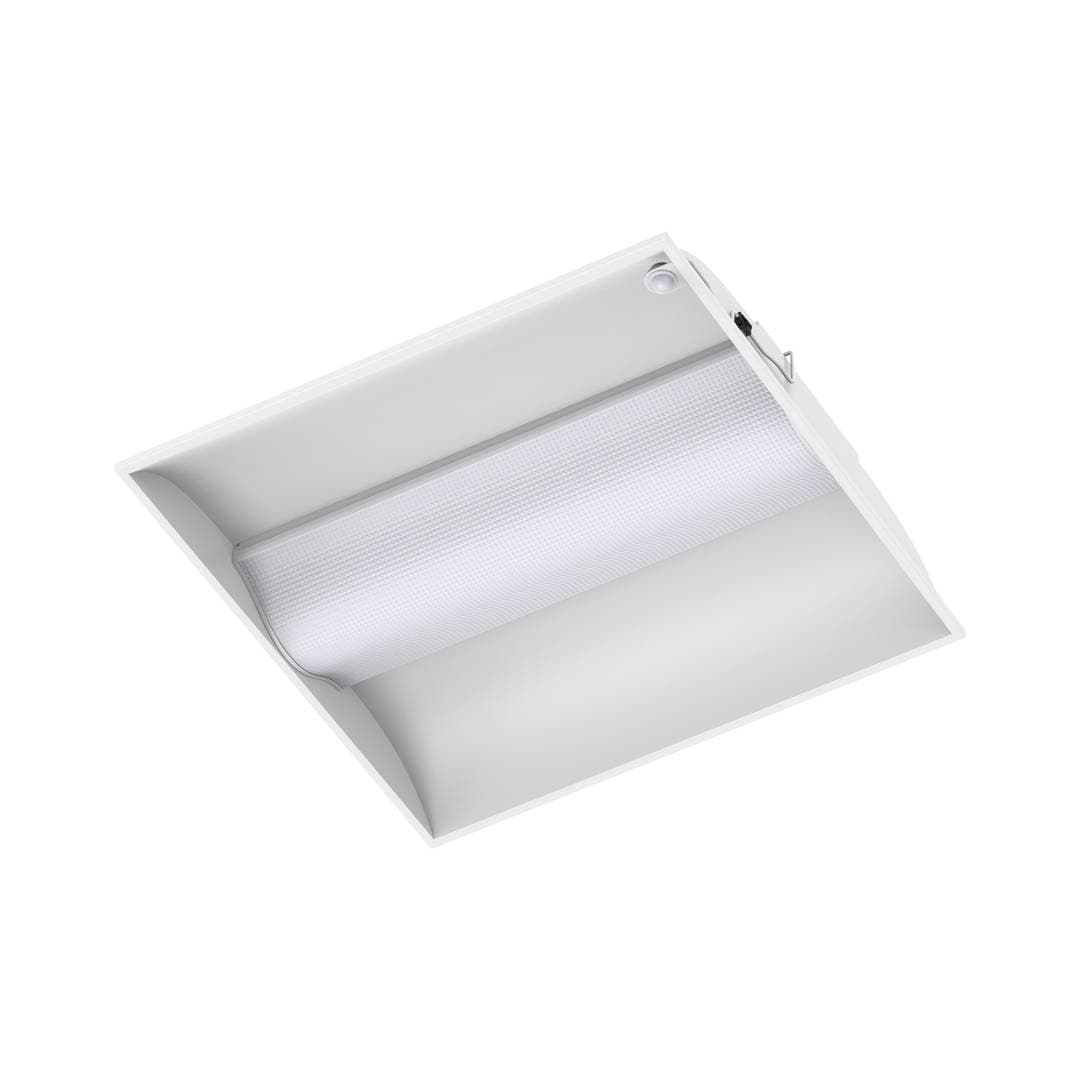

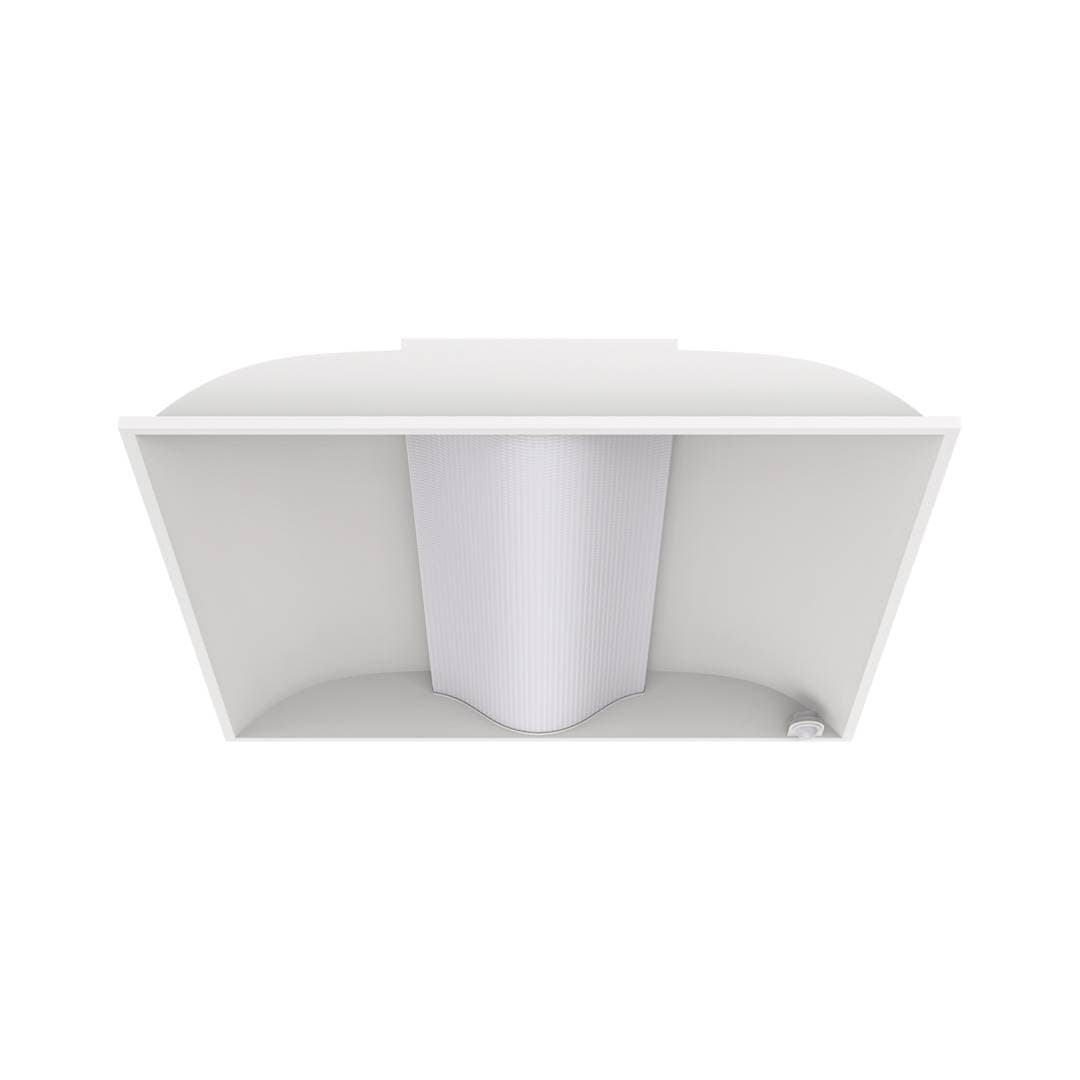

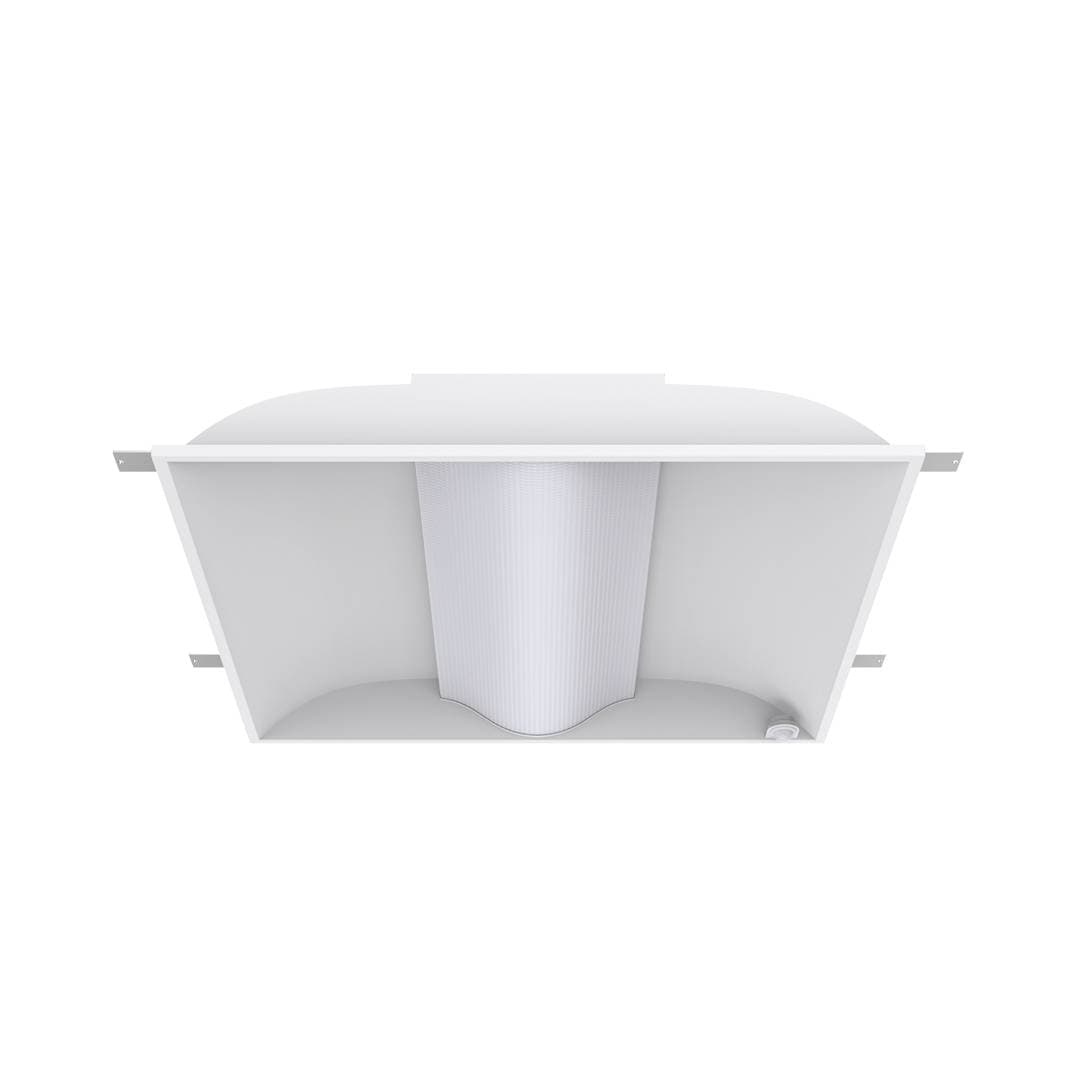

Trinity Panels elevate the light in your classrooms, offices, and retail spaces with a unique direct/indirect design for soft, low-glare illumination (UGR19). It prioritise safety by offering TP(a) fire escape route suitability, 850-degree glow wire test approval, and optional self-testing emergency lighting. Energy Class B rating, PIR occupancy sensors (sold separately), and wattage switchability (13W to 25W) all help to optimise energy use. Trinity Panels offer DALI-2 or PUSH-DIM driver options, as well as a variety of mounting styles, making them the ideal combination of adaptability, efficiency (up to 156 Lm/W), and style.
| Code | Adjustability | Base Shape | Beam Angle | Body Material | CCT Range | Colour / Finish | Dimmable Option | Emergency Option | IP Rating | Length | Lumens Range | Mounting Type | Sensor Option | UGR | Wattage Range | Width | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRI66N40 | Not adjustable | Square | 80 | Steel | 4000K | White | DALI-2,PUSH-DIM | Optional | IP20 | 595 mm | 1900 - 3700 | Ceiling | Optional | 19 | 13-16-18-20-26W | 595 mm | |
| TRI66X40 | Not adjustable | Square | 80 | Steel | 4000K | White | DALI-2,PUSH-DIM | Optional | IP20 | 595 mm | 1900 - 3900 | Ceiling | Optional | 19 | 13-16-18-20-26W | 595 mm |
