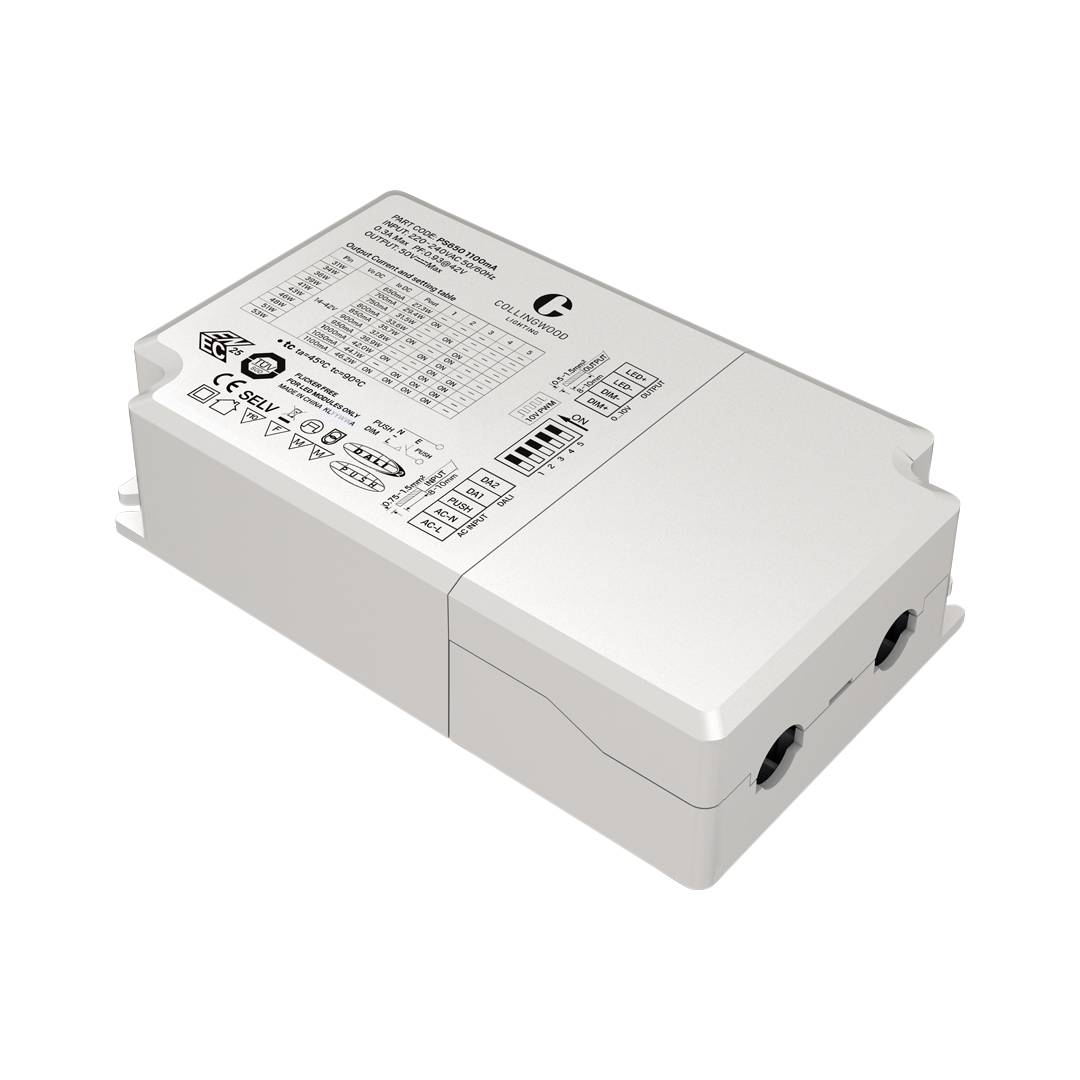

PS6501100MA

About the PS6501100MA

This one4 all design DALI-2 driver is compatible with Solis Pro Panel. 650-1100mA

DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014, IEC 62386-207: 2009, DALI-2

ENEC, CE, CB approved by TUV SUD, SAA, Ctick qualified

Adjustable constant current outputs range from 250-1100mA(selectable every 50mA)

Independent ECG and with strain-relief

Built-in with permanent memory for DALI and Push-DIM, 100,000 times memory

Grow wire tested 650° for 30S and 850° for 5S

DALI 1%-100%, Push-DIM, from 100% to 1.5% dimming range

Product code

PS6501100MA

Warranty	5 years
Input	220-240V AC
Ambient Temperature	-20°C - 45°C
Efficiency	87%
Connection Input	0.75 - 1.5mm2
Connection Output	0.5 - 1.5mm2
Driver Output Voltage	14-42V
Driver Output Current	650mA - 1100mA
Protection	Over Voltage, Short Circuit, Thermal
Power Factor	0.95
Product Input Current	0.3A
