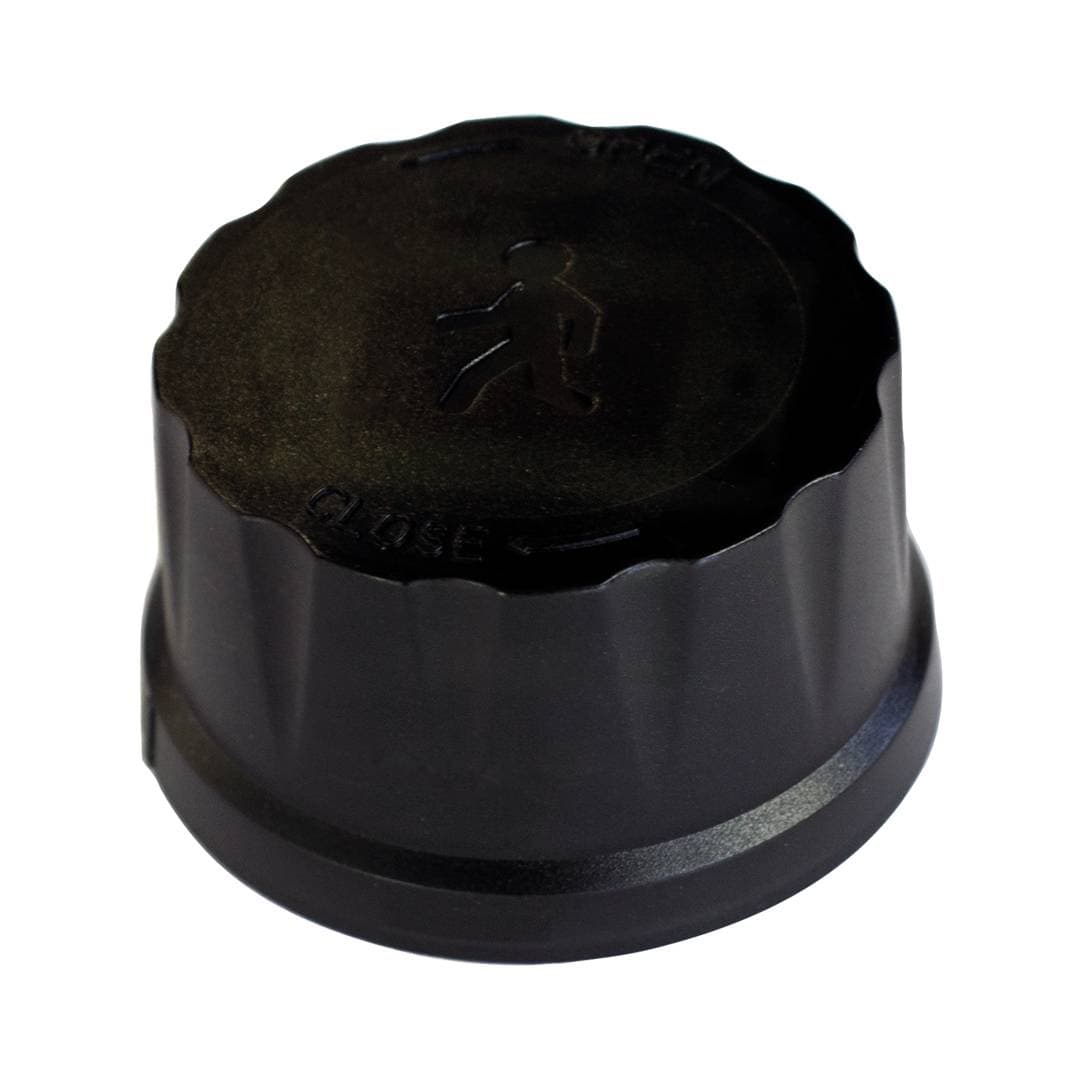

Microwave Sensor

Product code: HBMWS

About the Microwave Sensor

Microwave motion sensor with daylight threshold switch for use with the Area Bay.  IP65 Rated. Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga socket for a typical installation height 8-13m.

Features & Benefits

Plugs into the centre of the Area Bay luminaire using the Zhaga socket

Typical installation height 8-13m

Hold time Default is 5 seconds Options - 30s/1min/3min/5min/10min/20min/30min

Stand-by dimming level Default is 10% Options - 20%/30%/50%

Stand-by period Default is 0 seconds Options - 10s/30s/1min/5min/10min/30min

Daylight threshold Default is 'disable' Options - 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux

Product code
HBMWS
Warranty 5 years
Input 10.5-15V DC
