H4 Pro 550

The H4 Pro with single point lens combines the innovative features of the H2 Pro range - including twist & lock bezels, high efficacy and outstanding quality - with the added adjustability of the H4 product. The direction of the light can be adjusted with ease, making it ideal for vaulted ceilings and highlighting features and artwork on walls. In addition, our Easy-fit connector is included for quick and easy installation.

  • Quick and easy installation with easy-fit connector
  • High efficacy of 112lm/W
  • Insulation coverable
  • Only 5.2W
  • Shallow depth of 49mm
  • Flexible driver position for easy installation
  • Easy-Fit included
  • Flexible driver position for easy installation
  • Has a built-in insulated protector
  • When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
CEGuarantee 7yrIndoorCRI 80Beam Angle 38 DownBeam Angle 70 DownCut Out ø69 72IP65Insulation Rolled BlownClass II

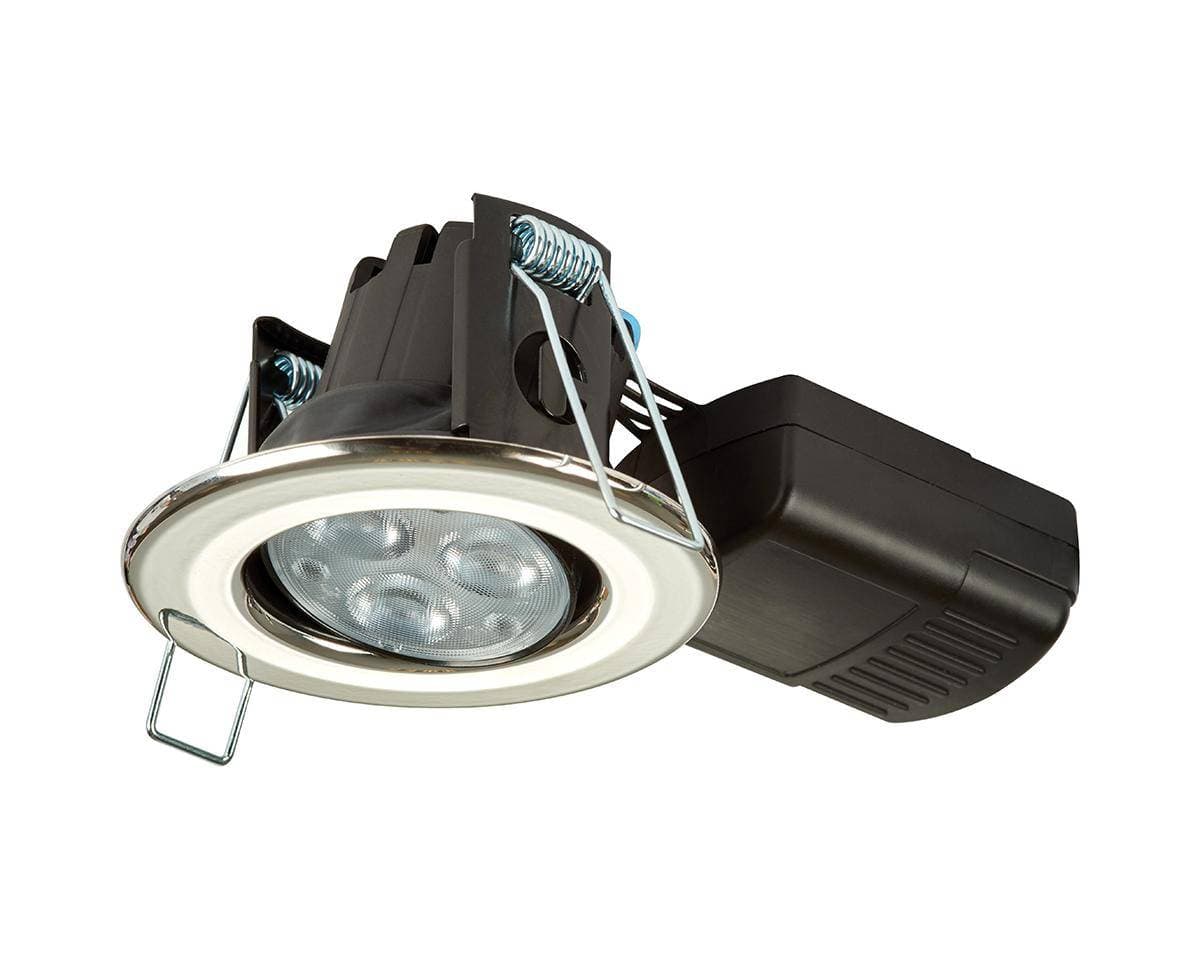

H4 Pro 550
H4 Pro 550 image 1

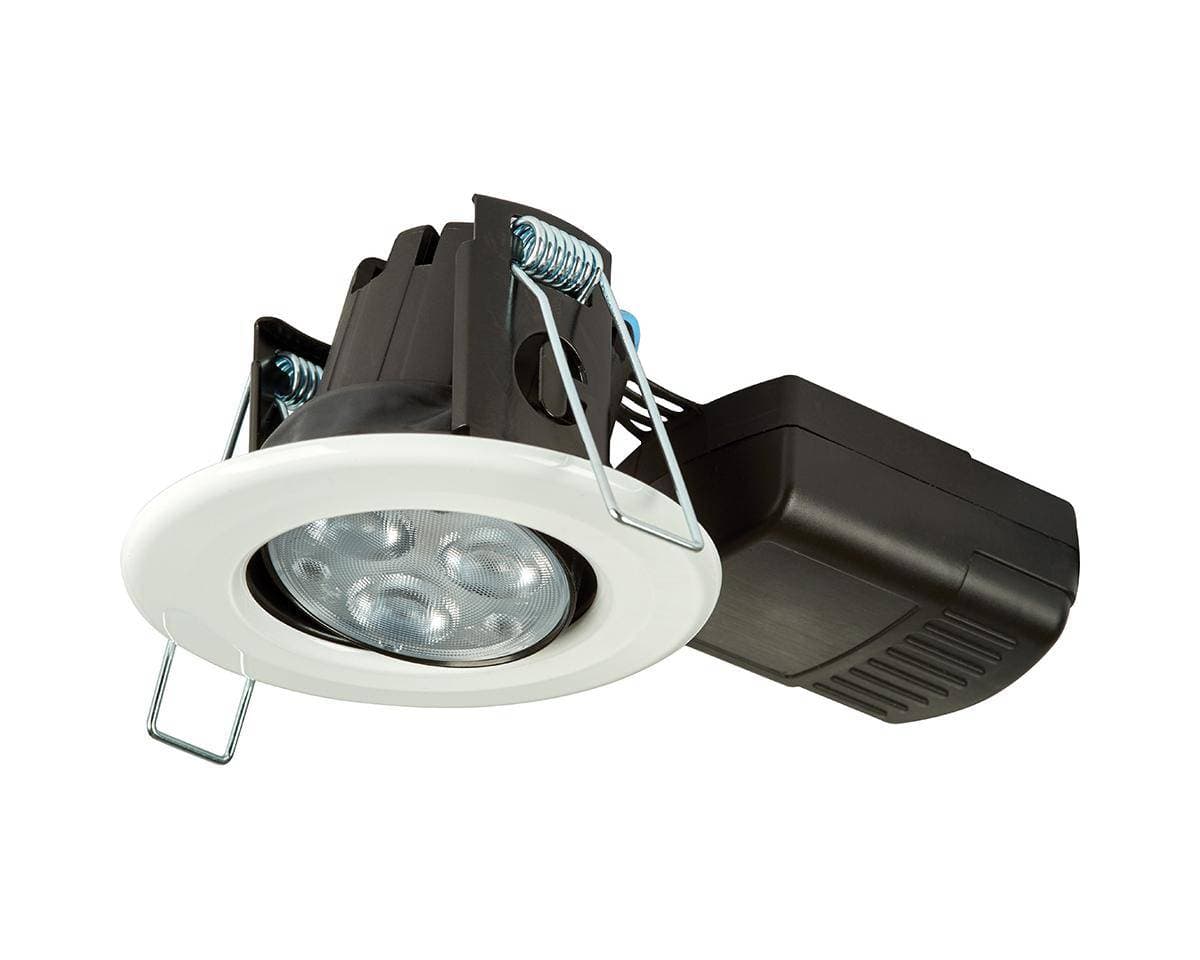

H4 Pro 550 image 2

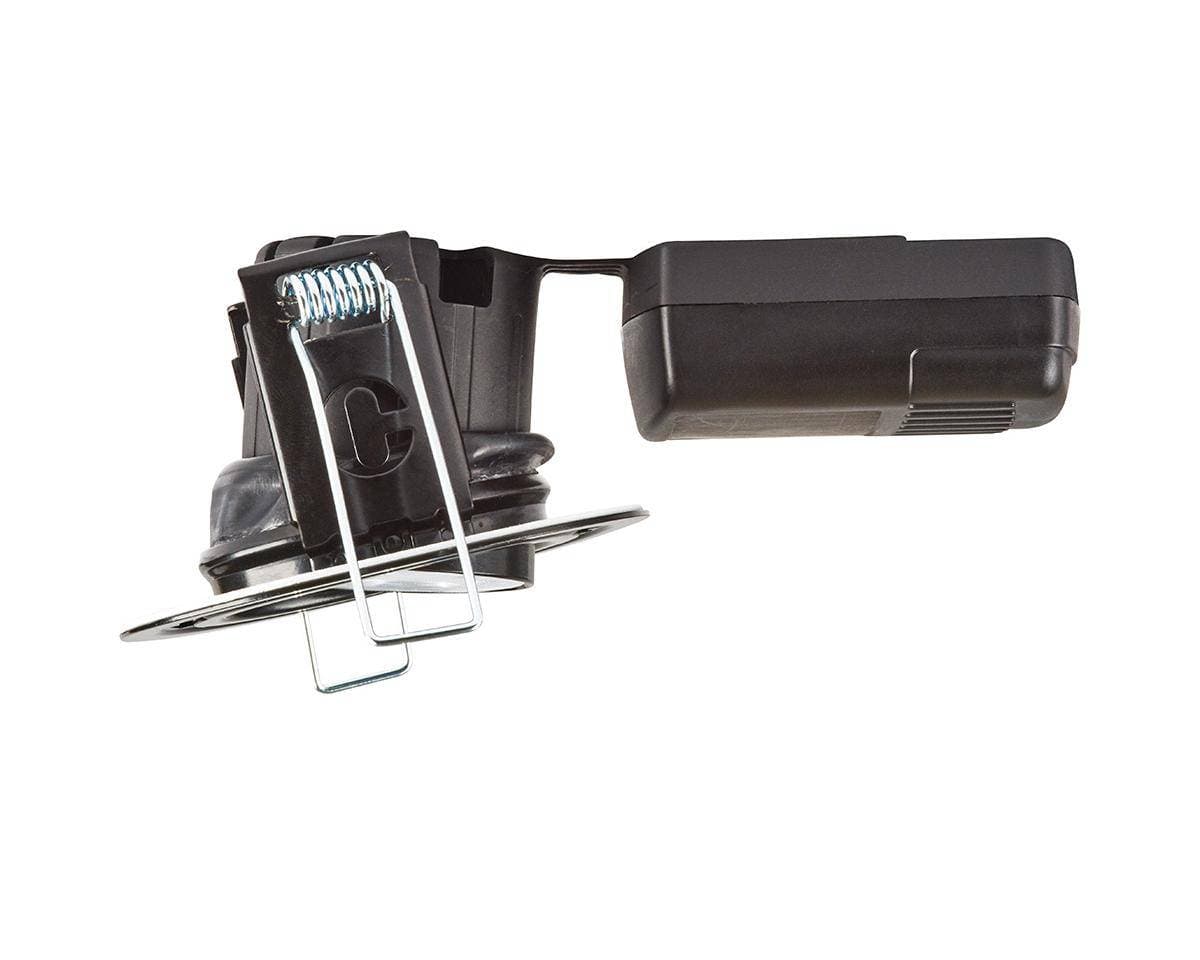

H4 Pro 550 image 3

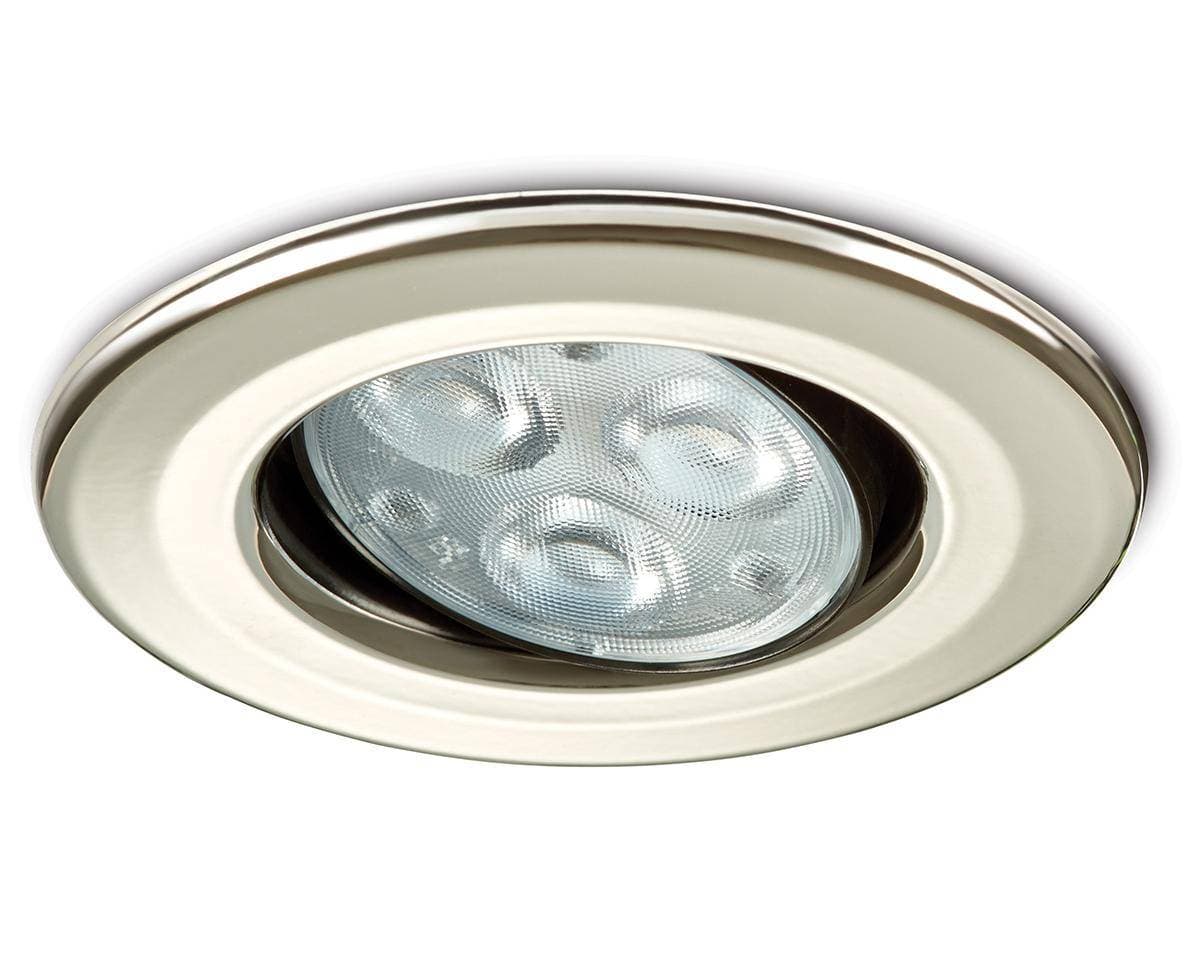

H4 Pro 550 image 4

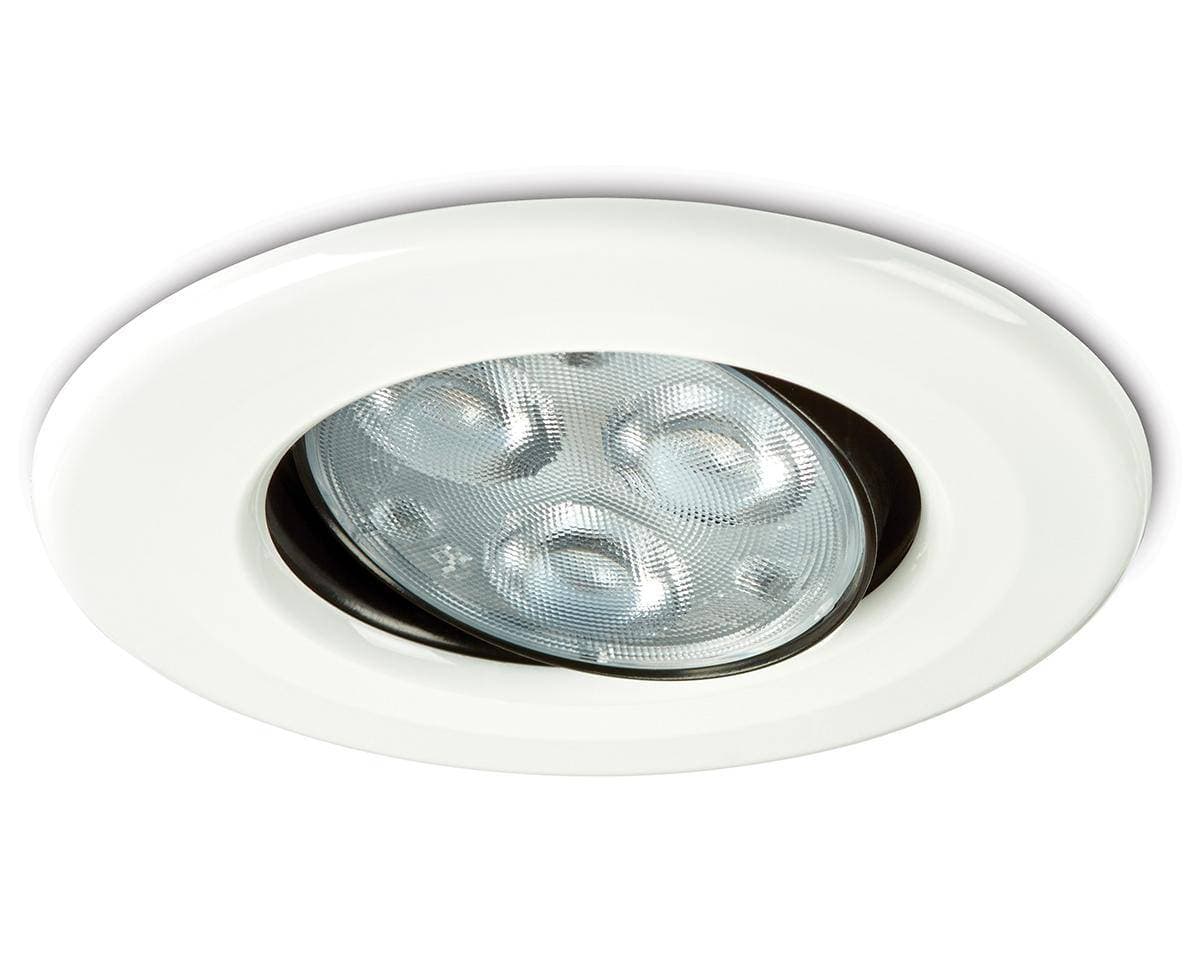

H4 Pro 550 image 5

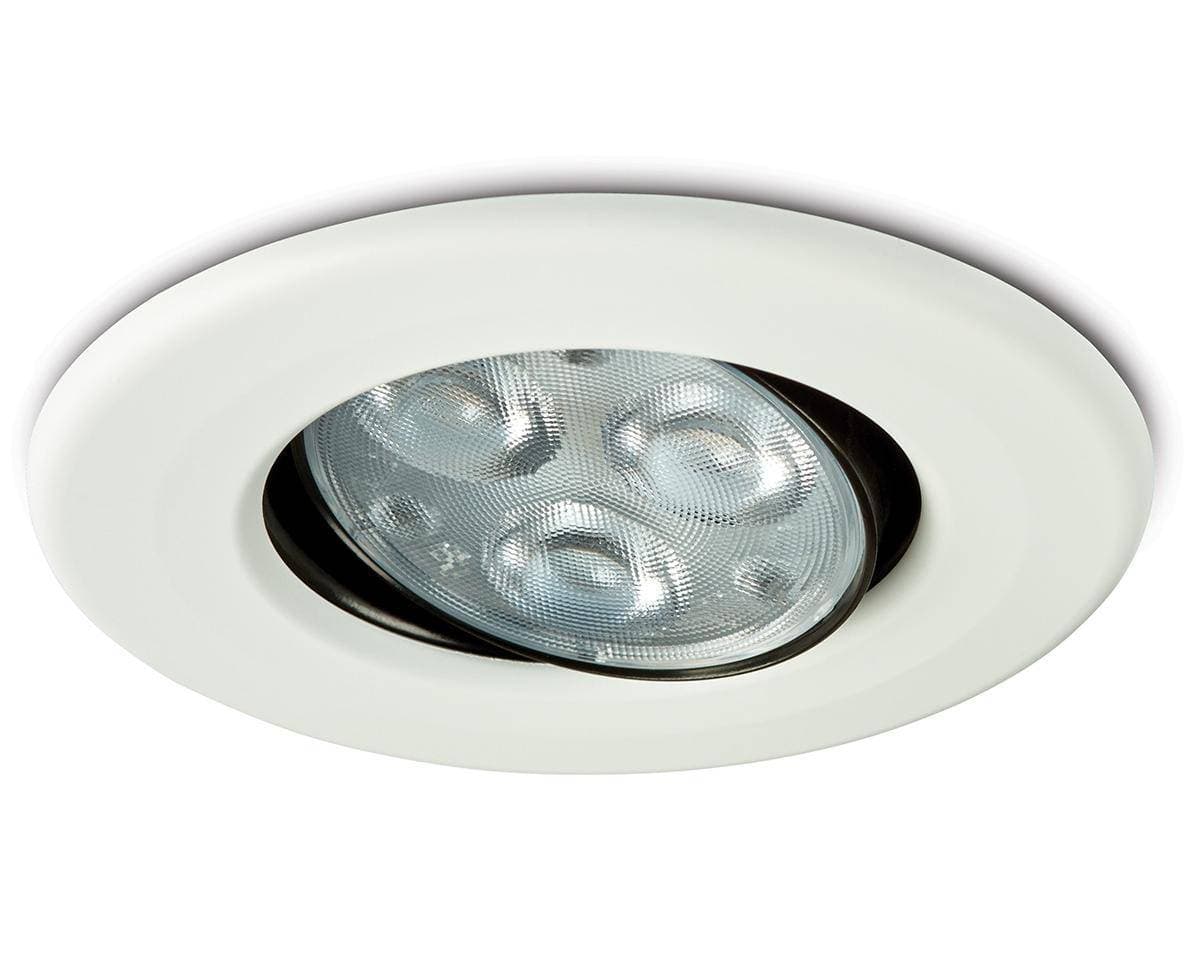

H4 Pro 550 image 6

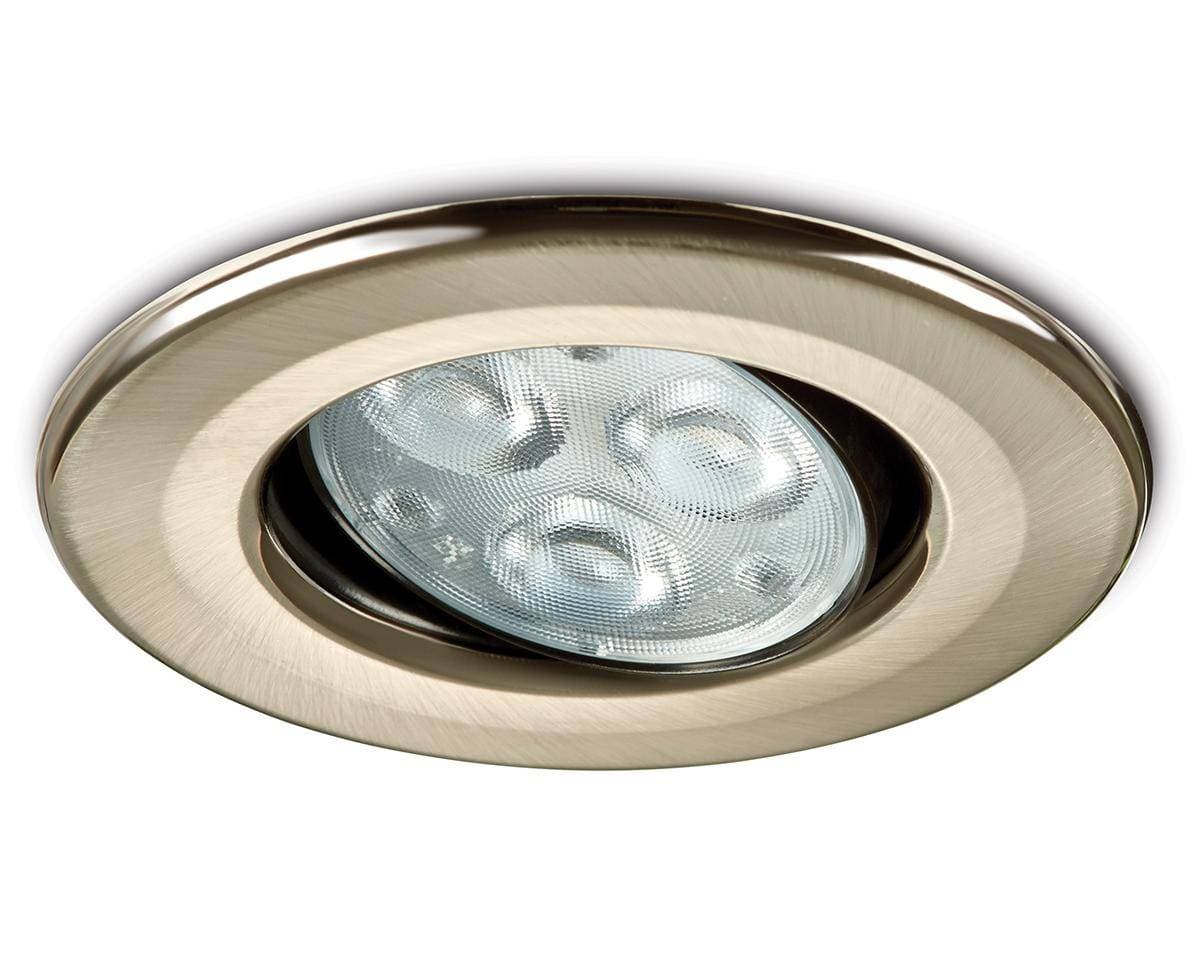

H4 Pro 550 image 7
H4 Pro 550 image 8
H4 Pro 550 - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeCRICut OutDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
DLE4353830SwivellingRound38Mild Steel3000K8069 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm550RecessedNone165.2W90 mm
DLE4357040SwivellingRound70Mild Steel4000K8069 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm580RecessedNone235.2W90 mm
DLE4353840SwivellingRound38Mild Steel4000K8069 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm580RecessedNone165.2W90 mm
DLE4357030SwivellingRound70Mild Steel3000K8069 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm550RecessedNone235.2W90 mm

Accessories

Find the perfect product you are looking for.

DM298GRID

DM298GRID


250W LED mains grid dimmer

DM298FP

DM298FP


100W LED 2 way push on/ off rotary dimmer

DLCONVERT 70

DLCONVERT 70


Hole converter plates for the H2 Pro/H4 Pro/H2 Lite ranges ø170mm

DL CONVERT 110

DL CONVERT 110


Discreet converter plates for the downlight range, 110mm diameter

H4 Pro bezels

H4 Pro Bezels


Twist & lock system makes changing bezels quick, clean and easy
