GL018 SQ

This mini path marker/ground light is ideal for both domestic and public applications. Its low profile discreet design makes this unit a must for decking areas, lobbies and walkways. Combined with exceptionally low power consumption, this product is cost effective not only to buy but also to run. The square design also brings an alternative look and feel to a lighting scheme.Available in four ambient LED colours and submersible up to 9m.

  • 0.5W at 24V DC
  • Frosted effect for low glare and soft lighting
  • Low voltage ground light
  • Square bezel for a different decorative effect
  • Robust cable for outdoor use
  • Shallow depth for easy installation
  • Easy and quick installation with parallel wiring
CEGuarantee 3yrIndoor and OutdoorMSA Floor surface mounting onlyCRI 80Beam Angle 120 DownCut Out ø28IP68IK07Class IIINon Replaceable Light Source

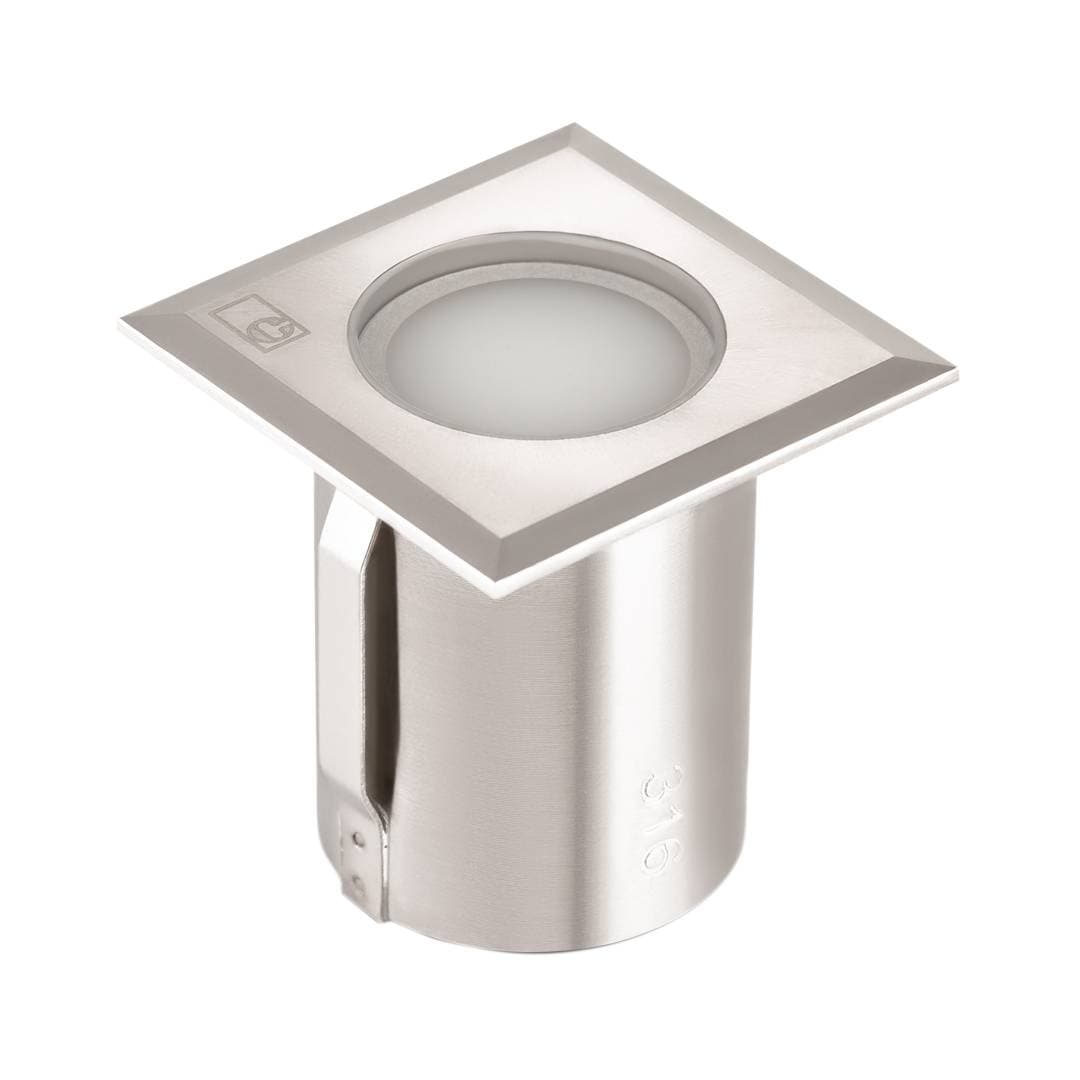

GL018 SQ

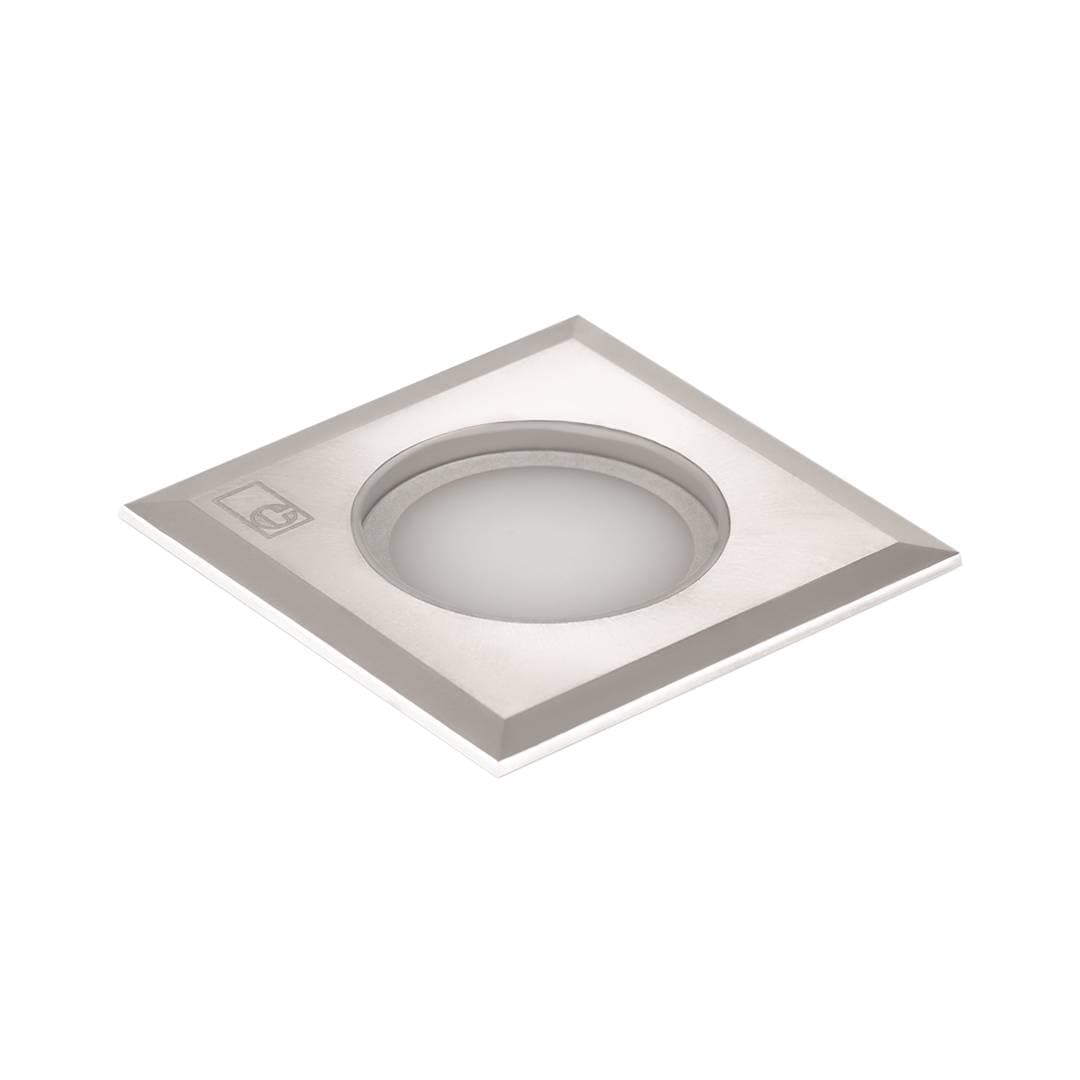

GL018 SQ image 1
GL018 SQ image 2

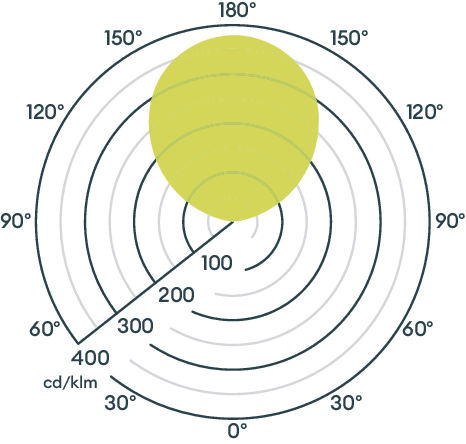

GL018 SQ image 3

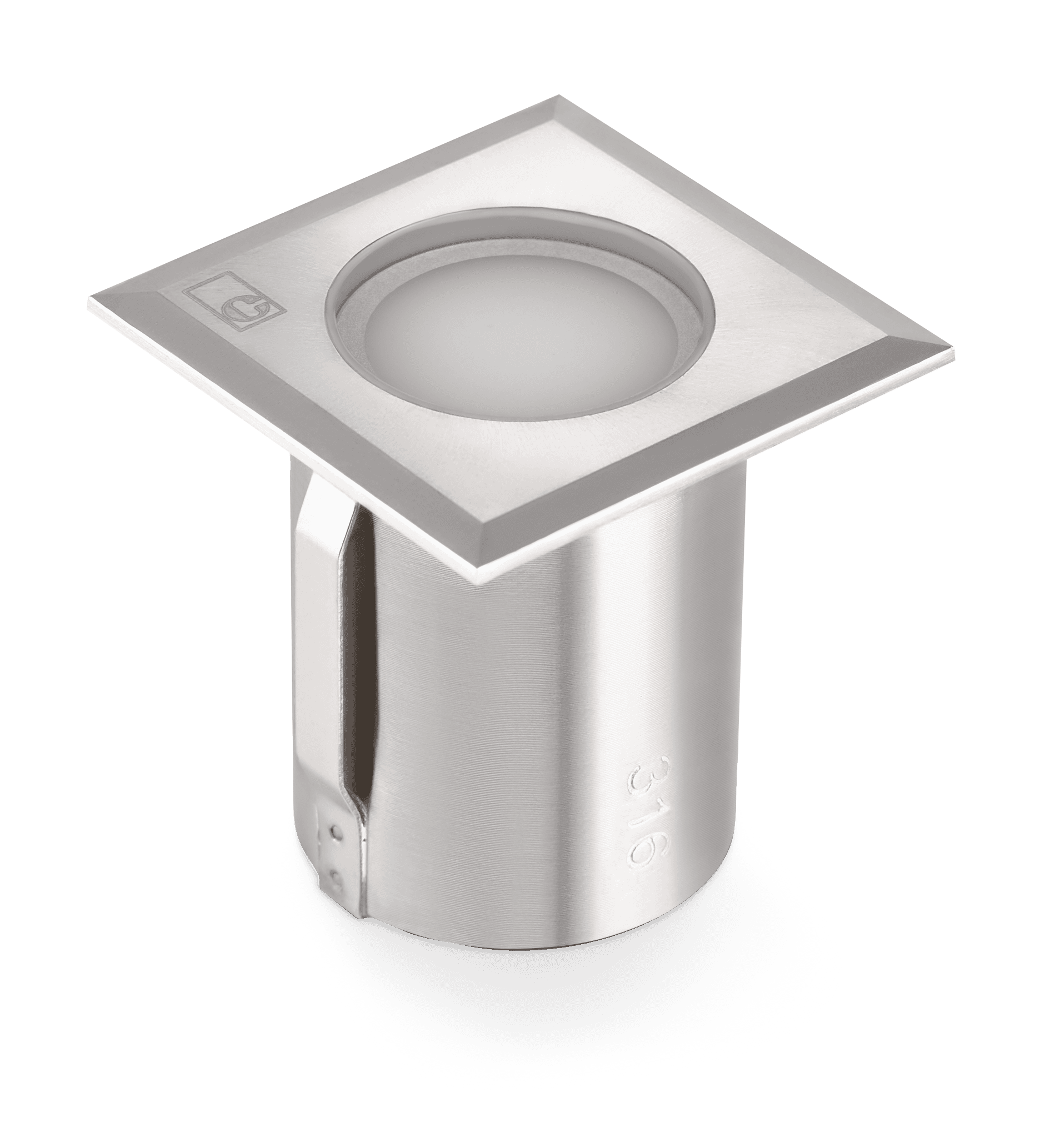

GL018 SQ image 4
GL018 SQ image 5
GL018 SQ image 6
GL018 SQ image 7

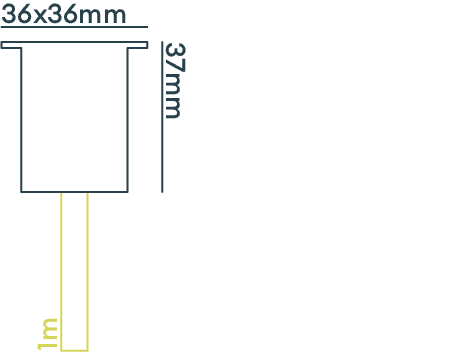

GL018 SQ - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRICut OutDimmable OptionIP RatingLengthLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads
GL018 SQ WARM WHITENot adjustableSquare120Stainless Steel 3163000KStainless Steel8028 mmOn-OffIP6837 mm3FloorNone0.5W37 mm
GL018 SQ BLUENot adjustableSquare120Stainless Steel 316BlueStainless Steel8028 mmOn-OffIP6836 mm0.5FloorNone0.5W36 mm
