LSD12024

This powerful LED driver is a reliable partner for a variety of indoor lighting projects. It is made of durable polycarbonate and can withstand temperatures ranging from -15°C to 45°C, ensuring long-lasting performance. Safety is prioritised through double insulation, inrush current protection, and SELV compliance. This 120W driver with terminal block connection (0.75-1.5mm²) provides efficient power for downlights, spotlights, or strip lights. However, dimming is not supported. While not suitable for bathrooms (IP20 rating), this driver offers a dependable and secure way to power your indoor LED lighting.

Guarantee 5yrIndoorIP20Class II

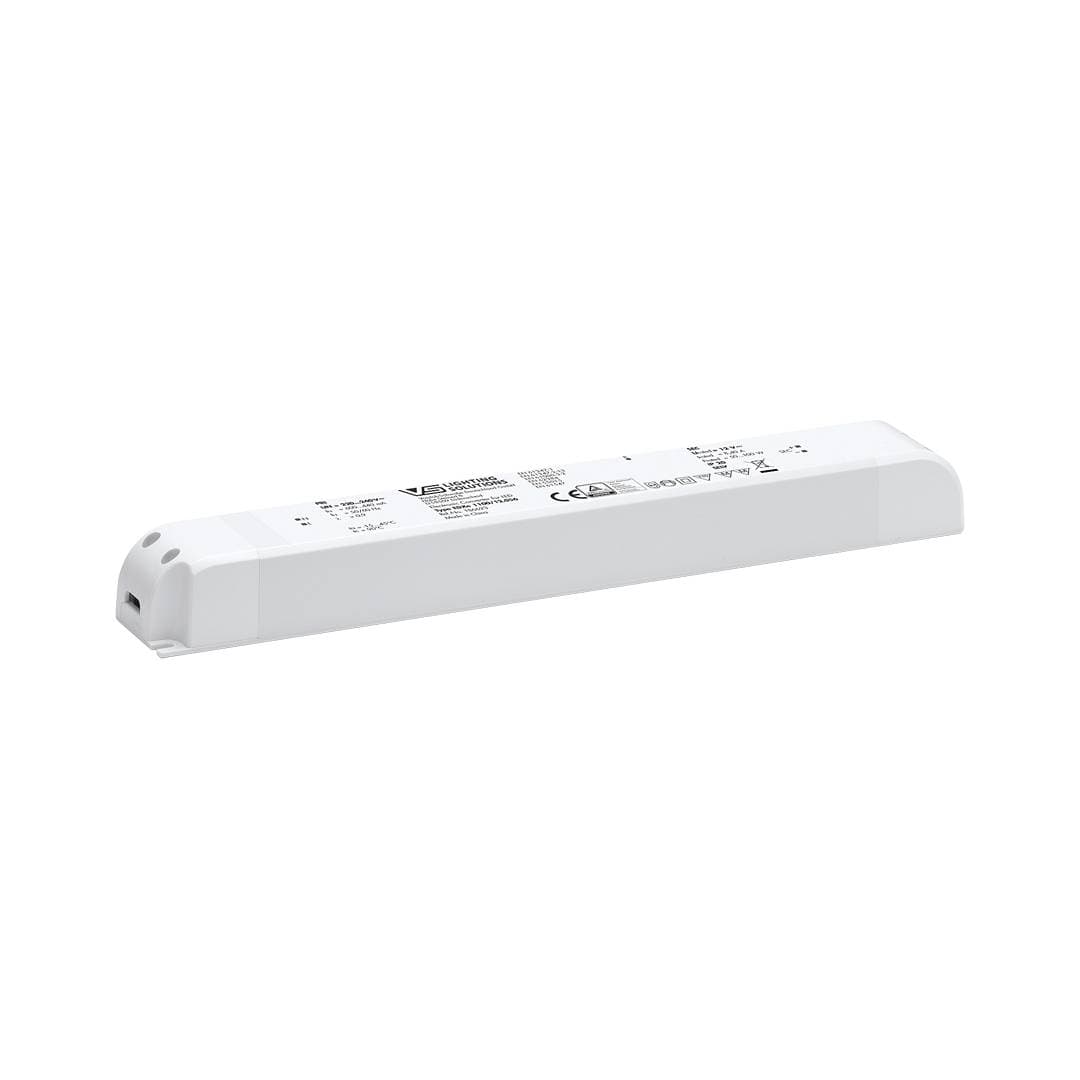

LSD12024
LSD12024 image 1
LSD12024 image 2
LSD12024 image 3

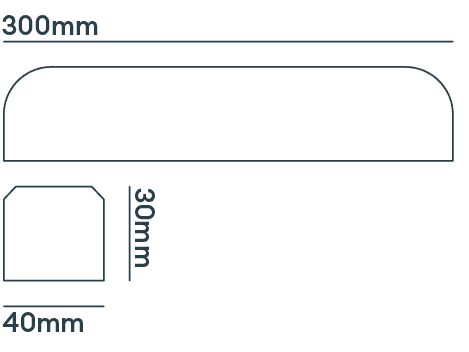

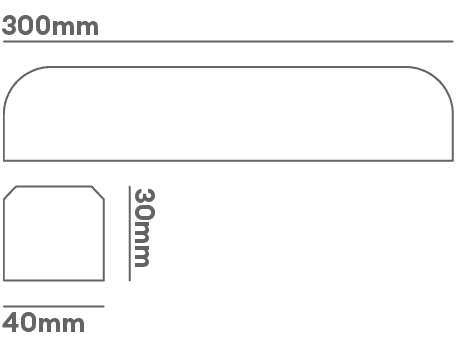

LSD12024 - Size diagram

Product Data

CodeAmbient TemperatureColour / FinishDescriptionEfficiencyDriver Output VoltageHeightInputInstall Connector TypeIP RatingLengthConnection OutputPower FactorProtectionWarrantyWidthDownloads
LSD12024-15 – 45 °CWhite120W IP20 24V Power Supply9024 V30 mm220-240V ACTerminals 0.75-1.5mm²IP20300 mm0.75 - 1.5mm²0.9Mains Surge, Short / Open Circuit5 years40 mm
