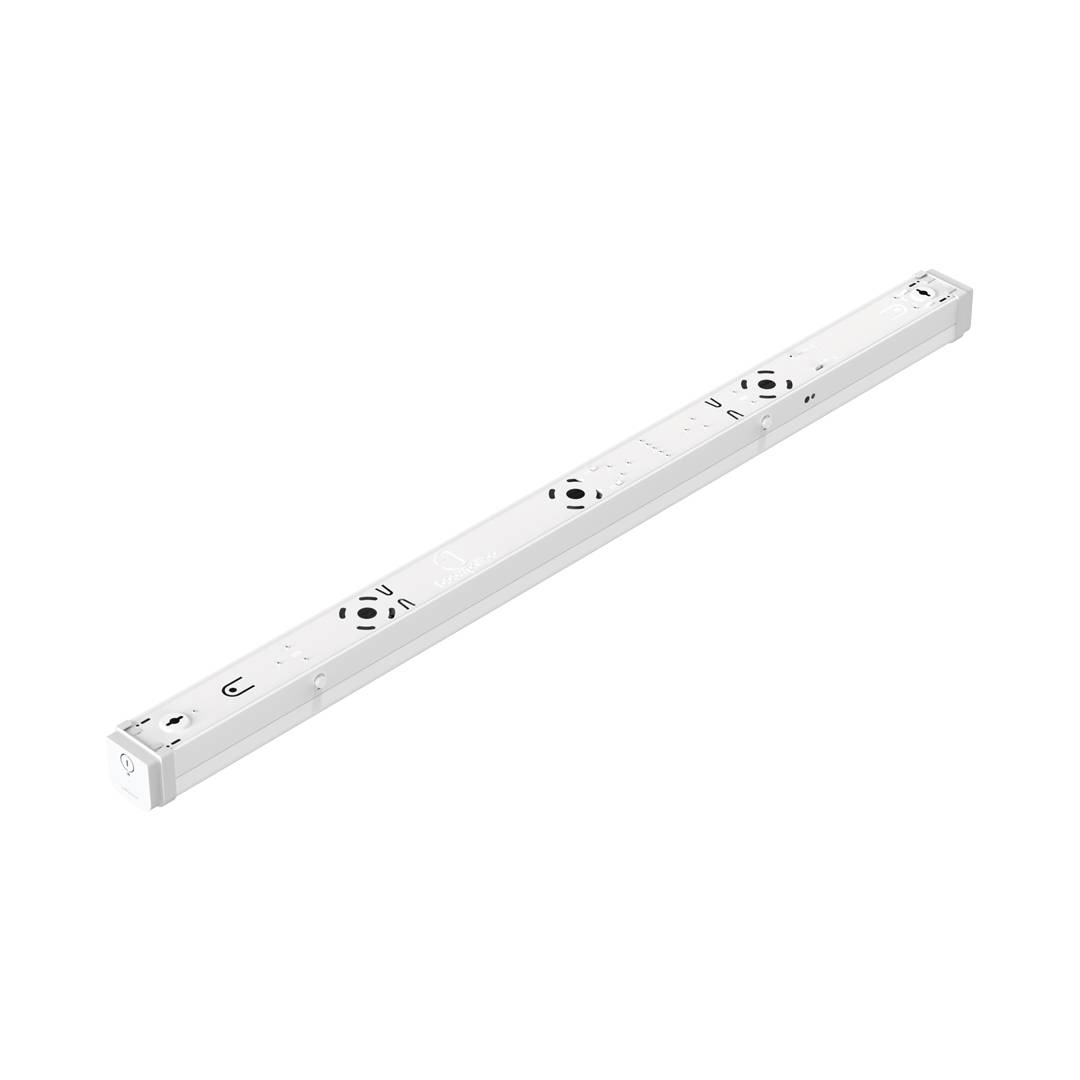

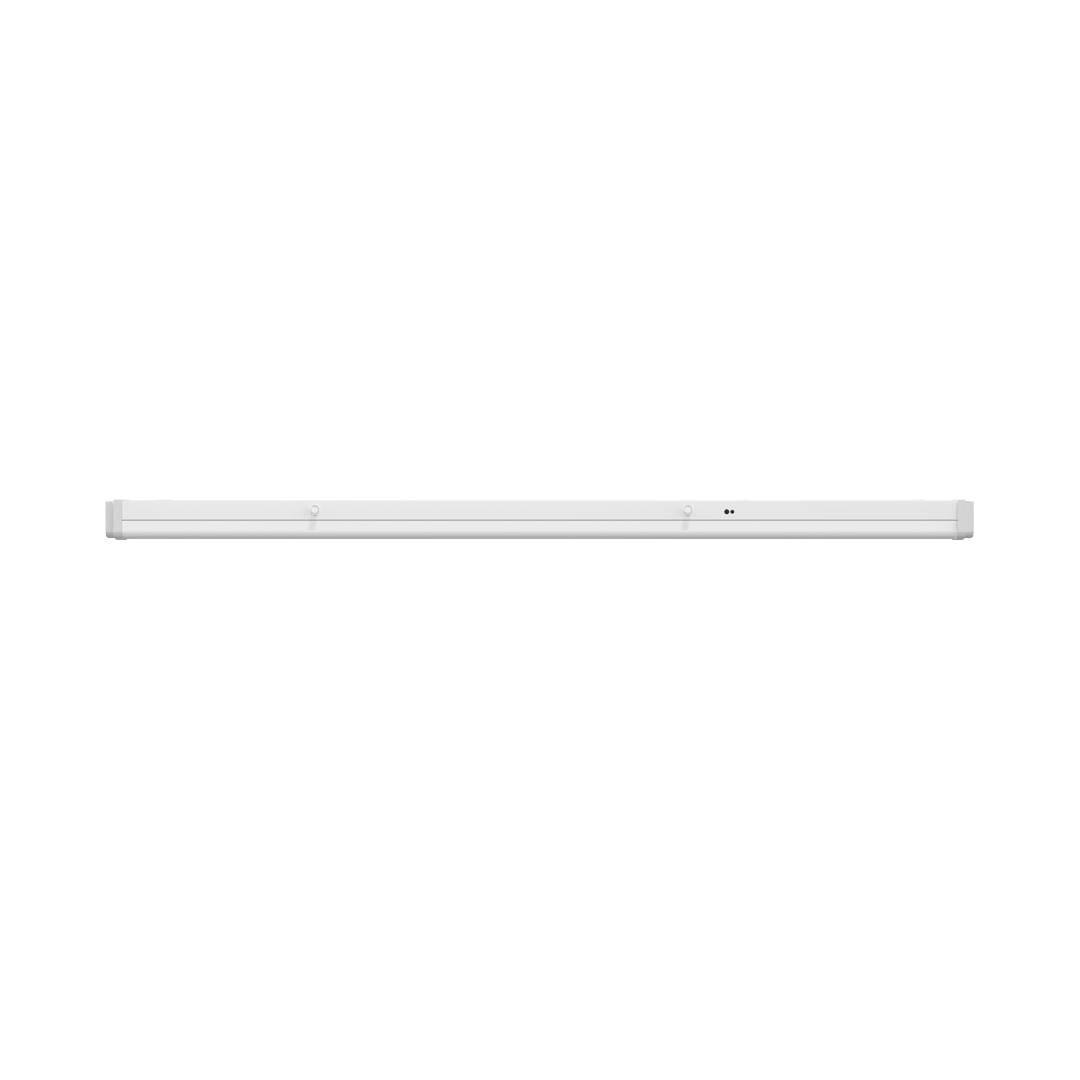

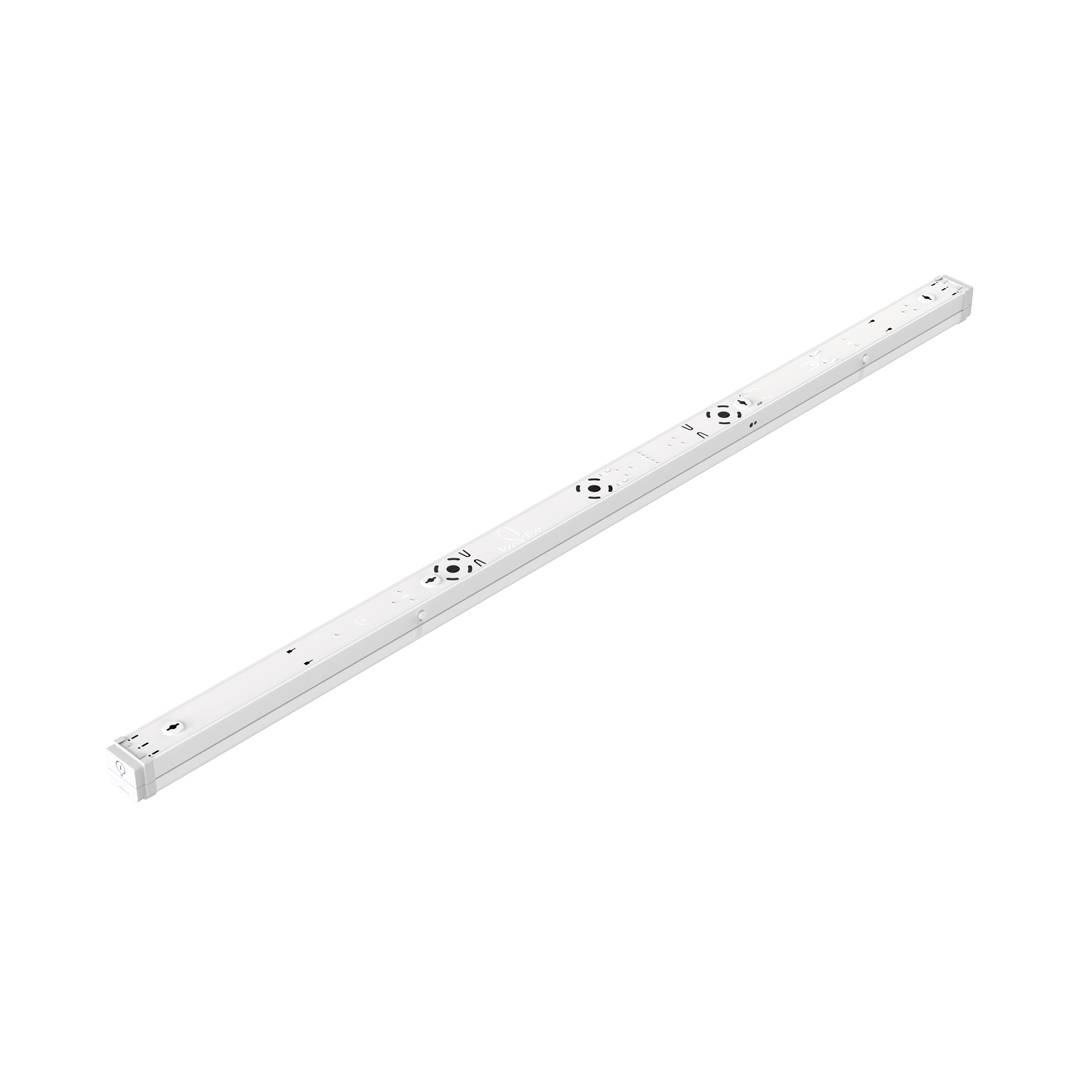

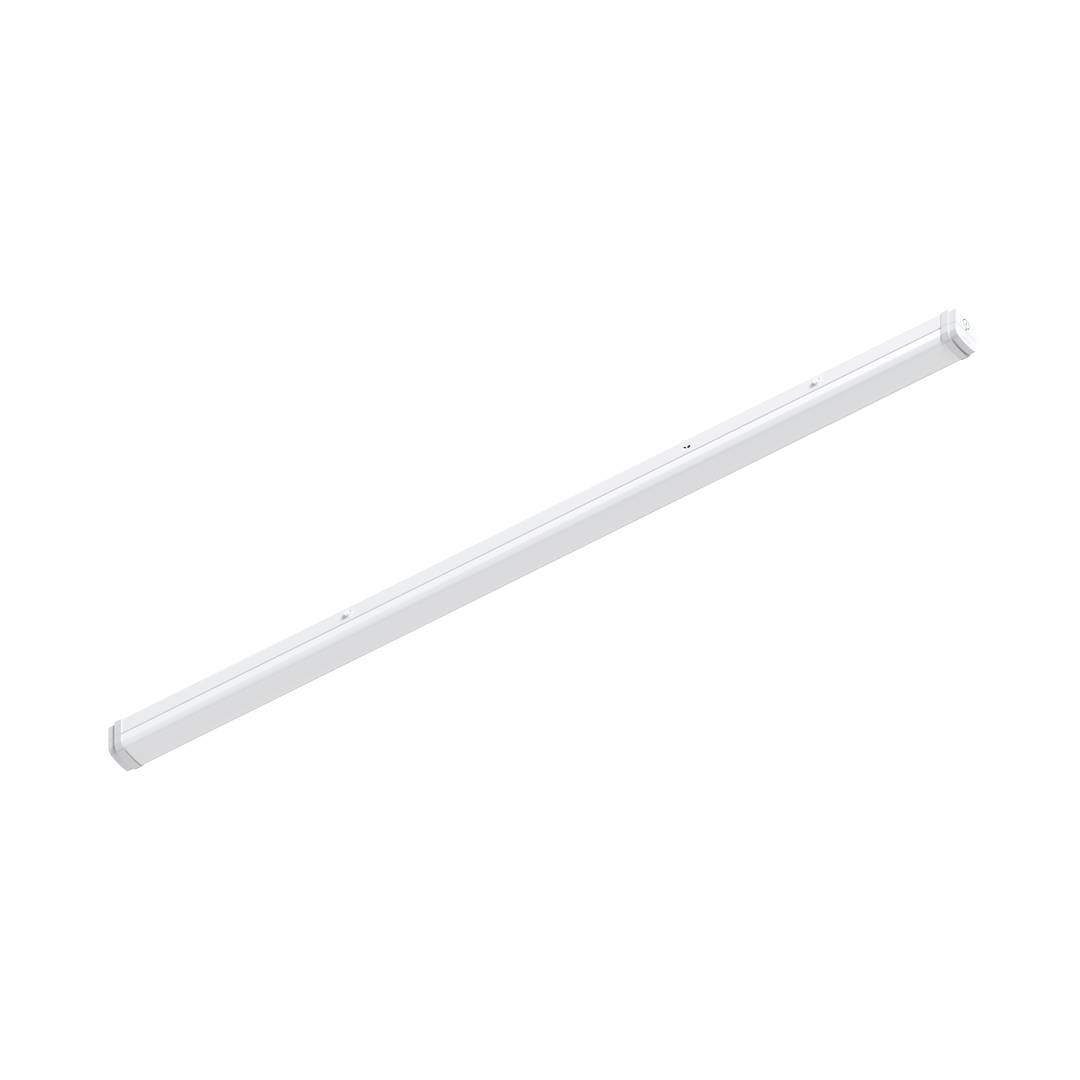

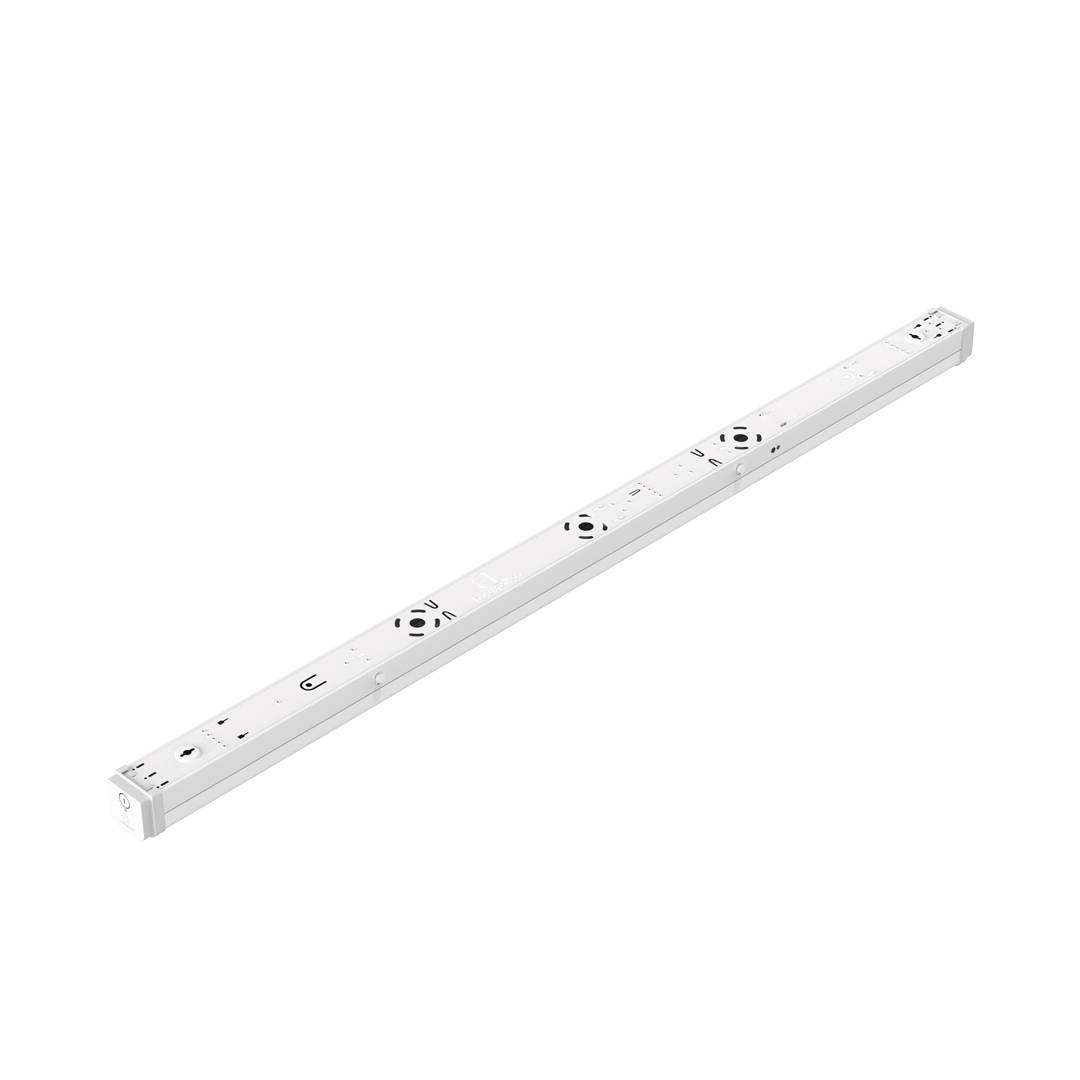

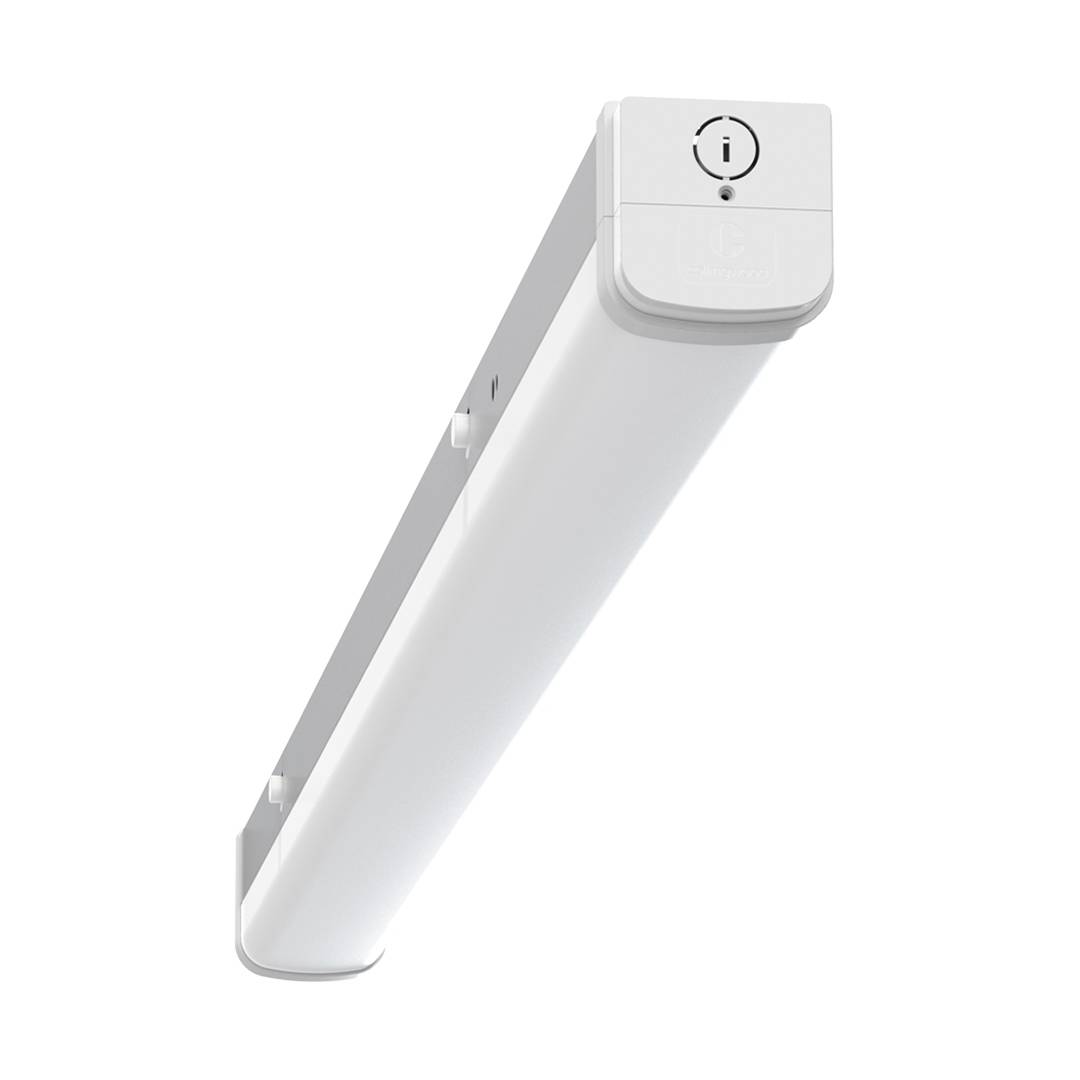

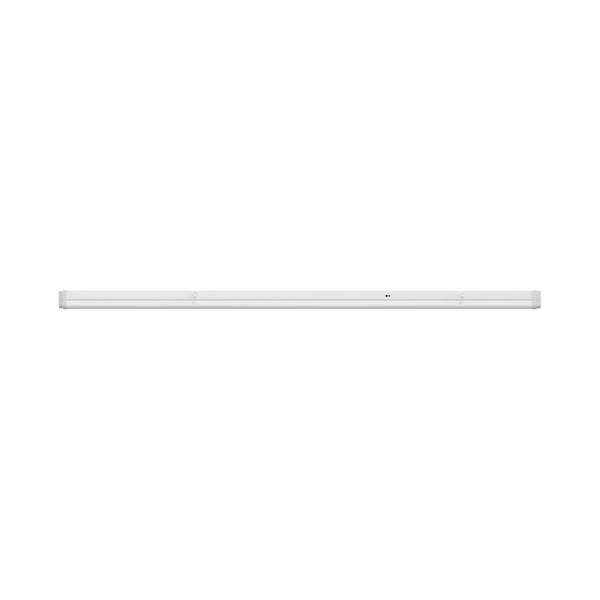

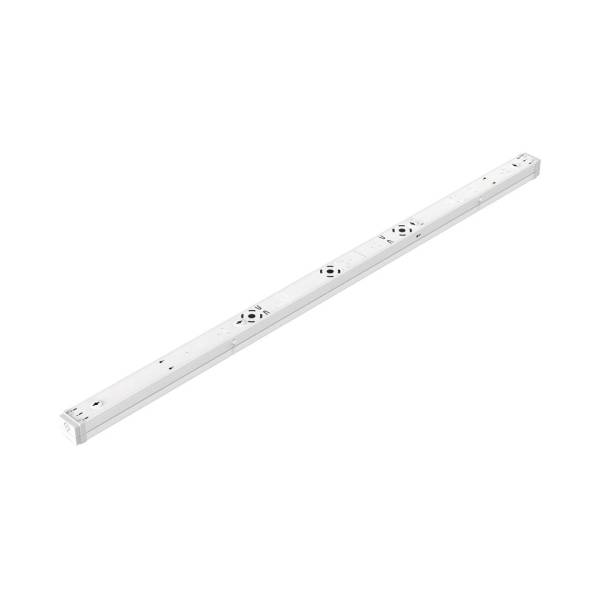

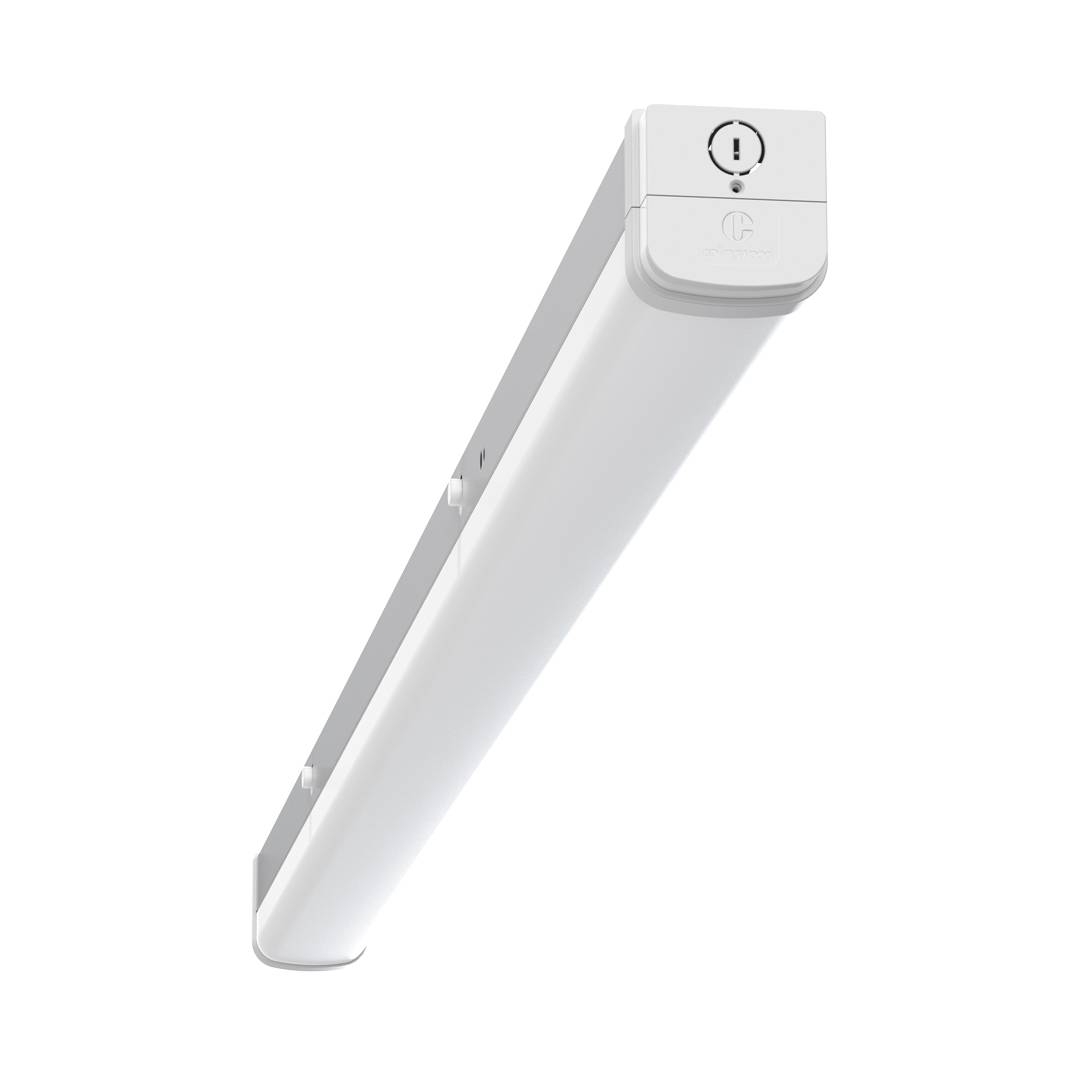

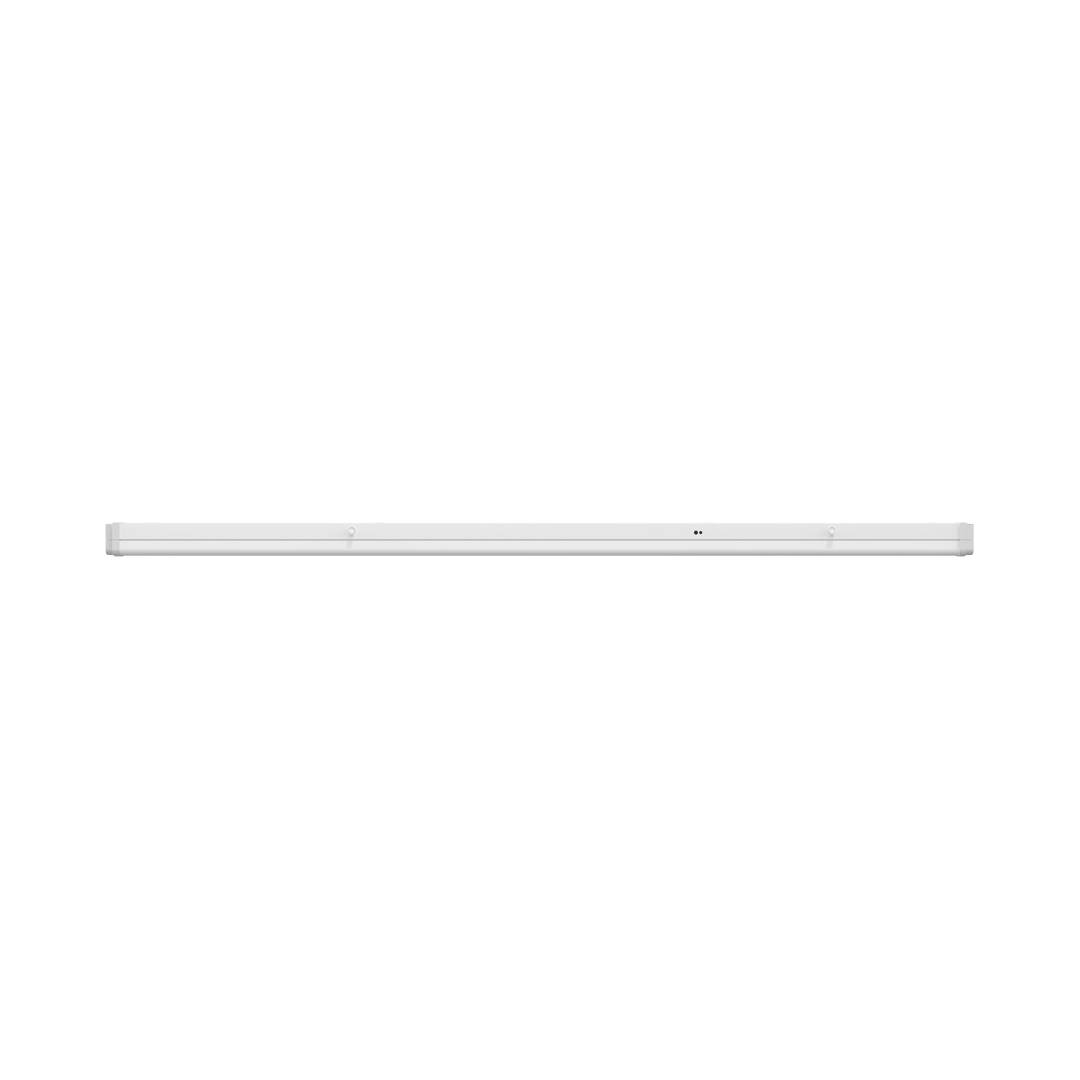

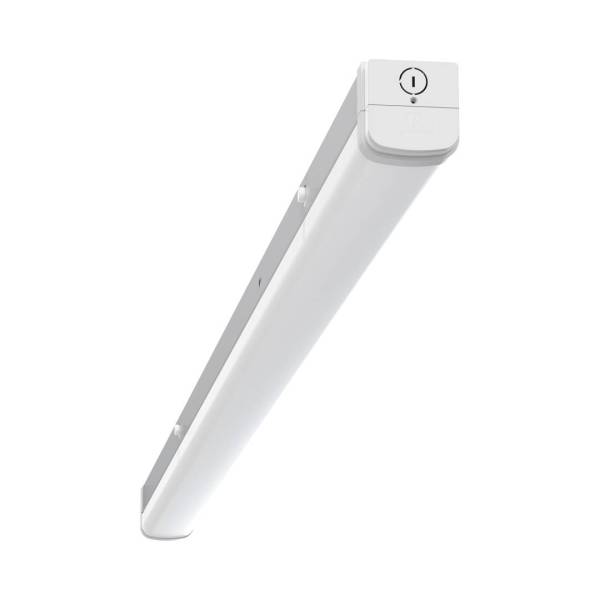

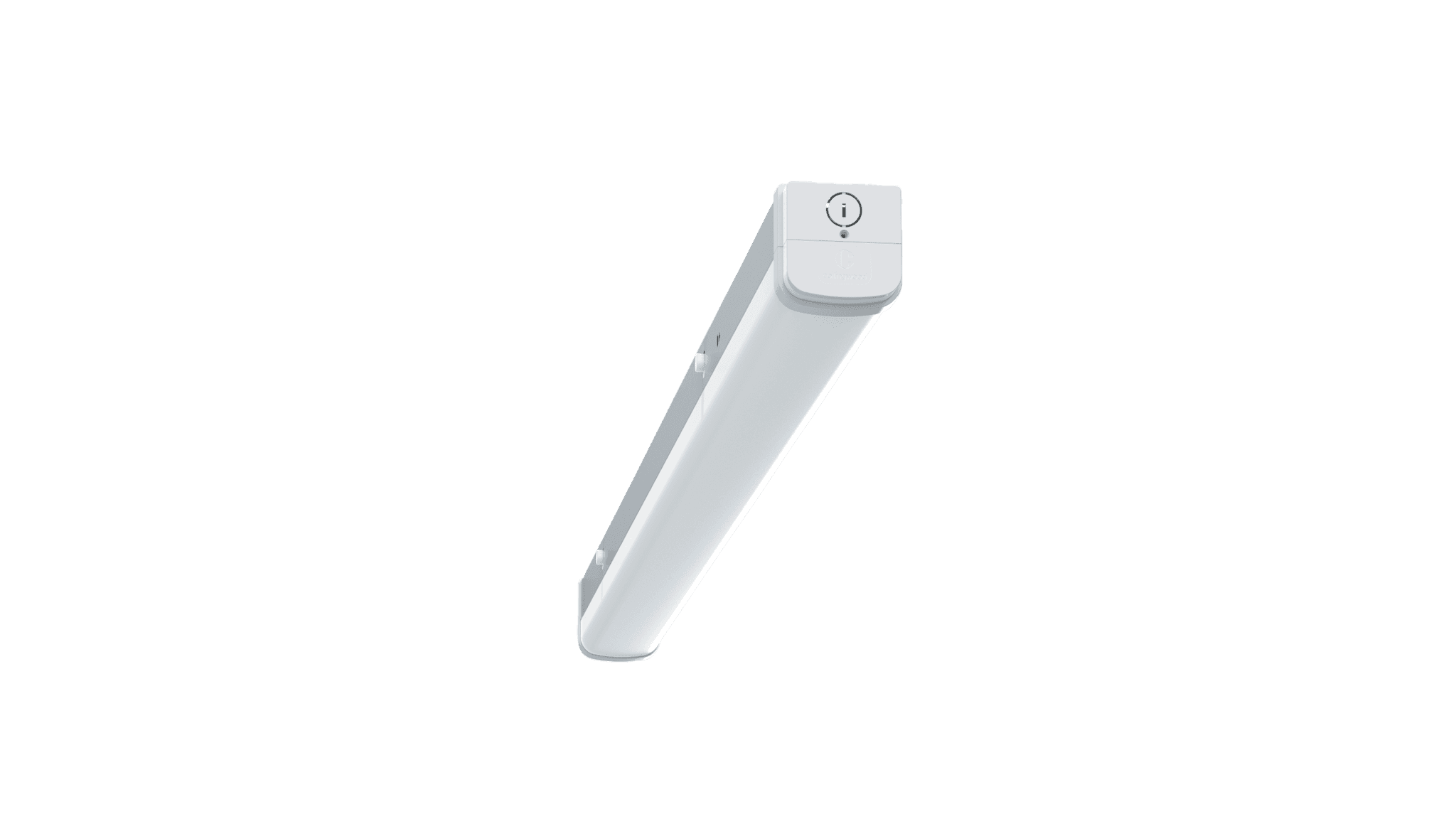

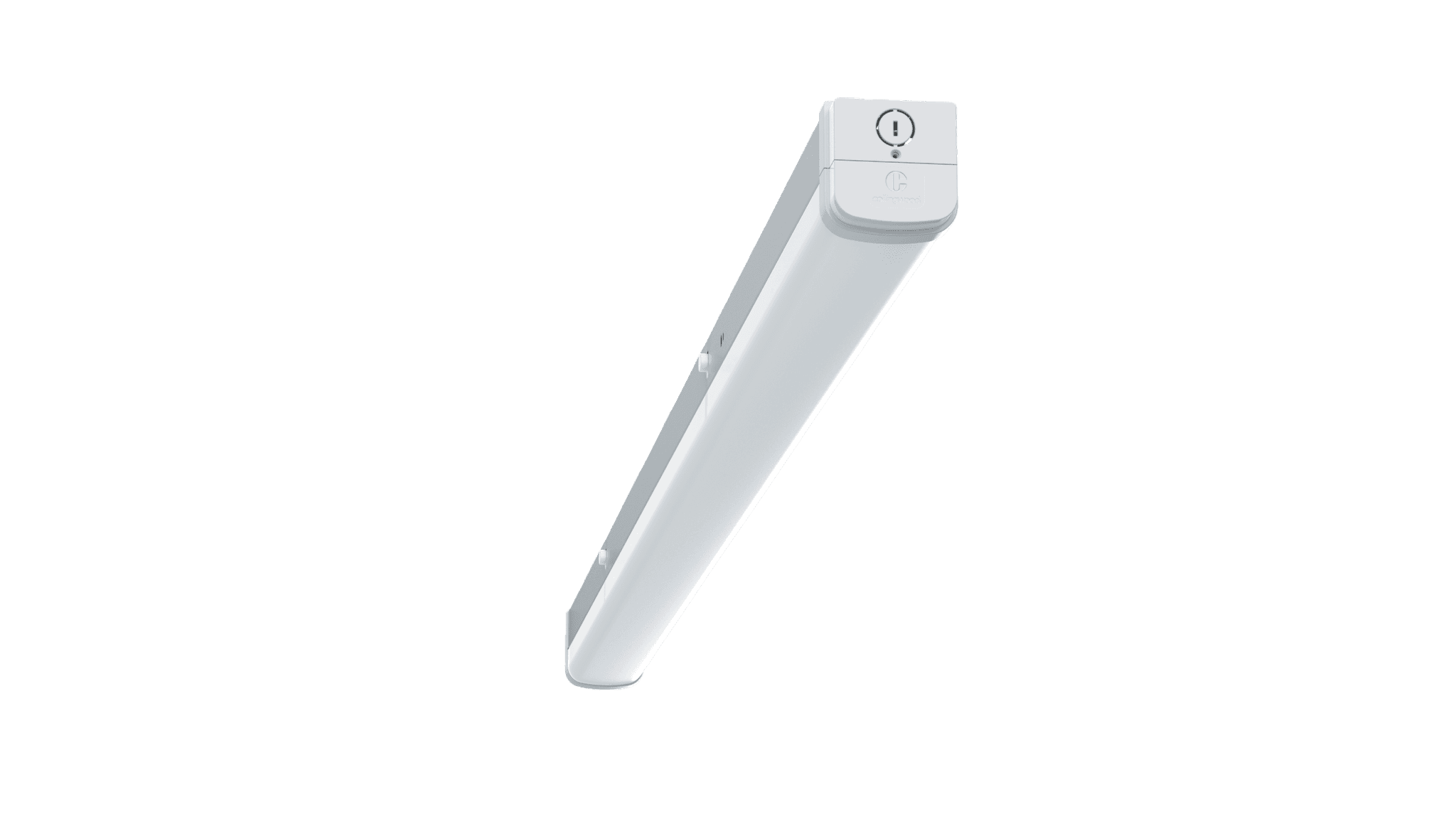

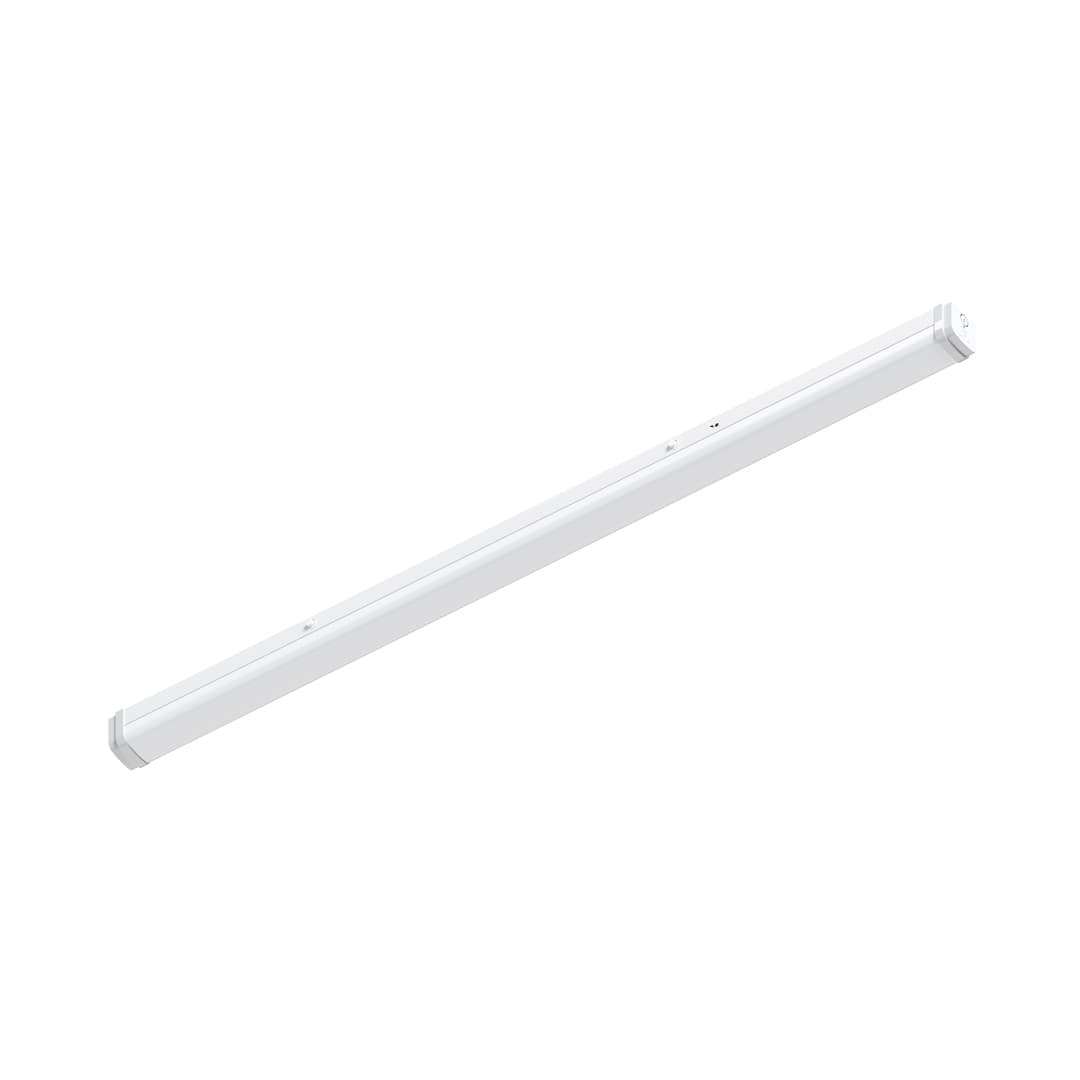

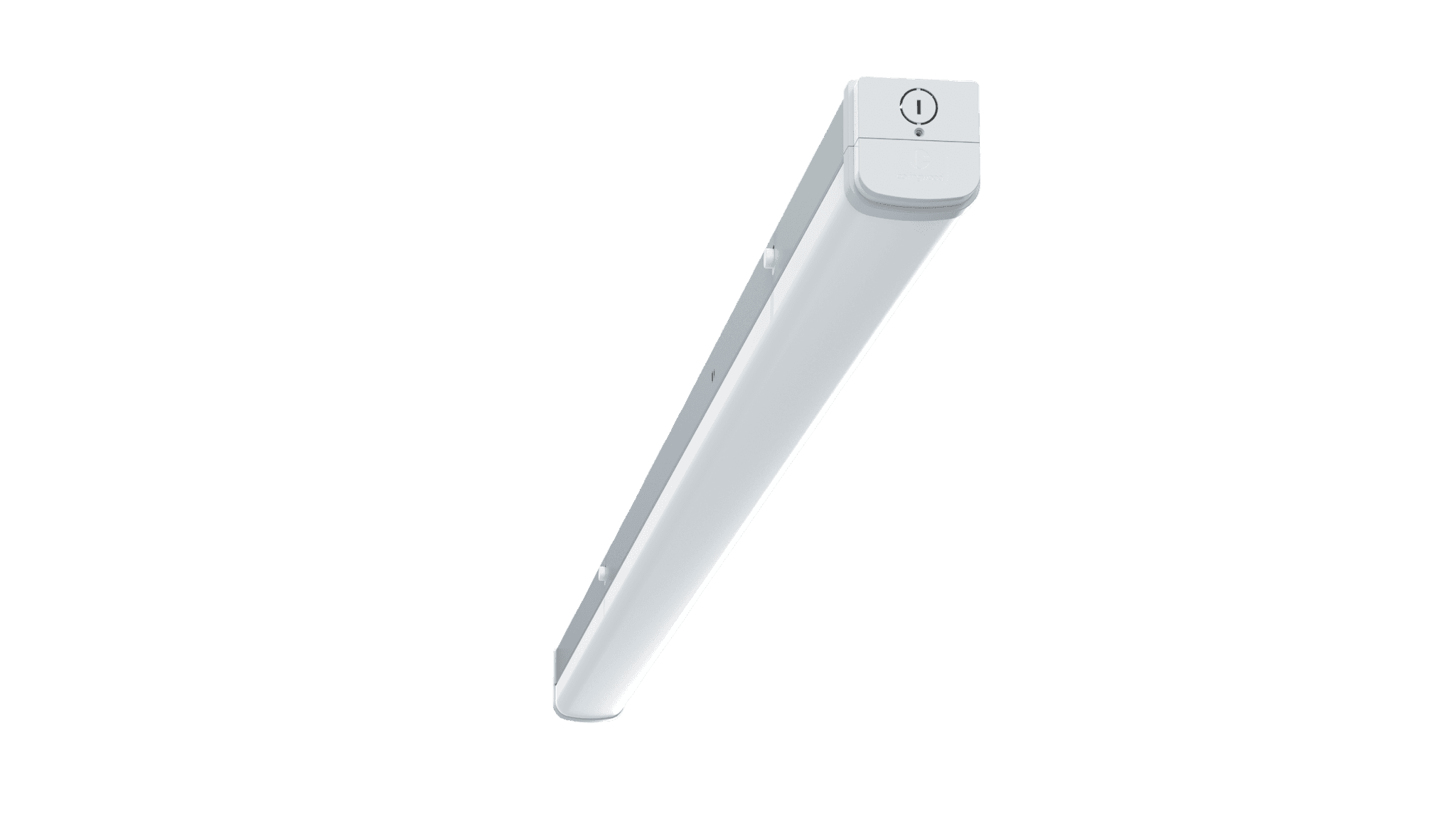

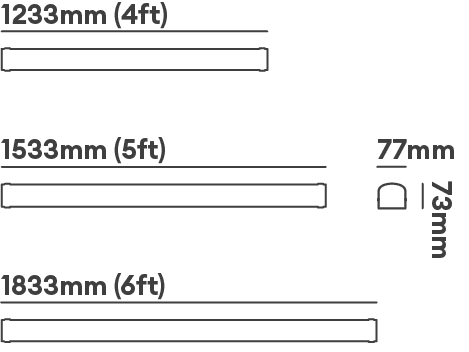

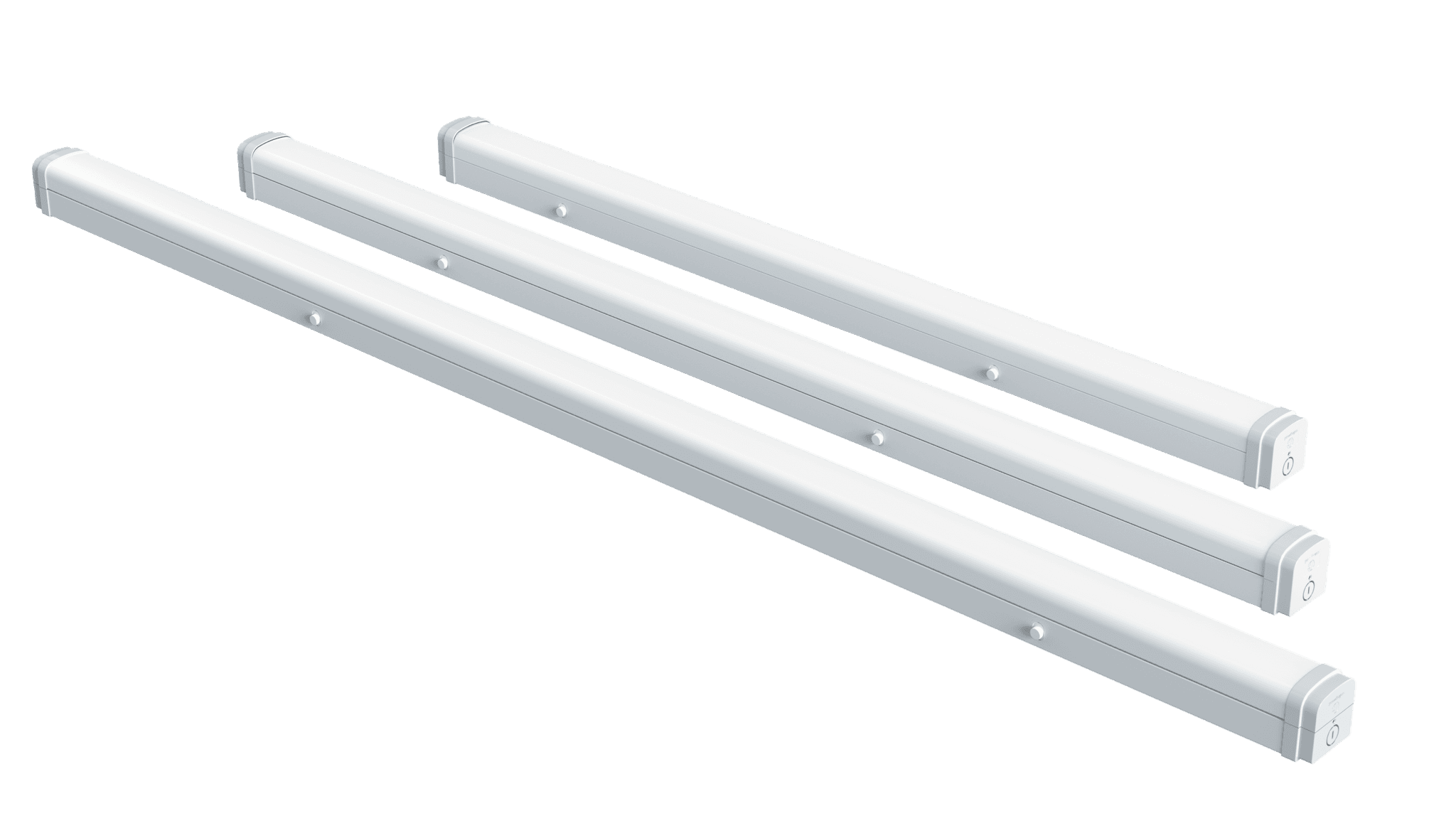

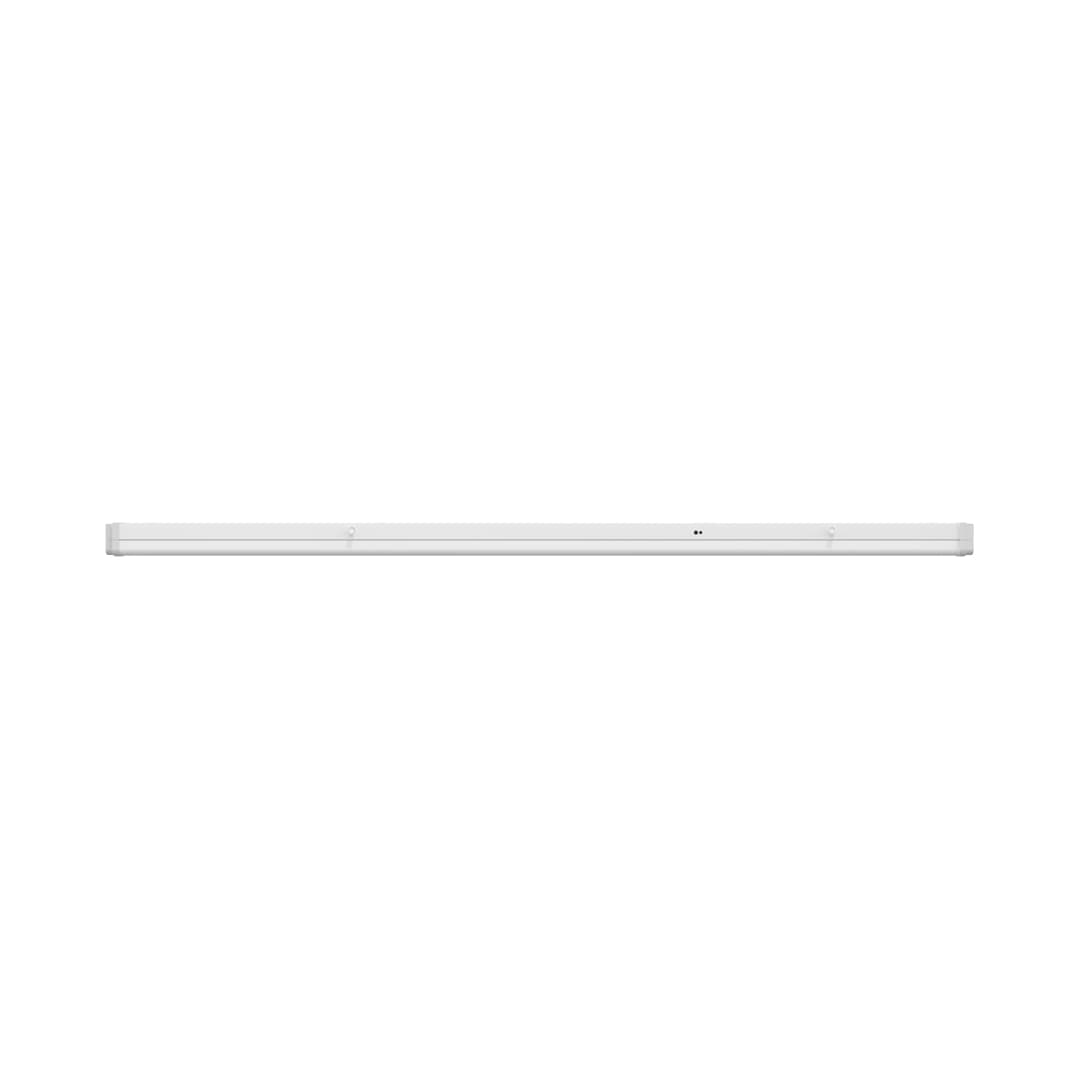

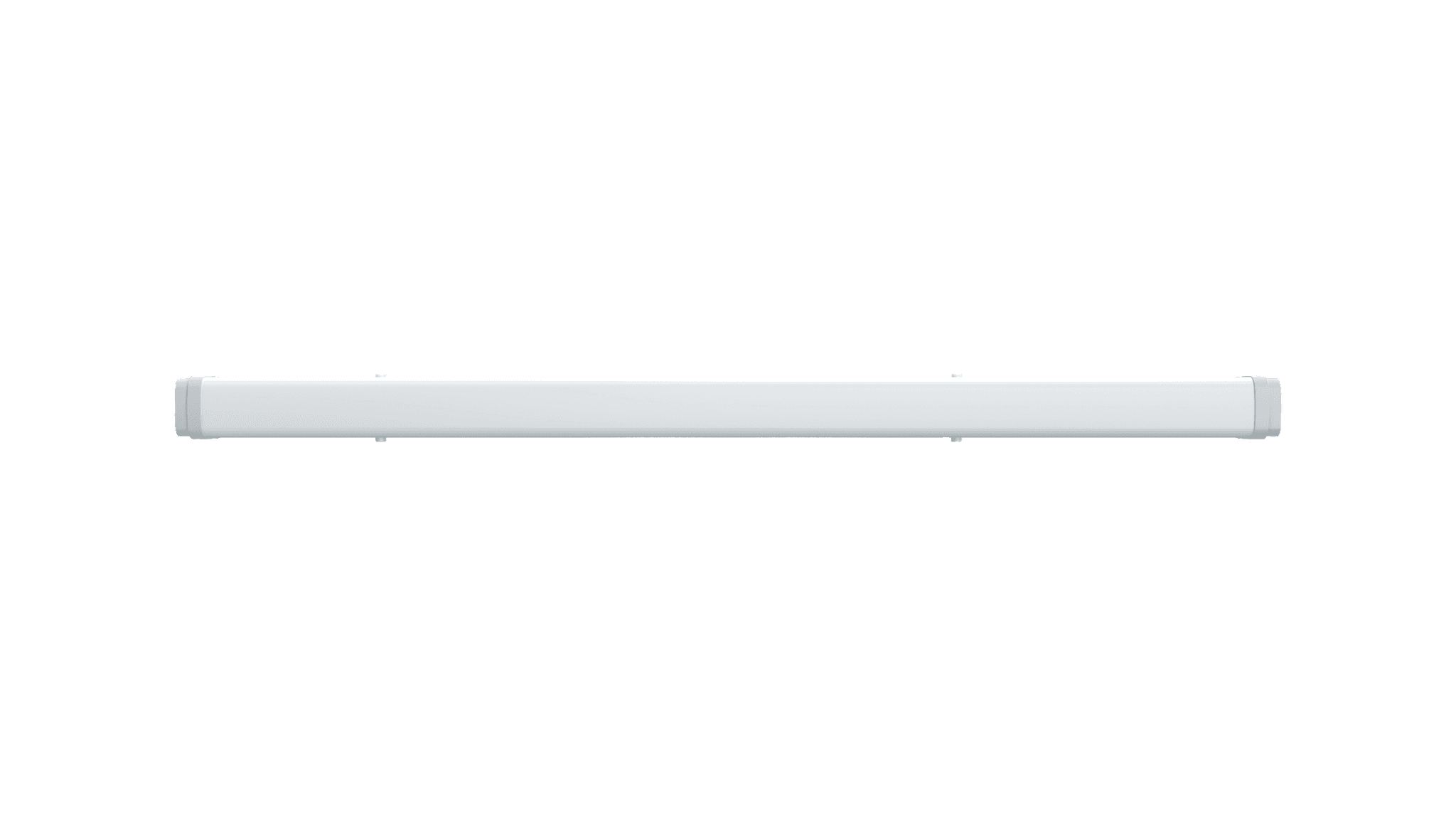

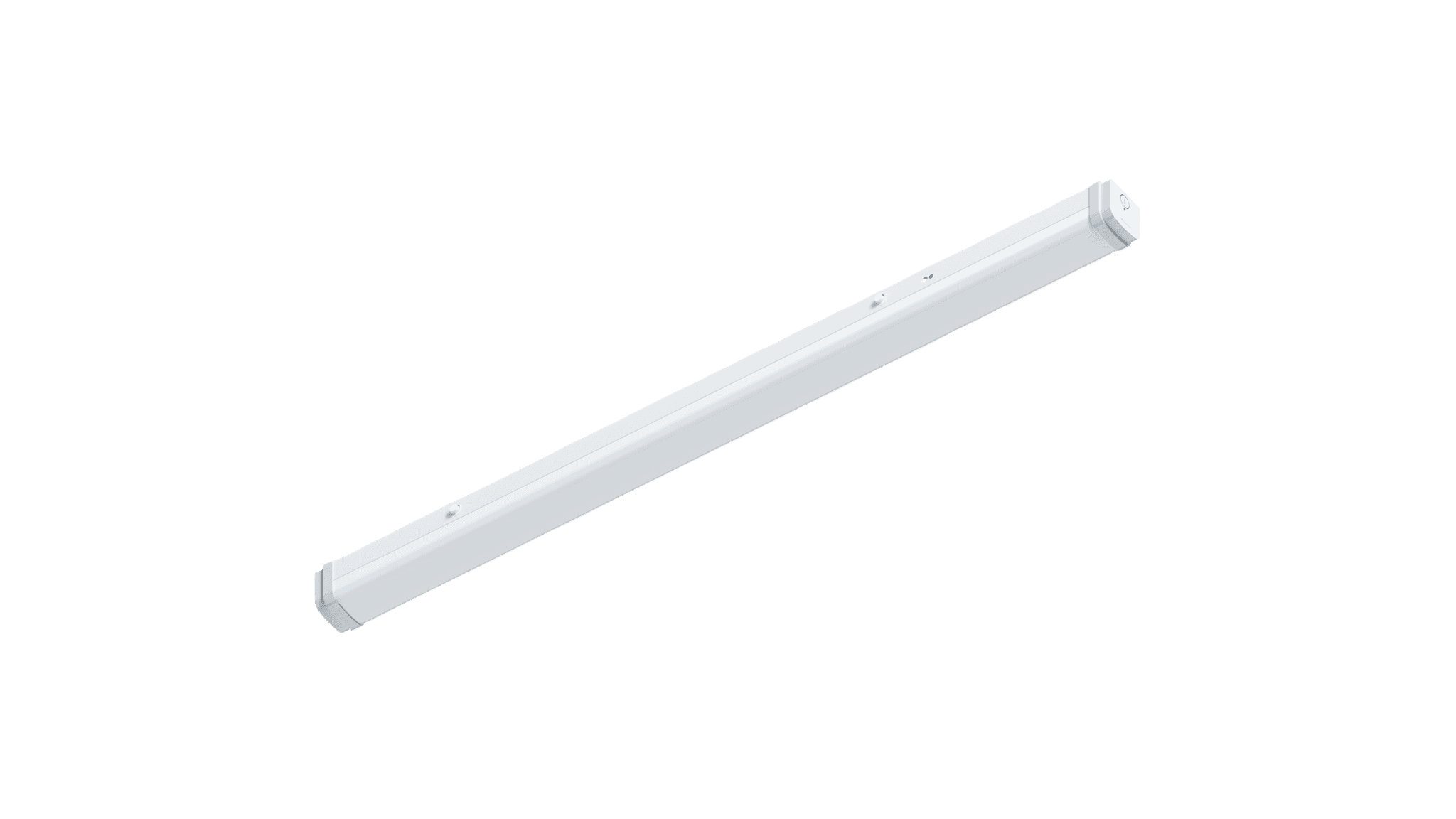

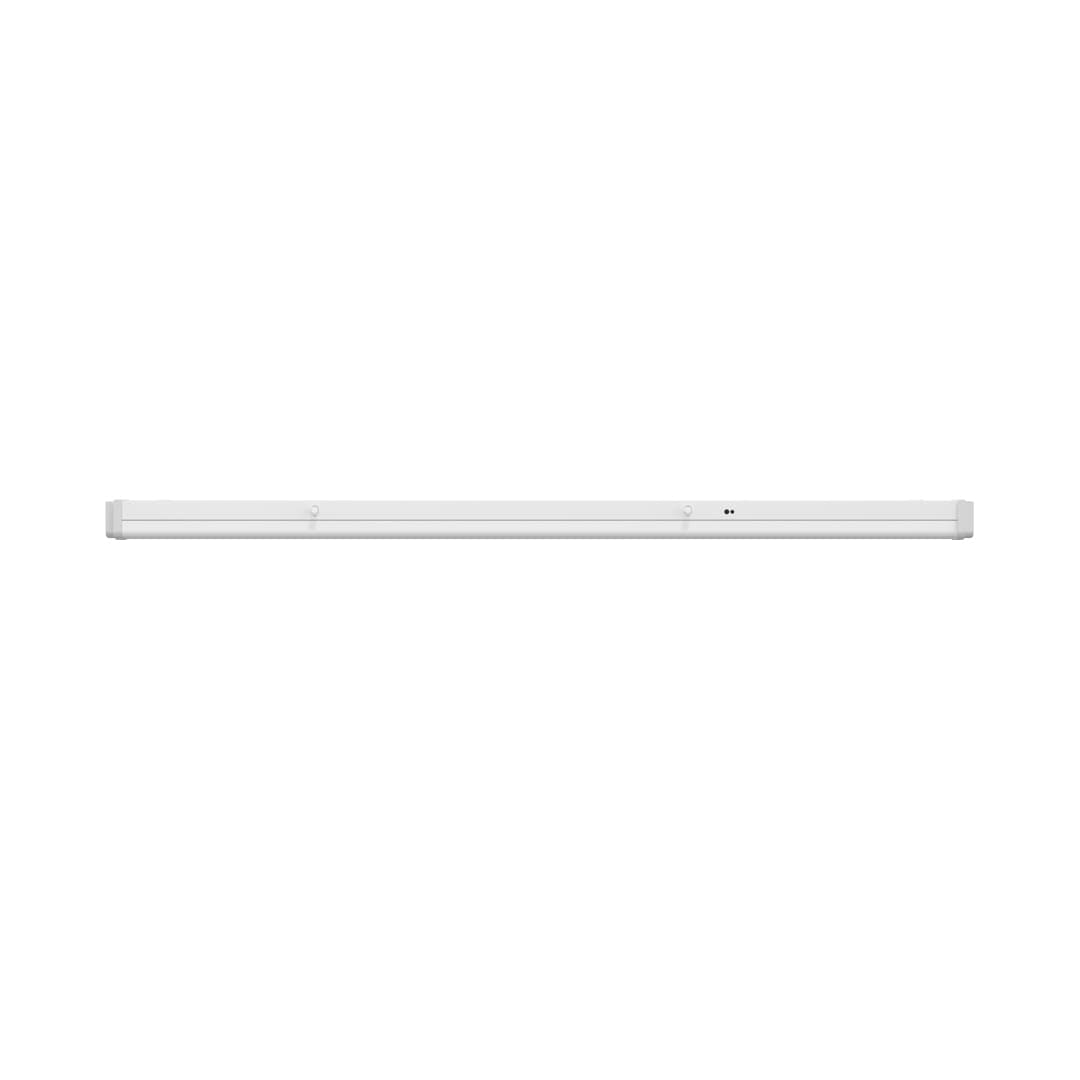

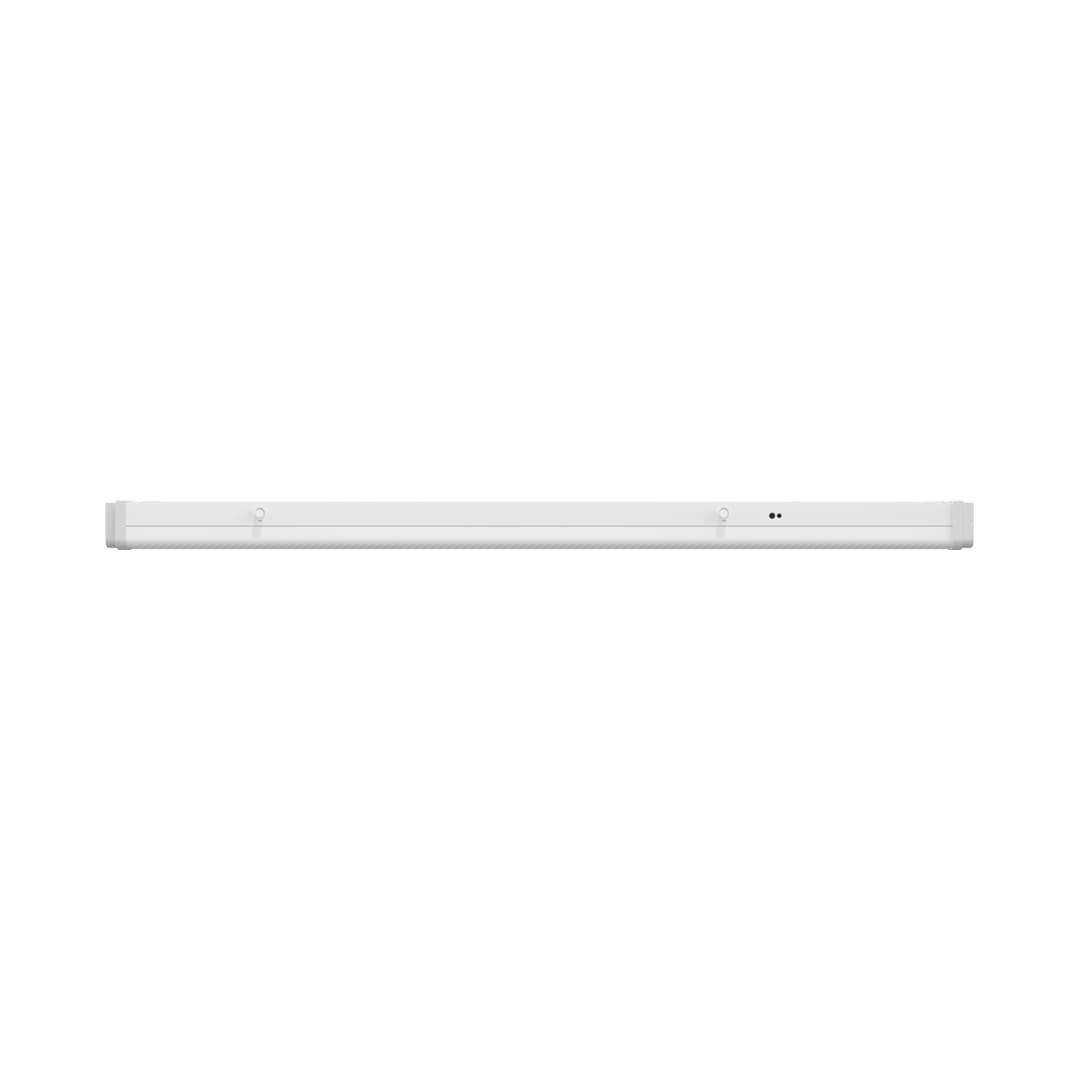

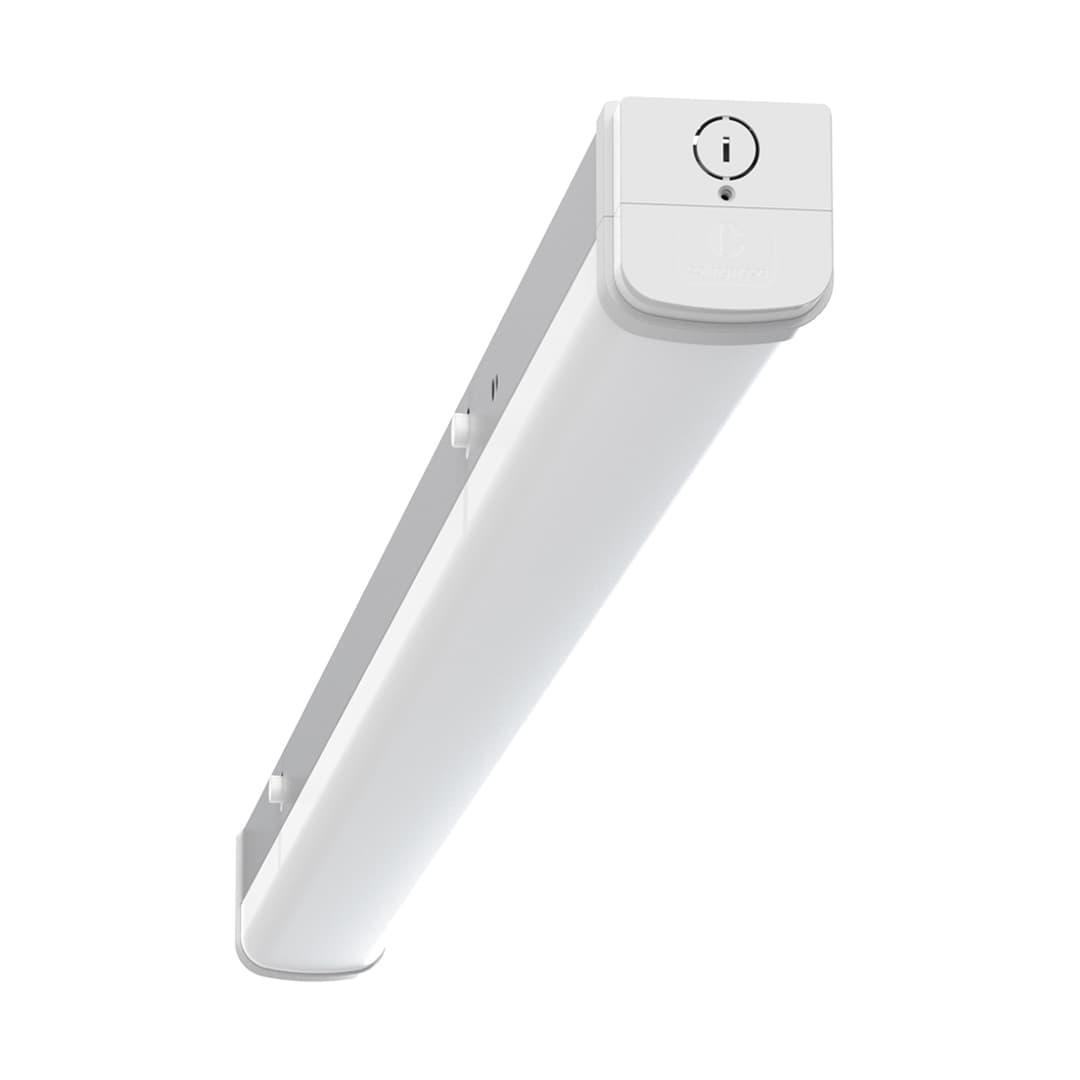

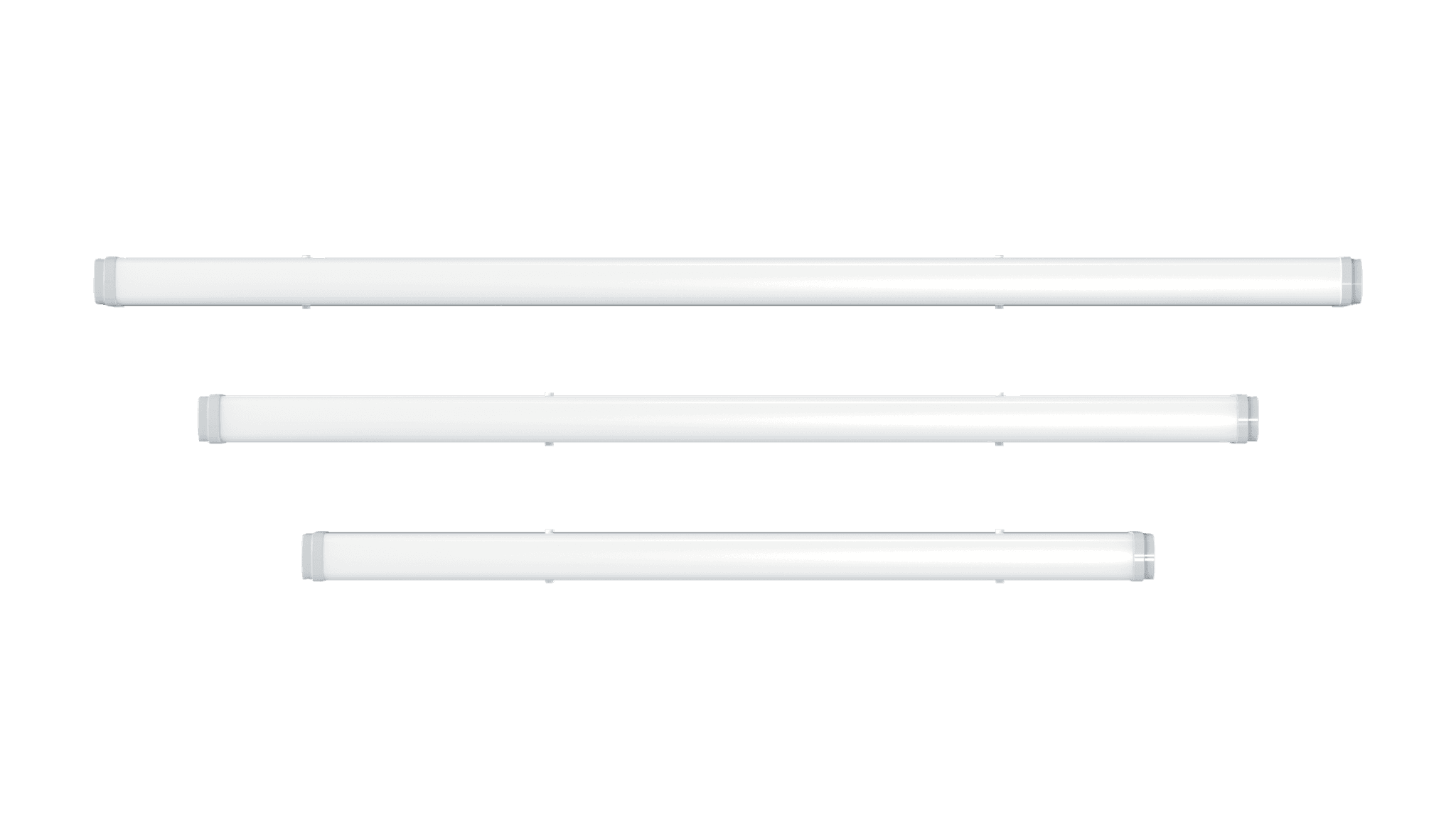

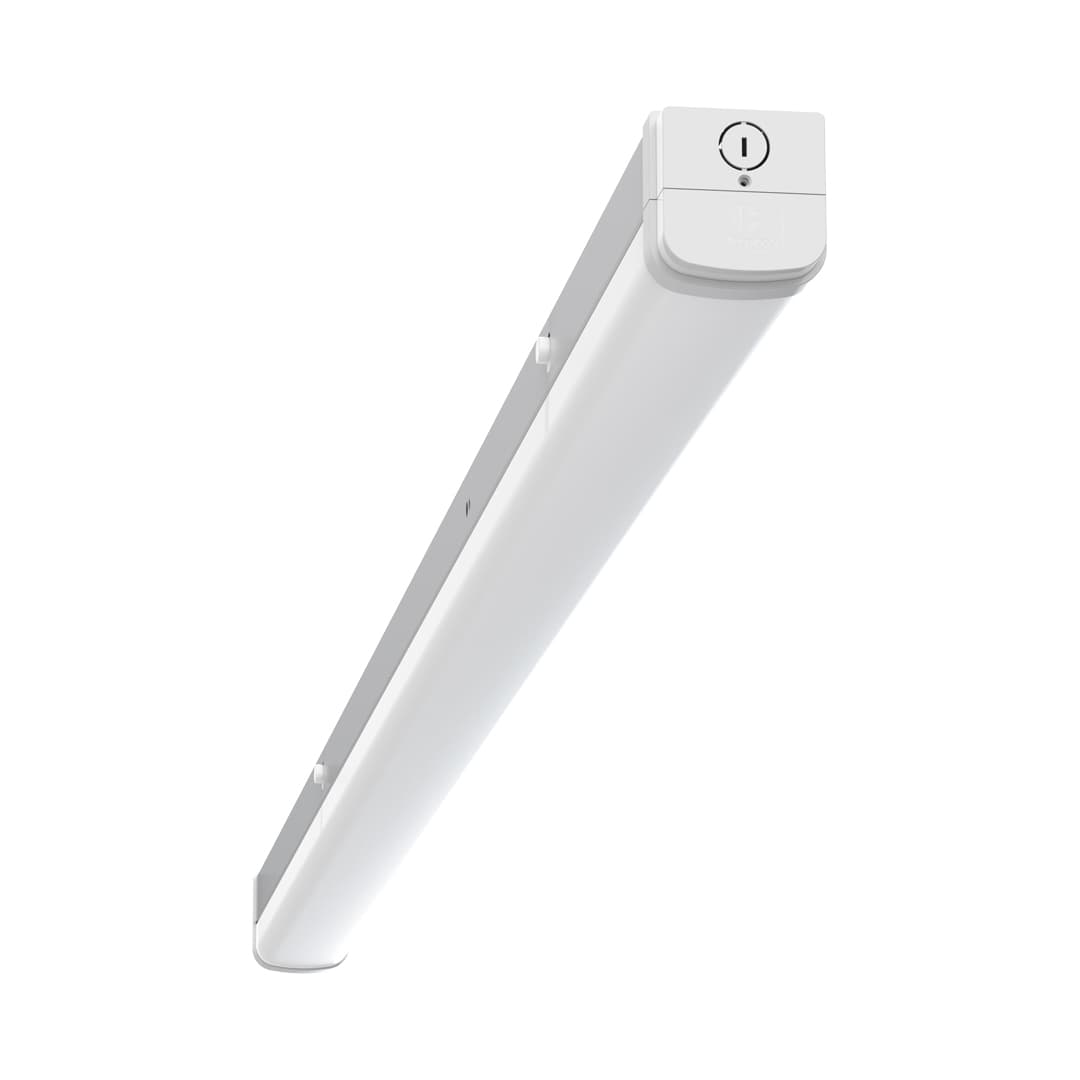

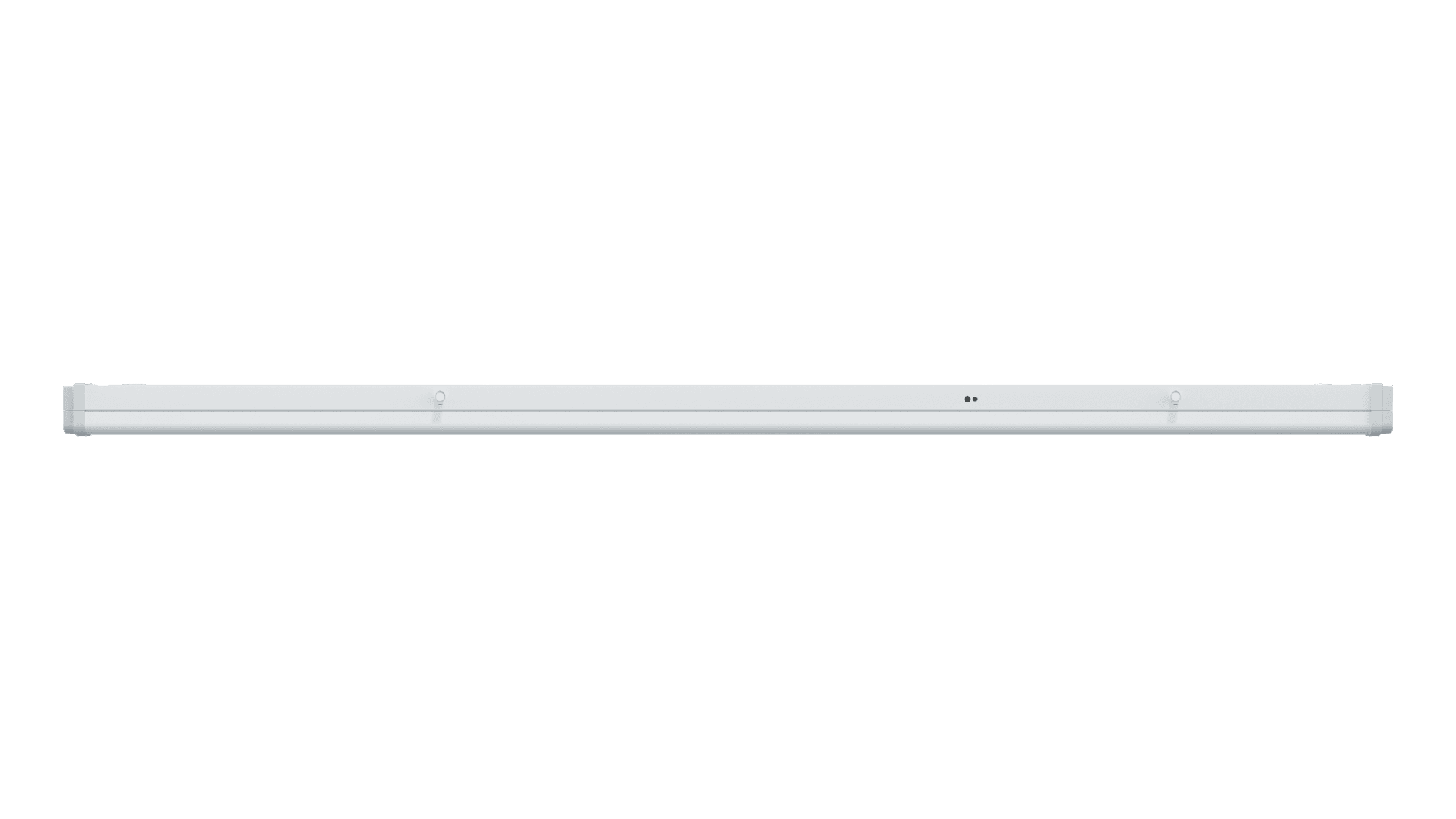

Bringing further versatility to the commercial offering at Collingwood, our range of Borealis Versa provides the ultimate batten with a variety of kits, from microwave sensors to manual test emergencies, DALI emergencies, and self-test emergencies. Also available in 0-10V, DALI-2 Dimmable, or On/Off to suit a project. The streamlined linear fixture, available in three lengths, allows you to create a uniform installation of perfectly distributed light. Designed with the installer in mind, this range is quick and easy to fit, keeping use of tools to a minimum. It also provides various wiring options, particularly useful in retrofit applications.
| Code | Base Shape | Beam Angle | Body Material | CCT Range | Colour / Finish | CRI | Dimmable Option | Emergency Option | IP Rating | Length | Lumens Range | Mounting Type | Sensor Option | UGR | Wattage Range | Width | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BT5NM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | On-Off | None | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | On-Off | 26 | 28-56W | 77 mm | |
| BT5V | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | 0-10V | None | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | Optional | 26 | 28-56W | 77 mm | |
| BT5VM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | 0-10V | None | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | On-Off | 26 | 28-56W | 77 mm | |
| BT6NEM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | On-Off | Manual-Test | IP20 | 1,800 mm | 4690 - 10050 | Ceiling | Optional | 26 | 33-67W | 77 mm | |
| BT6D | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | DALI-2 | None | IP20 | 1,800 mm | 4690 - 10050 | Ceiling | Optional | 26 | 33-67W | 77 mm | |
| BT6NMEM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | On-Off | Manual-Test | IP20 | 1,800 mm | 4690 - 10050 | Ceiling | On-Off | 26 | 33-67W | 95 mm | |
| BT5VEM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | 0-10V | Manual-Test | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | Optional | 26 | 28-56W | 77 mm | |
| BT5NMEM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | On-Off | Manual-Test | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | On-Off | 26 | 28-56W | 95 mm | |
| BT5VMEM | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | 0-10V | Manual-Test | IP20 | 1,500 mm | 3920 - 8400 | Ceiling | On-Off | 26 | 28-56W | 95 mm | |
| BT6DED | Linear | 120 | PC | 3000K / 4000K / 5700K | White | 80 | DALI-2 | DALI-2 | IP20 | 1,800 mm | 4690 - 10050 | Ceiling | Optional | 26 | 33-67W | 77 mm |
Find the perfect product you are looking for.
PIR+Daylight M20 Conduit Entry Sensor for use up to 7m
Self Test Emergency Plug-in kit
Remote for Microwave Sensor
MIcrowave Sensor on/off Plug-in Kit
MIcrowave Sensor Dim Plug-in Kit
Manual Test Emergency Plug-in kit
DALI-2 Emergency Plug-in Kit
Suspension kit for Borealis LED battens
