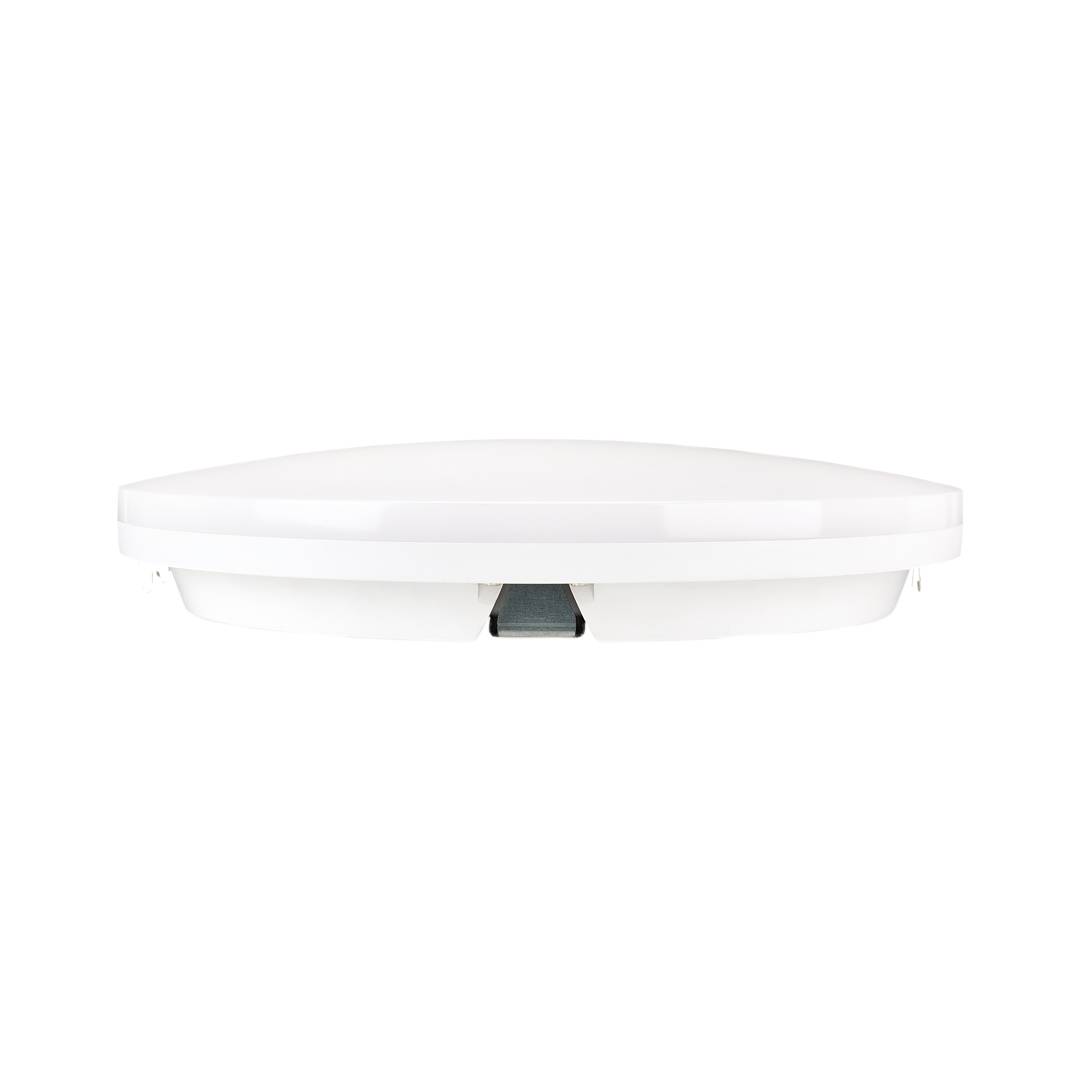

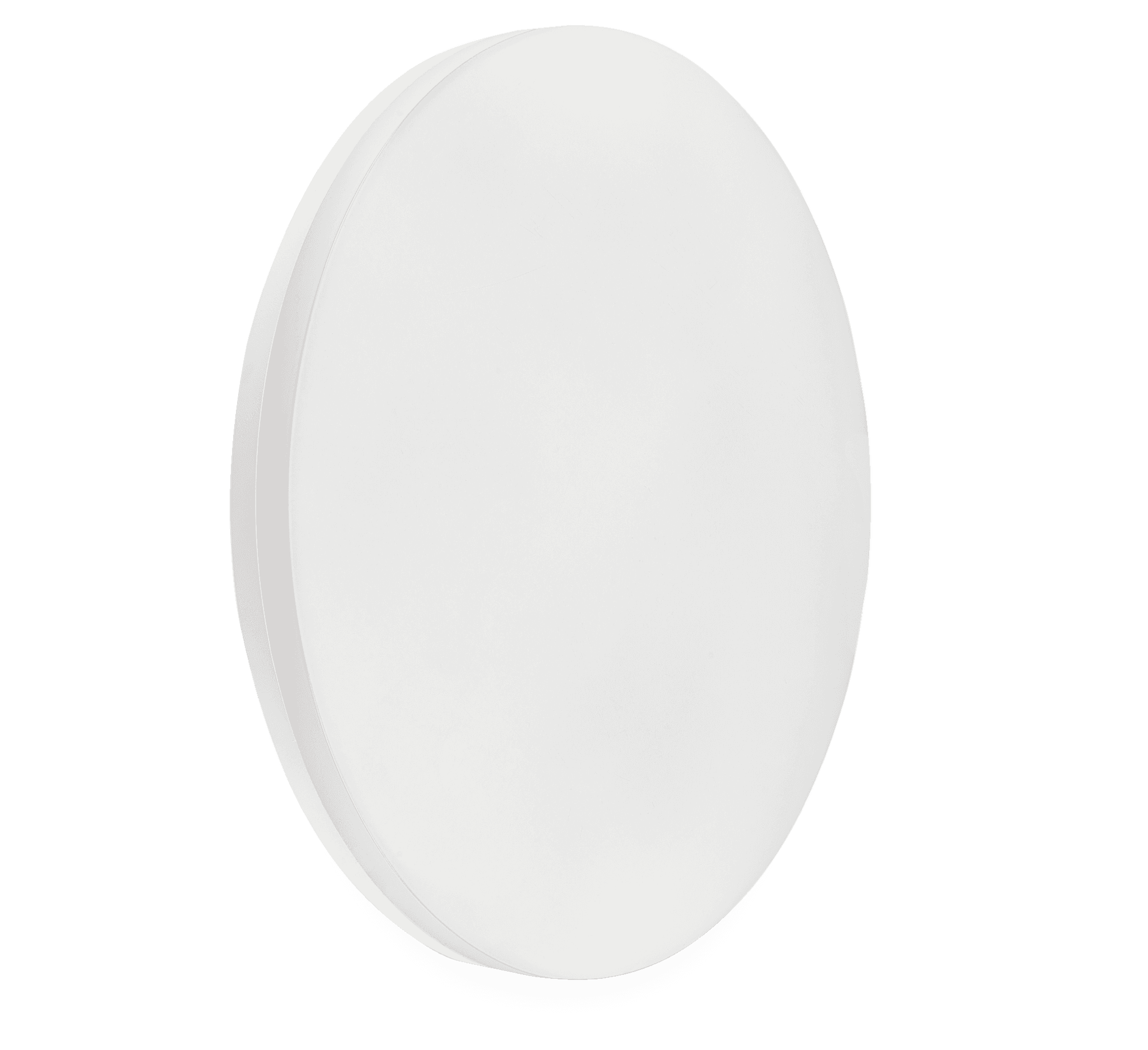

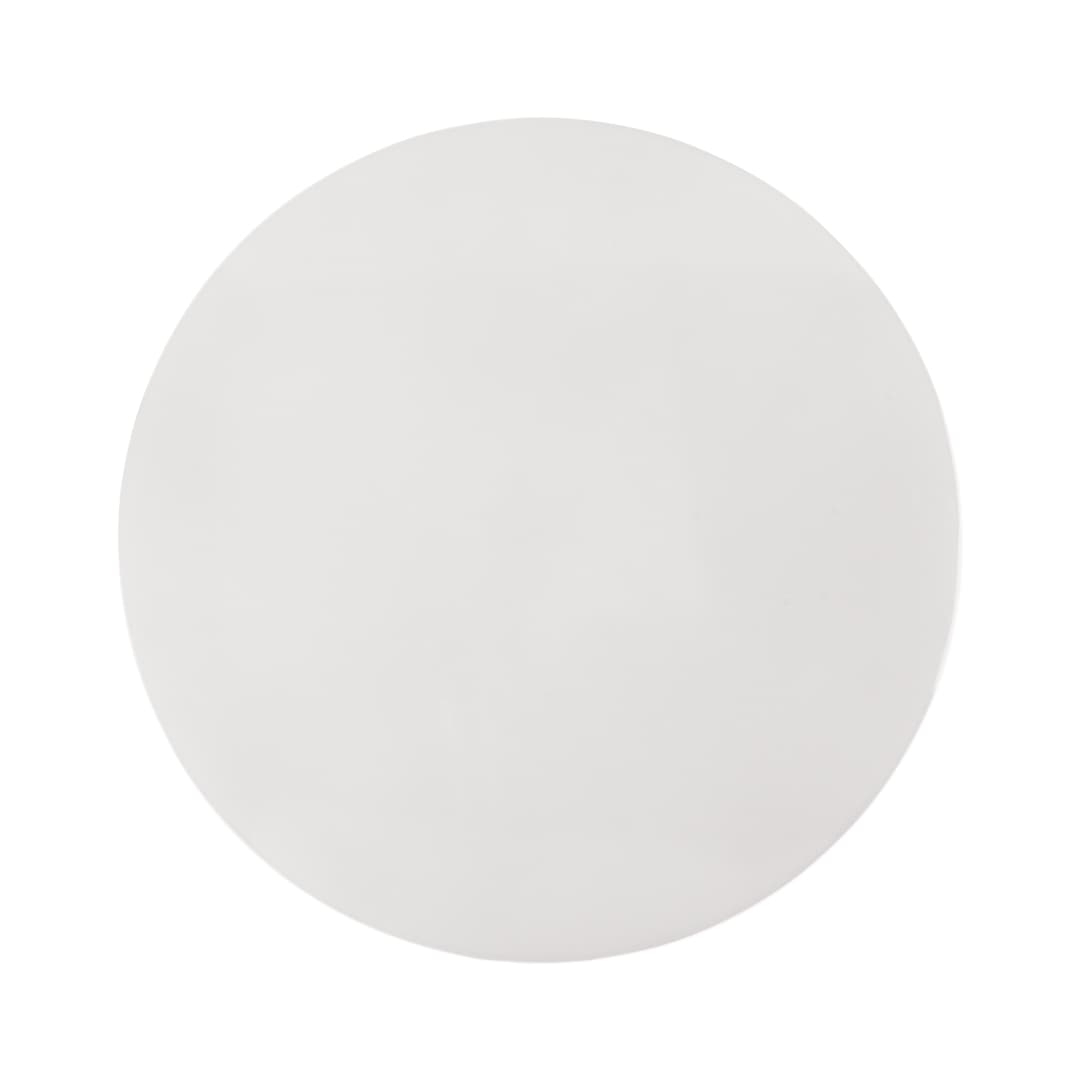

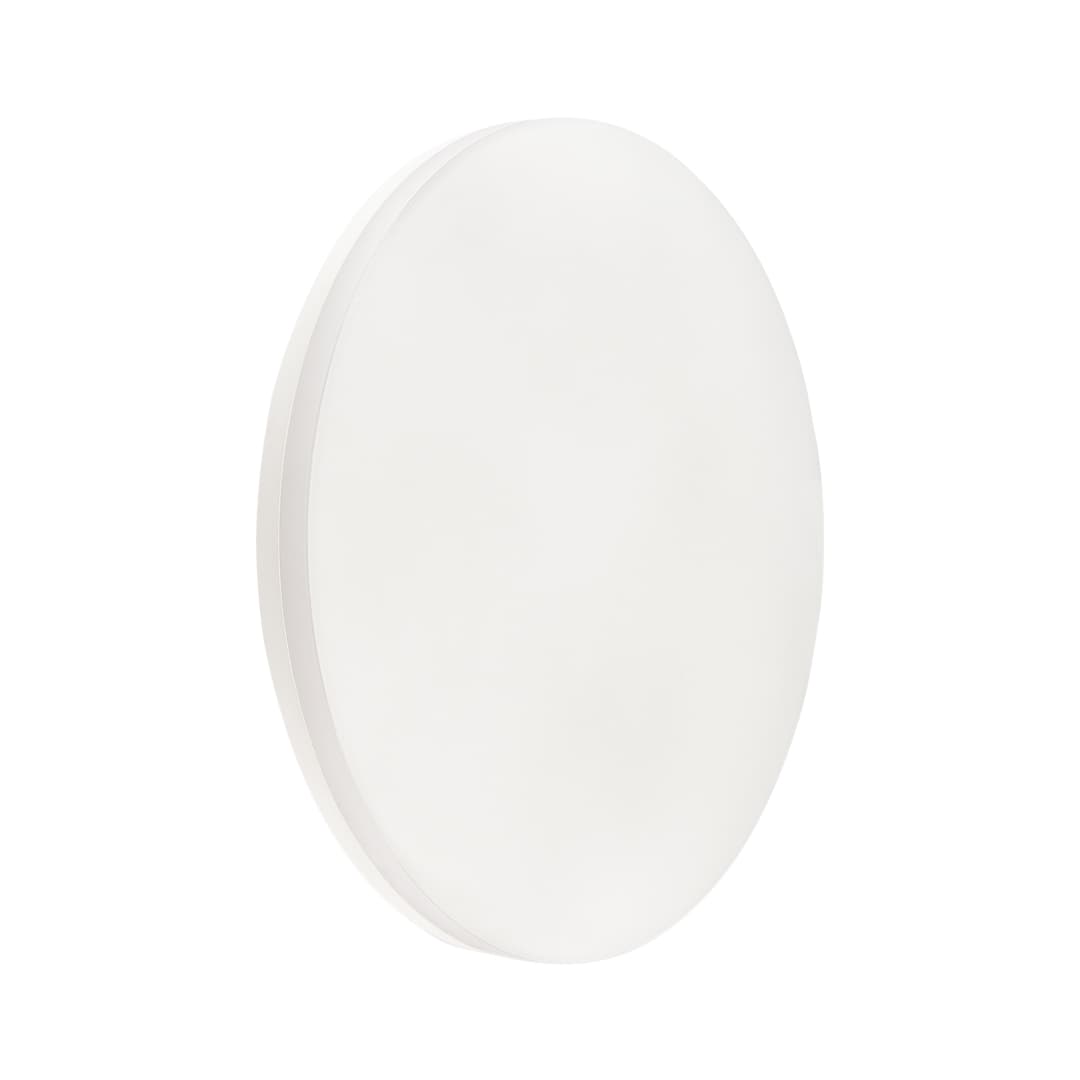

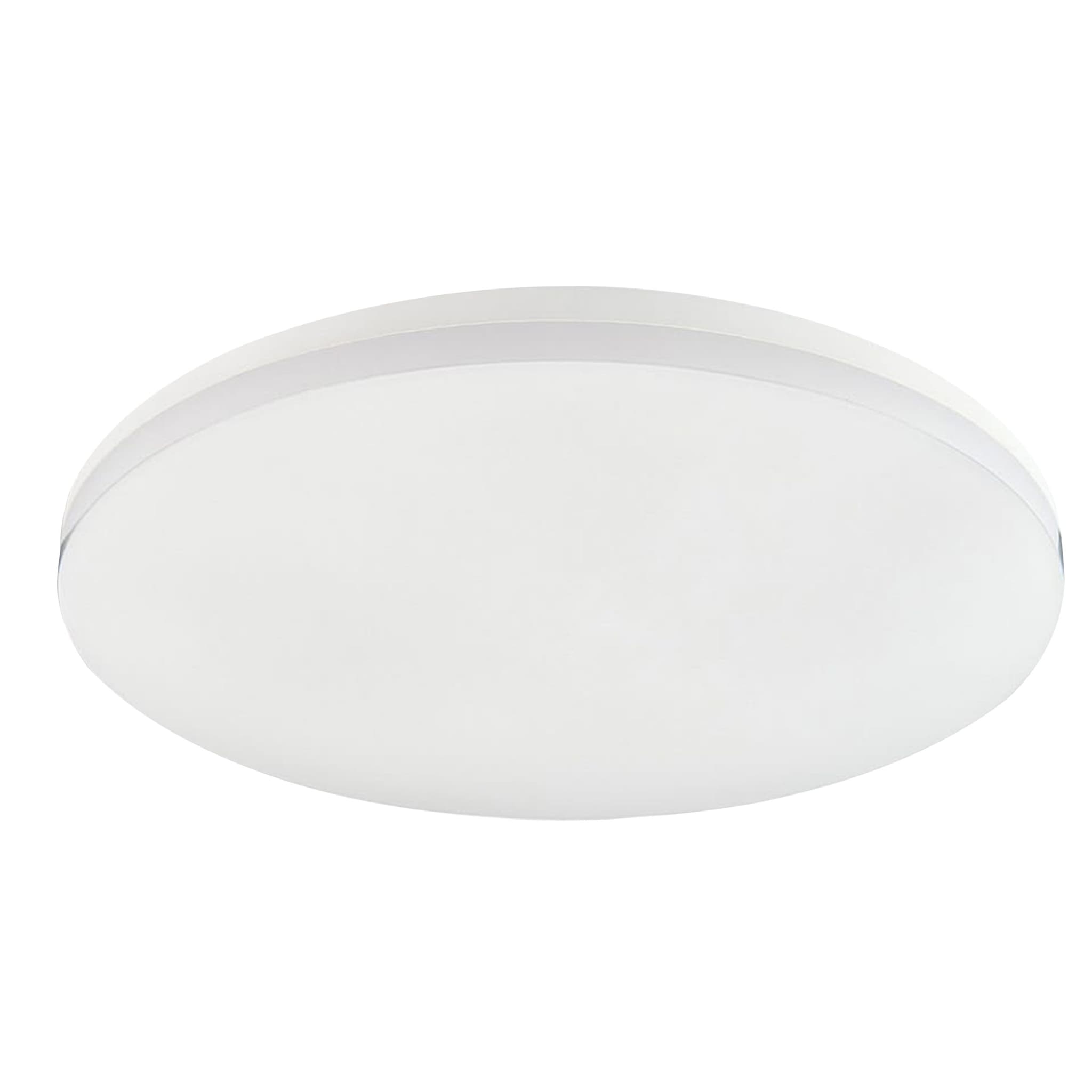

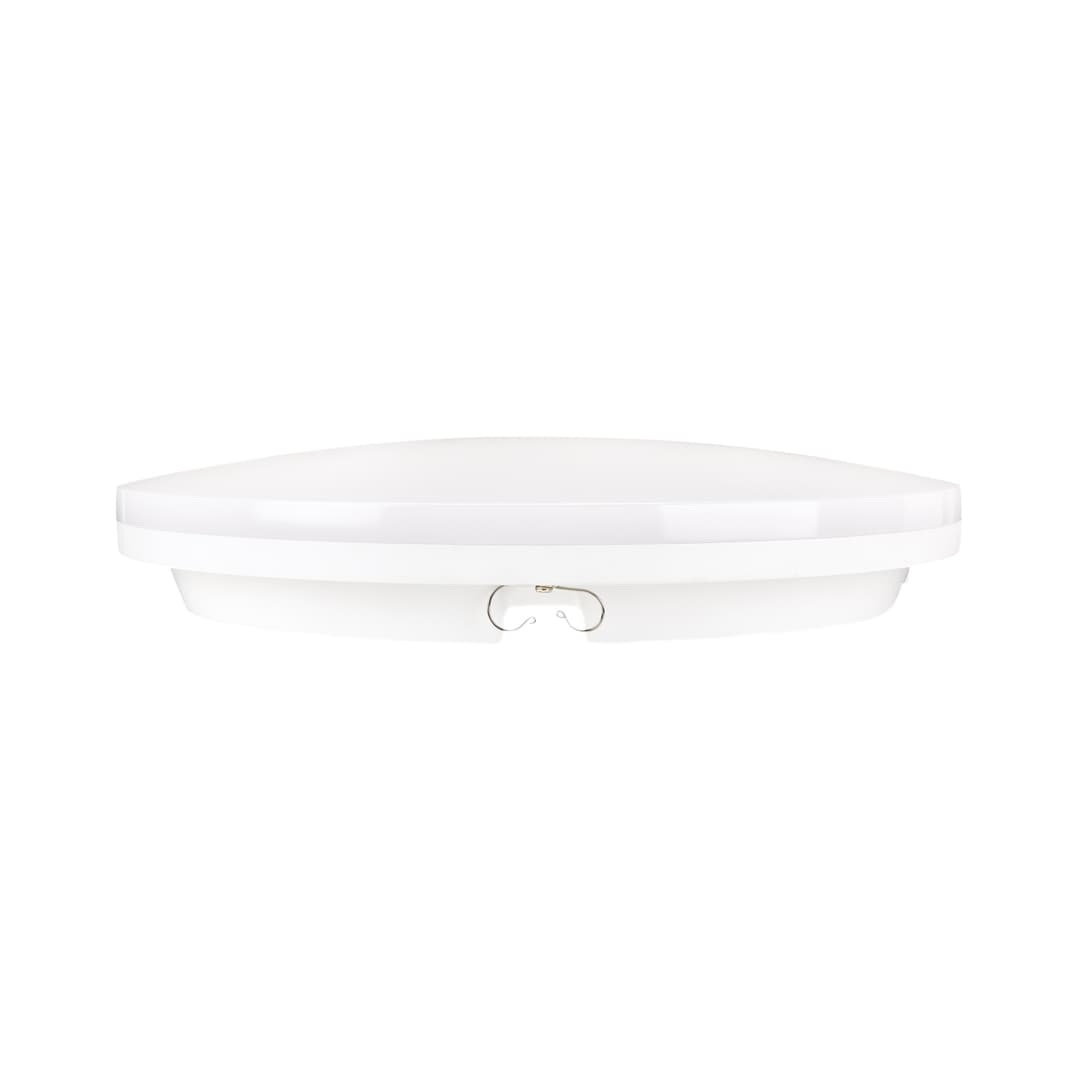

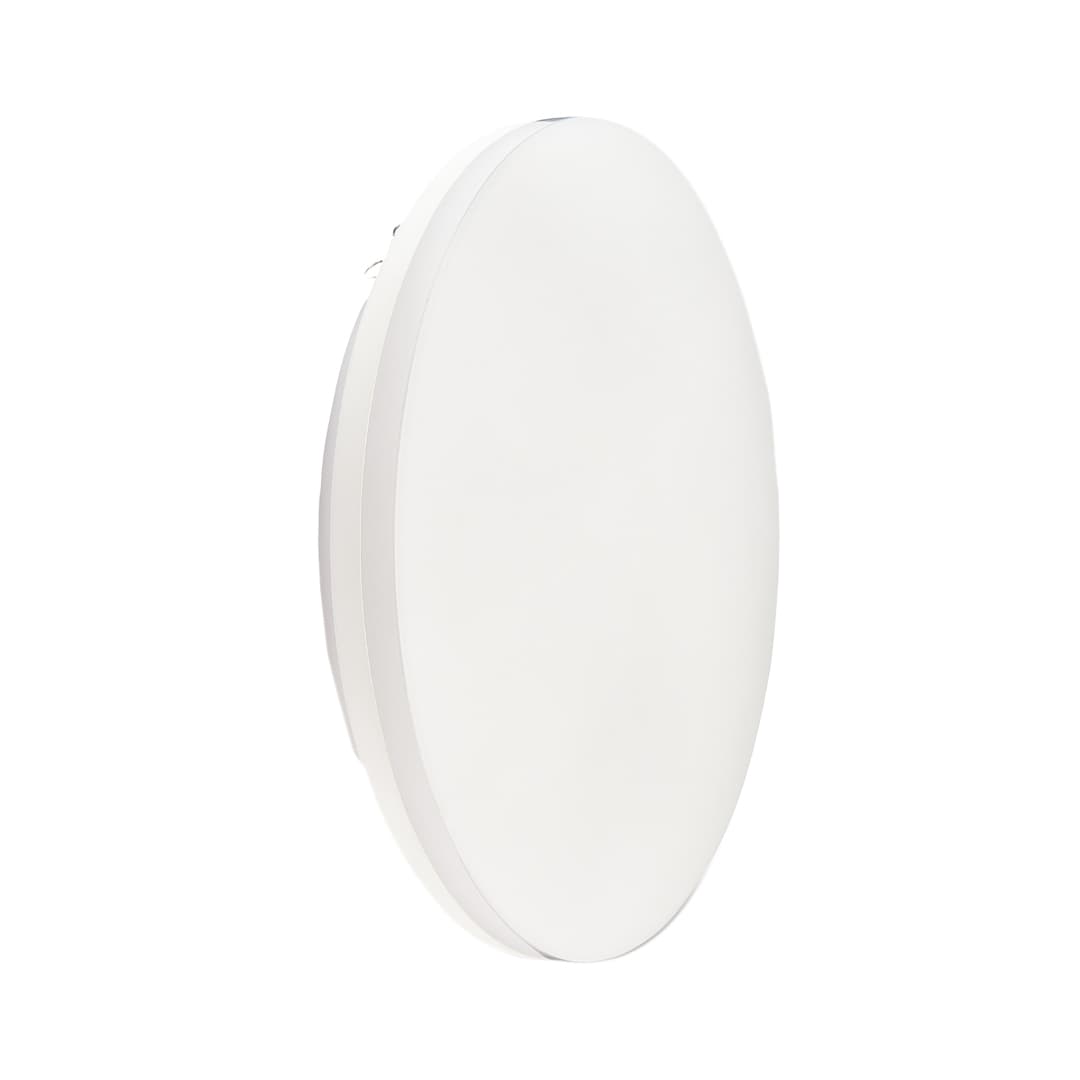

The IP44 bulkhead range is designed and developed for use as a general purpose fitting and commonly used in kitchens, bathrooms, corridors and stairwells. The product is colour switchable via a switch under the back cover, with 3000K, 4000K and 6500K options. Microwave sensor and emergency pack options are also available, further extending the scope of suitable installation environments.
| Code | Adjustability | Base Shape | Beam Angle | Body Material | CCT Range | Colour / Finish | CRI | Dimmable Option | Emergency Option | IP Rating | Length | Lumens Range | Mounting Type | Sensor Option | Wattage Range | Width | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

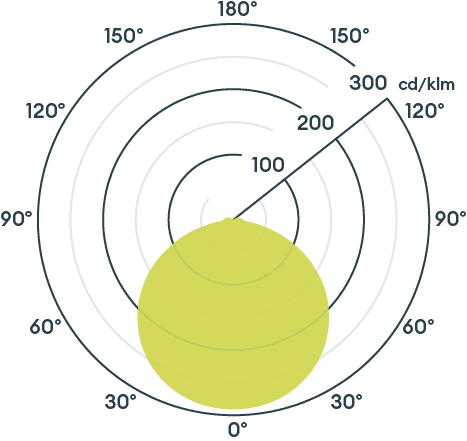

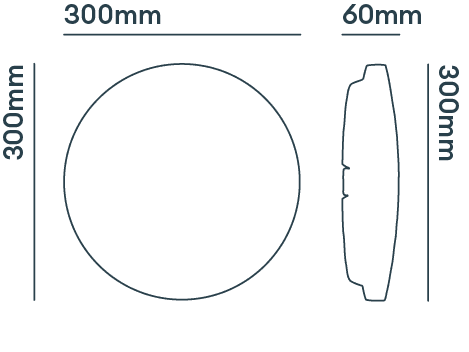

| WL9410CCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | 80 | None | Manual-Test | IP44 | 300 mm | 1000 - 1100 | Ceiling,Wall | On-Off | 10W | 300 mm | |
| WL9410SCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Optional | IP44 | 300 mm | 1000 - 1100 | Ceiling,Wall | Optional | 10W | 300 mm | |
| WL9418SCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Optional | IP44 | 300 mm | 1800 - 2000 | Ceiling,Wall | Optional | 18W | 300 mm | |
| WL9418ECS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Manual-Test | IP44 | 300 mm | 1800 - 2000 | Ceiling,Wall | Optional | 18W | 300 mm | |
| WL9418CCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | 80 | None | Manual-Test | IP44 | 300 mm | 1800 - 2000 | Ceiling,Wall | On-Off | 18W | 300 mm | |
| WL9410ECS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Manual-Test | IP44 | 300 mm | 1000 - 1100 | Ceiling,Wall | Optional | 10W | 300 mm | |
| WL9418MCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Optional | IP44 | 300 mm | 1800 - 2000 | Ceiling,Wall | On-Off | 18W | 300 mm | |
| WL9410MCS | Not adjustable | Round | 120 | Galvanised Steel | 3000K / 4000K / 6500K | White | - | None | Optional | IP44 | 300 mm | 1000 - 1100 | Ceiling,Wall | On-Off | 10W | 300 mm |
