WL342

With its 5mm toughened glass, the WL342 is extremely robust and will resist rusting even in coastal areas. Using an asymmetric lens, light is directed both at the floor to a beam angle of 50 degrees and horizontally, which makes the WL342 a perfect choice for illuminating steps or walkways. It also works in the ground, directing light towards and up a wall - ideal for walkways or to cast an ambient yet dramatic glow at the front of any building that needs to be lit at low level. The WL342 is available in a choice of  two LED colours and finishes, and is IP rated for permanent outdoor use. The WL342 also comes complete with an easy-to-use installation tube for fitting in loose soil or finishing the edge when cut in to stone. WL342 is straight to mains for easy installation and supplied with one metre of rubberised cable for permanent outdoor use.

  • 2.6W
  • Coastal Protected
  • Main voltage step light
  • Can be used as a wall light or ground light
  • Installation tube included
  • 1m H05RN-F rubber cable attached for permanent use outdoors
CEGuarantee 7yrIndoor and OutdoorMMB Wall mounting onlyCRI 80Beam Angle 50 DownCut Out ø80IP65Class INon Replaceable DriverNon Replaceable Light Source

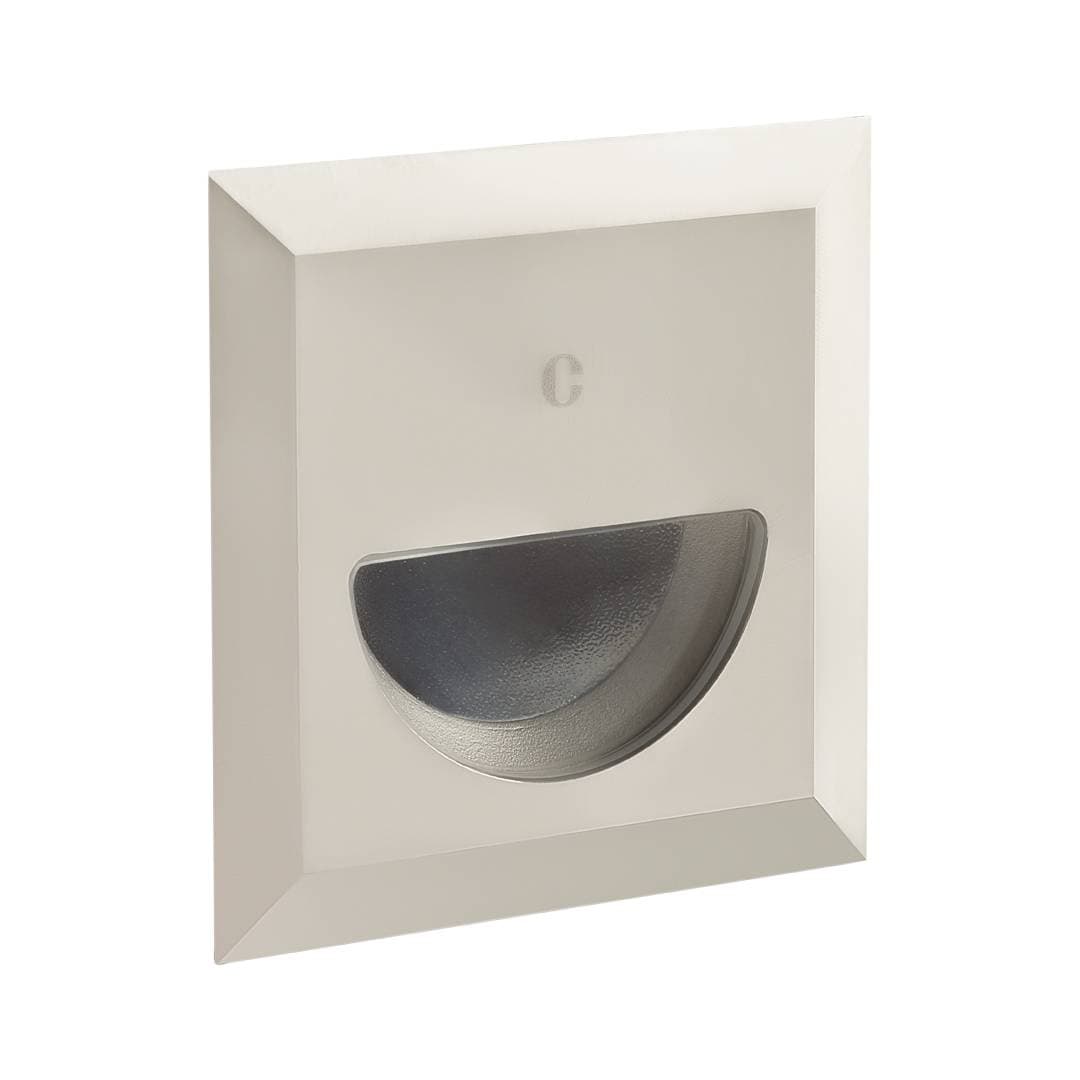

WL342
WL342 image 1

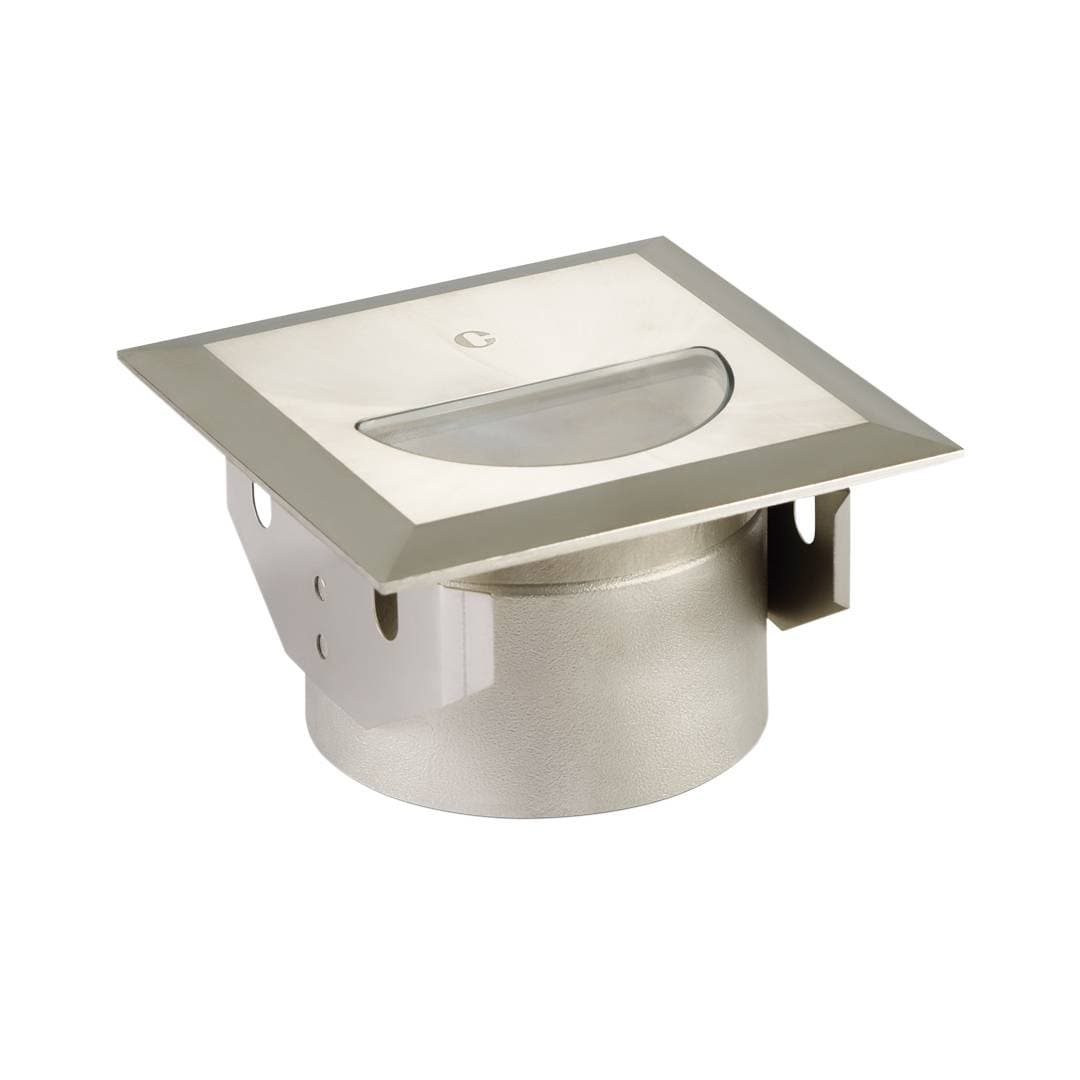

WL342 image 2

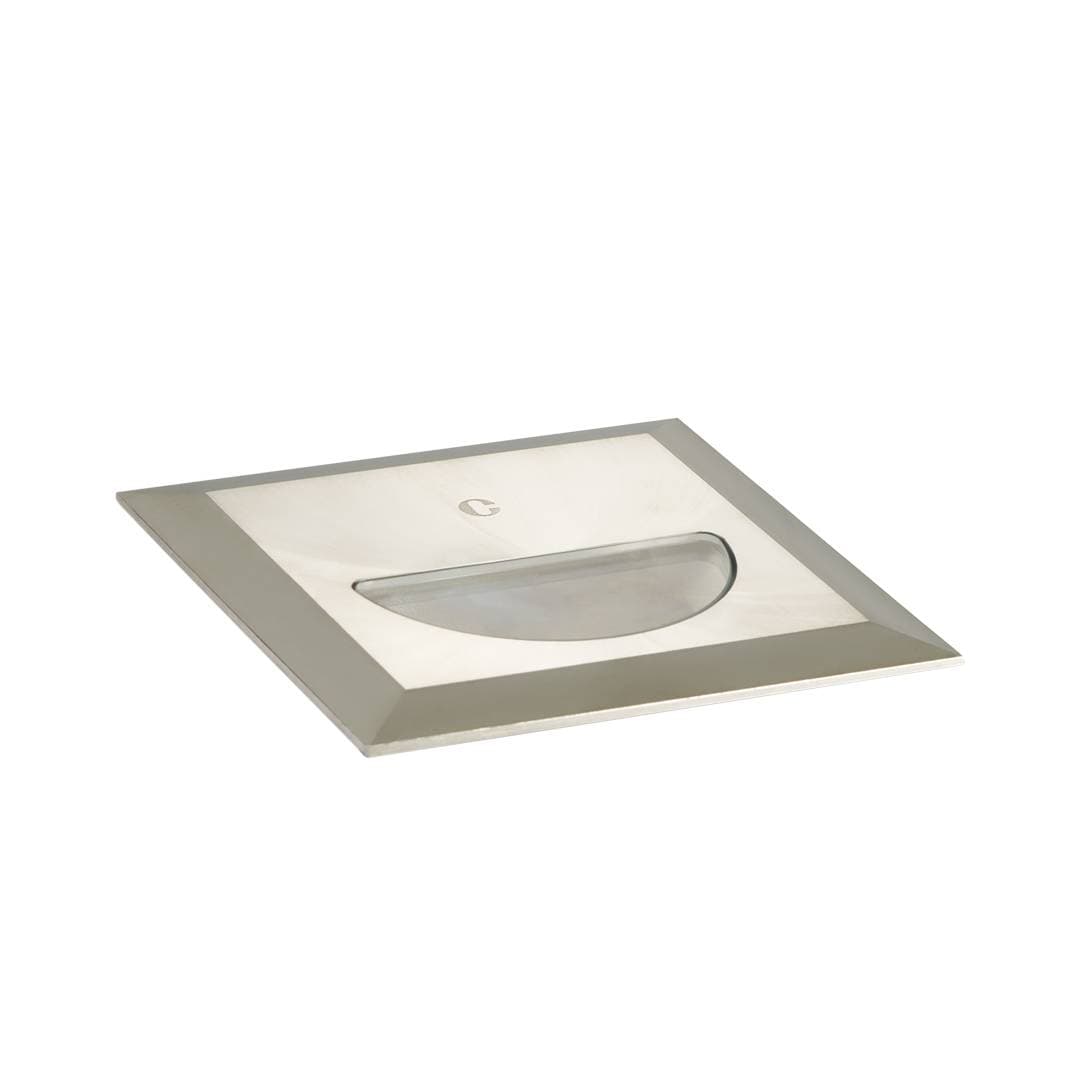

WL342 image 3

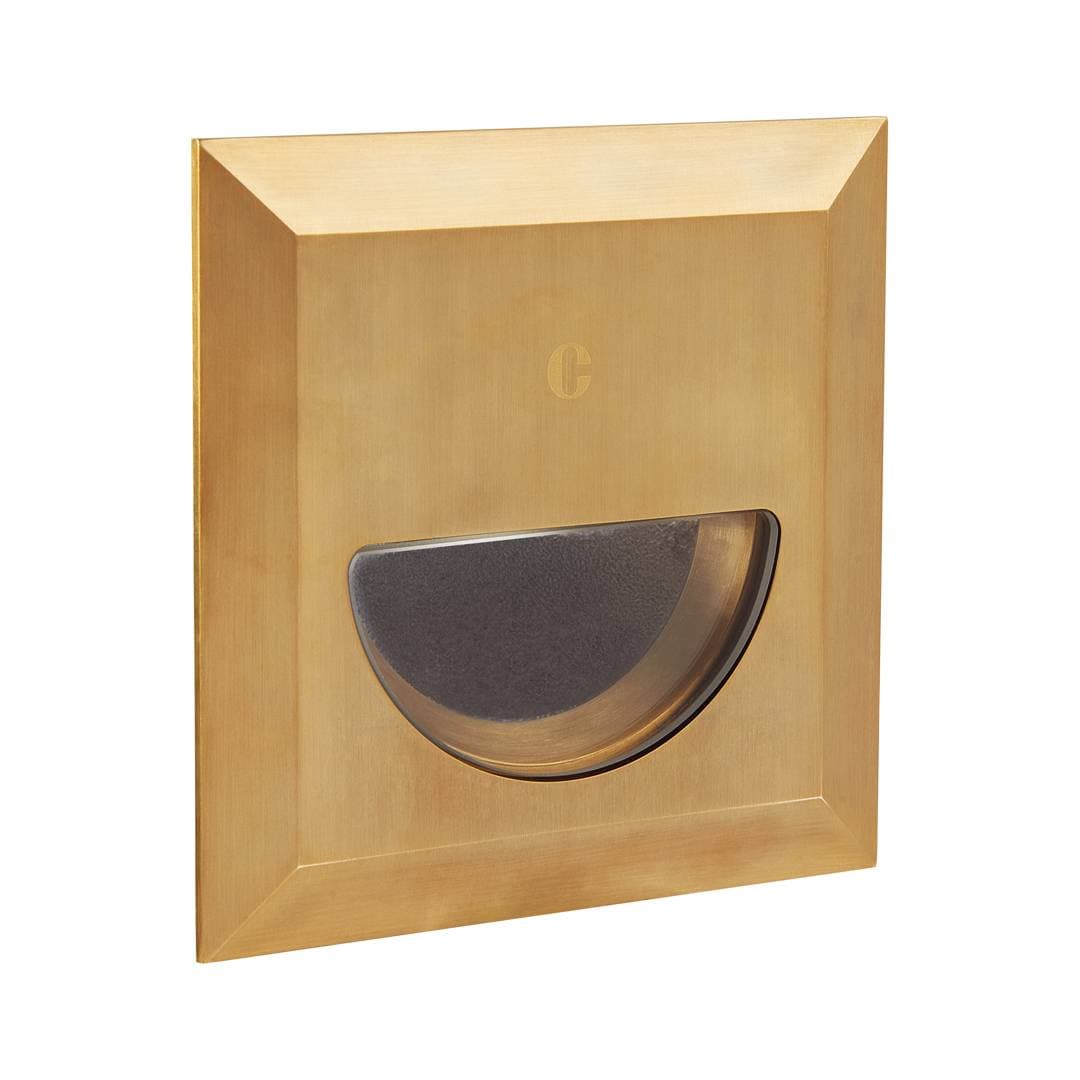

WL342 image 4

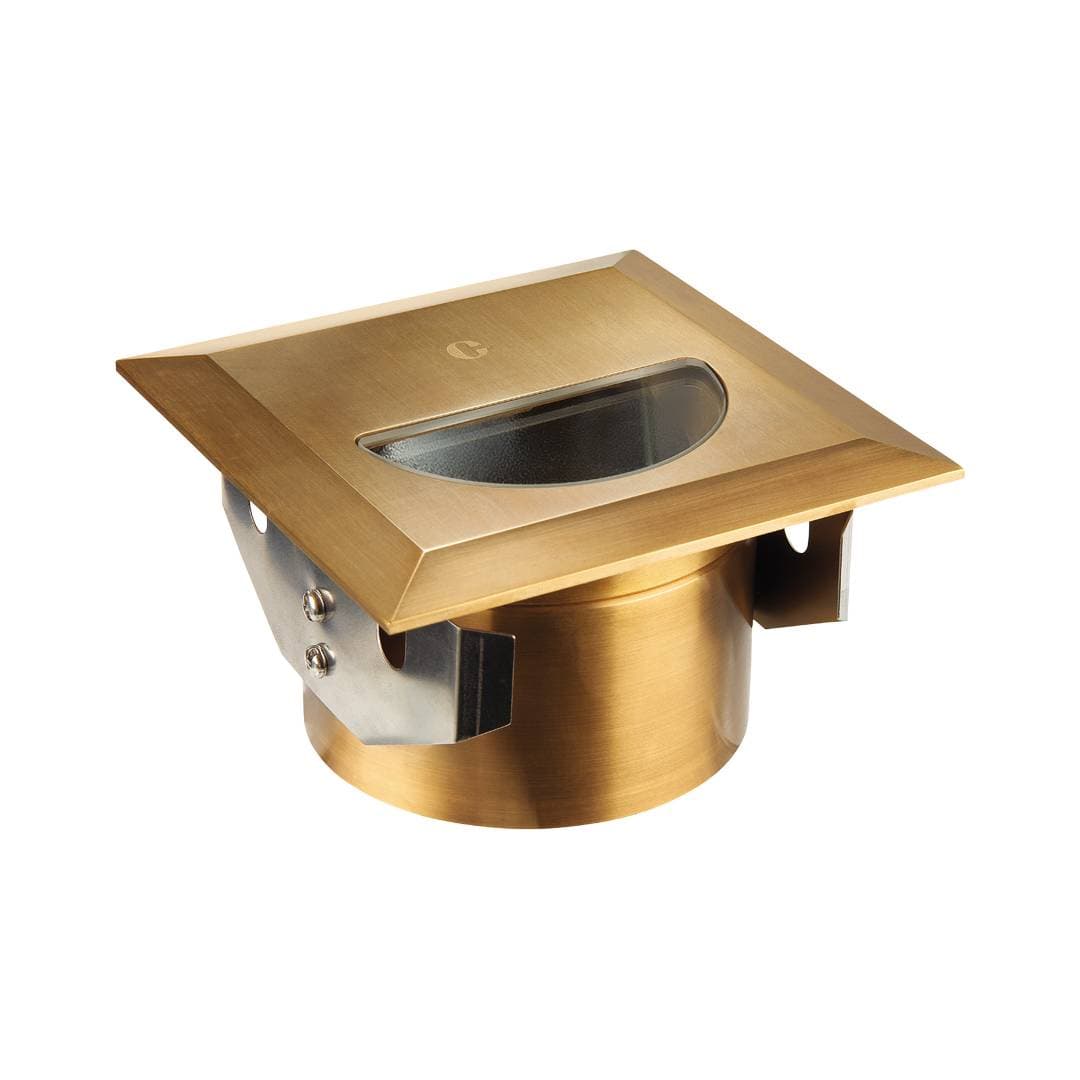

WL342 image 5

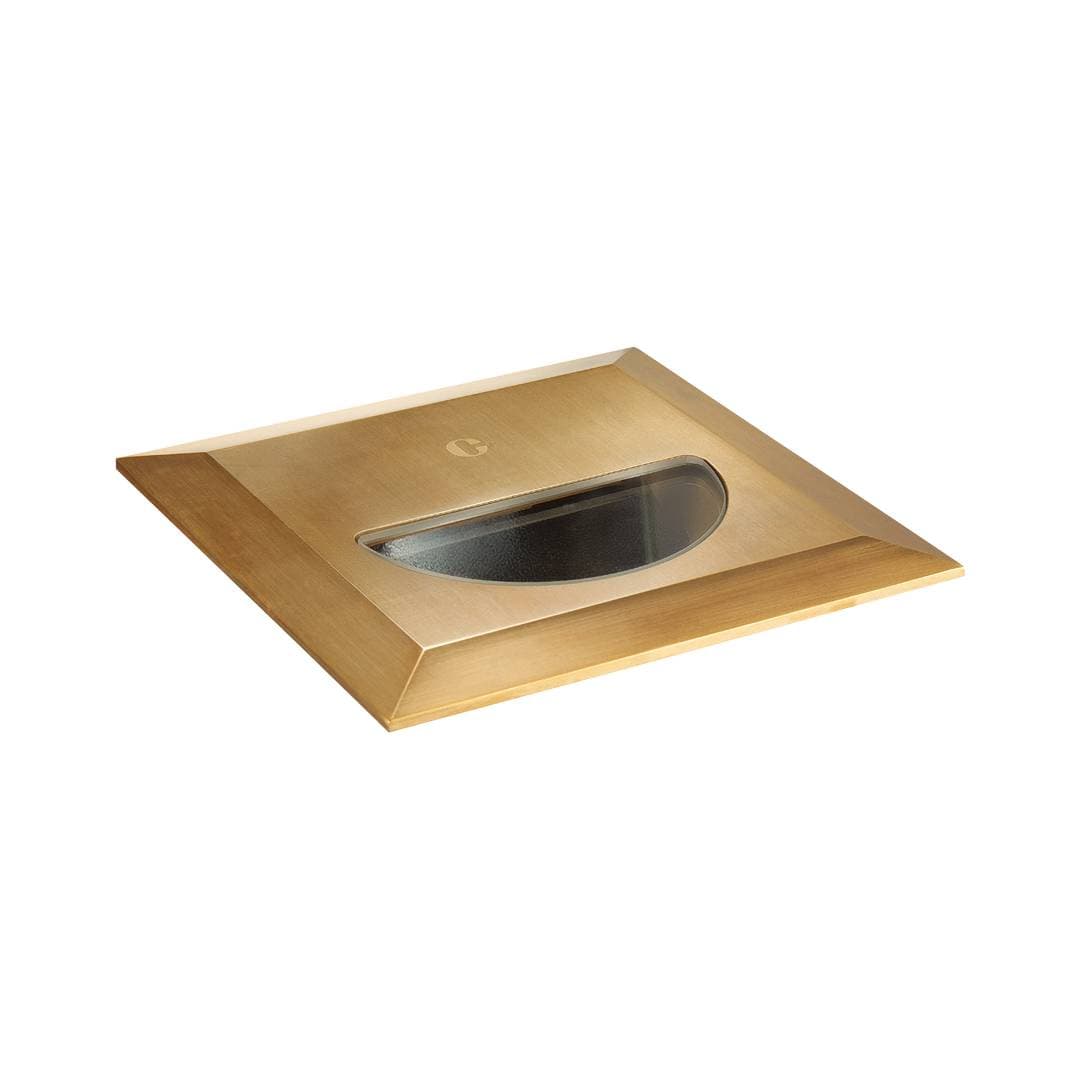

WL342 image 6
WL342 image 7
WL342 image 8
WL342 image 9
WL342 image 10
WL342 - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCut OutDimmable OptionIP RatingLengthLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads
WL342WWNot adjustableRound50Stainless Steel 3163000KStainless Steel80 mmNoneIP65100 mm50WallNone2.6W100 mm
WL342AB27Not adjustableRound50Brass2700KAntique Brass80 mmNoneIP65100 mm49WallNone2.6W100 mm
WL342NWNot adjustableRound50Stainless Steel 3164000KStainless Steel80 mmNoneIP65100 mm59WallNone2.6W100 mm
WL342AB30Not adjustableRound50Brass3000KAntique Brass80 mmNoneIP65100 mm50WallNone2.6W100 mm
WL34227Not adjustableRound50Stainless Steel 3162700KStainless Steel80 mmNoneIP65100 mm49WallNone2.6W100 mm
