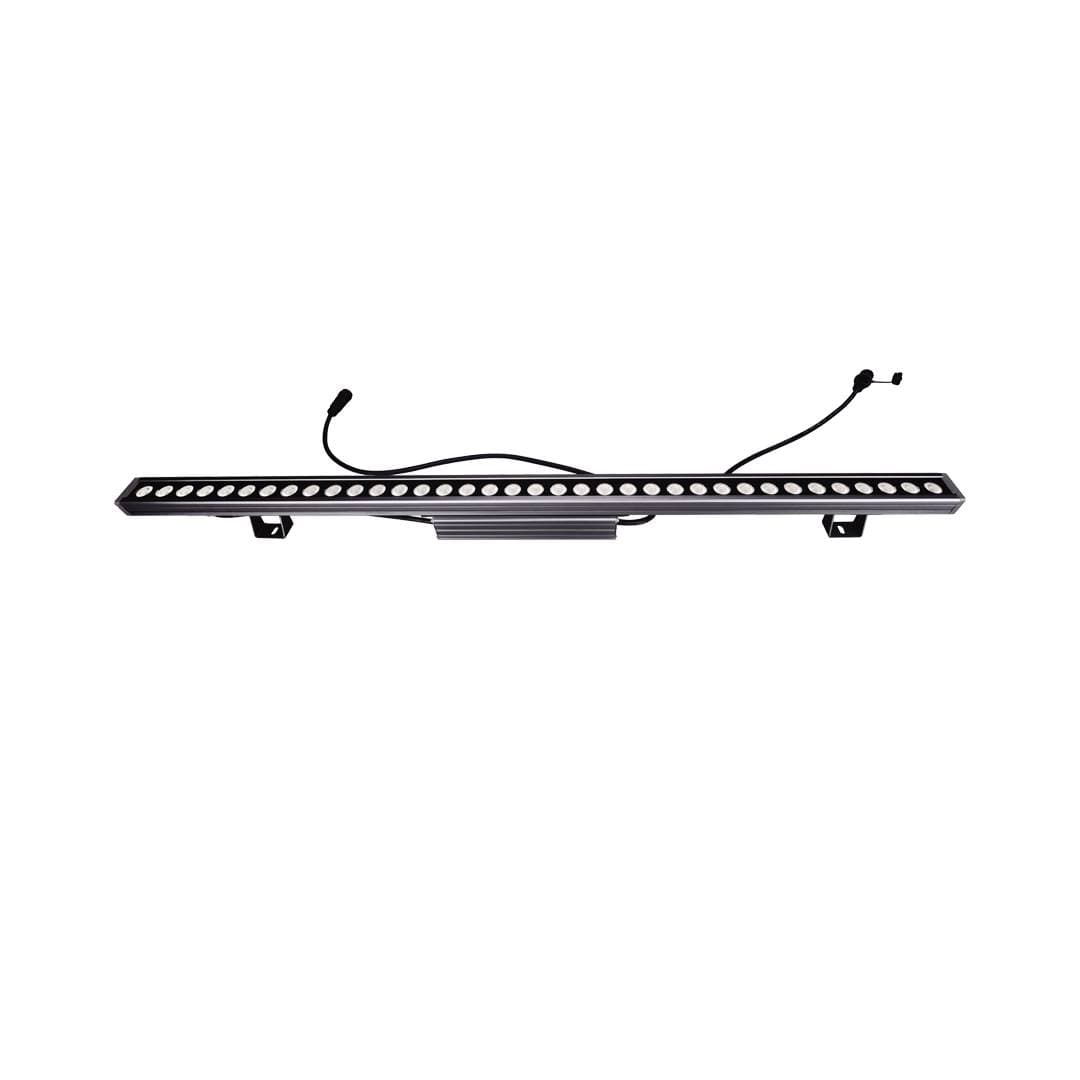

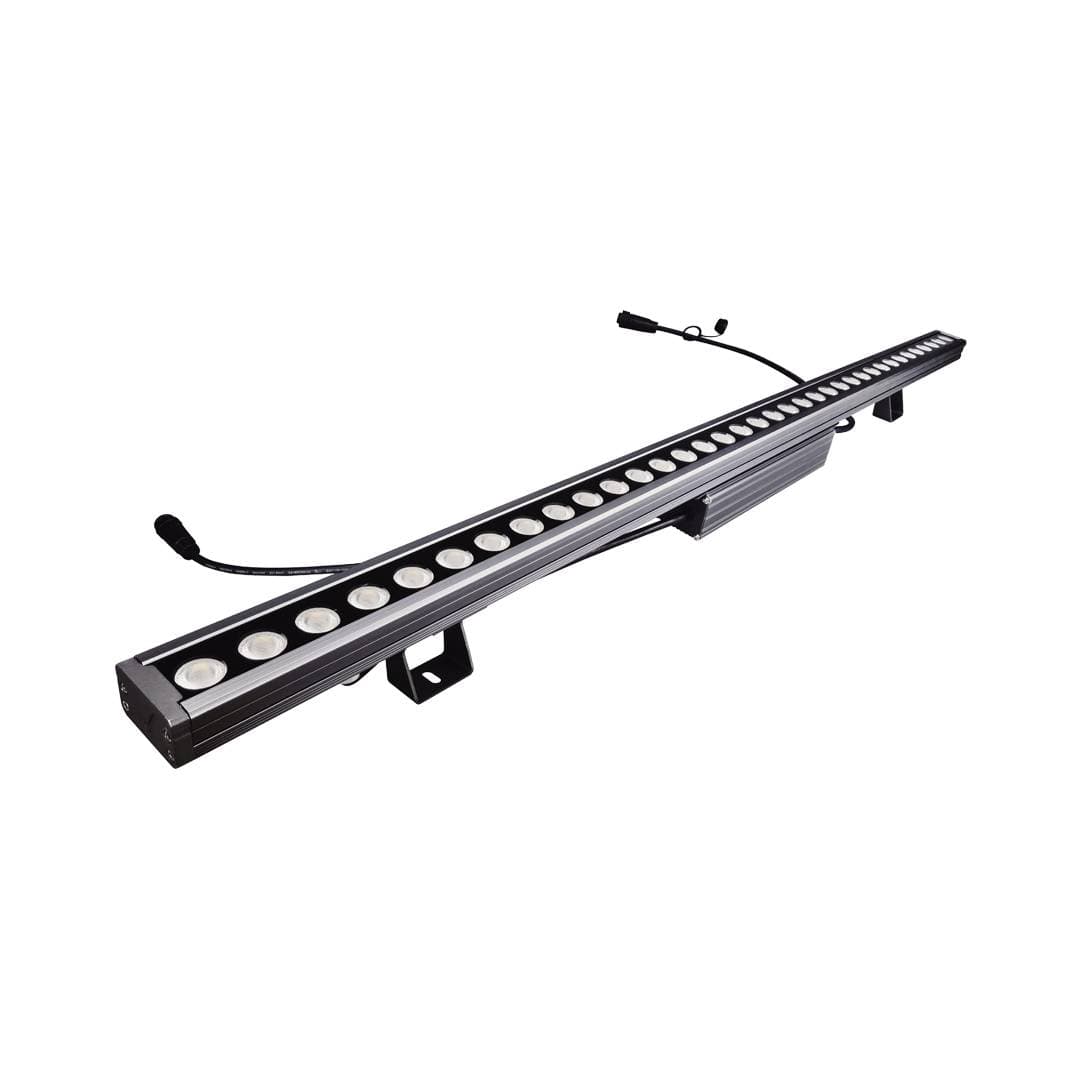

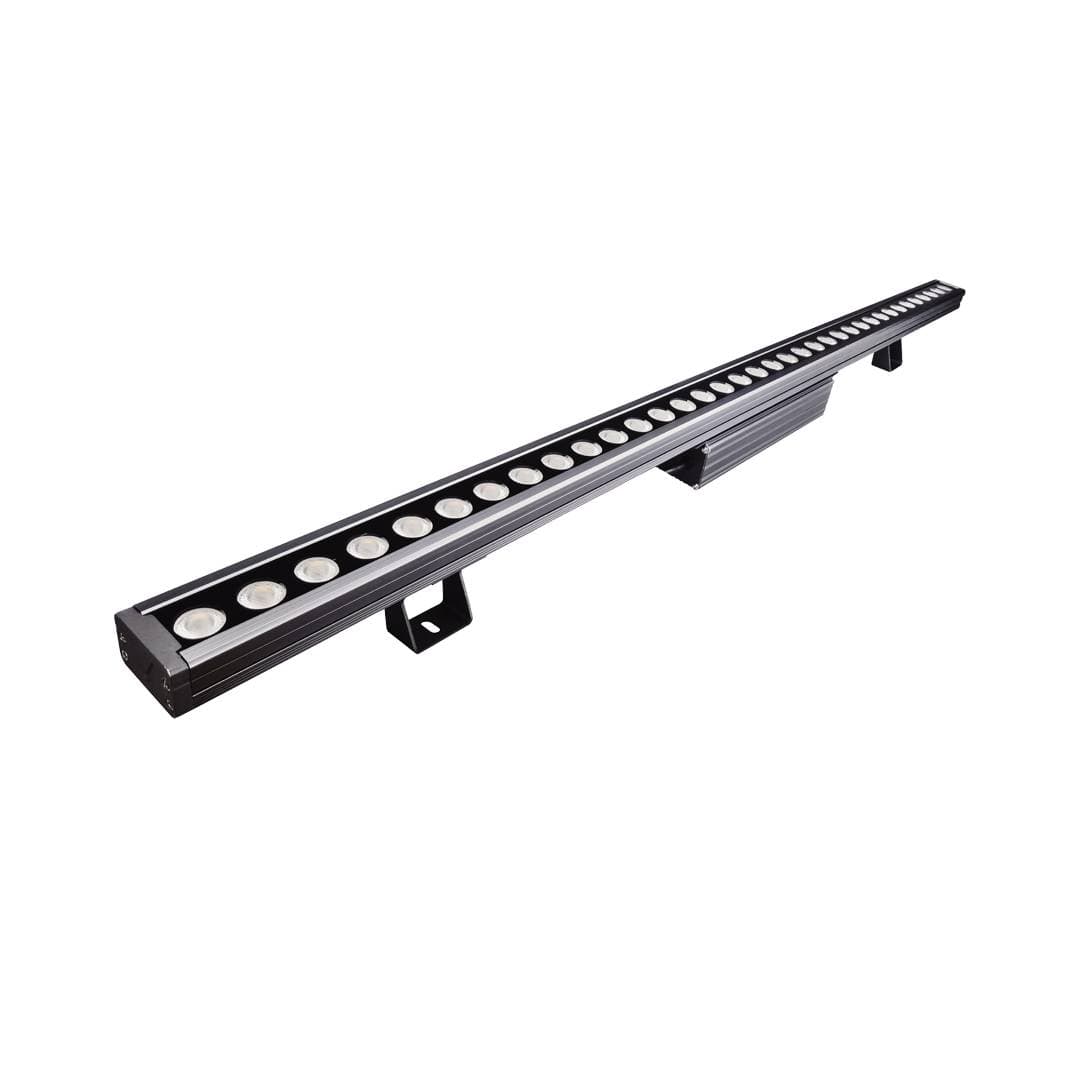

Volta 1000mm

Volta Uplights create an array of unique lighting effects, whether you’re adding grandeur to buildings, highlighting intricate architectural features, or drawing guests to an entrance. Providing more flexibility, they are available in two sizes: 500mm and 1000mm, plus, with coastal protection, they can be installed in a range of installations. By using existing mains cables, the built-in mains driver ensures that installation is quicker and easier than ever. With an IP65 rating, robust cable, and a 7-year extended guarantee, you can be confident that the Volta series will last.

40W
IP65 ideal for outdoor environments
Suitable for use in coastal applications
Plug and play through-wire install method
Supplied with waterproof connectors for fast install
3000K and 2700K range with choice of 2000 or 4200 lumen output
Narrow beam 30°, Wide beam 60° or Asymmetrical 20x35°
Also available in 500mm

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
LL1000AT27	Swivelling	Linear	20	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000MT30	Swivelling	Linear	30	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000AT30	Swivelling	Linear	20	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000WT27	Swivelling	Linear	60	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000WT30	Swivelling	Linear	60	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000MT27	Swivelling	Linear	30	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	Wattage Range	Width
LL1000AT27	Swivelling	Linear	20	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000MT30	Swivelling	Linear	30	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000AT30	Swivelling	Linear	20	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000WT27	Swivelling	Linear	60	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000WT30	Swivelling	Linear	60	Anodised Aluminium	3000K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
LL1000MT27	Swivelling	Linear	30	Anodised Aluminium	2700K	Silver	80	Mains (Leading Edge/Trailing Edge)	None	IP65	1,000 mm	4200	Ceiling,Wall	None	40W	45 mm
