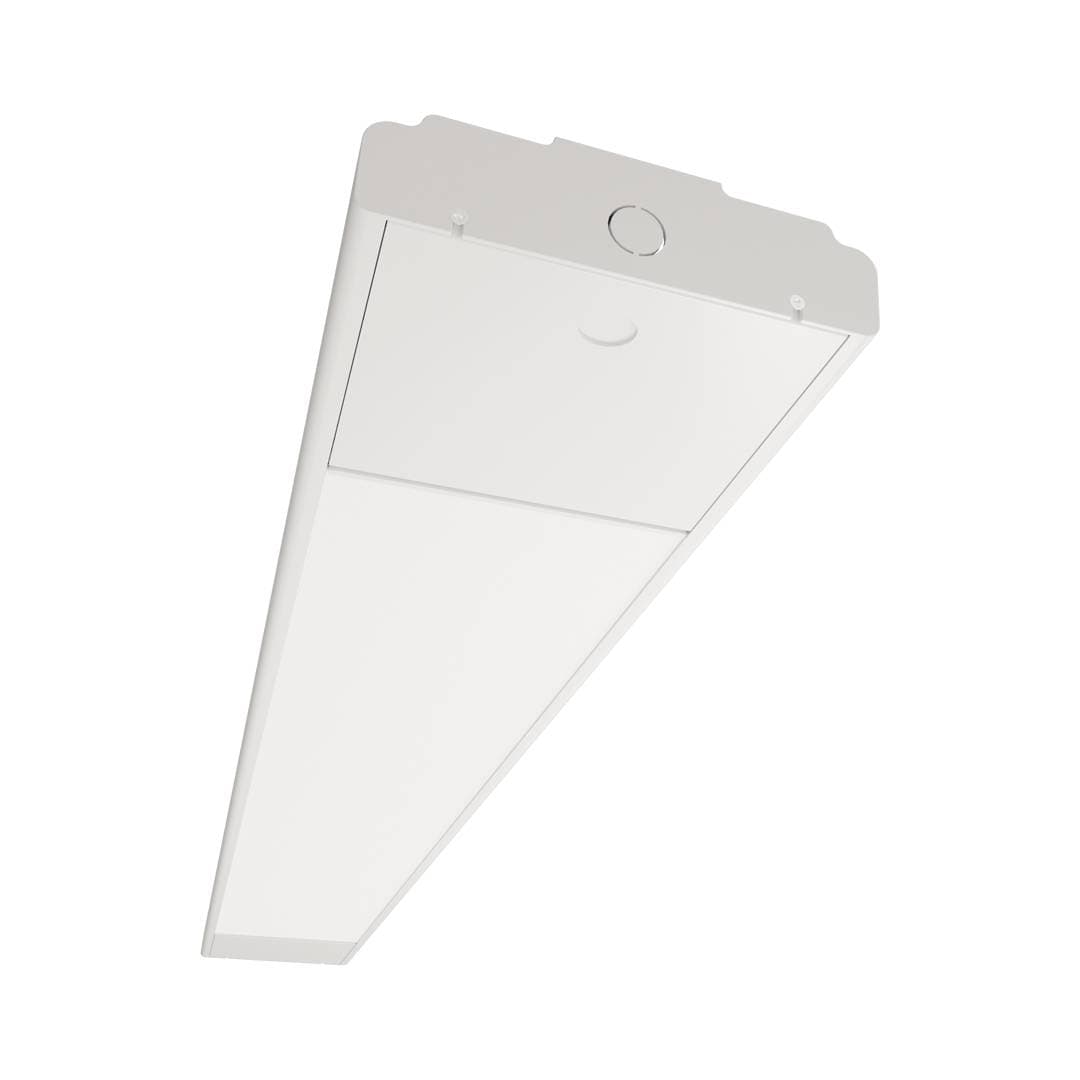

Versa Tile White 1500mm

Versa Tile Linear packs a powerful punch in a slim design (38mm). This LED solution provides excellent light control, with minimal glare and efficient distribution (75% down and 25% up). It offers energy savings of up to 100 lumens per watt and is available in classic white, black, or silver. Mount it alone or connect them for continuous operation (customer required). Our VERSABox system allows you to further customise the lumen output, drivers, and sensors. Perfect for modern offices, retail spaces, hallways, and even homes.

  • Slim depth of just 38mm
  • UGR19 for low glare
  • 75% down / 25% up ratio uses light efficiently
  • Energy efficiant up to 120lm/W
  • Choice of White (RAL9003), Black (RAL9005) or Silver (RAL9006)
  • Suspend as an individual luminaire or (by custom request) connect together to make a continuous run
  • >10% uplight when surface mounted
  • Configurable using our unique VERSABox design to realise a range of lumen output, driver and sensor options
  • DALI-2 driver is switchable to enable lower lumen outputs
  • Supplied with suspension kit
  • DALI Dimmable Fitting with on-off PIR Sense
CEGuarantee 7yrIndoorMP Ceiling mounting onlyMPS Suspended mounting onlyCRI 80Beam Angle 80 DownIP20IK02Class I
Versa Tile White 1500mm
Versa Tile White 1500mm image 1
Versa Tile White 1500mm image 2

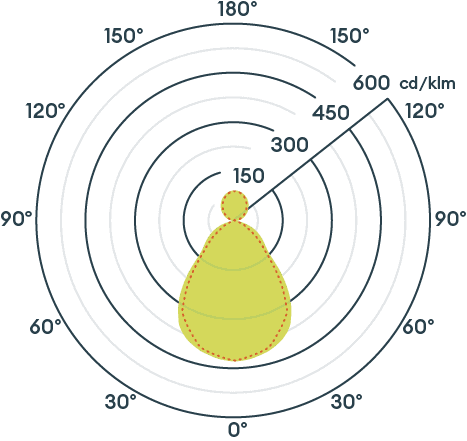

Versa Tile White 1500mm image 3
Versa Tile White 1500mm image 4

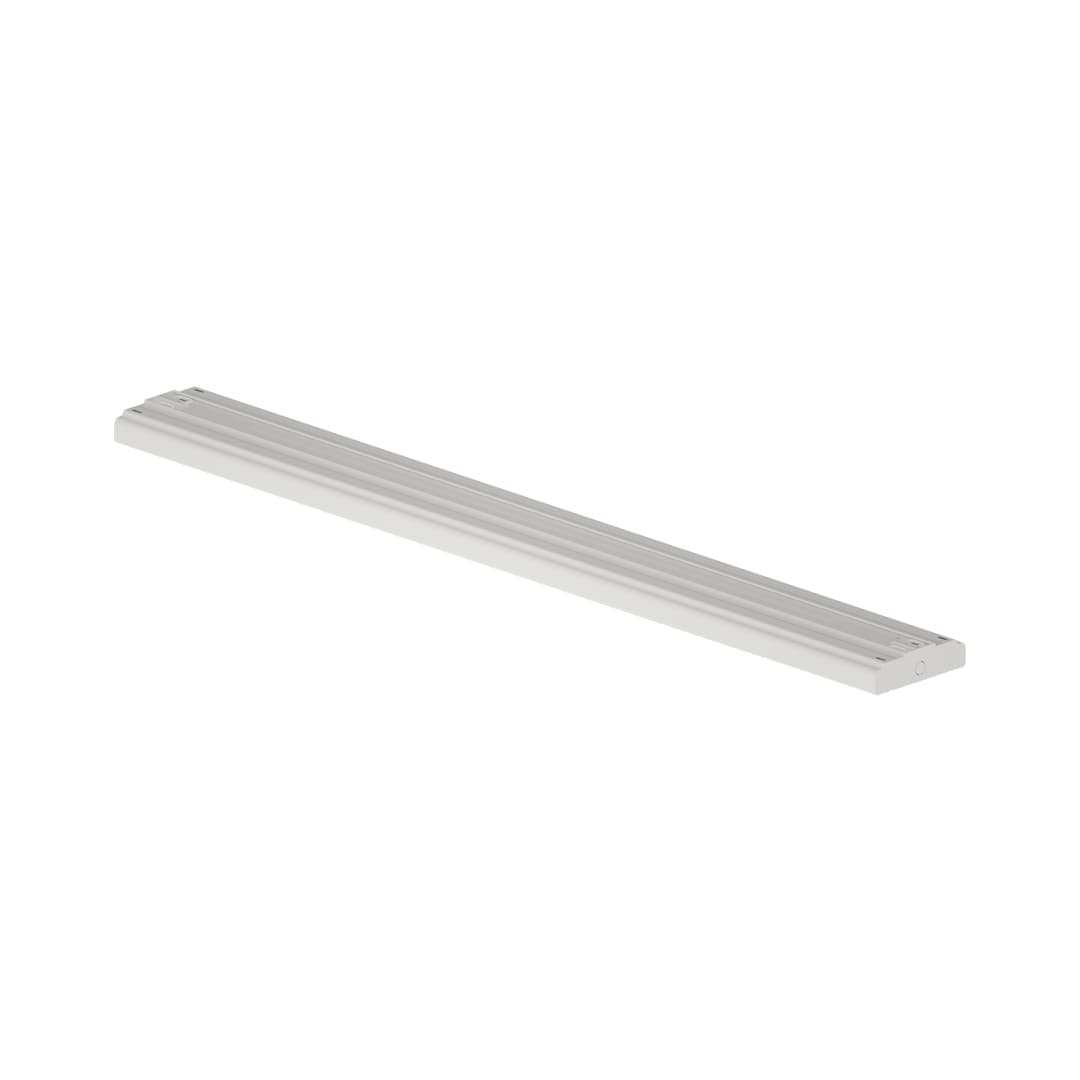

Versa Tile White 1500mm image 5

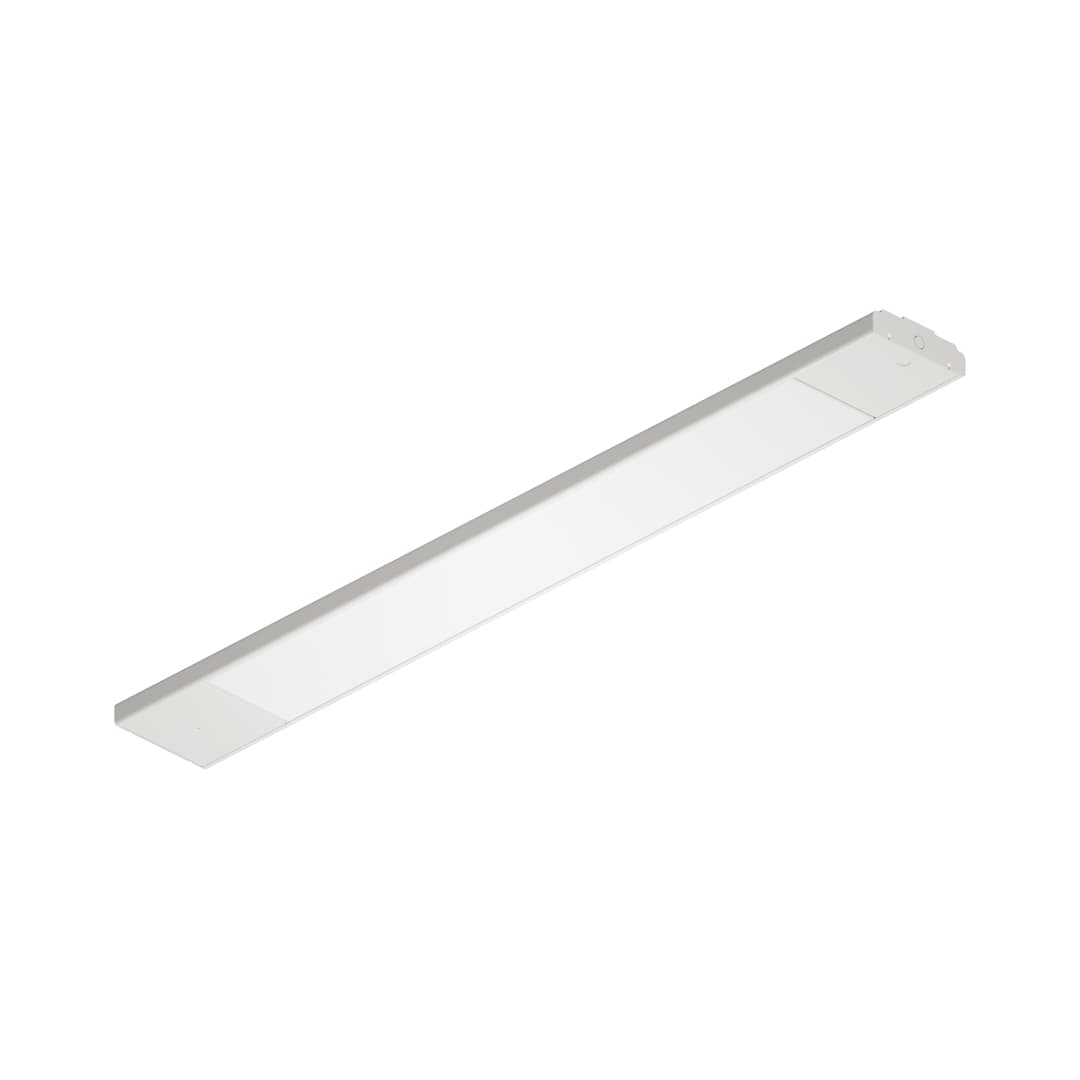

Versa Tile White 1500mm image 6
Versa Tile White 1500mm - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRIDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
VTW1NPNot adjustableLinear80Aluminium4000KWhite80On-OffOptionalIP201,560 mm5500SuspendedPIR1945W186 mm
VTW1DPEMNot adjustableLinear80Aluminium4000KWhite80DALI-2Self-TestIP201,560 mm5500SuspendedPIR1945W186 mm
VTW1DNot adjustableLinear80Aluminium4000KWhite80DALI-2,PUSH-DIMOptionalIP201,560 mm5500SuspendedOptional1945W186 mm
VTW1NPEMNot adjustableLinear80Aluminium4000KWhite80On-OffSelf-TestIP201,560 mm5500SuspendedPIR1945W186 mm
VTW1NNot adjustableLinear80Aluminium4000KWhite80On-OffOptionalIP201,560 mm5500SuspendedOptional1945W186 mm
VTW1DEMNot adjustableLinear80Aluminium4000KWhite80DALI-2Self-TestIP201,560 mm5500SuspendedOptional1945W186 mm
VTW1NEMNot adjustableLinear80Aluminium4000KWhite80On-OffSelf-TestIP201,560 mm5500SuspendedOptional1945W186 mm
VTW1DPNot adjustableLinear80Aluminium4000KWhite80DALI-2OptionalIP201,560 mm5500SuspendedPIR1945W186 mm

Accessories

Find the perfect product you are looking for.

Versa Tile White Wall Mount Joint

VTWWALL


Wall Mount Kit

Versa Tile White Connect Joint

VTWCON


Connect Joint Kit
