Tilt MGround TRIAC

With IP67 dust and water resistance, IK10 impact protection (IK08 on select models) and coastal suitability, our tilt ground lights provide the full package for outdoor lighting. All of this is wrapped in a design that makes light direction adjustment simple (up to 25 degrees) and installation simple (pre-wired with 1 metre cable). These lights come in a variety of models that can be dimmed using either TRIAC or DALI-2 technology for maximum control. Some models even offer RGBW colour options to add some personality to your outdoor area.

  • IP67 for complete protection
  • IK08 (GLTM_11/14) IK10 (GLTM_16/19/22)
  • Suitable for coastal applications
  • Tilt angle of luminaire is adjustable, just turn knob to tilt the light distribution up to 25 degrees
  • Static loading capacity is 2000kg
  • Pre-wired with 1 meter of cable to aid the installer
  • DALI-2 dimmable and RGBW options also available
  • Supplied with installation tube
CEGuarantee 5yrIndoor and OutdoorMSA Floor surface mounting onlyCRI 80Beam Angle 34 DownBeam Angle 60 DownCut Out ø119Cut Out ø147Cut Out ø165Cut Out ø193Cut Out ø223IP67IK08IK10Class INon Replaceable DriverNon Replaceable Light Source
Tilt MGround TRIAC
Tilt MGround TRIAC image 1

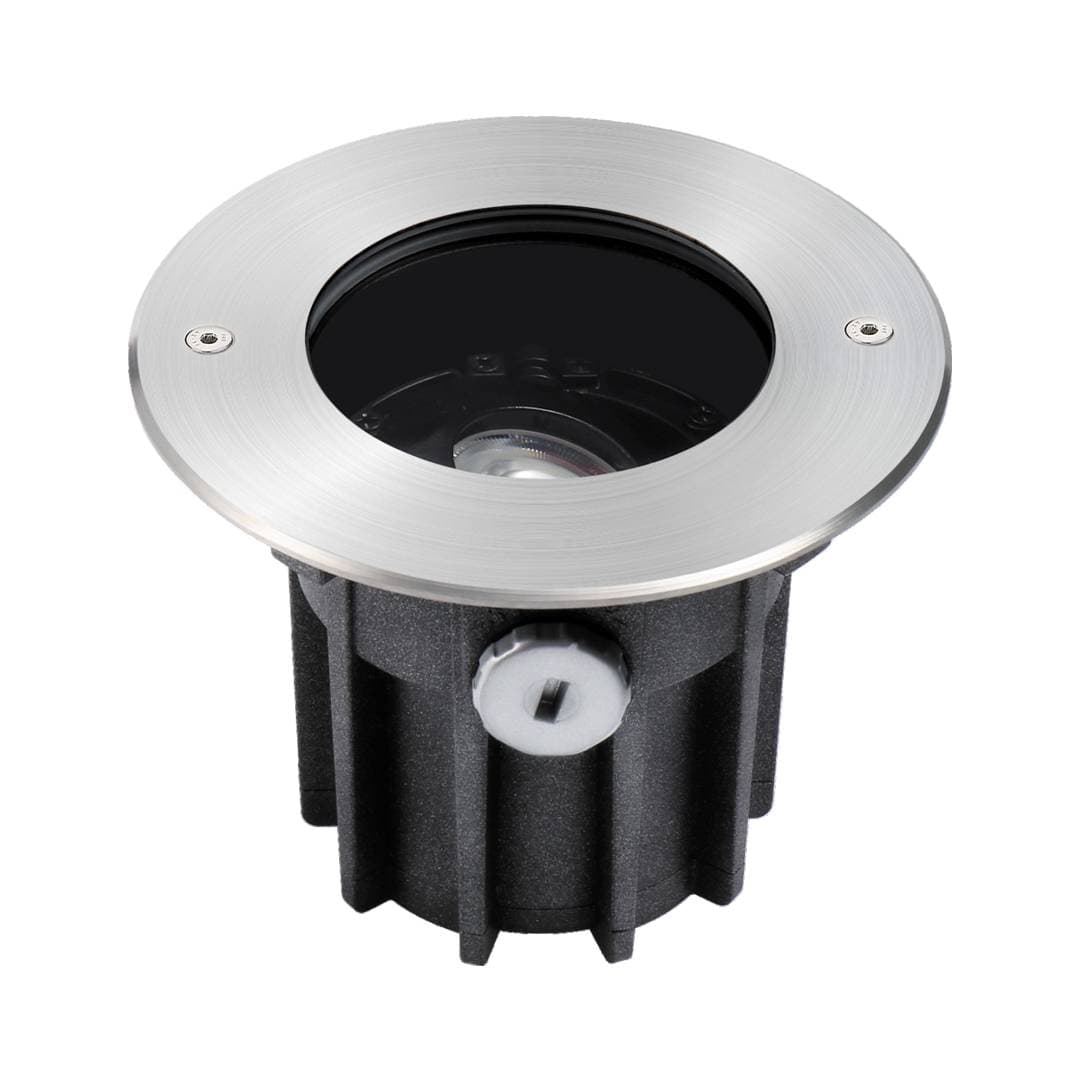

Tilt MGround TRIAC image 2
Tilt MGround TRIAC image 3
Tilt MGround TRIAC image 4
Tilt MGround TRIAC image 5
Tilt MGround TRIAC image 6
Tilt MGround TRIAC image 7
Tilt MGround TRIAC image 8
Tilt MGround TRIAC image 9
Tilt MGround TRIAC - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleCCT RangeColour / FinishCRICut OutDimmable OptionIP RatingLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads

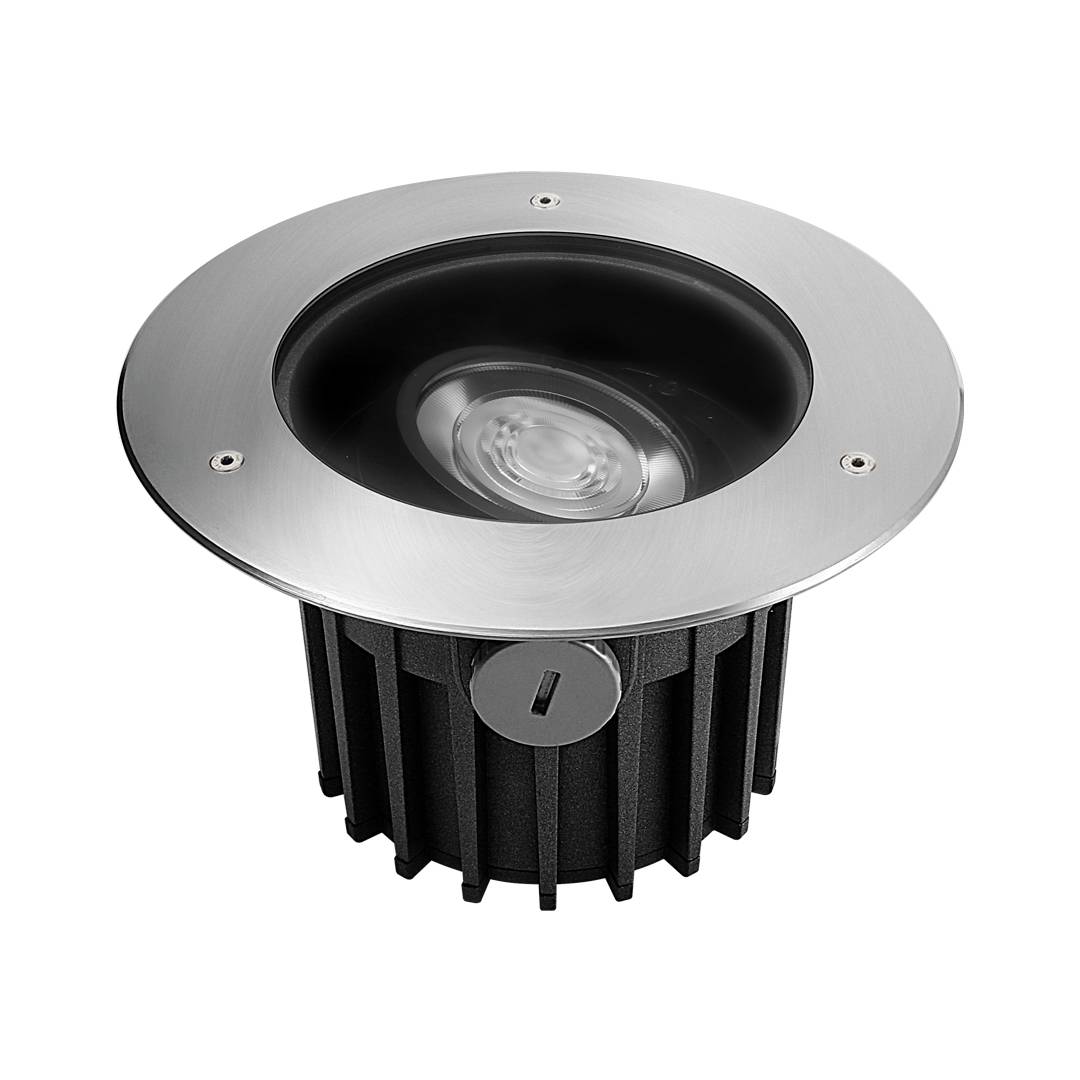

GLTMS223T30SwivellingRound343000KStainless Steel 31680223 mmMains (Leading Edge/Trailing Edge)IP673300FloorNone30W195 mm
GLTMS119T30SwivellingRound343000KStainless Steel 31680119 mmMains (Leading Edge/Trailing Edge)IP67450FloorNone6W156 mm
GLTMS165T30SwivellingRound343000KStainless Steel 31680165 mmMains (Leading Edge/Trailing Edge)IP671600FloorNone18W156 mm

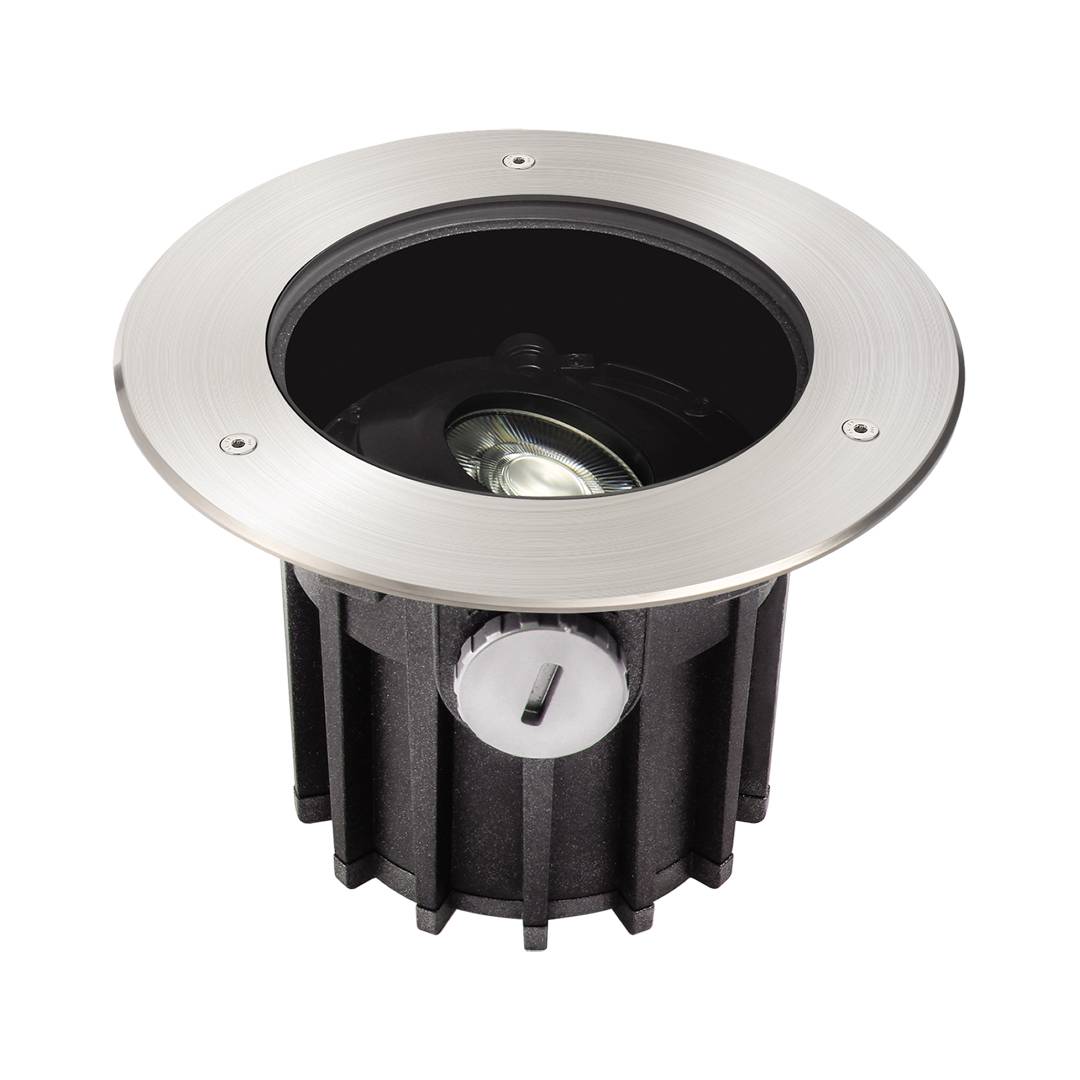

GLTMS147T30SwivellingRound343000KStainless Steel 31680147 mmMains (Leading Edge/Trailing Edge)IP671200FloorNone12W136 mm
GLTMF165T30SwivellingRound603000KStainless Steel 31680165 mmMains (Leading Edge/Trailing Edge)IP671600FloorNone18W-

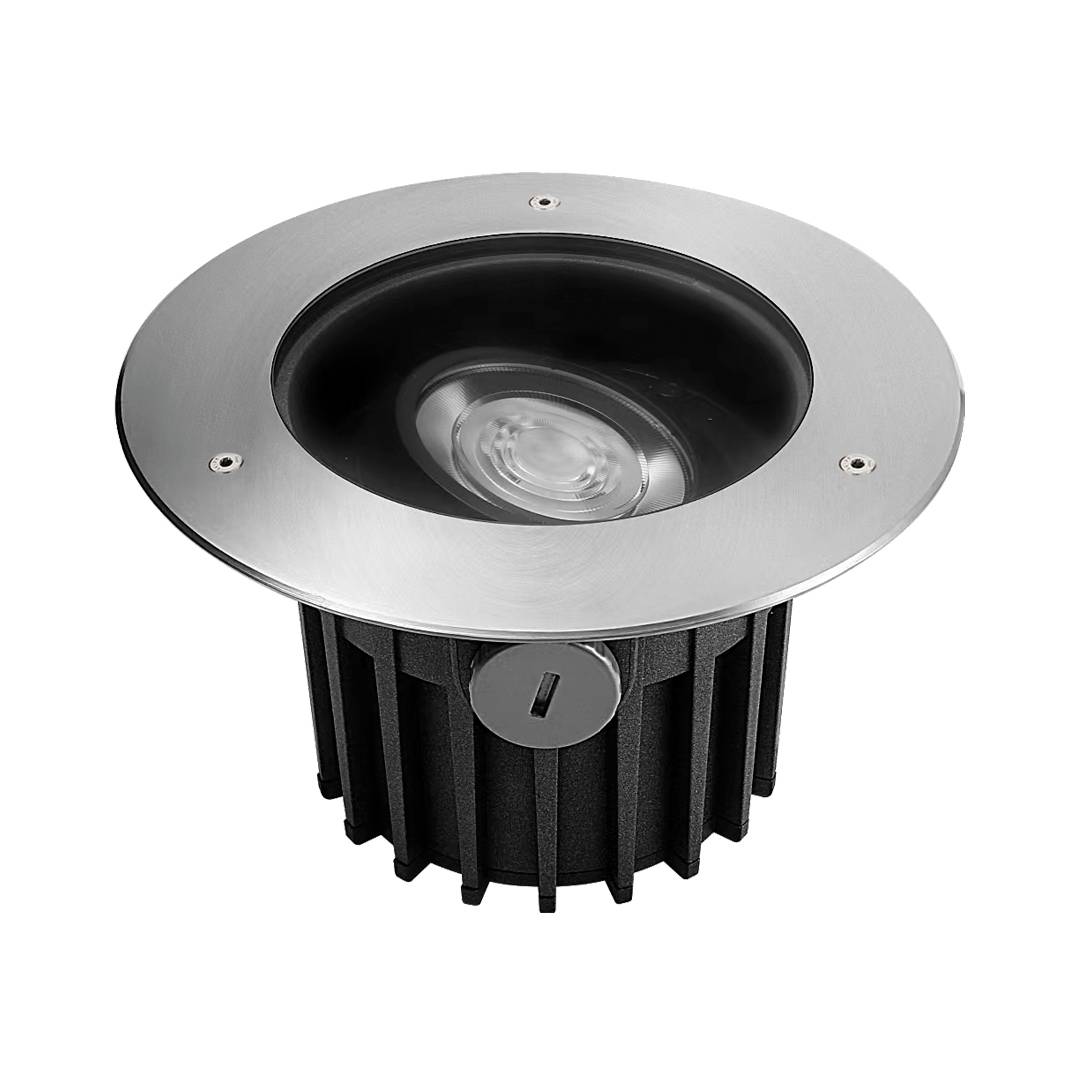

GLTMS193T30SwivellingRound343000KStainless Steel 31680193 mmMains (Leading Edge/Trailing Edge)IP672300FloorNone23W168 mm
GLTMF147T30SwivellingRound603000KStainless Steel 31680147 mmMains (Leading Edge/Trailing Edge)IP671200FloorNone12W25 mm

Accessories

Find the perfect product you are looking for.

JB5 (Parallel)

JB5


Gel filled waterproof junction box

DM298GRID

DM298GRID


250W LED mains grid dimmer

DM298FP

DM298FP


100W LED 2 way push on/ off rotary dimmer
