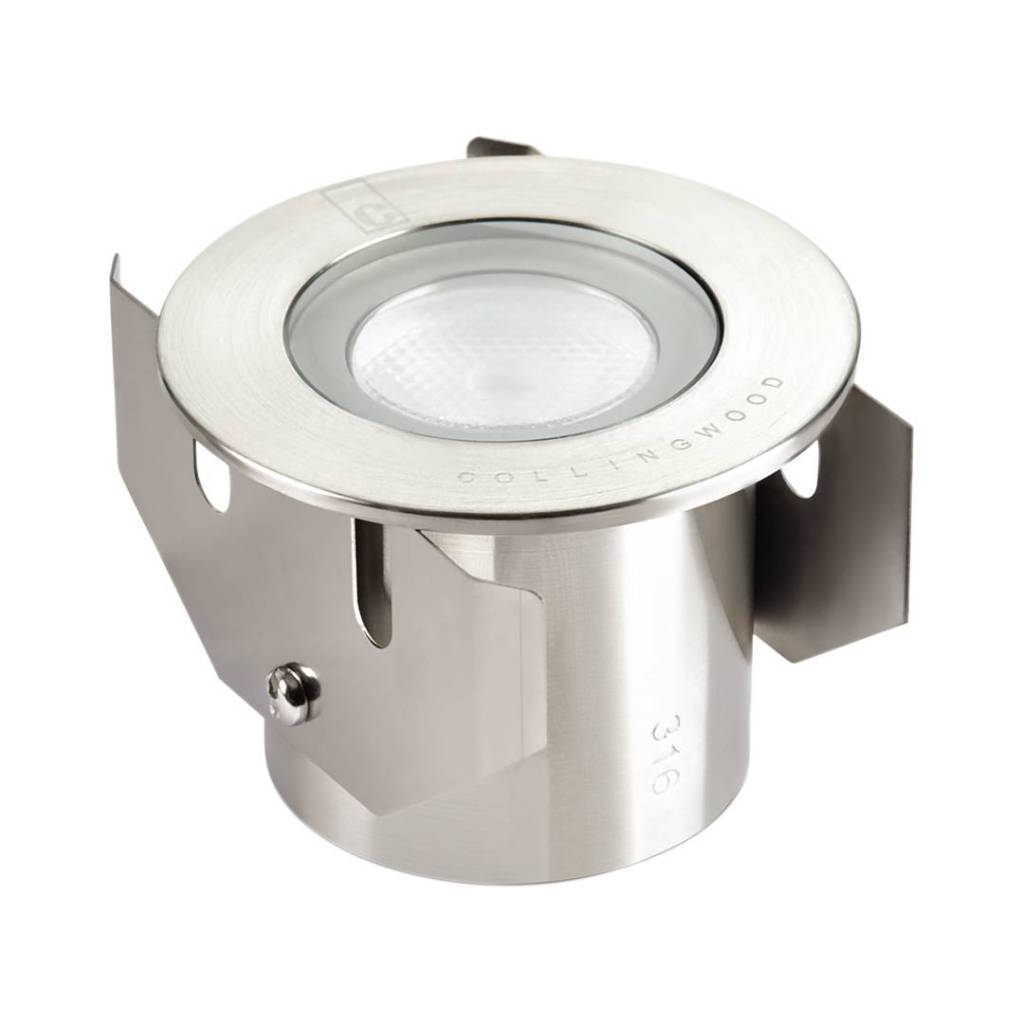

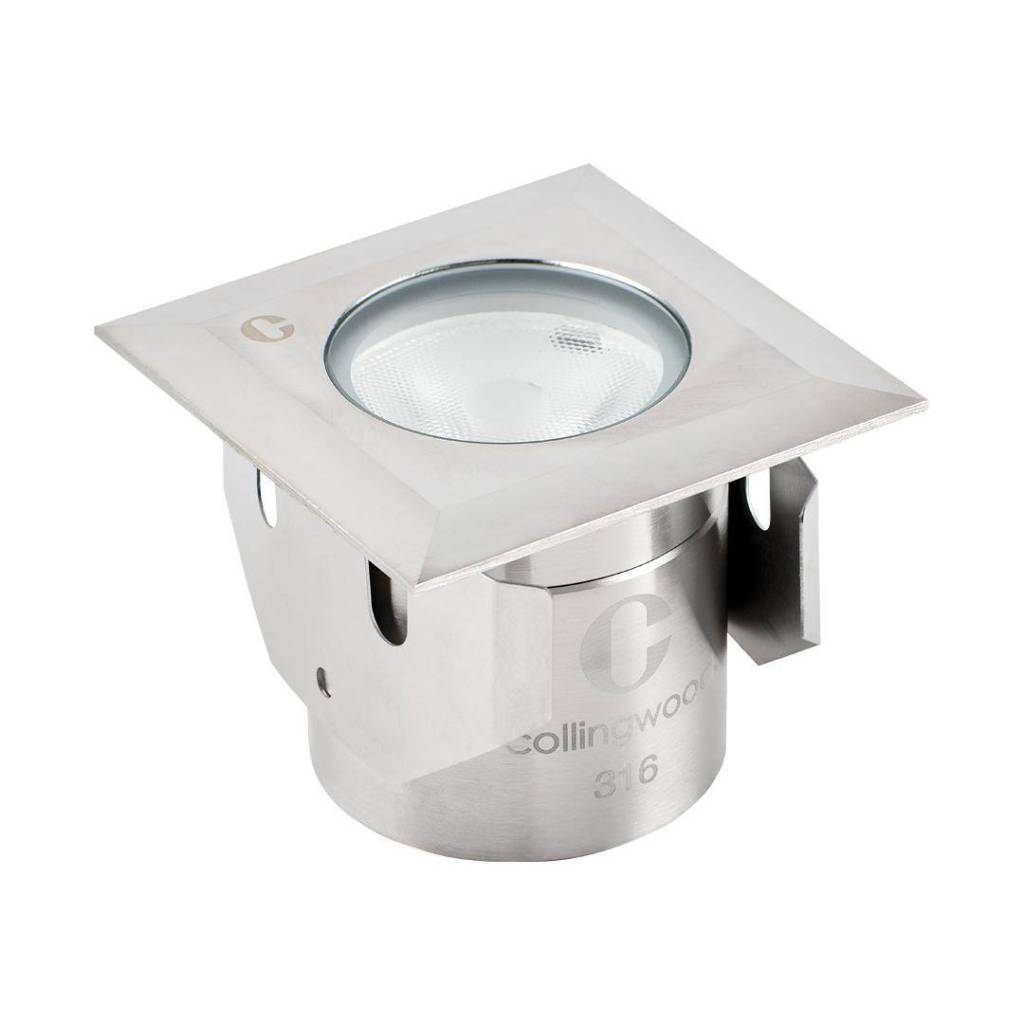

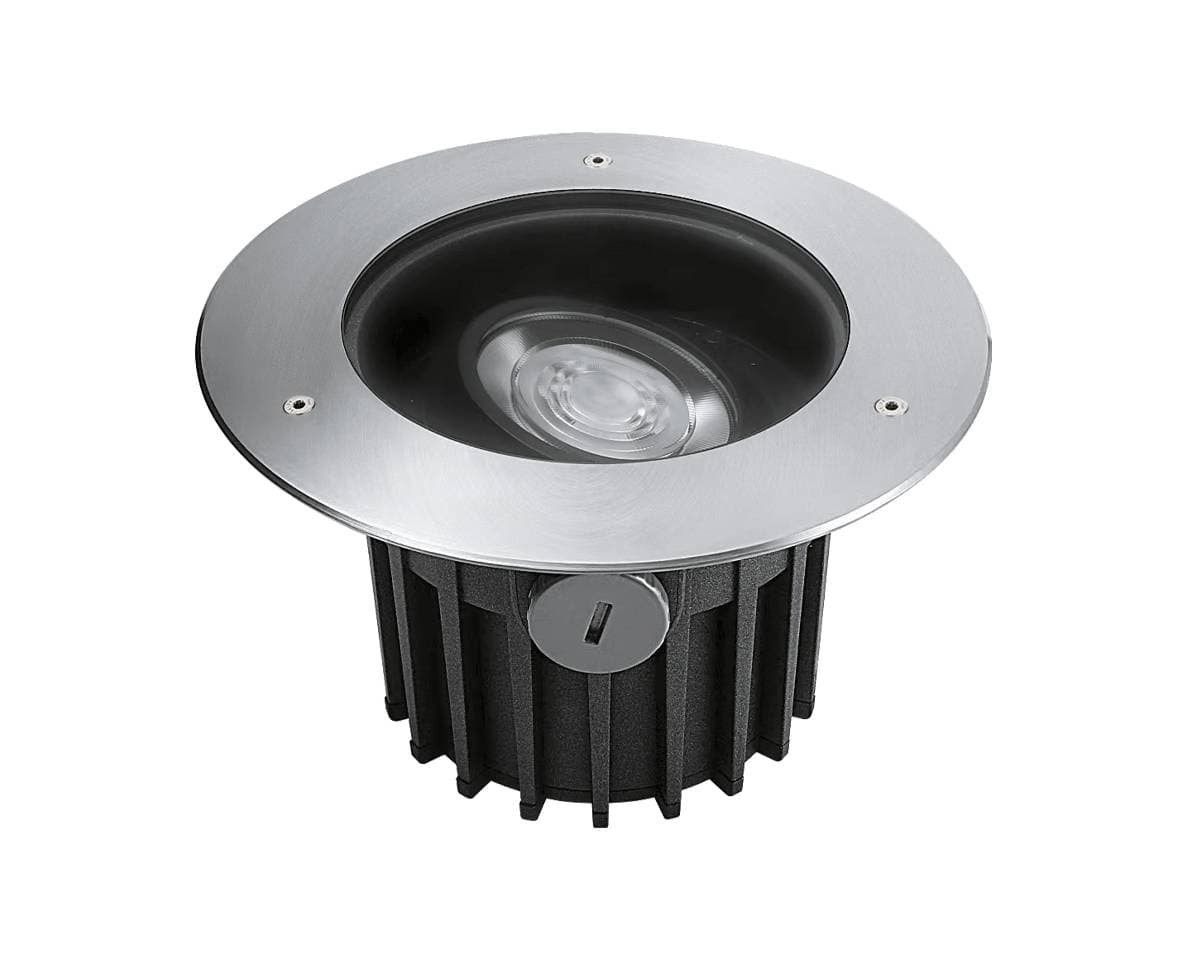

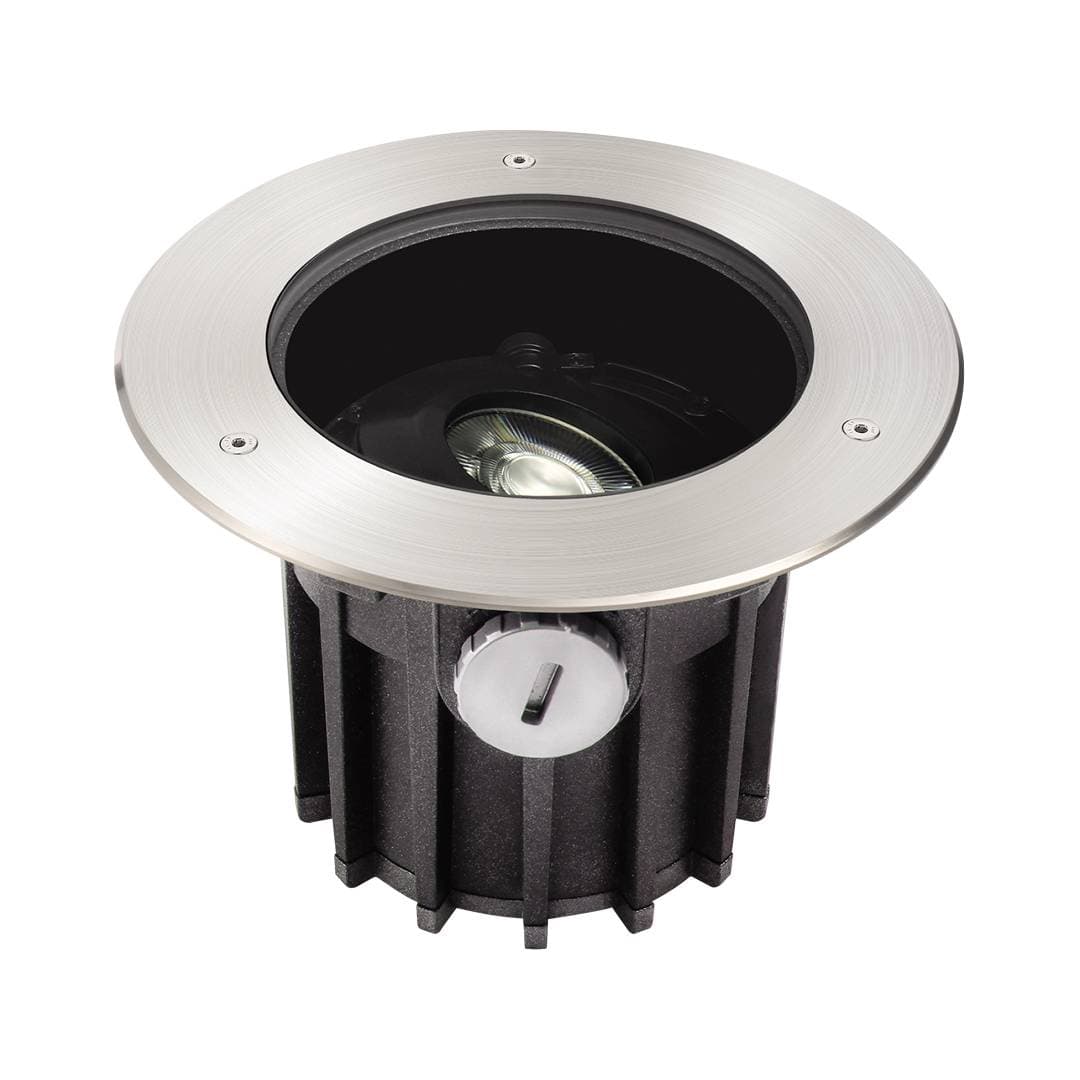

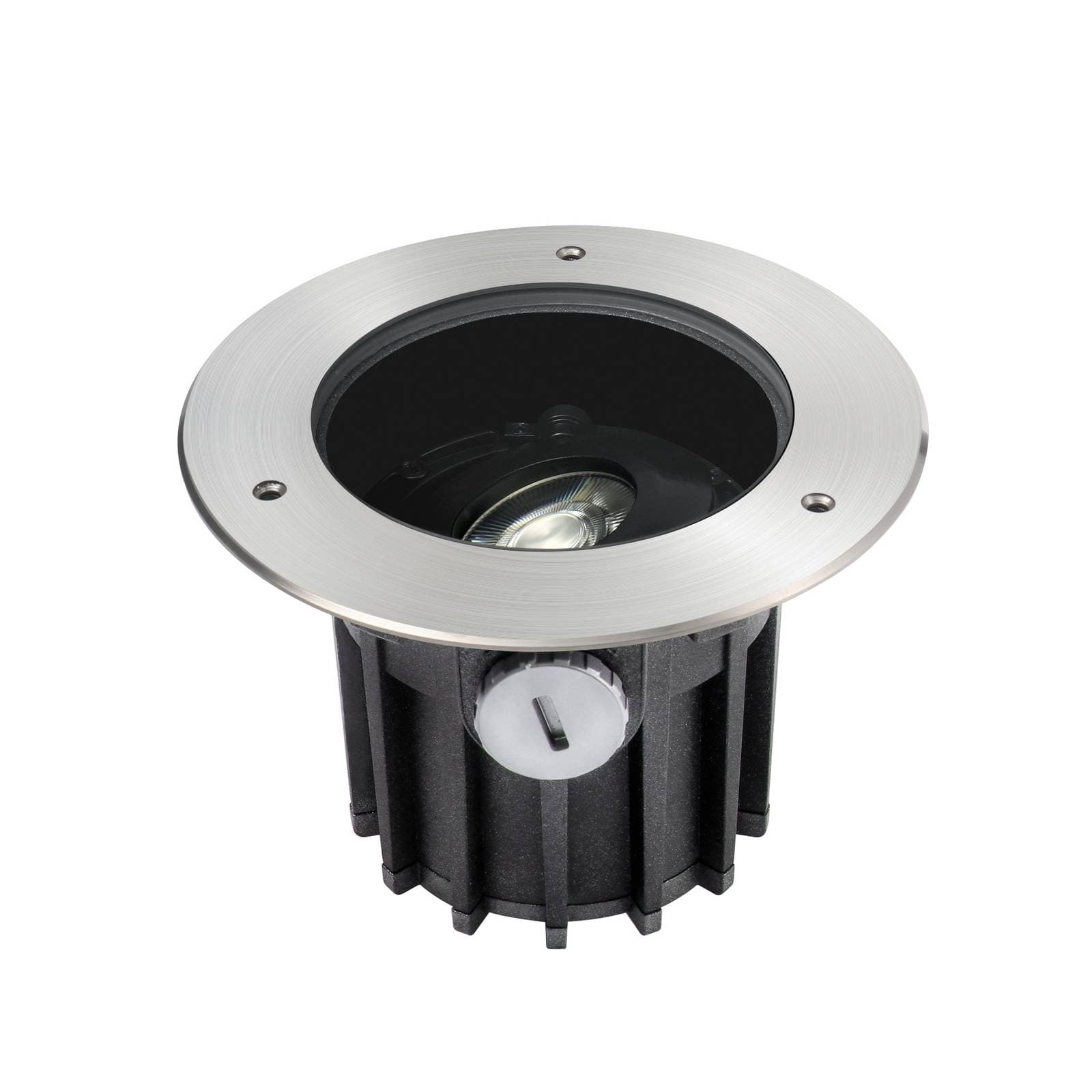

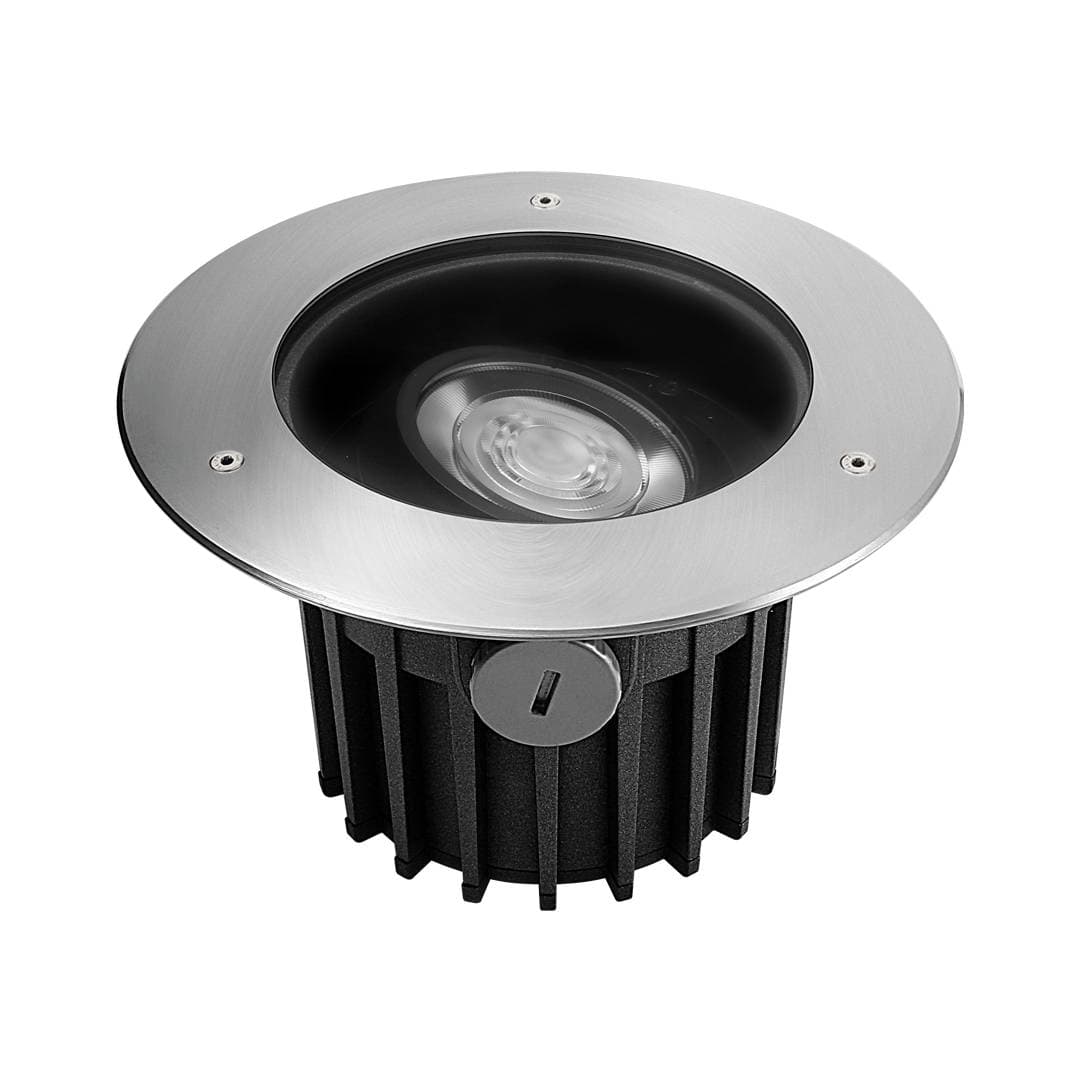

Tilt Adjustable Ground Light

IP67 for complete protection against ingress of dust & water
IK08 (GLTM_11/14) IK10 (GLTM_16/19/22)
Suitable for coastal applications
Tilt angle of luminaire is adjustable, just turn knob to tilt the light distribution up to 25 degrees
Static loading capacity is 2000kg
Pre-wired with 1 meter of cable to aid the installer
TRIAC mains dimmable and RGBW options also available
Supplied with installation tube

Cut Out

Wattage / Lumens

Code	CRI	IP Rating	Adjustability	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Sensor Option	Dimmable Option
GLTMS147D30	CRI>80	IP67	Swivelling	147	Anodised Aluminium\|Stainless Steel 316	34°	Stainless Steel 316	10W	3000K	1000	None	None
GLTMS165D30	CRI>80	IP67	Swivelling	165	Anodised Aluminium\|Stainless Steel 316	34°	Stainless Steel 316	18W	3000K	1600	None	None
GLTMS193D30	CRI>80	IP67	Swivelling	193	Anodised Aluminium\|Stainless Steel 316	34°	Stainless Steel 316	23W	3000K	2300	None	None
GLTMS223D30	CRI>80	IP67	Swivelling	223	Anodised Aluminium\|Stainless Steel 316	34°	Stainless Steel 316	28W	3000K	3300	None	None

Accessories

Find the perfect product you are looking for.

JB5

Gel filled waterproof junction box

DM298GRID

250W LED mains grid dimmer

DM298FP

100W LED 2 way push on/ off rotary dimmer
