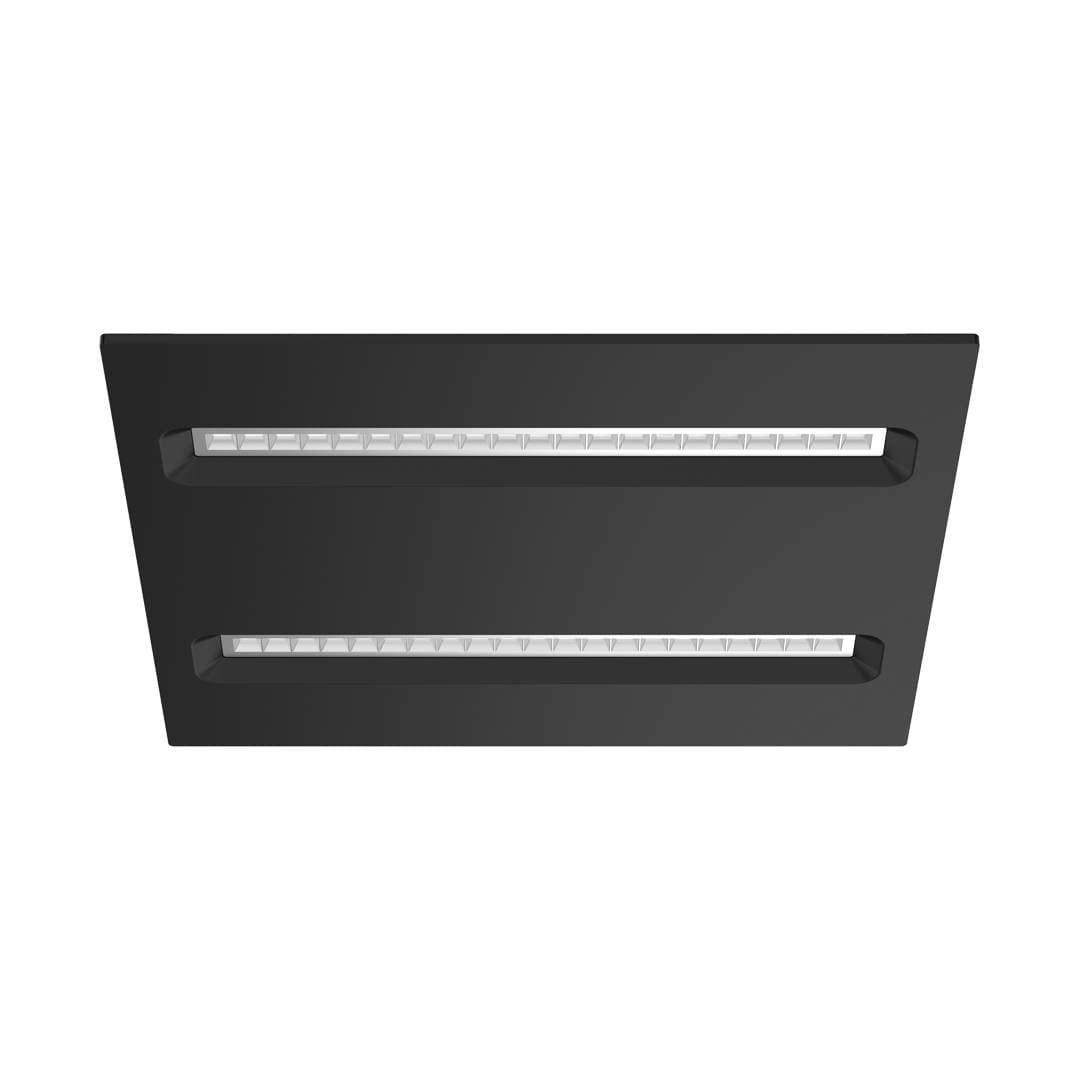

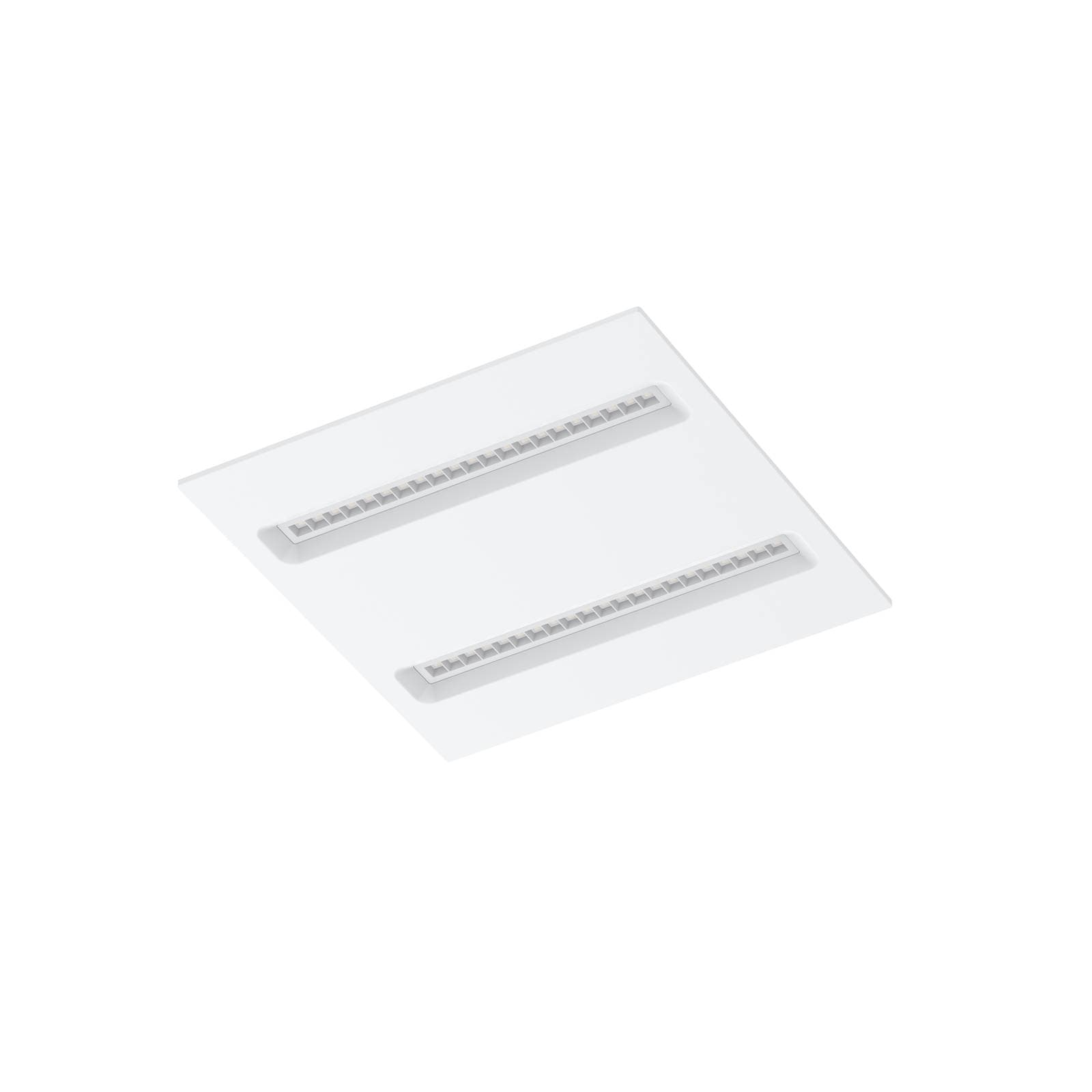

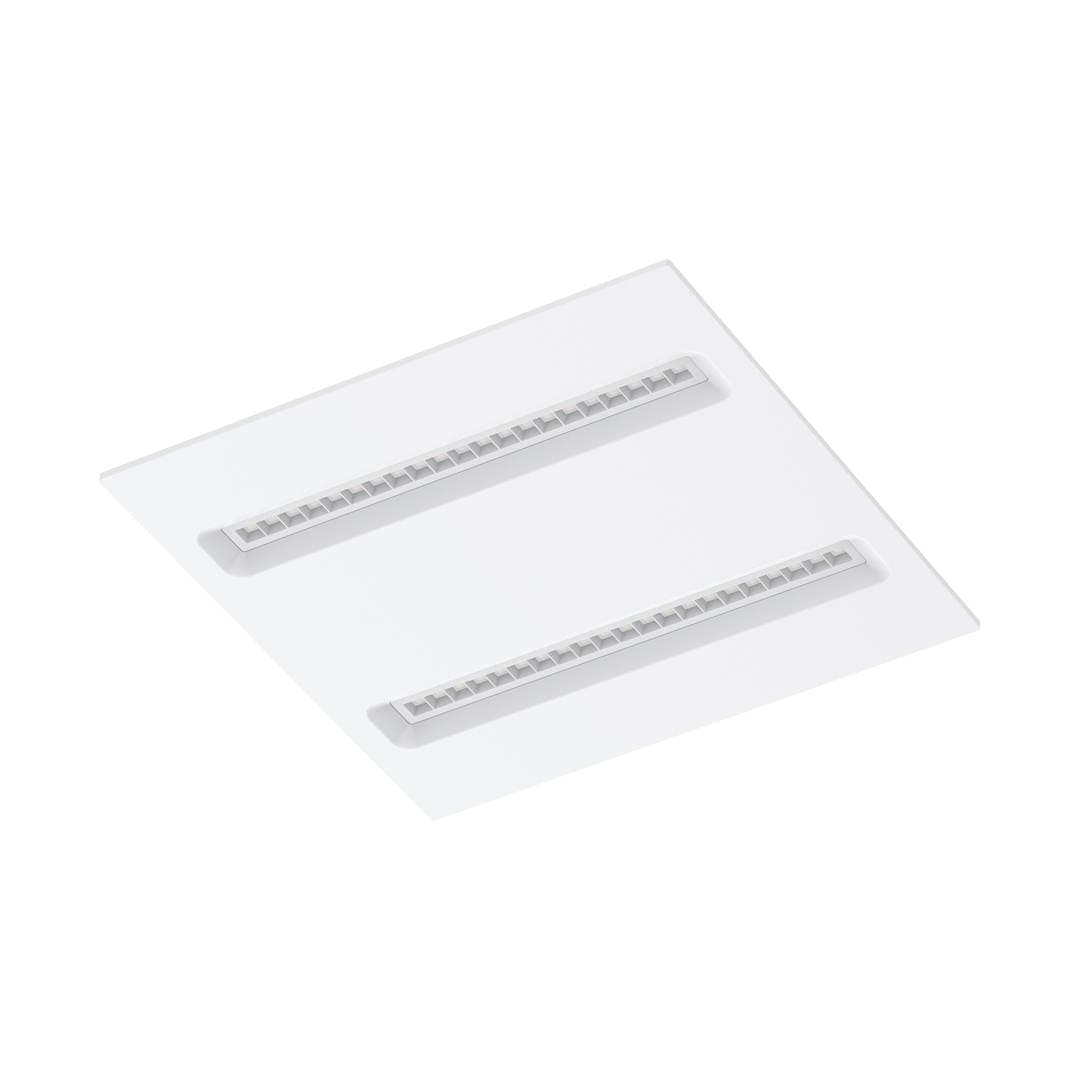

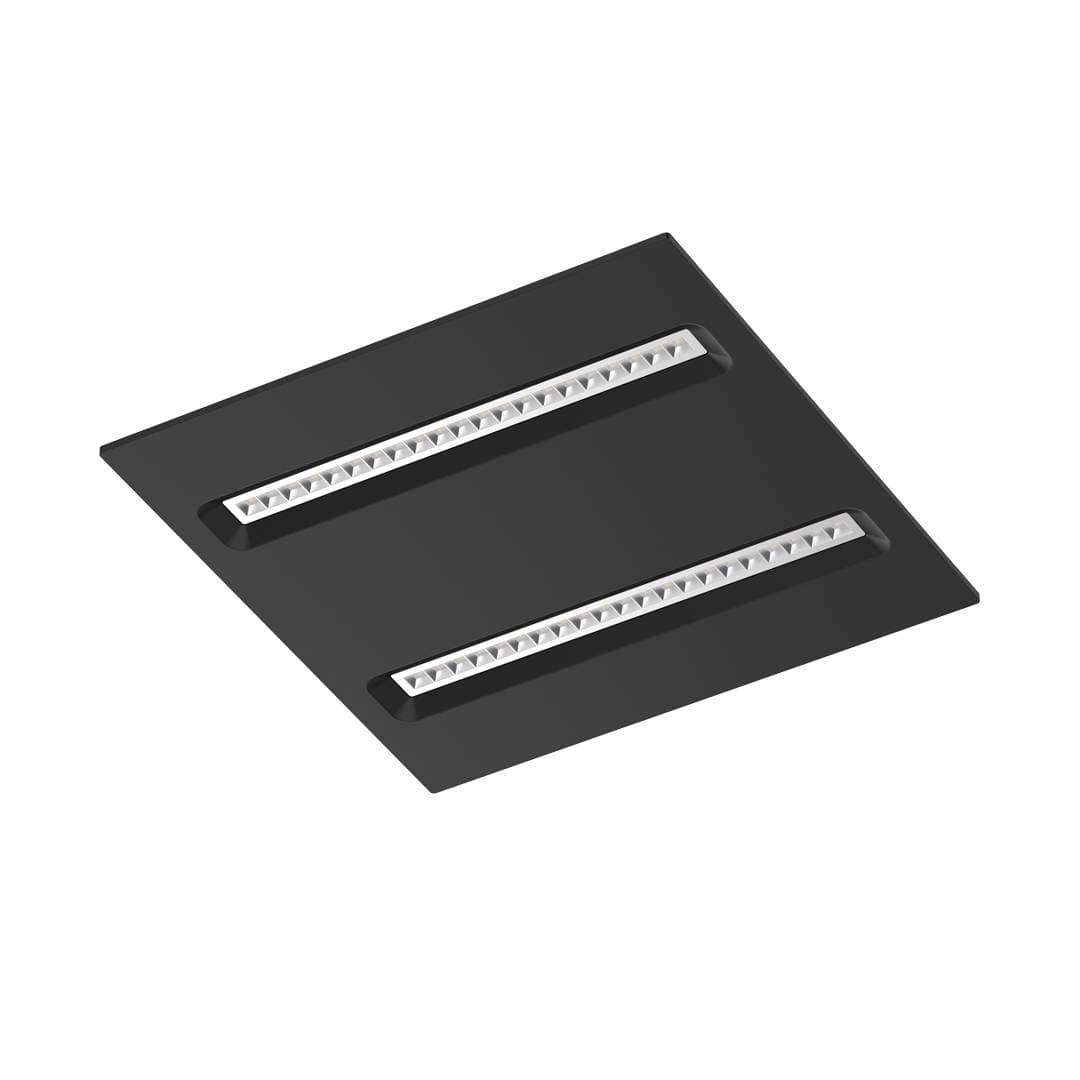

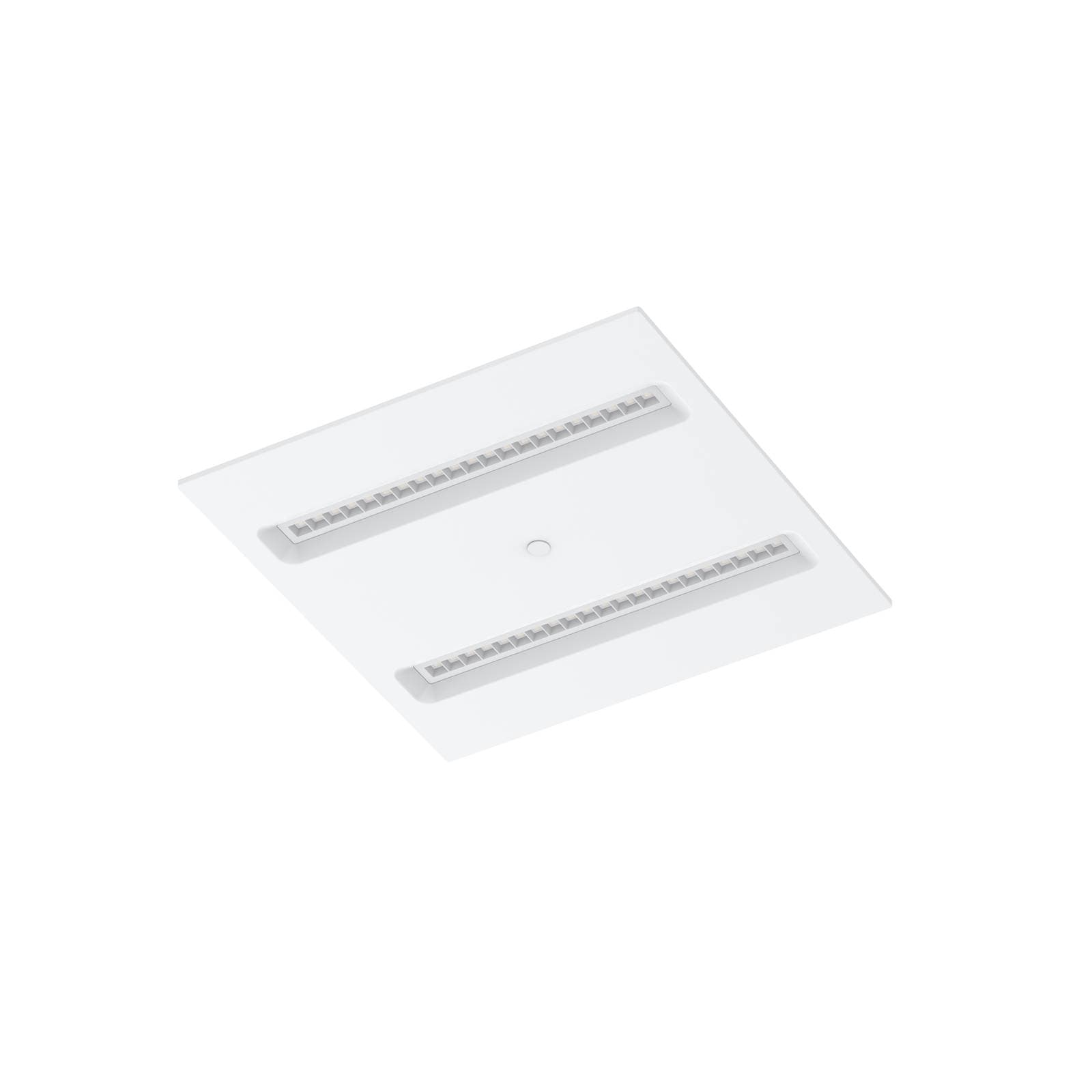

Solis Lens

600x600mm LED panel.
Low glare LED modules (UGR<16) easily interchangeable.
3000K or 4000K selectable via a switch on the back of the luminaire.
Automatic double terminal block and safety cable (1m) included.
Remote non-dimmable or DALI dimmable driver included.
Surface mounting or suspension kit to be ordered separately.
Replacement driver or LED module available separately.

UGR
Energy efficient up to 140 lm/W
Colour switchable between 3000k and 4000K
Blends perfectly into modern offices and interiors, enhancing any architectural vision
Choice of elegant white or bold black finishes that complement any architectural vision
Replaceable LED modules with clip system and Plug & Play connection for effortless maintenance. Non dimmable or DALI driver as a choice.
Outstanding performance with up to 140 lm/W and extremely low glare (UGR
With a lifespan of 100,000 hours and a 5-year warranty, Solis lens is built to last

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Reflector Finish	Sensor Option	UGR	Wattage Range	Width
LENBS66D	Not adjustable	Square	80	Steel	3000K / 4000K	Matt Black;Silver	80	DALI-2	None	IP20	600 mm	3175 - 3180	Recessed	Silver	None	16	25W	600 mm
LENBS66N	Not adjustable	Square	80	Steel	3000K / 4000K	Matt Black;Silver	80	None	None	IP20	600 mm	3175 - 3180	Recessed	Silver	None	16	25W	600 mm
LENWW66D	Not adjustable	Square	80	Steel	3000K / 4000K	Matt White	80	DALI-2	None	IP20	600 mm	3400 - 3510	Recessed	White	None	16	25W	600 mm
LENWW66N	Not adjustable	Square	80	Steel	3000K / 4000K	Matt White	80	None	None	IP20	600 mm	3400 - 3510	Recessed	White	None	16	25W	600 mm
