Salvus Max

Salvus Max Bulkhead is a durable and reliable emergency lighting solution ideal for warehouses and industrial applications, offering switchable manual and self-test functionality for flexible commissioning and maintenance. Constructed with a rugged polycarbonate housing and featuring a long-life LiFePO4 battery with temperature monitoring for dependable emergency operation, this unit is also come in a DALI-2 addressable option for advanced control. Designed for high mounting heights up to 15 metres, it provides compliant escape route illumination with efficient spacing and includes captive screws for easy installation, with the added option to disable the self-test function via a simple jumper.

  • LiFePO4 battery
  • Battery Temperature Monitored
  • DALI-2 Addressable, Manual & Self Test Option
  • Housing is rugged and made of polycarbonate
  • Ideal solution for warehouses and industrial applications
  • 15 metres mounting height, provides 1 lux (escape route) at floor level when using 29 metre spacings
  • Captive screws for easy installation
  • Self-test function can be easily disabled by removing green 2-pin jumper connector
Salvus Max

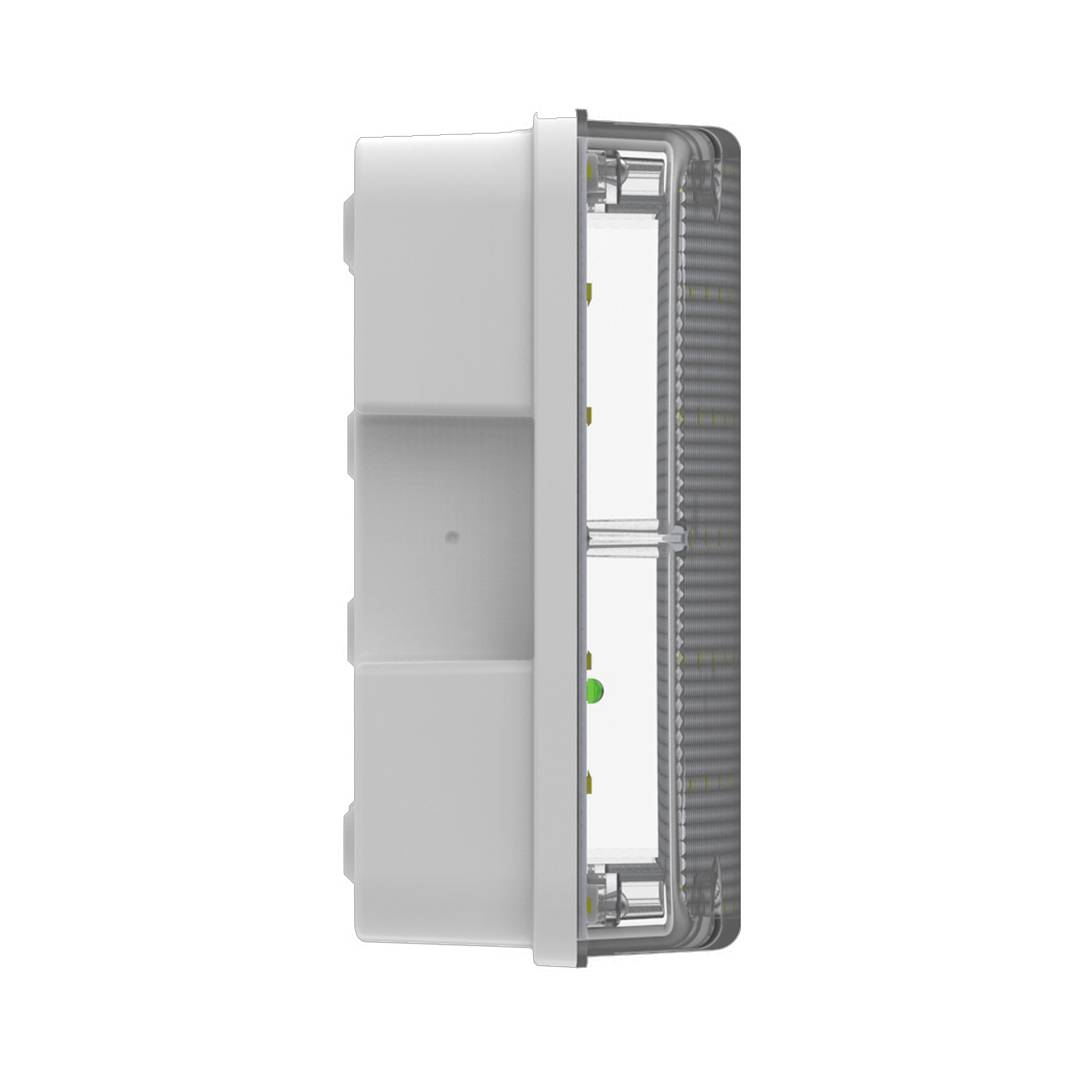

Salvus Max image 1

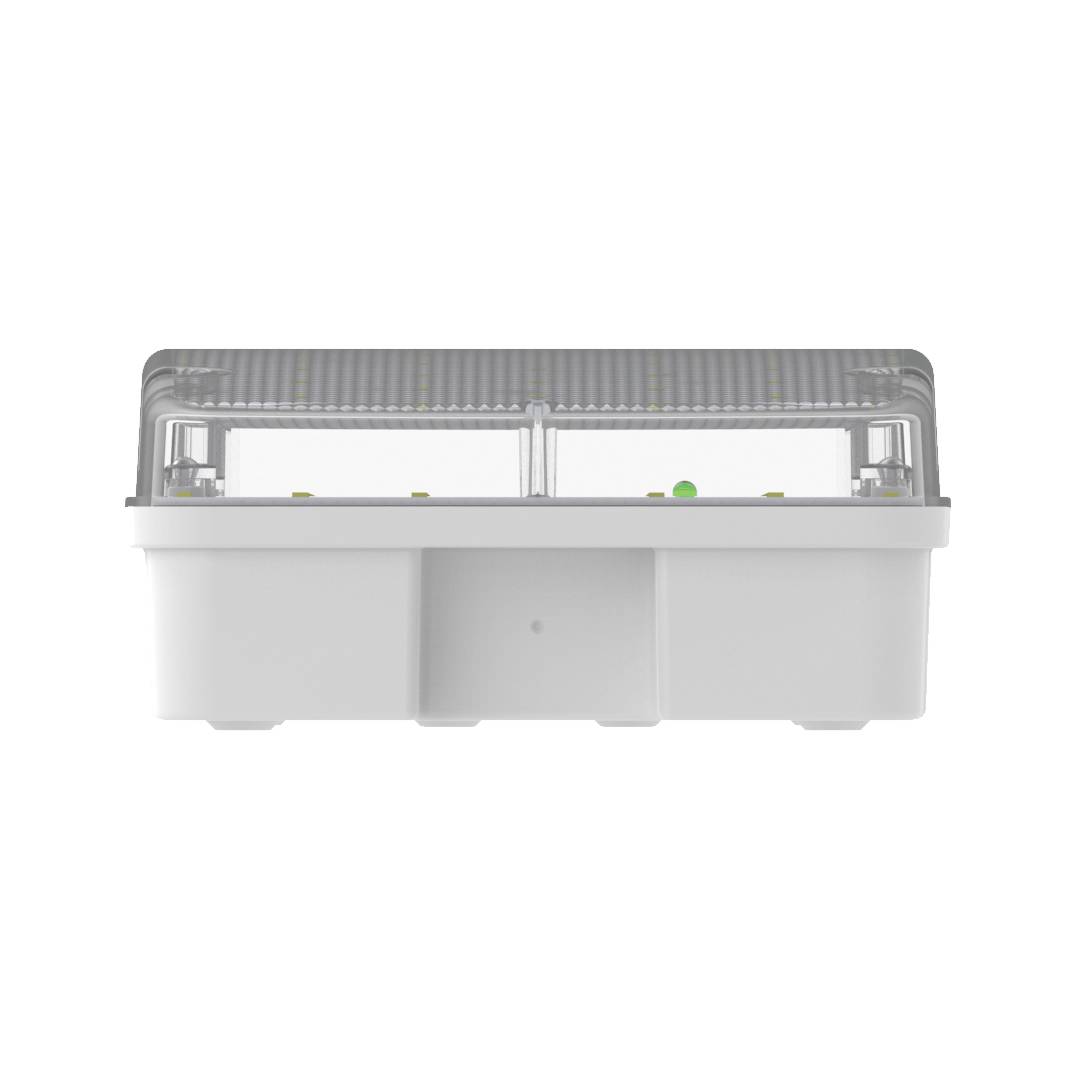

Salvus Max image 2

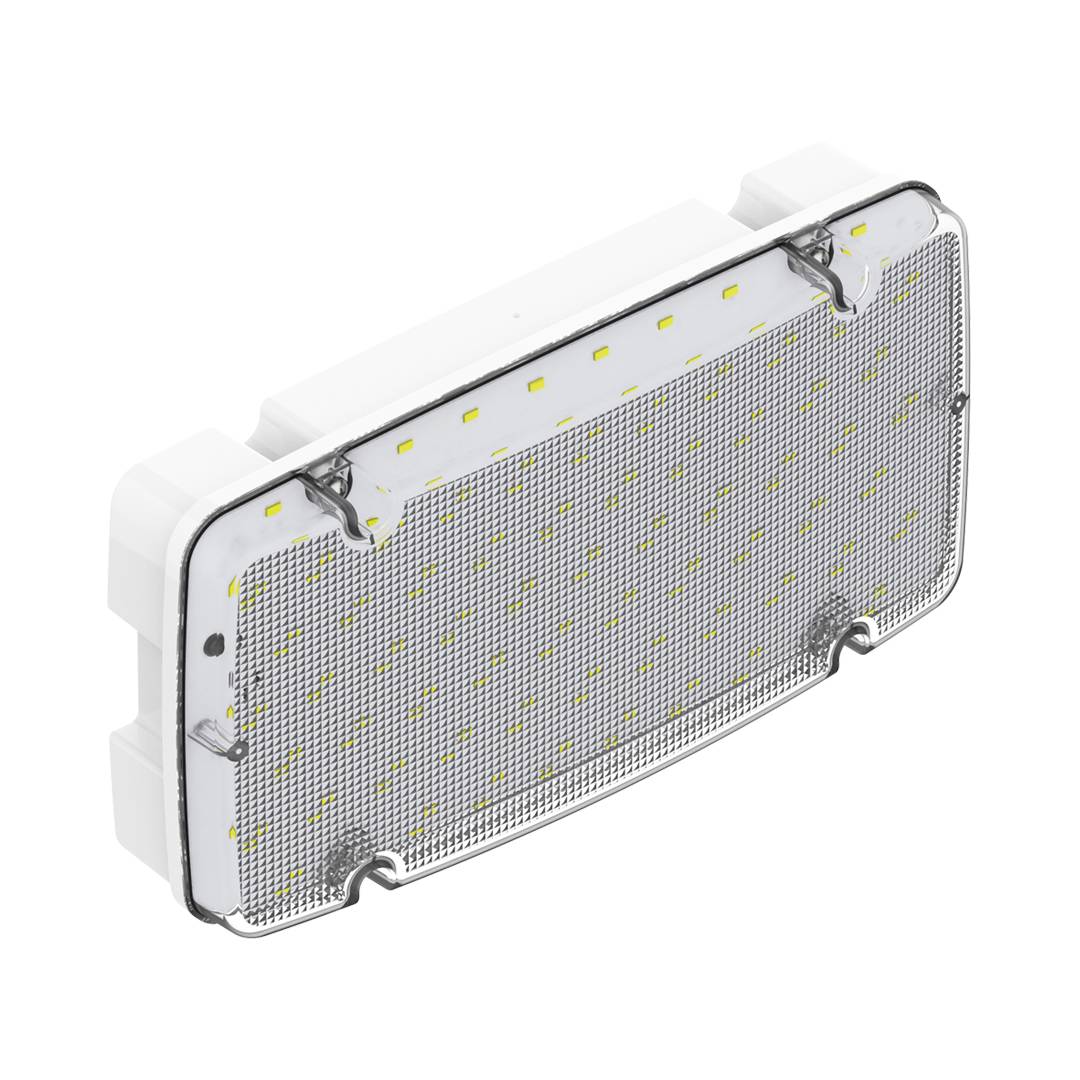

Salvus Max image 3

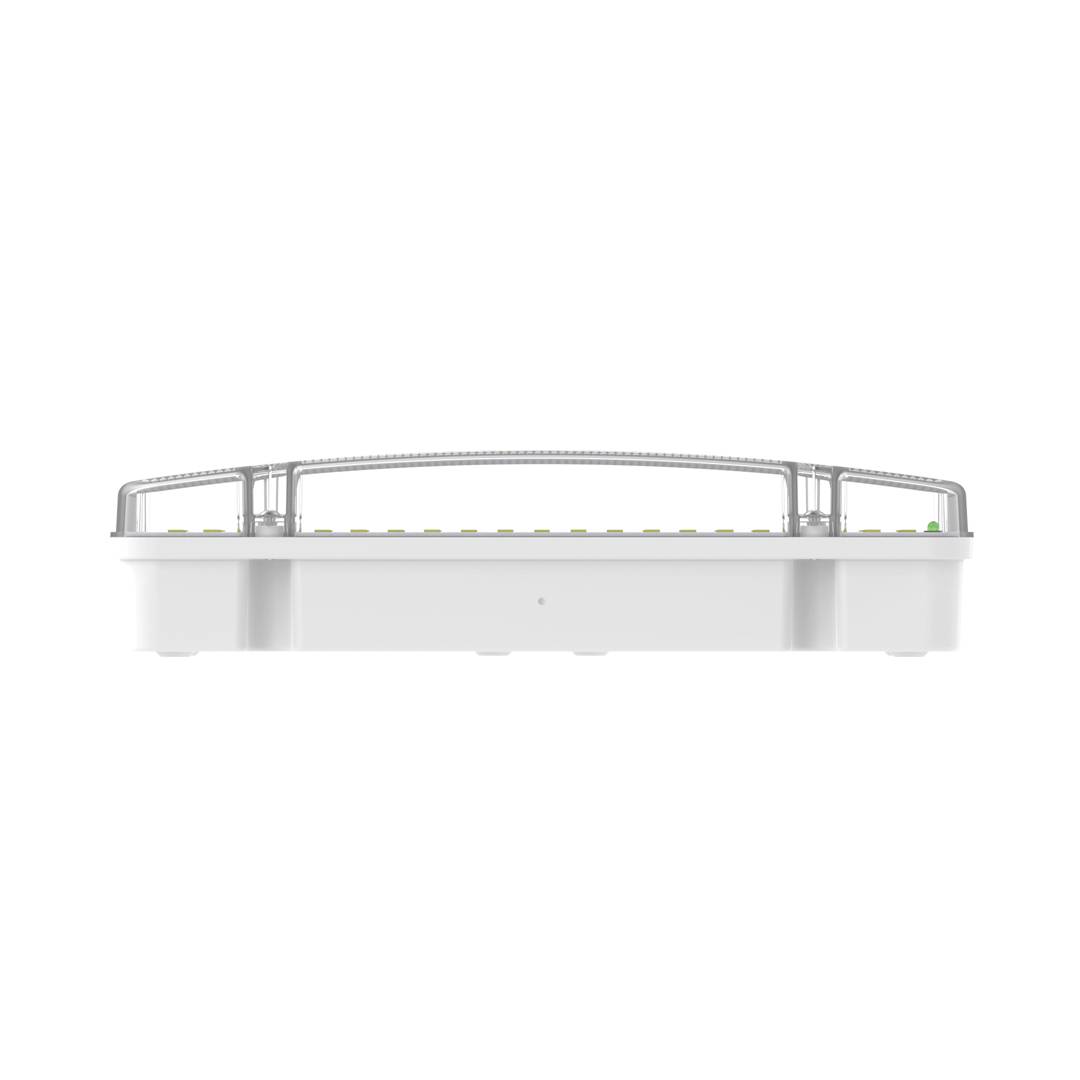

Salvus Max image 4

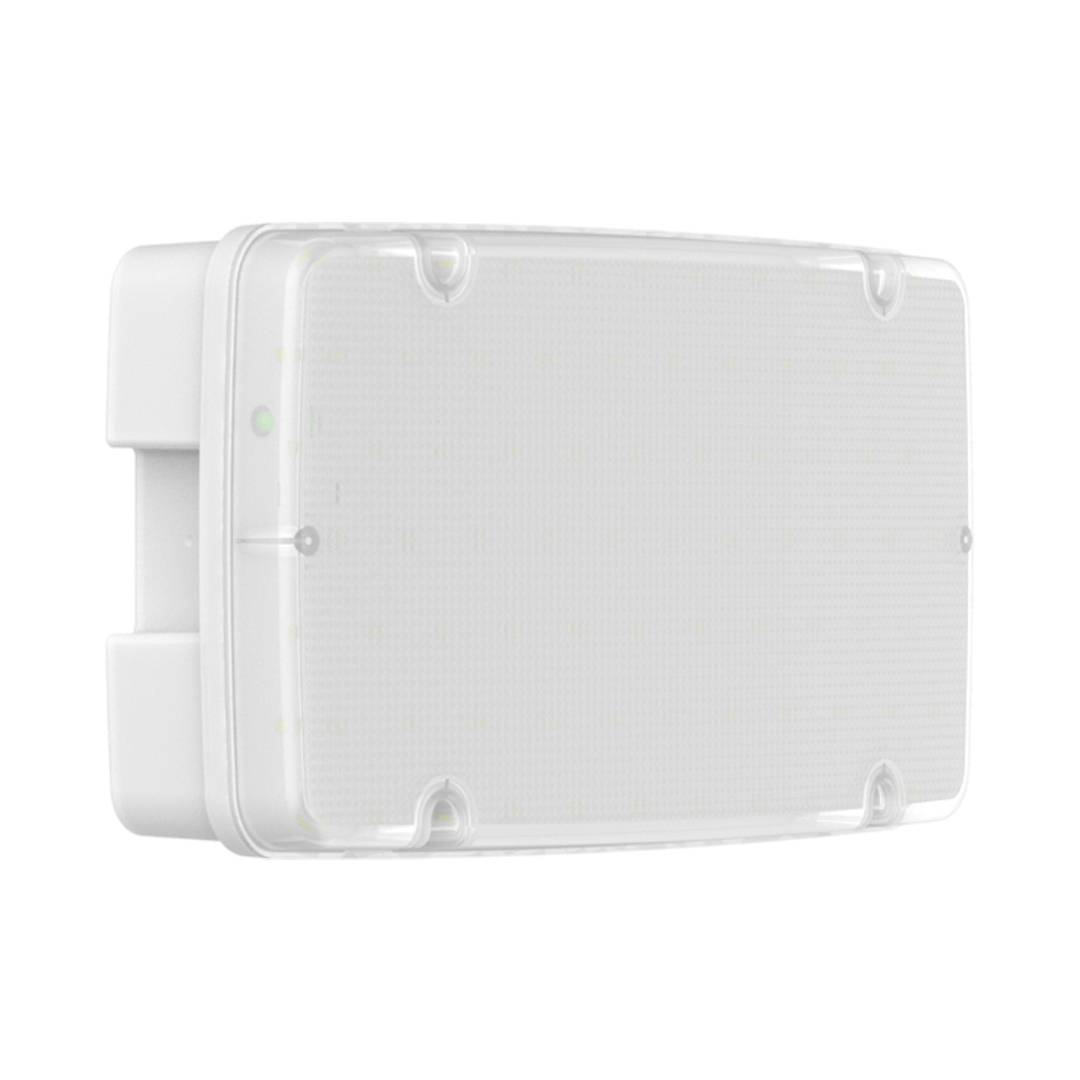

Salvus Max image 5
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeIP RatingBeam AngleBase ShapeWattage RangeCCT RangeLumens RangeColour / FinishEmergency OptionMounting TypeBody MaterialWidthLengthDownloads
EMBMAXWMSIP65103°Rectangular8W6500K1500WhiteManual-Test|Self-TestWallPC165328
EMBMAXWDIP65103°Rectangular8W6500K1500WhiteDALI-2WallPC160320
