Salvus Bulkhead

Built to last and easy to install, the Salvus Bulkhead is a versatile lighting fixture ideal for a range of applications, from general lighting to emergency exit signage in both indoor and outdoor environments. Its rugged polycarbonate housing boasts an IP65 rating for excellent durability. Installation is simplified with three M20 entry knockouts and convenient rear BESA box fixing points. This unit offers both maintained and non-maintained operation and features switchable manual and self-test functionality, as well as DALI-2 addressability. The long-lasting LiFePO4 battery includes battery temperature monitoring, and a Legend Kit is included. Compliant with ISO 7010 & 3864, the Salvus Bulkhead White is a reliable choice for open areas and escape routes.

  • LiFePO4 battery
  • Battery Temperature Monitored
  • DALI-2 Addressable, Manual & Self Test Option
  • Compliant with ISO 7010 & 3864
  • Housing is rugged and made of polycarbonate
  • Maintained and Non-Maintained options
  • IP65 suitable for outdoor environments
  • Has three M20 entry knock-outs (one on each side and one in the bottom), and rear BESA box fixing points
  • Legend Kit included
  • Ideal for open areas, escape routes, for general illumination or as an exit sign
  • Self-test function can be easily disabled by removing green 2-pin jumper connector
CEGuarantee 5yrIndoorMMB Wall mounting onlyBeam Angle 100 DownBeam Angle 106 DownIP65IK10Glow Wire 850Class INon Replaceable DriverNon Replaceable Light Source
Salvus Bulkhead
Salvus Bulkhead image 1
Salvus Bulkhead image 2

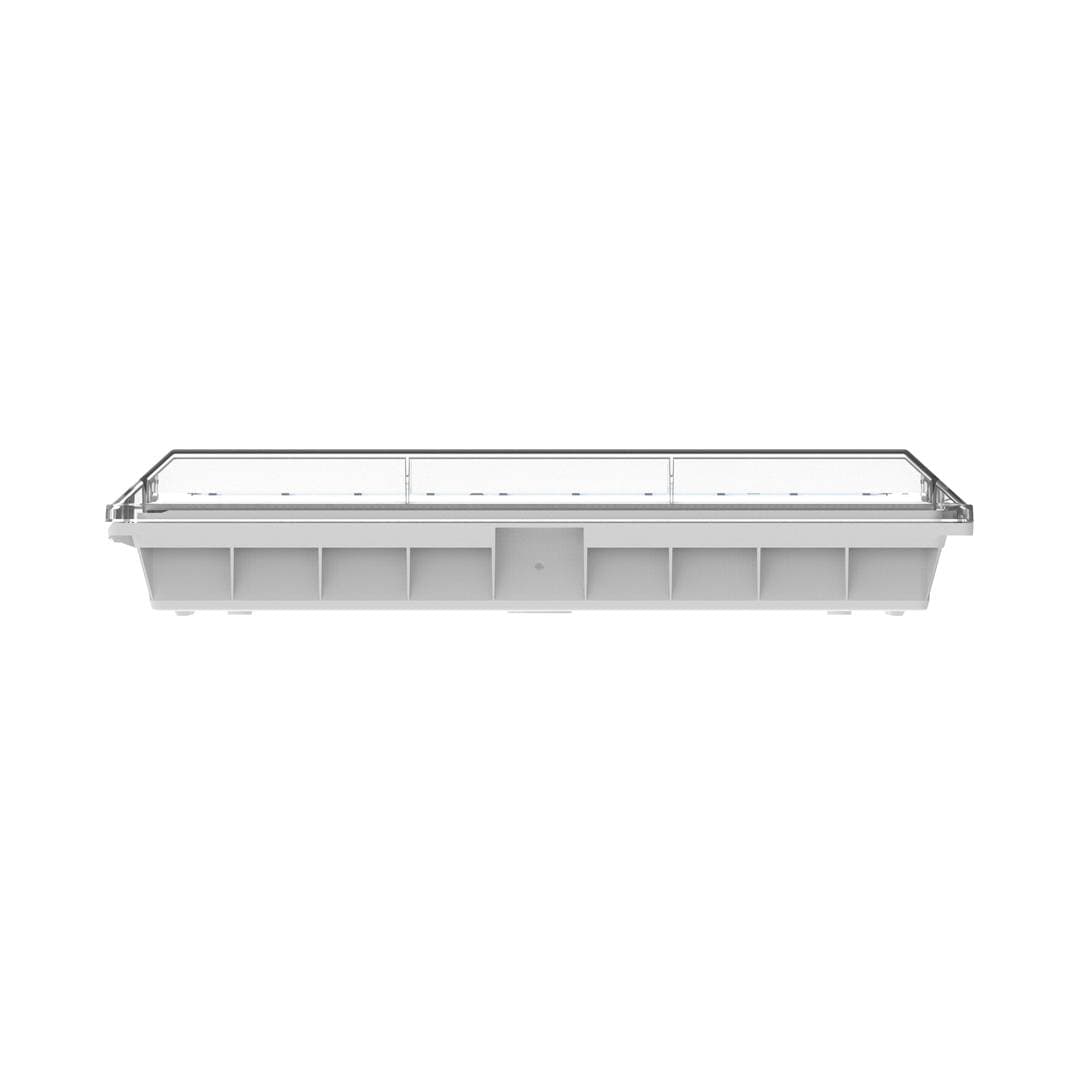

Salvus Bulkhead image 3

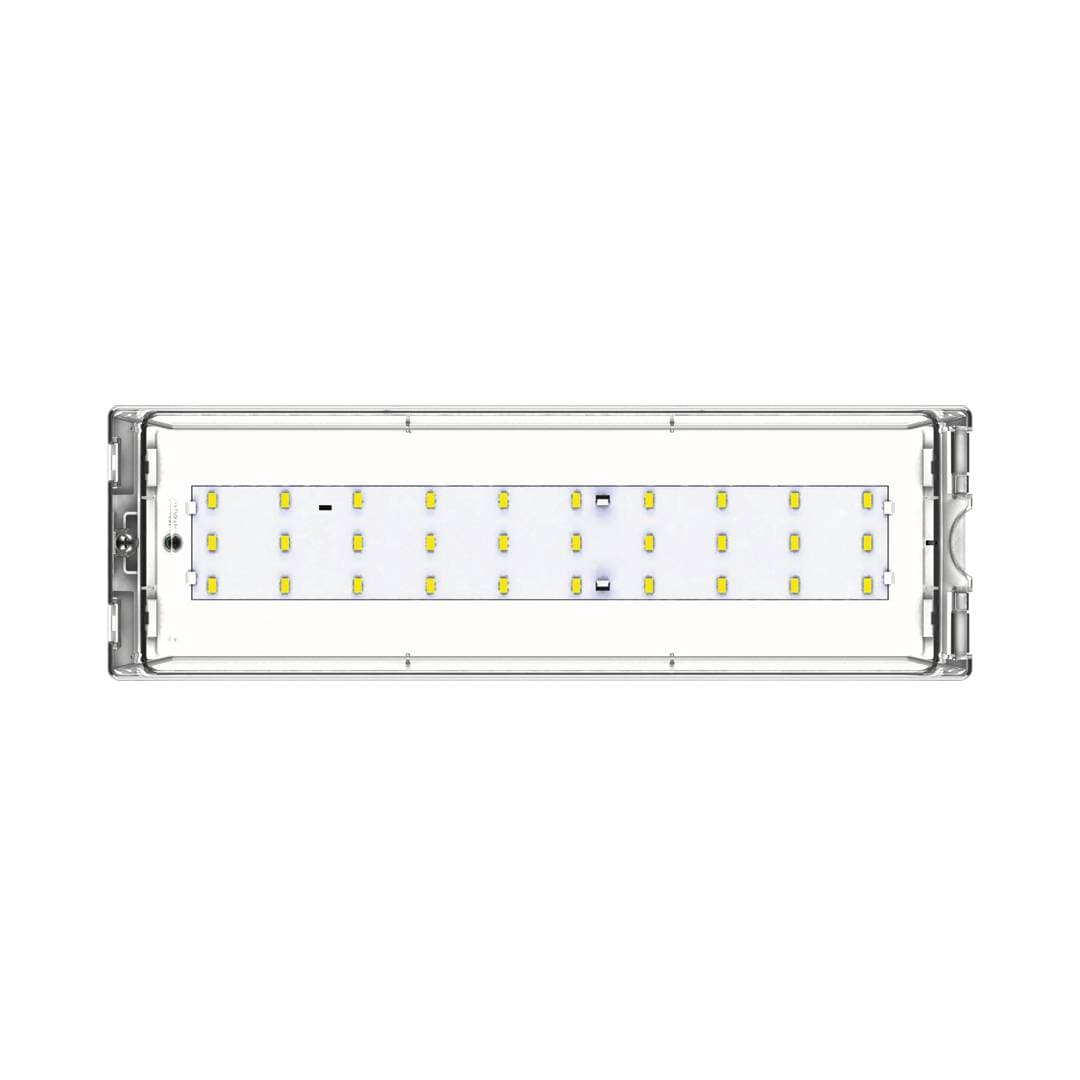

Salvus Bulkhead image 4
Salvus Bulkhead image 5
Salvus Bulkhead image 6
Salvus Bulkhead image 7
Salvus Bulkhead image 8
Salvus Bulkhead image 9
Salvus Bulkhead image 10
Salvus Bulkhead image 11
Salvus Bulkhead - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishDimmable OptionEmergency OptionIP RatingLengthLight WindowLumens RangeMounting TypeWattage RangeWidthDownloads
EMBW1DRectangular100PC6500KWhiteOn-OffDALI-2IP65352 mm1150Wall2.5W110 mm
EMBW1MSRectangular100PC6500KWhiteOn-OffManual-Test,Self-TestIP65352 mm1150Wall2.5W110 mm
EMBW3DRectangular106PC6500KWhiteOn-OffDALI-2IP65352 mm1350Wall3.5W110 mm
EMBW3MSRectangular106PC6500KWhiteOn-OffManual-Test,Self-TestIP65352 mm1350Wall3.5W110 mm

Accessories

Find the perfect product you are looking for.

EMBWRK

EMBWRK


Recessing Kit for Savlus Bulkhead

EMBDD

EMBDD


Double Sided Diffuser for Savlus Bulkhead
