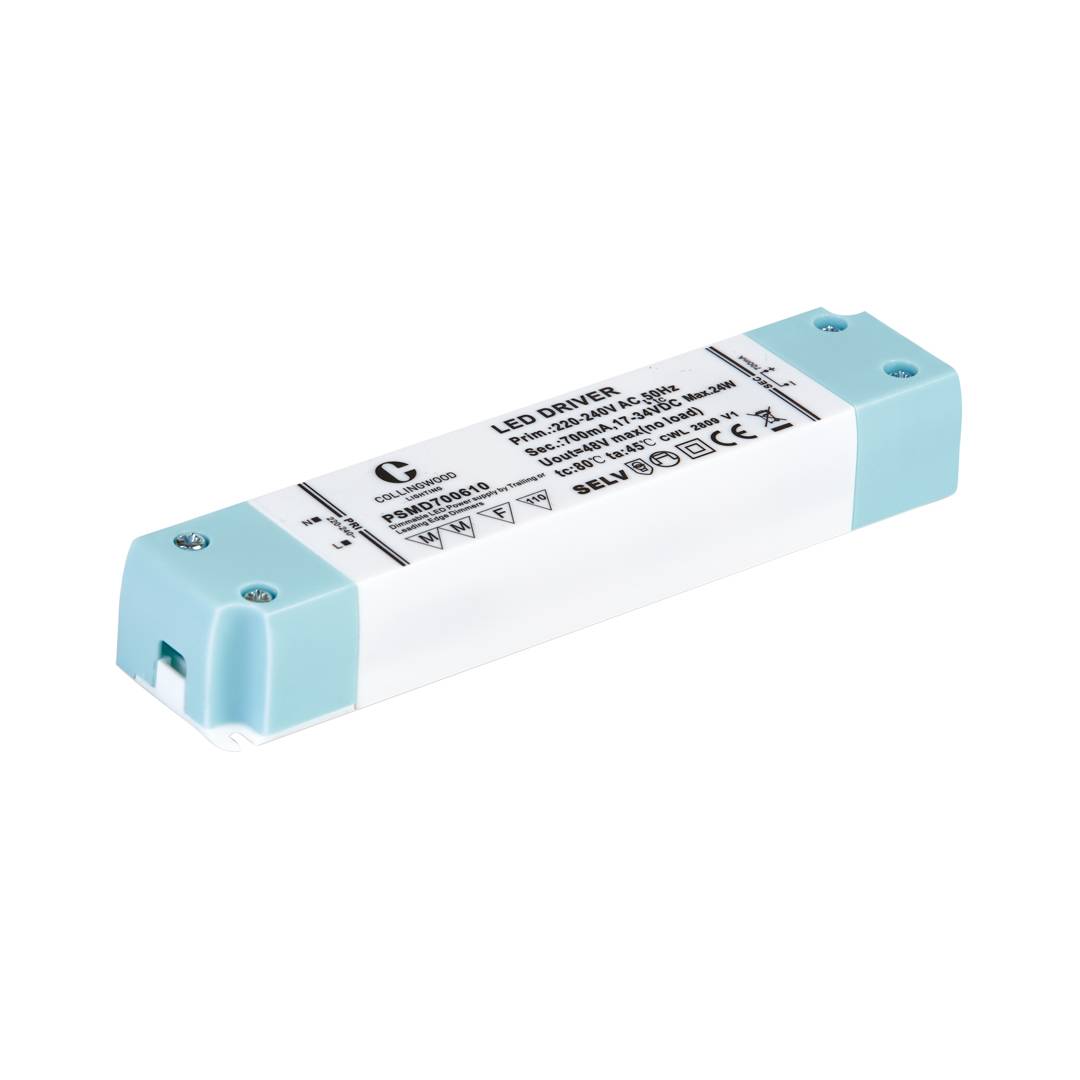

This IP20 mains triac dimmable power supply is ideal for use with the 700mA range of Collingwood products. Constant current at 12W to 24W, it is capable of running 6-10 1W or 2-3 3W LED products.
| Code | Warranty | Efficiency | Connection Input | Connection Output | Driver Output Voltage | Driver Output Current | Protection | Power Factor | Product Input Current | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
| PSMD700610 | 5 years | 80 | 0.5-1.5mm² | 0.5-1.5mm² | 17-34 | 700mA | Short circuit, overload & over current | 0.95 | 0.12 |
