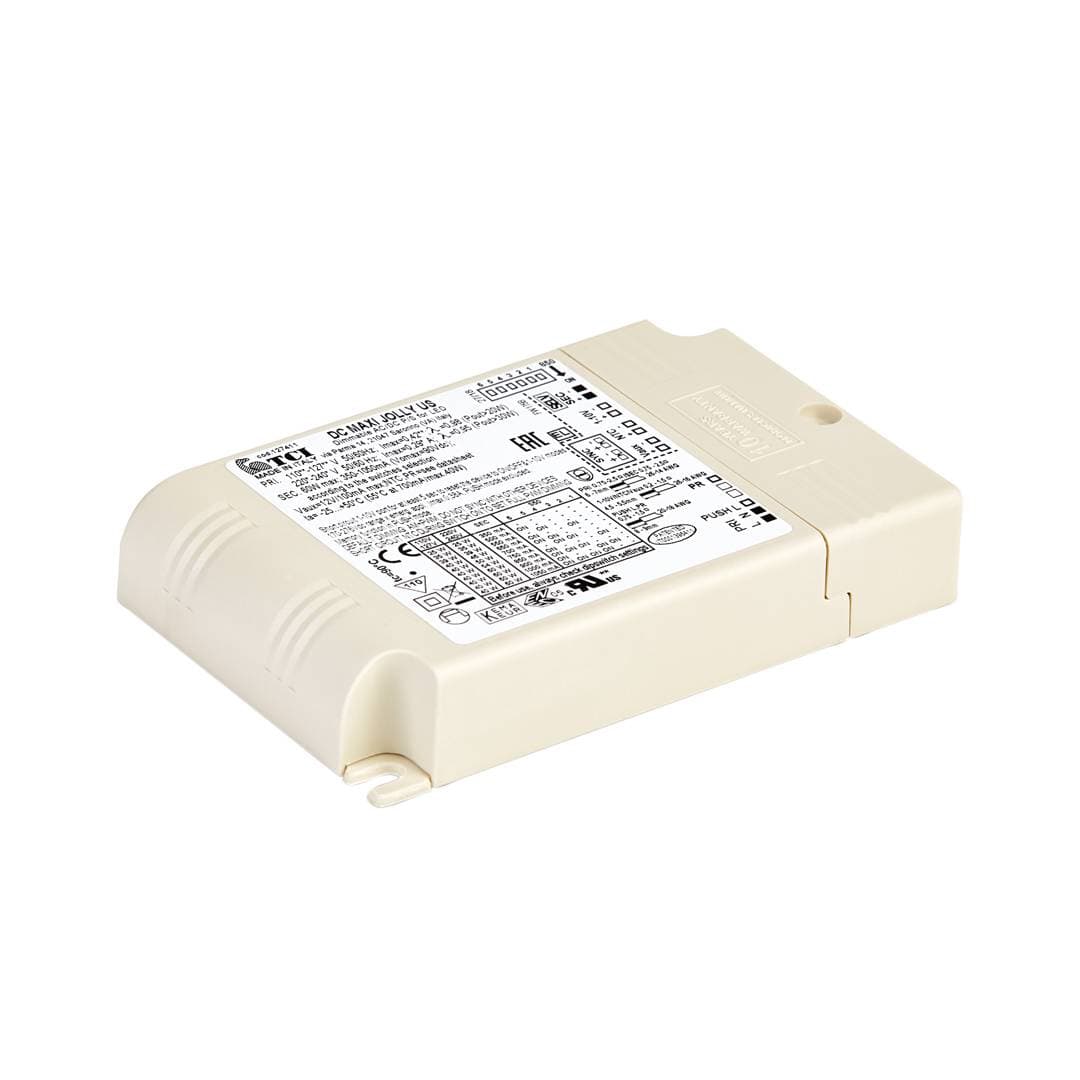

PSDIM900

900mA Driver

PSDIM900

900mA Driver

Product code: PSDIM900

Spec sheet IES File LDT File Flyer Product care

Product data

Warranty

7 years

Ambient Temperature

-25°C - 50°C

Efficiency

Connection Input

0.5-2.5mm² max.

Connection Output

0.5-2.5mm² max.

Driver Output Voltage

2-55

Driver Output Current

900mA

Protection

Short circuit, overload & overheating

Power Factor

0.95

Product Input Current

0.25

Technical drawing

Installation guides

Polar plot

Technical drawing

Installation guides

Polar plot

Add to project list

View Projectlist

About the PSDIM900

A 50W constant current LED driver for 900mA Collingwood LED products. Fit one RDSL or SQSL recessed LED retail products. The PSDIM900 can be controlled by a 1-10v analogue dimmer if you wish to dim.Link up to ten PSDIM900 to one 1-10v dimmer by using a 1m sync cable provided. An extended sync cable of 4m is also available as a separate product to further extend the distance between each power supply.
