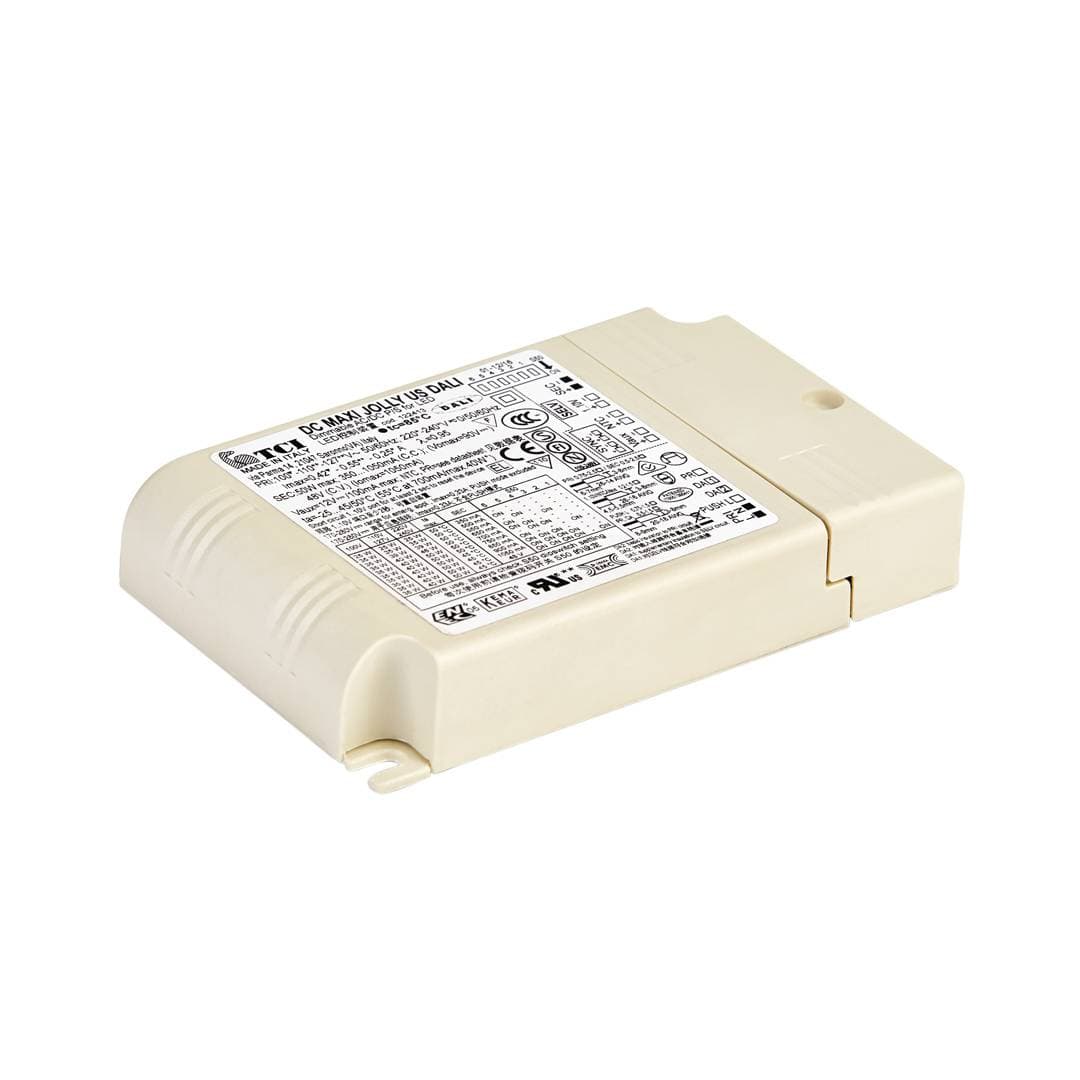

PSDAL900M

900mA Driver

PSDAL900M

900mA Driver

Product data

Warranty
7 years
Ambient Temperature
-25°C - 50°C
Efficiency
>80%
Connection Input
0.5-2.5mm² max.
Connection Output
0.5-2.5mm² max.
Driver Output Voltage
2-55V
Driver Output Current
900mA
Protection
Short circuit, overload & overheating
Power Factor
0.95
Product Input Current
0.25A

About the PSDAL900M

A 50W constant current LED power supply for the large recessed Collingwood LED retail range. Fit up to one RDSL or one SQSL and control either by a 1-10v analogue dimmer or dali addressable. Link up to ten PSDAL900M to one 1-10v dimmer by using a 1m sync cable provided, an extended sync cable of 4m is also available as a seperate product to further extend the distance between each power supply.

Features & Benefits

56W max input

900mA output

1-10V dimmable

IP20 Rated
