PLD UNI-DRIVE 700MA

700mA Driver

PLD UNI-DRIVE 700MA

700mA Driver

Product code: PLD UNI-DRIVE 700MA

Spec sheet IES File LDT File Flyer Product care

Product data

Warranty

5 years

IP Rating

IP20

Ambient Temperature

-25°C - 50°C

Efficiency

Connection Input

0.5-1.5mm² max.

Connection Output

0.5-1.5mm² max.

Driver Output Voltage

2-36

Driver Output Current

700mA

Protection

Short circuit, overload & overheating

Power Factor

0.98

Product Input Current

0.14

Technical drawing

Installation guides

Polar plot

Technical drawing

Installation guides

Polar plot

Add to project list

View Projectlist

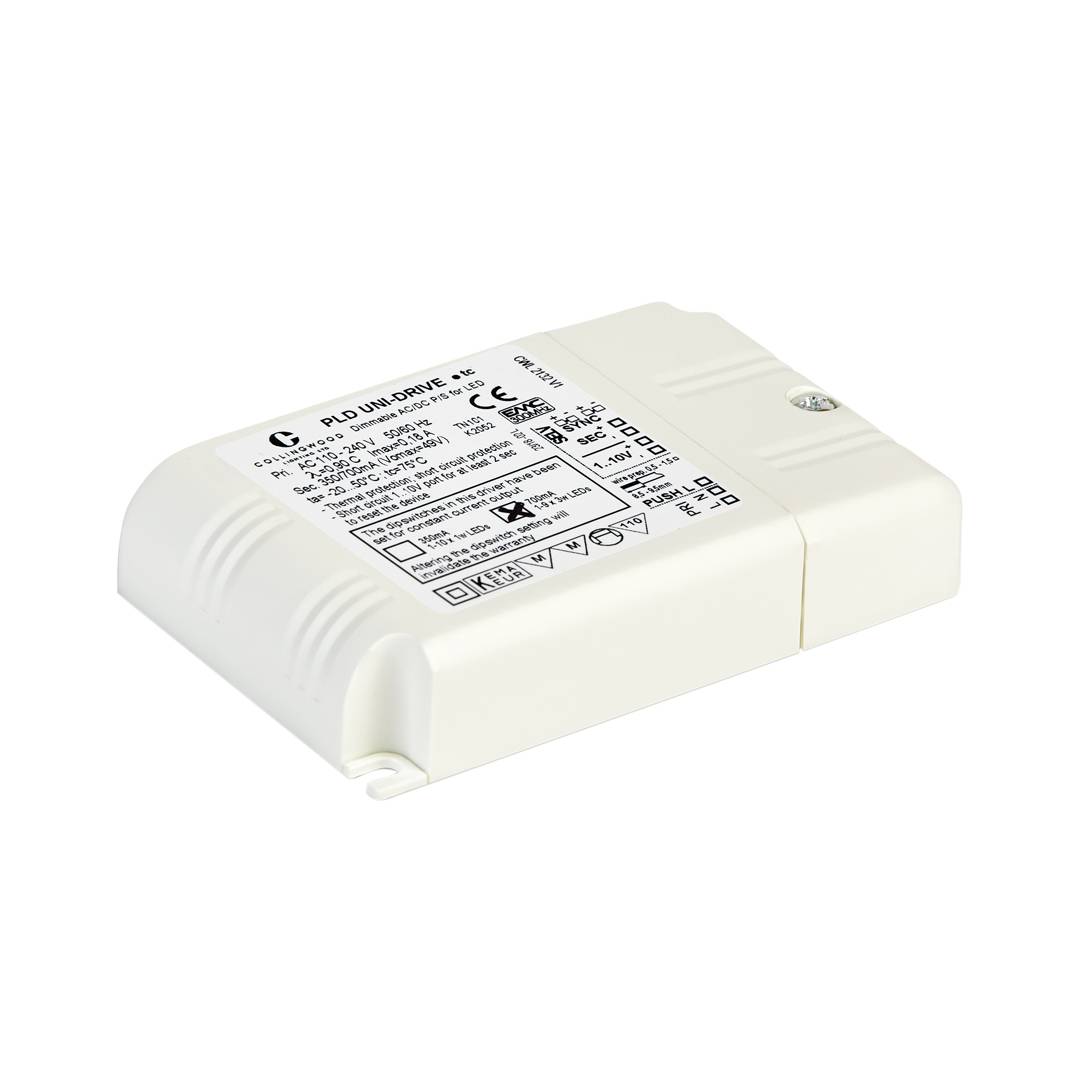

About the PLD UNI-DRIVE 700MA

A dimmable power supply for the 700mA LED range of Collingwood products, wired in series and able to run 1-9 3W LED products. Capable of dimming via a press to make switch or 1-10V analogue using the PDC/GRID DIMMER with the added option of linking up to 10 PLD Unidrive’s to one dimmer.
