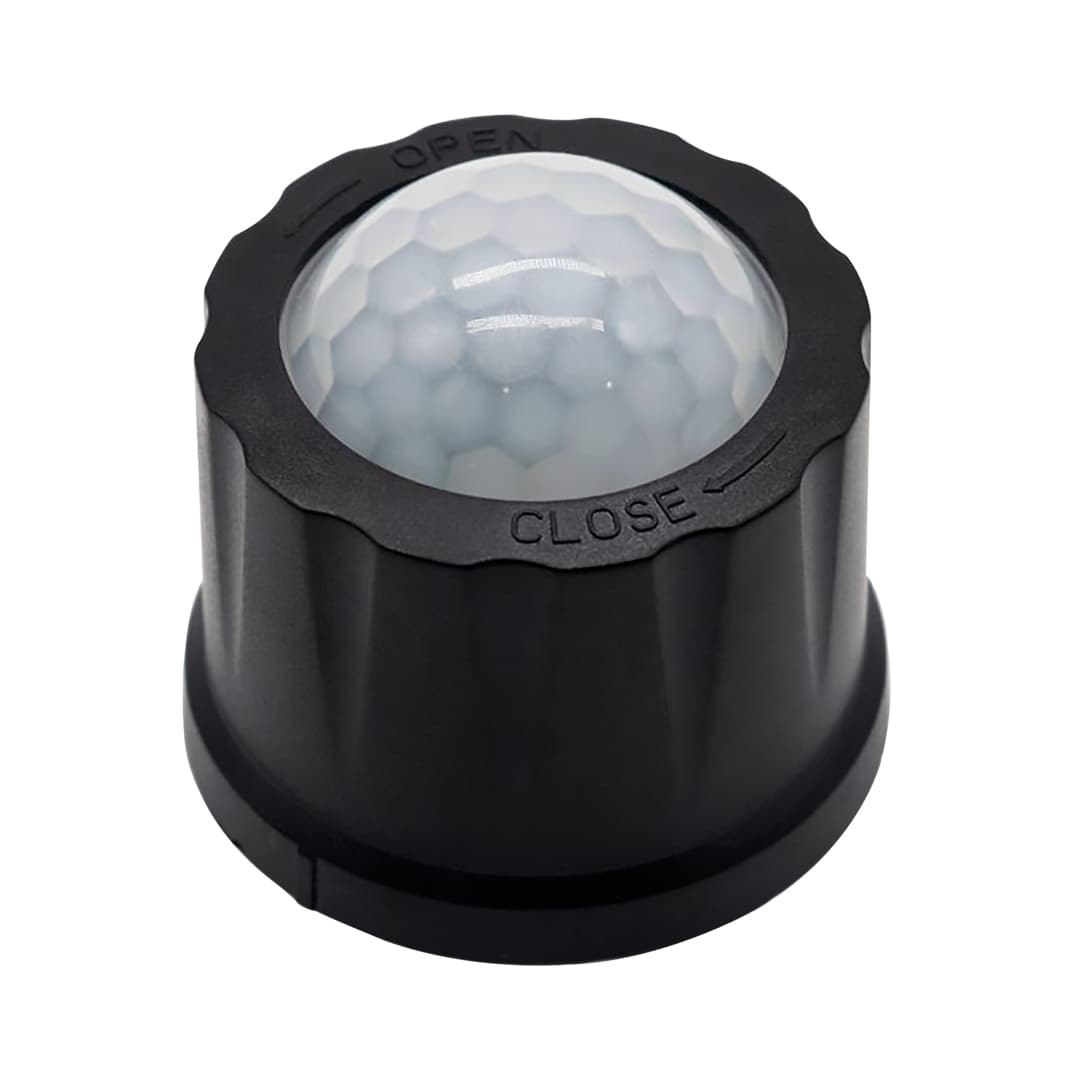

PIR Sensor

Product code: HBPIR

About the PIR Sensor

Passive infra-red (PIR) motion sensor with daylight threshold switch for use with the Area Bay.  IP65 Rated. Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga socket for a typical installation height 8-13m. Hold Time: Default is 5 seconds Options – 30s/1min/3min/5min/10min/20min/30min Stand-by Dimming Level Default is 10% Options – 20%/30%/50% Daylight Threshold Default is ‘disable’ Options 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux Stand-by Period Default is 0 seconds Options – 10s/30s/1min/5min/10min/30min Daylight Threshold Default is ‘disable’ Options – 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux

Features & Benefits

Plugs into the centre of the Area Bay luminaire using the Zhaga socket

Typical installation height 8-13m

Hold time Default is 5 seconds - Options 30s/1min/3min/5min/10min/20min/30min

Stand-by dimming level: Default is 10% Options - 20%/30%/50%

Stand-by period: Default is 0 seconds - Options - 10s/30s/1min/5min/10min/30min

Daylight threshold: Default is 'disable' - Options -2Lux/10Lux/30Lux/50lux120Lux/200Lux/250Lux300Lux/350Lux/400Lux

Use remote controller HBREM to commission

Product code
HBPIR
Warranty 5 years
Input 10.5-15V DC
