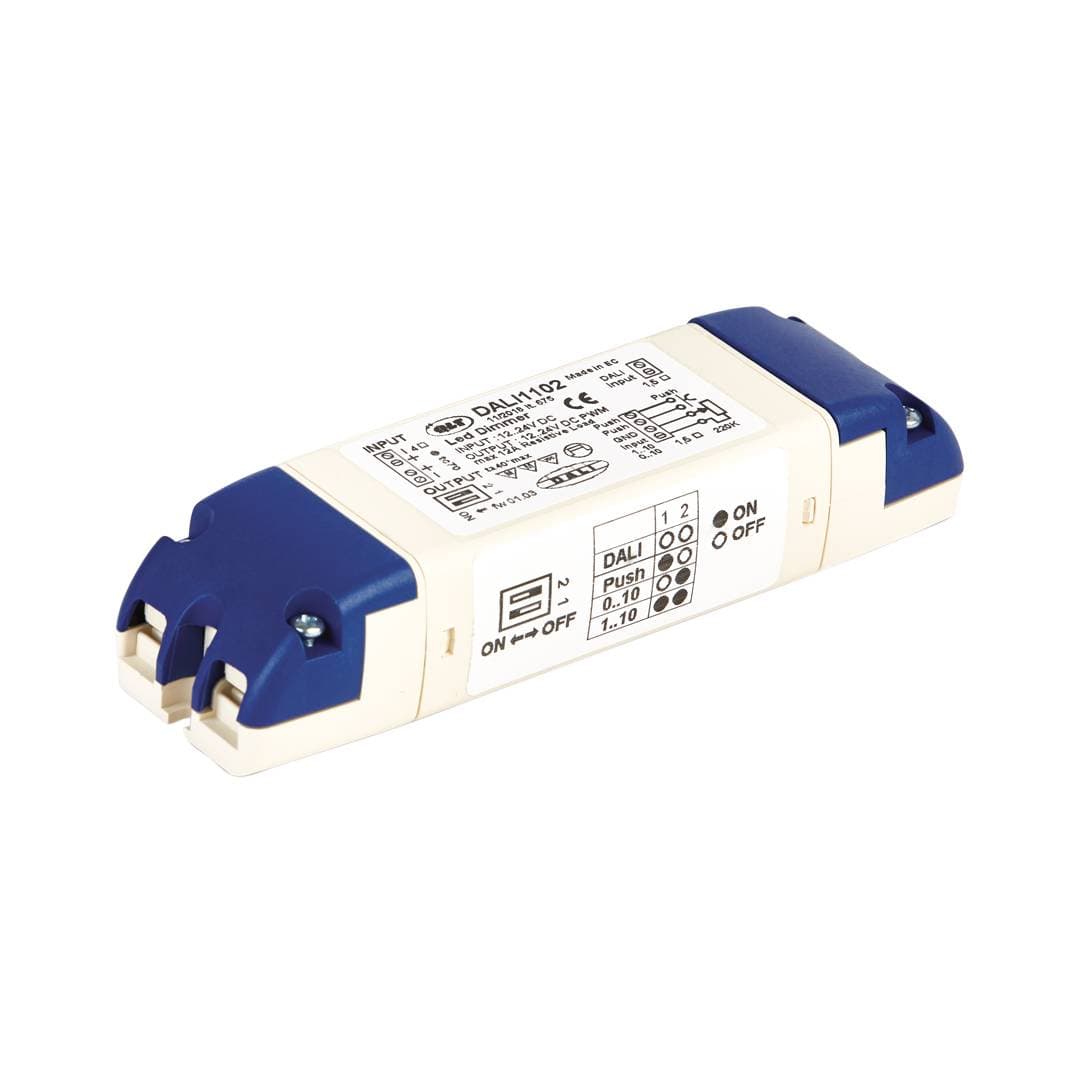

The PDCINT also works with DALI and not just 1-10V. Convert Collingwood’s PDC range of 24V LED drivers in to a dimmable power supply by simply adding the PDC INT 1-10V or DALI to the circuit. Dimming either by push to make or 1-10V analog really adds value to the 24V range of LED products and functionality to any lighting scheme.N.B. Use the PDC/GRID DIMMER.
IP20 rated, ideal for indoor use
1-10V system, all LEDs connected will dim at an equal amount
Also compatible with DALI-2, PUSH DIM and 0-10V
Warranty | 1 Year |
---|---|
Ambient Temperature | -25°C - 40°C |
Efficiency | 99% |
Connection Input | 4mm² max. |
Connection Output | 1.5mm² max. |
Driver Output Voltage | 24V DC |
Driver Output Current | 12A max. |
Product Input Current | 12A max. |
