Linear Prism

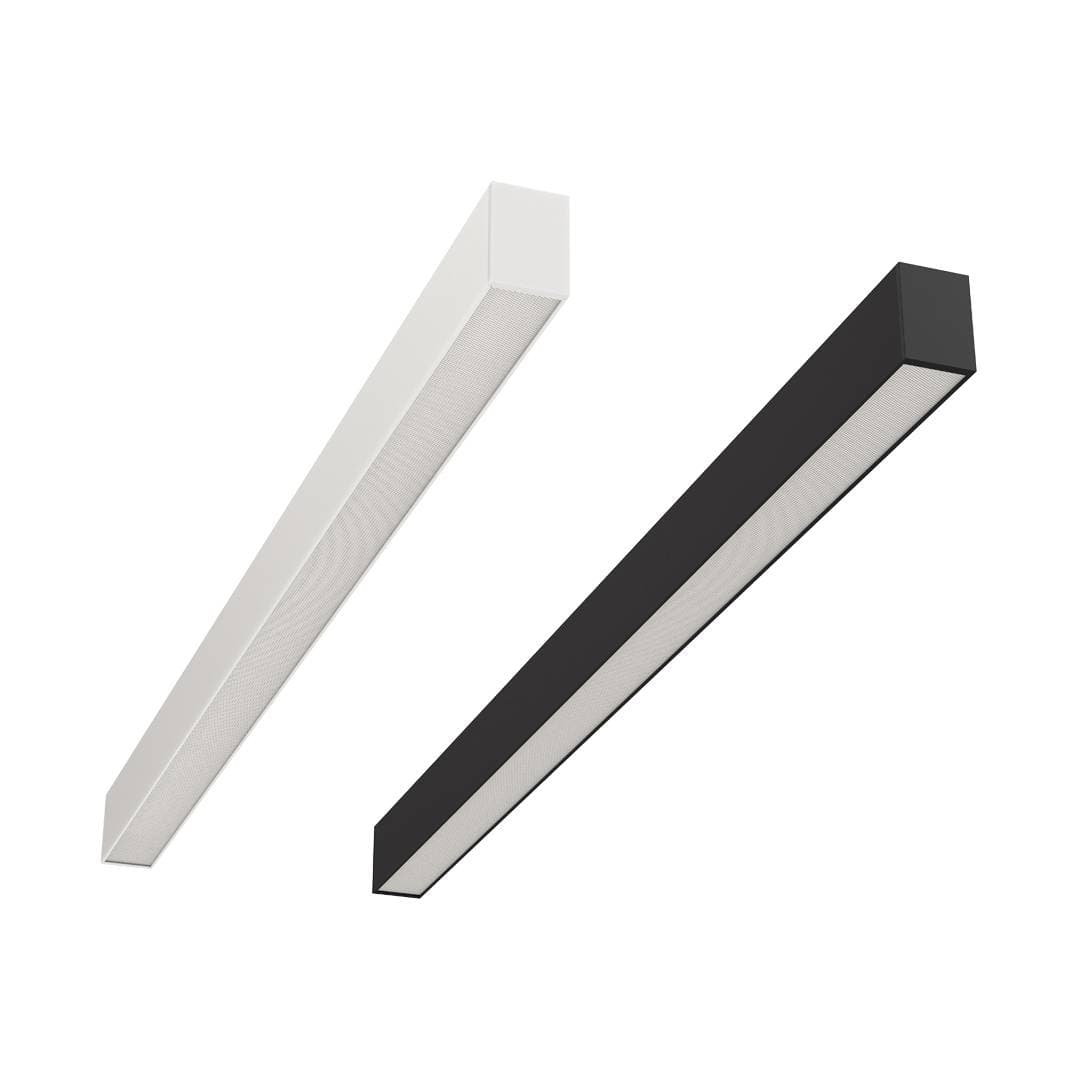

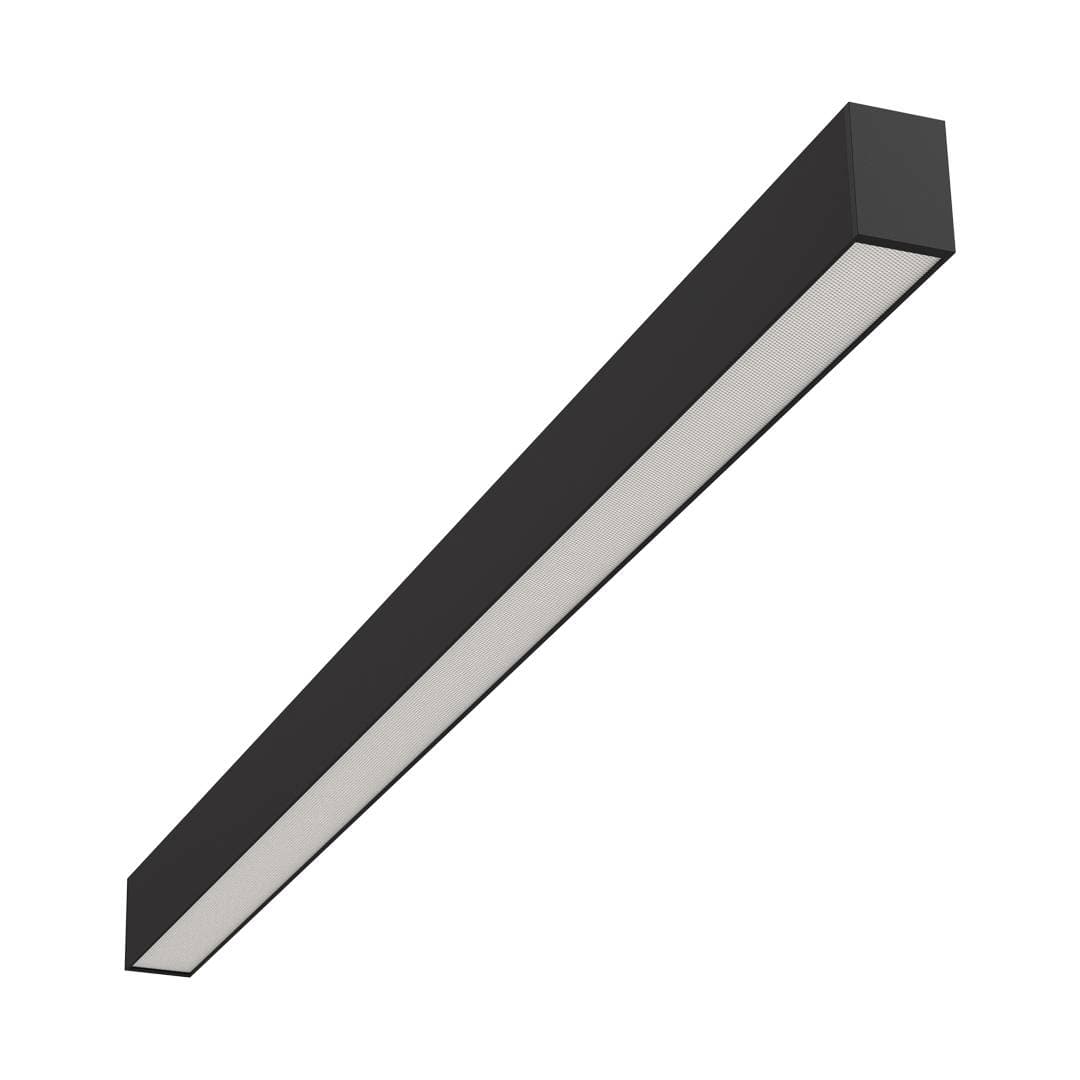

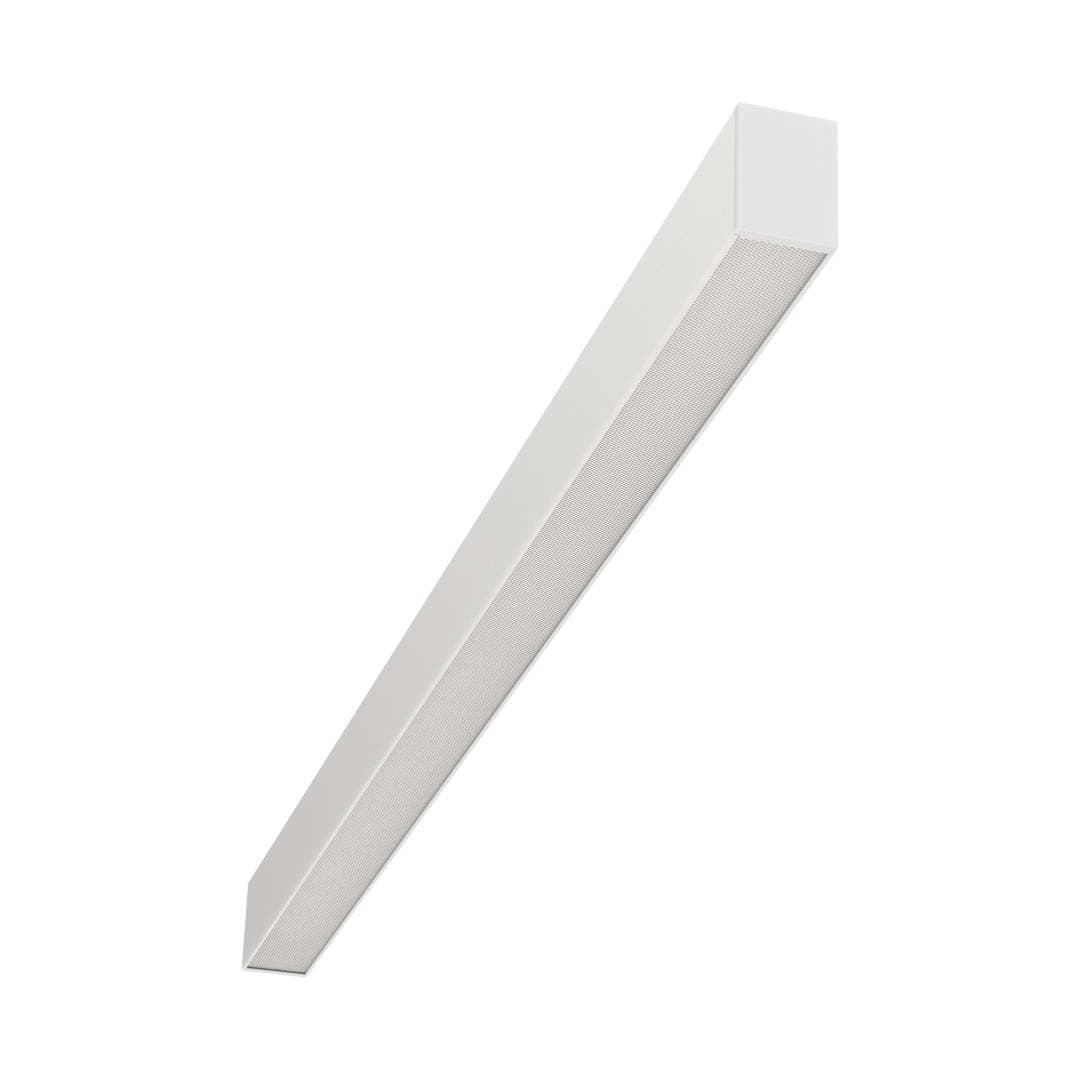

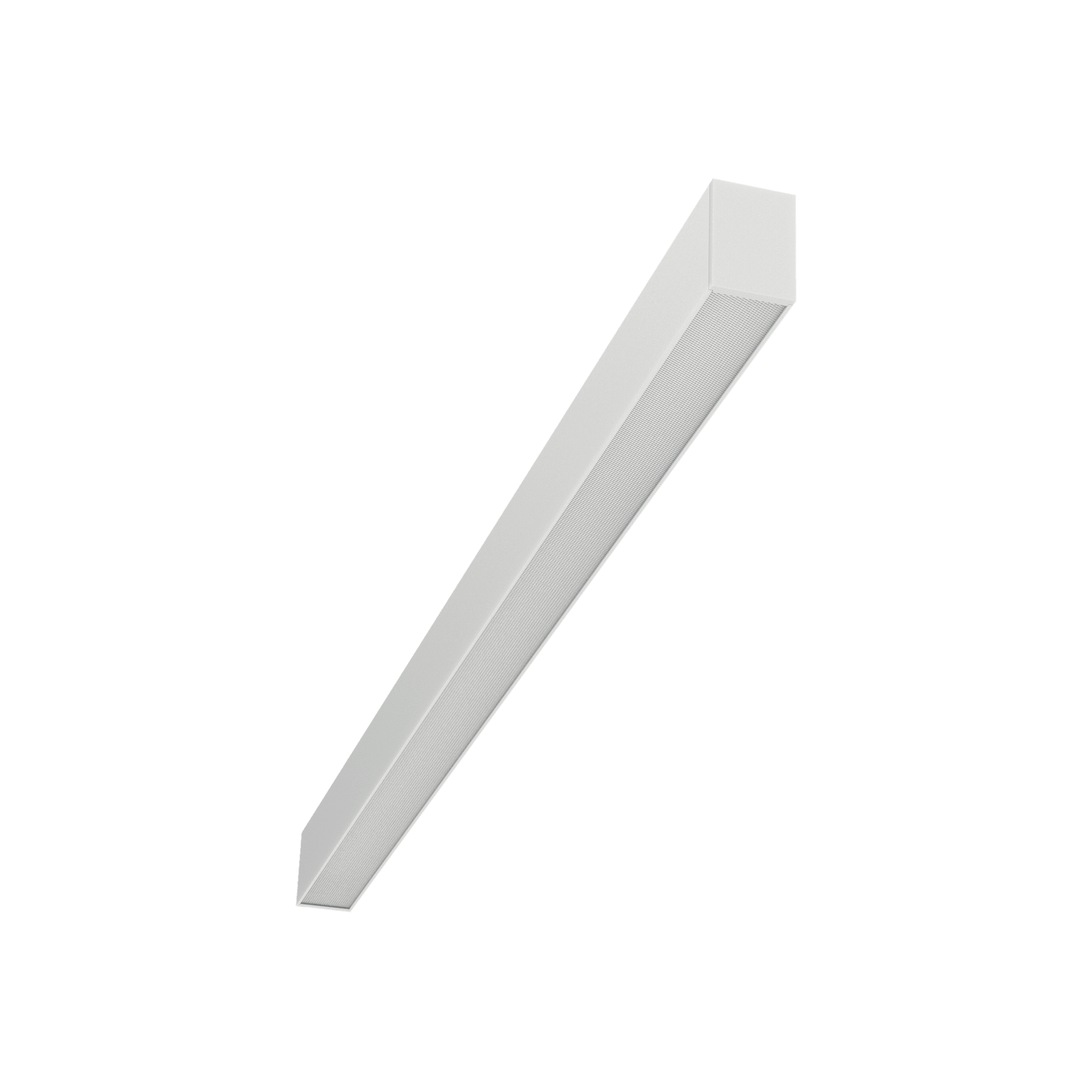

Linear Prism brings modern design and efficiency into your space. Switch between warm, neutral, and cool white light (3000K-3500K-4000K) to create the ideal ambiance, while UGR19 compliance ensures minimal glare. Providing exceptional energy savings (up to 130lm/W) and can be mounted individually or connected for continuous runs (up to 20 luminaires with an accessory kit). Choose between on/off and dimmable control options, and add a touch of elegance with optional decorative ceiling rose kits (LCLBS1DCRKIT/LCLW1DCRKIT). It is ideal for offices, retail spaces, and even homes, delivering both style and performance.

Wattage Switchable between 21W to 32W
Colour Switchable between 3000K-3500K-4000K
Energy efficient up to 130Llm/W
Dimmable as standard
Must be sold with either accessory LCLBS1DCRKIT=Black / LCLW1DCRKIT=White to provide a decorative ceiling rose for the power cable
Install as an individual luminaire or create a continuous run lightline (up to 20 luminaires) using accessory LCLCONKIT
L shaped connector available for creating corners

Colour / Finish

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	UGR	Wattage Range	Width
LPLB1D	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	Black	80	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2300 - 3400	Ceiling,Suspended	None	22	21-31W	50 mm
LPLW1DES	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	White	-	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2650 - 4000	Ceiling,Suspended	None	22	21-31W	50 mm
LPLB1DES	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	Black	-	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2300 - 3400	Ceiling,Suspended	None	22	21-31W	50 mm
LPLW1D	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	White	80	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2650 - 4000	Ceiling,Suspended	None	22	21-31W	50 mm

Accessories

Find the perfect product you are looking for.

LPLW1LCON

Linear Prism White L Connector

LPLB1LCON

Linear Prism Black L Connector

LCLW1DCRKIT

Ceiling Rose Kit, DALI/Push

LCLCONKIT

Light Line Connect Kit

LCLBS1DCRKIT

Ceiling Rose Kit, DALI/Push

Projects Featuring Linear Prism

Check out these projects that made the most of the Linear Prism.

Architectural

Grand Design – Carbon Zero House

Colour / Finish

Code	Adjustability	Base Shape	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Sensor Option	UGR	Wattage Range	Width
LPLB1D	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	Black	80	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2300 - 3400	Ceiling,Suspended	None	22	21-31W	50 mm
LPLW1DES	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	White	-	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2650 - 4000	Ceiling,Suspended	None	22	21-31W	50 mm
LPLB1DES	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	Black	-	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2300 - 3400	Ceiling,Suspended	None	22	21-31W	50 mm
LPLW1D	Not adjustable	Linear	67	ABS	3000K / 3500K / 4000K	White	80	DALI-2,PUSH-DIM	Self-Test	IP20	1,200 mm	2650 - 4000	Ceiling,Suspended	None	22	21-31W	50 mm
