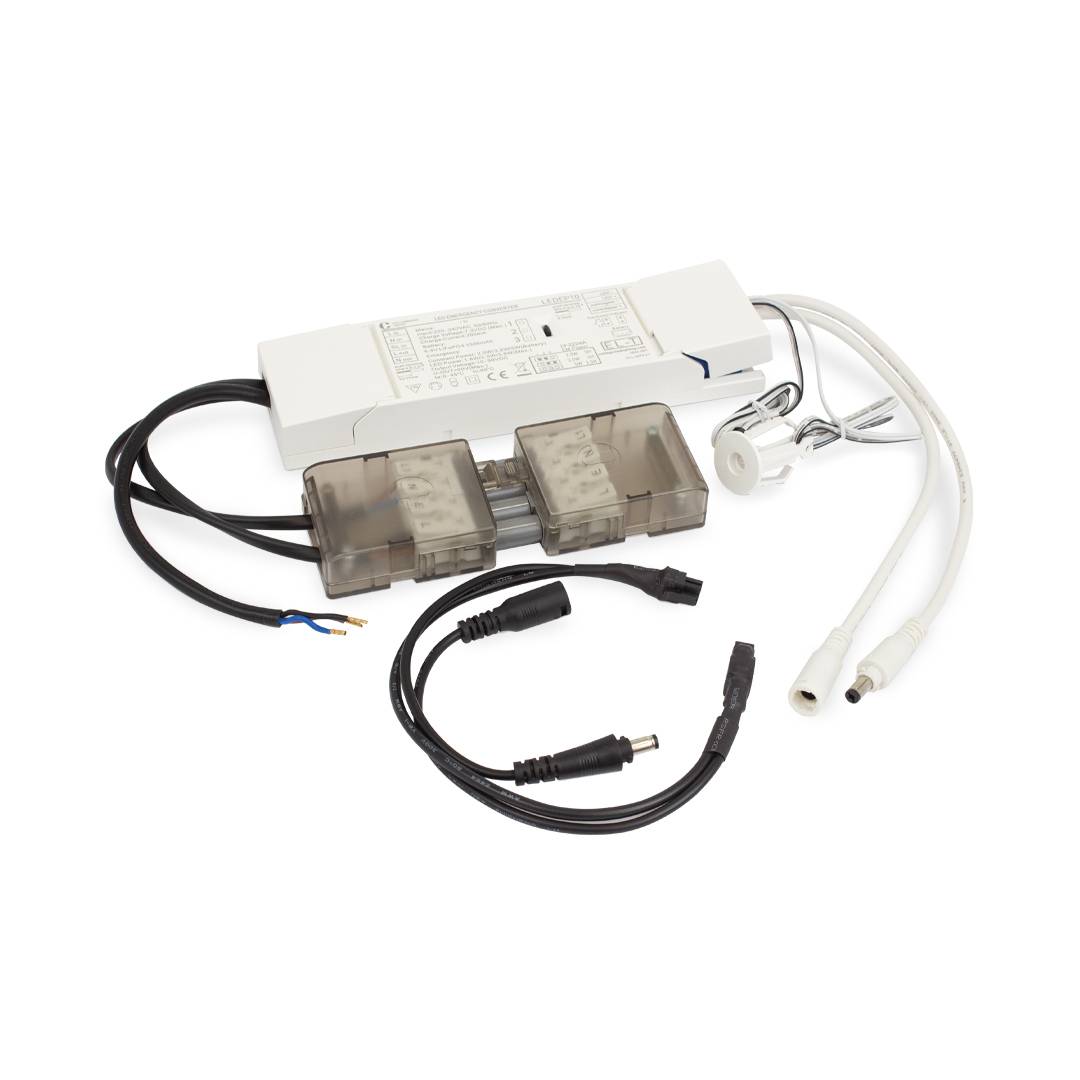

LEDEP15

LEDEP15 is the dedicated emergency pack for H2 Sense downlights fitted with a sensor bezel that are wired as masters controlling other connected lights on the circuit. It provides a complete reliable solution for intelligent and emergency lighting. If the H2 Sense with PIR bezel is not wired to control other lights on the circuit the LEDEP14 emergency pack is required.

Self-test and Manual-test switchable
LiFePO4, provides long operational life
A minimum of 3 hours of emergency lighting
Built-in protection: - open circuit - over charging - over discharging - over temperature
Dual colour Green / Red LED status indicator
Supplied with a test button, whereby a battery duration test can be carried out at anytime
Synchronizes an automatic battery duration test every 6 months
Compatible with H2 Sense (PIR Bezel)
IP20

Product Data

Code	Description	Input	Colour / Finish	Warranty	Install Connector Type	IP Rating	Width	Length	Height	Downloads

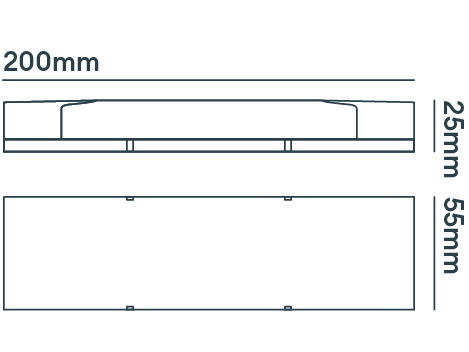

LEDEP15	H2 Sense Primary Switching EM Converter 2.5w	220-240V AC	Matt White	5 years (extended)	Mains: Push-fit terminals 0.5 - 2.5mm² DC: Plug & Play connectors	IP20	55	200	25
