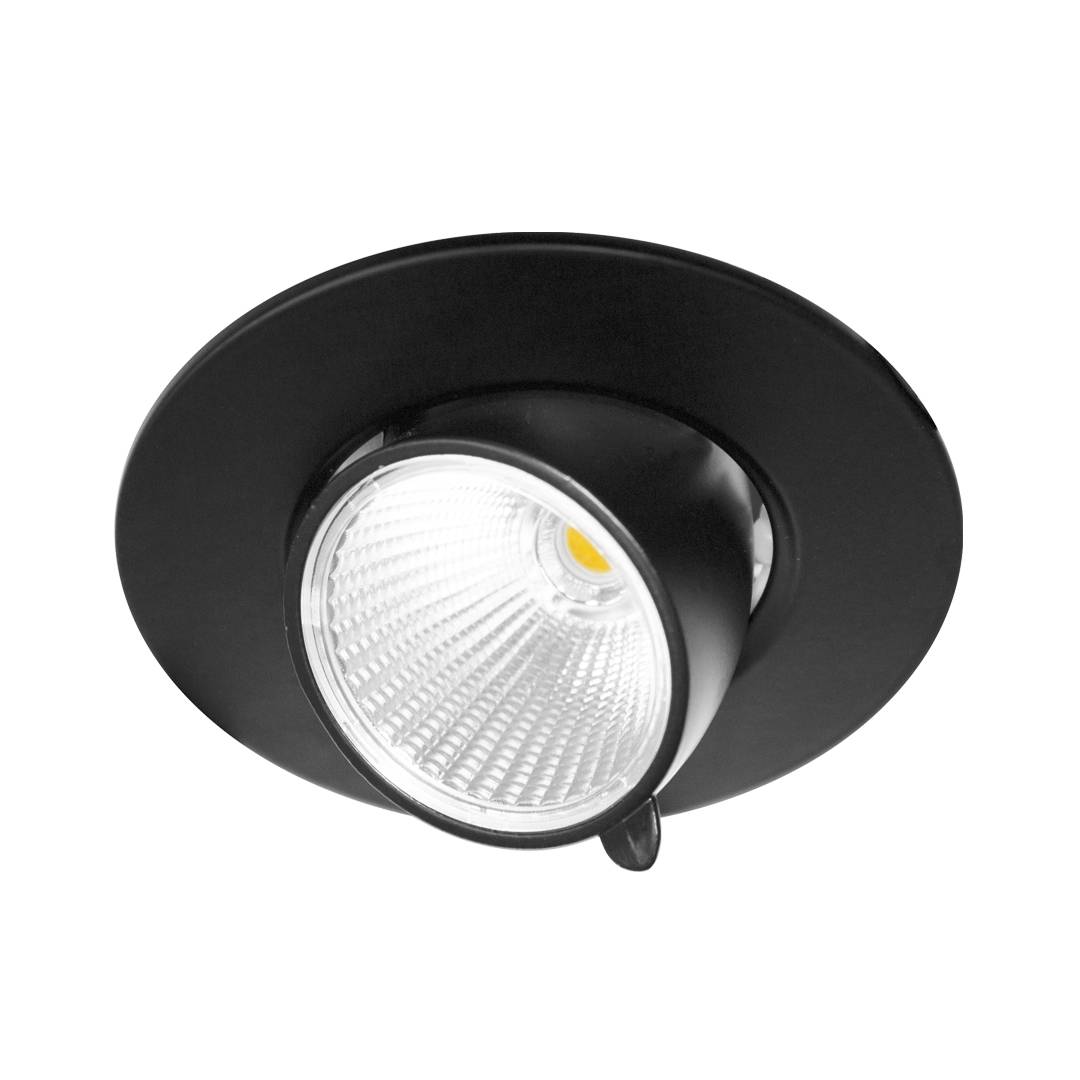

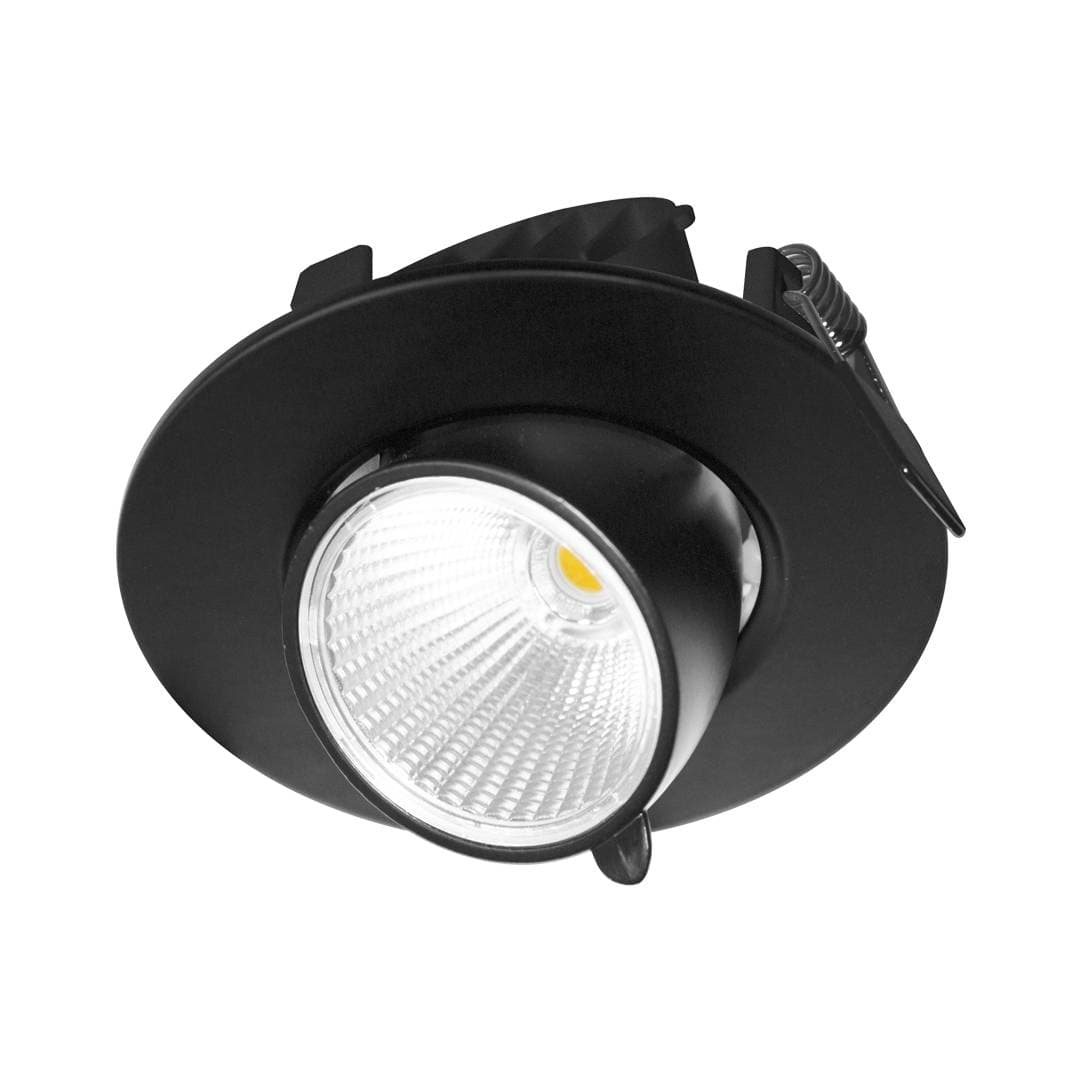

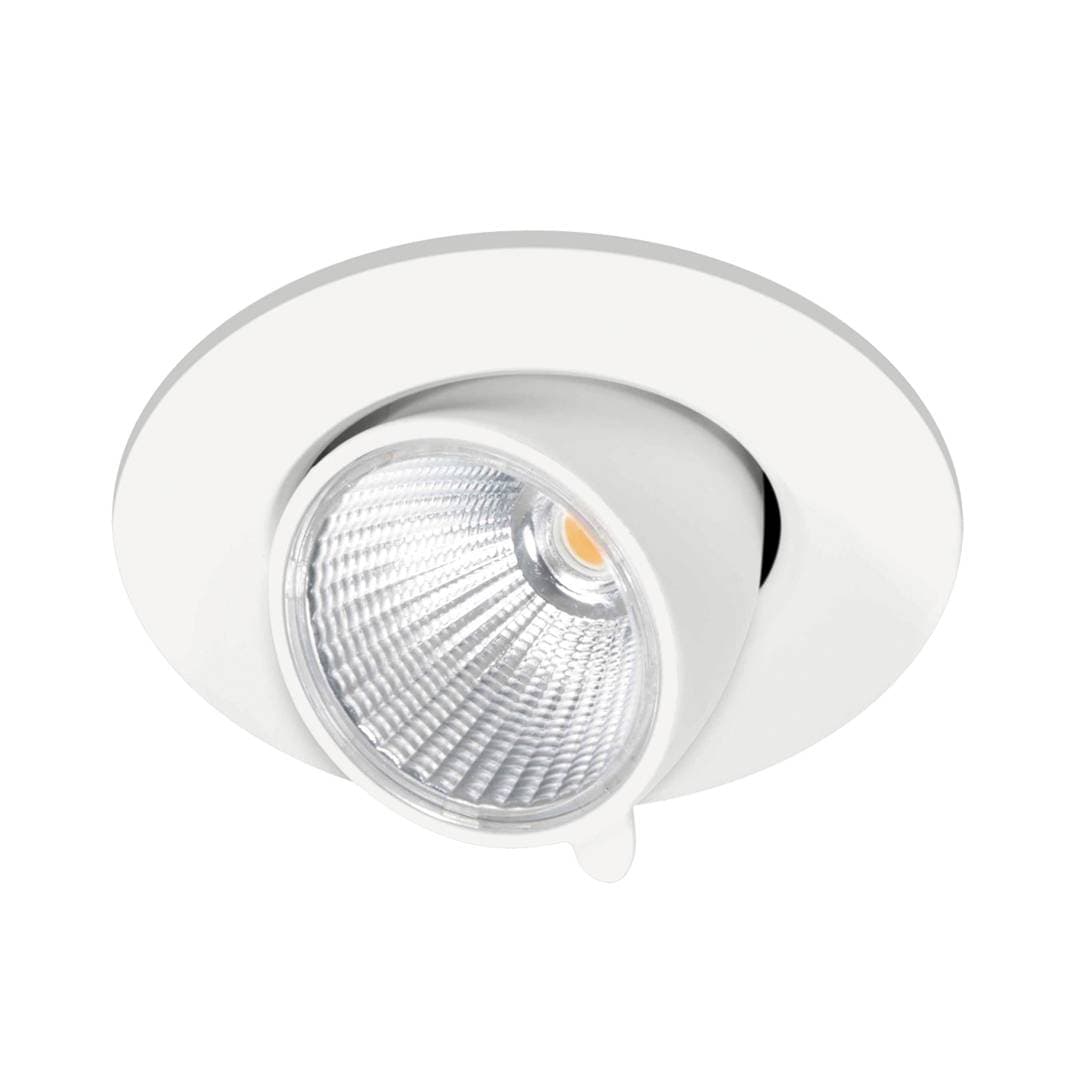

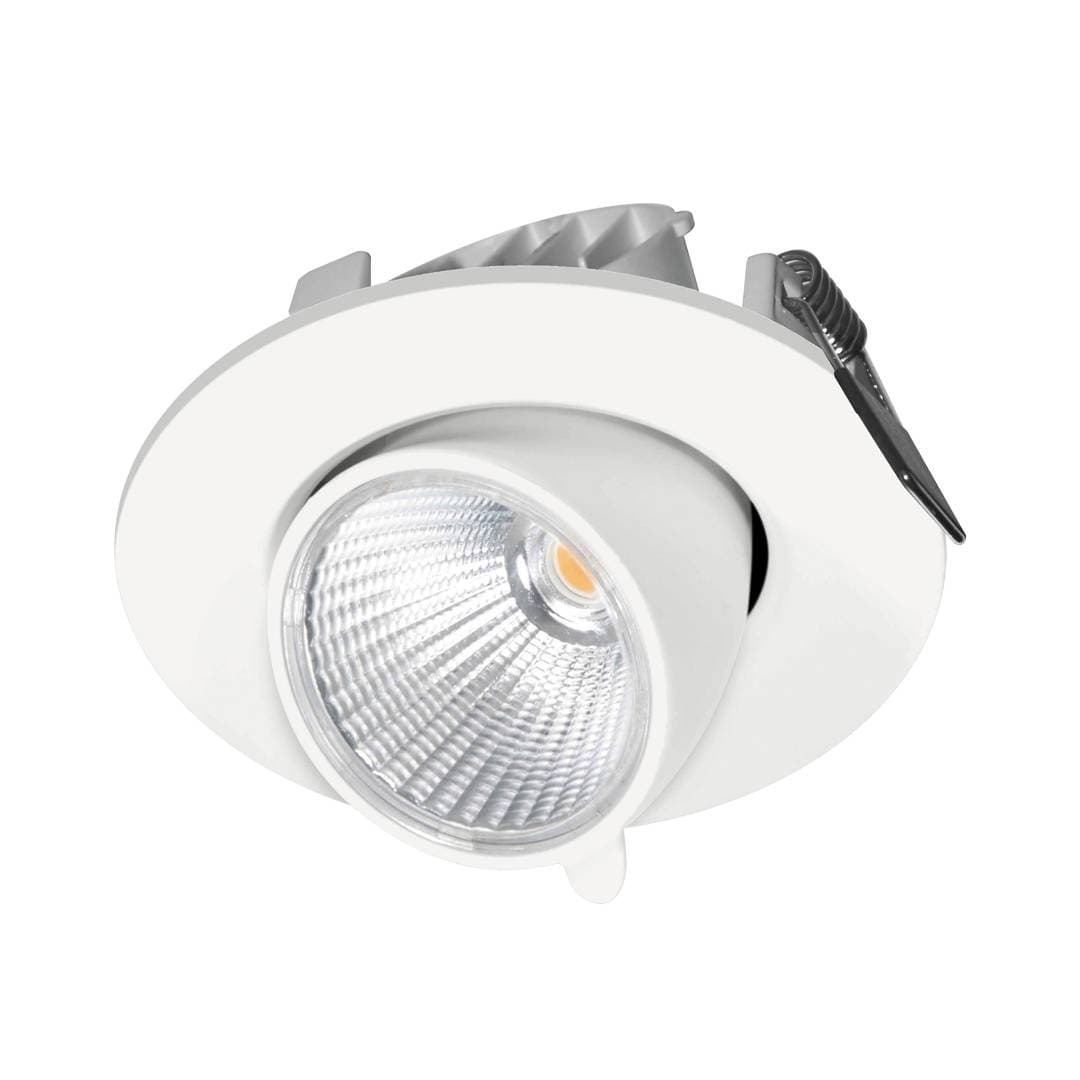

JADE RDX

Adjustable round recessed spotlight.
Fastened with springs.
Remote dimmable converter supplied.
Compatible with start and end-of-phase dimmer.
As an option. DALI-PUSH CD140 dimmable converter to be ordered separately.

IP20 perfect for internal applications
DALI dimmable option available
CRI 80 providing true colour appearance
Quick and easy installation with springs

Code	Adjustability	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Cut Out	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Reflector Finish	Sensor Option	Wattage Range	Width
DO272NW05	Rotating and swivelling	38	Aluminium	4000K	Matt Black	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1030	Recessed	Silver	None	12W	110 mm
DO272WW30	Rotating and swivelling	38	Aluminium	3000K	Matt White	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1000	Recessed	Silver	None	12W	110 mm
DO272NW30	Rotating and swivelling	38	Aluminium	4000K	Matt White	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1030	Recessed	Silver	None	12W	110 mm
DO272WW05	Rotating and swivelling	38	Aluminium	3000K	Matt Black	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1000	Recessed	Silver	None	12W	110 mm

Code	Adjustability	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Cut Out	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Reflector Finish	Sensor Option	Wattage Range	Width
DO272NW05	Rotating and swivelling	38	Aluminium	4000K	Matt Black	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1030	Recessed	Silver	None	12W	110 mm
DO272WW30	Rotating and swivelling	38	Aluminium	3000K	Matt White	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1000	Recessed	Silver	None	12W	110 mm
DO272NW30	Rotating and swivelling	38	Aluminium	4000K	Matt White	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1030	Recessed	Silver	None	12W	110 mm
DO272WW05	Rotating and swivelling	38	Aluminium	3000K	Matt Black	80	96 mm	With start-of-phase & end-of-phase dimmer	None	IP20	110 mm	1000	Recessed	Silver	None	12W	110 mm
