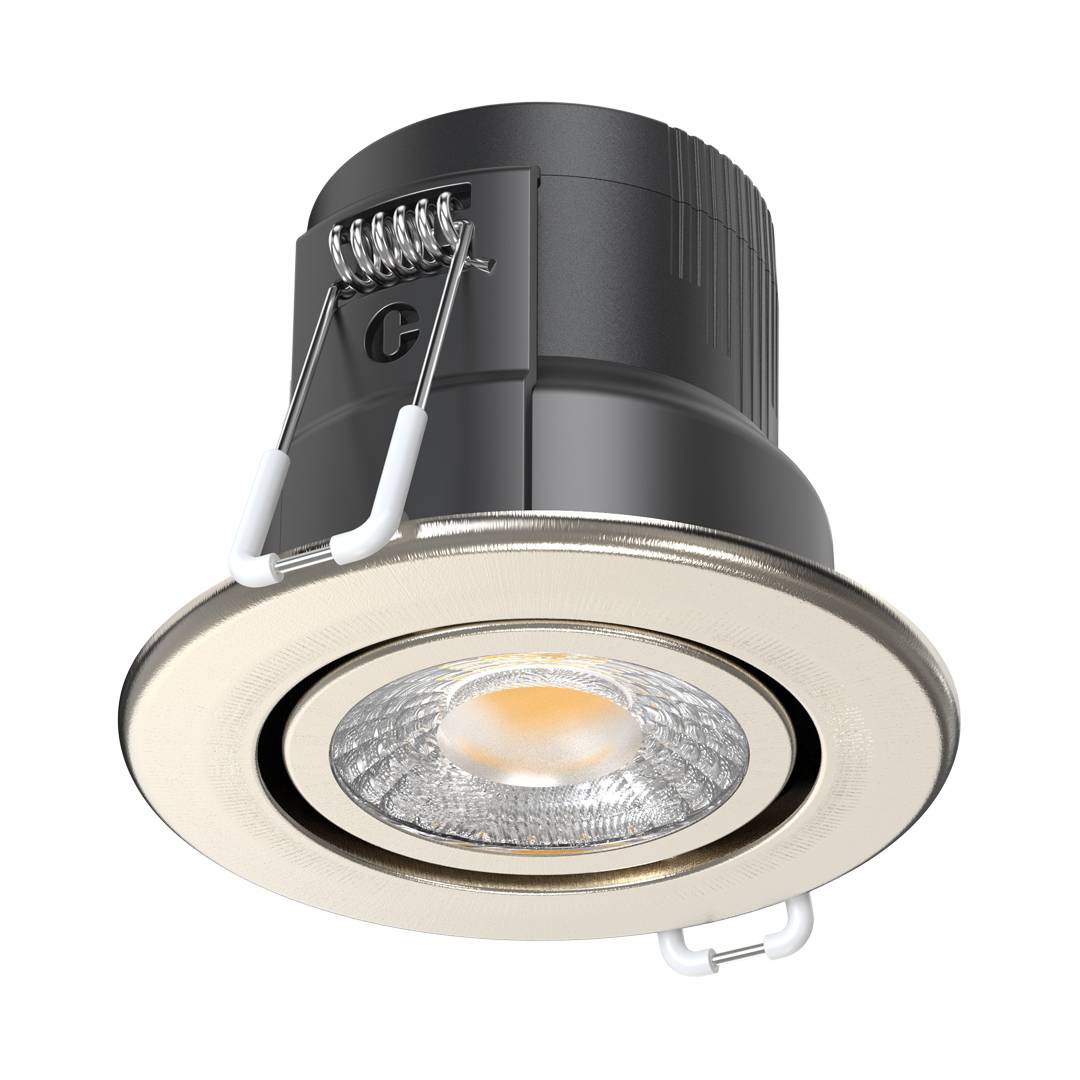

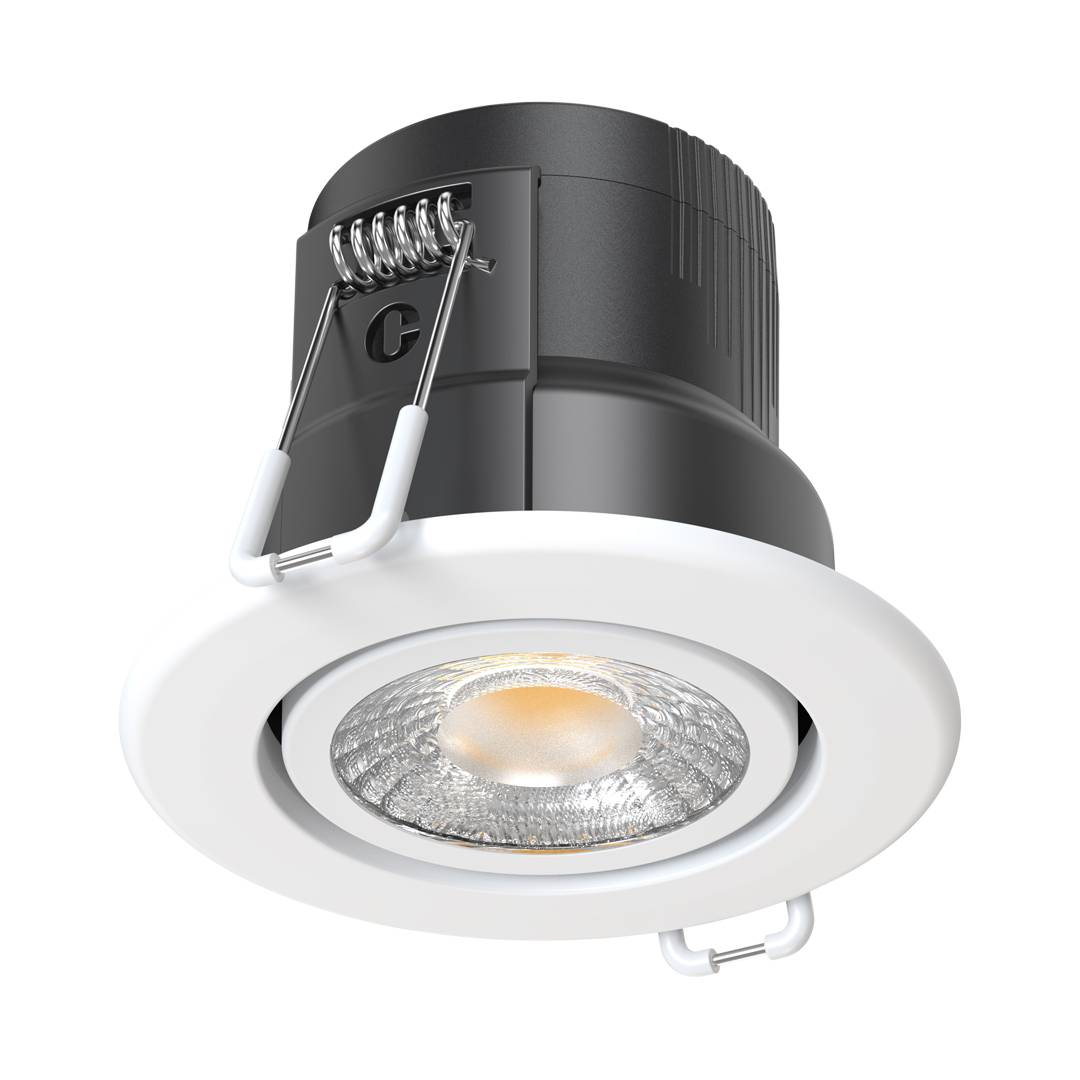

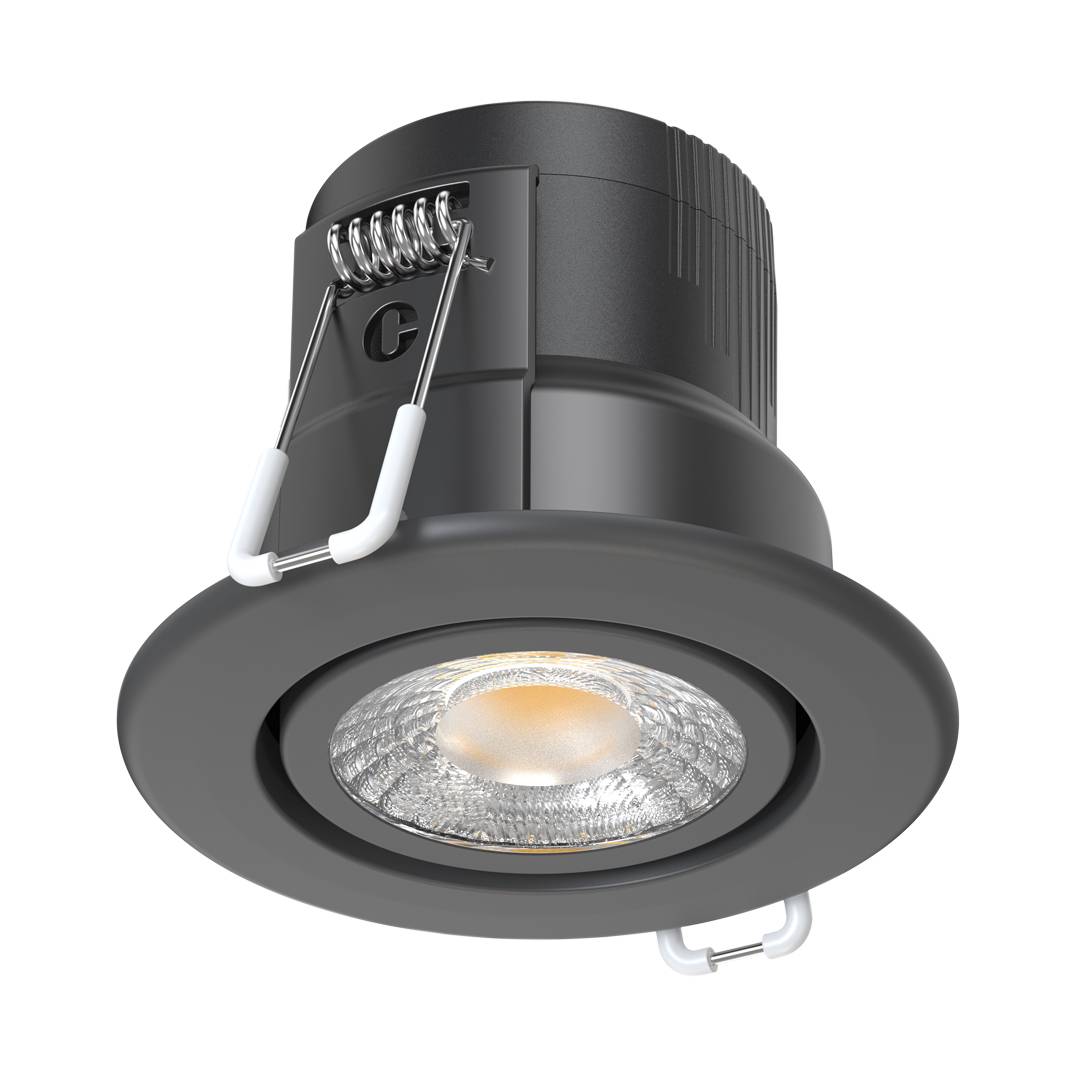

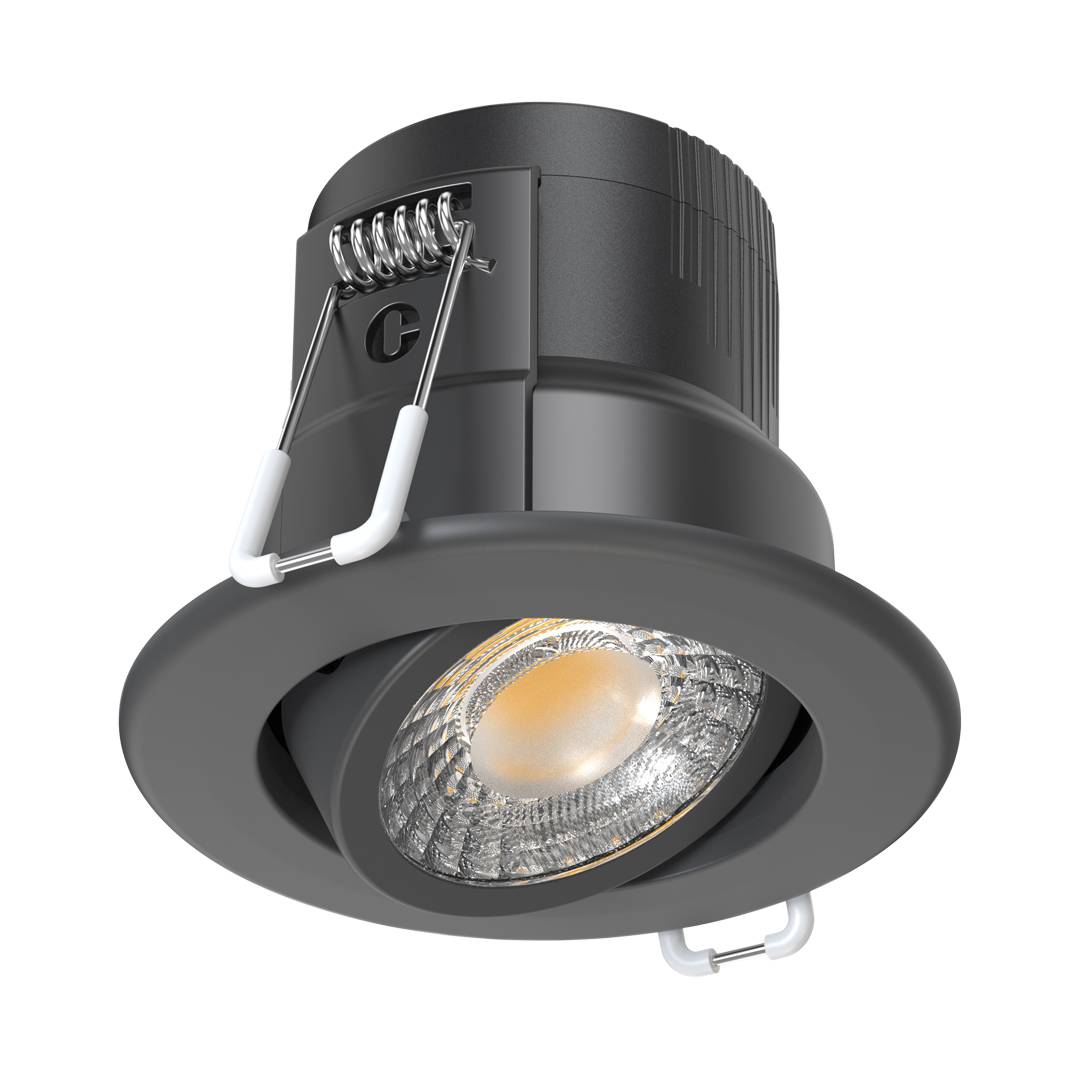

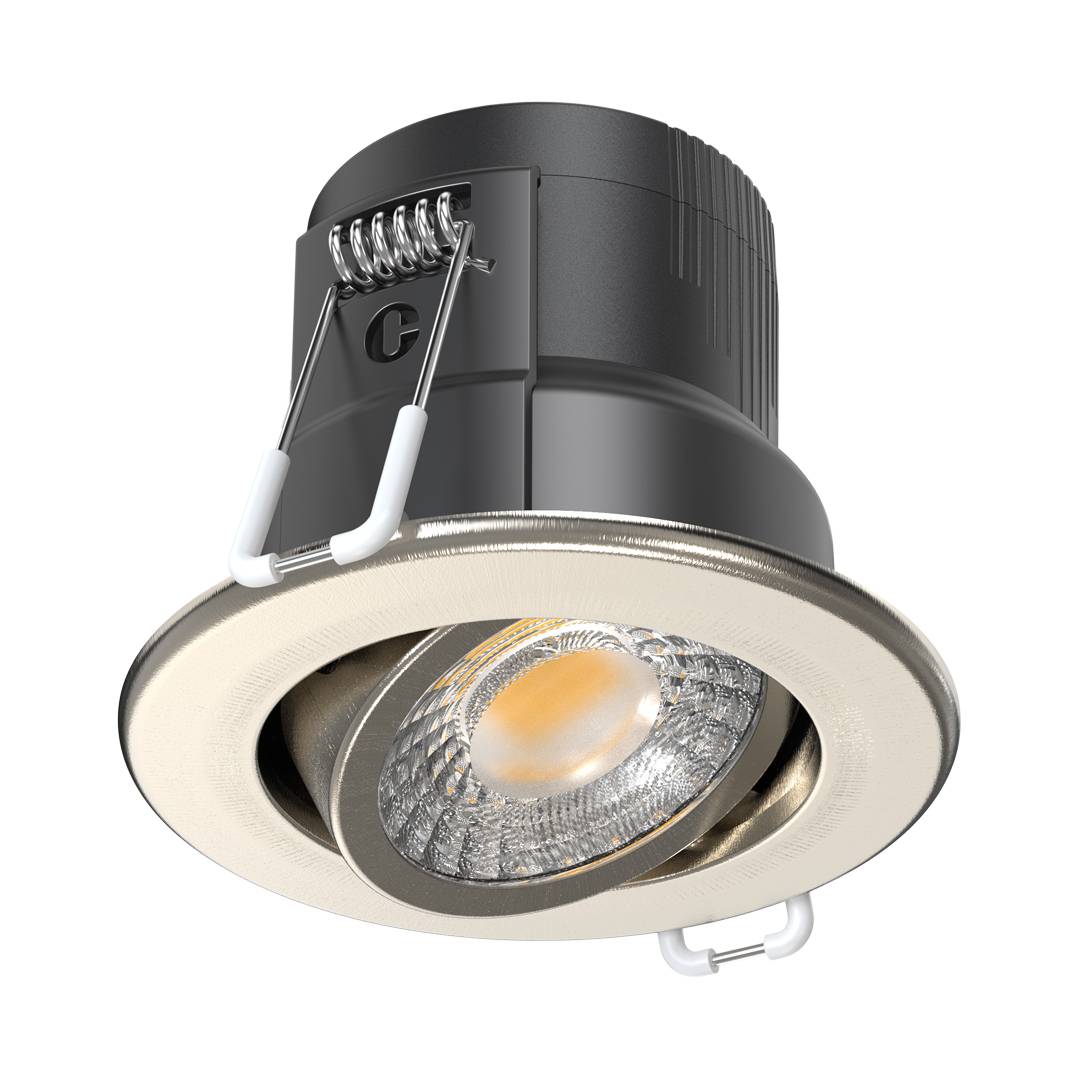

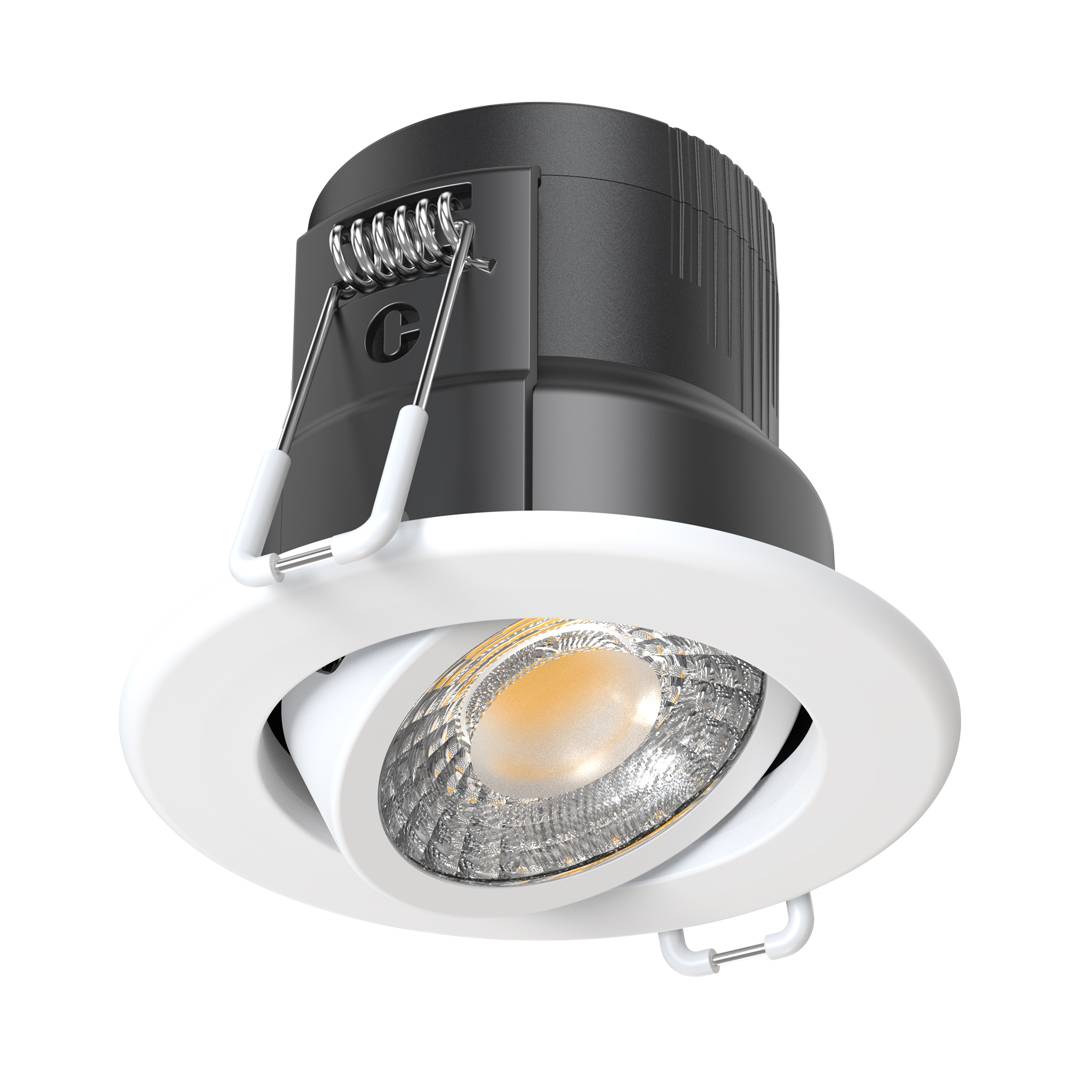

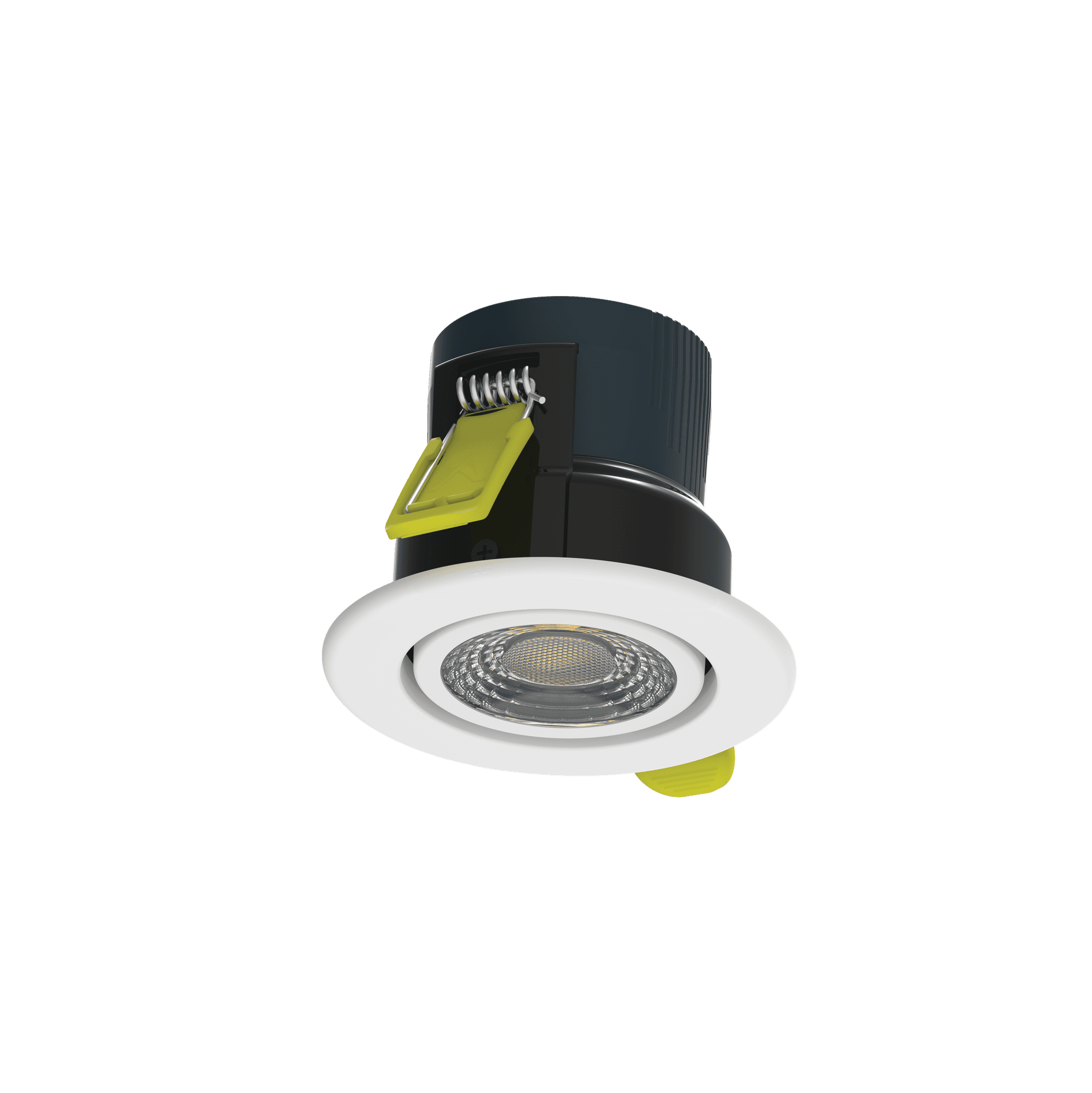

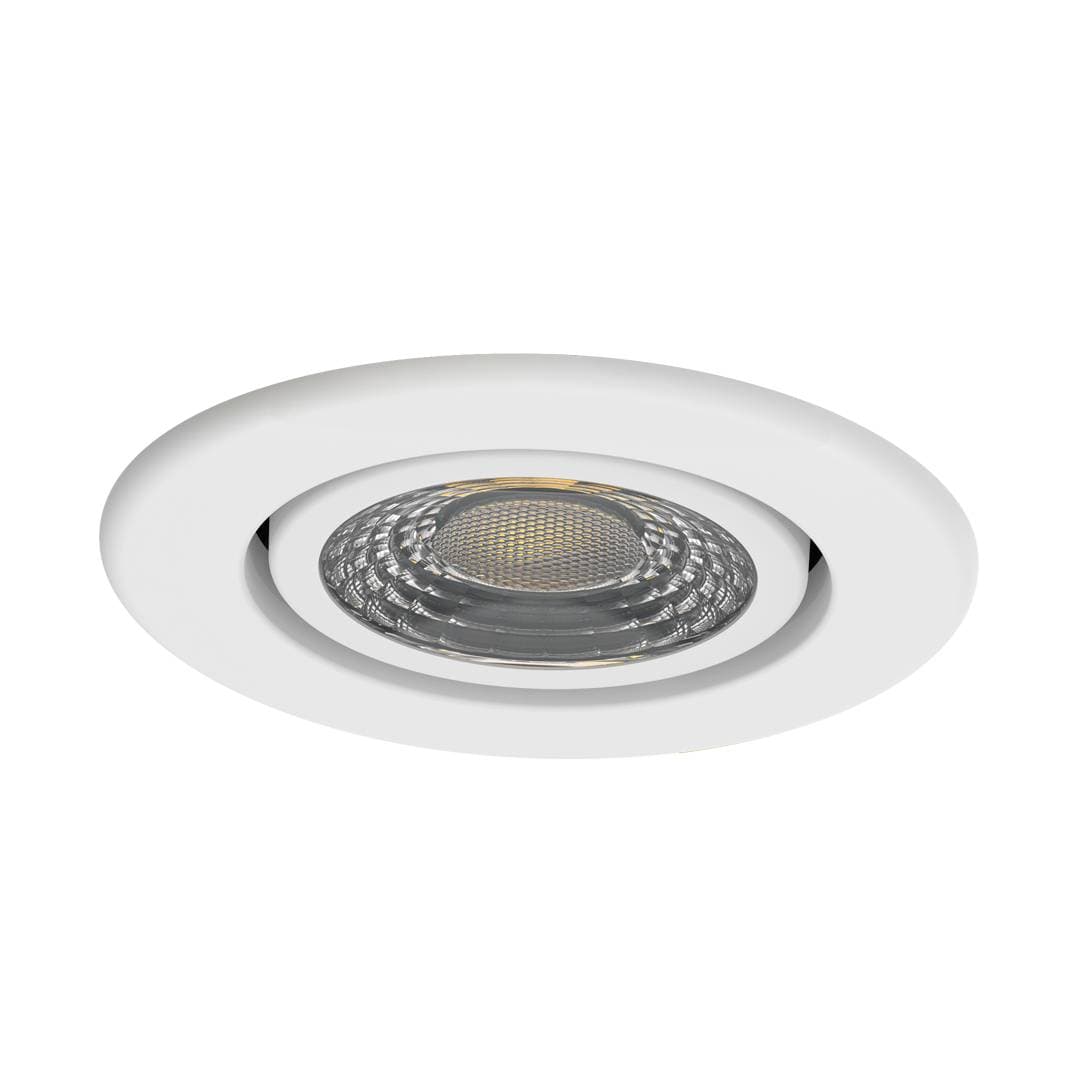

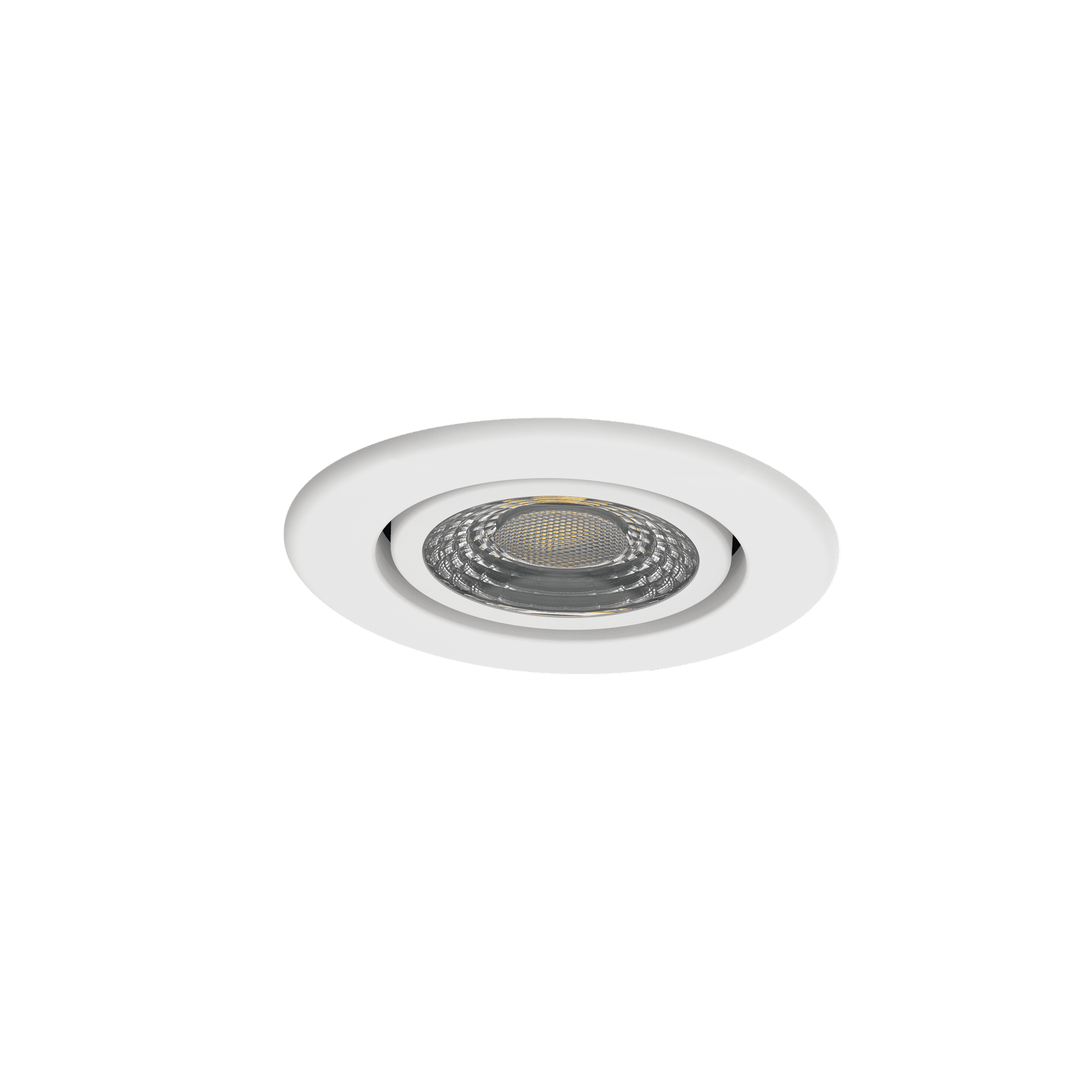

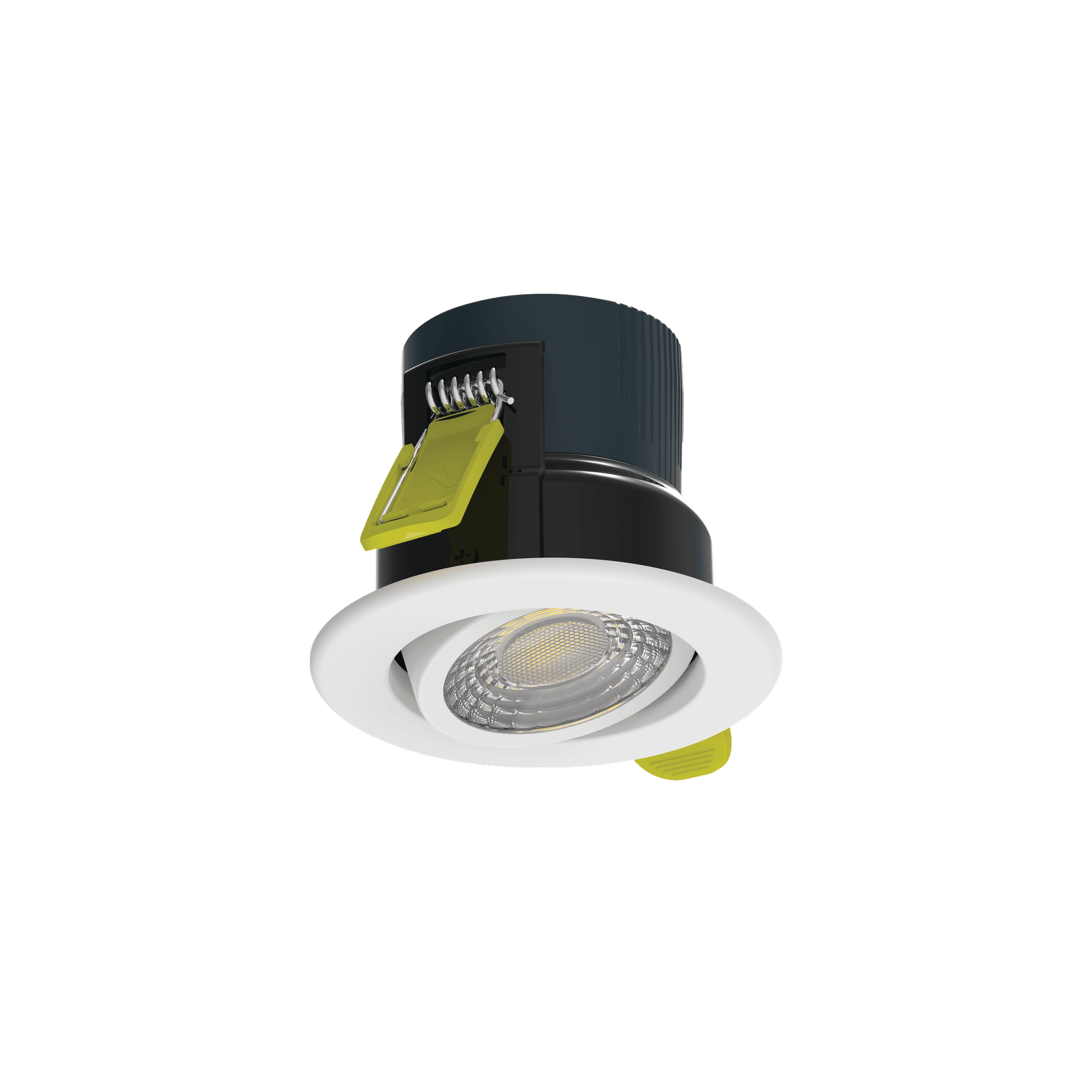

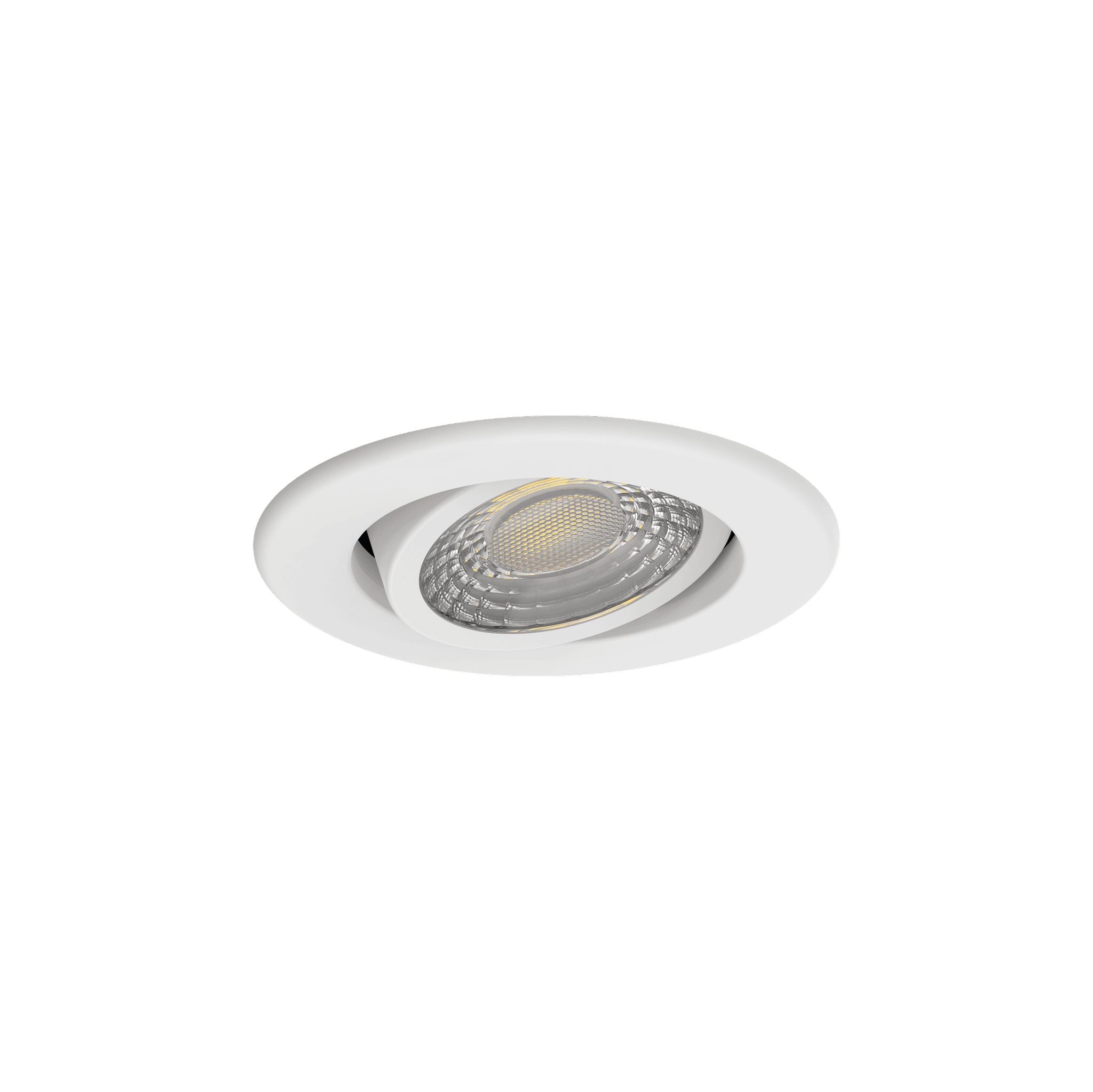

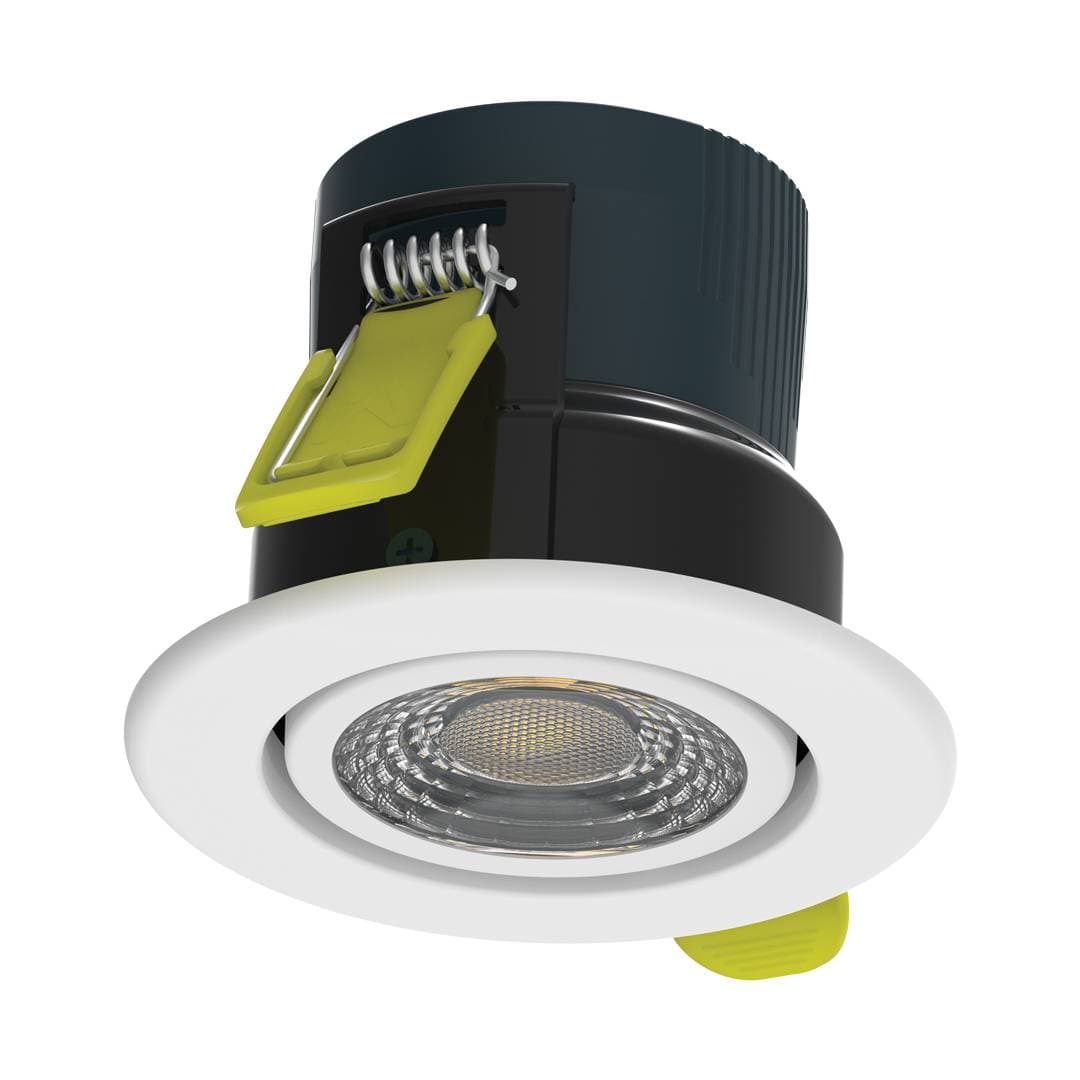

H4 Lite CSP

H4 Lite CSP is a superior solution that is engineered to be the perfect fit-and-forget solution. The colour temperature and wattage can be easily controlled by simply switching the switch on the back of the product. The addition of the 2700K colour temperature gives you the option of creating an excellent and warm atmosphere. Large piano key terminals allow loop-in/loop-out wiring with ease.

Colour switchable between 2200K, 2700K, 3000K and 4000K

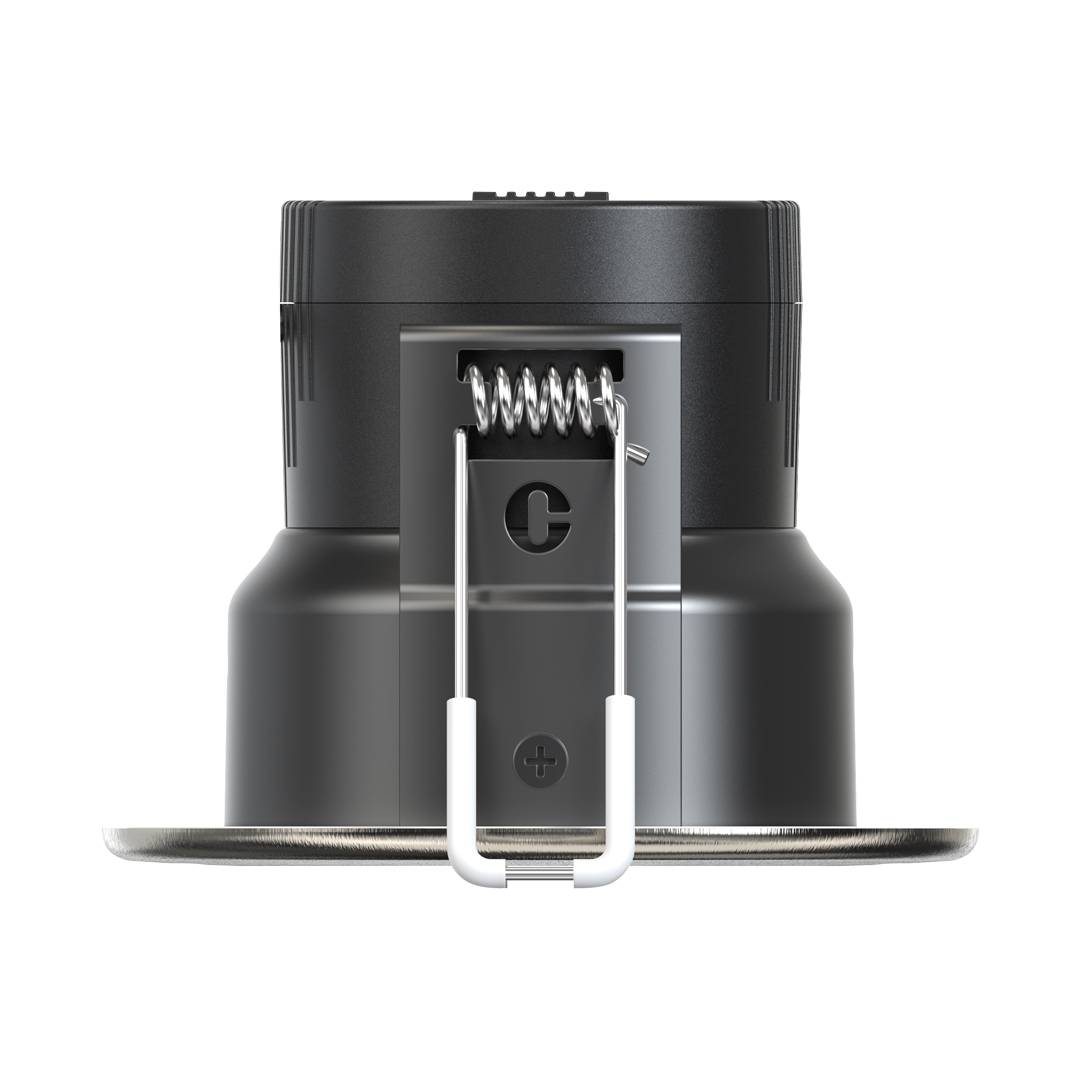

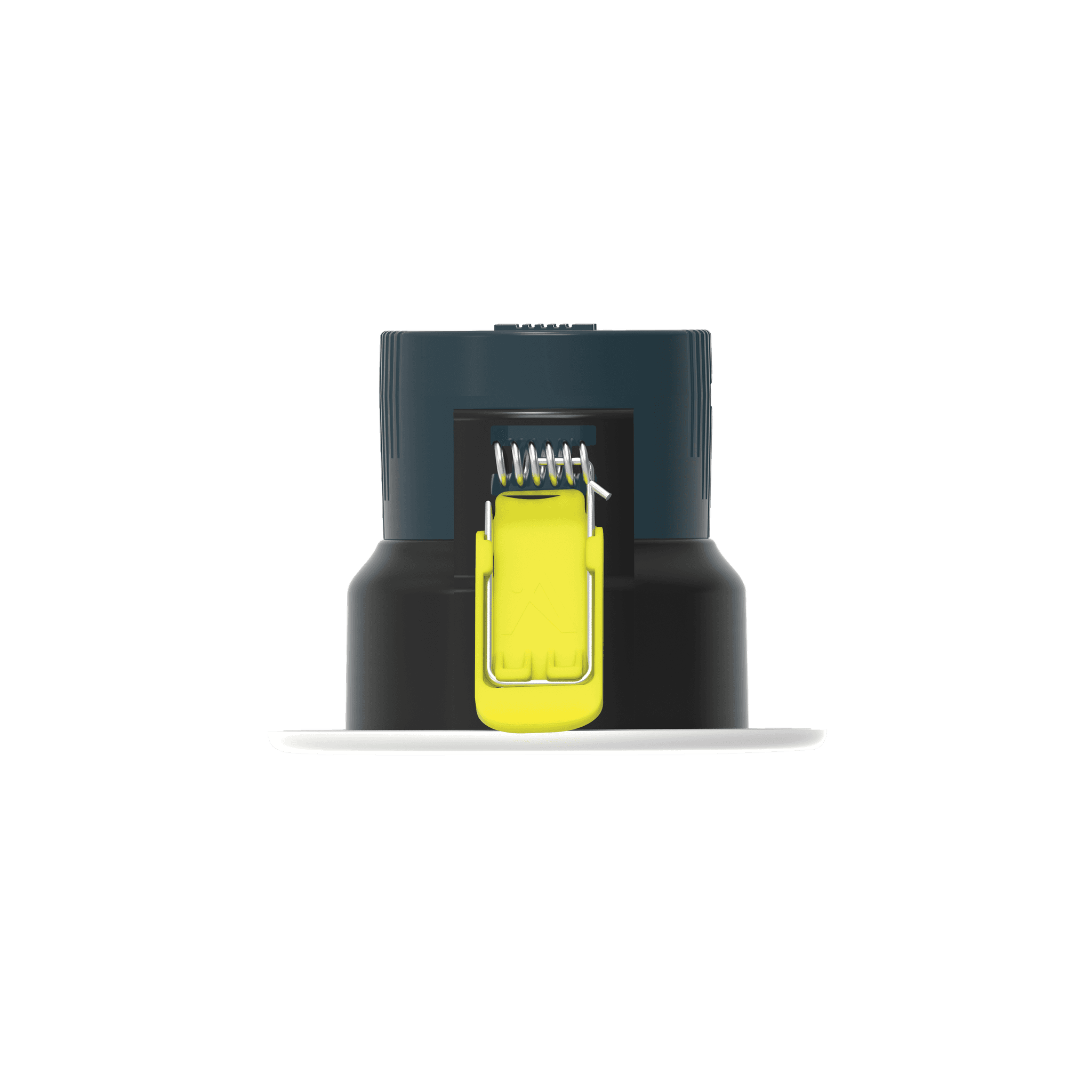

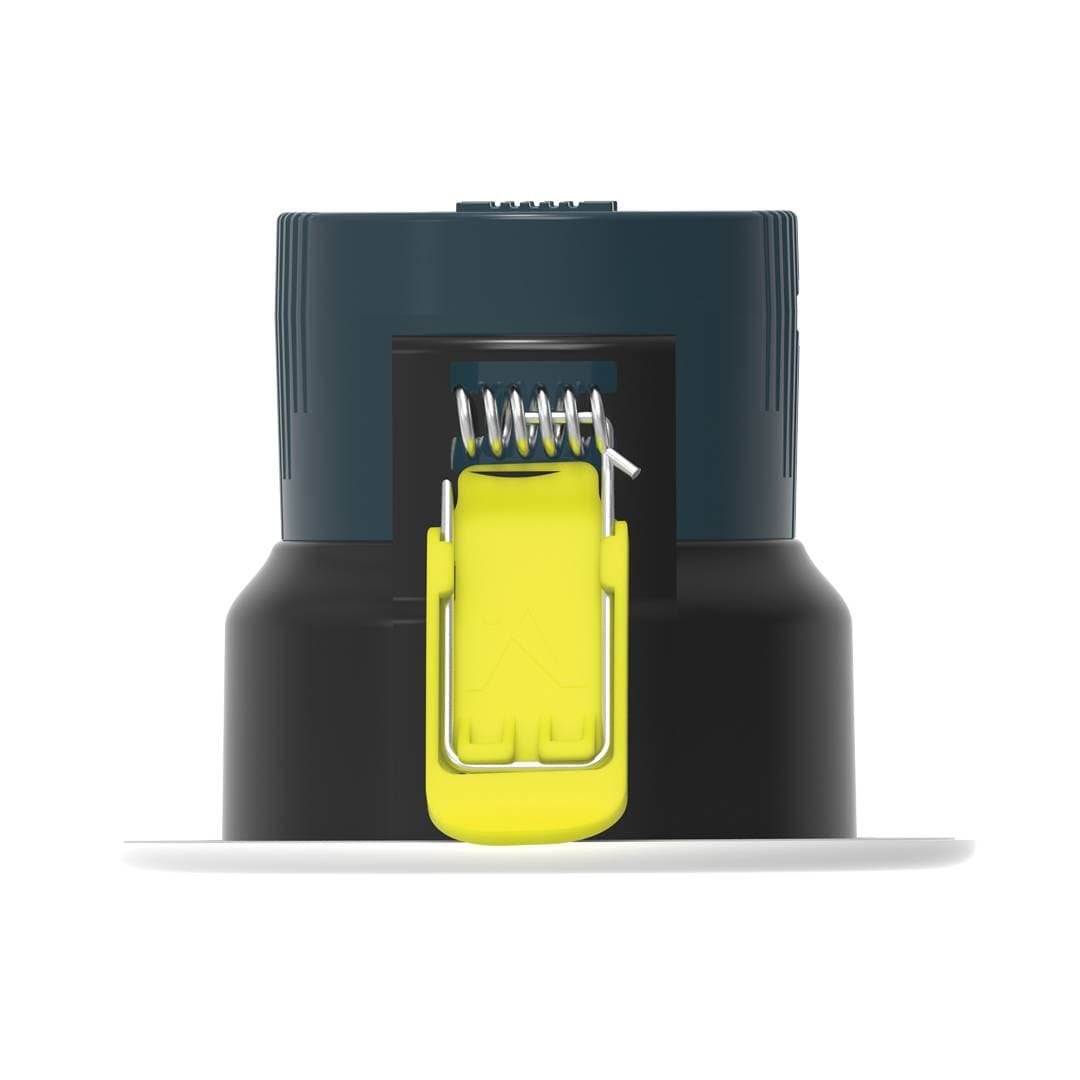

Innovative smooth glide clip design for smooth installation

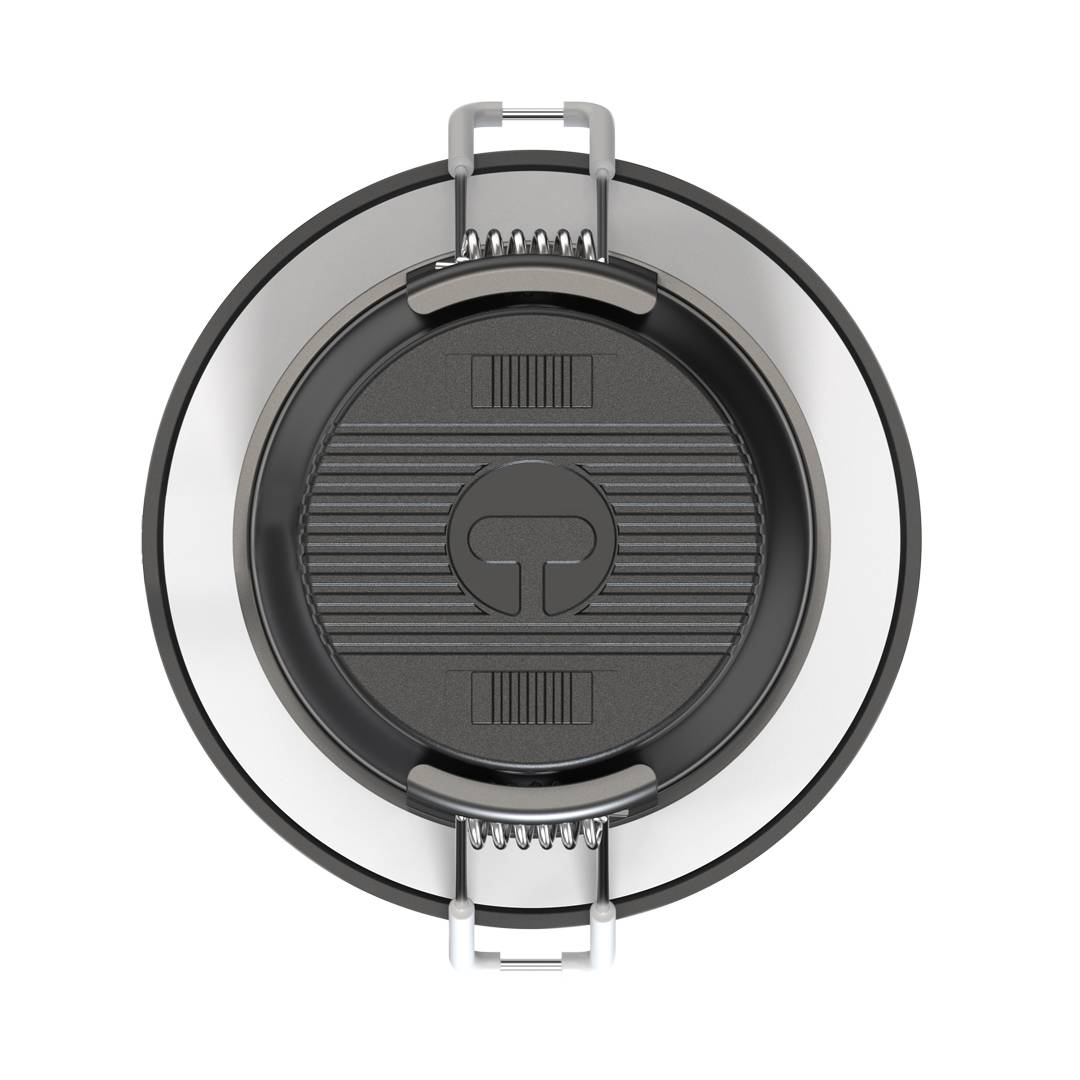

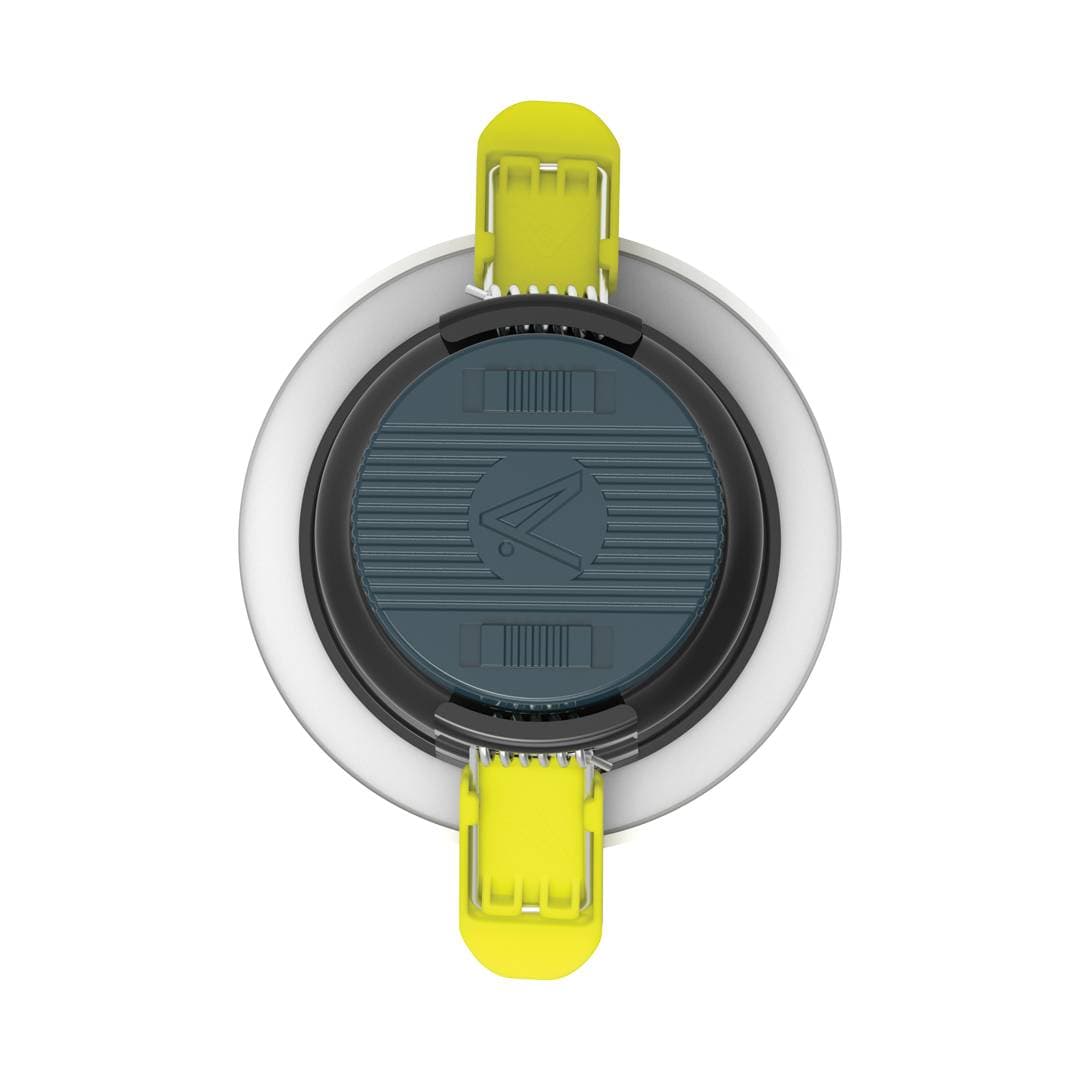

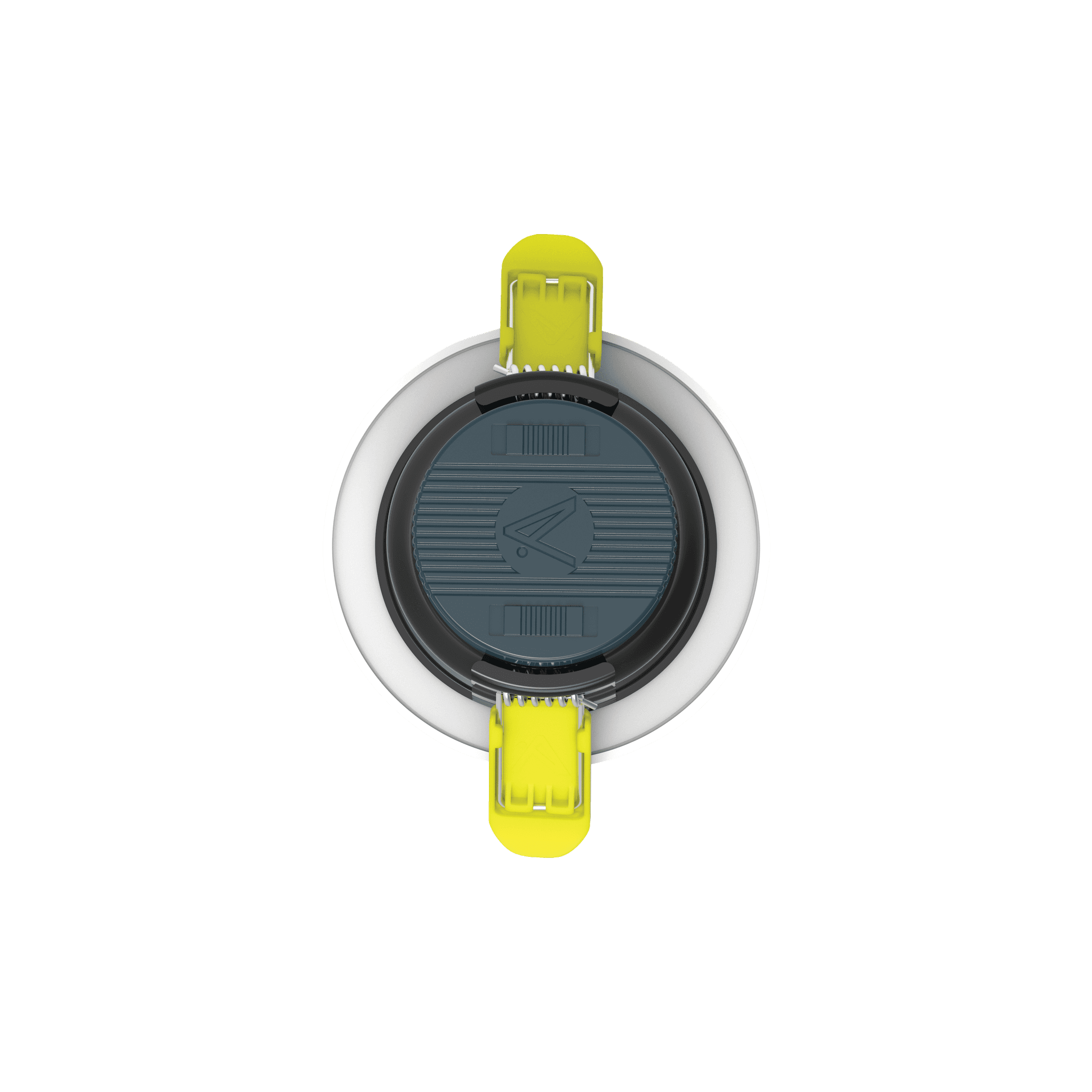

Back switches allow you to choose options at installation
New lever terminal block complete with testing ports for speed and ease of installation LENNEL
2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
Compatible with Click Flow CT100 series
TRIAC Mains dimmable
Select 2200K ‘Ember Light’ to minimise blue light and create a cosy fireplace environment

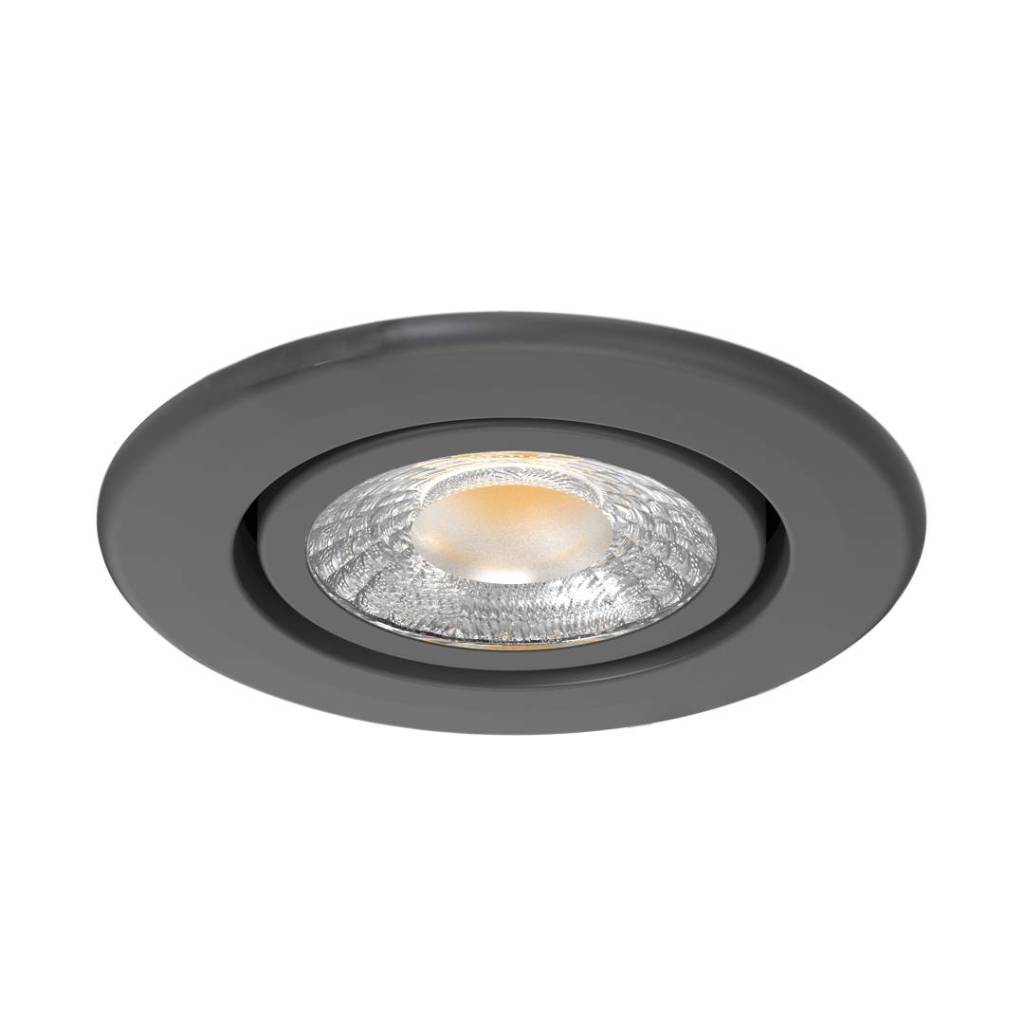

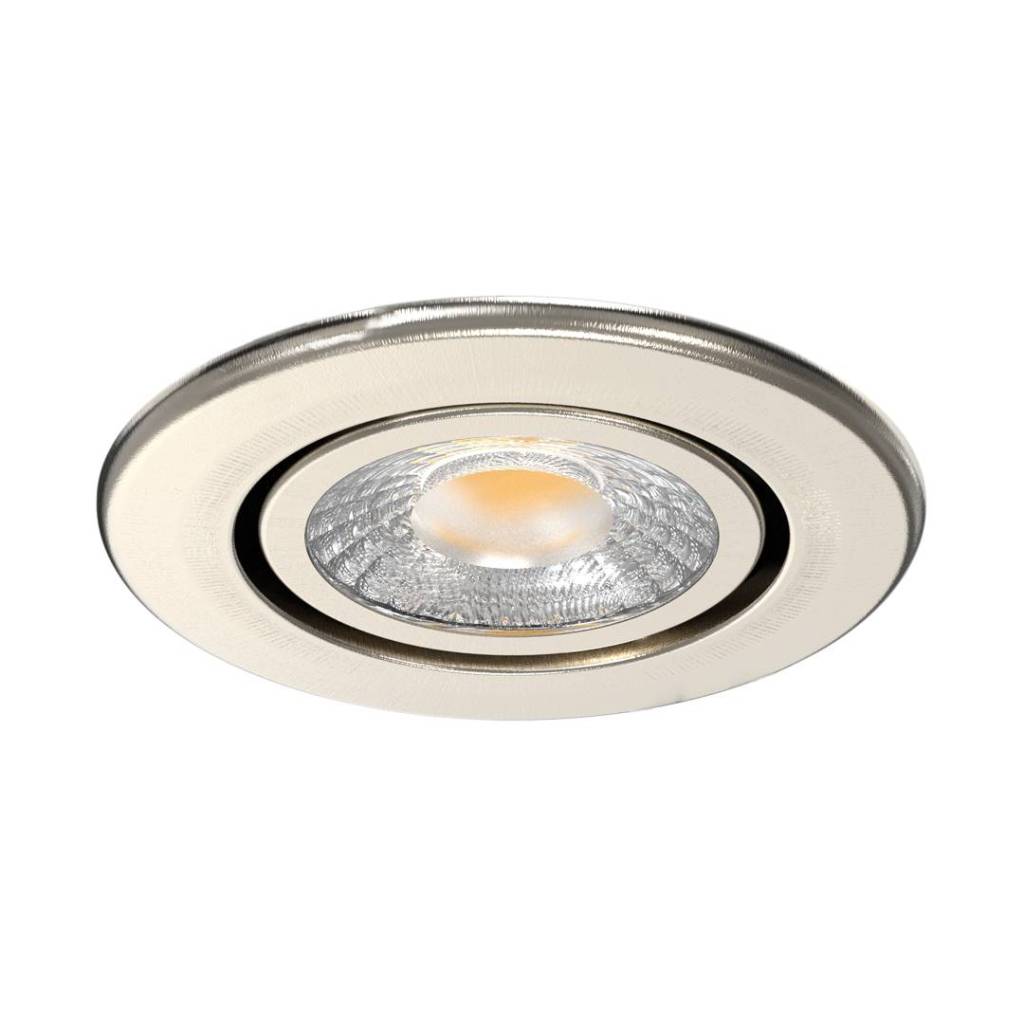

Compatible with H4 Lite CSP bezels
When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
Wattage Switchable between 4W & 6W, delivering up to 145lmW

Product Data

Code	Adjustability	CCT Range	Colour / Finish	Dimmable Option	Emergency Option	Energy Class	Input	Insulation Coverable	IP Rating	lm/W Range	Lumens Range	Ceiling Joist Approvals	Sensor Option	Bathroom Zone	Building Regulations	Warranty	Wattage Range	Downloads
DLT661600B	Not adjustable	2200K / 2700K / 3000K / 4000K	White	Mains (Leading Edge/Trailing Edge)	None	C	220-240V AC	Rolled and blown insulation	IP65	105 - 145	460 - 780	Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min	None	1	Part B, C, E, P & L	7 years	4-6W
