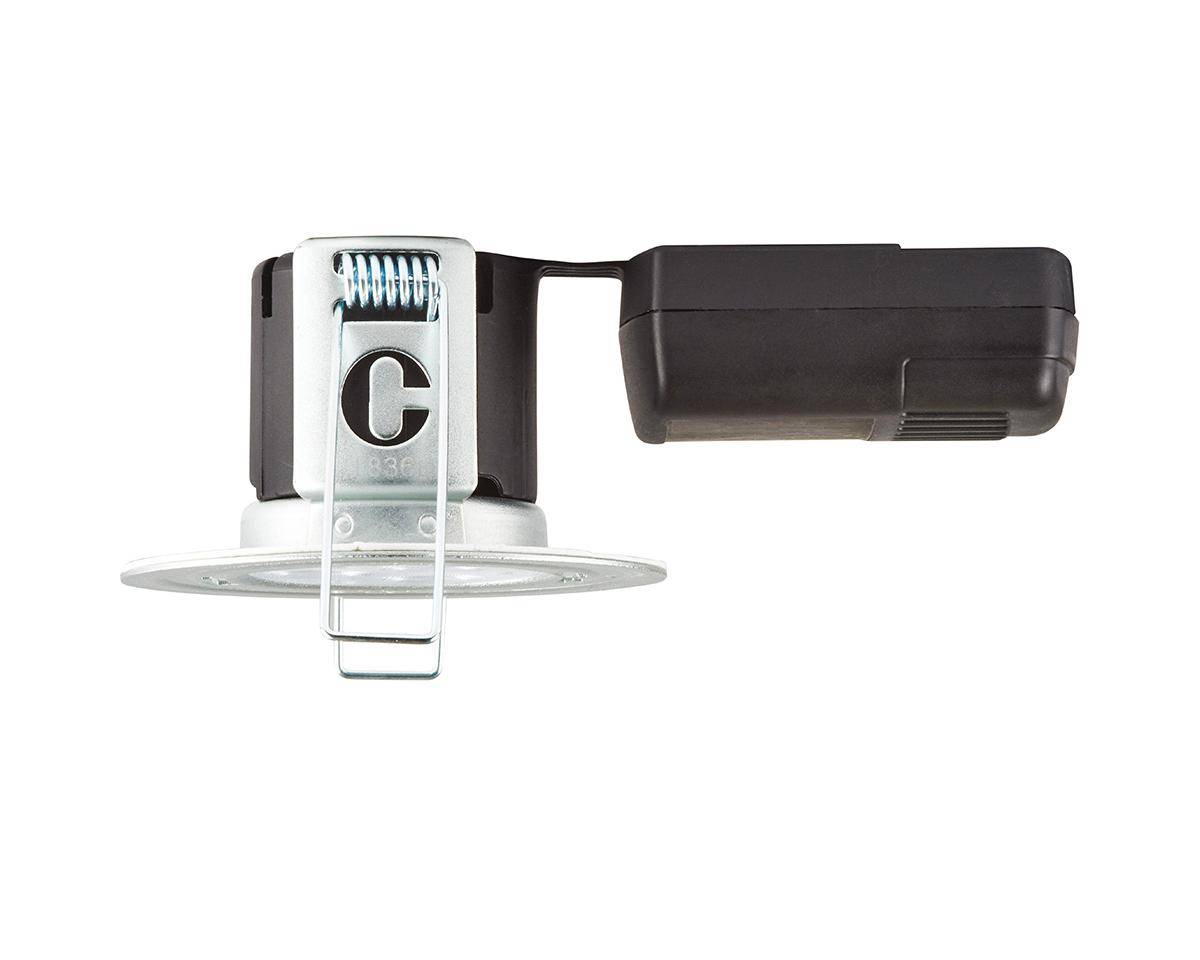

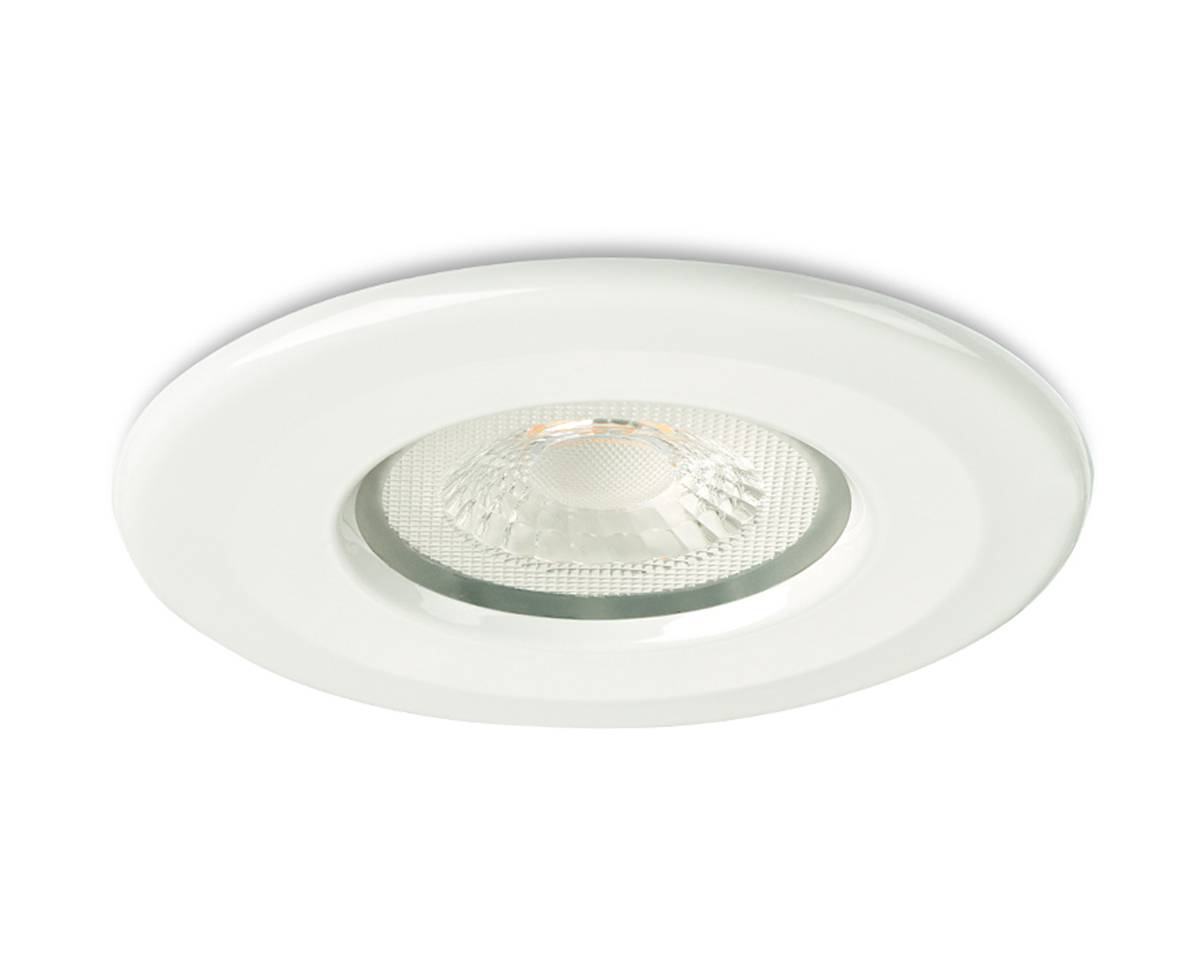

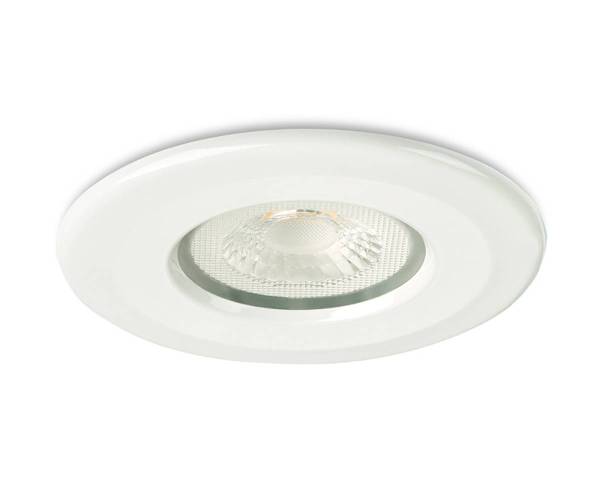

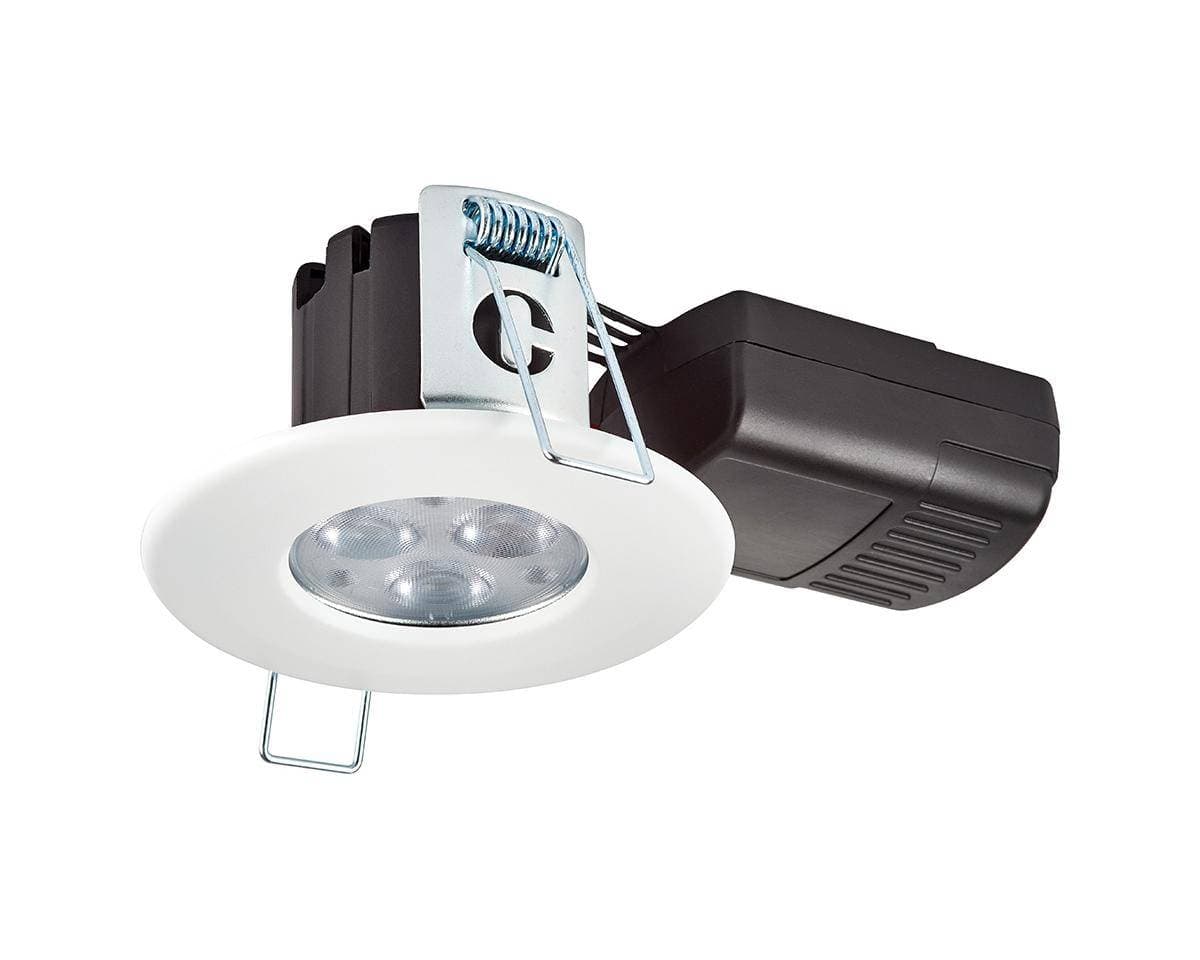

H2 Pro 550

Our H2 Pro 550 with easy fit connector features more innovative upgrades for ease of installation and reduced running costs.A slimmer profile allows for easier installation, plus at over 100lm/W this is our most efficient downlight yet.These updates are in addition to the typical H2 Pro quality and features you can depend on; fire-rated, dimmable and available with our seven-year extended warranty.With a choice of two beam angles - 38° and 70°, 11 interchangeable bezel options (four of which have paintable finishes) and an IP65 rating, this downlight is the ideal choice for lighting any room, anywhere.For a quicker, easier and more secure installation, it now comes with a easy fit connector. Featuring loop in loop out technology and piano key push-in connectors, the easy fit connector is ideal for first-fix and minimises risk of damage to fittings during installation. With all the benefits the H2 Pro 550 has to offer and more, the H2 Pro 550 downlight cuts installation time down dramatically.

  • Quick and easy installation with easy-fit connector
  • High efficacy of 112lm/W
  • Insulation coverable
  • Flexible driver with adapted flexible neck
  • I Joist and Metal Web Approved
  • Compatible with Collingwood smart system
  • Compatible with twist and lock bezels
  • 2 part, push fit, loop in/ loop out connector
  • 2 part, push fit, loop in/ loop out connector
  • Fixed position downlight
  • When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
CEGuarantee 7yrIndoorCRI 80Beam Angle 38 DownBeam Angle 70 DownCut Out ø64 72IP65Insulation Rolled BlownClass II
H2 Pro 550
H2 Pro 550 image 1
H2 Pro 550 image 2
H2 Pro 550 image 3

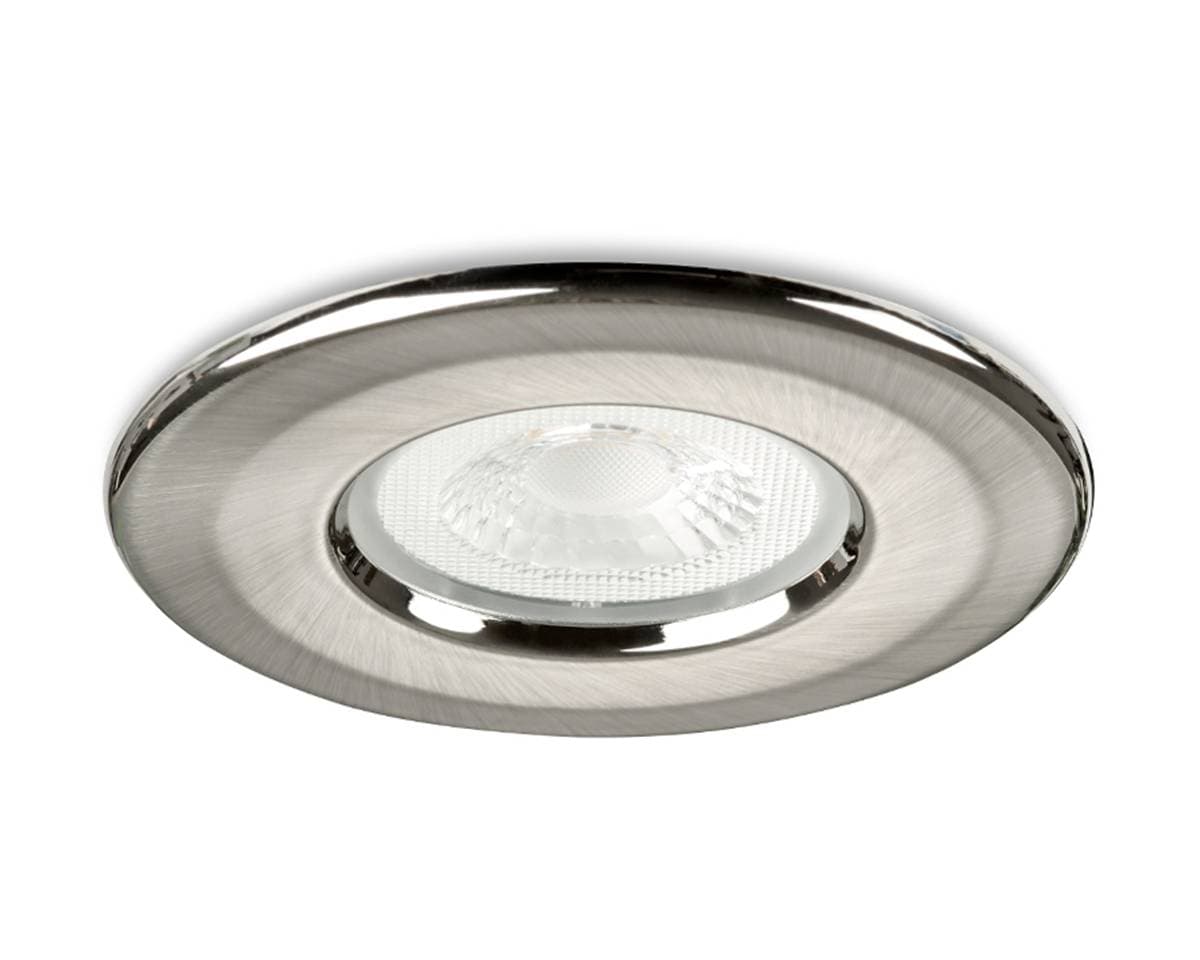

H2 Pro 550 image 4
H2 Pro 550 image 5
H2 Pro 550 image 6
H2 Pro 550 image 7

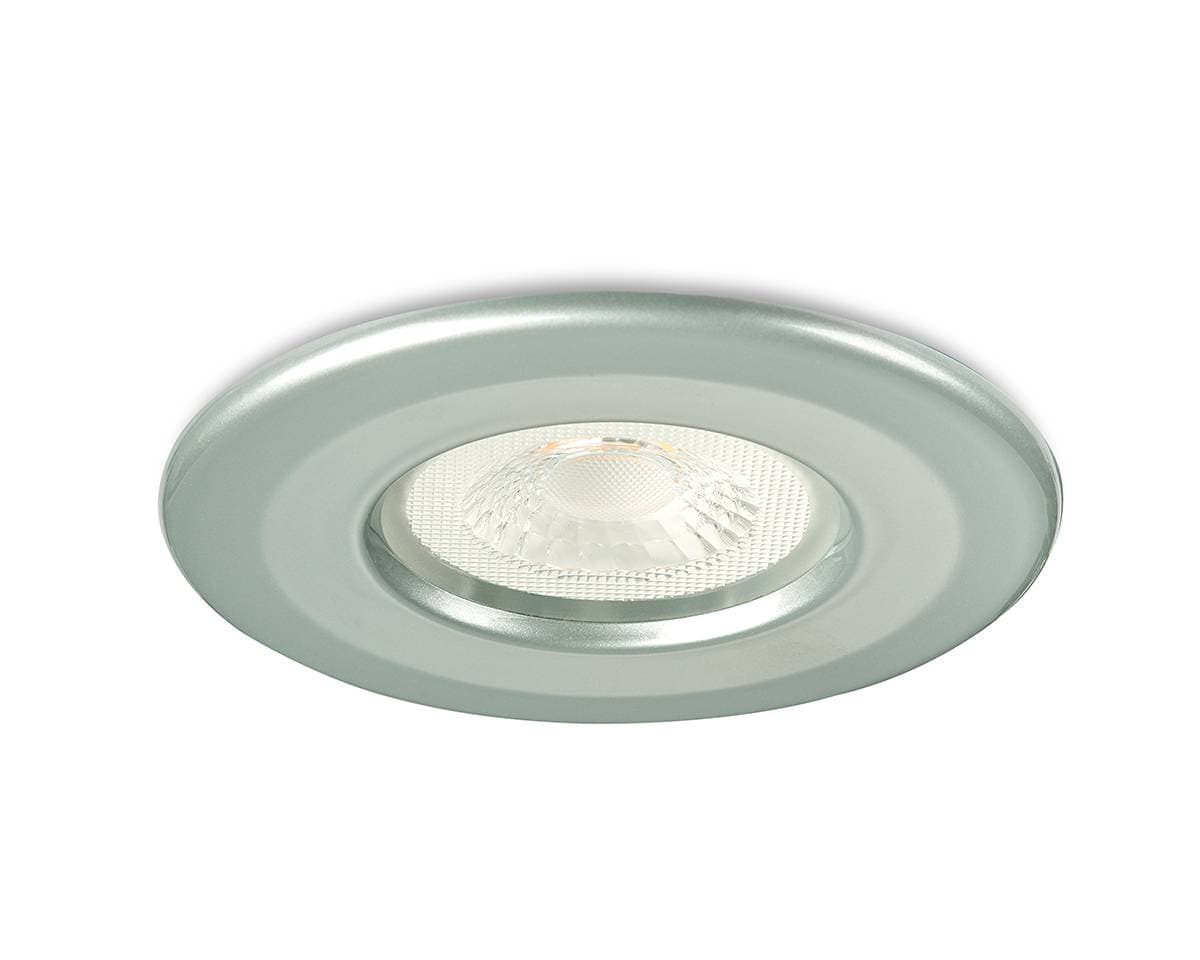

H2 Pro 550 image 8

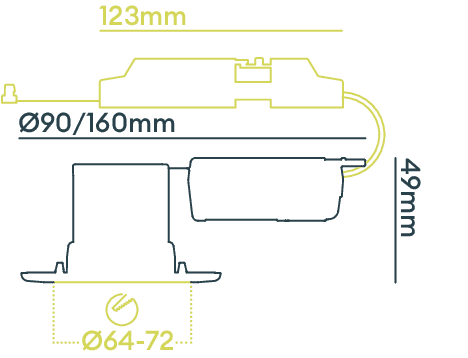

H2 Pro 550 - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeCRICut OutDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
DLE4727040Not adjustableRound70Mild Steel4000K8064 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm580RecessedNone235.2W90 mm
DLE4723830Not adjustableRound38Mild Steel3000K8064 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm550RecessedNone165.2W90 mm
DLE4723840Not adjustableRound38Mild Steel4000K8064 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm580RecessedNone165.2W90 mm
DLE4727030Not adjustableRound70Mild Steel3000K8064 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65160 mm550RecessedNone235.2W90 mm

Accessories

Find the perfect product you are looking for.

LEDEP10

LEDEP10


Emergency converter, Self-test & Manual-test switchable, maintained

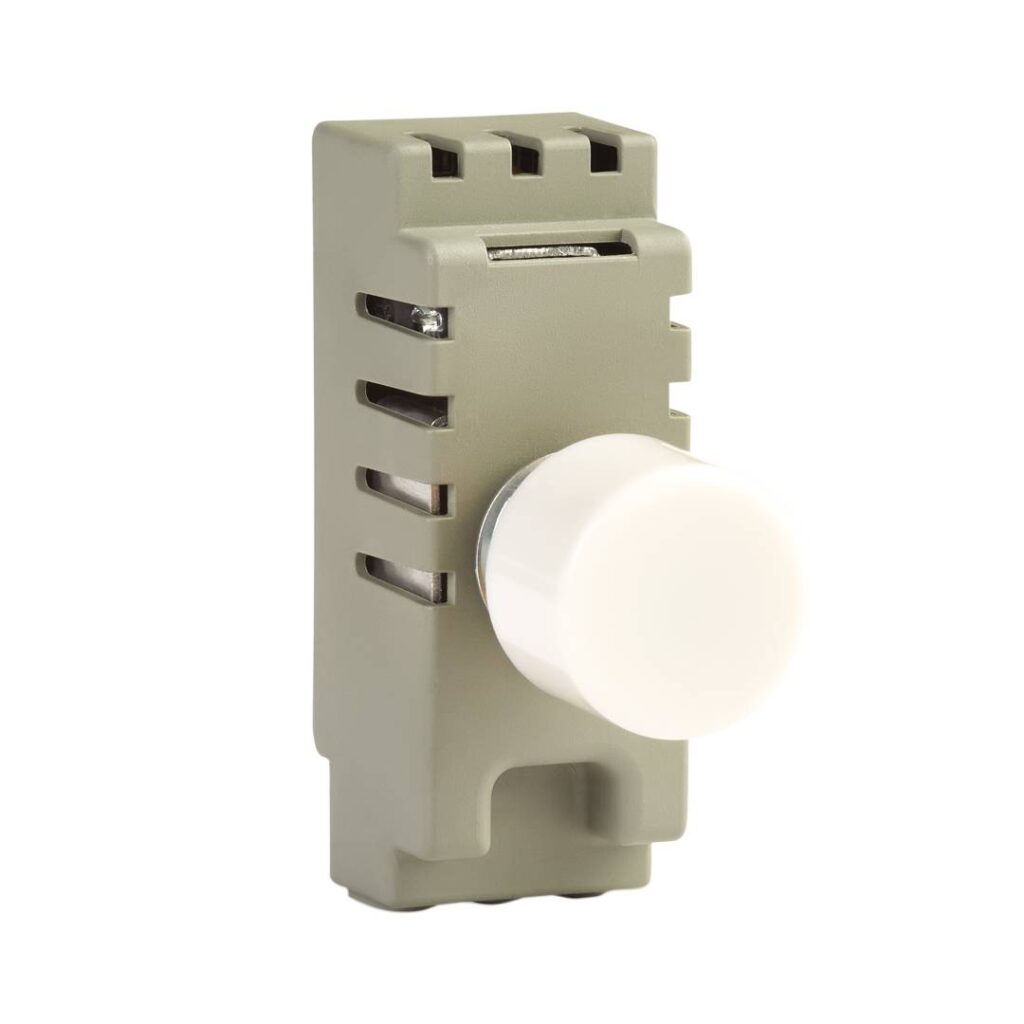

DM298GRID

DM298GRID


250W LED mains grid dimmer

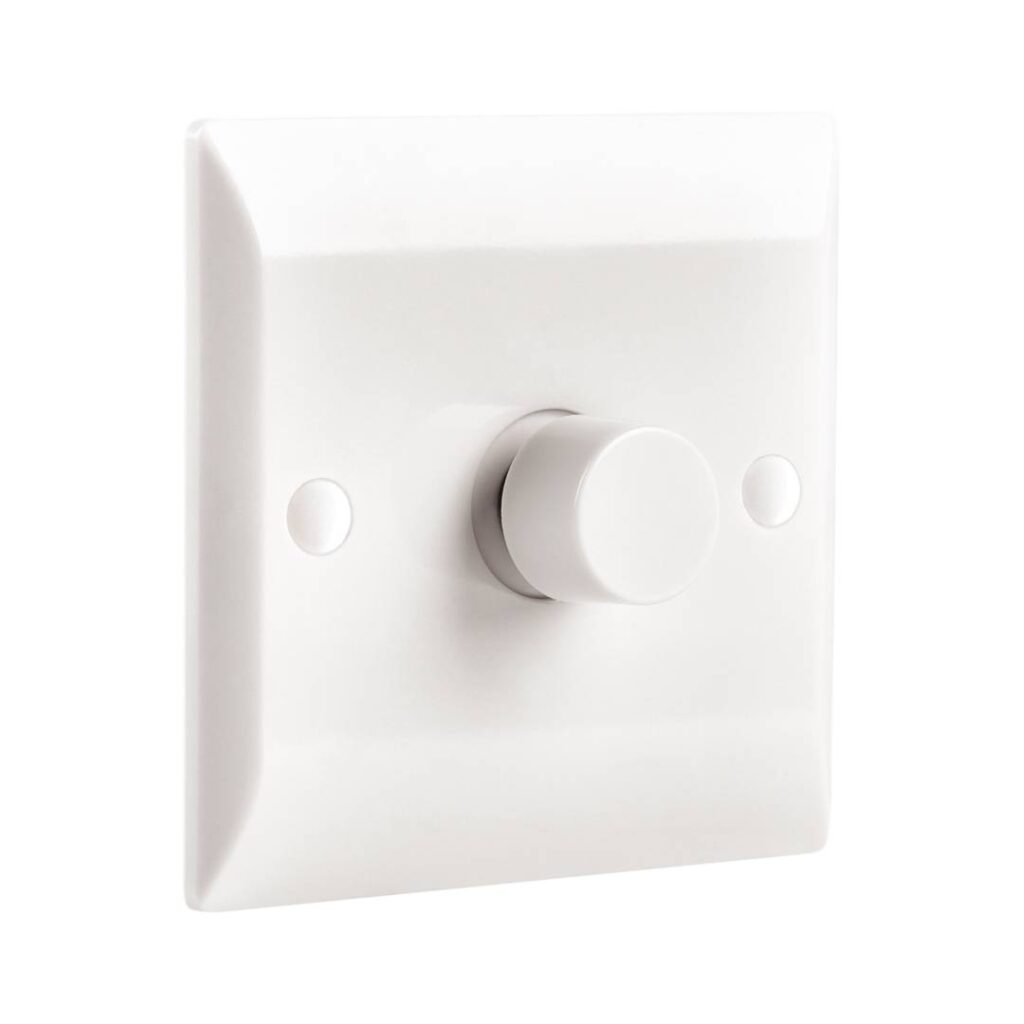

DM298FP

DM298FP


100W LED 2 way push on/ off rotary dimmer

DLCONVERT 70

DLCONVERT 70


Hole converter plates for the H2 Pro/H4 Pro/H2 Lite ranges ø170mm

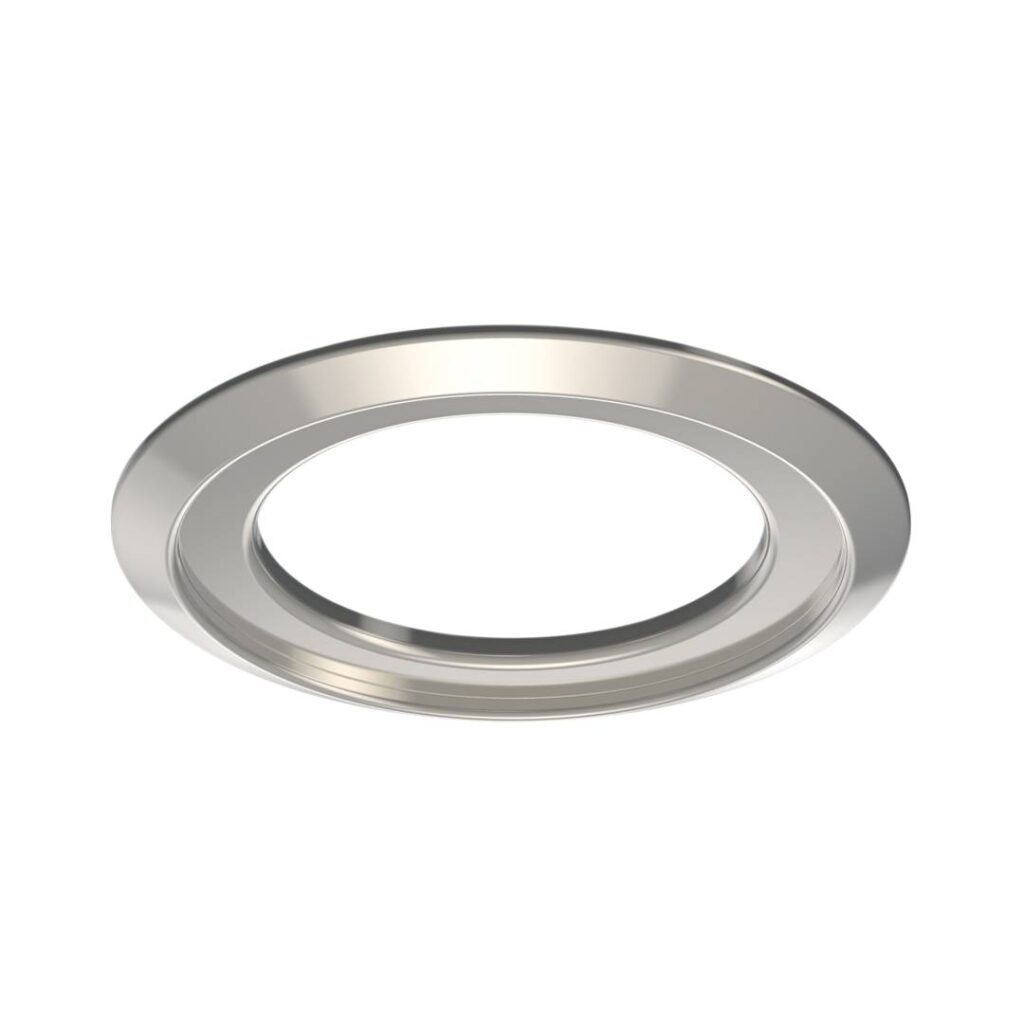

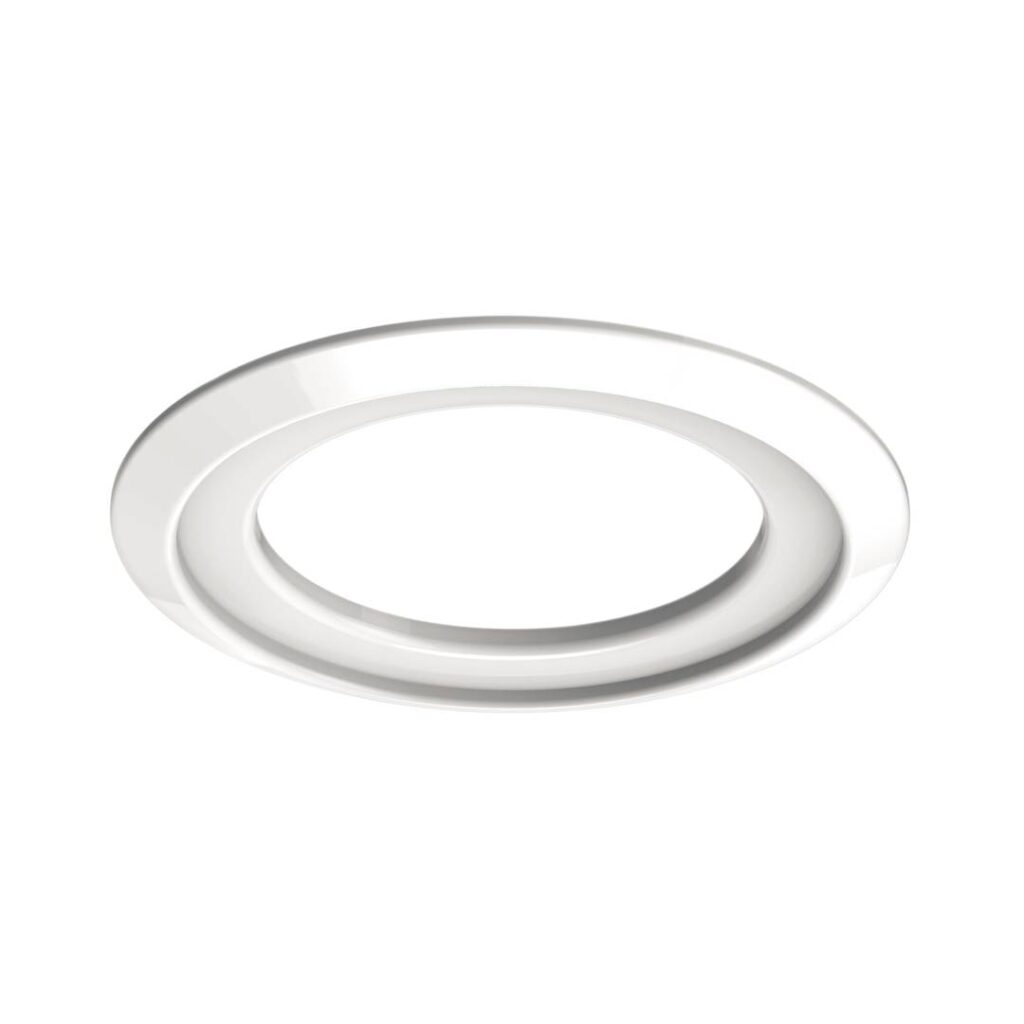

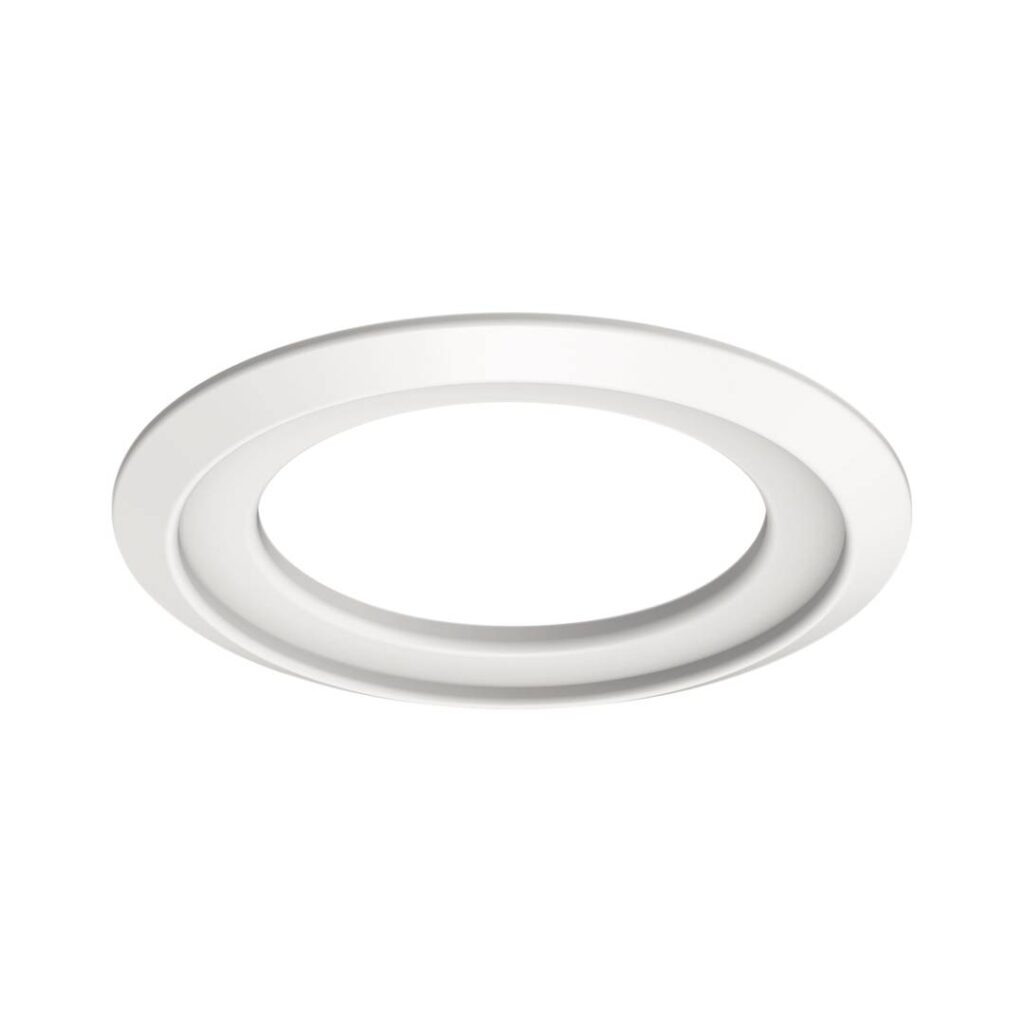

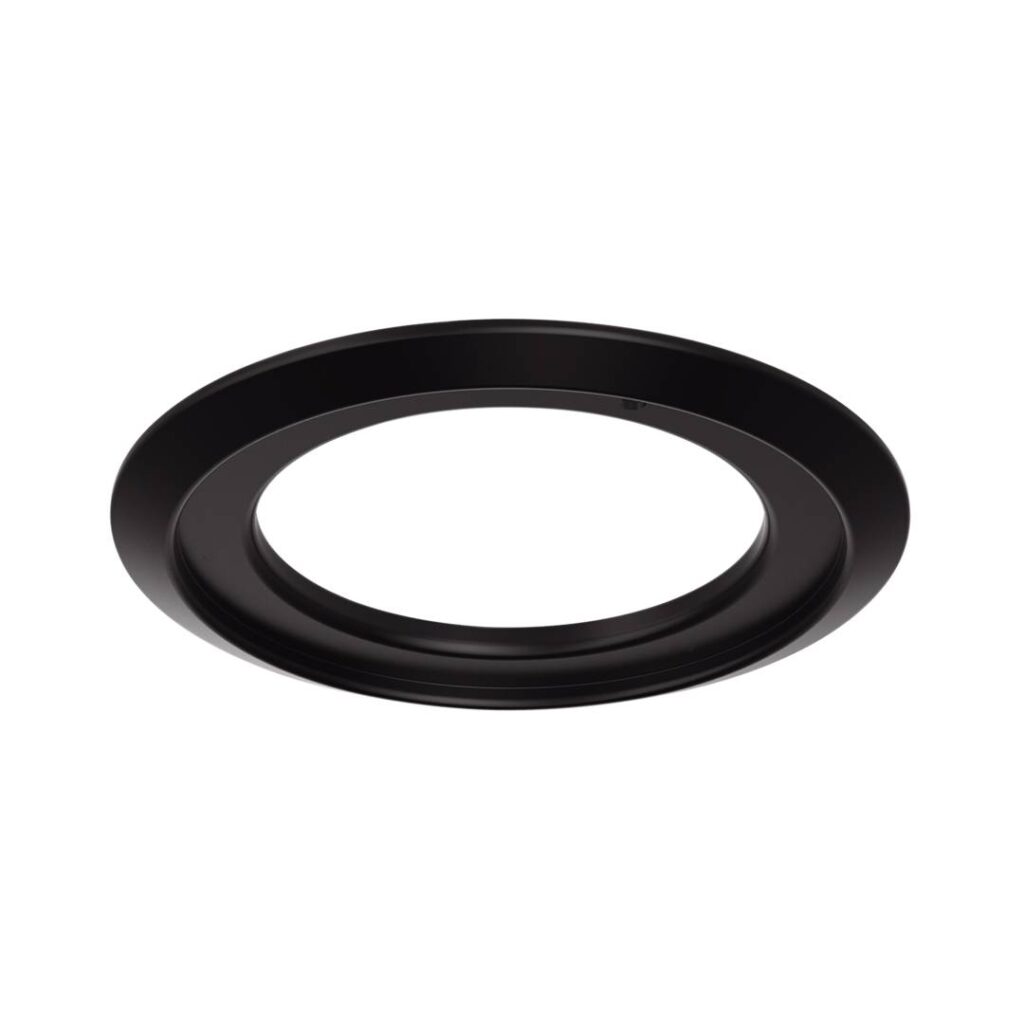

DL CONVERT 110

DL CONVERT 110


Discreet converter plates for the downlight range, 110mm diameter

H2 Pro bezels

H2 Bezels


Twist & lock system makes changing bezels quick, clean and easy
