H2 Lite Select 10 Pack
The H2 Lite Select is an entry level solution that has been designed with feedback from the installer community and is engineered to a high standard. The colour temperature can be easily adjusted by simply moving the switch on the back of the luminaire. The product comes complete with a newly designed two-part connector and push-in terminal block with a LENNEL wiring configuration.
- Colour switchable between 2700K, 3000K and 4000K
- Up to 130lm/W

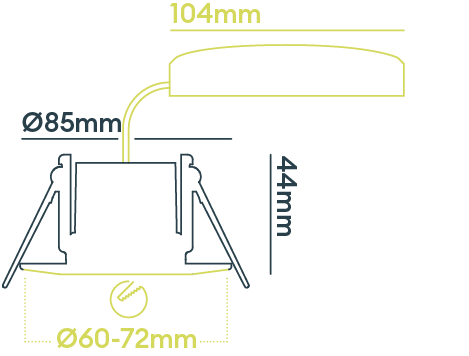

- Shallow depth of 44MM
- New lever terminal block complete with testing ports for speed and ease of installation LENNEL

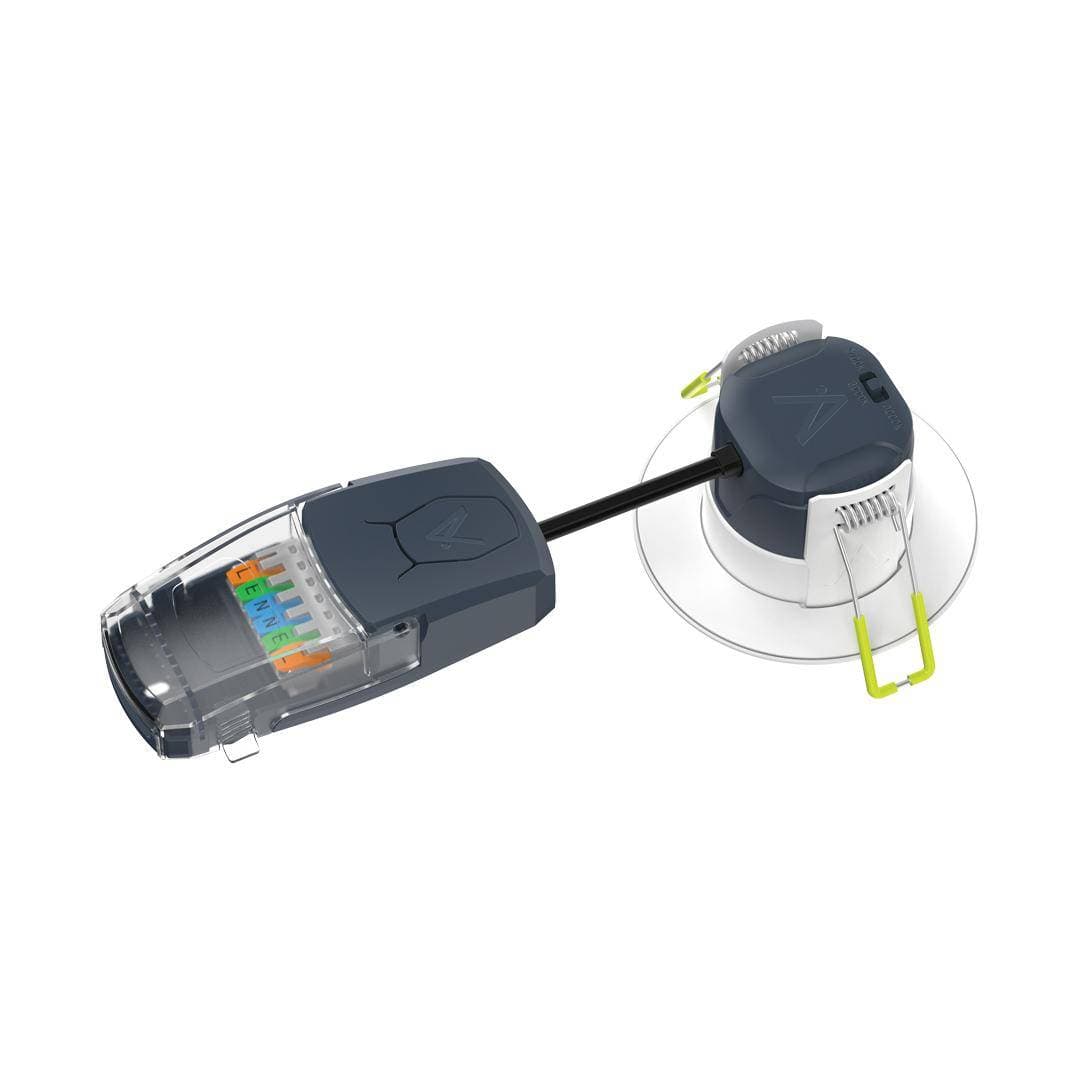

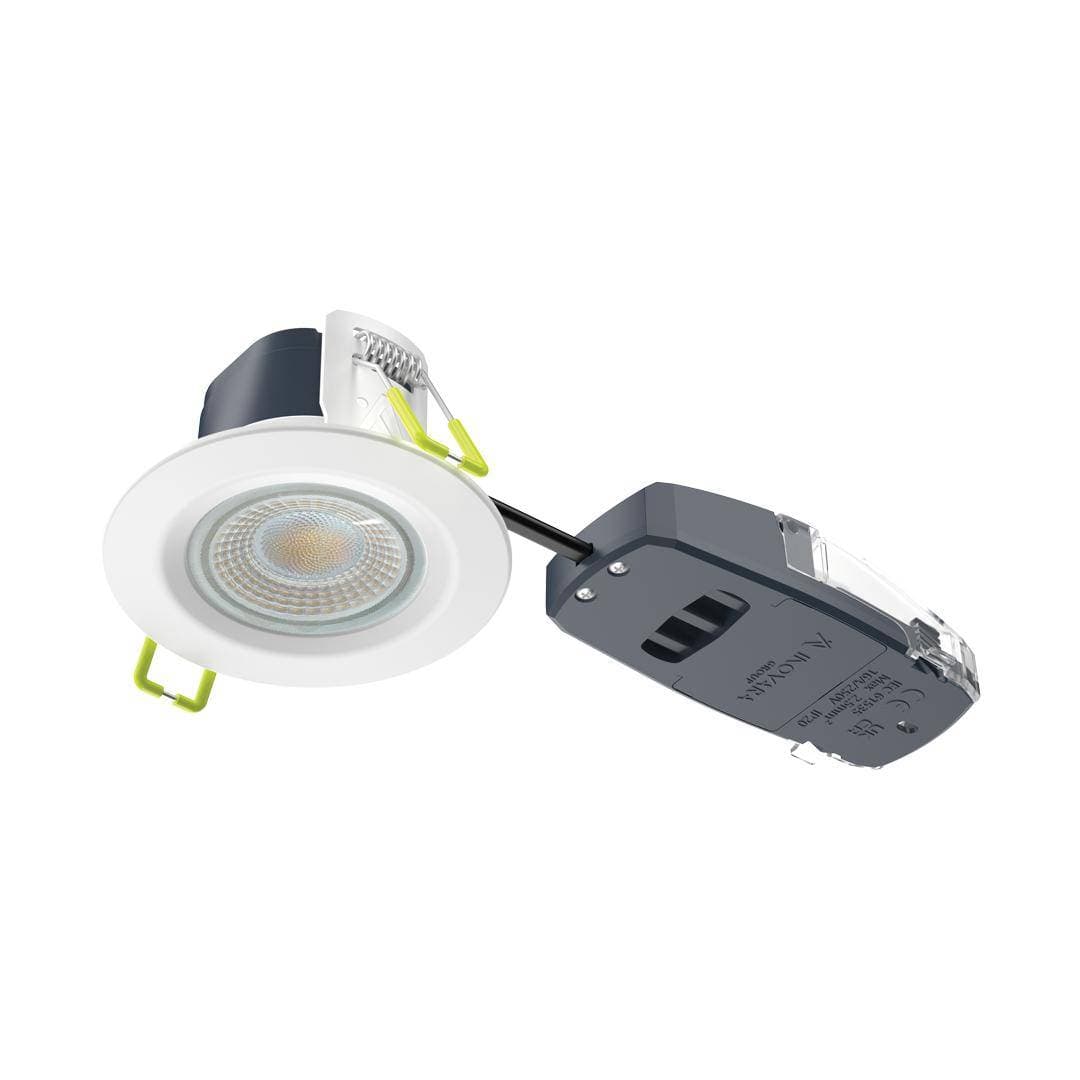

- 2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
- Collingwood have tested the H2 Lite Select and confirmed they work together with the Click Flow CT100 series without compatibility issues.
- TRIAC Mains dimmable
- When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
- Insulation Coverable
- FSC Certificated packaging and zero plastic ensure minimal waste
Product Data
| Code | CRI | IP Rating | Adjustability | Input | Insulation Coverable | Cut Out | Bathroom Zone | Building Regulations | Ceiling Joist Approvals | Wattage Range | CCT Range | Lumens Range | lm/W Range | Colour / Finish | Sensor Option | Dimmable Option | Emergency Option | Warranty | Energy Class | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DLT389MWA10 | CRI>80 | IP65 (from below) IP20 (from above) | Not adjustable | 220-240V AC | Rolled and blown insulation | 60-72mm | 1 | Part B, C, E, P & L | Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min | 5W | 2700K / 3000K / 4000K | 600-650 | 120-130 | White | None | Mains (Leading Edge/Trailing Edge) | None | 5 years | D |
