H2 Lite Select

The H2 Lite Select is an entry level solution that has been designed with feedback from the installer community and is engineered to a high standard. The colour temperature can be easily adjusted by simply moving the switch on the back of the luminaire. The product comes complete with a newly designed two-part connector and push-in terminal block with a LENNEL wiring configuration.

  • Colour switchable between 2700K, 3000K and 4000K
  • Up to 130lm/W
  • Shallow depth of 44MM
  • New lever terminal block complete with testing ports for speed and ease of installation LENNEL

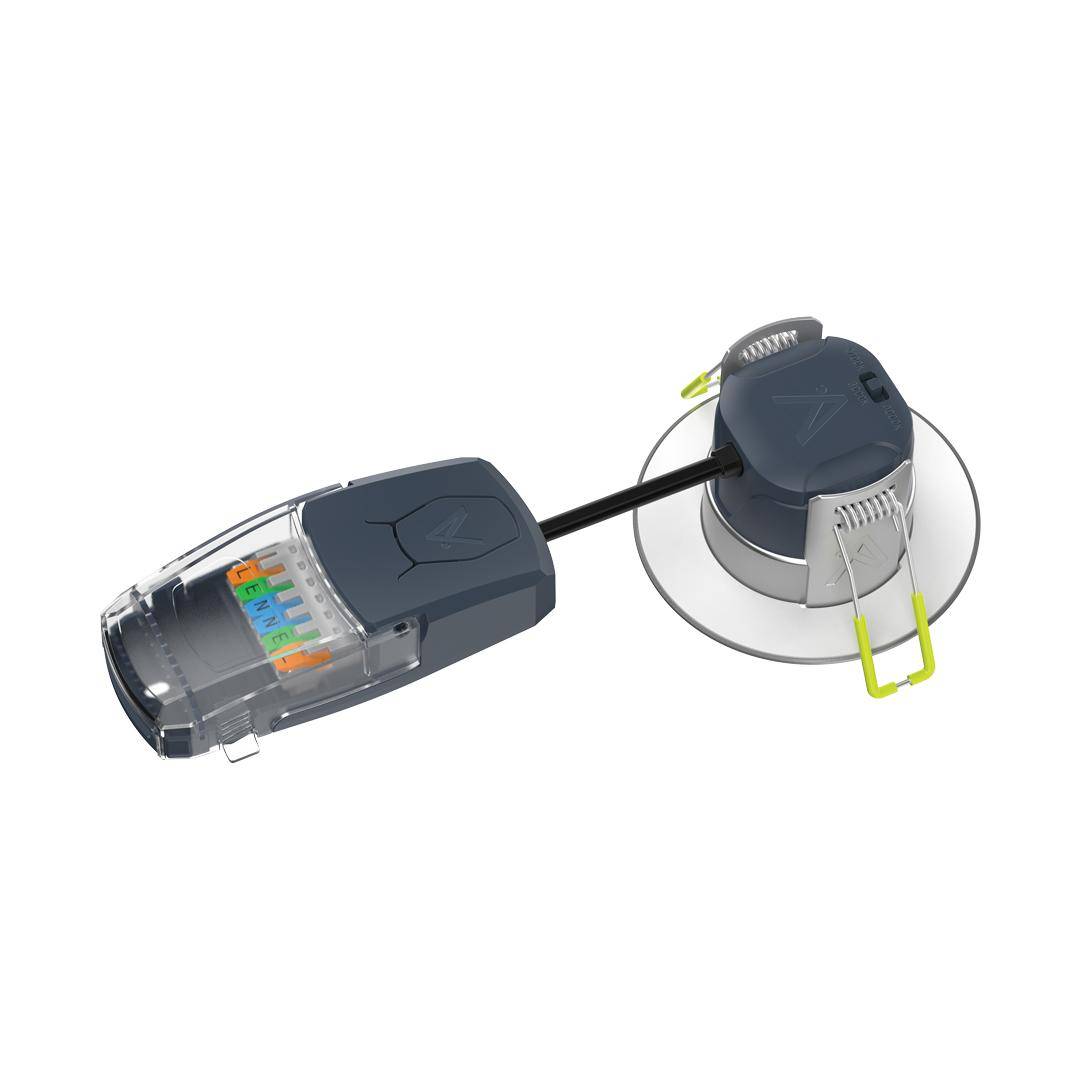

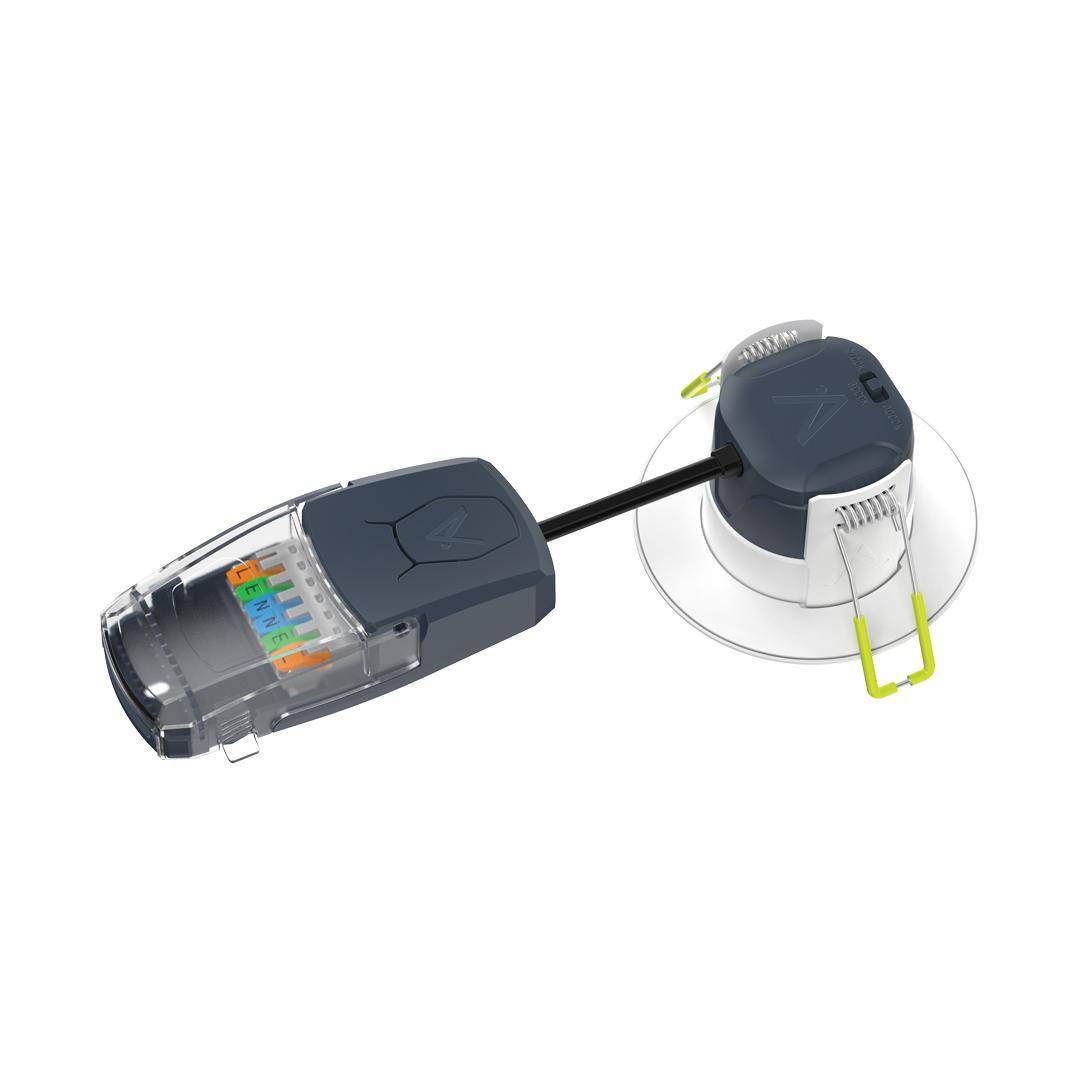

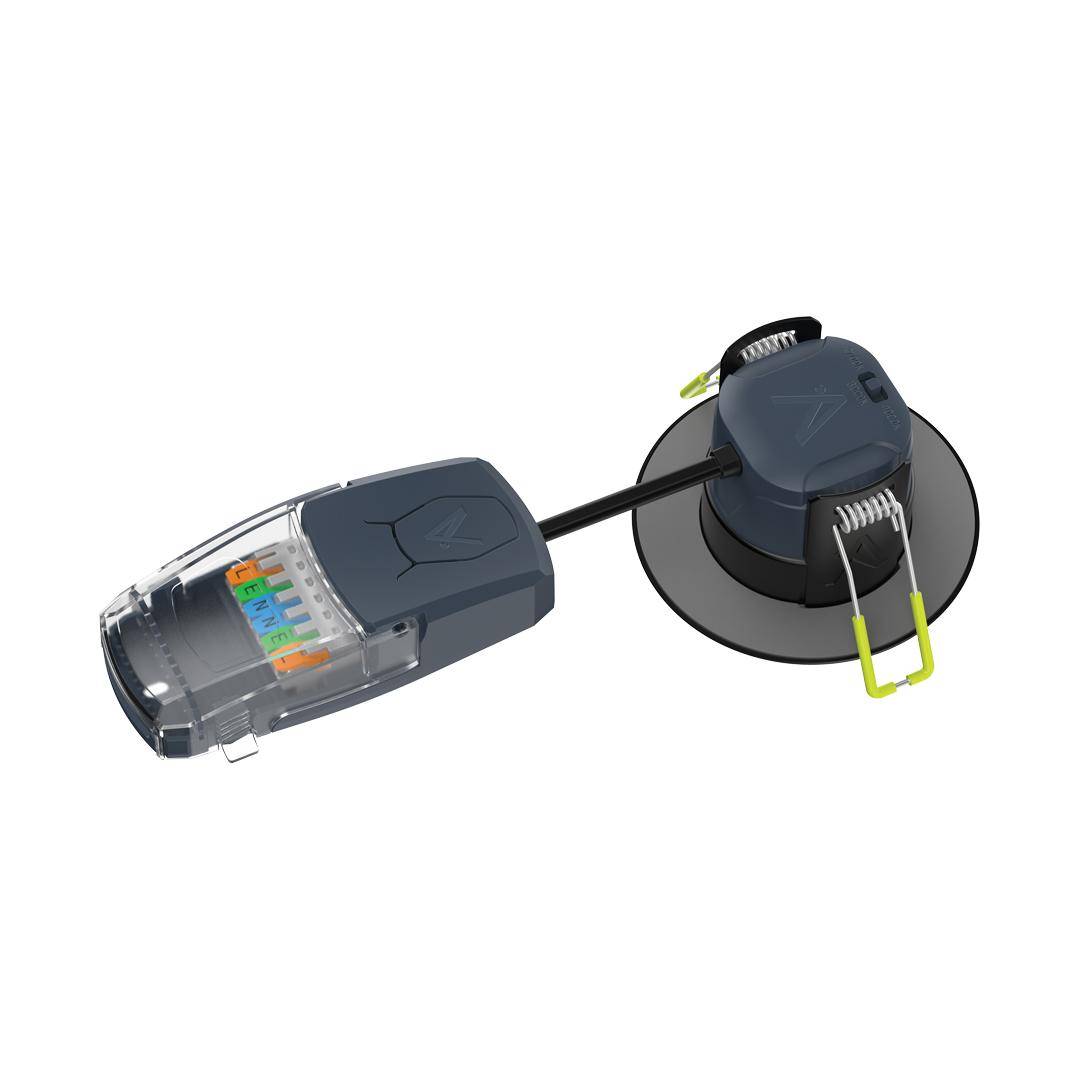

  • 2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
  • Collingwood have tested the H2 Lite Select and confirmed they work together with the Click Flow CT100 series without compatibility issues.
  • TRIAC Mains dimmable
  • When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
  • Insulation Coverable
  • FSC Certificated packaging and zero plastic ensure minimal waste
CEGuarantee 5yrIndoorCRI 80Beam Angle 55 DownCut Out ø60 72IP65IK07Insulation Rolled BlownClass IIReplaceable Driver By ElectricianReplaceable Light Source By Electrician
H2 Lite Select

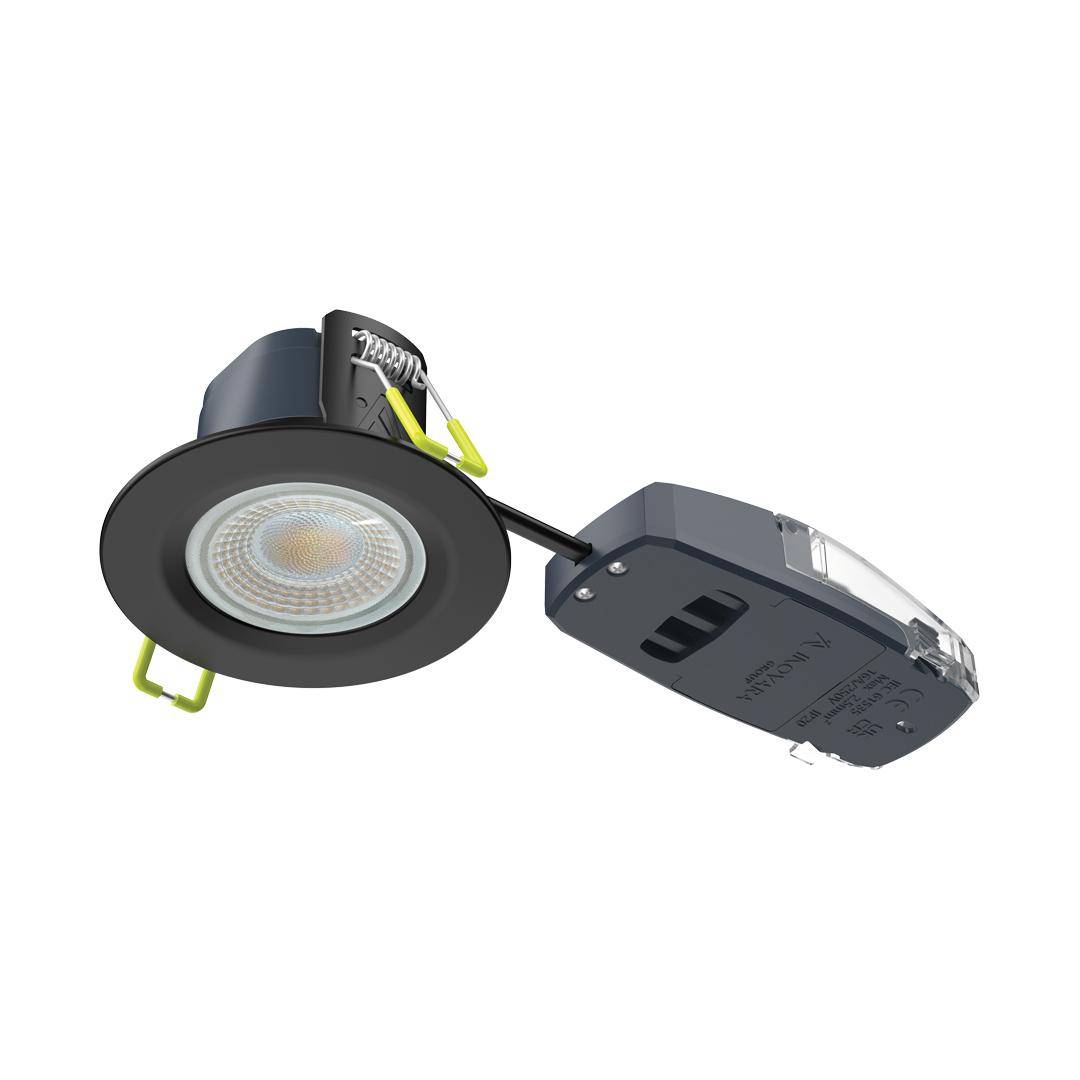

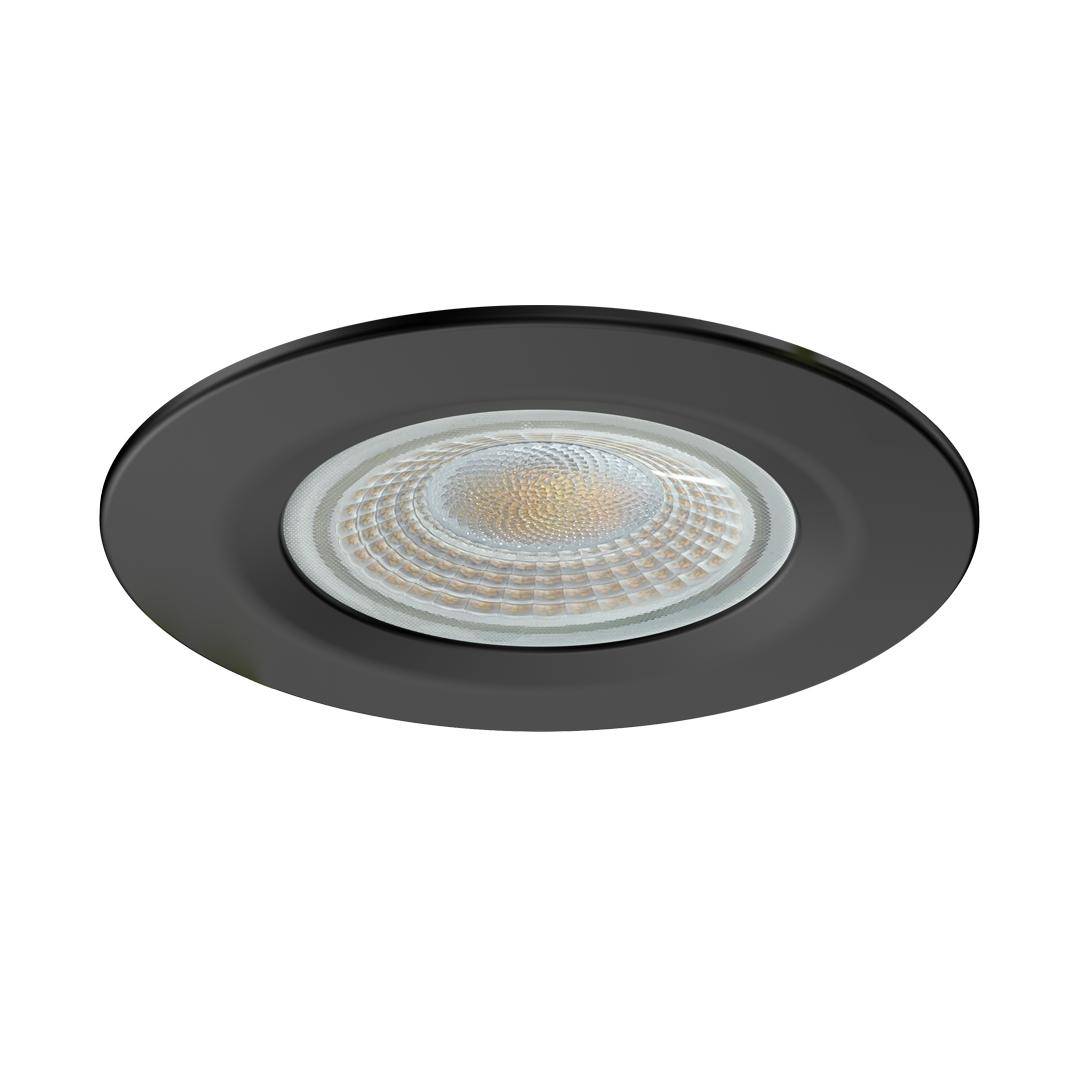

H2 Lite Select image 1

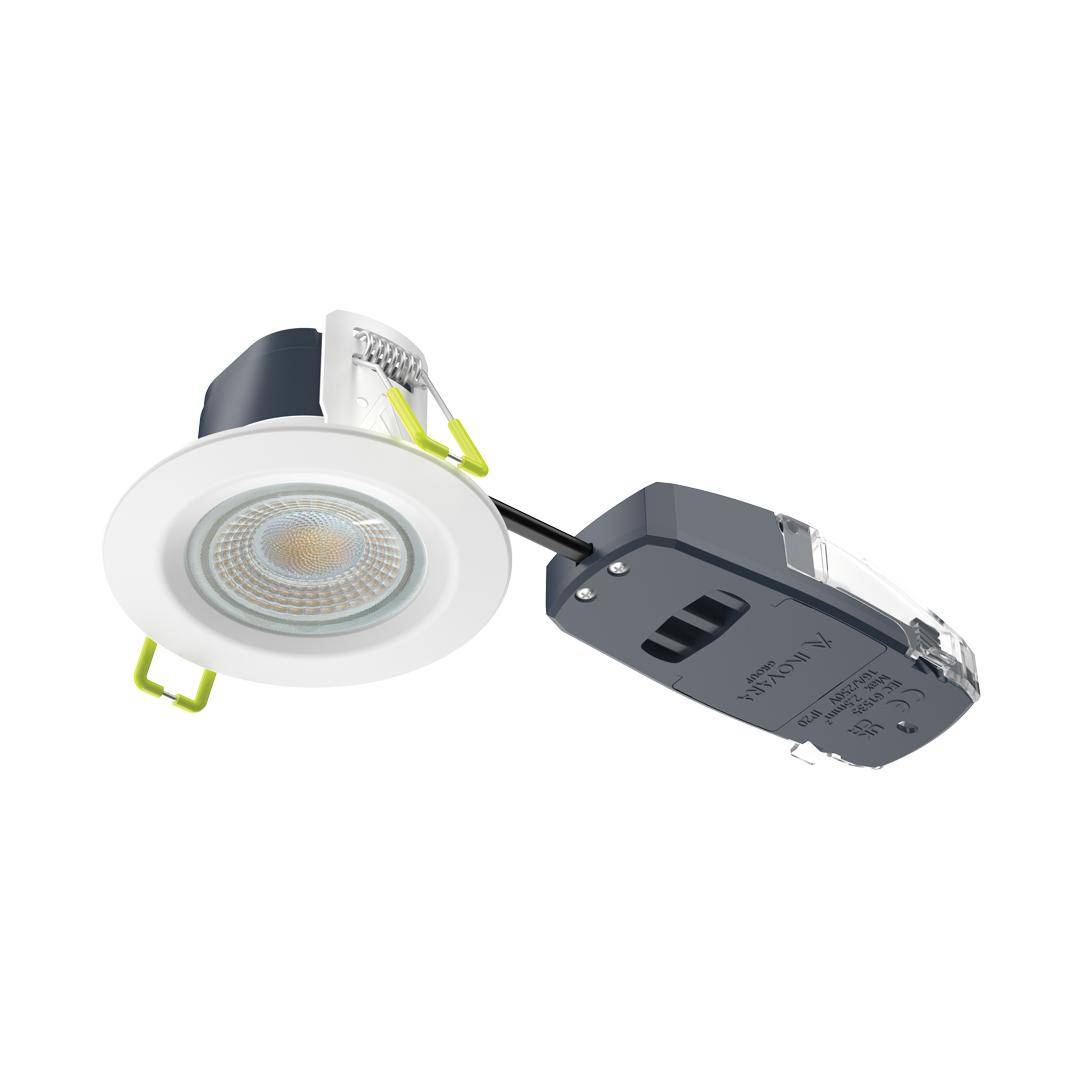

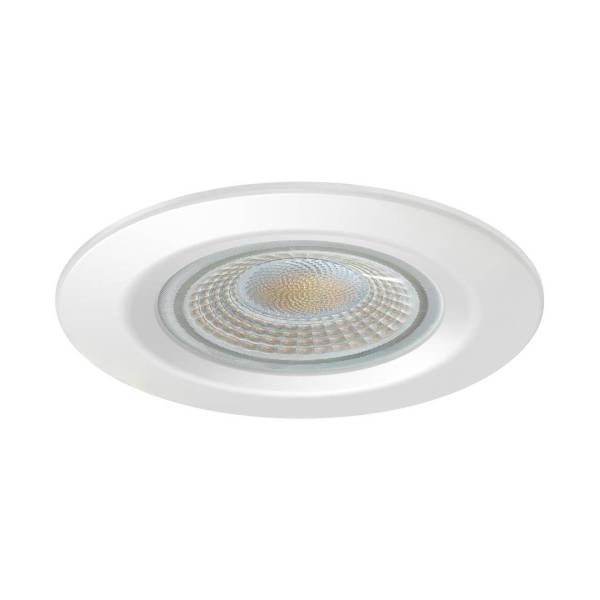

H2 Lite Select image 2

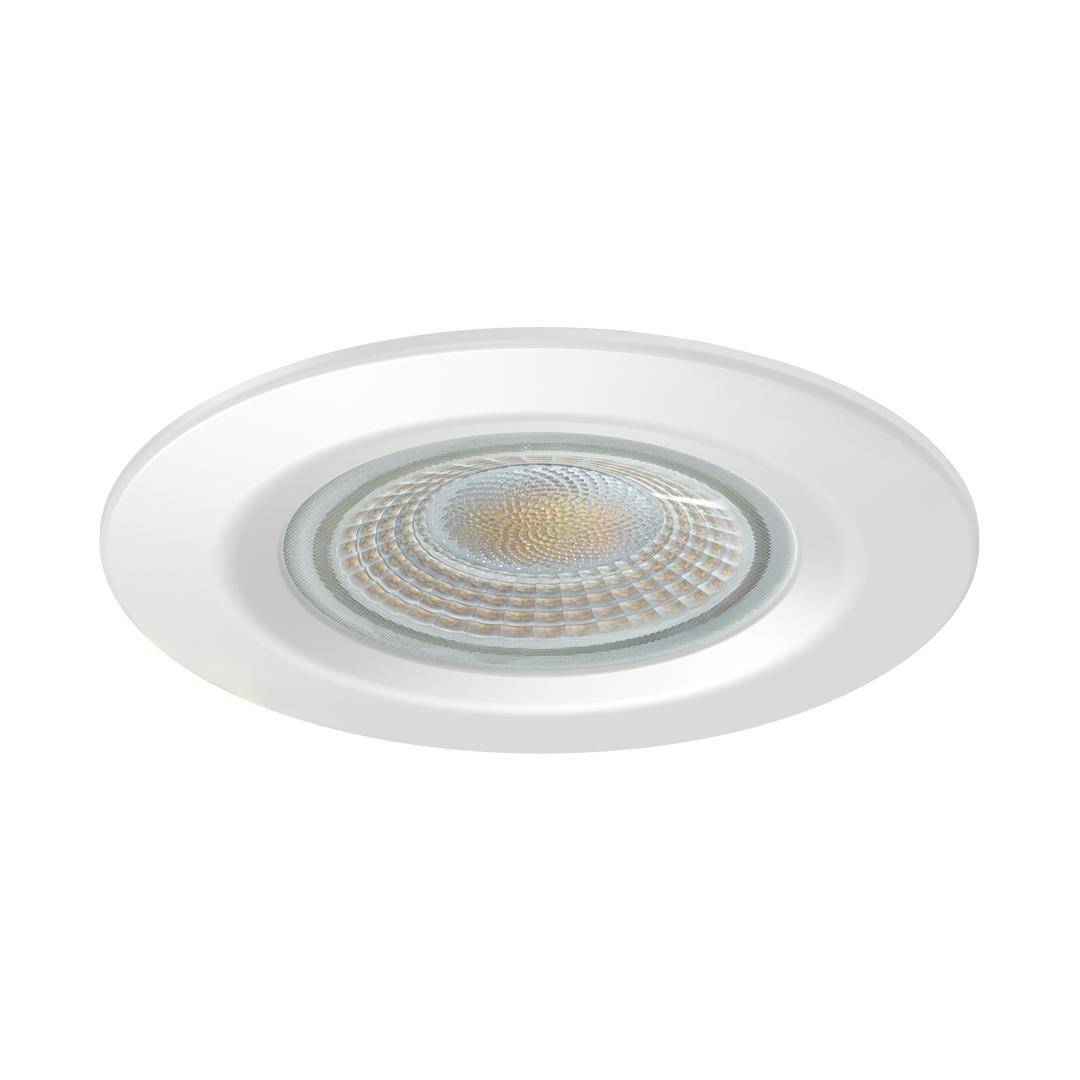

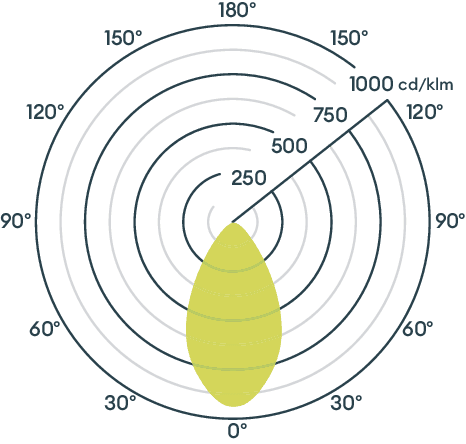

H2 Lite Select image 3

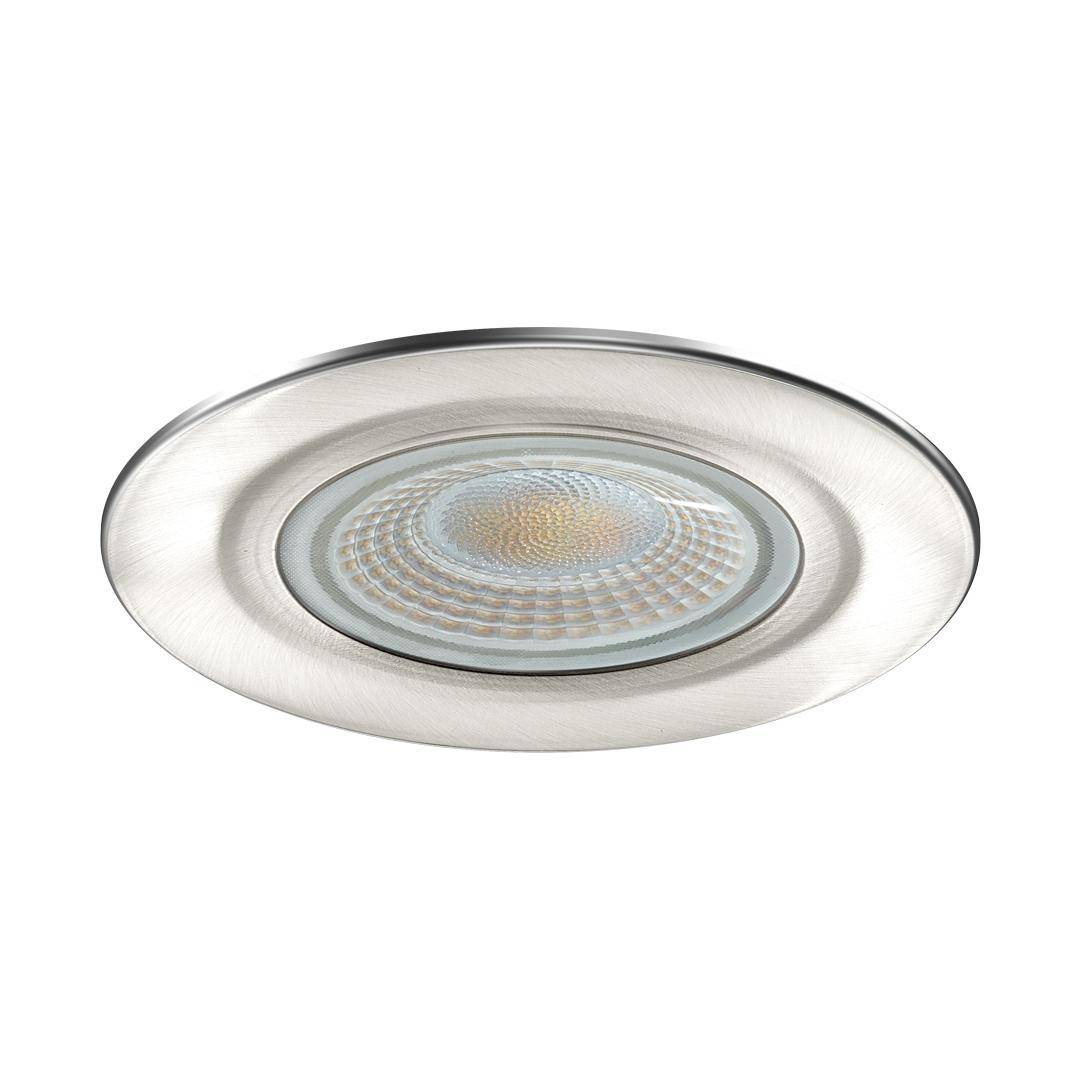

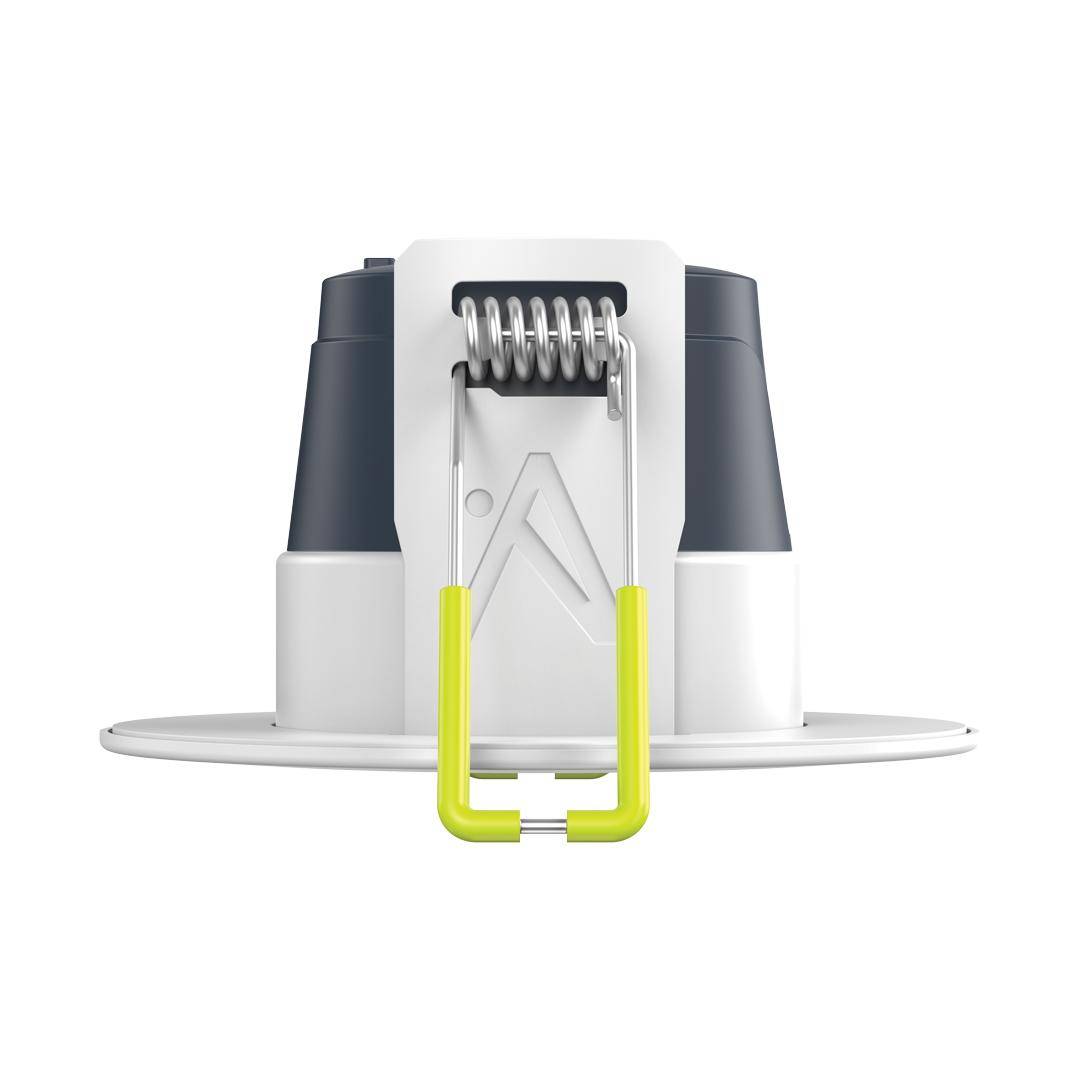

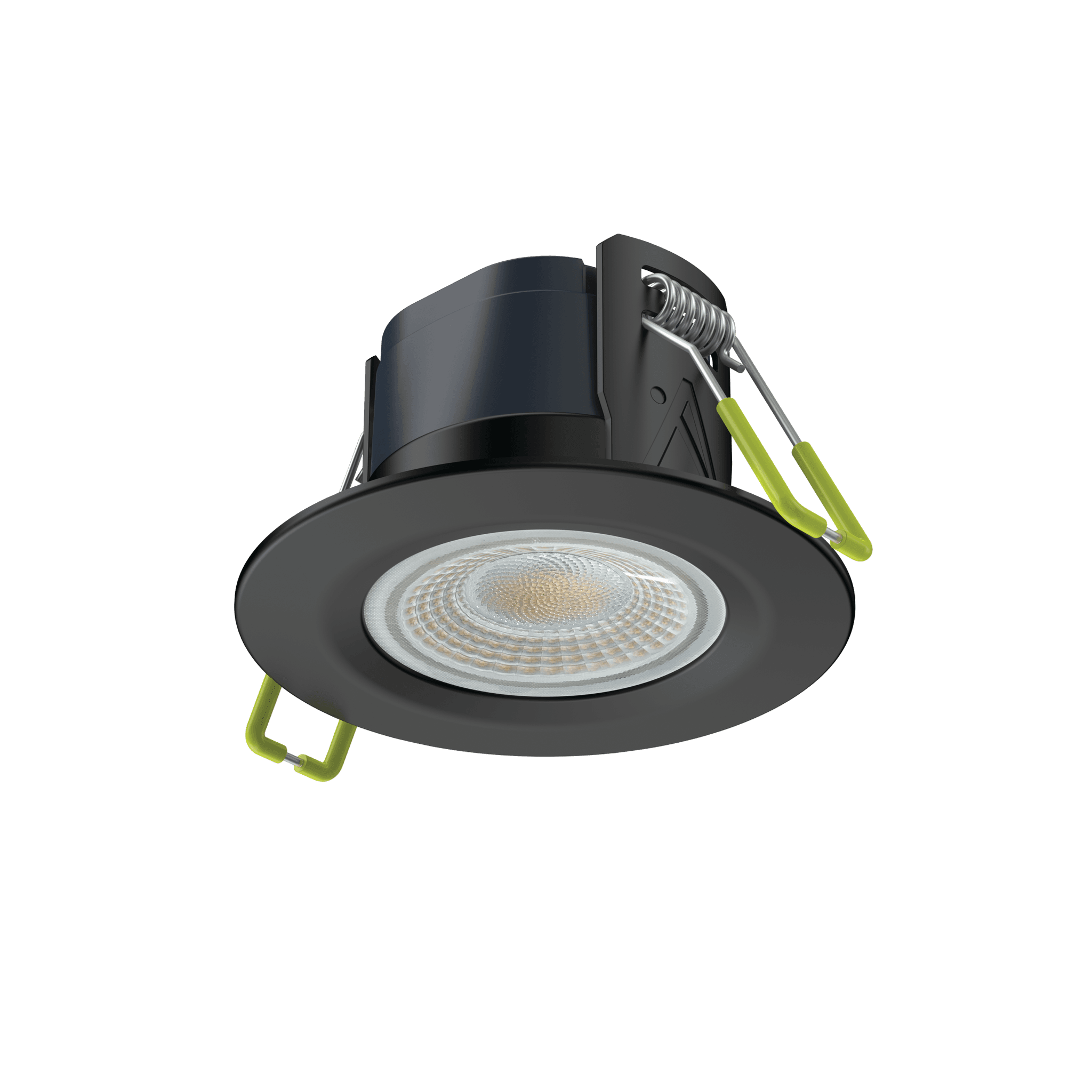

H2 Lite Select image 4

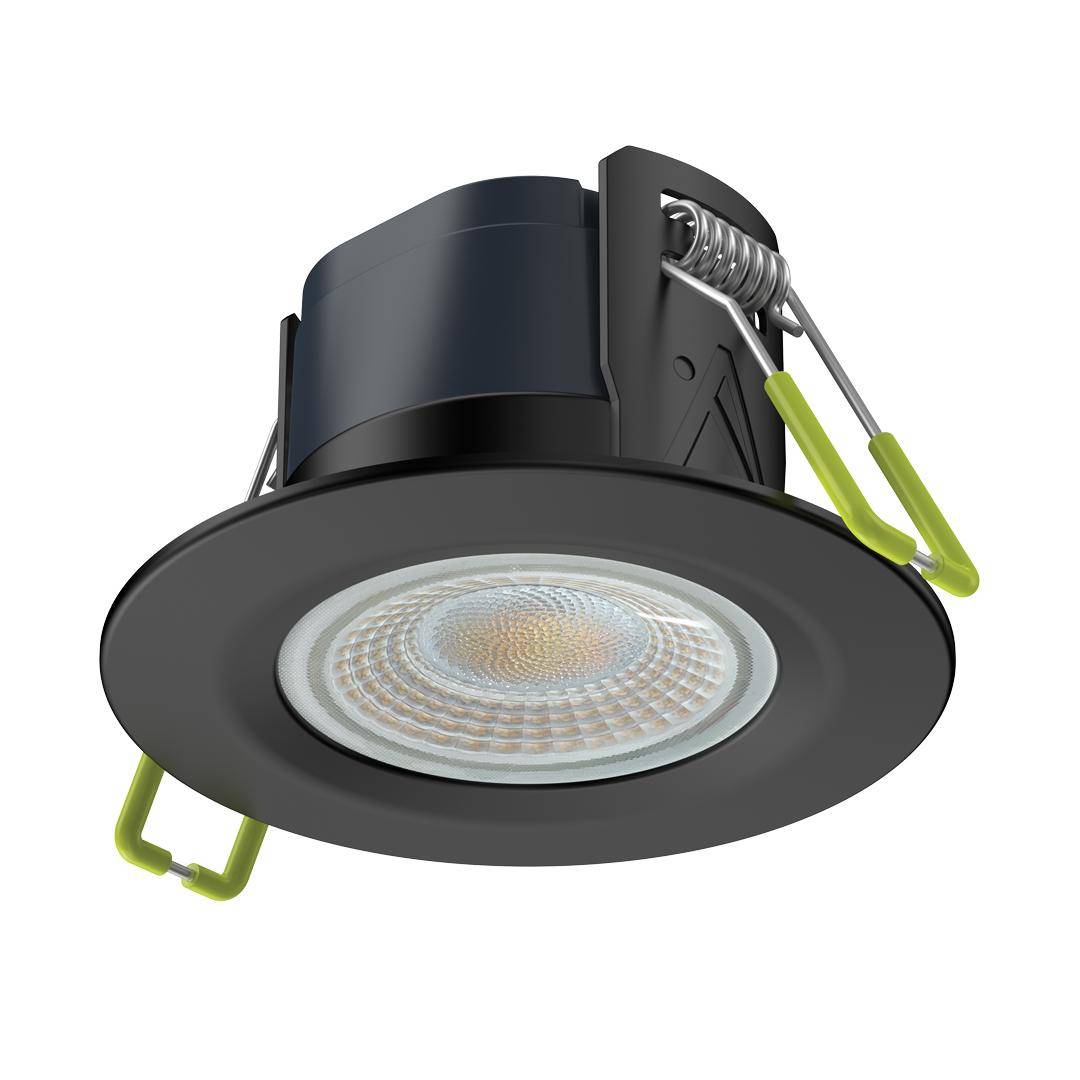

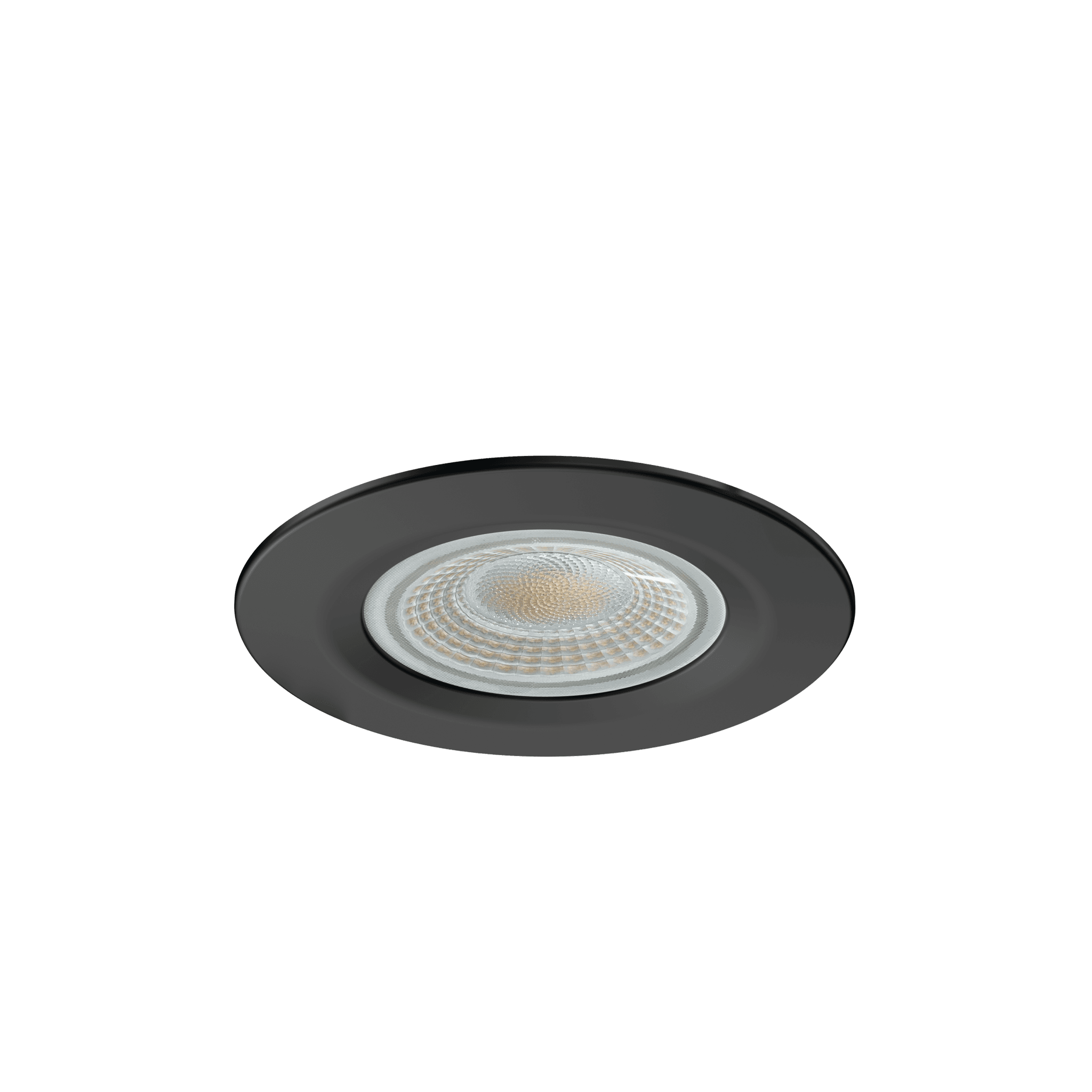

H2 Lite Select image 5

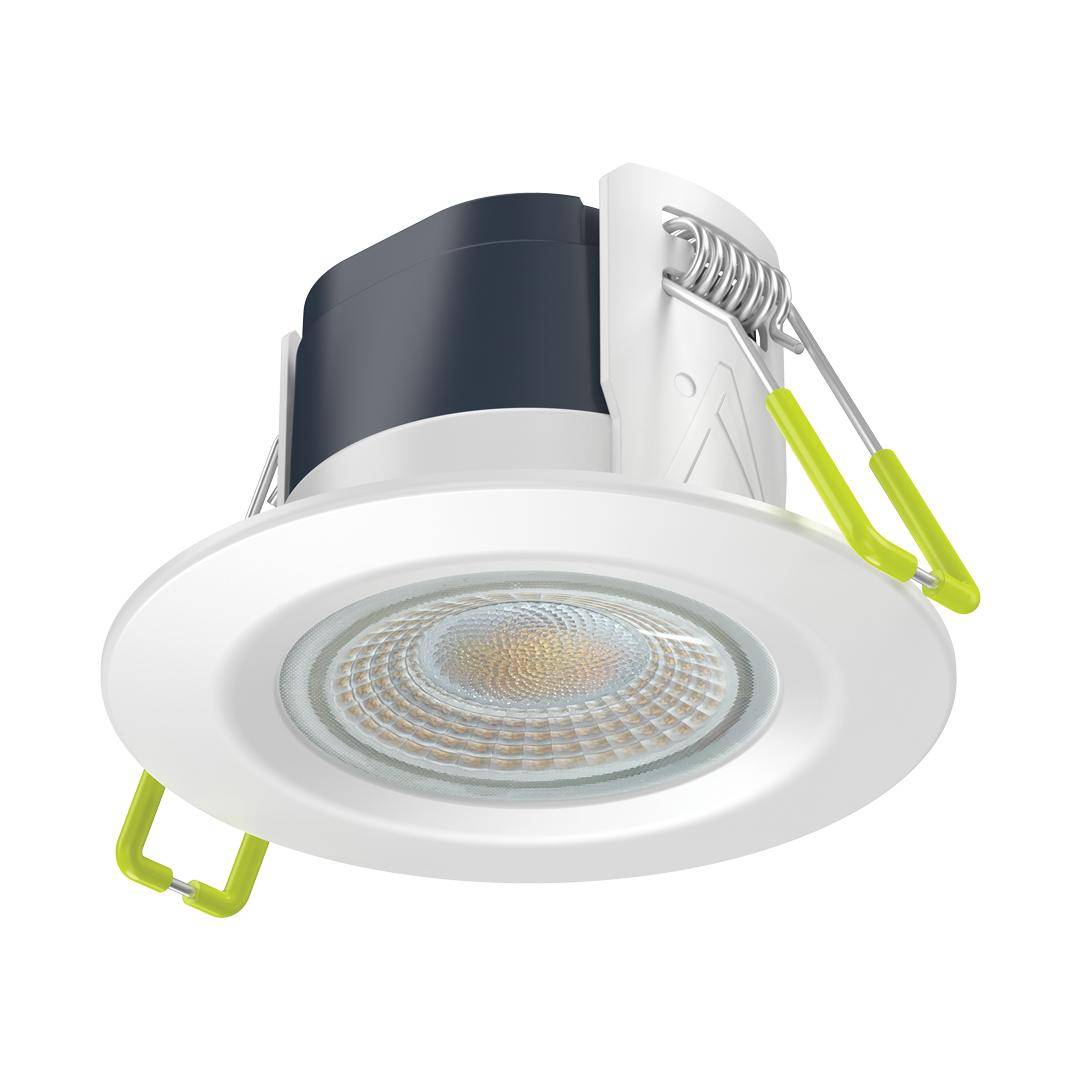

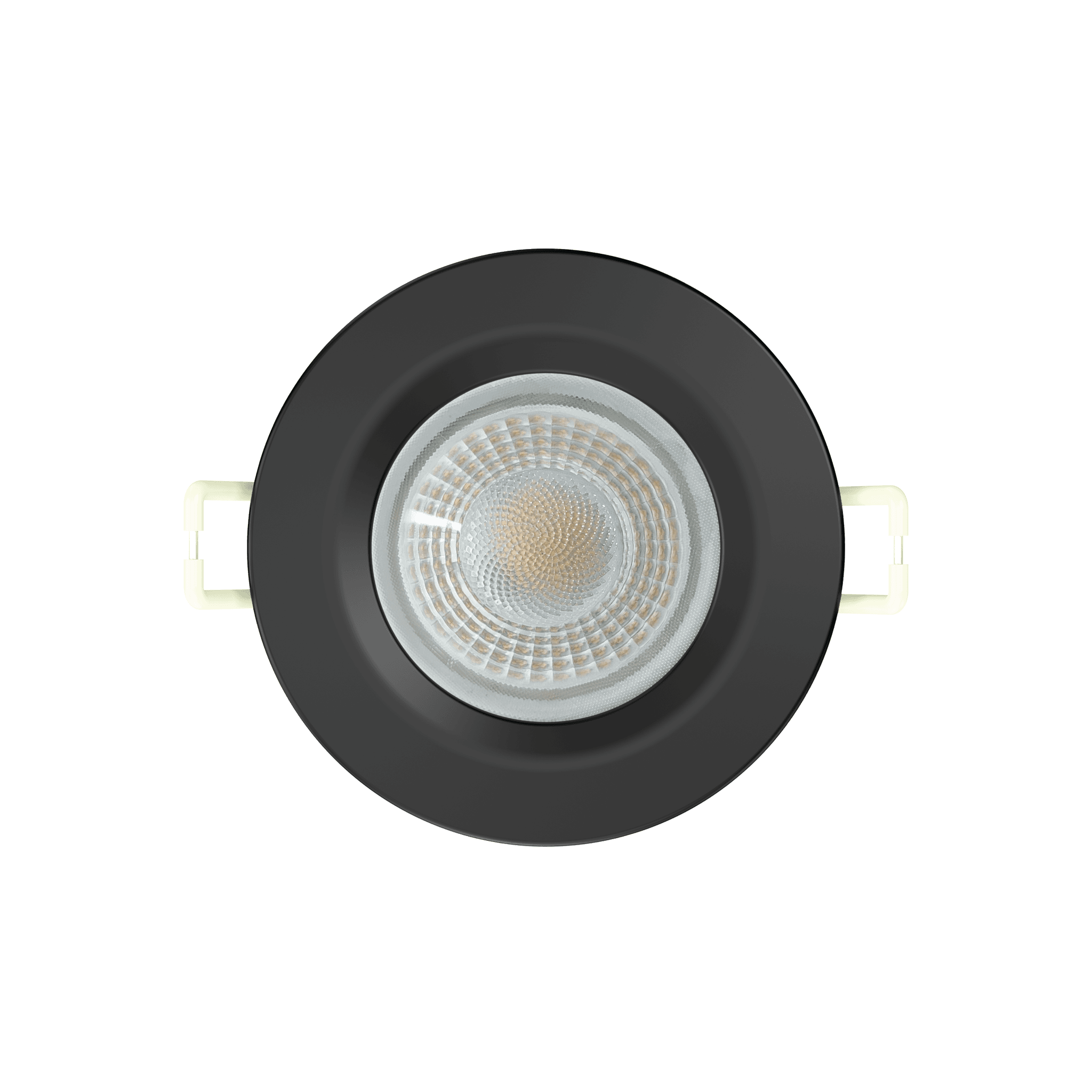

H2 Lite Select image 6

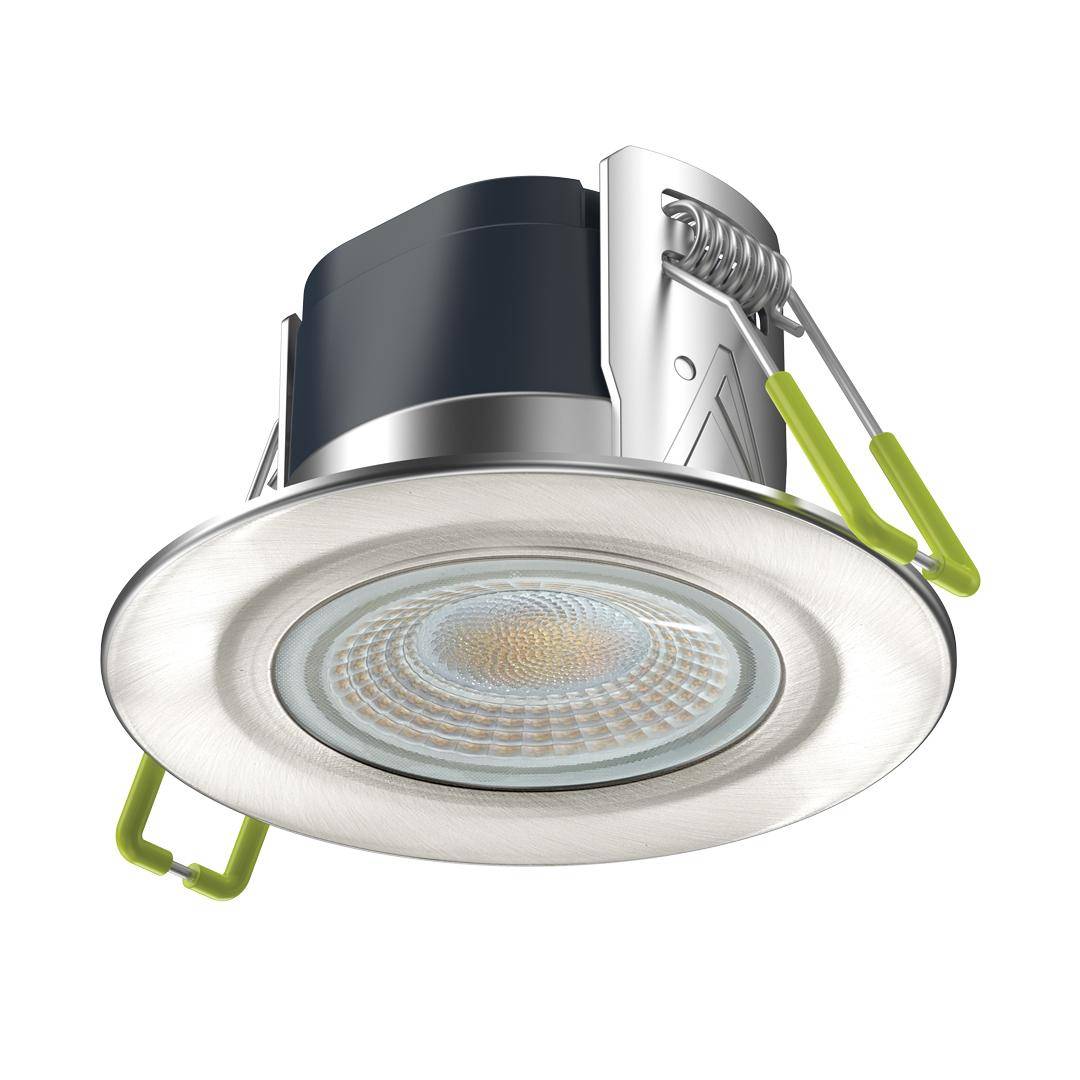

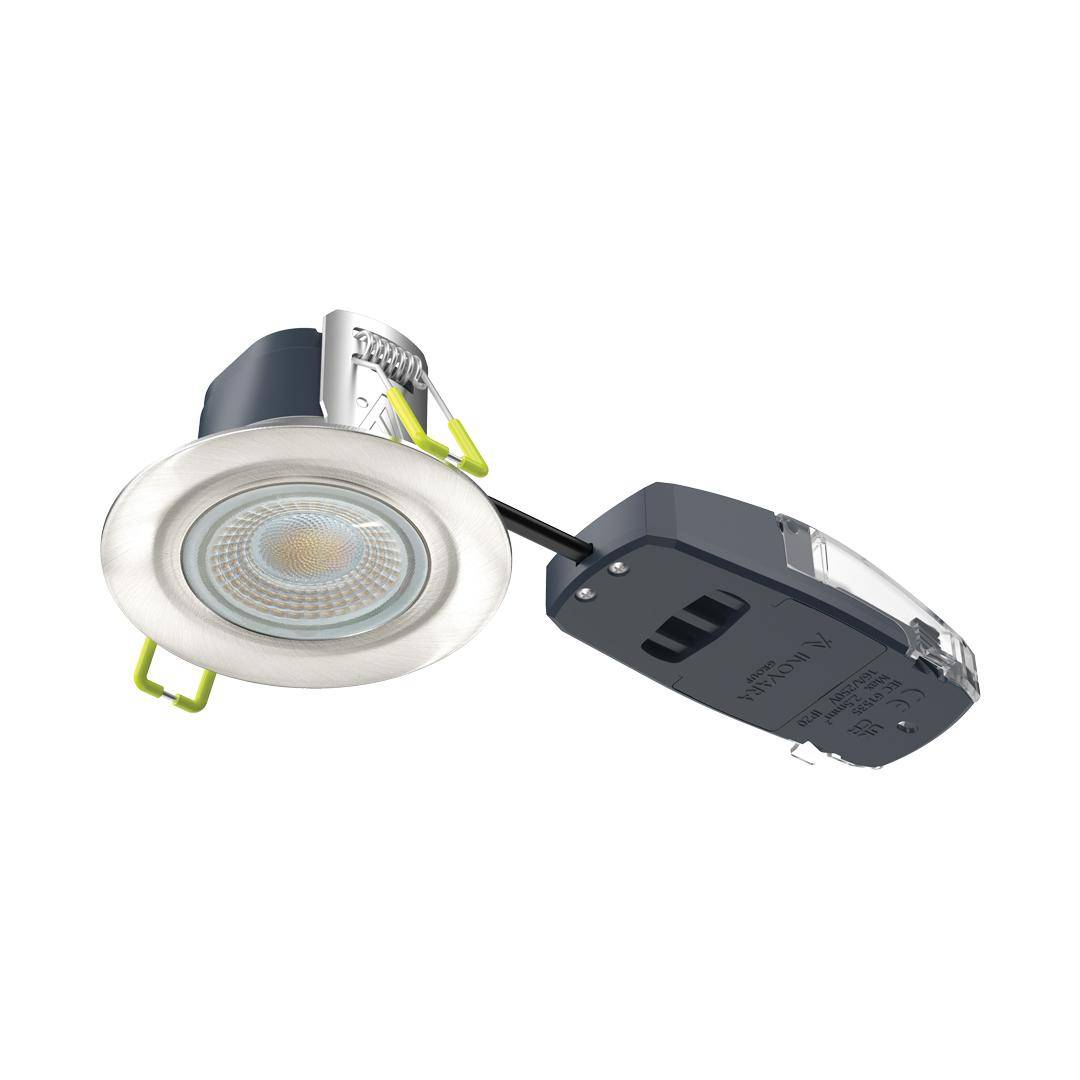

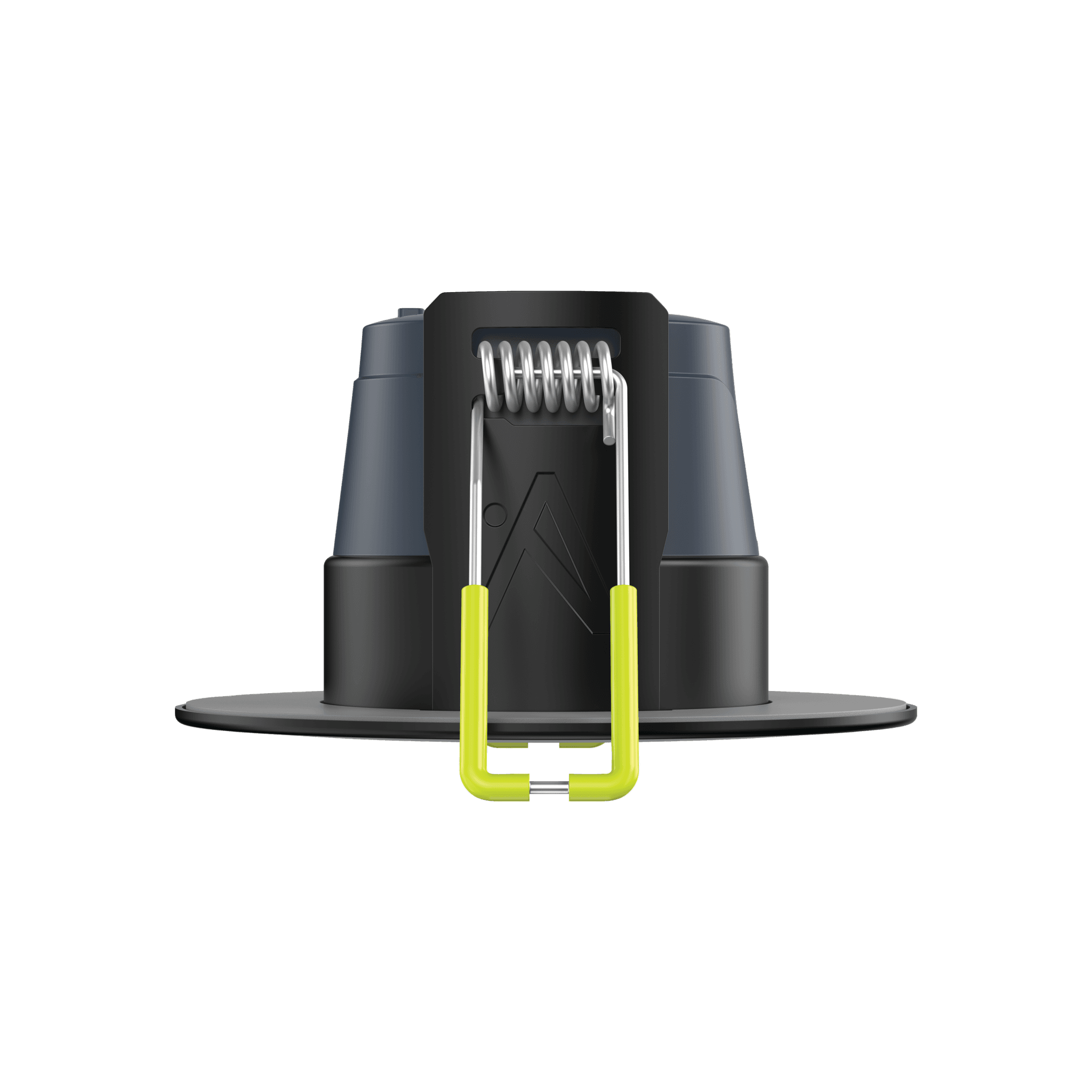

H2 Lite Select image 7

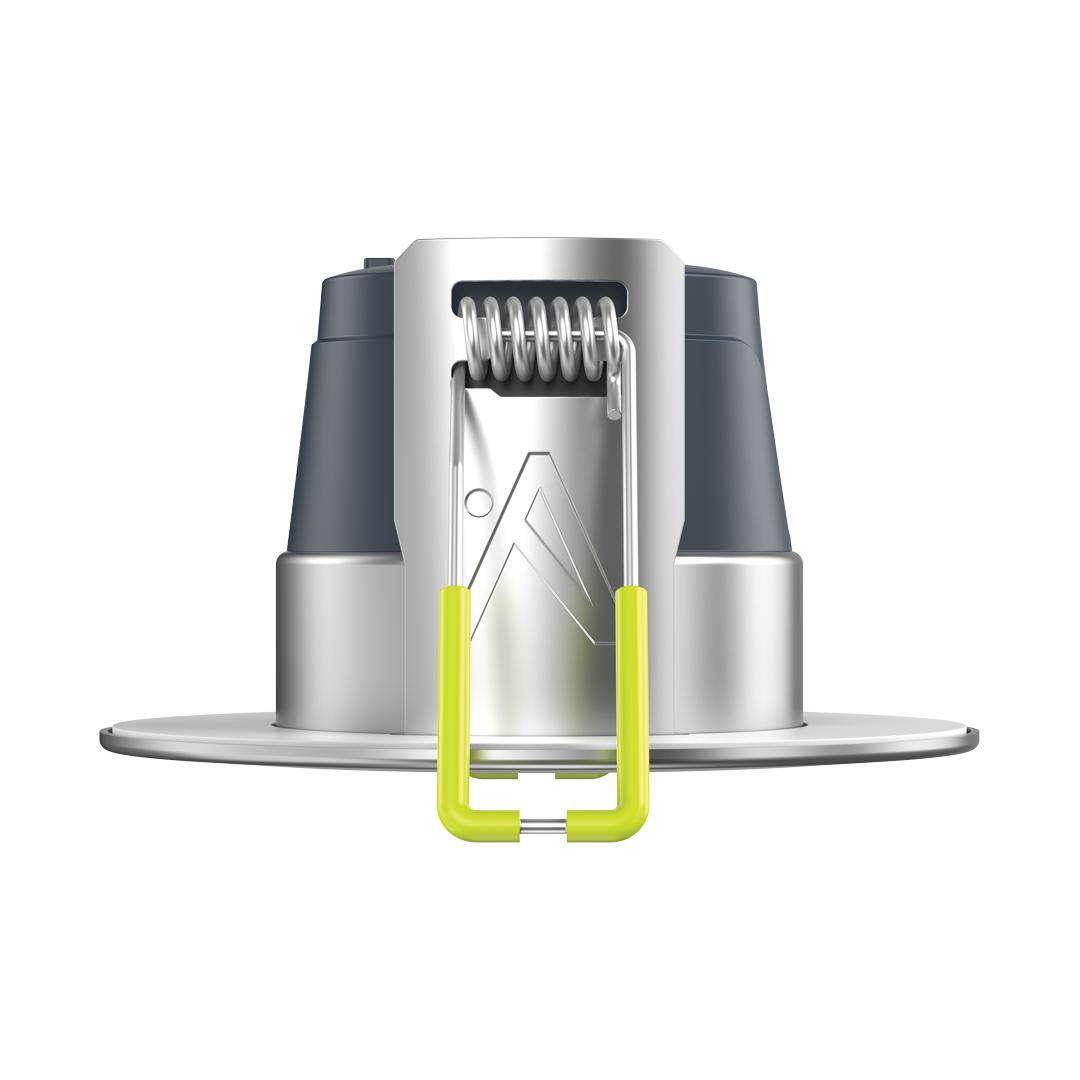

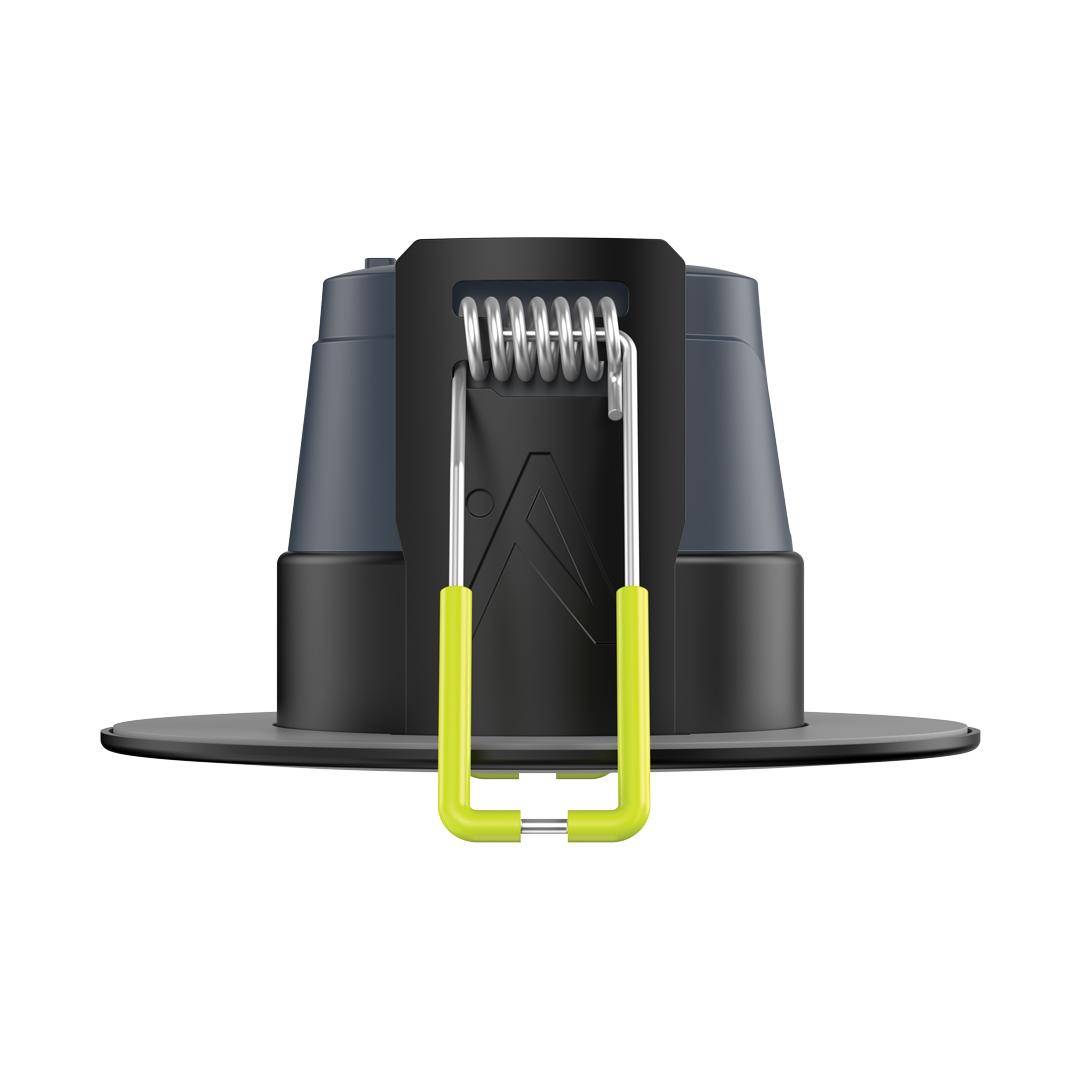

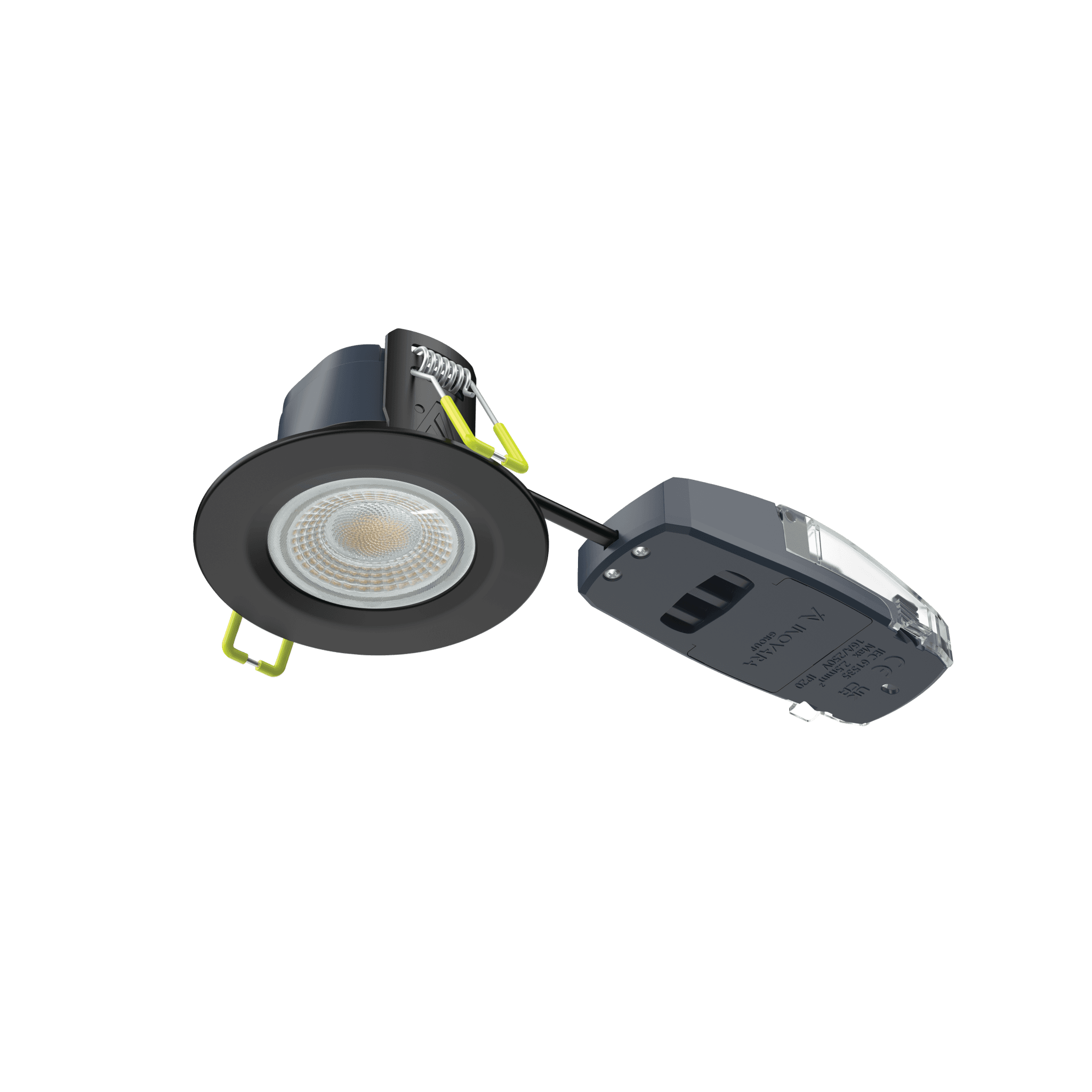

H2 Lite Select image 8
H2 Lite Select image 9

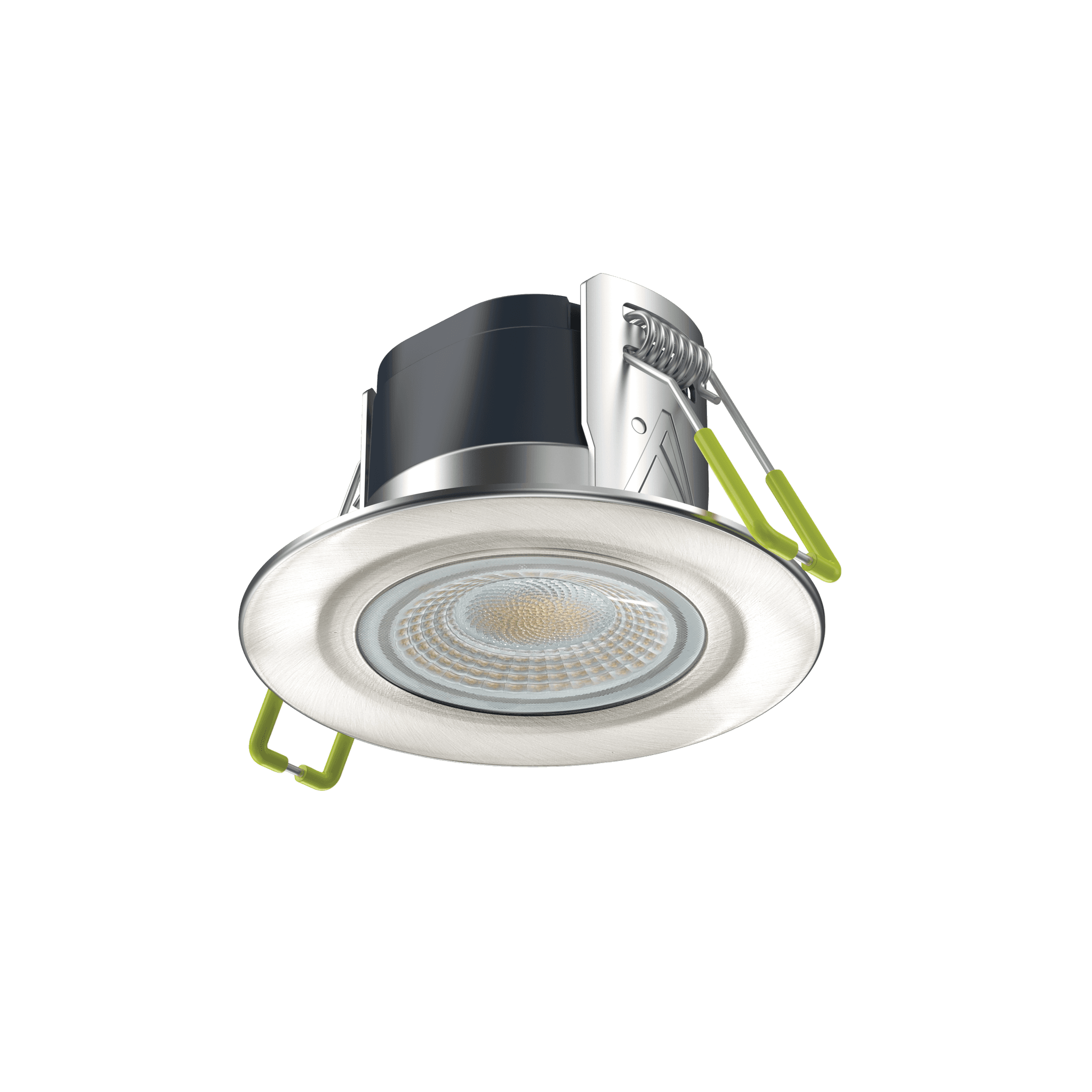

H2 Lite Select image 10

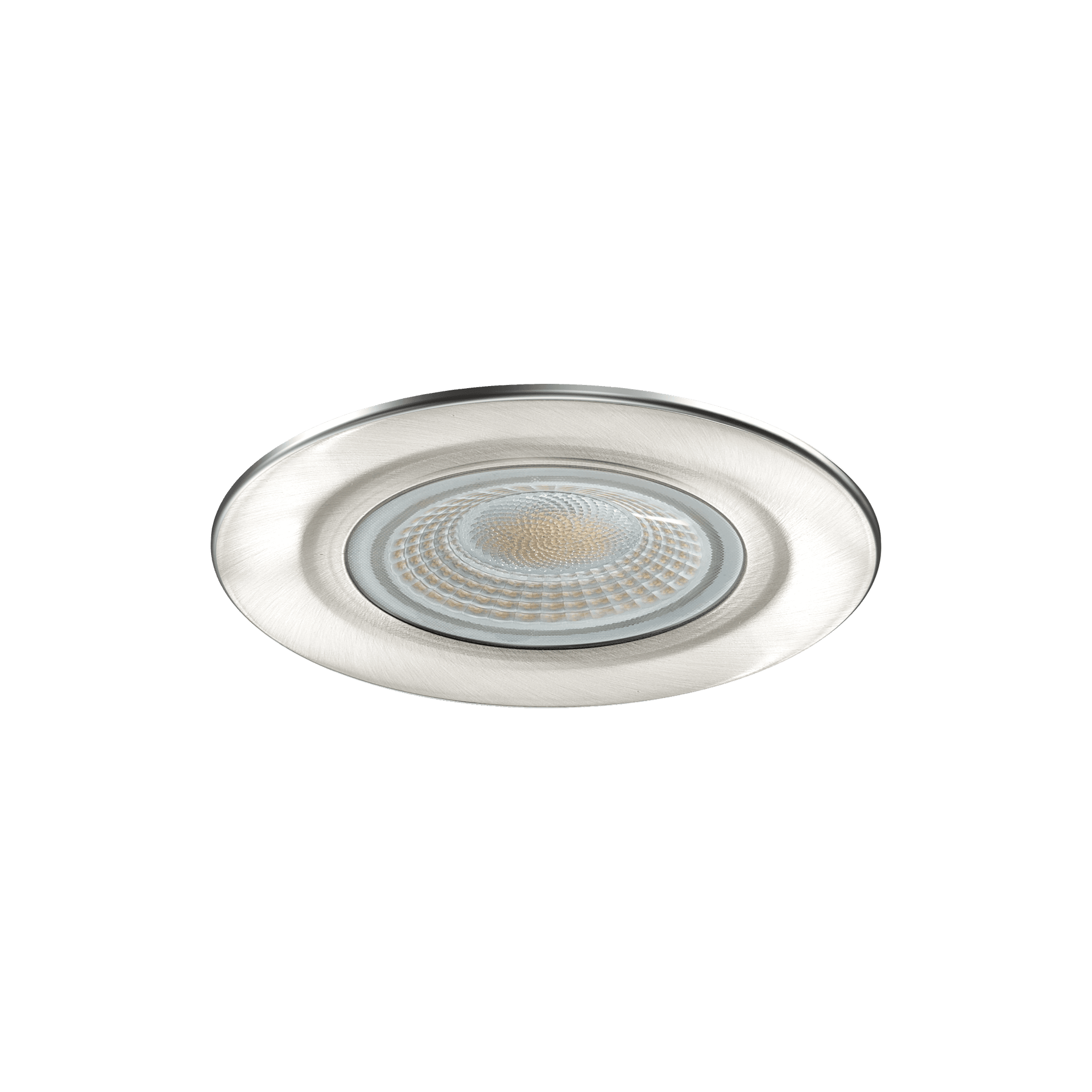

H2 Lite Select image 11

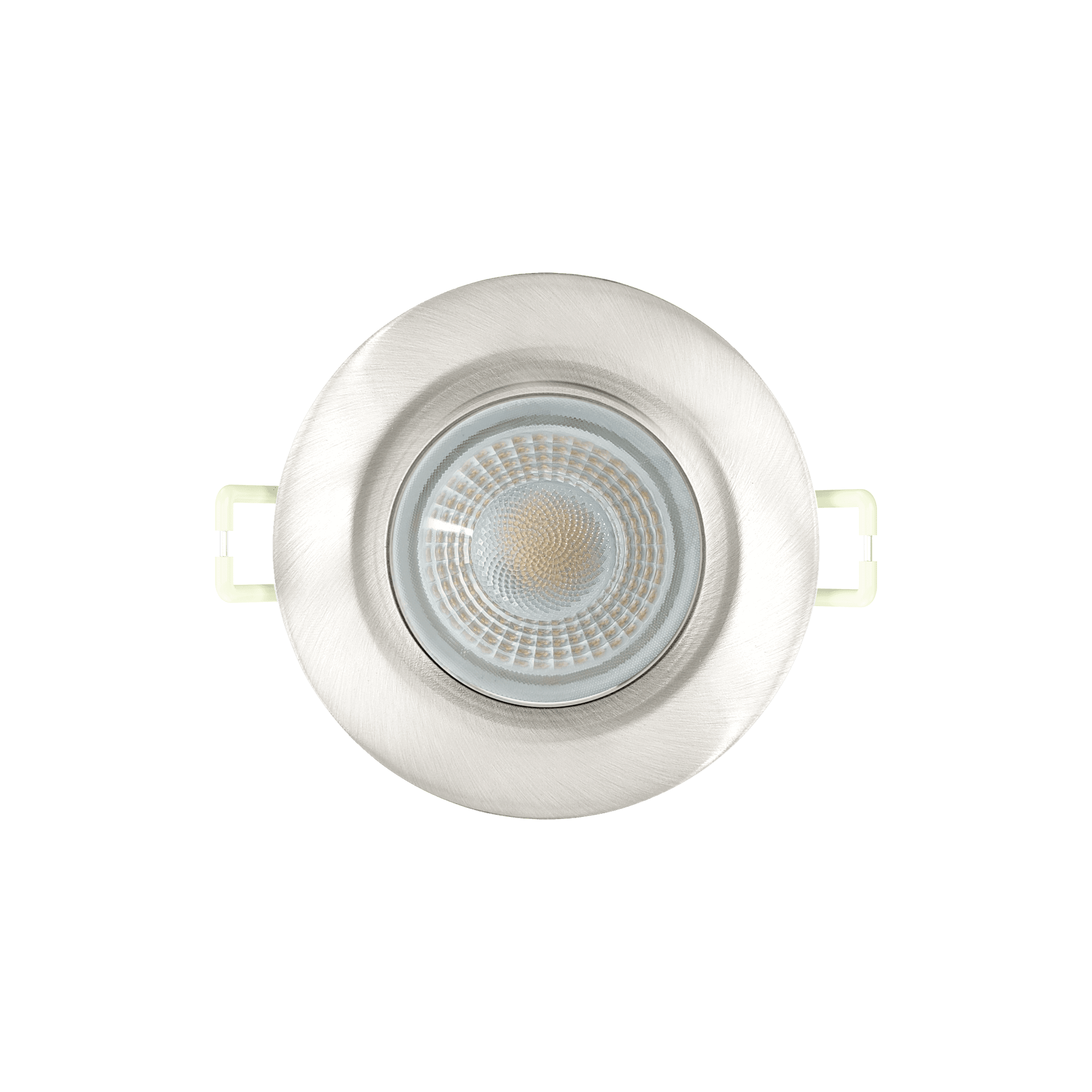

H2 Lite Select image 12

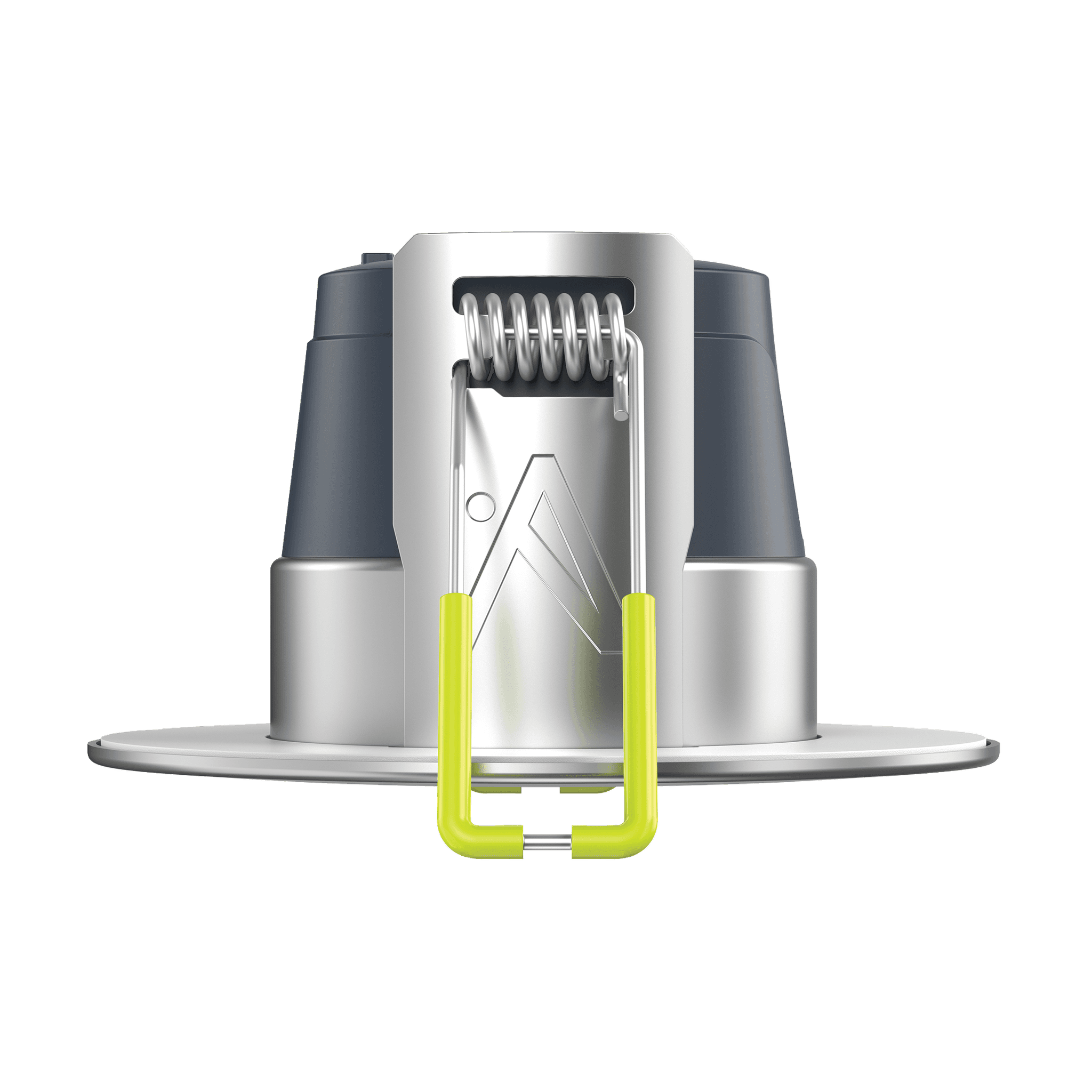

H2 Lite Select image 13
H2 Lite Select image 14

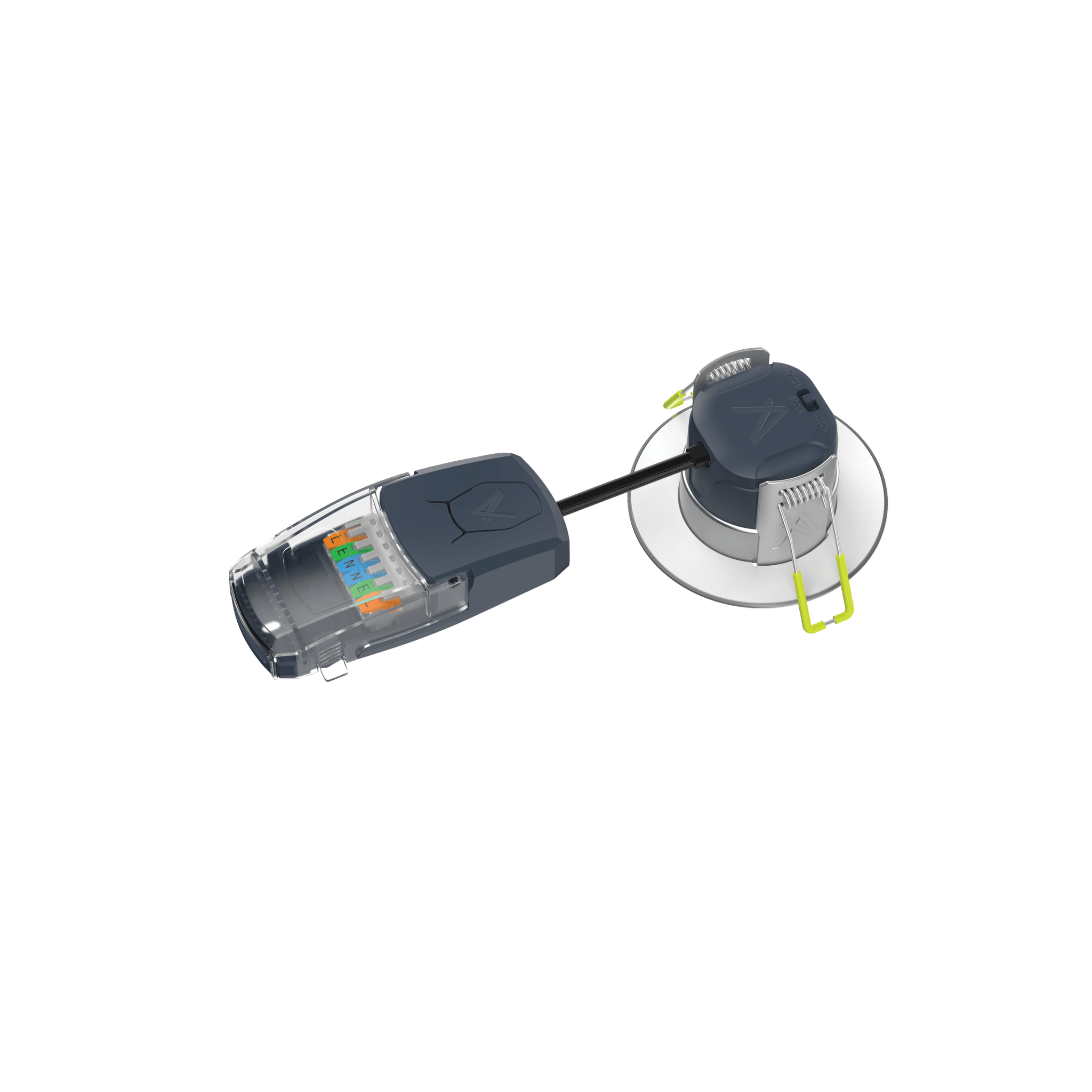

H2 Lite Select image 15
H2 Lite Select image 16
H2 Lite Select image 17

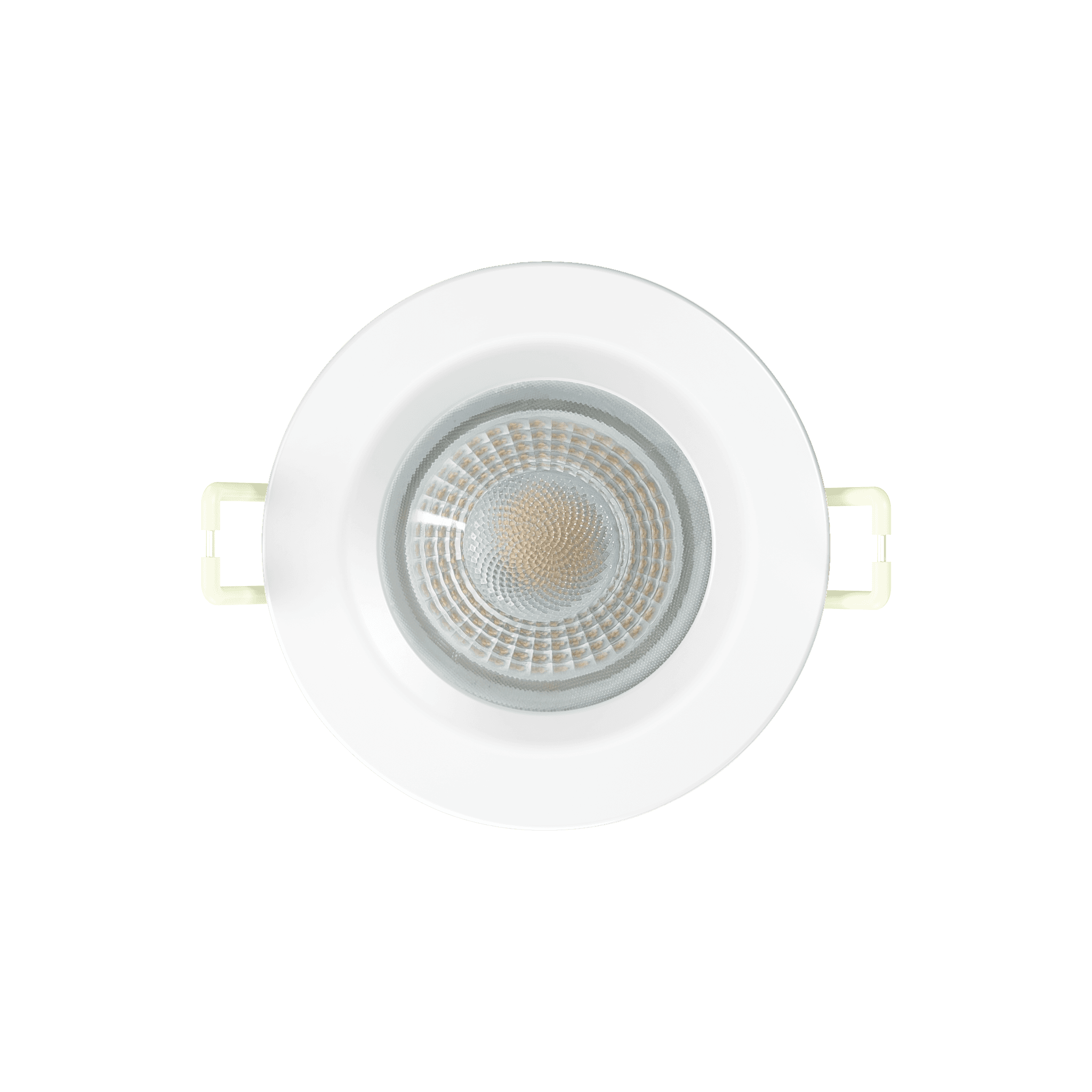

H2 Lite Select image 18
H2 Lite Select image 19

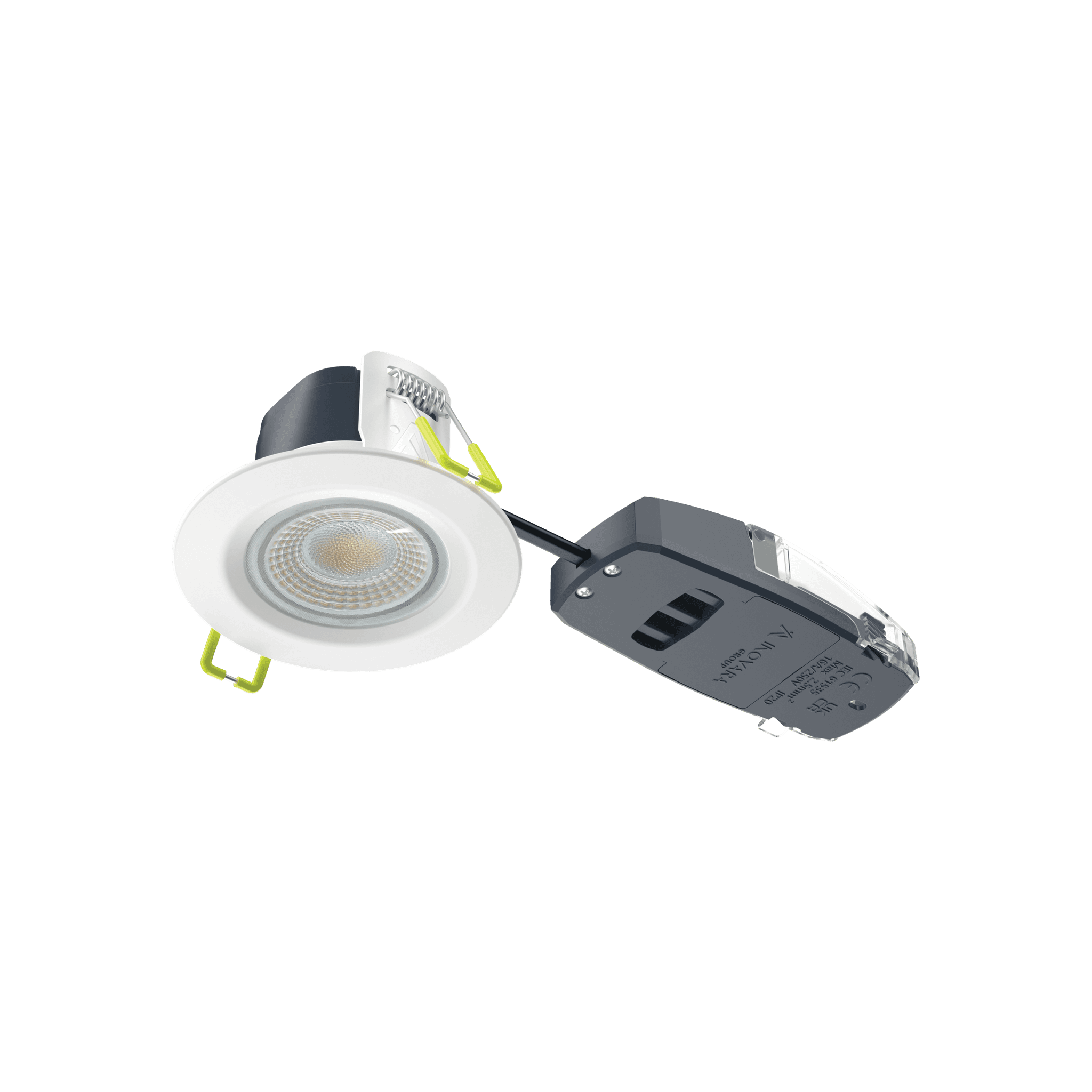

H2 Lite Select image 20

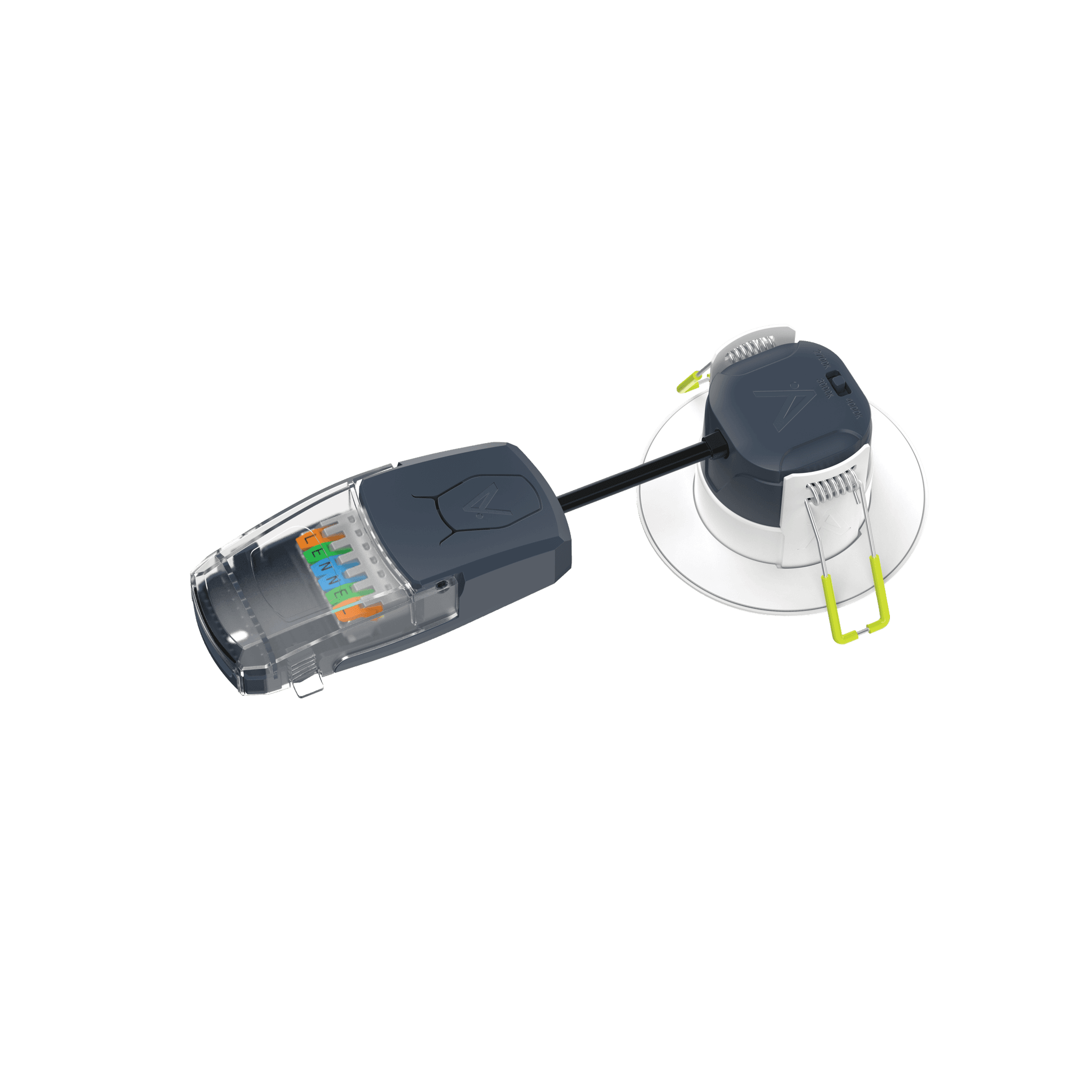

H2 Lite Select image 21

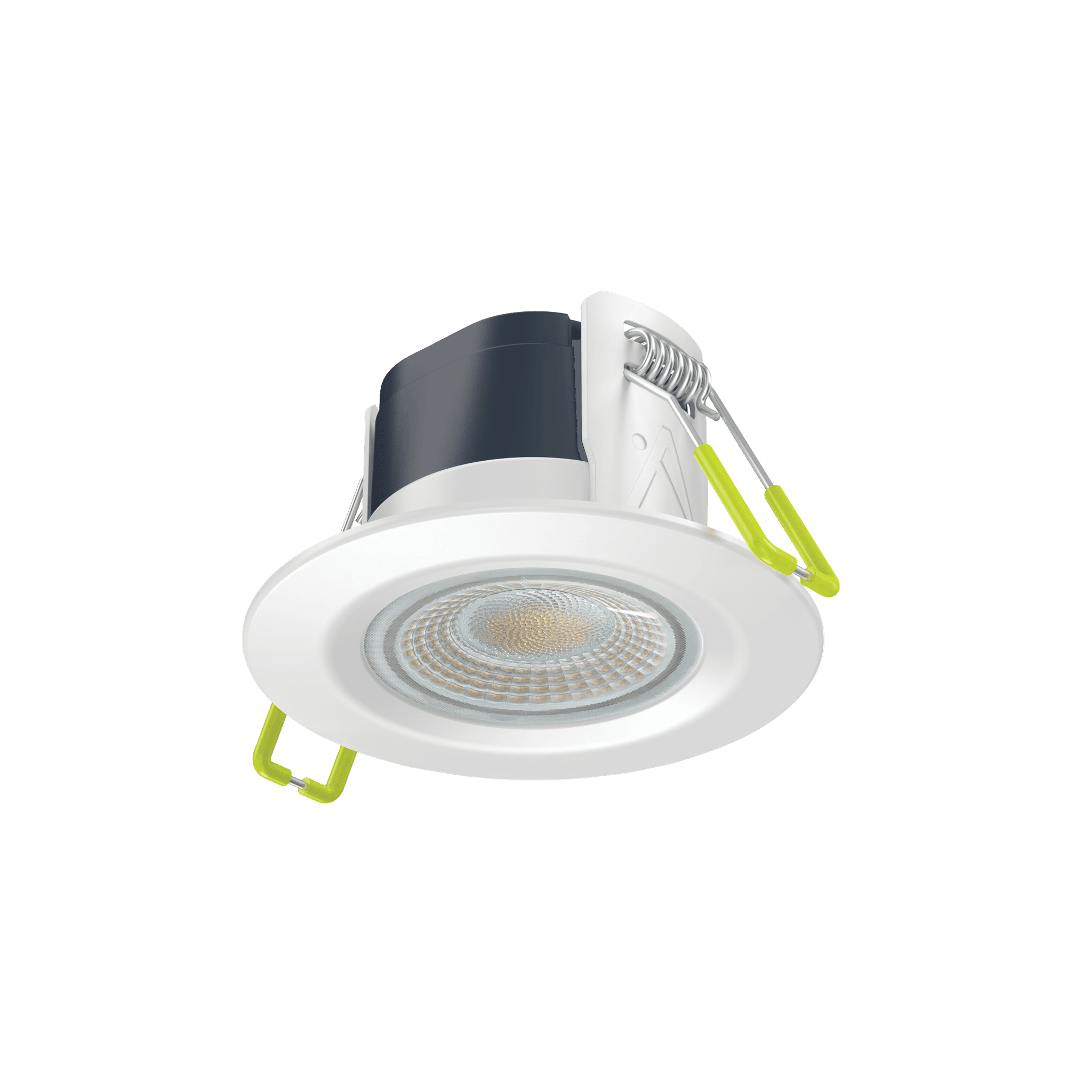

H2 Lite Select image 22

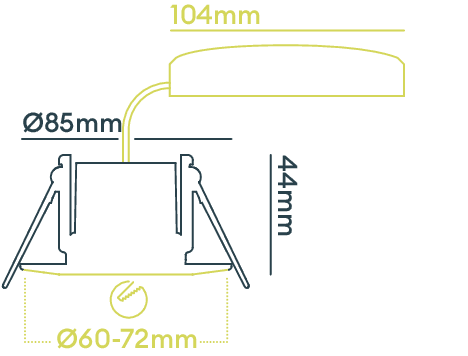

H2 Lite Select - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com

CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRICut OutDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
DLT389BLKNot adjustableRound55Mild Steel2700K / 3000K / 4000KBlack8060 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP6585 mm600 - 650RecessedNone255W85 mm
DLT389BSNot adjustableRound55Mild Steel2700K / 3000K / 4000KBrushed Steel8060 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP6585 mm600 - 650RecessedNone255W85 mm
DLT389MWNot adjustableRound55Mild Steel2700K / 3000K / 4000KWhite8060 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP6585 mm600 - 650RecessedNone255W85 mm
DLT389MWA10Not adjustableRound55Mild Steel2700K / 3000K / 4000KWhite8060 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP6585 mm600 - 650RecessedNone255W85 mm
