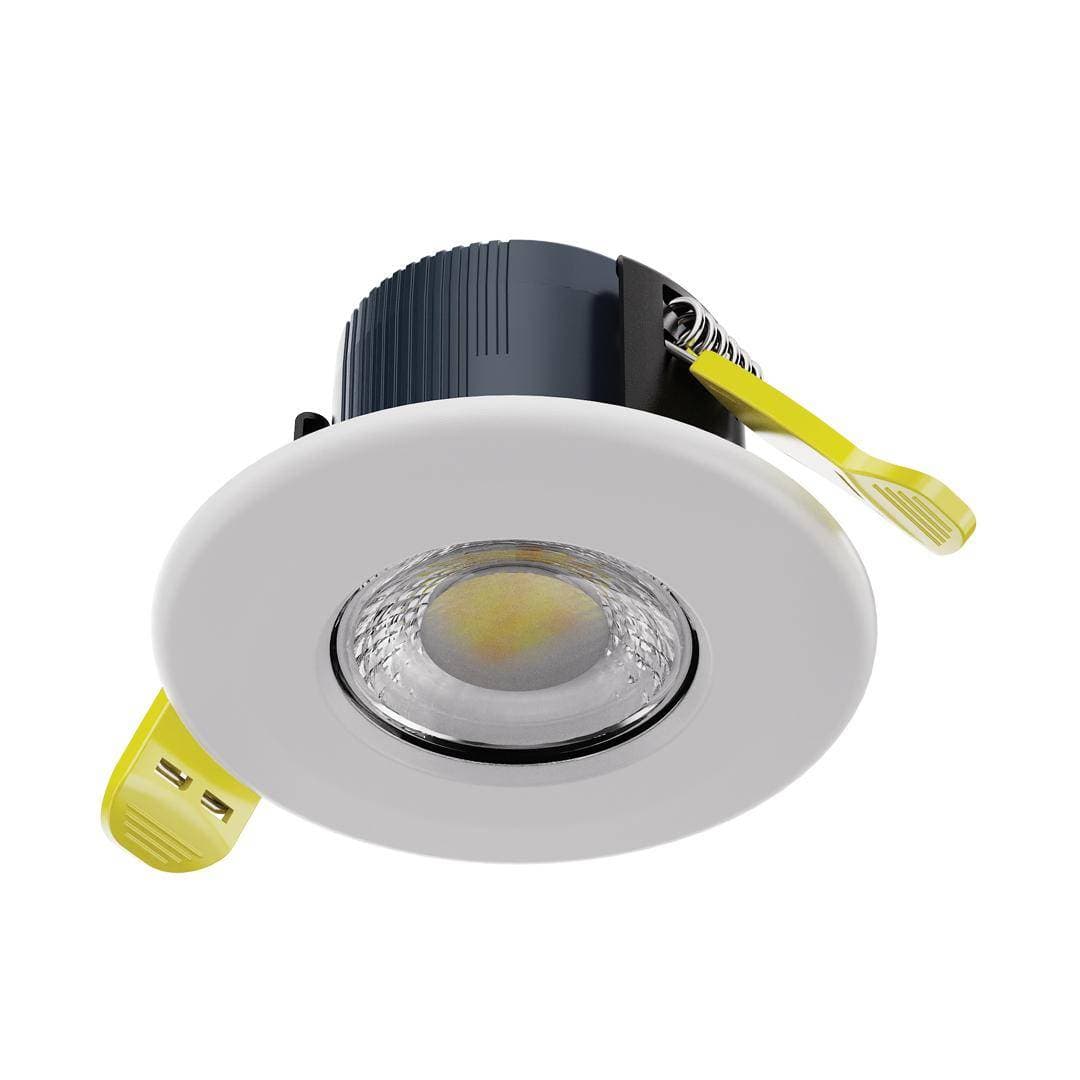

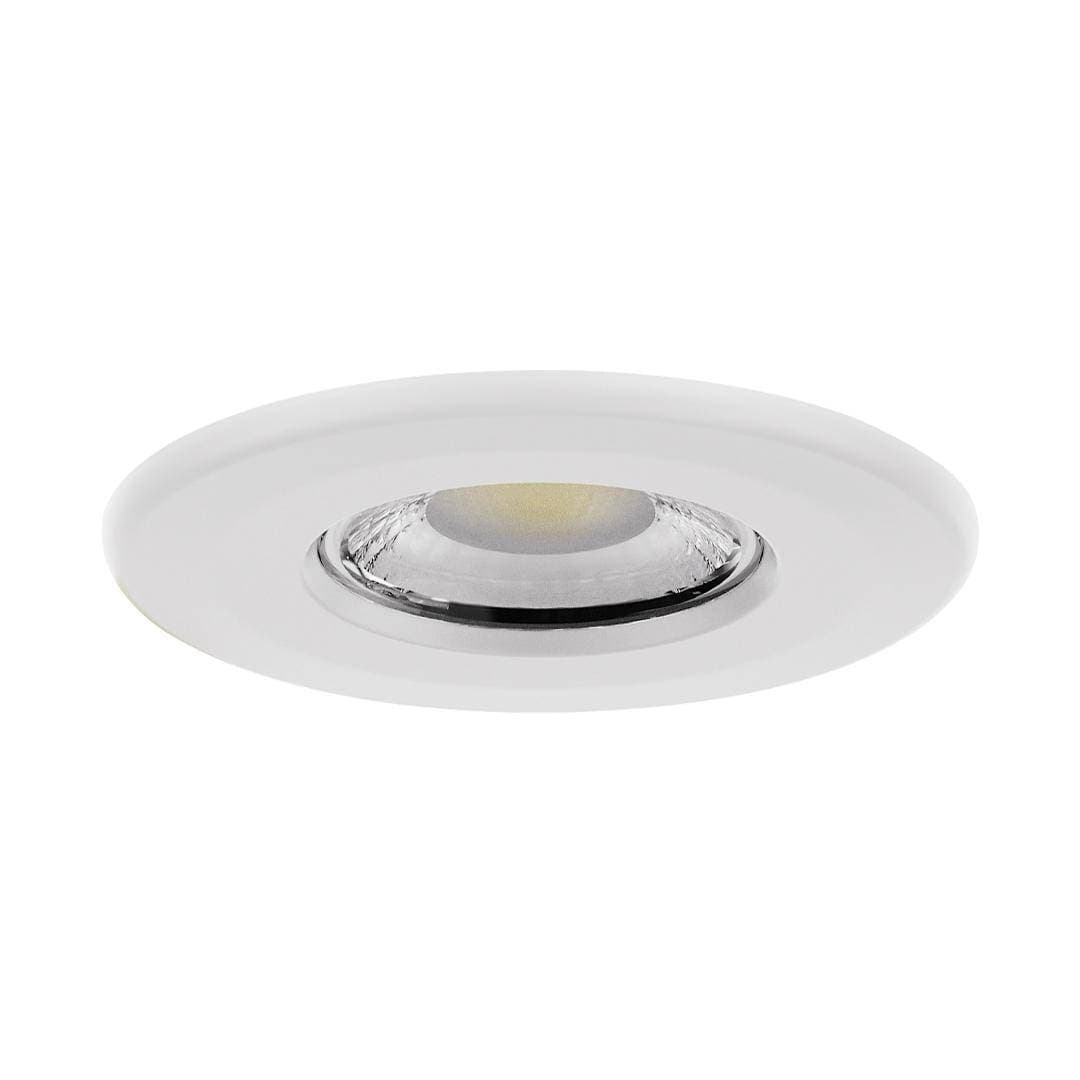

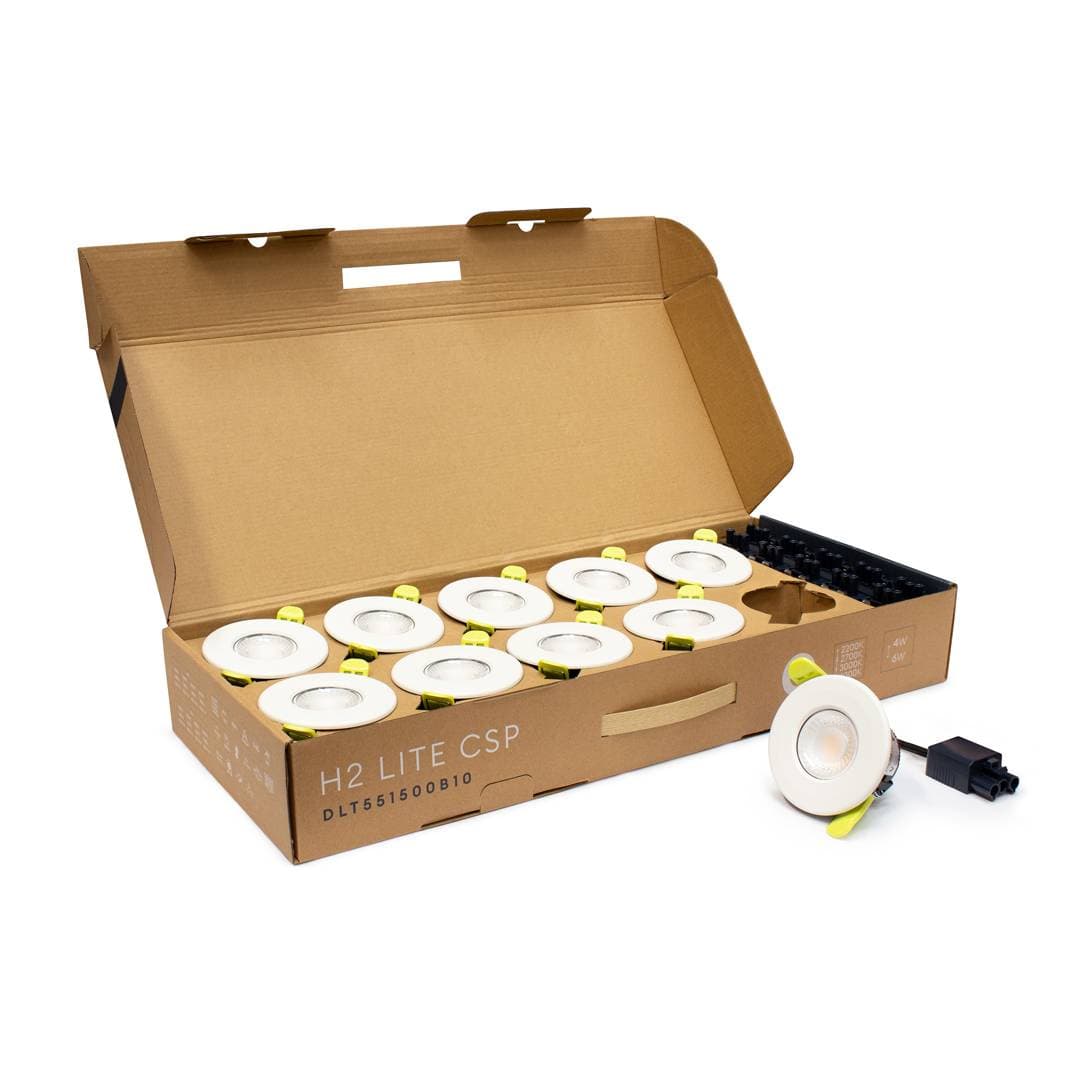

H2 Lite CSP 10 Pack

Colour switchable between 2200K, 2700K, 3000K and 4000K

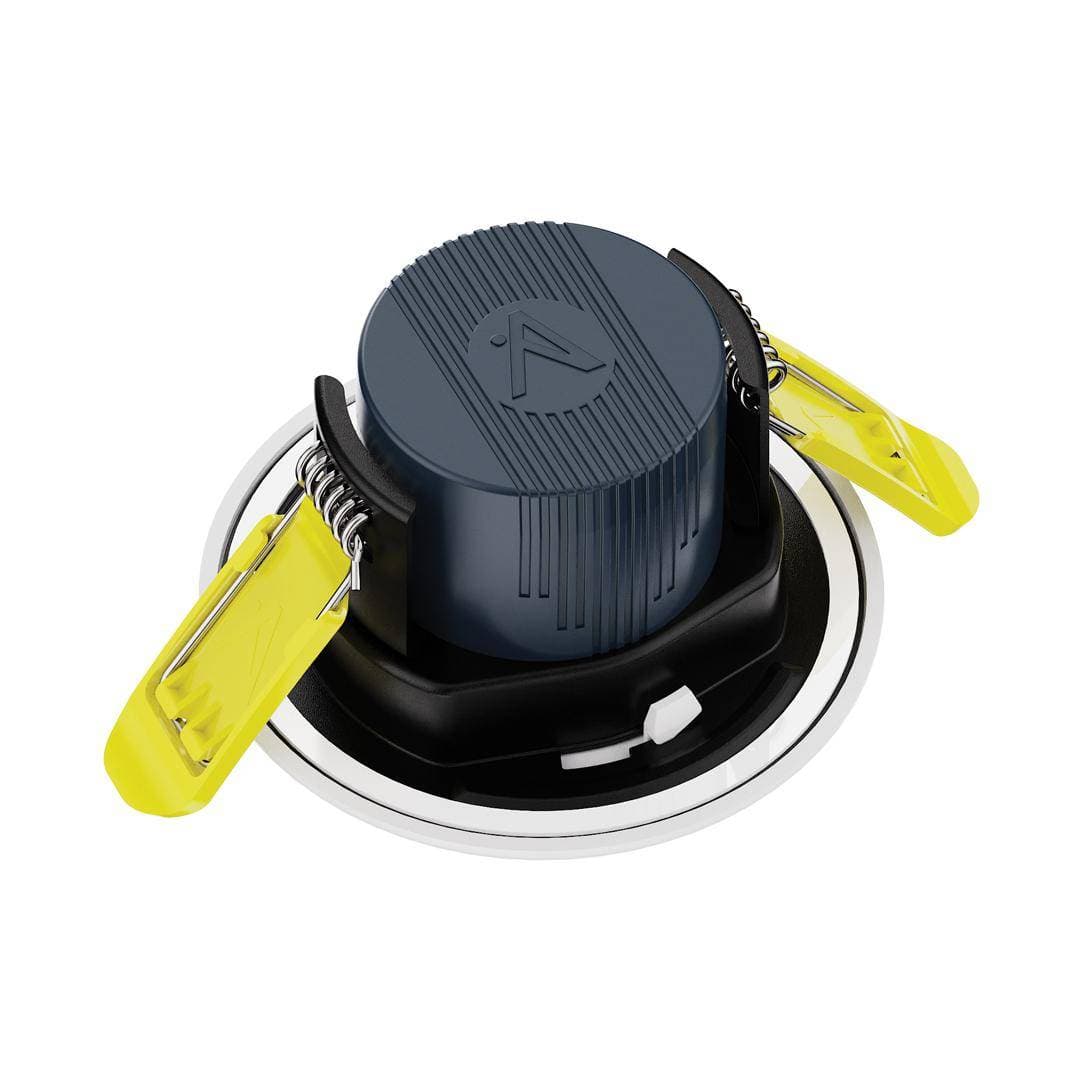

Innovative smooth glide clip design for smooth installation

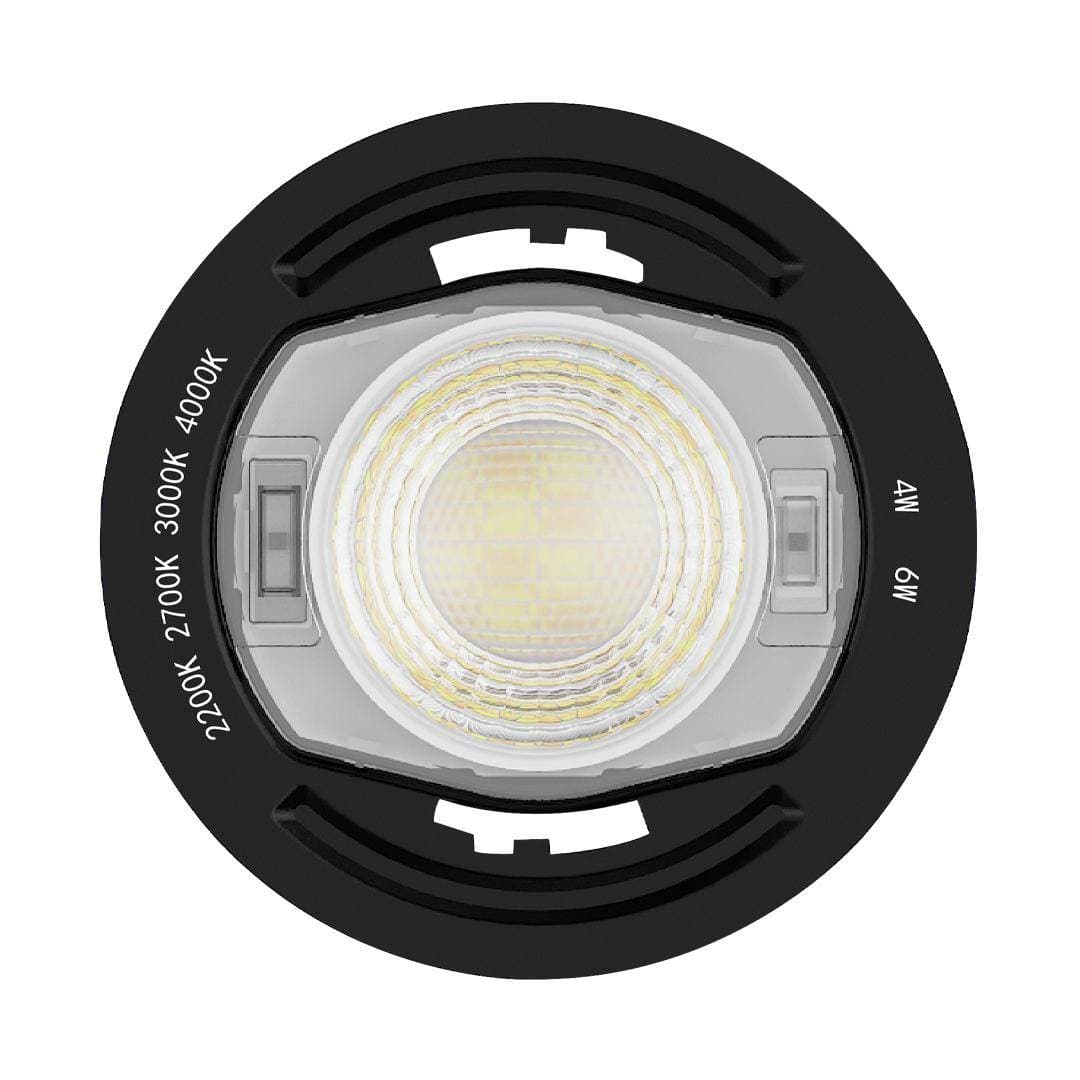

Front switches allow you to choose options at installation
New lever terminal block complete with testing ports for speed and ease of installation LENNEL

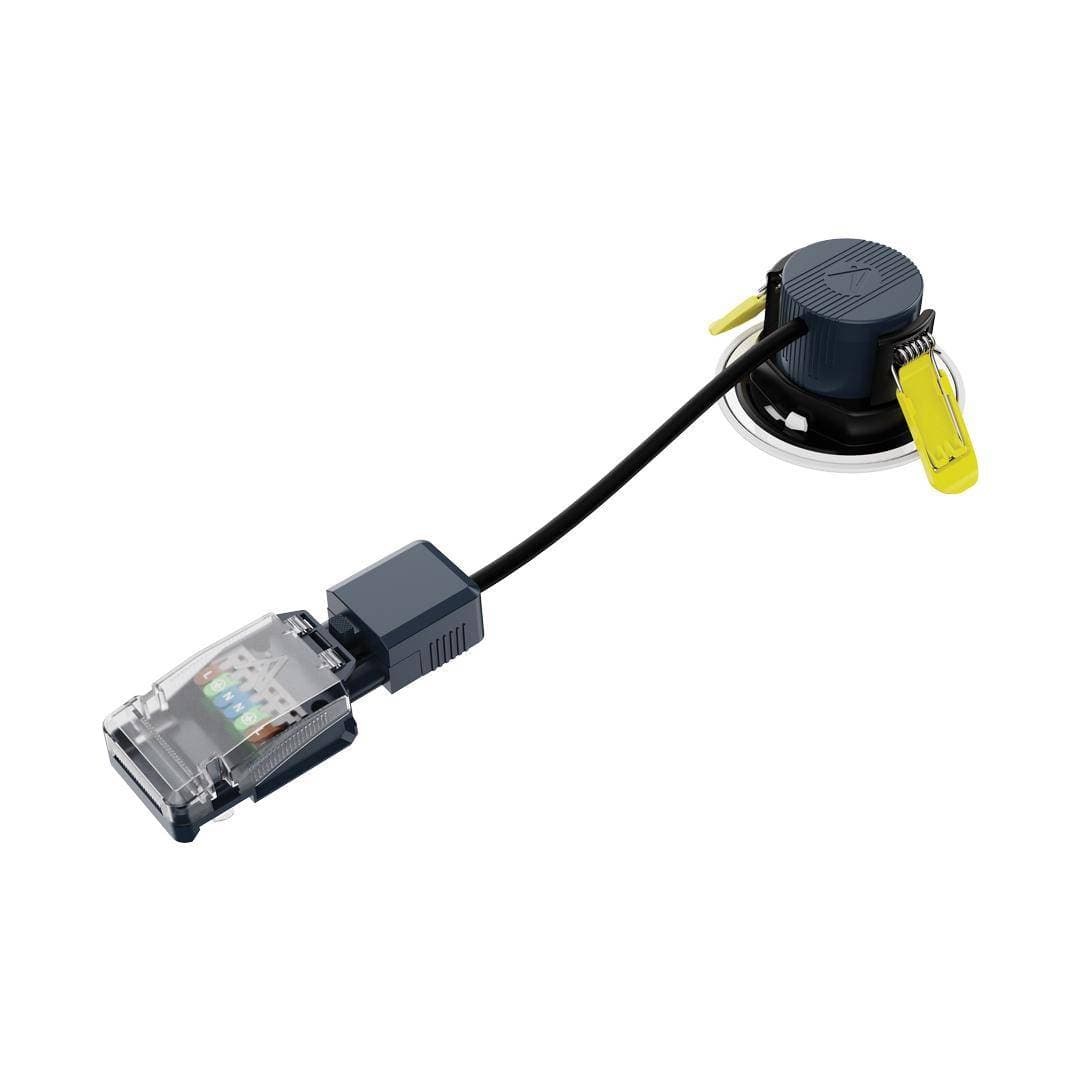

2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
Collingwood have tested the H2 Lite CSP and confirmed they work together with the Click Flow CT100 series without compatibility issues.
TRIAC Mains dimmable
Select 2200K ‘Ember Light’ to minimise blue light and create a cosy fireplace environment
Compatible with H2 Twist and lock bezels
When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
Wattage Switchable between 4W & 6W, delivering up to 145lmW

Product Data

Code	CRI	IP Rating	Adjustability	Input	Insulation Coverable	Cut Out	Bathroom Zone	Building Regulations	Ceiling Joist Approvals	Wattage Range	CCT Range	Lumens Range	lm/W Range	Colour / Finish	Sensor Option	Dimmable Option	Emergency Option	Warranty	Energy Class	Downloads
DLT551500B10	CRI>80	IP65 (from below) IP20 (from above)	Not adjustable	220-240V AC	Rolled and blown insulation	68-72mm	1	Part B, C, E, P & L	Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min	4-6W	2200K / 2700K / 3000K / 4000K	460-780	105-145	White	None	Mains (Leading Edge/Trailing Edge)	None	7 years	C
