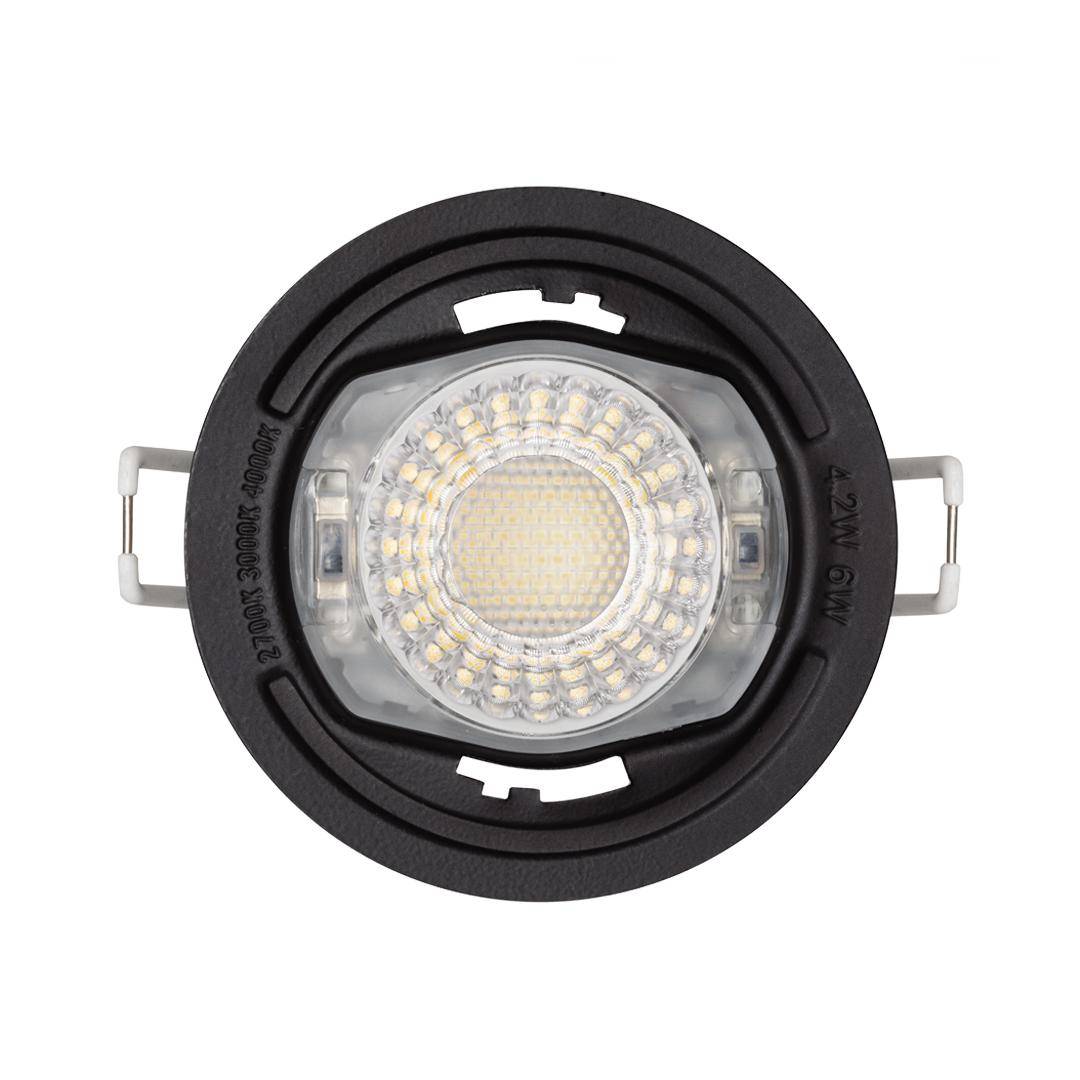

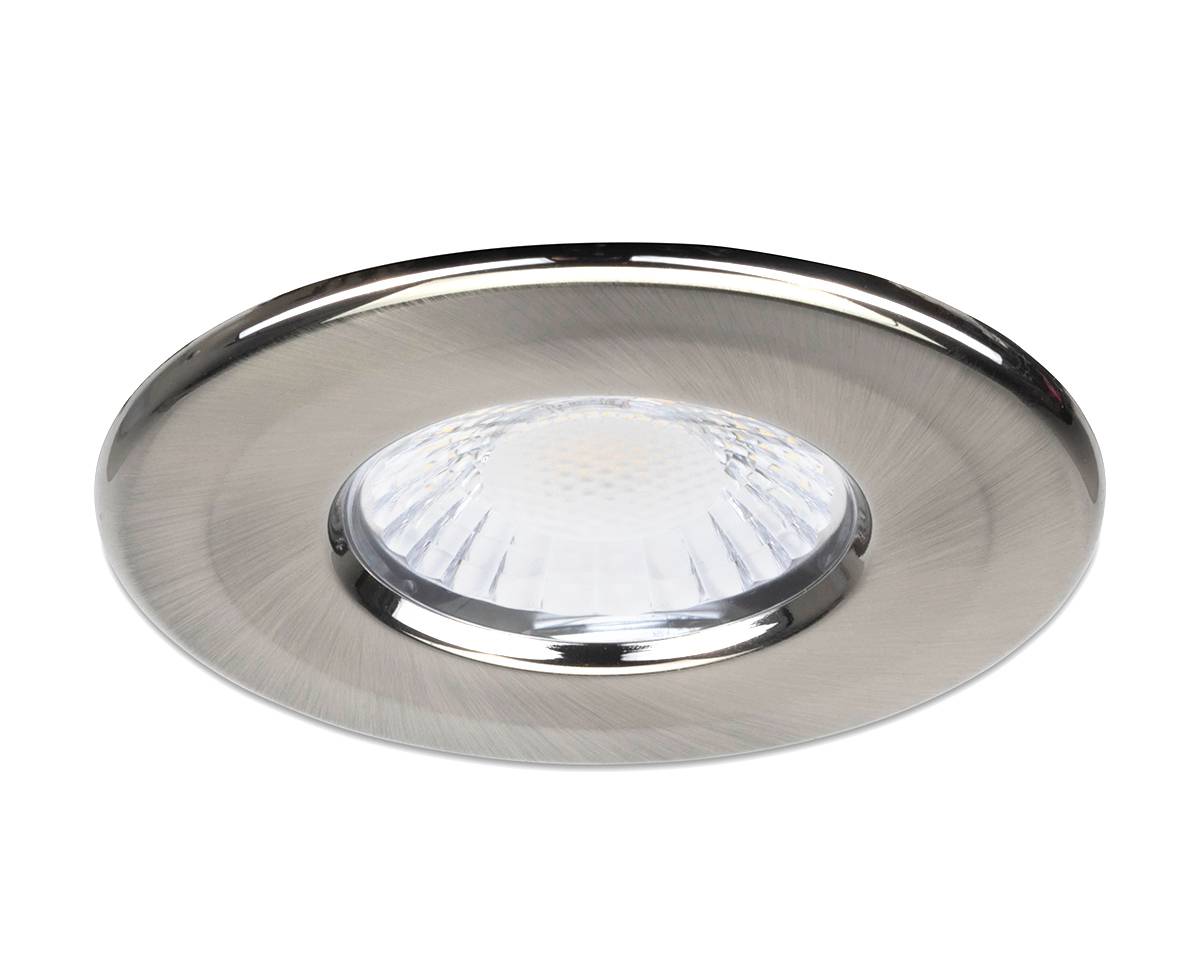

H2 Lite CSP

The H2 Lite CSP is a superior offering that is
engineered to be the perfect fit-and-forget

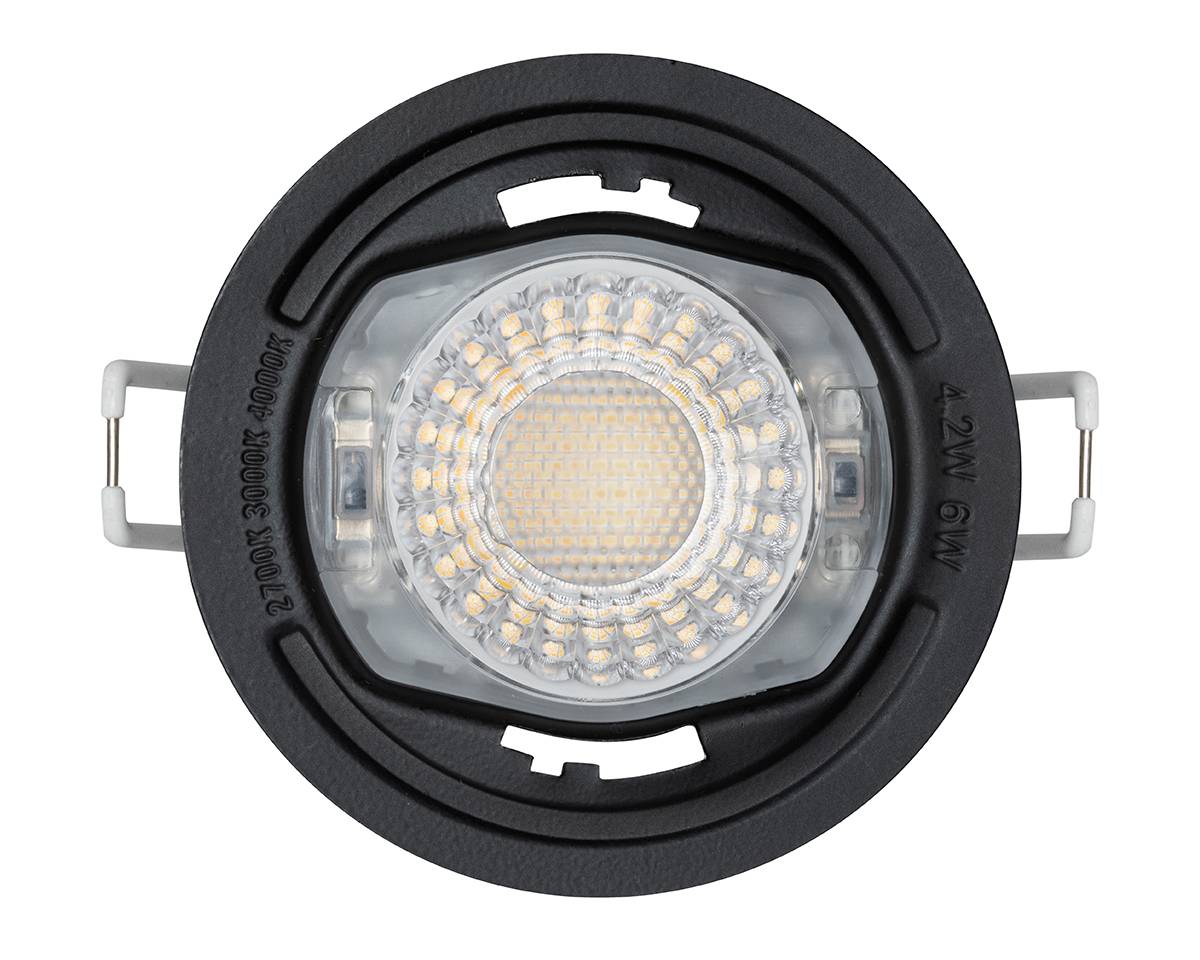

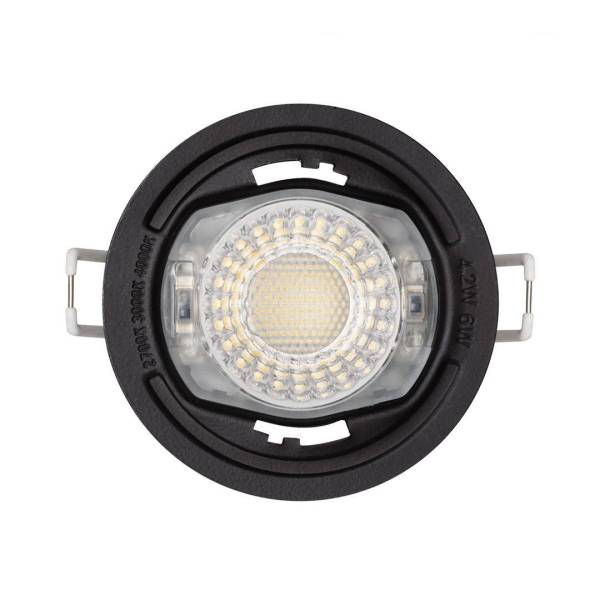

solution. The colour temperature can be easily
controlled by simply twisting the bezel off and
flicking the switch on the front face of the
product. The addition of the 2200K colour
temperature gives you the option of creating an
excellent and warm atmosphere. Large piano
key terminals allow loop-in/ loop-out wiring with
ease.

  • Colour switchable between 2200K, 2700K, 3000K and 4000K
  • Innovative smooth glide clip design for smooth installation
  • Front switches allow you to choose options at install
  • New lever terminal block complete with testing ports for speed and ease of installation LENNEL
  • 2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
  • Collingwood have tested the H2 Lite CSP and confirmed they work together with the Click Flow CT100 series without compatibility issues.
  • TRIAC Mains dimmable
  • Select 2200K ‘Ember Light’ to minimise blue light and create a cosy fireplace environment

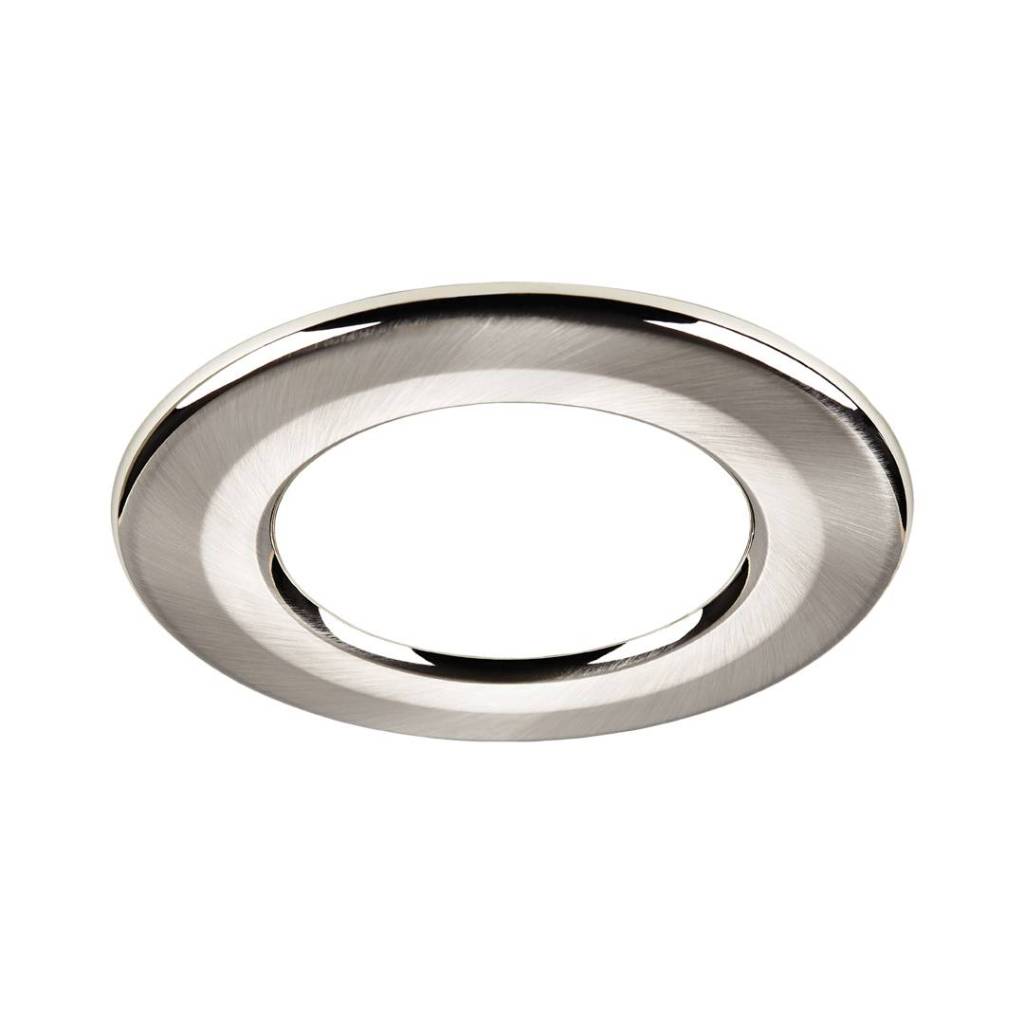

  • Compatible with H2 Twist and lock bezels
  • When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
  • Wattage Switchable between 4W & 6W, delivering up to 145lmW
CEGuarantee 7yrIndoorCRI 80Beam Angle 55 DownCut Out ø68 72IP65Insulation Rolled BlownClass I
H2 Lite CSP

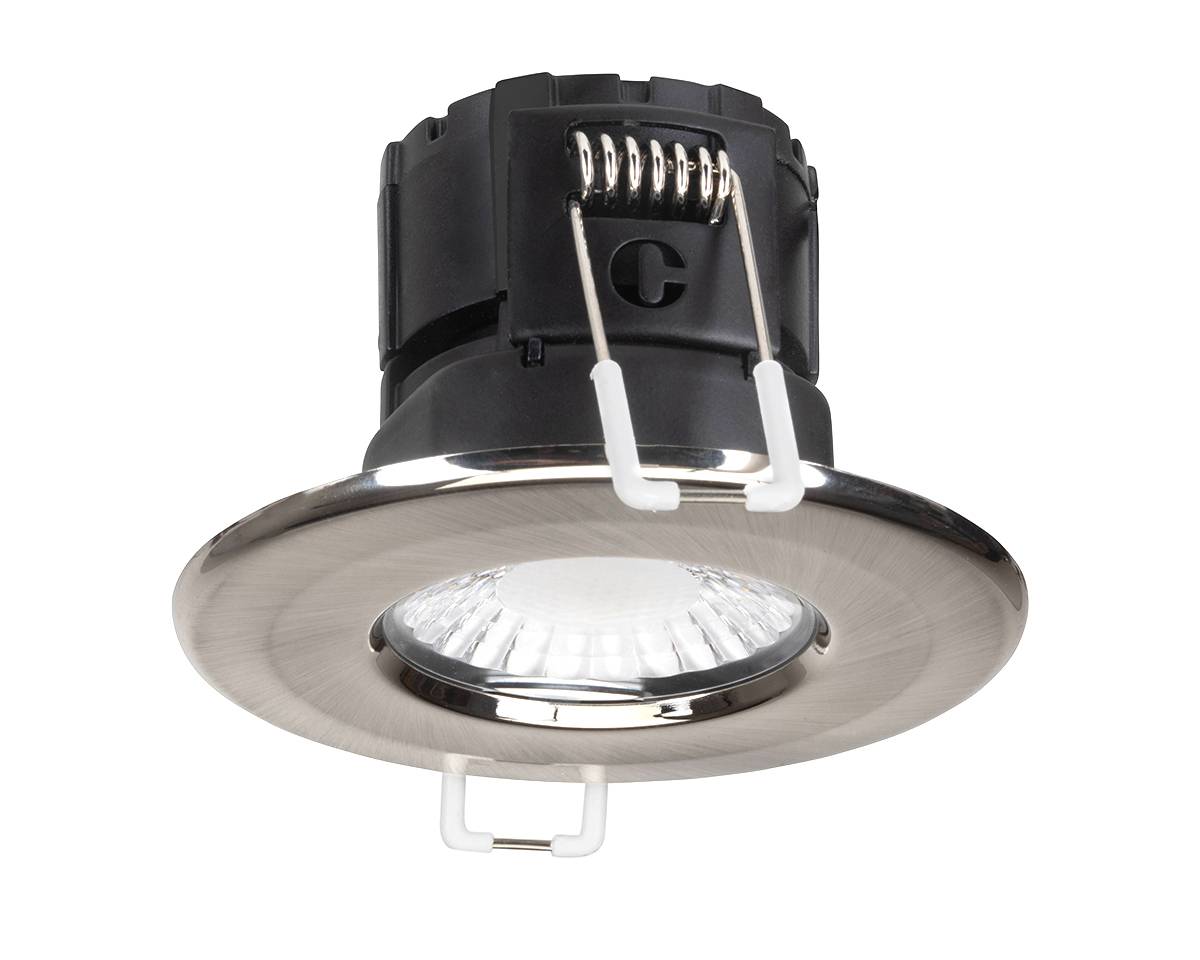

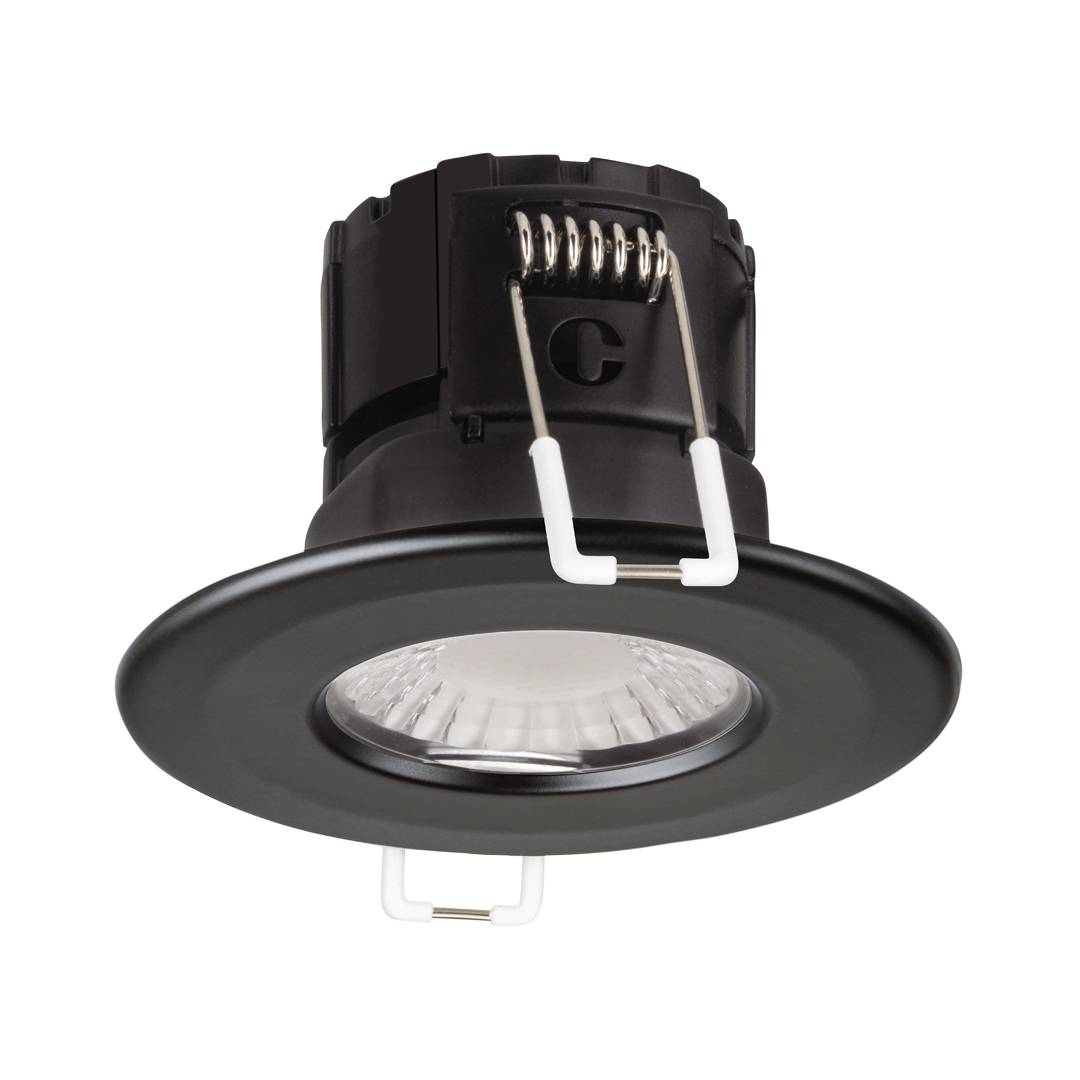

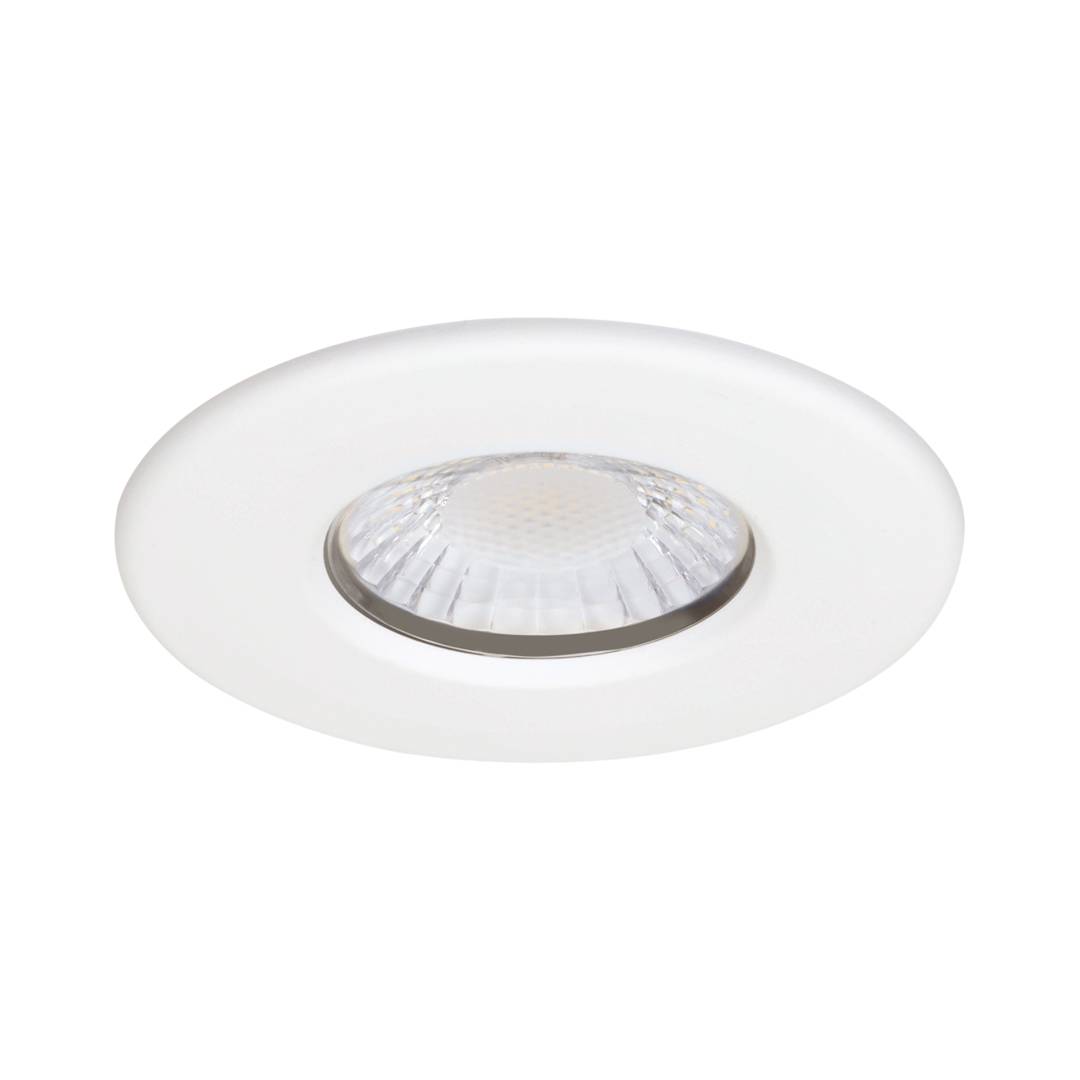

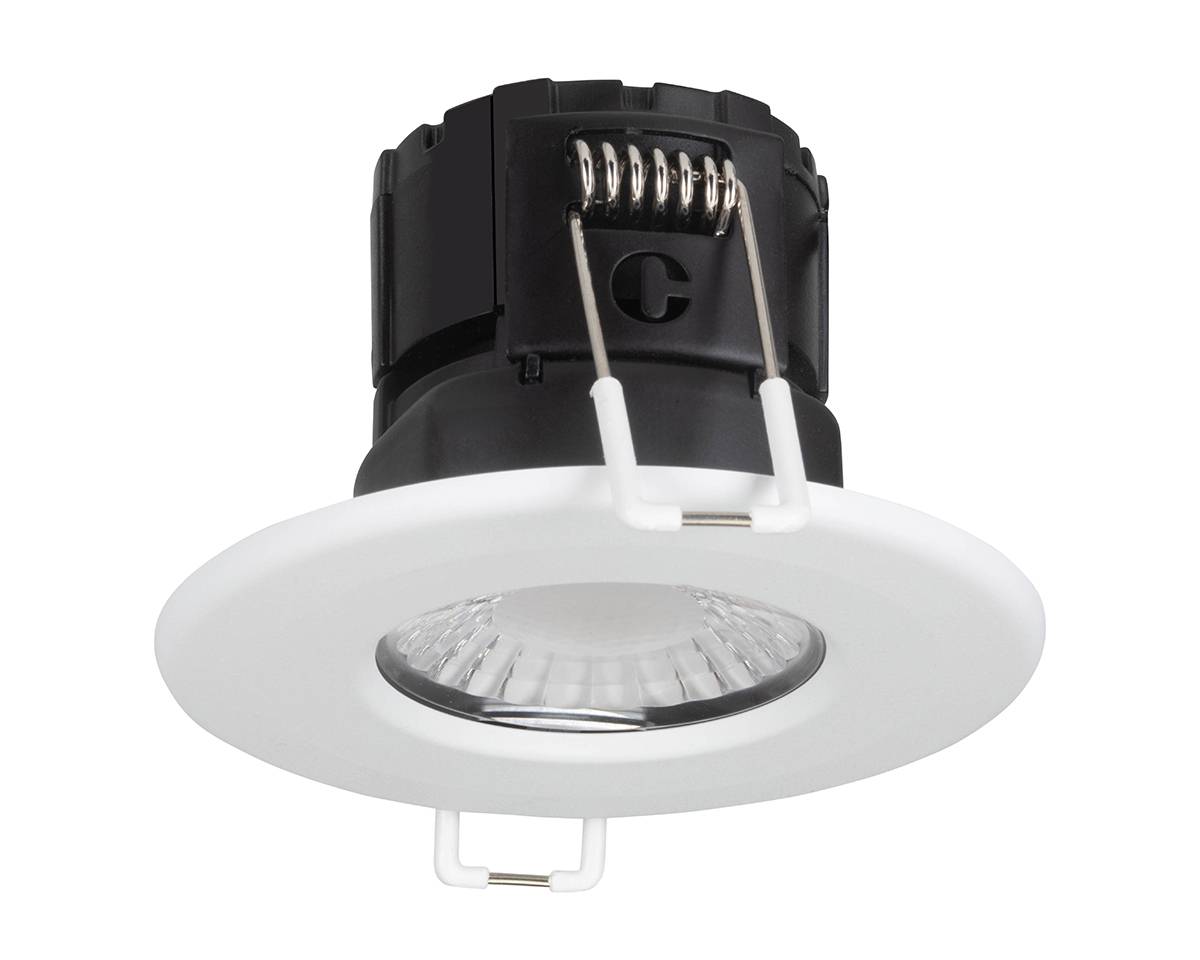

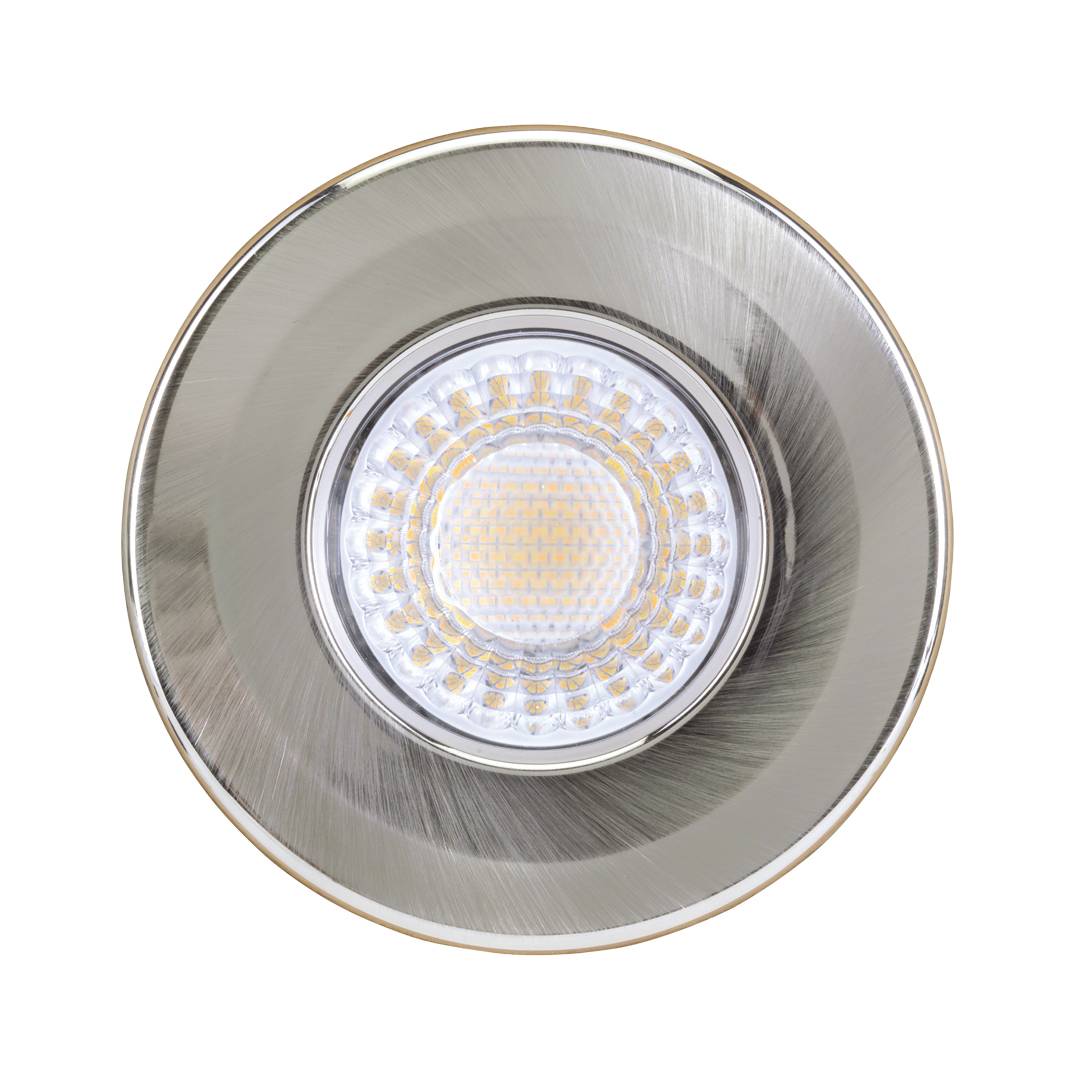

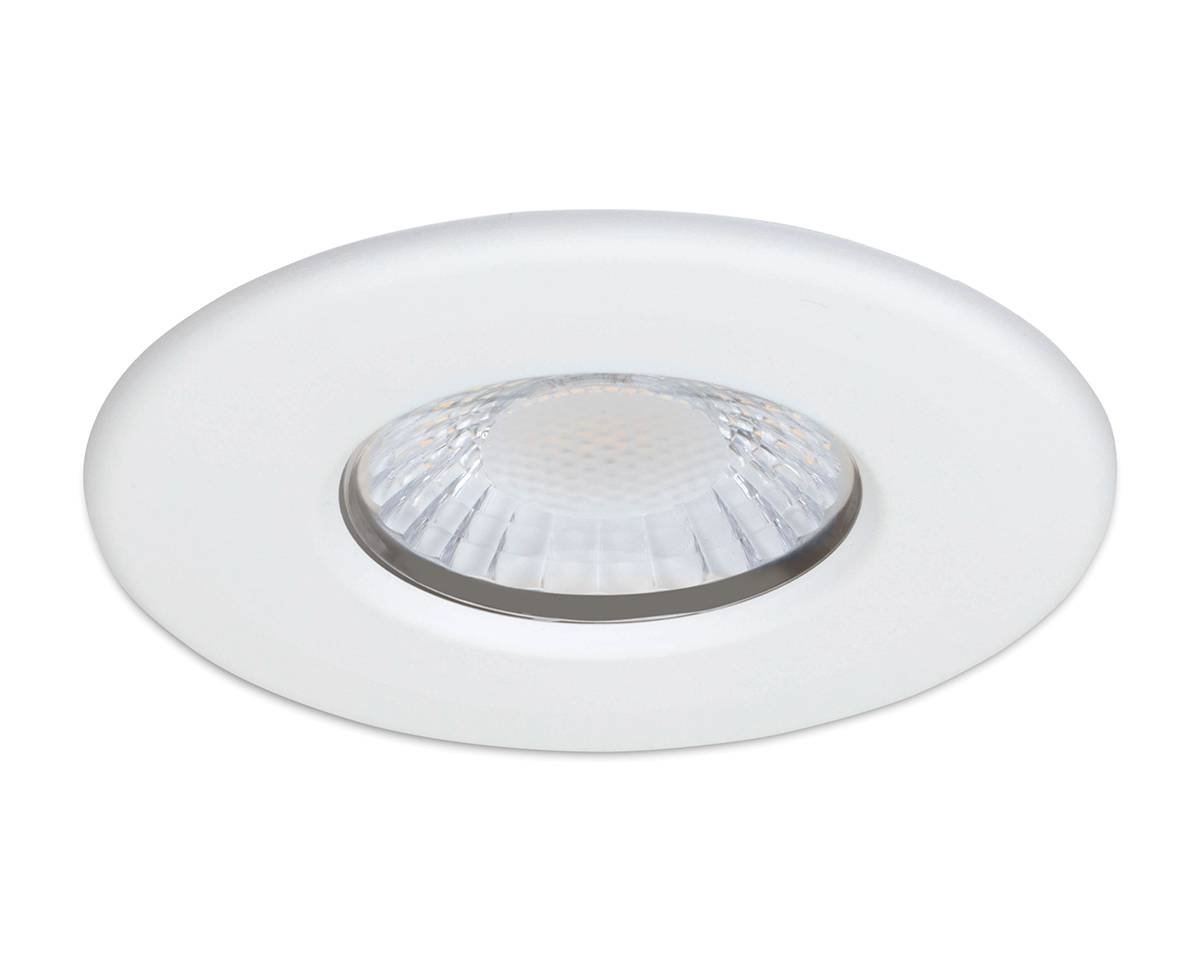

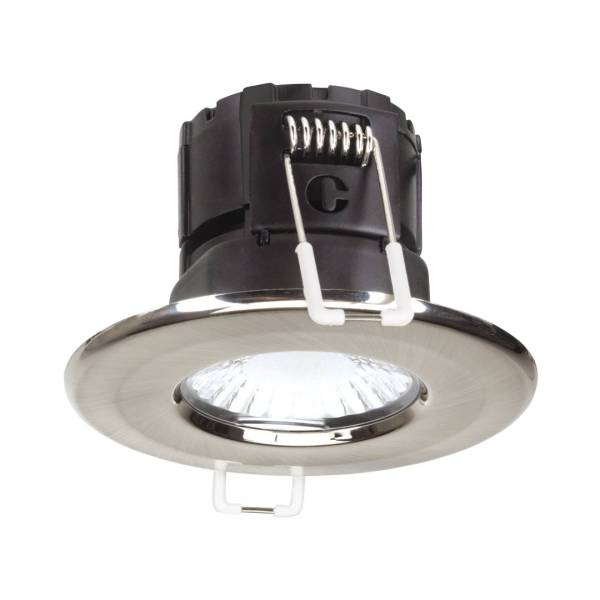

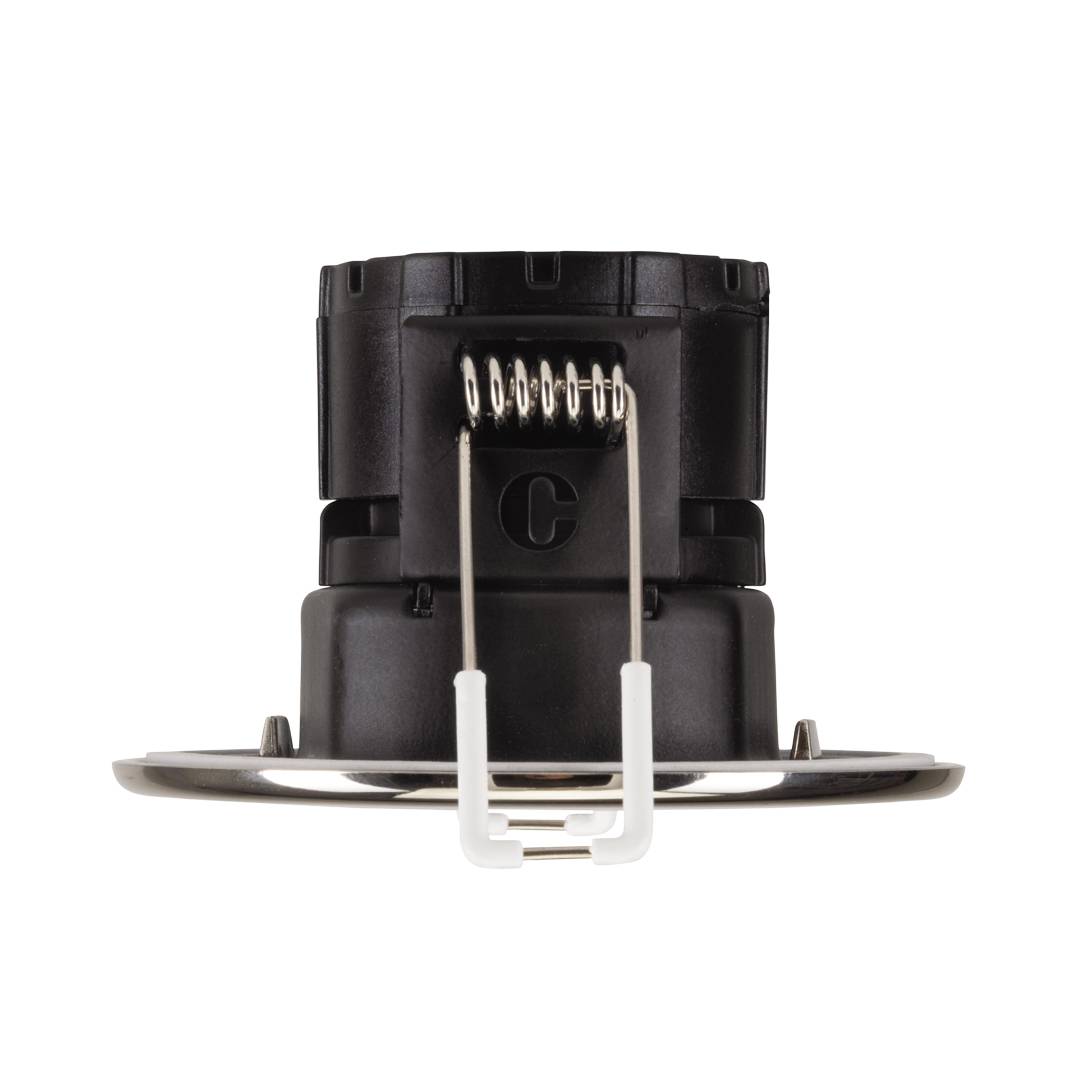

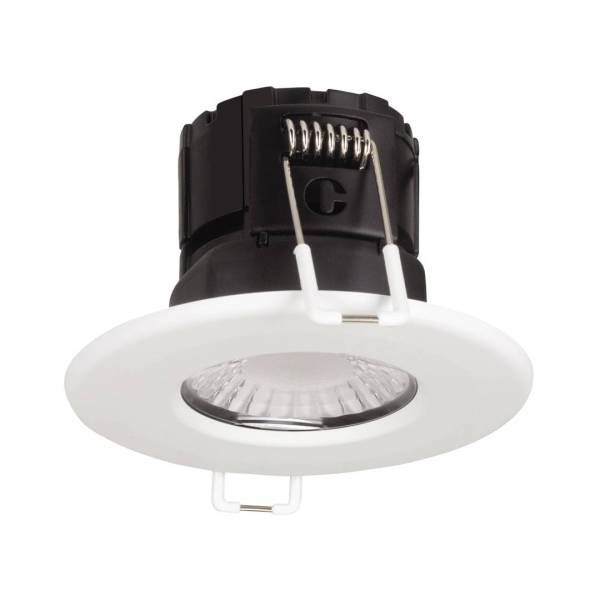

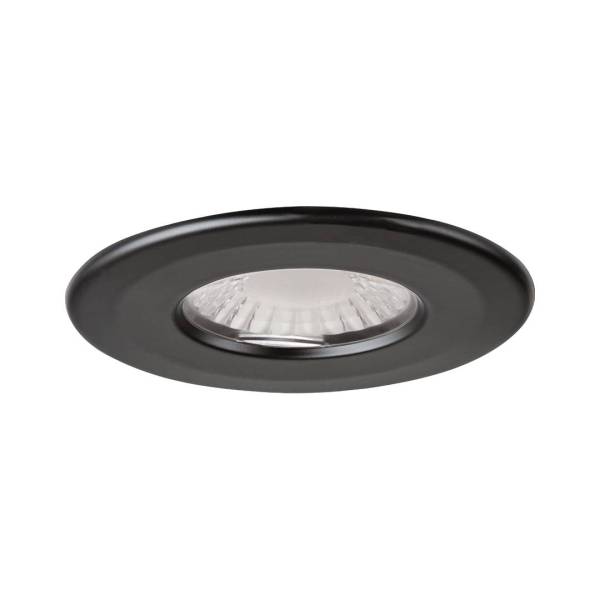

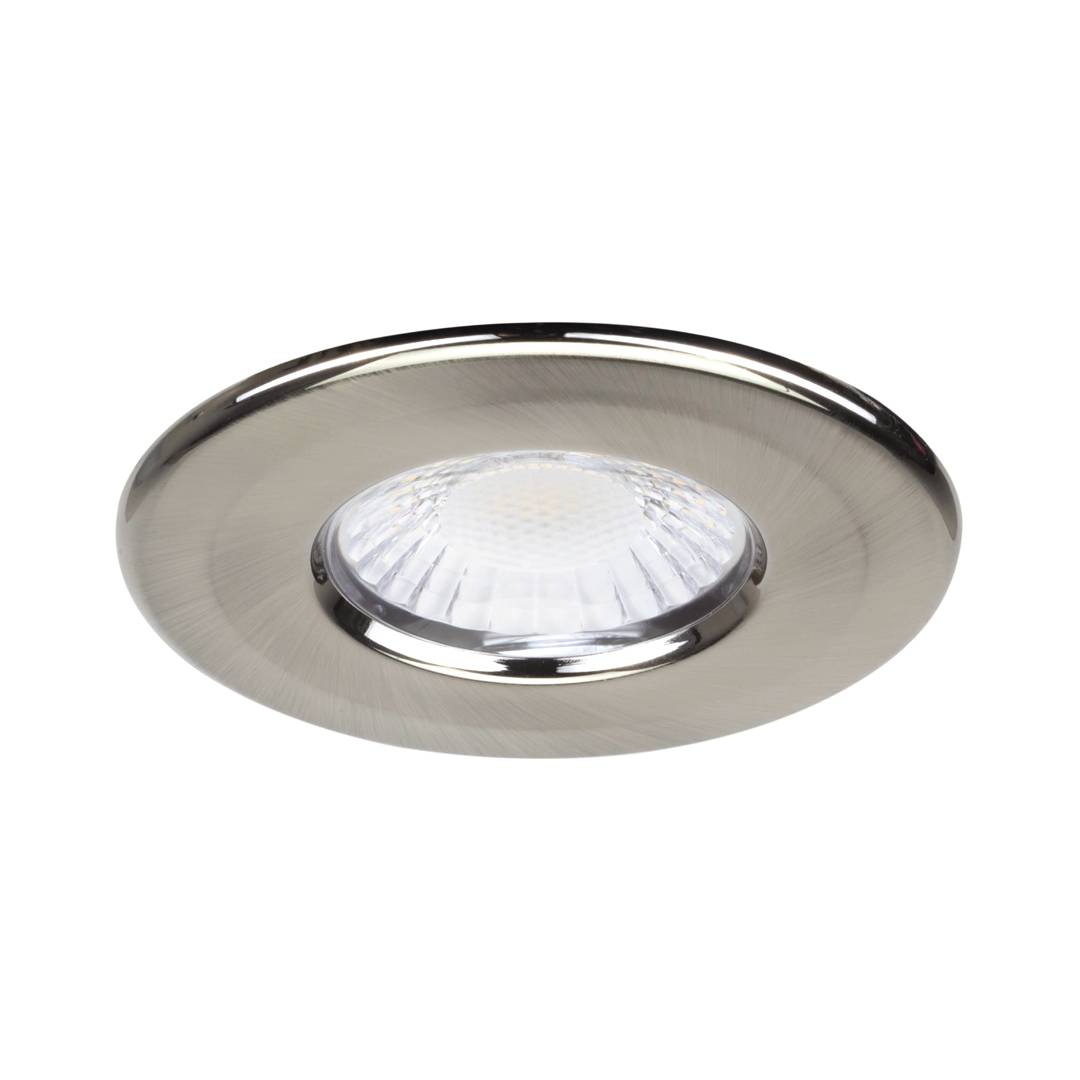

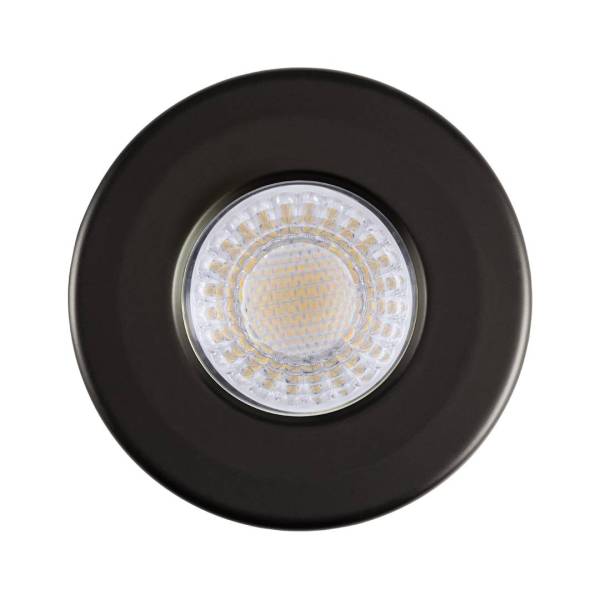

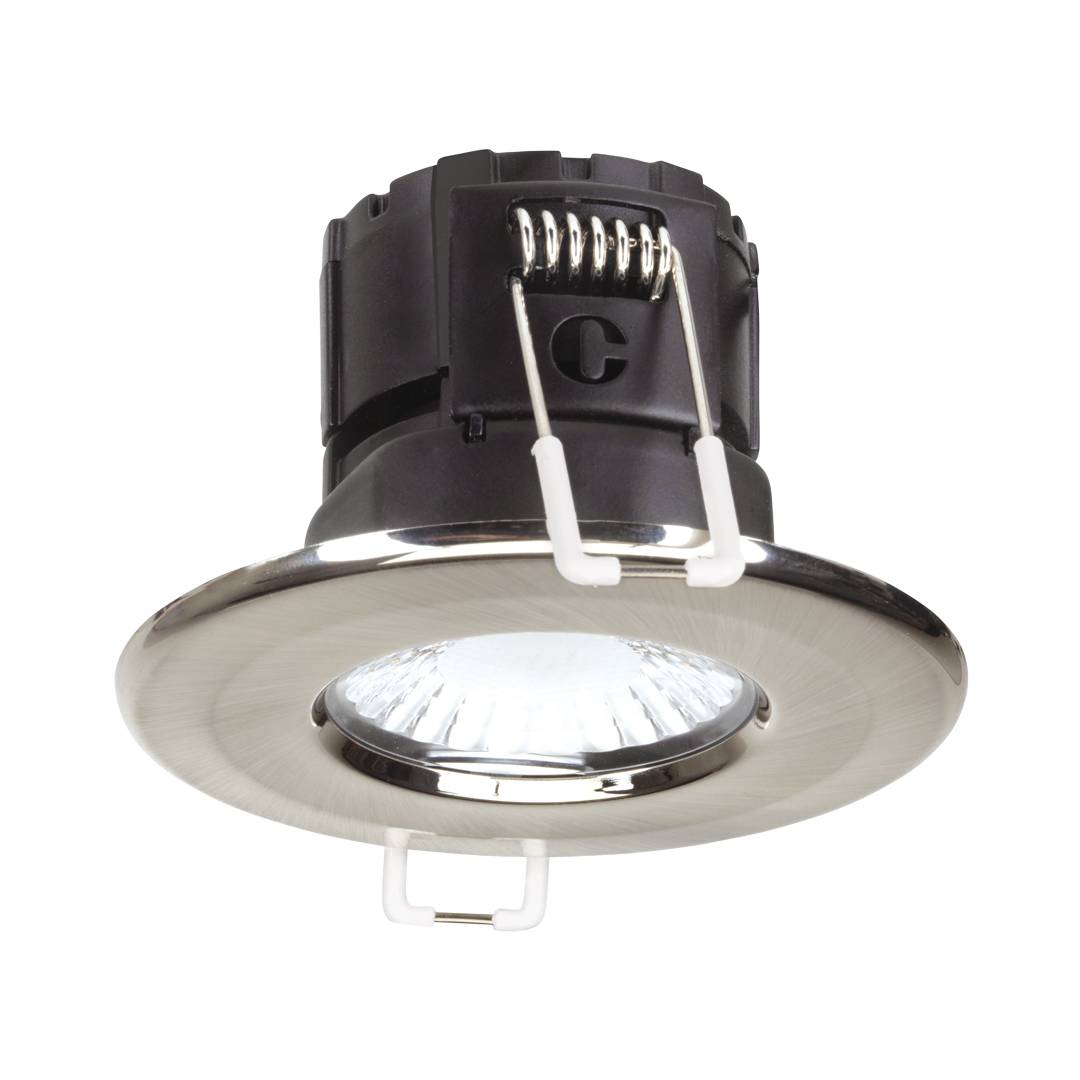

H2 Lite CSP image 1
H2 Lite CSP image 2

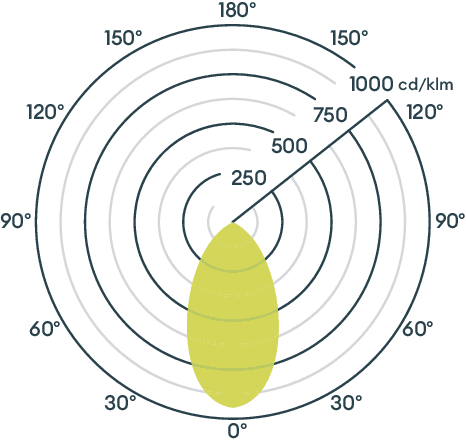

H2 Lite CSP image 3
H2 Lite CSP image 4

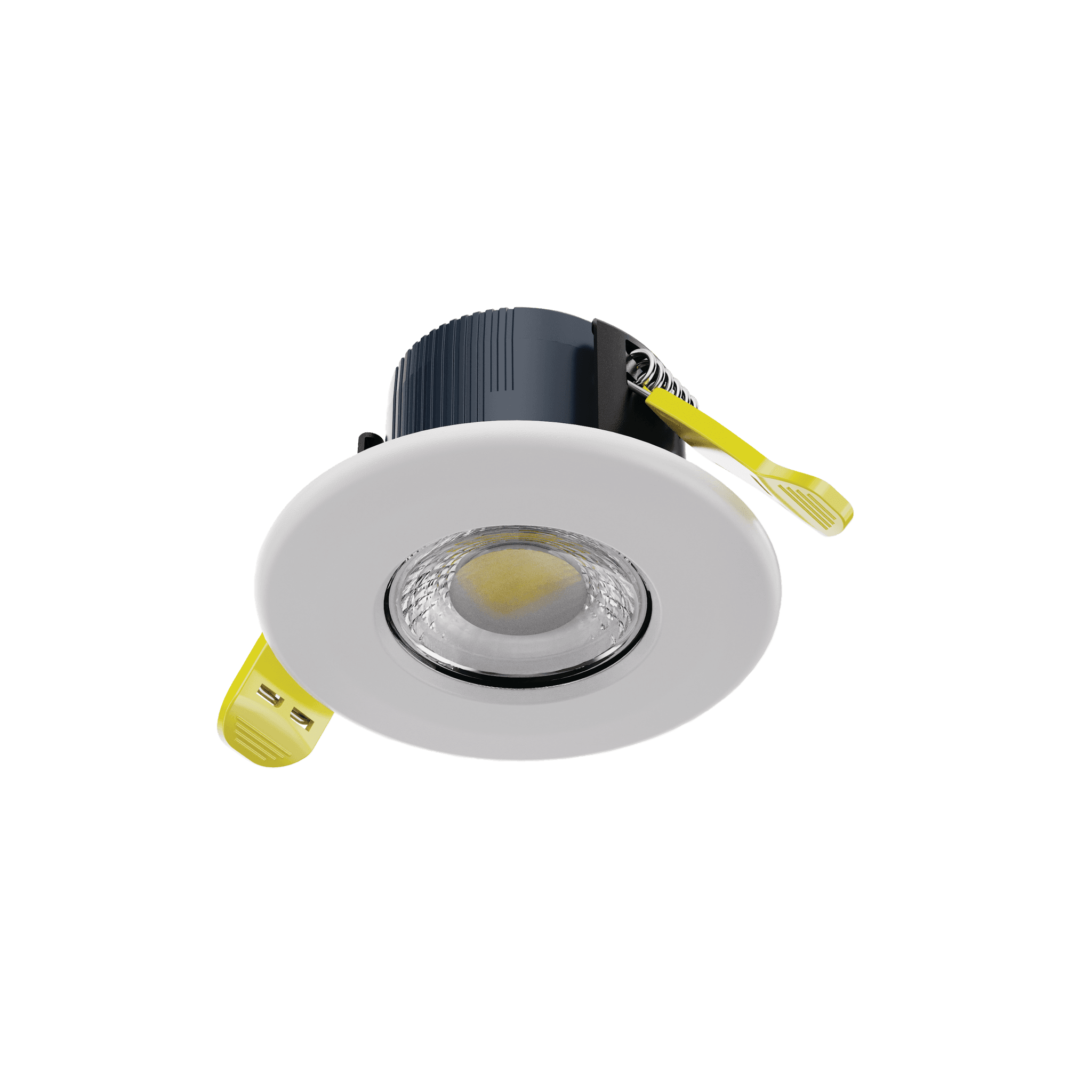

H2 Lite CSP image 5

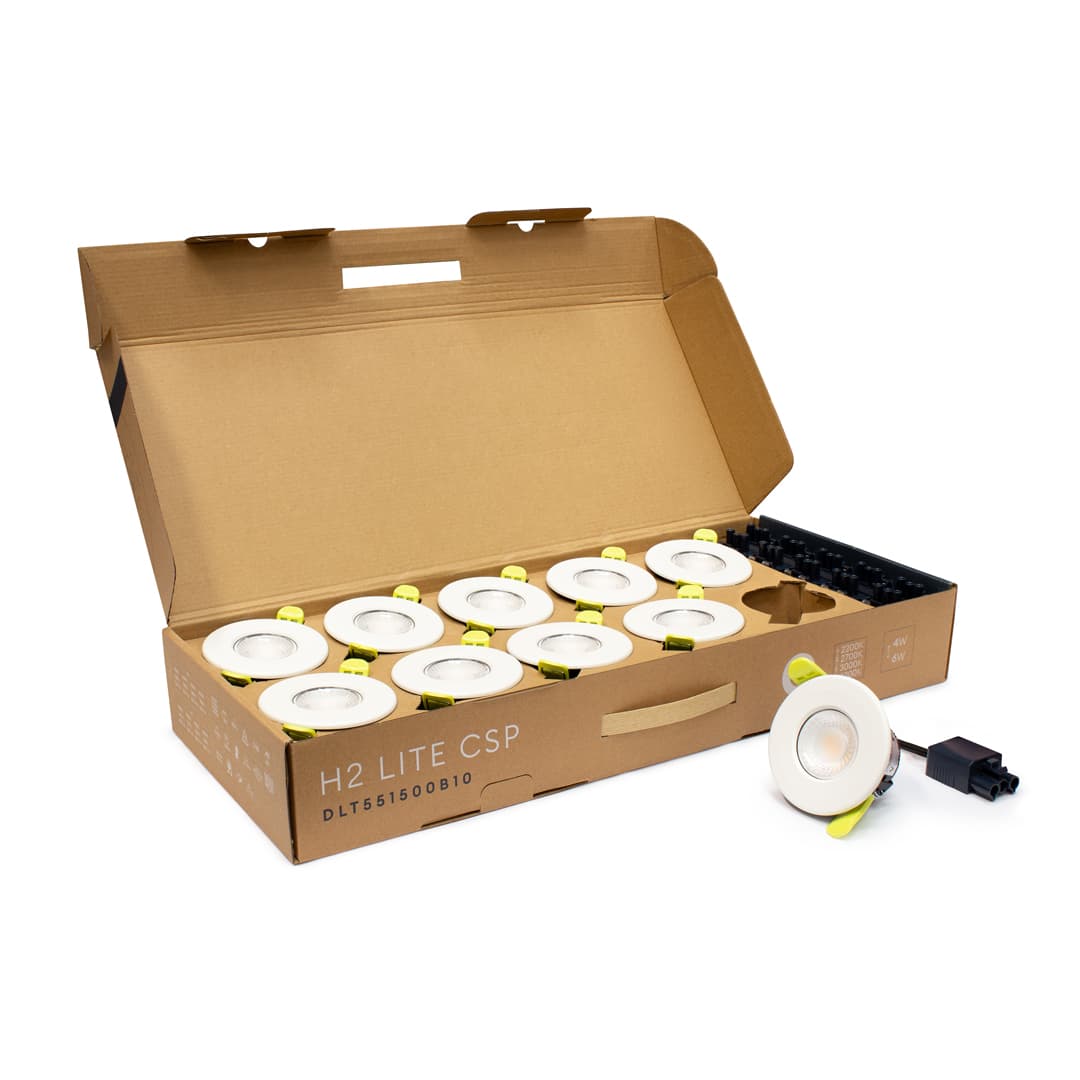

H2 Lite CSP image 6

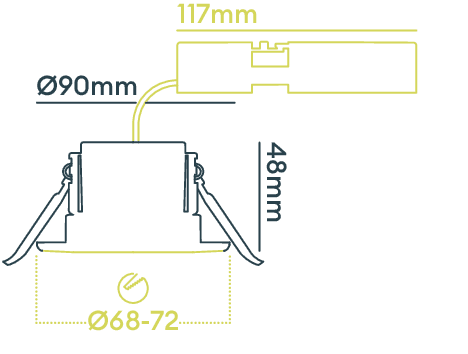

H2 Lite CSP - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBase ShapeBeam AngleBody MaterialCCT RangeColour / FinishCRICut OutDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionUGRWattage RangeWidthDownloads
DLT551500BNot adjustableRound55Mild Steel2200K / 2700K / 3000K / 4000KWhite8068 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP6590 mm460 - 780RecessedNone254-6W90 mm
DLT551500B10Not adjustableRound55Mild Steel2200K / 2700K / 3000K / 4000KWhite8068 – 72 mmMains (Leading Edge/Trailing Edge)OptionalIP65-460 - 780RecessedNone254-6W-
