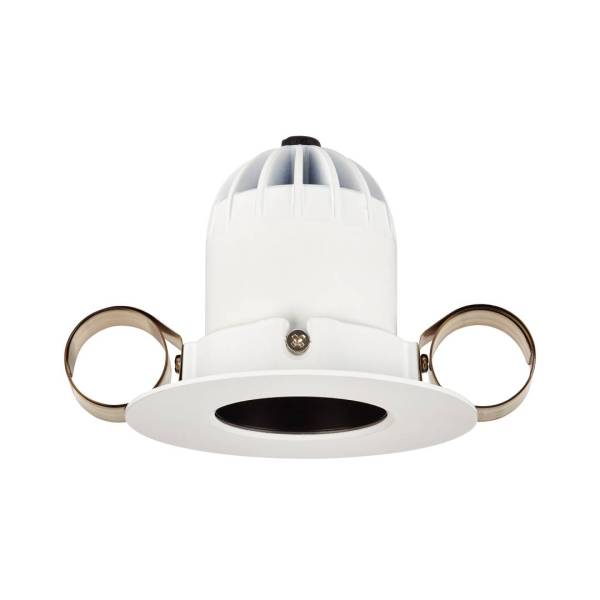

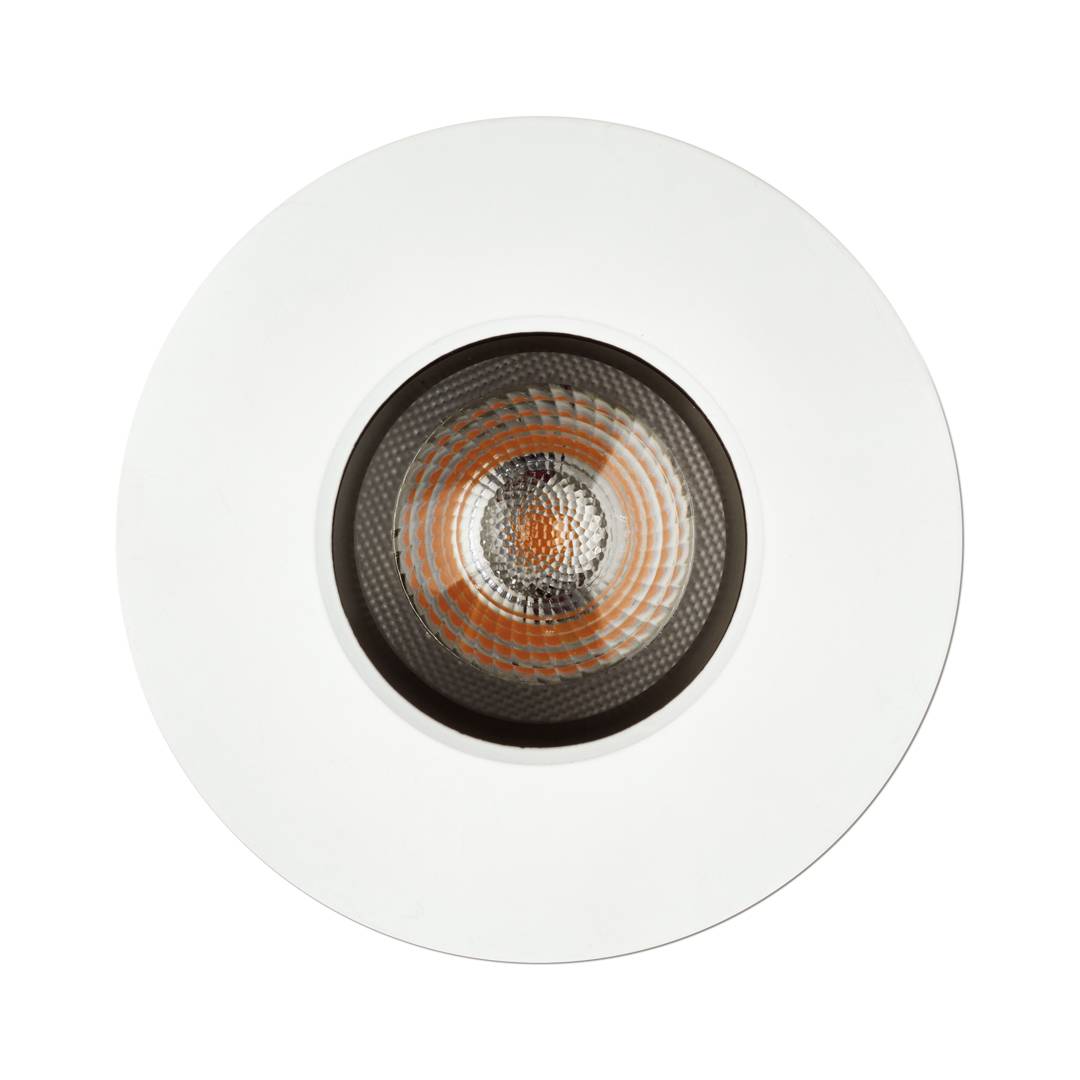

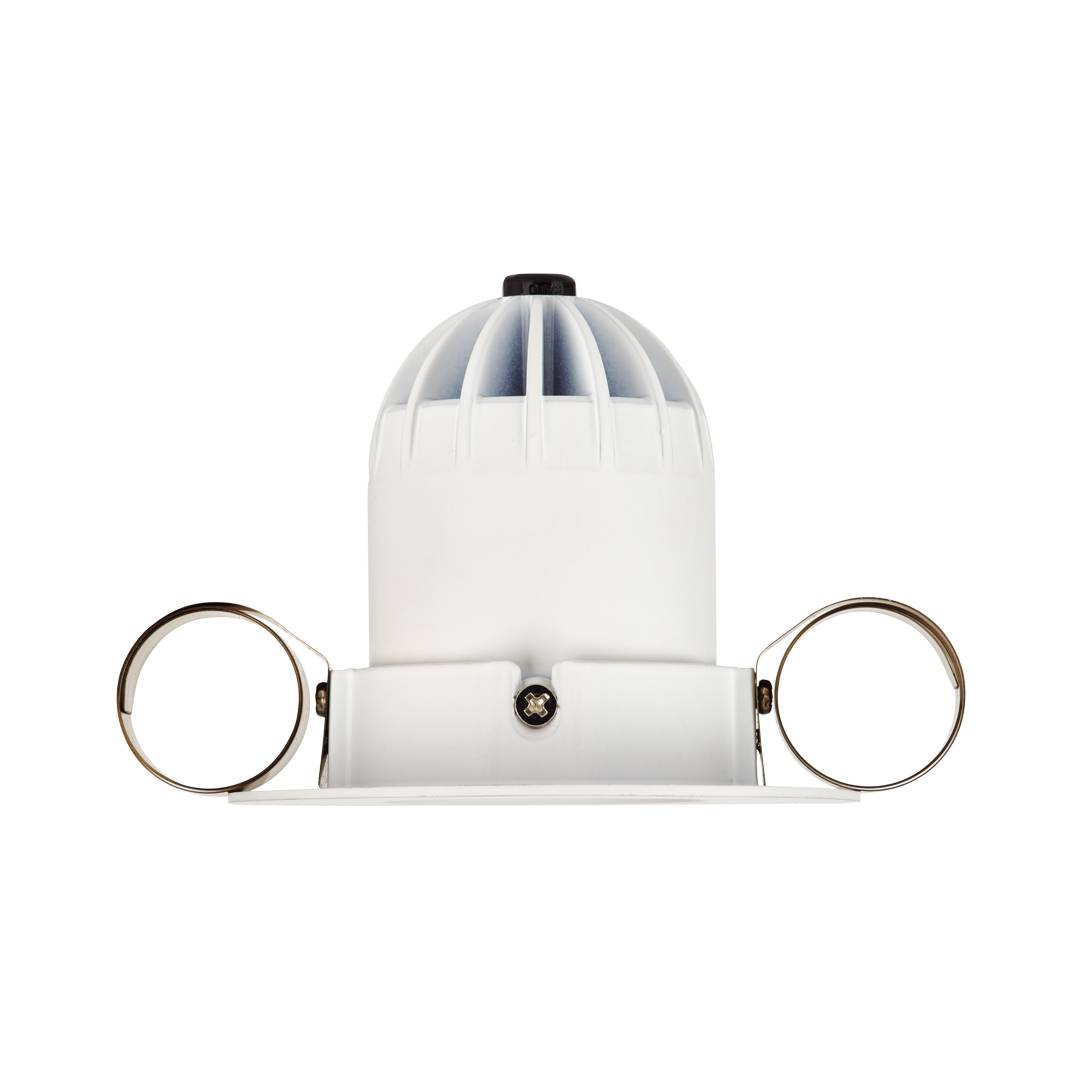

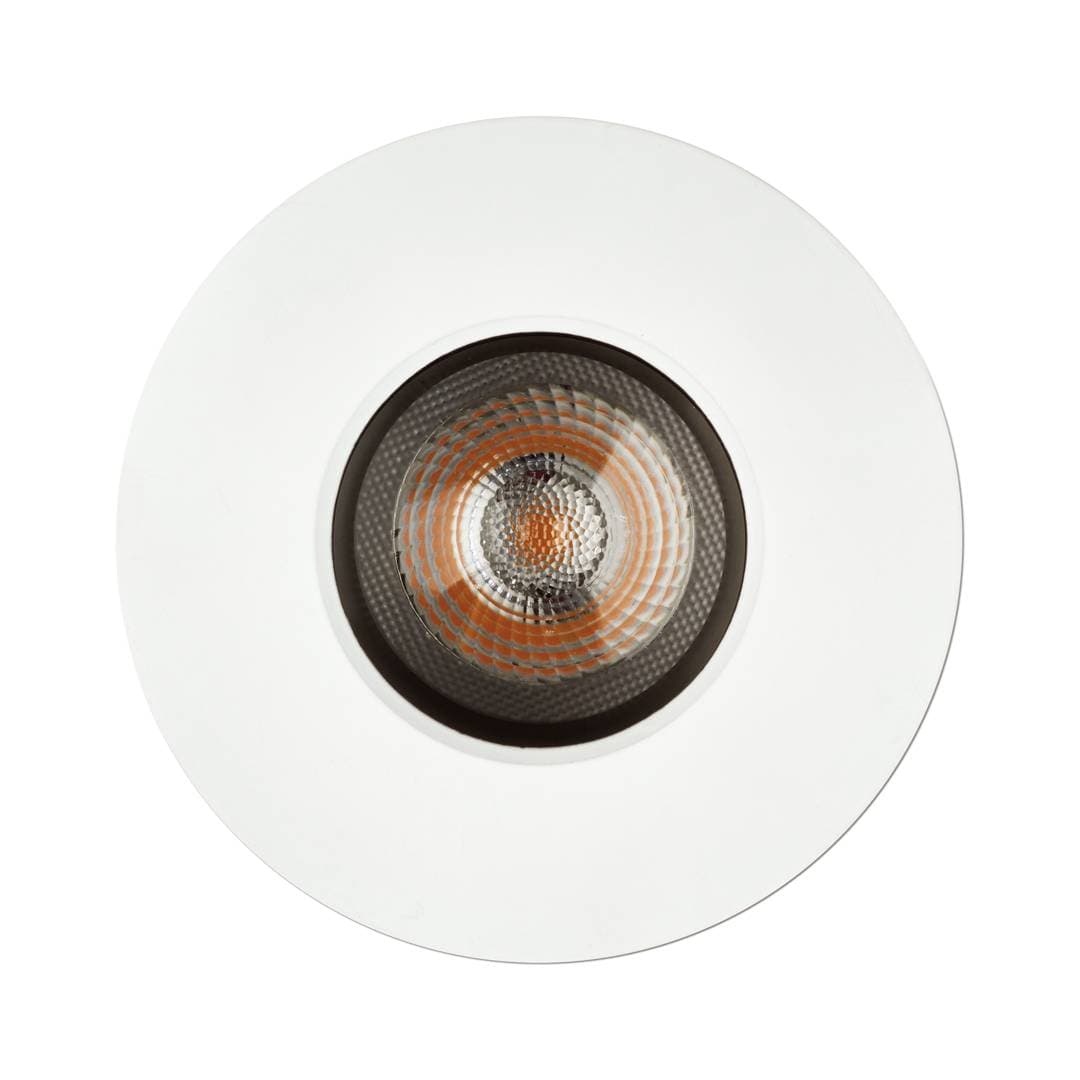

BDL11F28MMI

Product code: BDL11F28MMI

About the BDL11F28MMI

More than a century of design and innovation helped inspire the creation of the luxurious architectural 1901 range, for when only the best will do.1901 is both contemporary and classic, with a focus on premium fittings, a high-quality performance and easy integration into control systems. Perfect for luxury residential and hospitality projects, 1901 showcases an aesthetically simple, low-glare luminaire design, with market-leading technical performance. The detailed fittings come in a variety of stylish options including a choice of bezels, adjustability, colour temperatures, beam angles, dimming methods, and IP ratings to perfectly complete the look of any interior design project. Simply configure your product to find the relevant product code. The range is engineered to be as easy to use as possible and can fit seamlessly into the installation and commissioning stages of a lighting project.

Features & Benefits

Available in IP65 for various applications

Mains, 1-10V & DALI-2 dimmable options

CRI 80 providing true colour appearance

The 1901 family consists of a pendant, spot light and downlight all with a consistent design language

Use our product selector to choose from 1,800 different combinations

Designed & assembled in Northampton UK

Fixed, Adjustable, Round, Square, Trimless options available

Emergency options available

Fire-rated to 30 minutes for us in Solid timber, I-Joist and Metal Web ceiling joists

Integrated LED using premium components to achieve 70,000 hours/60 years lifetime

Product code
BDL11F28MMI
CRI CRI>95
IP Rating IP65
Adjustability Not adjustable
Input 220-240V AC
Insulation Coverable No
Cut Out 65-78
Beam Angle 24°
Building Regulations Part B, C, E, P & L
Ceiling Joist Approvals Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min
Wattage Range 10W
CCT Range 3000K - 1800K
Lumens Range 600
lm/W Range 60
Colour / Finish Matt White
Dimmable Option Mains (Leading Edge/Trailing Edge)
Warranty 7 years
Energy Class F
Reflector Finish Black

Accessories

LEDEP10

Emergency converter, Self-test & Manual-test switchable, maintained

LEDEP09DA

DALI Self-test emergency converter pack
