Arc Pro CSP

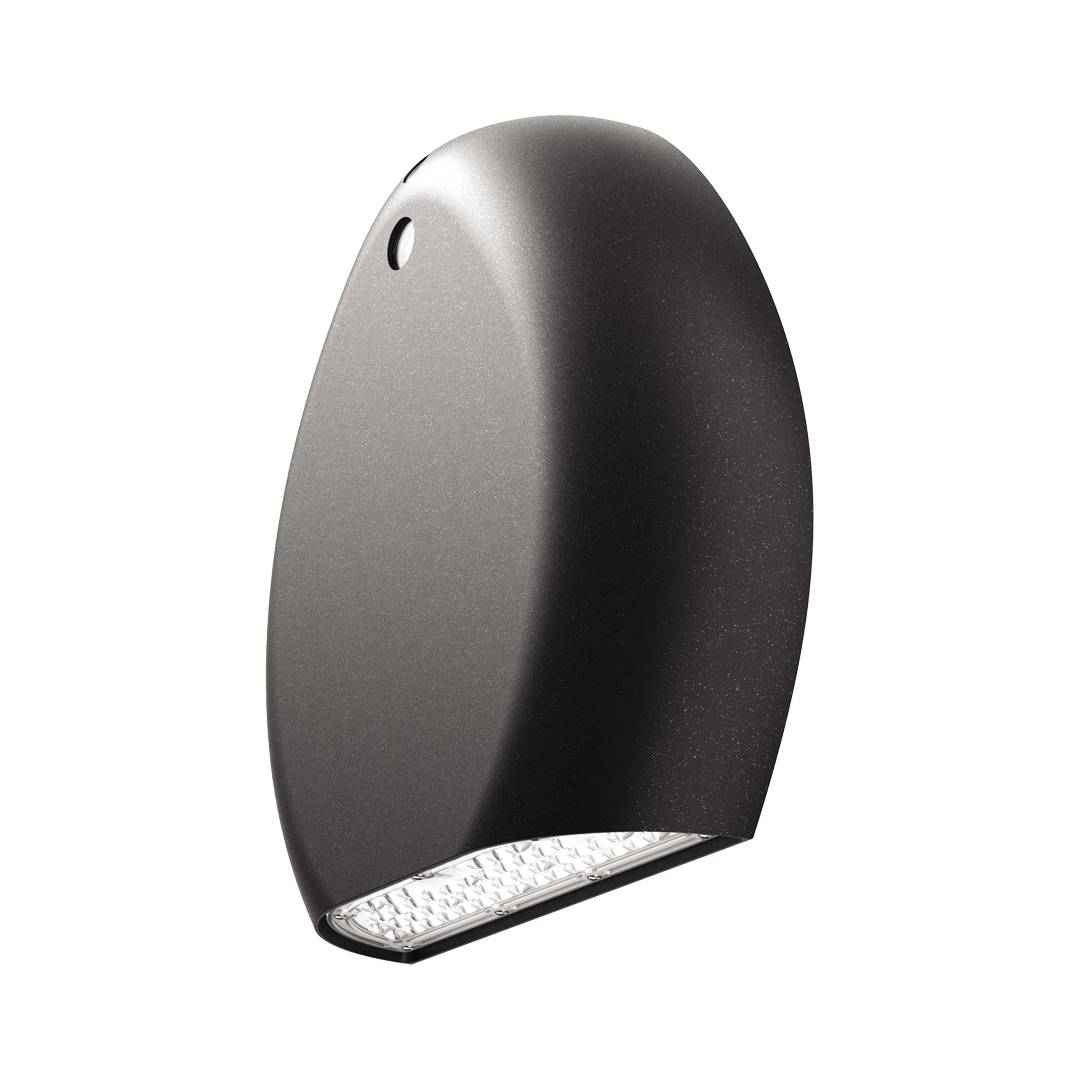

Arc Wallpack CSP Black 1300lm 6-15W

  • CCT switchable between 2700K & 3000K (default)
  • Wattage Switchable between 6,8,10,12, & 15W

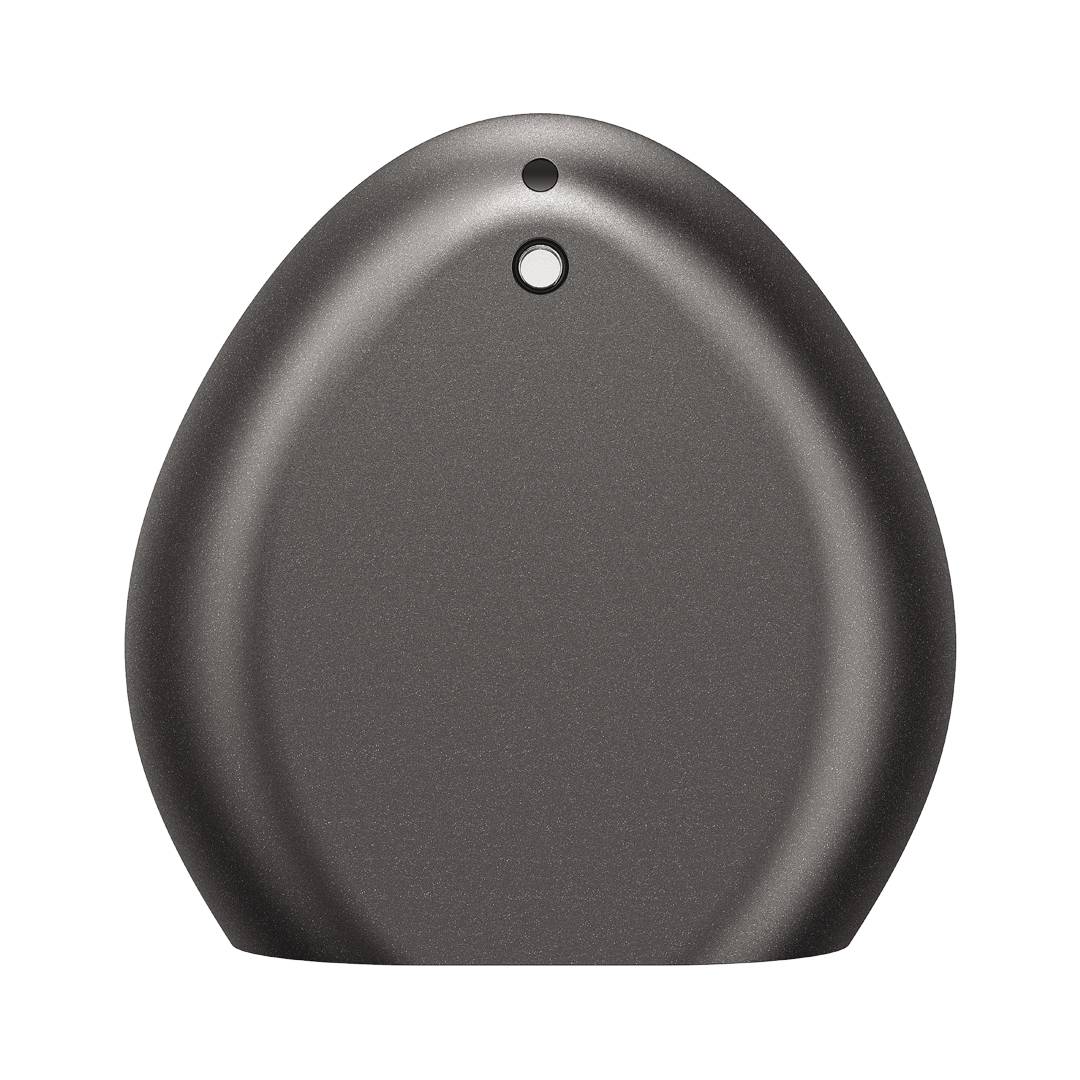

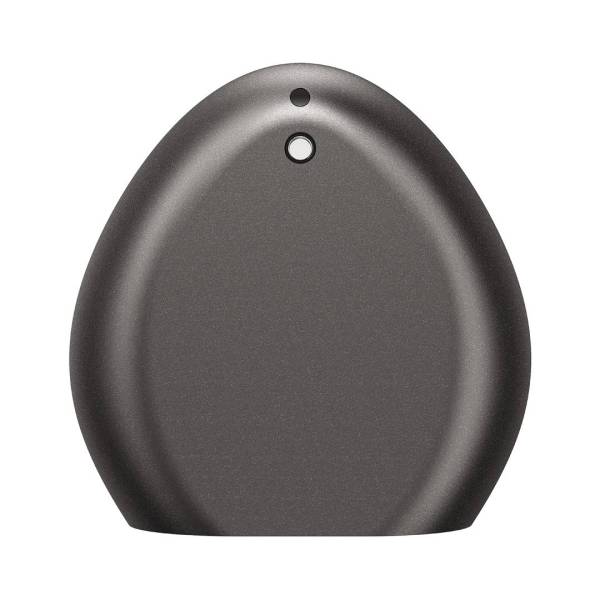

  • Integral photocell as standard

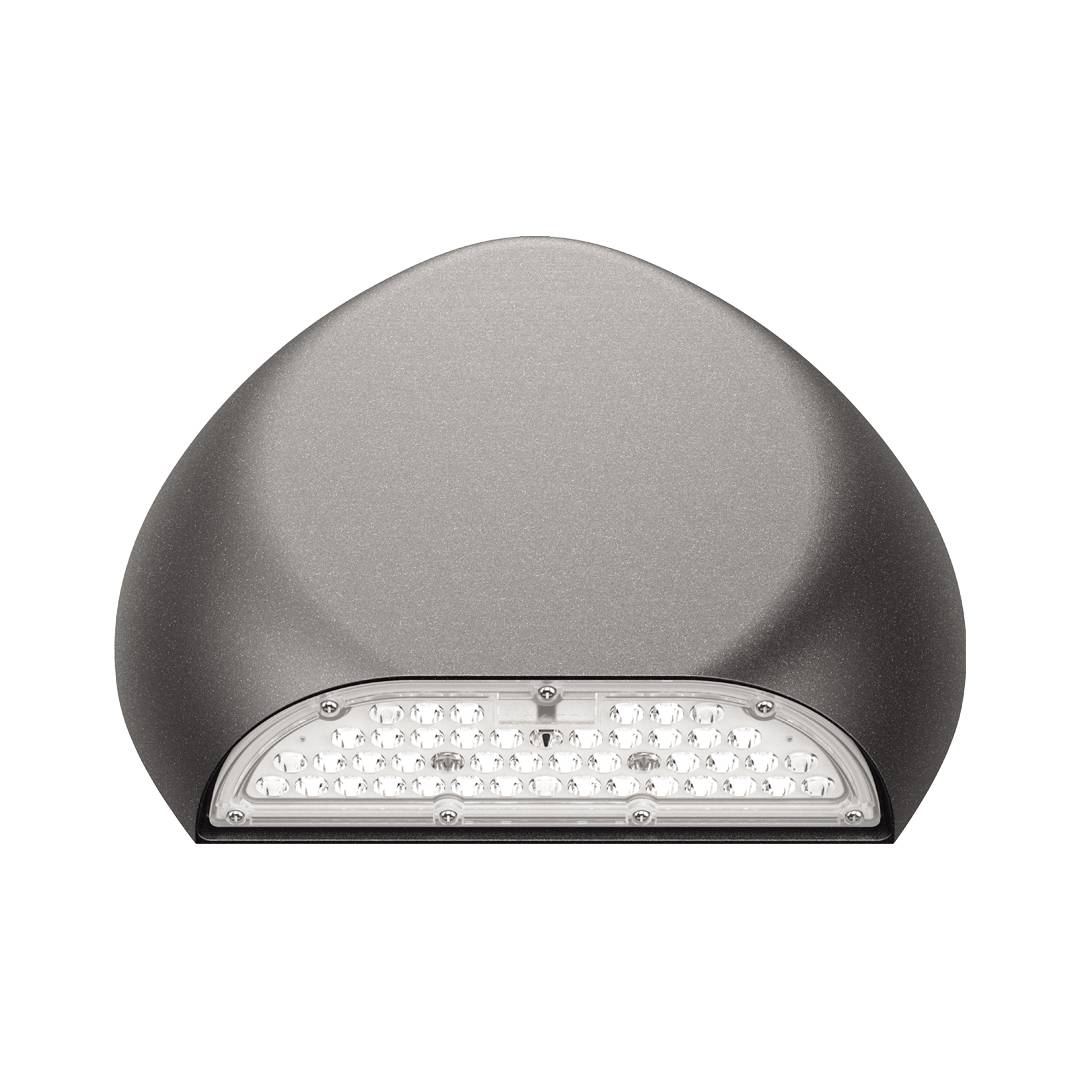

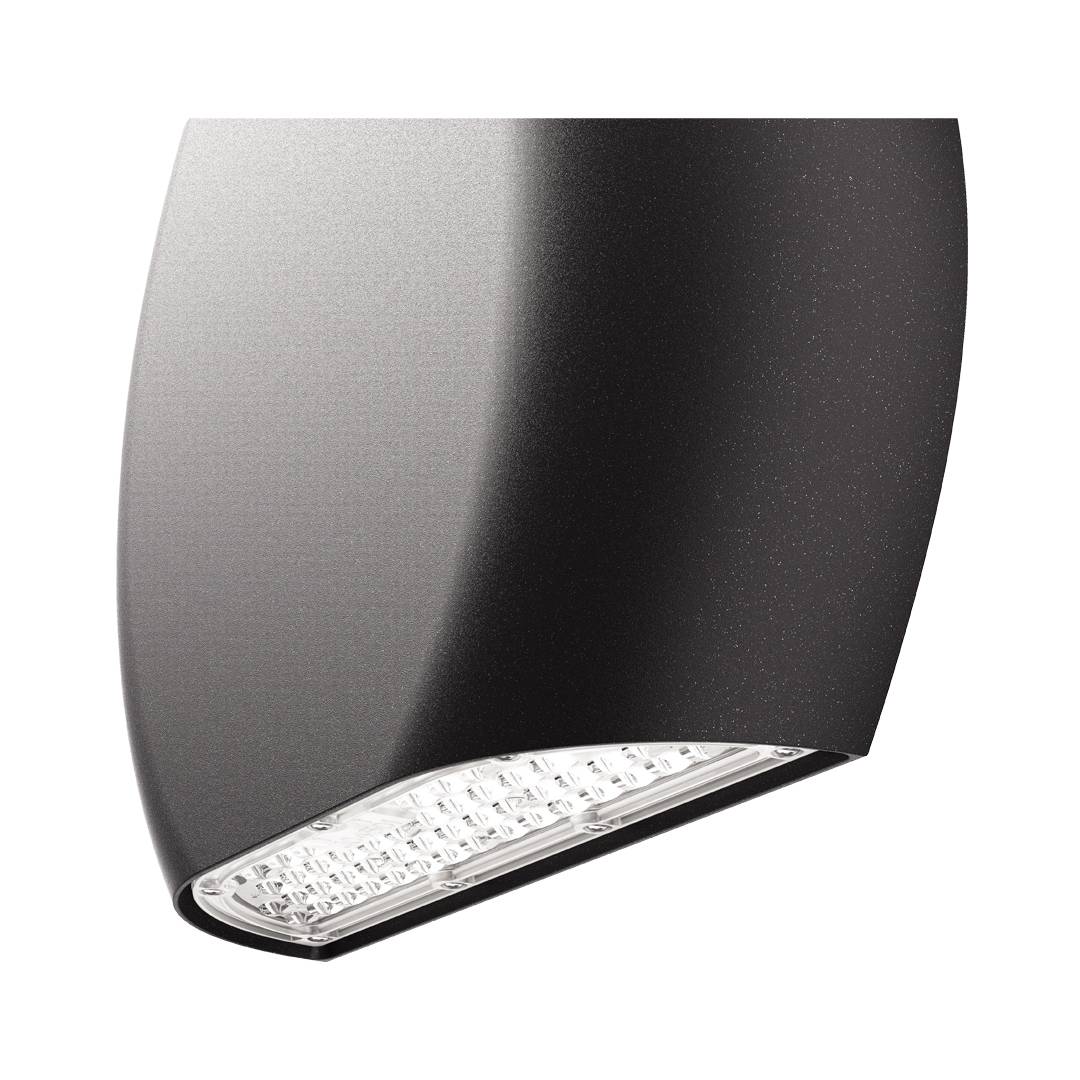

  • Custom Optical lens design providing excellent forward throw
  • 0% ULOR (Upward Light Output Ratio) for avoid light pollution
  • Suitable for coast - C5-M corrosion classification (ISO 9223 : 2012)
  • Designed to illuminate a pathway efficiently and safely, whilst preserving the habitat
  • Integral photocell to switch the light ON at dusk and OFF at dawn

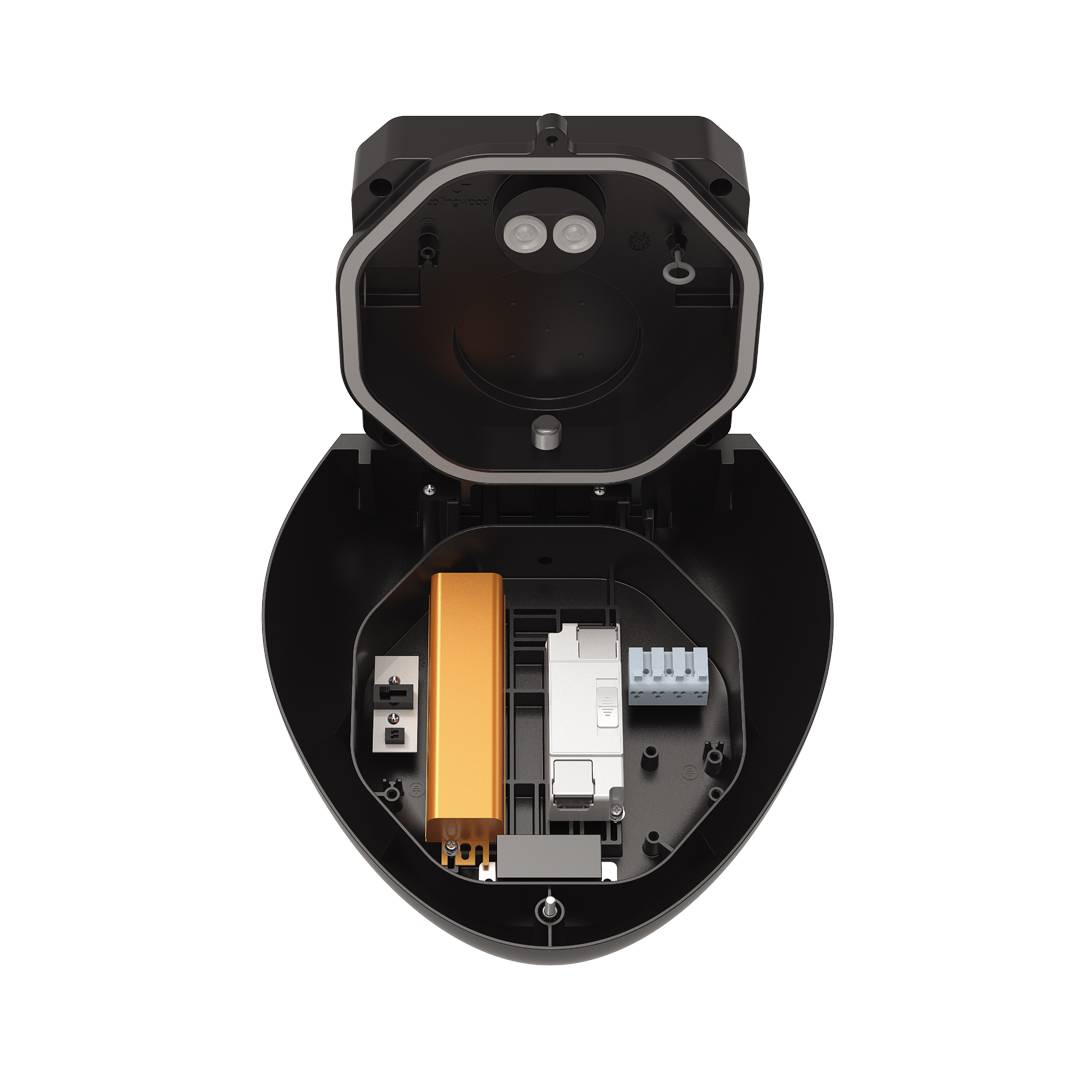

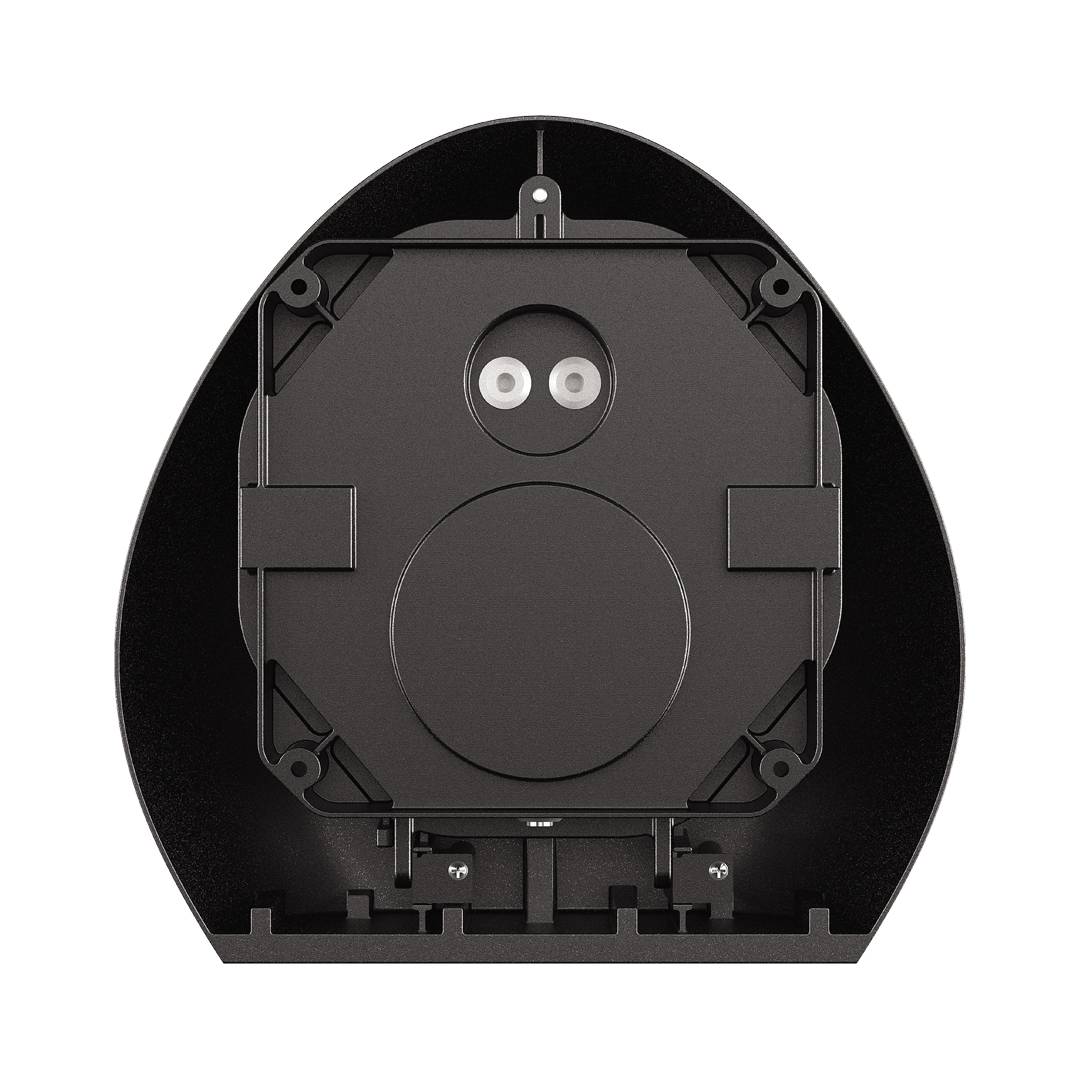

  • Removeable backplate to aid fast installation
  • Lumen output in emergency mode is 300lm for both 2700K & 3000K
CEGuarantee 5yrIndoor and OutdoorMMB Wall mounting onlyCRI 80Beam Angle 140 DownIP66IK10Class I

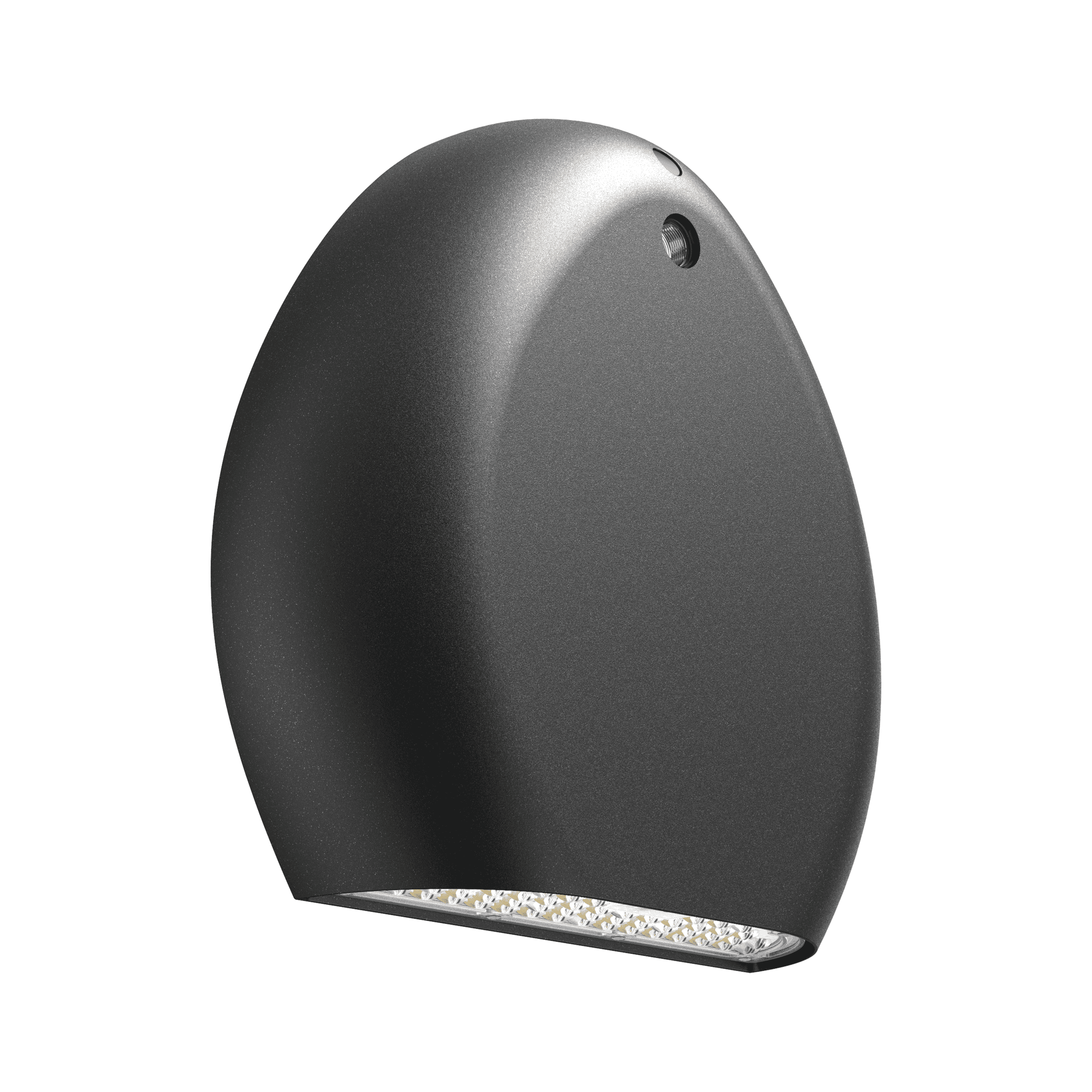

Arc Pro CSP
Arc Pro CSP image 1

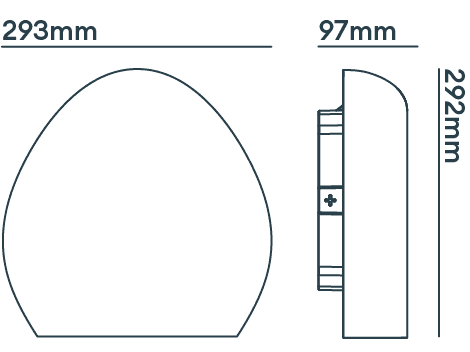

Arc Pro CSP image 2

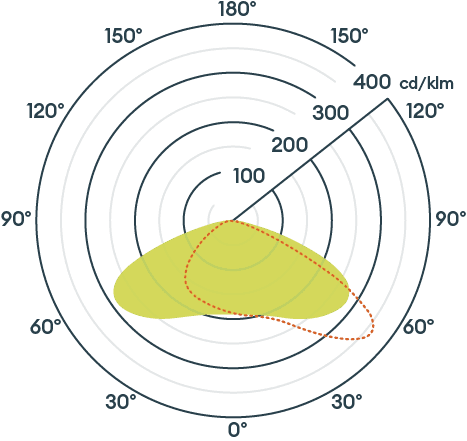

Arc Pro CSP image 3
Arc Pro CSP image 4

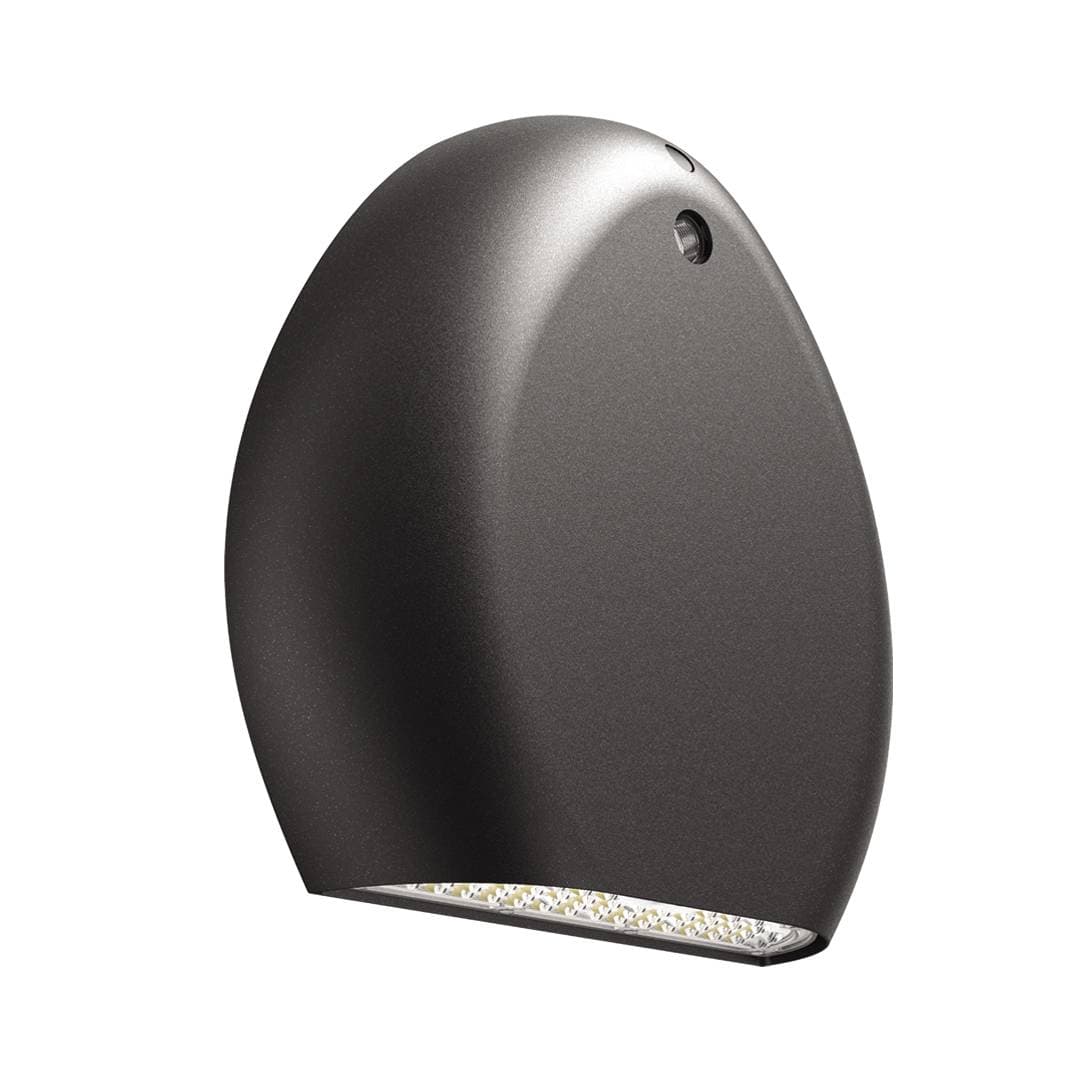

Arc Pro CSP image 5
Arc Pro CSP image 6
Arc Pro CSP image 7
Arc Pro CSP image 8
Arc Pro CSP - Size diagram
Collingwood Lighting

+44 (0) 1604 495 151

+44 (0) 1604 495 095

sales@collingwoodgroup.com


CUSTOMER SERVICE

Contact usFind a stockistPolicies

ABOUT US

Our historyOur newsInspired by Collingwood

PRODUCTS

IndoorOutdoorEmergencyAccessoriesFire-rated downlights

ADDITIONAL

CookiesPrivacy PolicyTerms and conditionsWarrantySitemap
CodeAdjustabilityBeam AngleBody MaterialCCT RangeColour / FinishCRIDimmable OptionEmergency OptionIP RatingLengthLumens RangeMounting TypeSensor OptionWattage RangeWidthDownloads
ARPB1NNot adjustable140Double Powder Coated ADC12 Aluminium Alloy2700K / 3000KBlack80On-OffOptionalIP66293 mm850-2000WallPhotocell6W / 8W / 10W / 12W / 15W97 mm
ARPB1NENot adjustable140Double Powder Coated ADC12 Aluminium Alloy2700K / 3000KBlack80On-OffManual-TestIP66293 mm850-2000WallPhotocell6W / 8W / 10W / 12W / 15W97 mm
