Ally 2 RDX

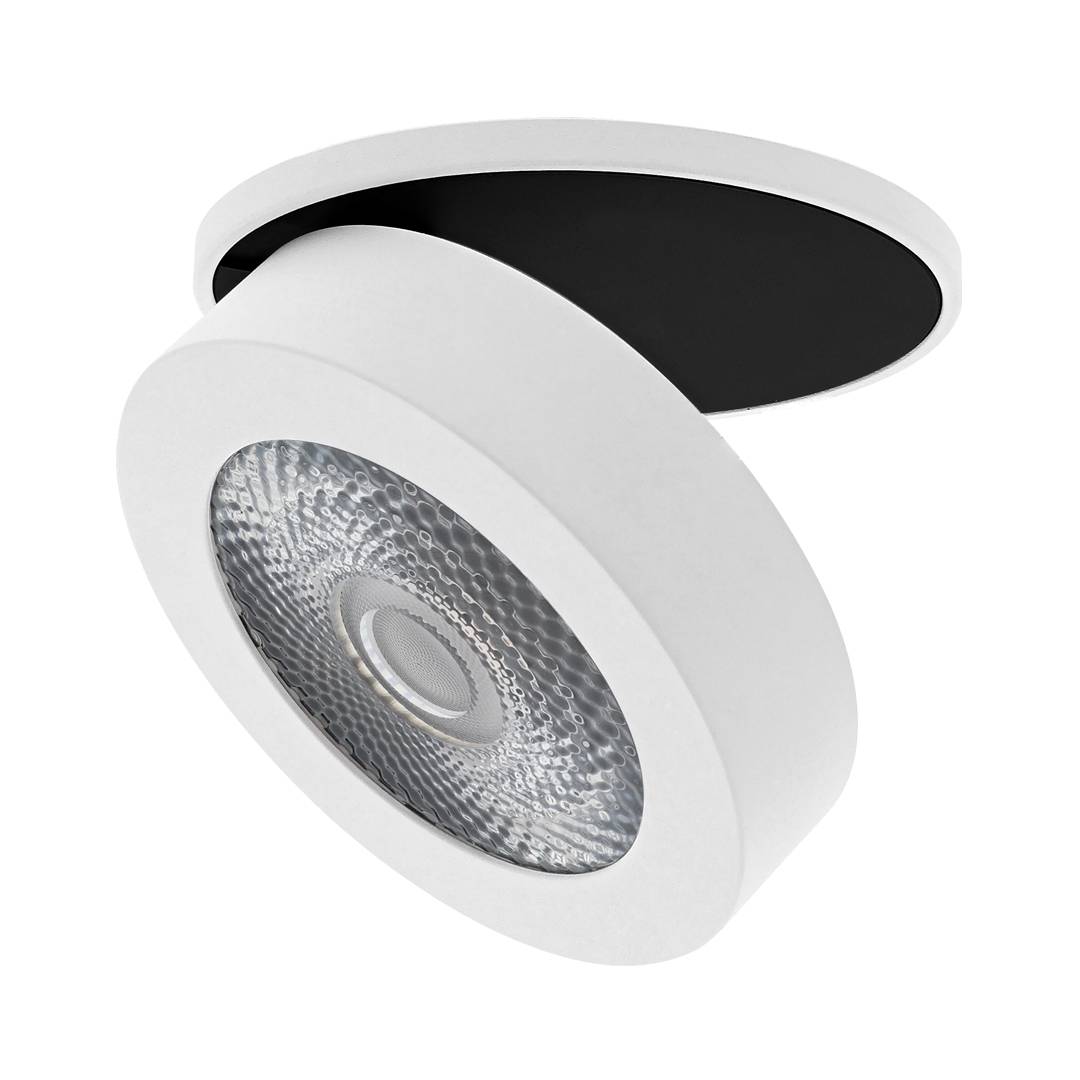

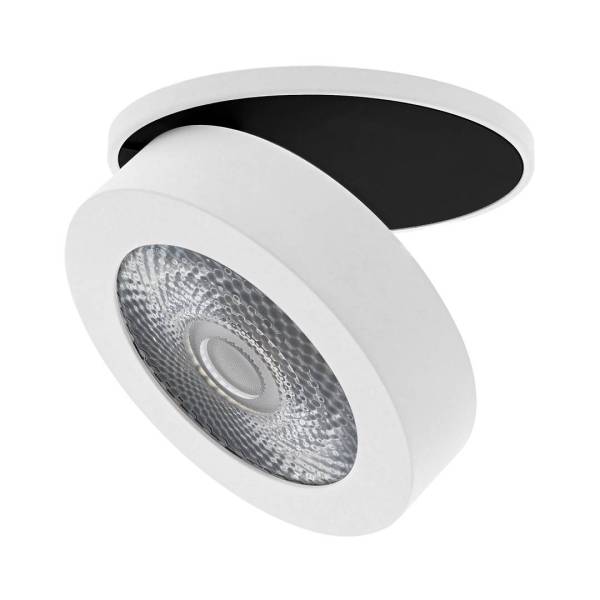

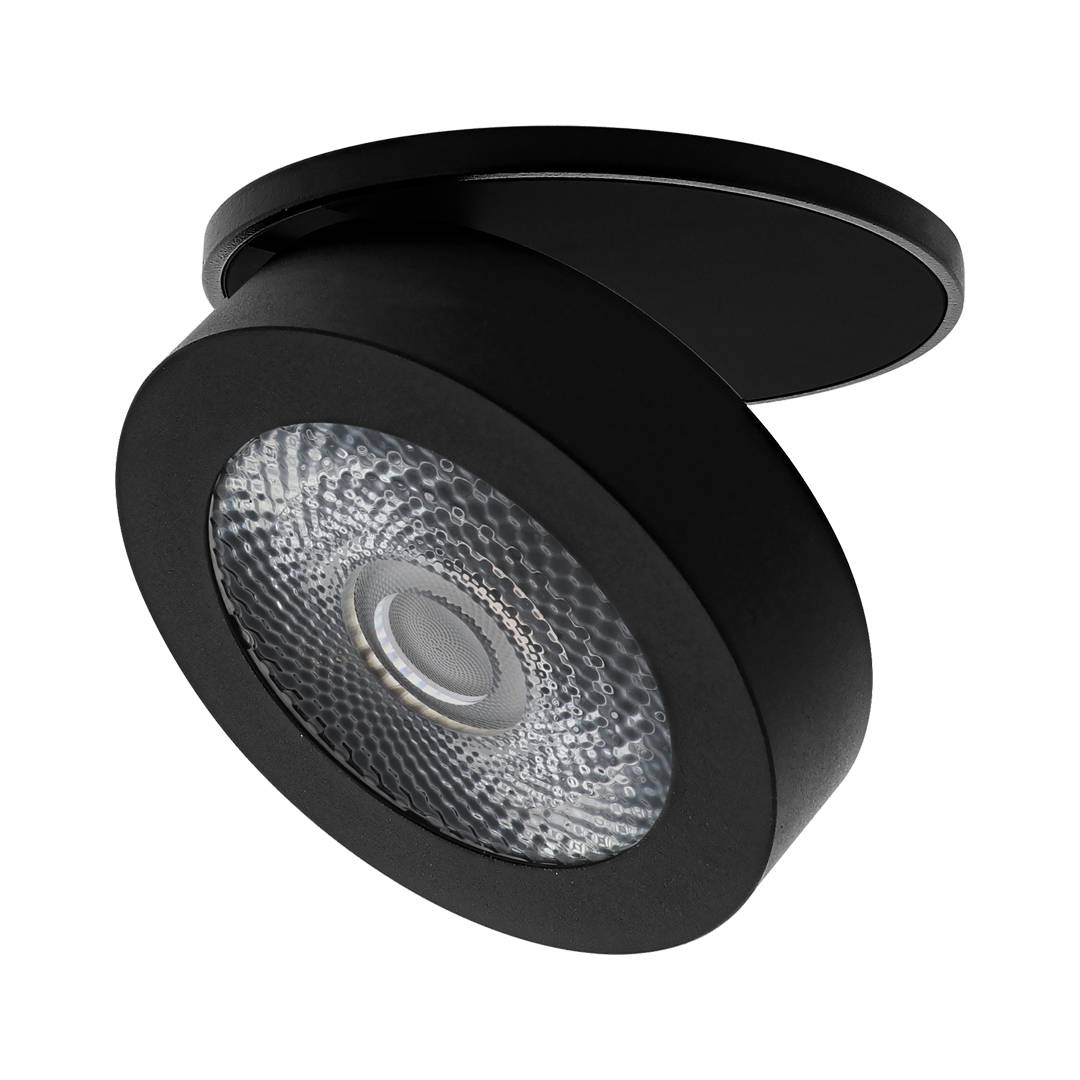

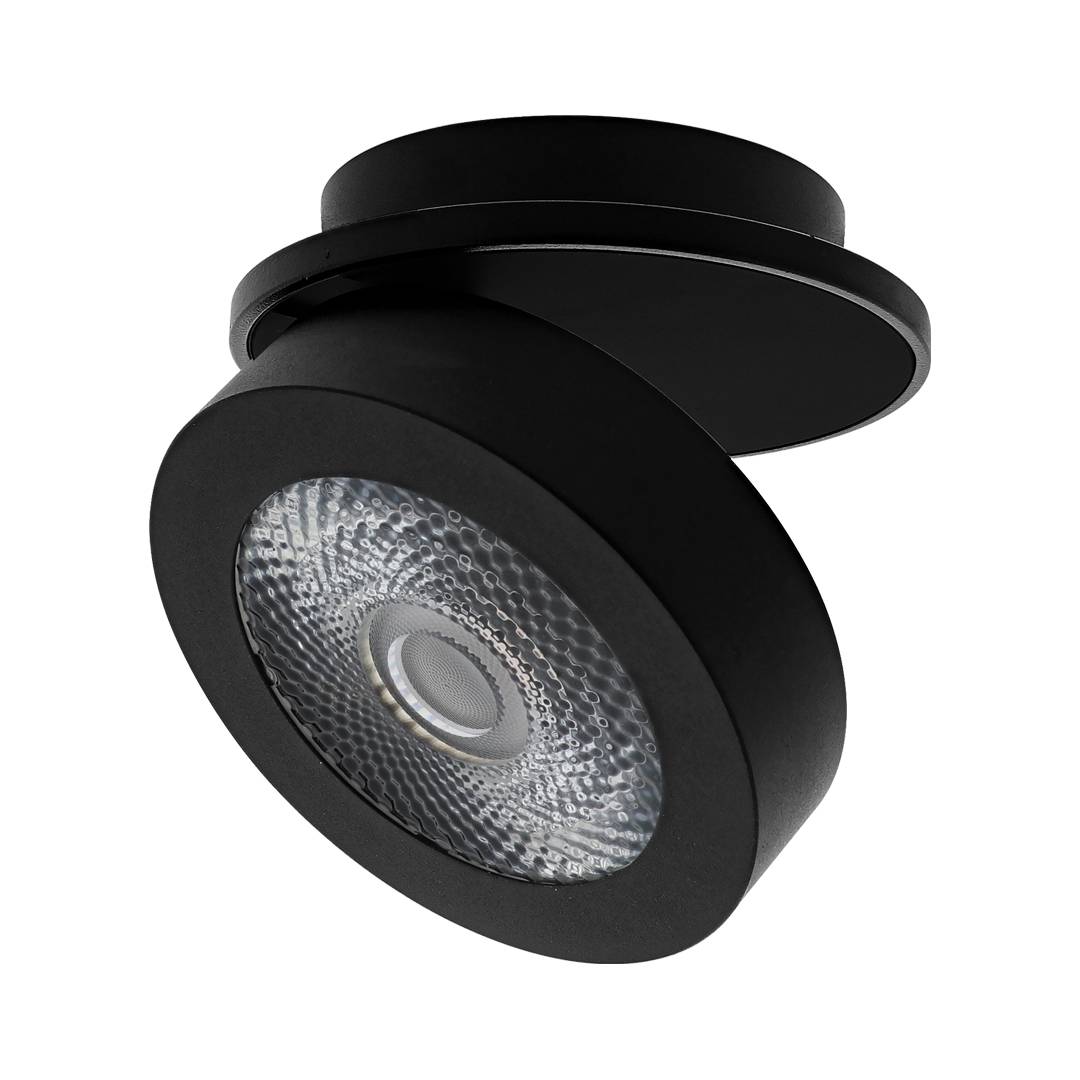

Adjustable round semi-recessed spotlight.
Fastened with springs.

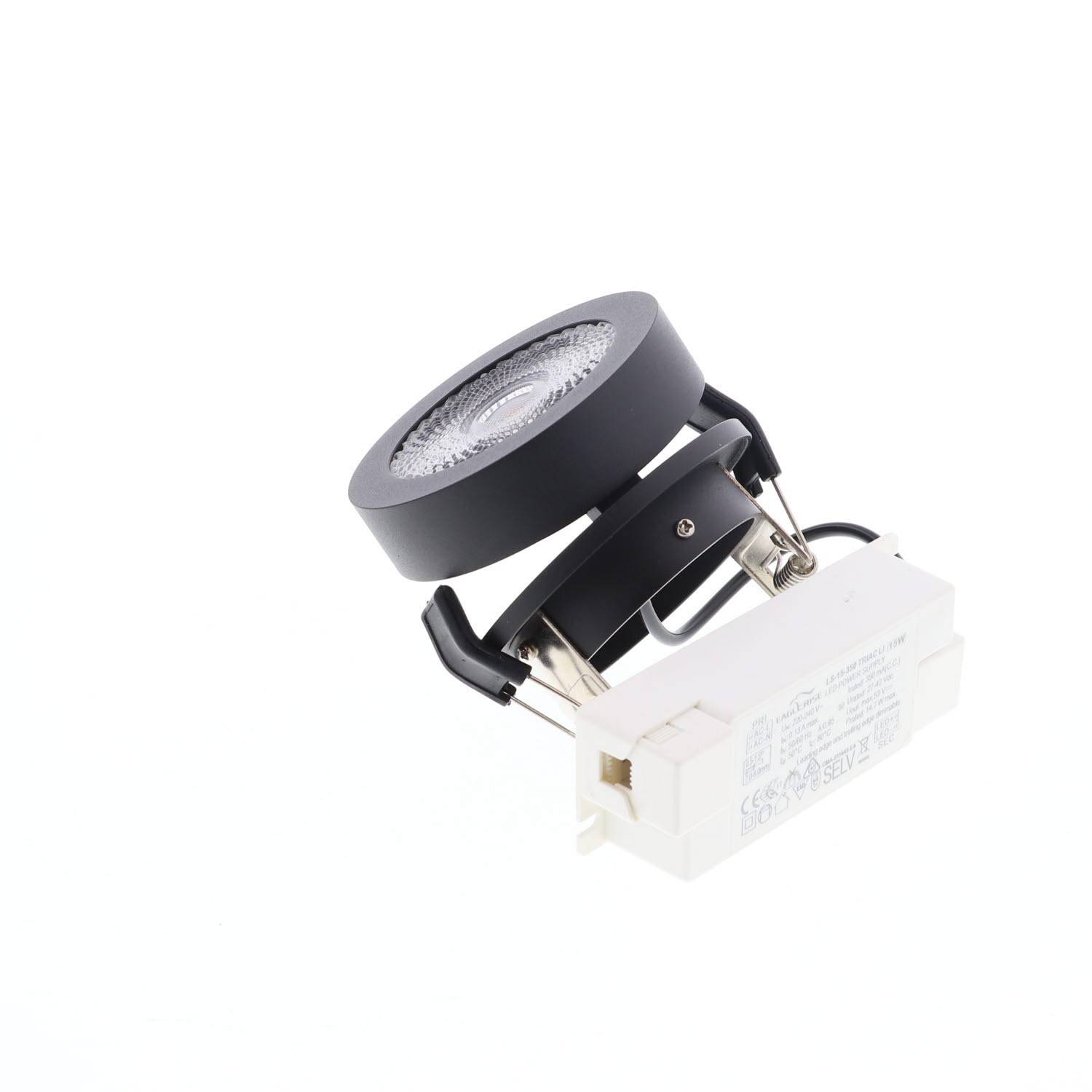

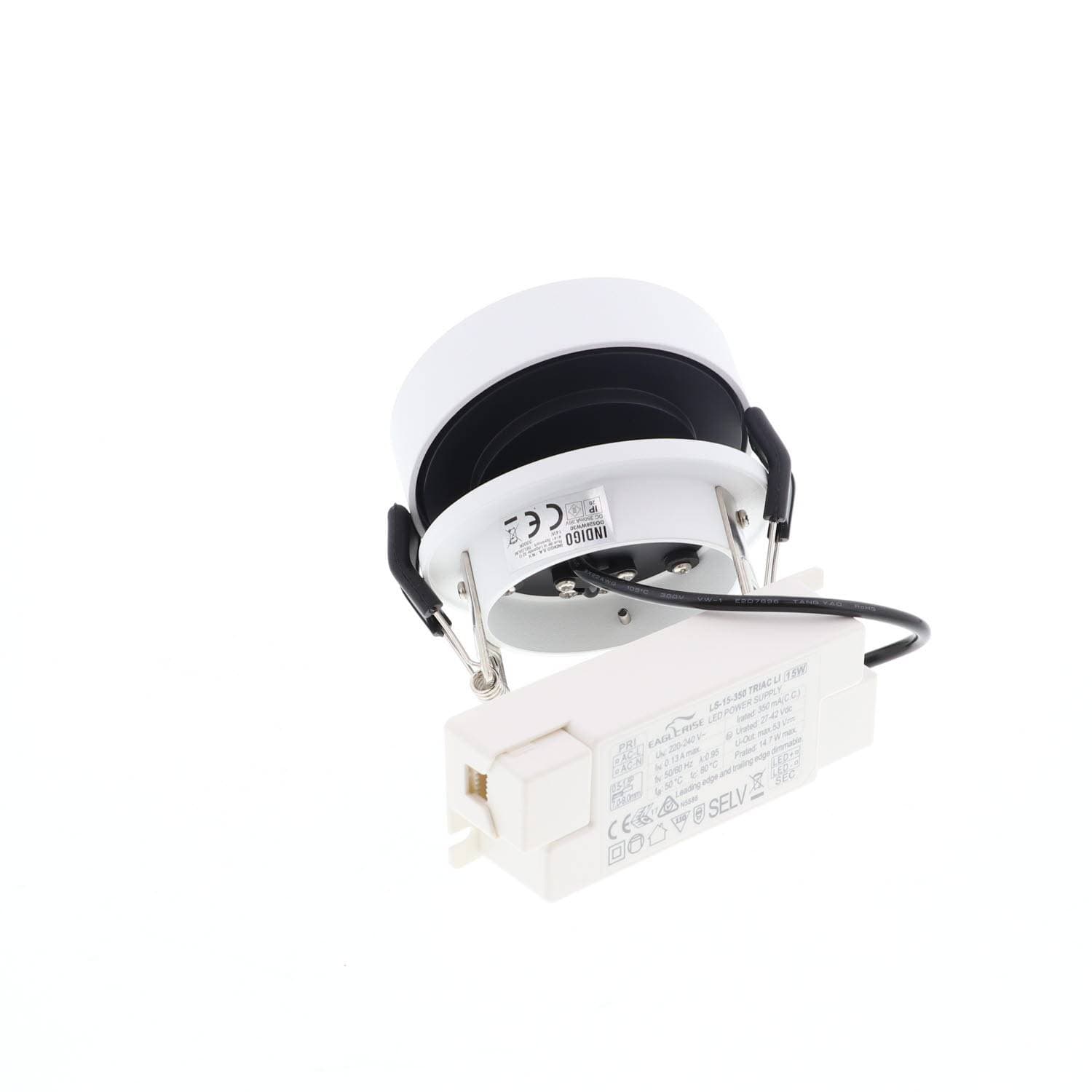

Remote dimmable converter supplied.
Compatible with start and end-of-phase dimmer.
As an option. DALI-PUSH CD140 dimmable converter to be ordered separately.

IP20 perfect for internal applications
DALI dimmable option available
CRI 80 providing true colour appearance
Recessed ceiling mounting only
Quick and easy installation with springs

Code	Adjustability	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Cut Out	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Reflector Finish	Sensor Option	UGR	Wattage Range	Width	Downloads
DO528WW05	Rotating and swivelling	38	Aluminium	3000K	Matt Black	90	80 mm	With start-of-phase & end-of-phase dimmer	None	IP20	93 mm	925	Semi-Recessed	Silver	None	19	14W	93 mm
DO528WW30	Rotating and swivelling	38	Aluminium	3000K	Matt White	90	80 mm	With start-of-phase & end-of-phase dimmer	None	IP20	93 mm	925	Semi-Recessed	Silver	None	19	14W	93 mm

Code	Adjustability	Beam Angle	Body Material	CCT Range	Colour / Finish	CRI	Cut Out	Dimmable Option	Emergency Option	IP Rating	Length	Lumens Range	Mounting Type	Reflector Finish	Sensor Option	UGR	Wattage Range	Width	Downloads
DO528WW05	Rotating and swivelling	38	Aluminium	3000K	Matt Black	90	80 mm	With start-of-phase & end-of-phase dimmer	None	IP20	93 mm	925	Semi-Recessed	Silver	None	19	14W	93 mm
DO528WW30	Rotating and swivelling	38	Aluminium	3000K	Matt White	90	80 mm	With start-of-phase & end-of-phase dimmer	None	IP20	93 mm	925	Semi-Recessed	Silver	None	19	14W	93 mm
